Help with break action/breach loading hinges

AndersG

New Member

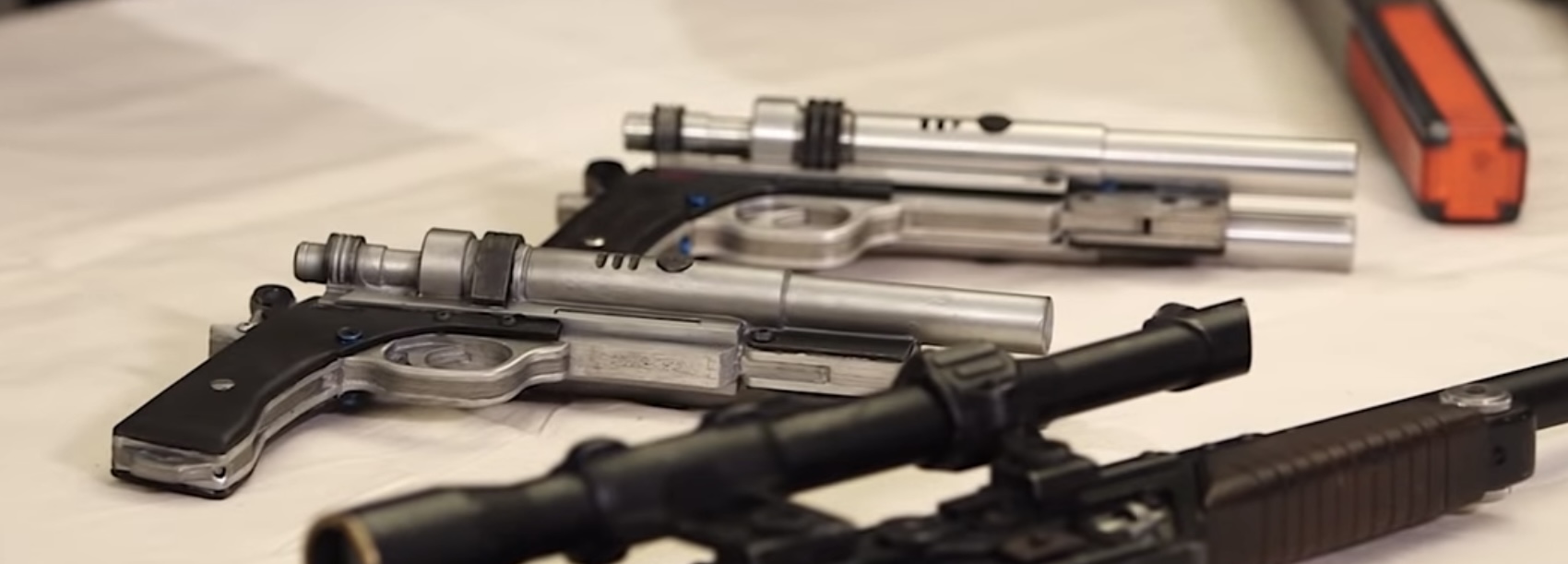

Hey guys! I'm working on a custom blaster and I am a bit stuck on making a clean break action. I am particularly in love with the sliding forward to hinged mechanism on qi'ra's blaster here
. I know I can use a small bearing slide track for the forward motion but does anyone know how to recreate the hinging motion with that, or what a combo sliding to hinge track would be called?

You can see the back of the mechanism here for a brief sec



Watching the video it pivots on the first pin only. It’s just a simple arm that pulls forward and the once the barrel slides out it allows it to pivot down.

By the way it is being held it’s just a friction fit


Attachments

  • IMG_7630.jpeg
    153.6 KB · Views: 71
Last edited:
