Han Solo ANH DL-44 SCOPE: All Hensoldts and Variations POST YOURS TOO

[RobertsWookiee]

I know. lol



[RobertsWookiee]

Not sure if this is legit, but these look pretty accurate and not too bad of a price...

http://www.toddscostumes.com/costum...s-supplies/han-solo-dl-44-blaster-prop-scope/



[scottjua]

It's legit, I lent Todd one of mine to get dimensions.



[rogerrabt]

I have a question on the elevation knob. On the real scope, does it click into place as you move it from number to number, or is it friction and are the numbers there just for reference?

Thanks!



[OdiWan72]

I have a question on the elevation knob. On the real scope, does it click into place as you move it from number to number, or is it friction and are the numbers there just for reference?

Thanks!

just friction/ reference



[Ramphastid]

Here are a few of mine before I sell one of the 3x off.


The top scope is a 3x that needs to be refinished, a mount, and a focusing ring.





The middle one (the one I'm planning on selling) is a rare 3x variant with a different focusing ring, no knurling on the top part of the knob, and a screw to lock the windage in place.
This one is in fantastic shape.

Here's an image of it on my old scope mount. Notice how bent up the mount is from firing the gun. We had to remove the focusing ring and put a small set screw in it to hold it in place.









The one on my Mauser is a 2 3/4x, also in amazing shape.





It's amazing how different each one is! Anyways, hopefully this helps everyone out.



[JaxAndTheMoon]

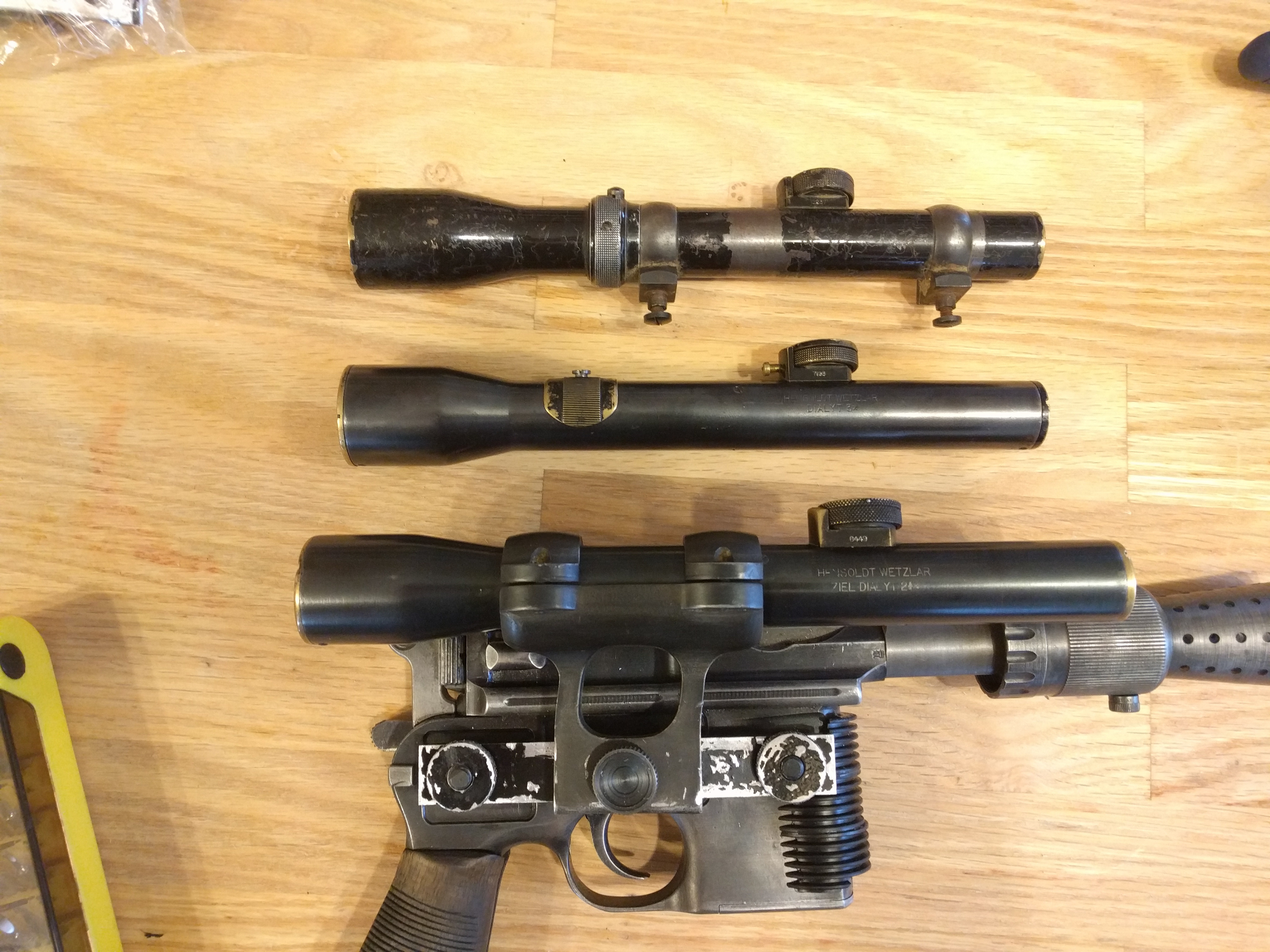

Here are a few of mine before I sell one of the 3x off.
View attachment 597332

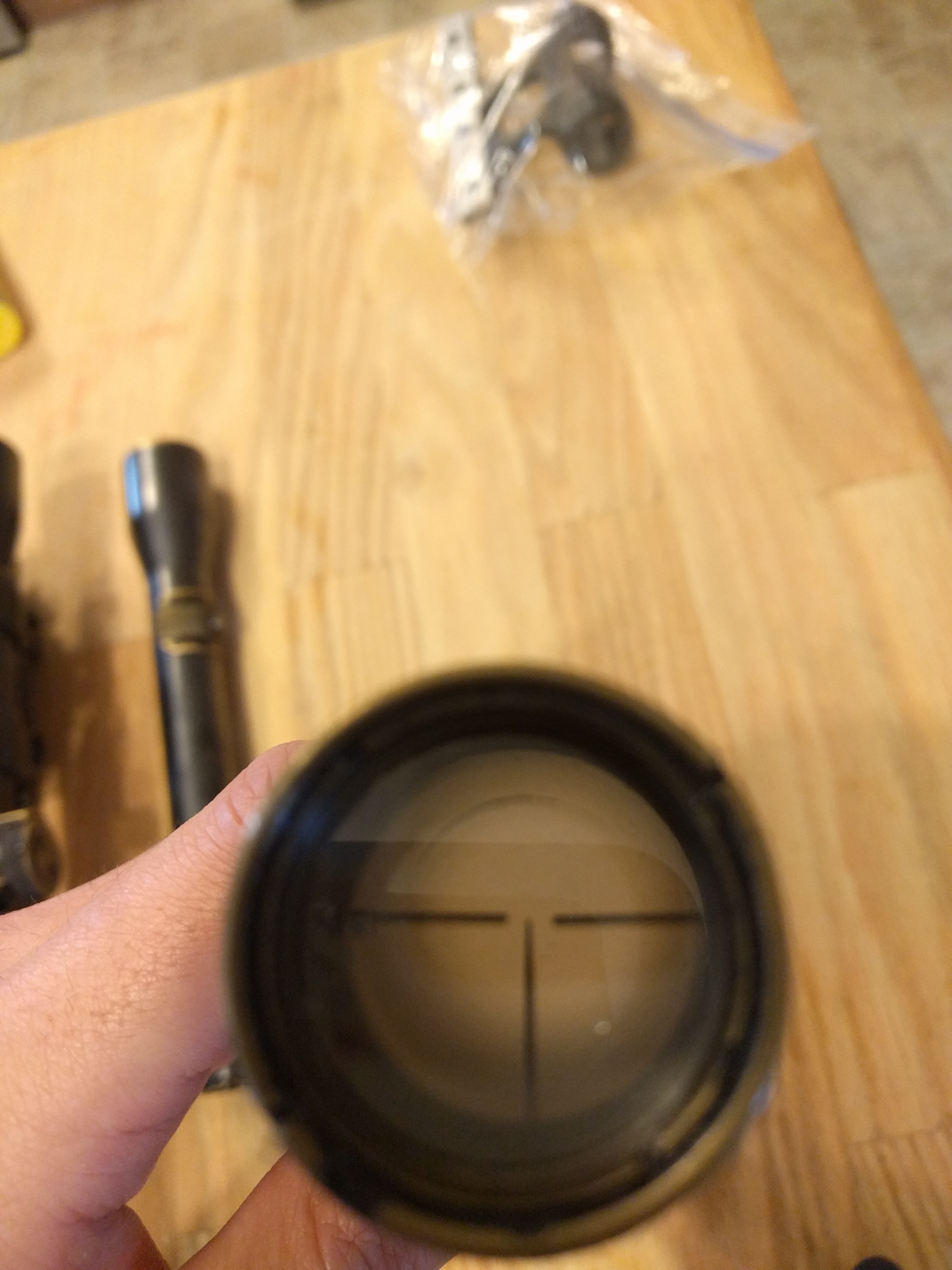

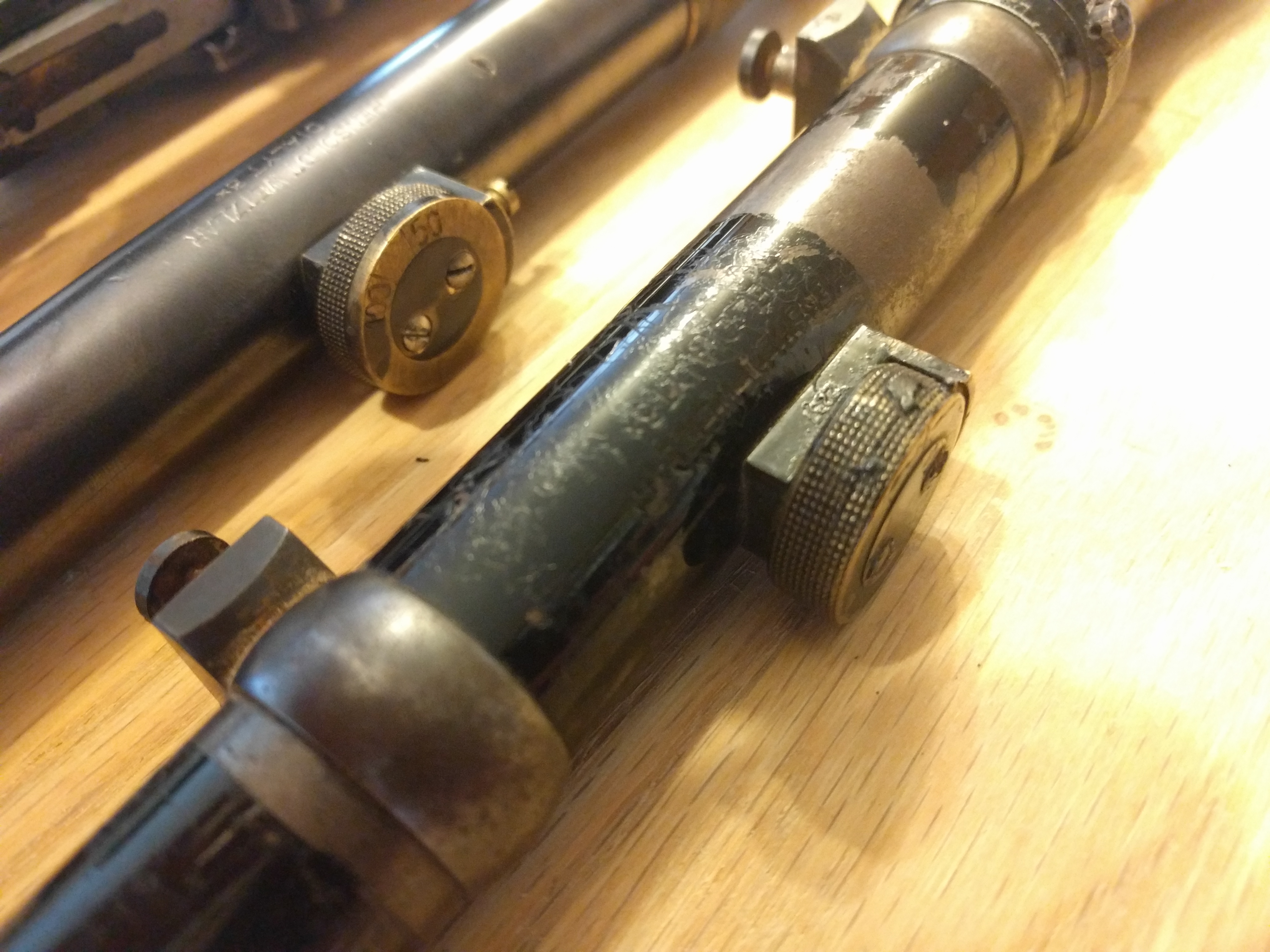

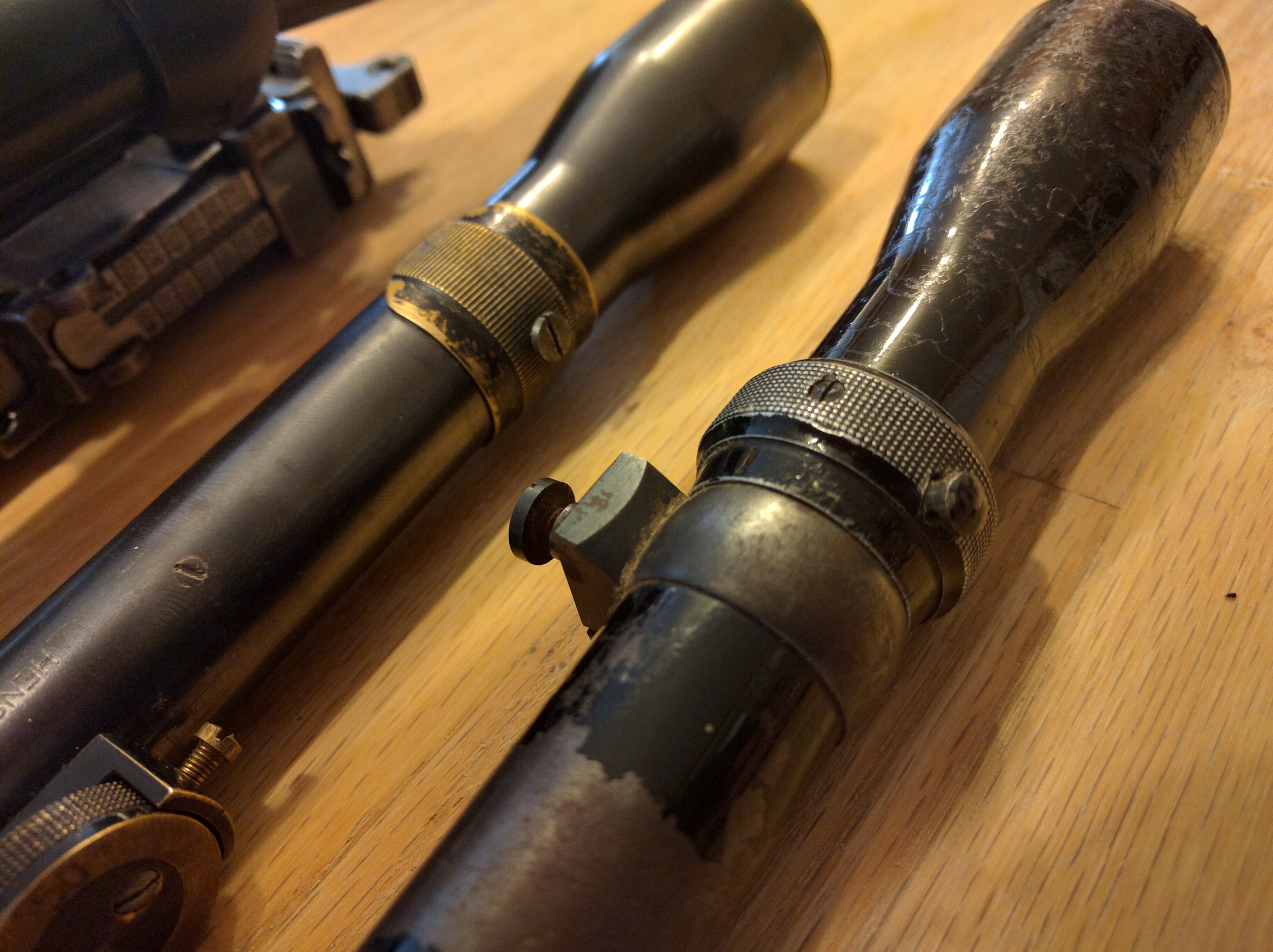

The top scope is a 3x that needs to be refinished, a mount, and a focusing ring.

View attachment 597333
View attachment 597334
View attachment 597335

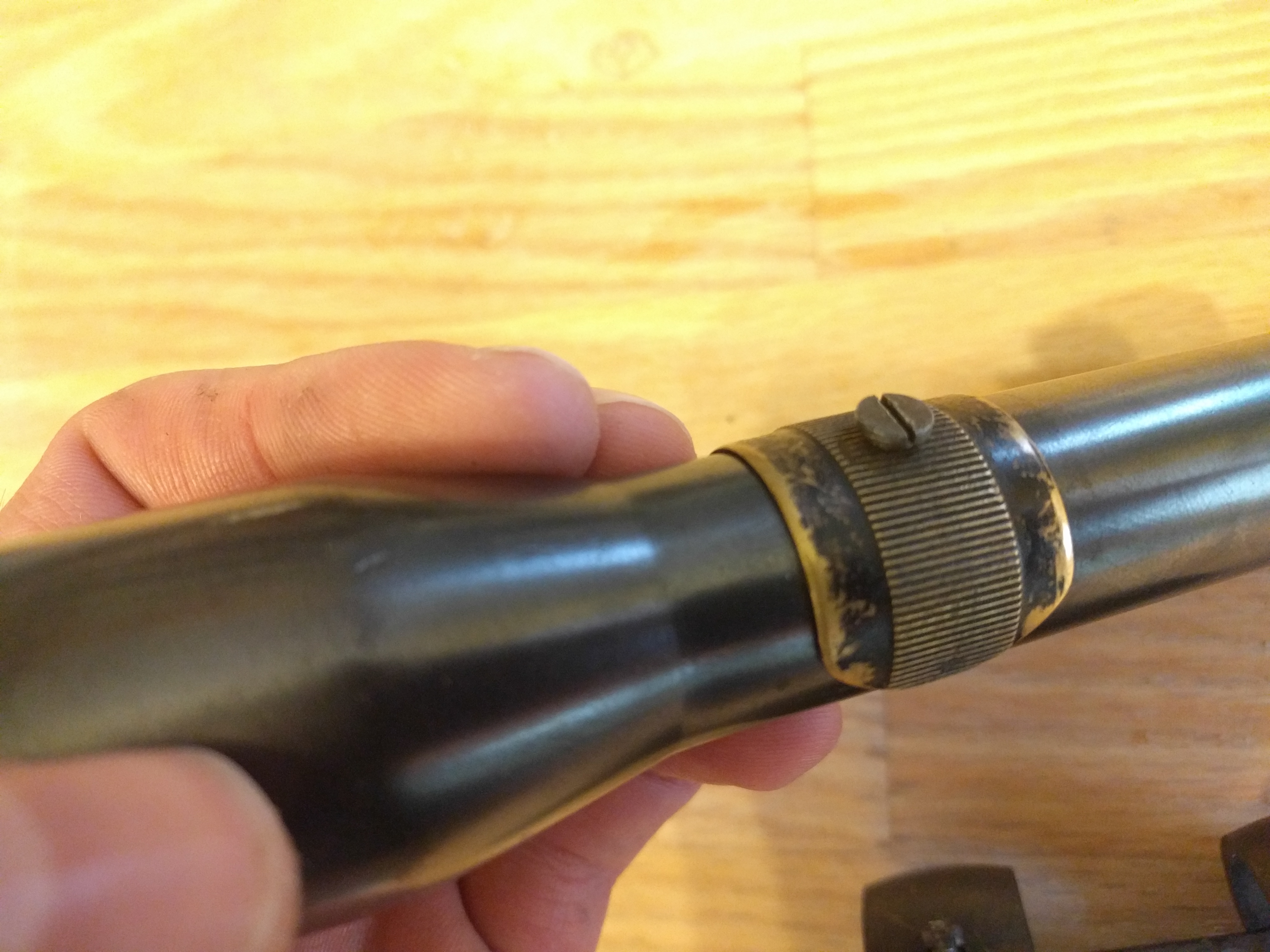

The middle one (the one I'm planning on selling) is a rare 3x variant with a different focusing ring, no knurling on the top part of the knob, and a screw to lock the windage in place.
This one is in fantastic shape.
View attachment 597336

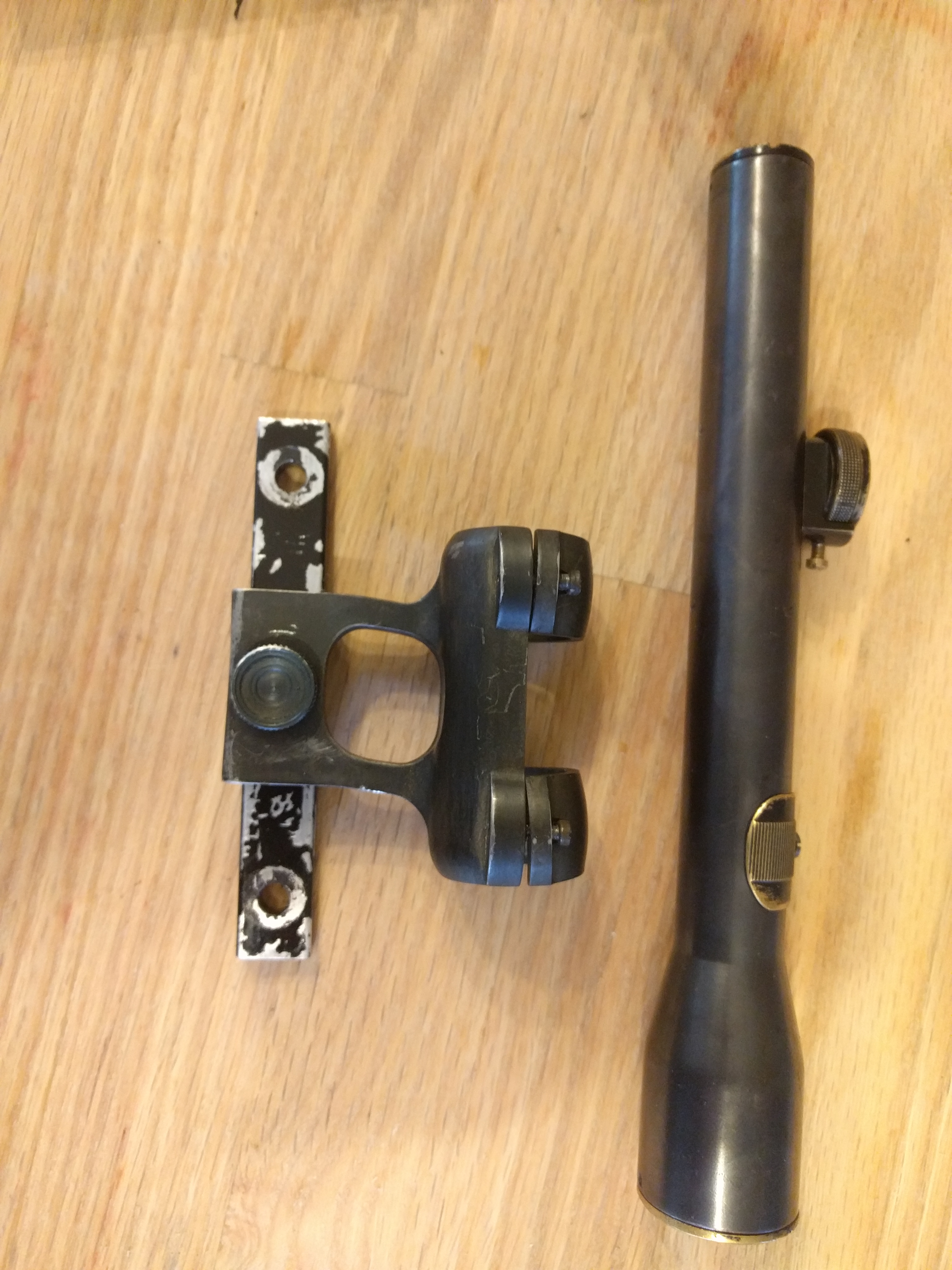

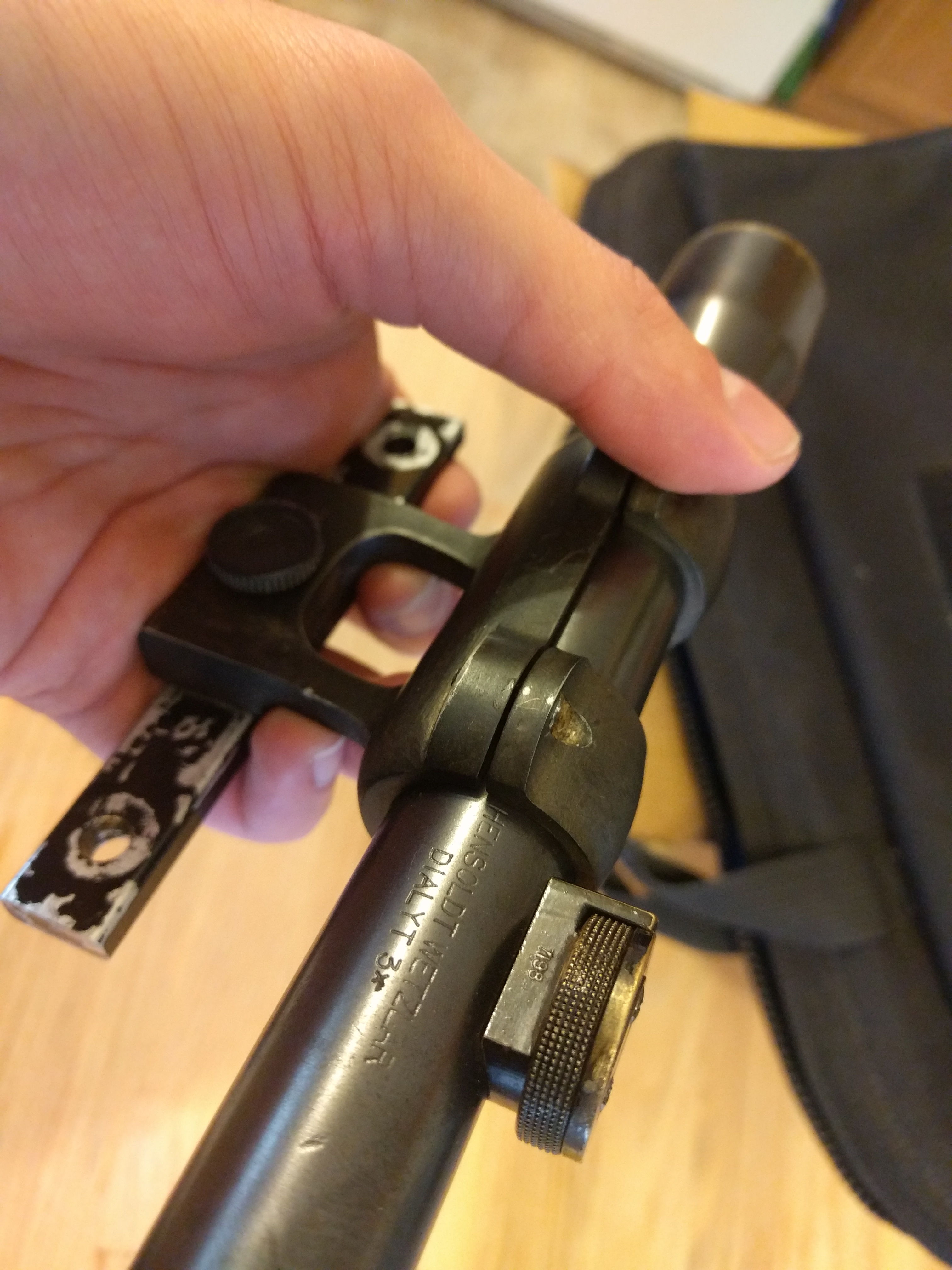

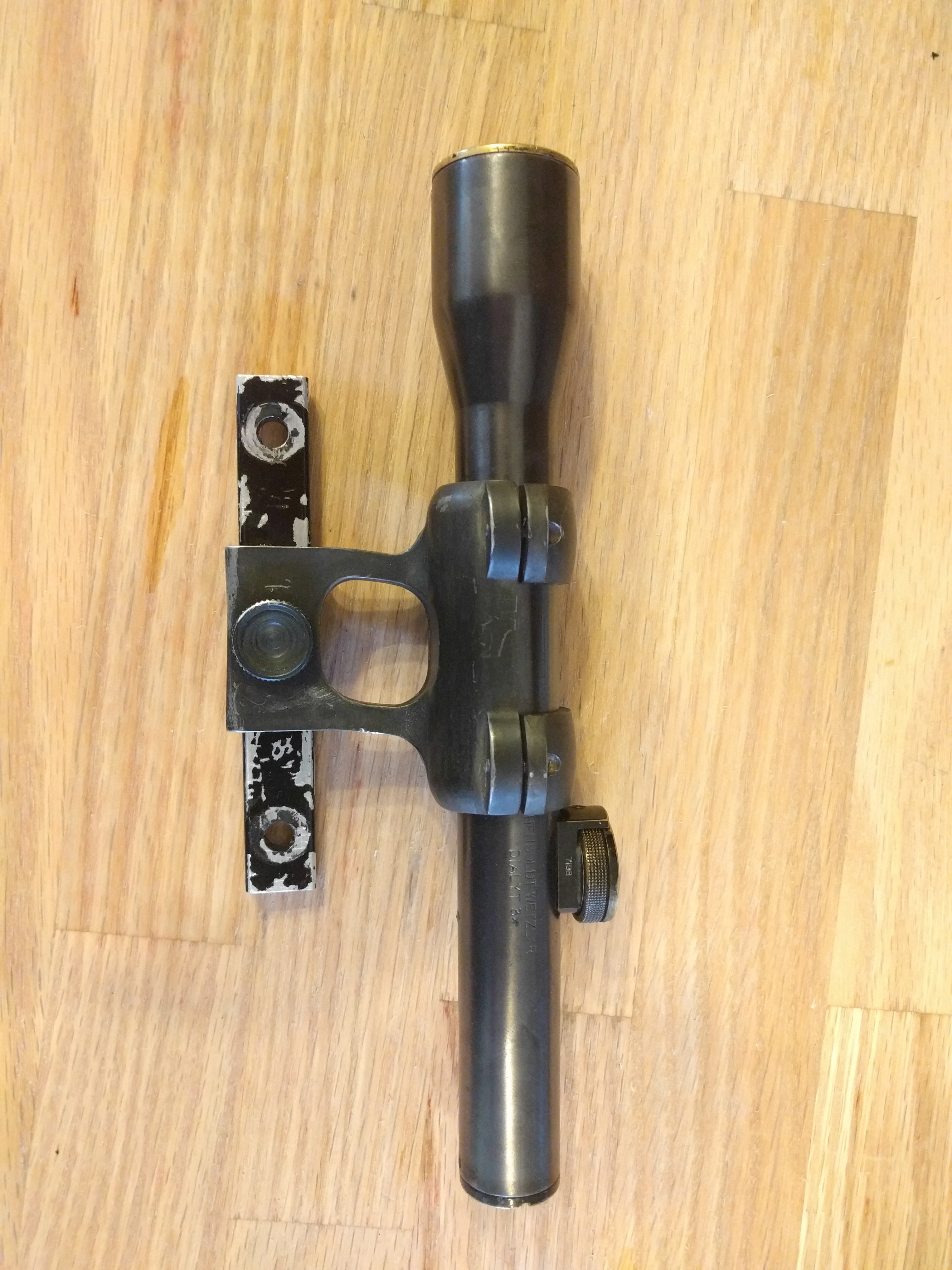

Here's an image of it on my old scope mount. Notice how bent up the mount is from firing the gun. We had to remove the focusing ring and put a small set screw in it to hold it in place.

View attachment 597337
View attachment 597338
View attachment 597339
View attachment 597340
View attachment 597341

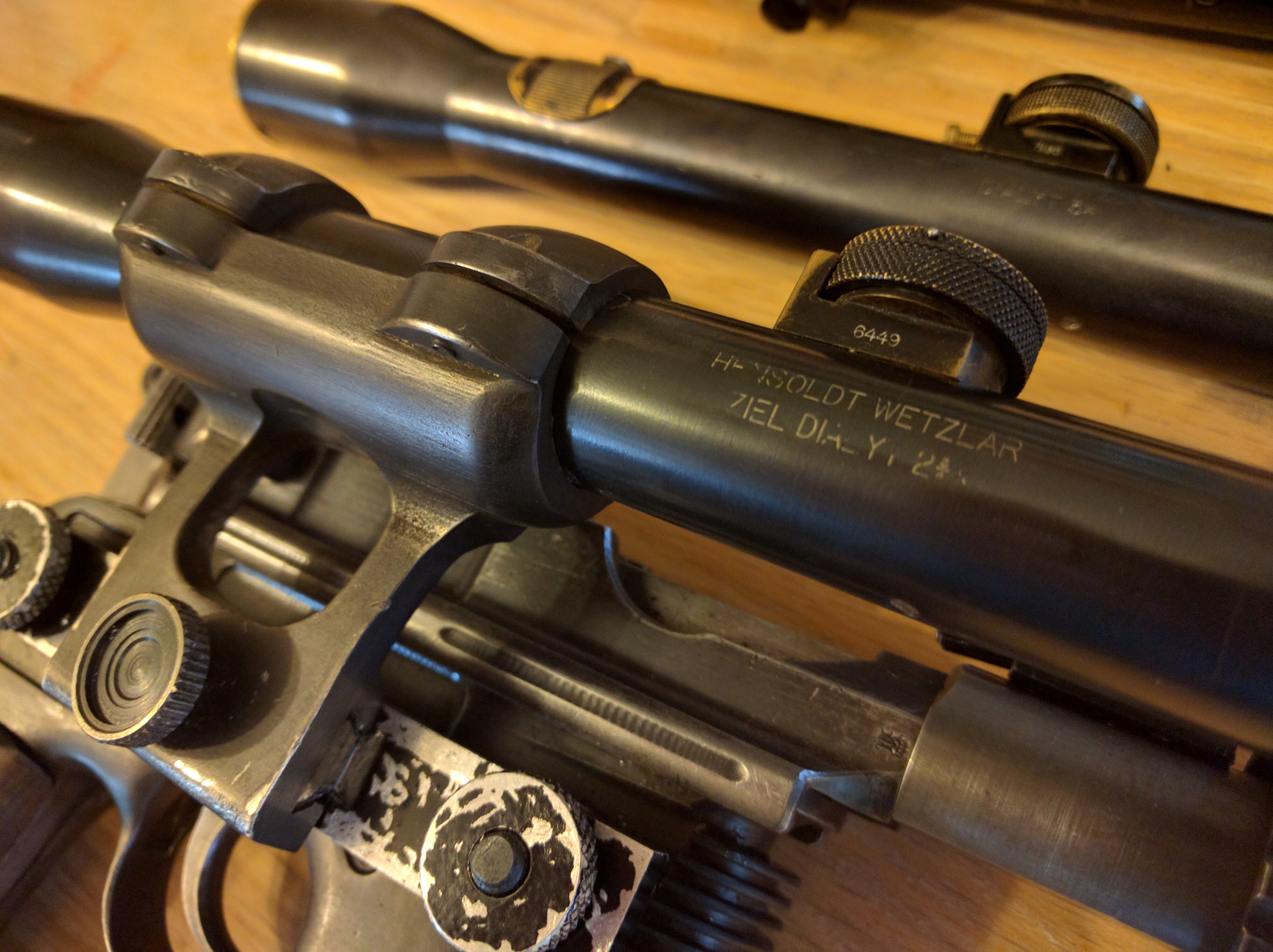

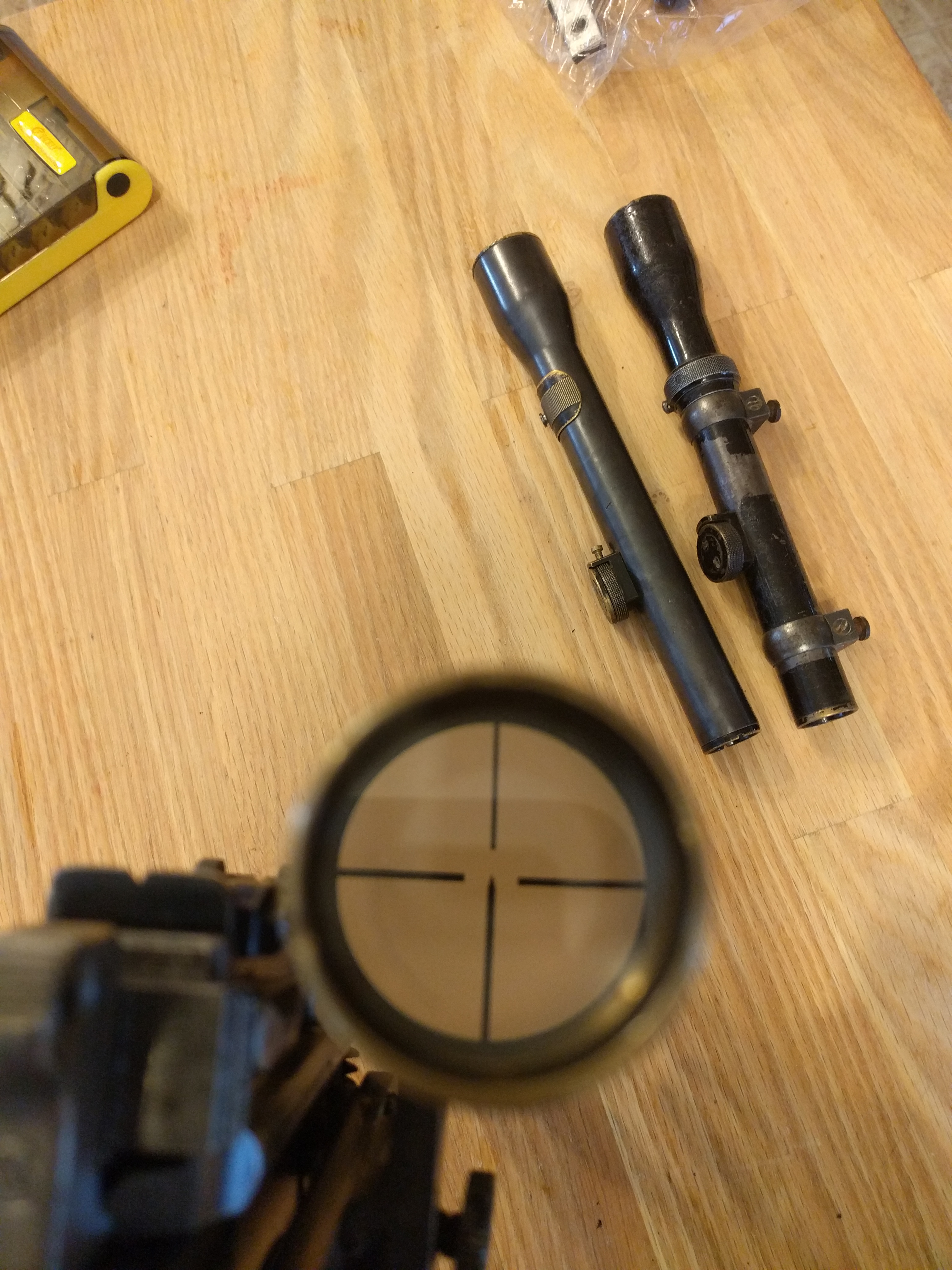

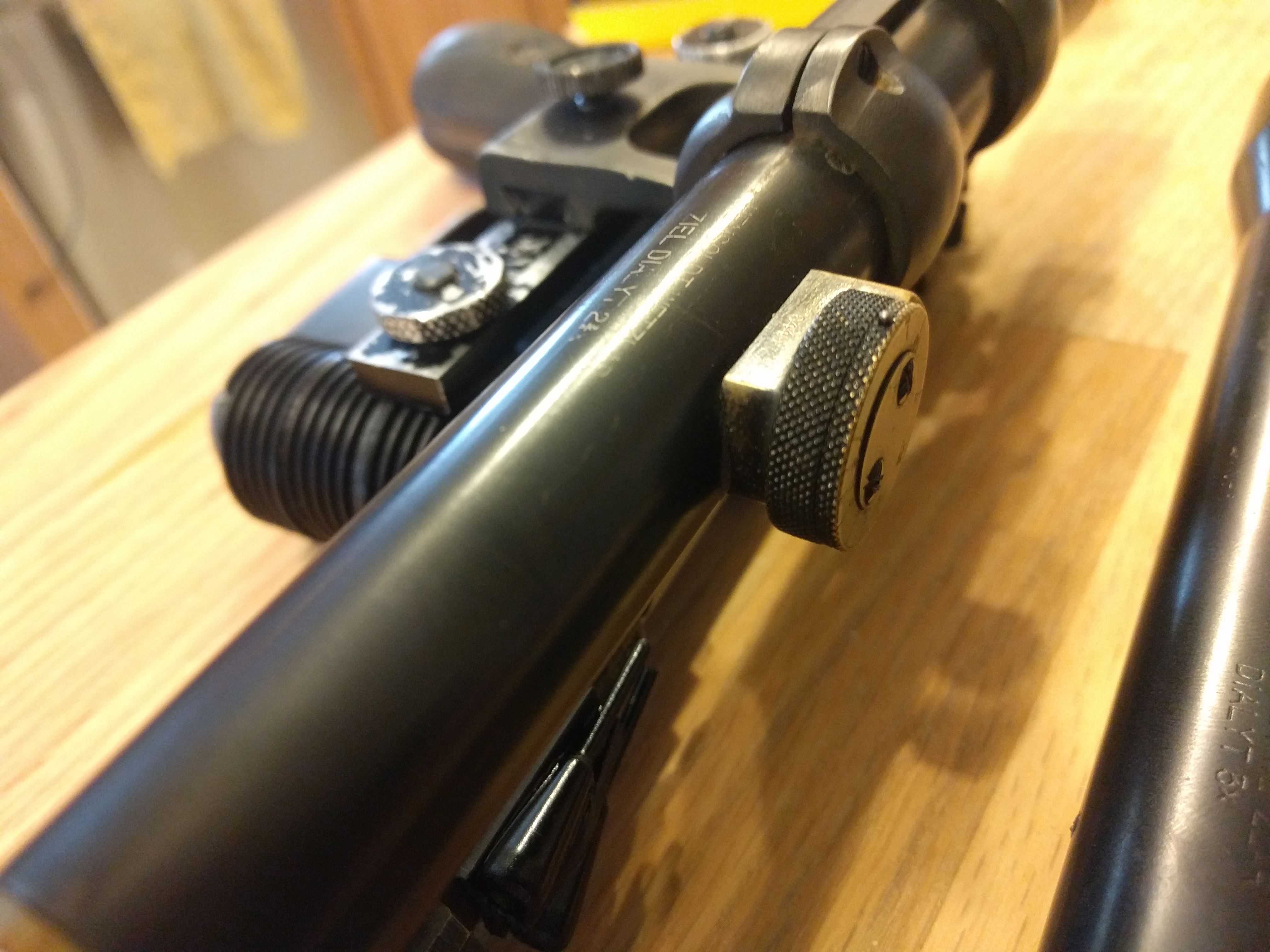

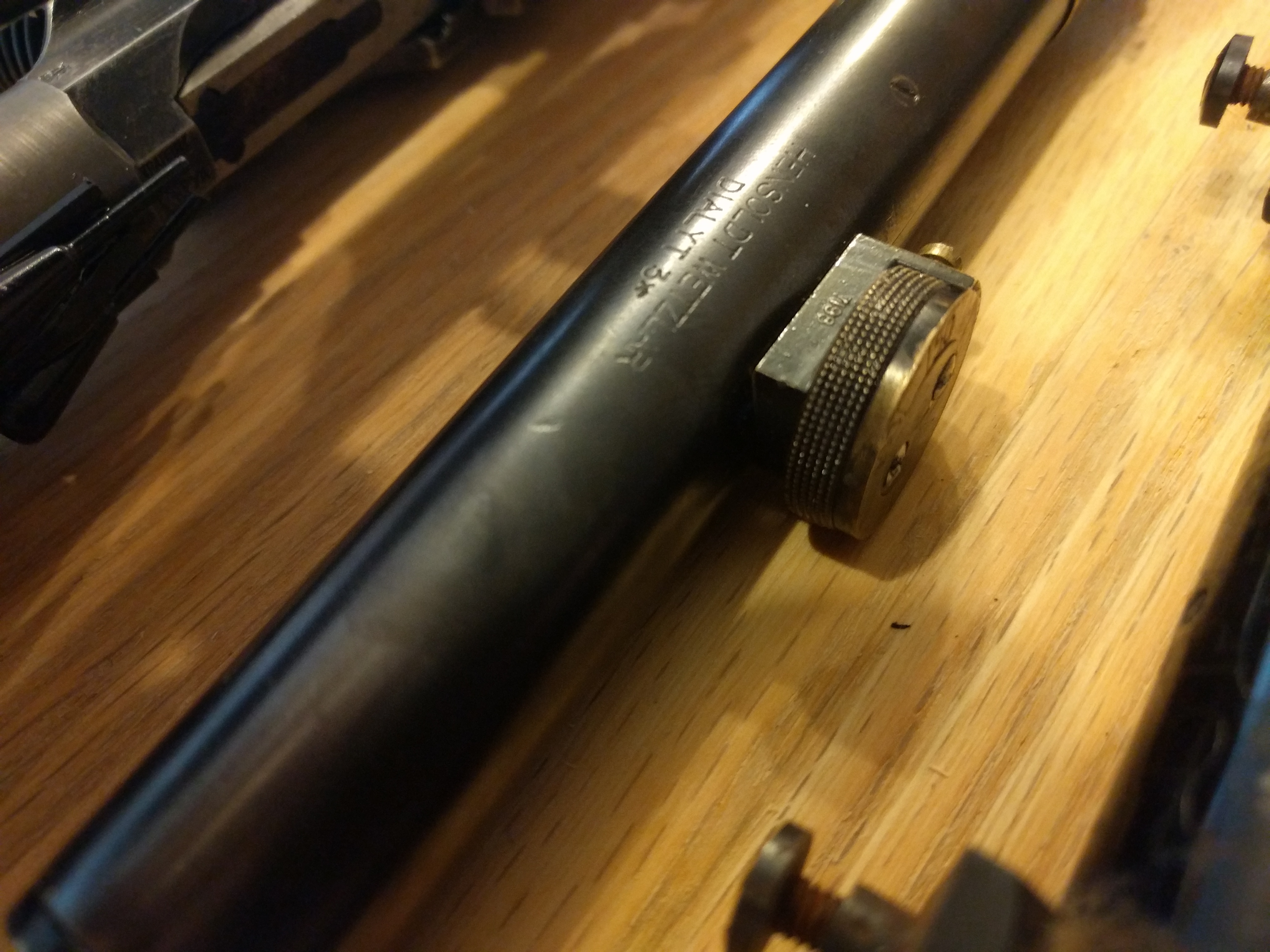

The one on my Mauser is a 2 3/4x, also in amazing shape.
View attachment 597343
View attachment 597344
View attachment 597345

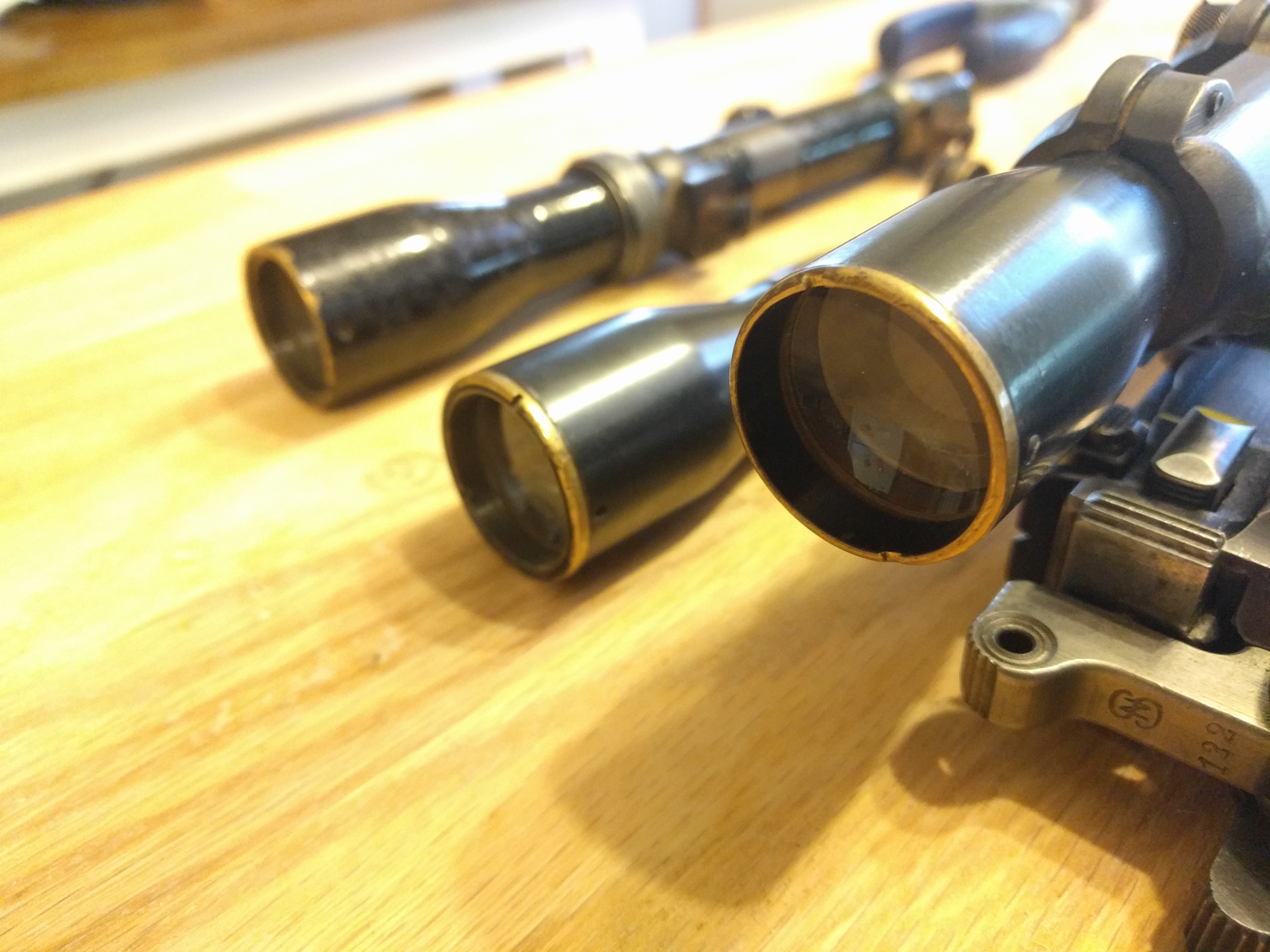

It's amazing how different each one is! Anyways, hopefully this helps everyone out.

View attachment 597347

Those are beautiful. I have a Weaver, it's close, but not perfect!



[OdiWan72]

The Ninja



[scottjua]

thought I should bump this



[OdiWan72]

Here´s the info I posted in my own thread from many many years ago...

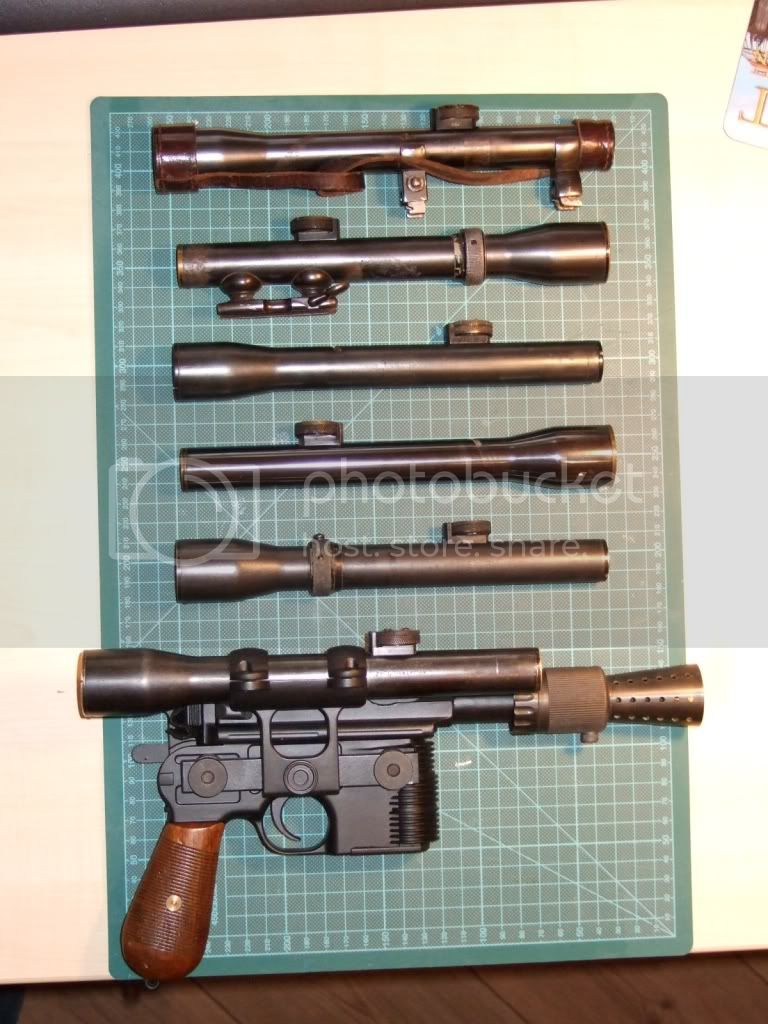

Top to bottom:

Hensoldt Wetzlar Dialyth 3x
Number: 6188
Windage knob:
Upper part w/o knurling, but numbers 1-10 on top.
Lower part with straight knurling.
Rear adjustment ring: No.

Hensoldt Wetzlar Ziel Dialyth 3x
Number: 13635
Windage knob:
Upper and lower part with straight knurling, no numbers on top.
Rear adjustment ring: Yes.

Hensoldt Wetzlar Dialyth 2 1/2x
Number: -
Windage knob:
REPRO L-base and windage knob, diamond knurling, no numbers.
Rear adjustment ring: Yes (removed).

Hensoldt Wetzlar Ziel Dialyth 3x (near mint!)
Number: 7232
Windage knob:
Upper/ lower part with diamond knurling, no numbers on top.
Rear adjustment ring: Yes (removed).

Hensoldt Wetzlar Ziel Dialyth 3x
Number: 10456
Windage knob:
Upper/ lower part with diamond knurling, no numbers on top.
Rear adjustment ring: Yes.

...and finally my holy grail, an accurate Han ANH blaster scope!!!
Featured on a MR EE with replaced muzzle.

Hensoldt Wetzlar Ziel Dialyth 3x
Number: 9929
Windage knob:
Upper/ lower part with diamond knurling, numbers 1-10 on top.
Rear adjustment ring: No.

Had about 5-10 more over the years, but did not document them :/



[Halliwax]

Wicked great thread! Blast from the past



[redbutton]

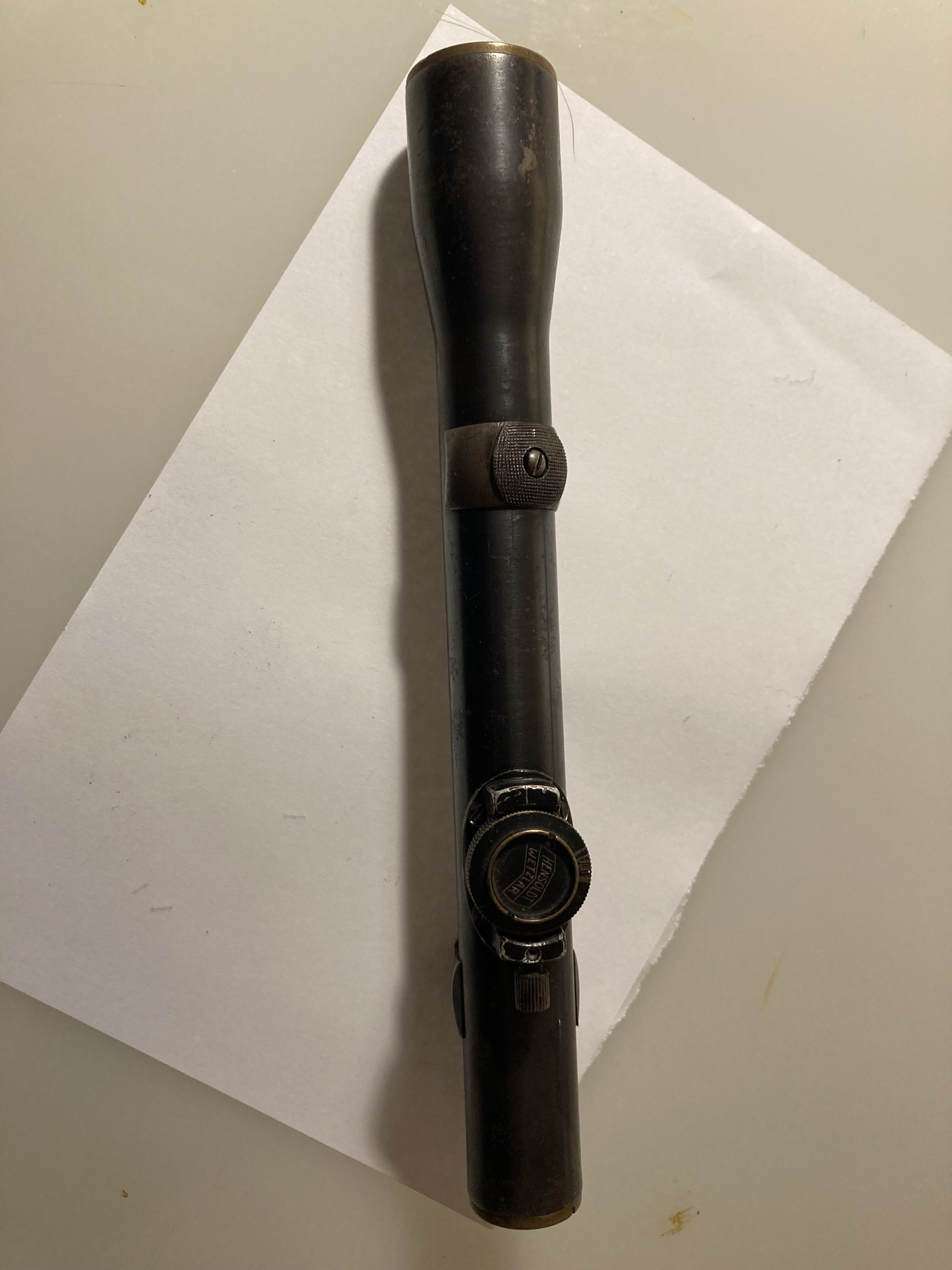

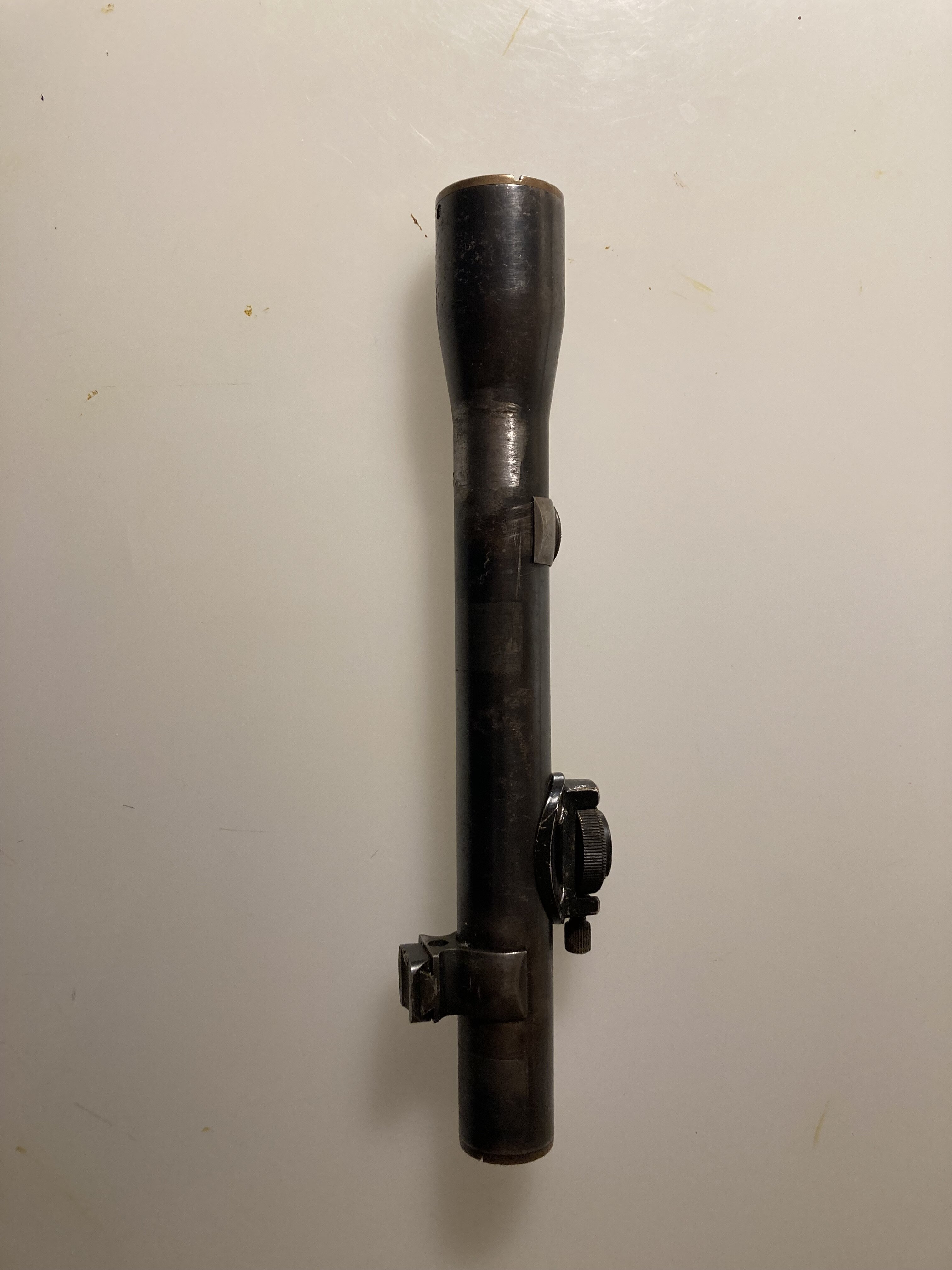

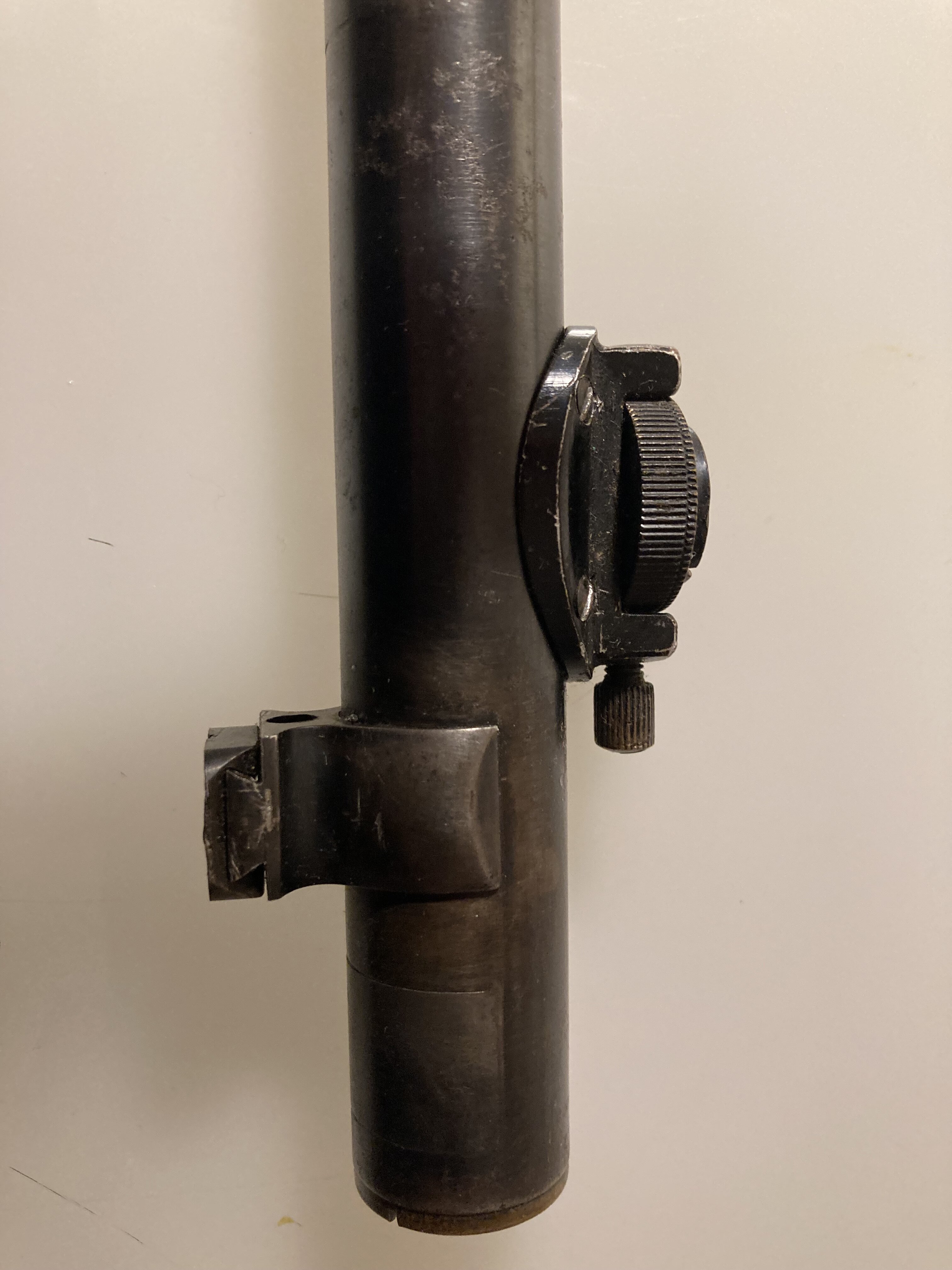

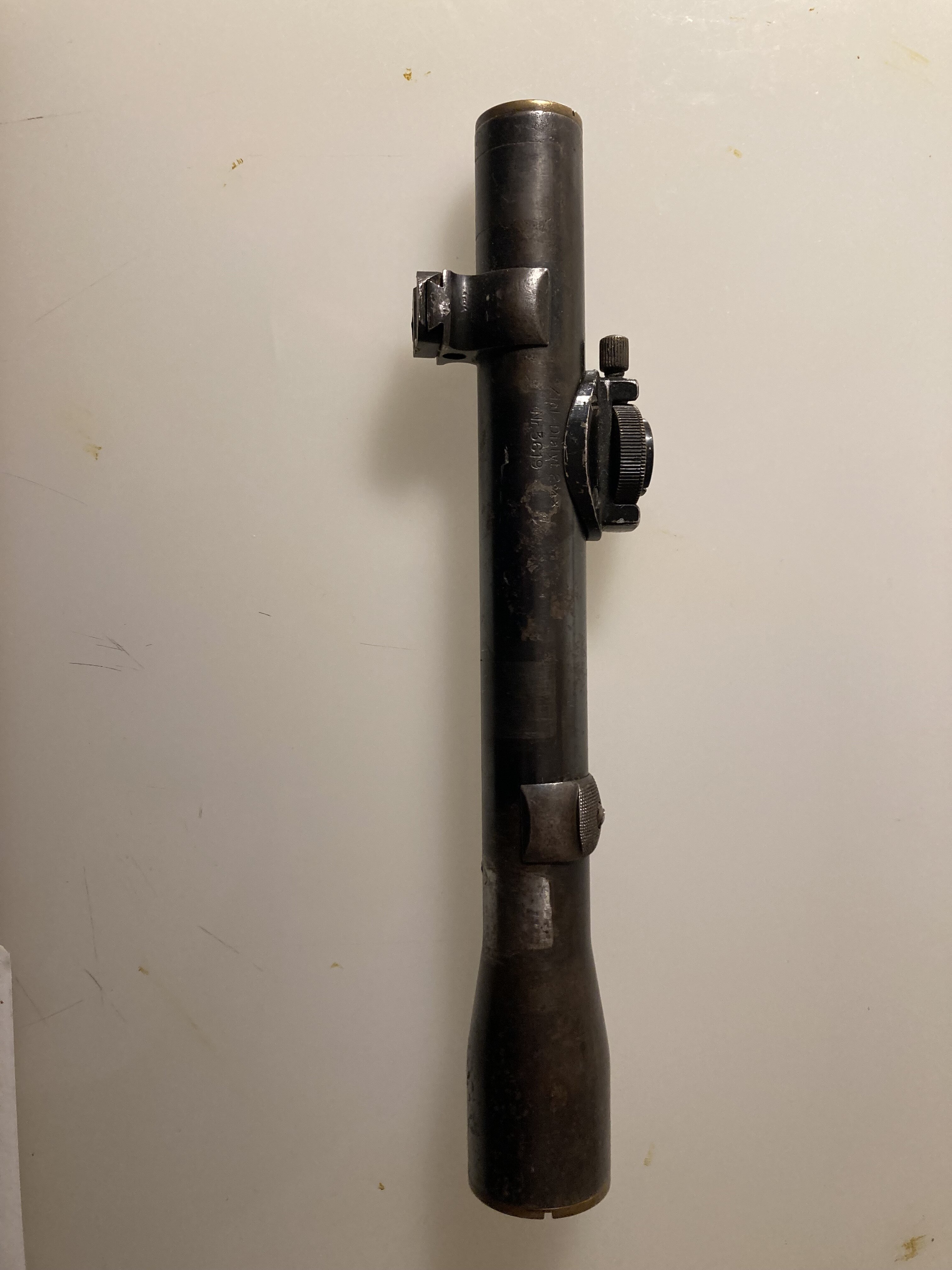

Here's my Hensoldt 2 3/4 I picked up about 3 years ago. I'm not sure how th get the claw bracket off...Can I boil it or heat it up with a sobering iron?
