Flux Capacitor build. Now finished!

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


propmainiac

Sr Member
RPF PREMIUM MEMBER
Thanks for the likes guys.....was a struggle but the box is painted and latches are in place...just need the plexi and all good


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

propmainiac

Sr Member
RPF PREMIUM MEMBER
Hi all....so I'm still having trouble with my lights and I'm looking for some help here...I'm using fairy lights that I purchased from Amazon. The have a remote which the main reason I bought them....they work well..except for the remote part that is. Works great outside the capacitor enclosure. Not inside...the remote signal is too weak. I've tried changing batteries in the lights and the remote..I have switched light sets and same deal. I have rewired the circuit board so that it is hidden in the elbow at the top but still no go. The electronic board is mounted behind the elbow at the top but I don't like it. My whole reason for using these lights was the remote. My last resort is to take the sensor off the board and relocate it outside the box . It's small and may not be seen too easily. There is a push button switch on the board that I could use if I drill a small hole under the box . It wouldn't be seen. Any thoughts or ideas?


13doctorwho

Sr Member
RPF PREMIUM MEMBER
Looked up those kind of lights. It says on Amazon "It's better to align the remote at the signal receiver in the battery box to control the lights. The longest distance to control is 66ft/20m without any obstacle.". Are they infared like a TV remote, or RF like an Xbox? It makes a huge difference.


propmainiac

Sr Member
RPF PREMIUM MEMBER
Here's my progress so far.

Took the remote sensor off the board and placed it above the pvc pipe sprayed silver.


Attachments

  • VID_20210317_205718.mp4
    82.3 MB · Views: 1

propmainiac

Sr Member
RPF PREMIUM MEMBER

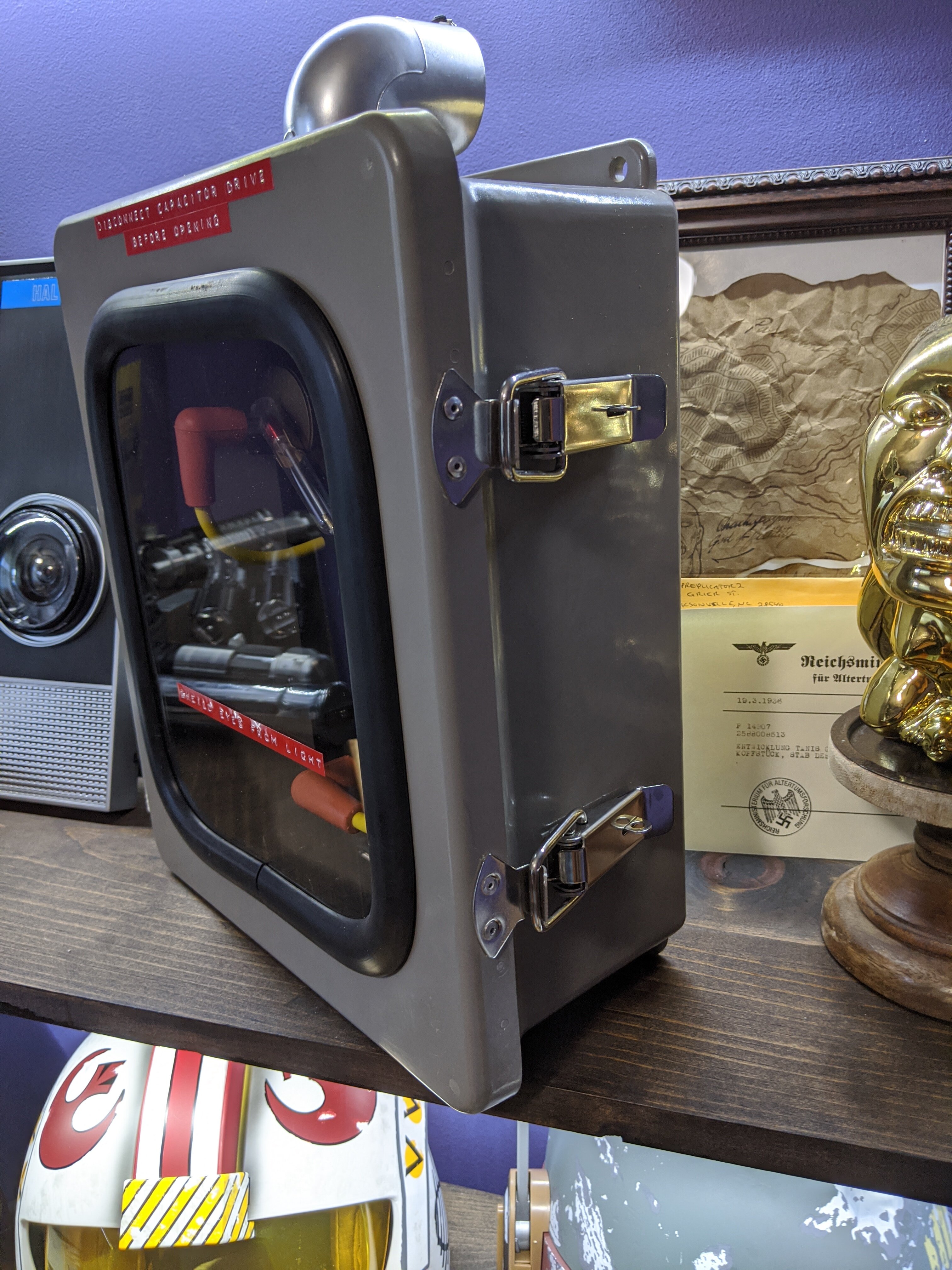

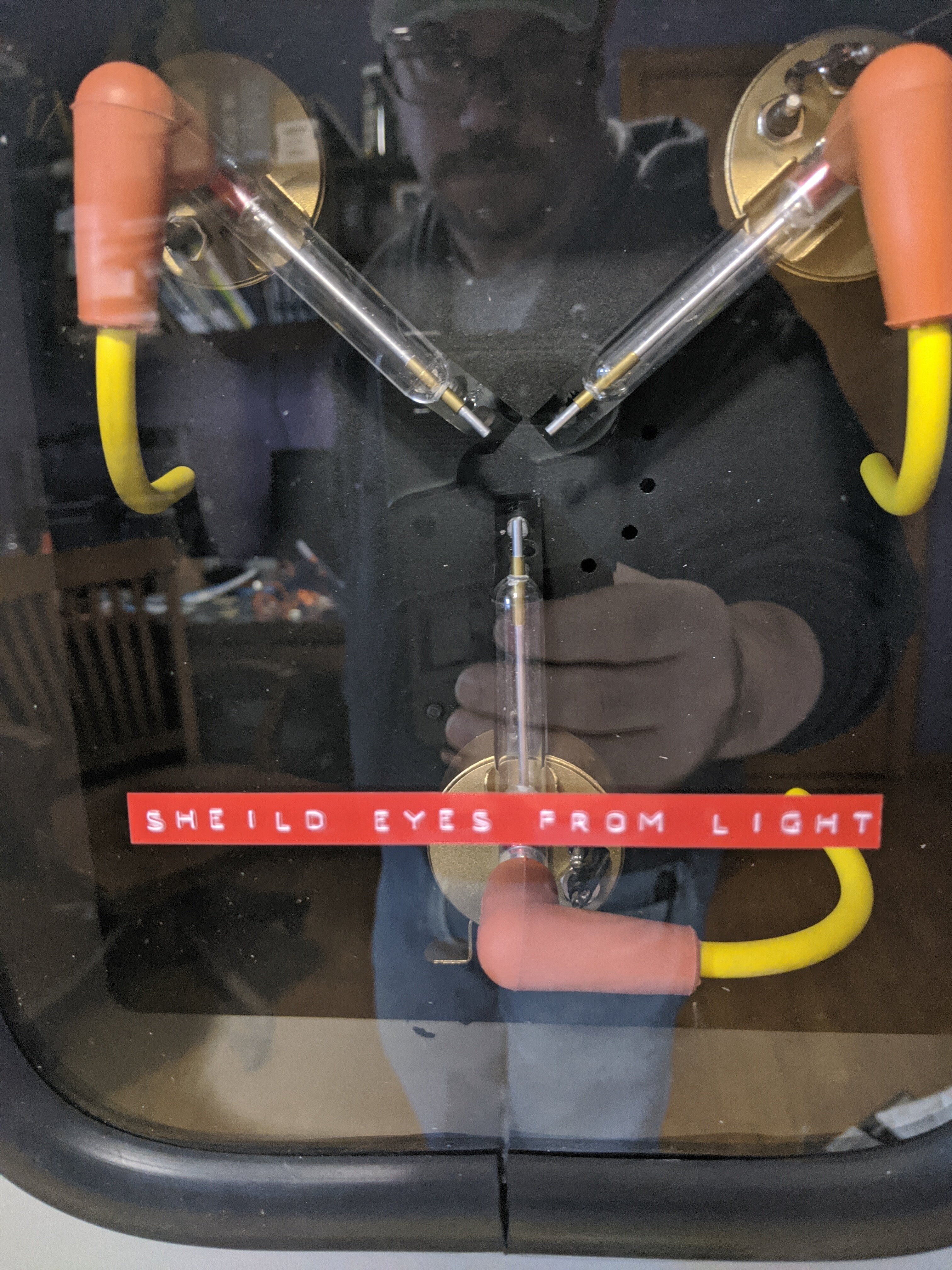

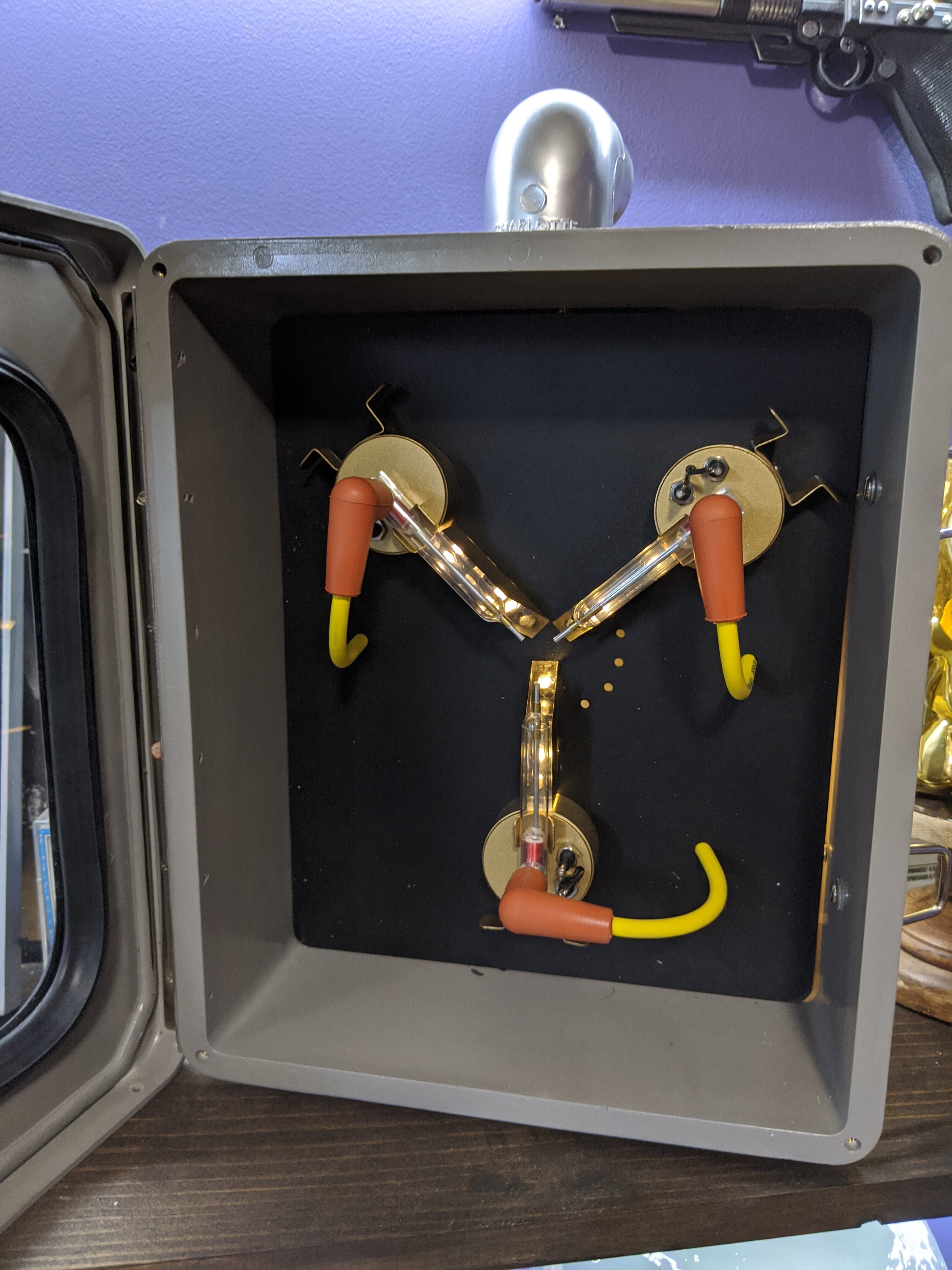

Flux Capacitor is now FINISHED! A really big thanks to Valor for the Torr relay parts and backboard. Also thanks for answering all my annoying questions! Lol

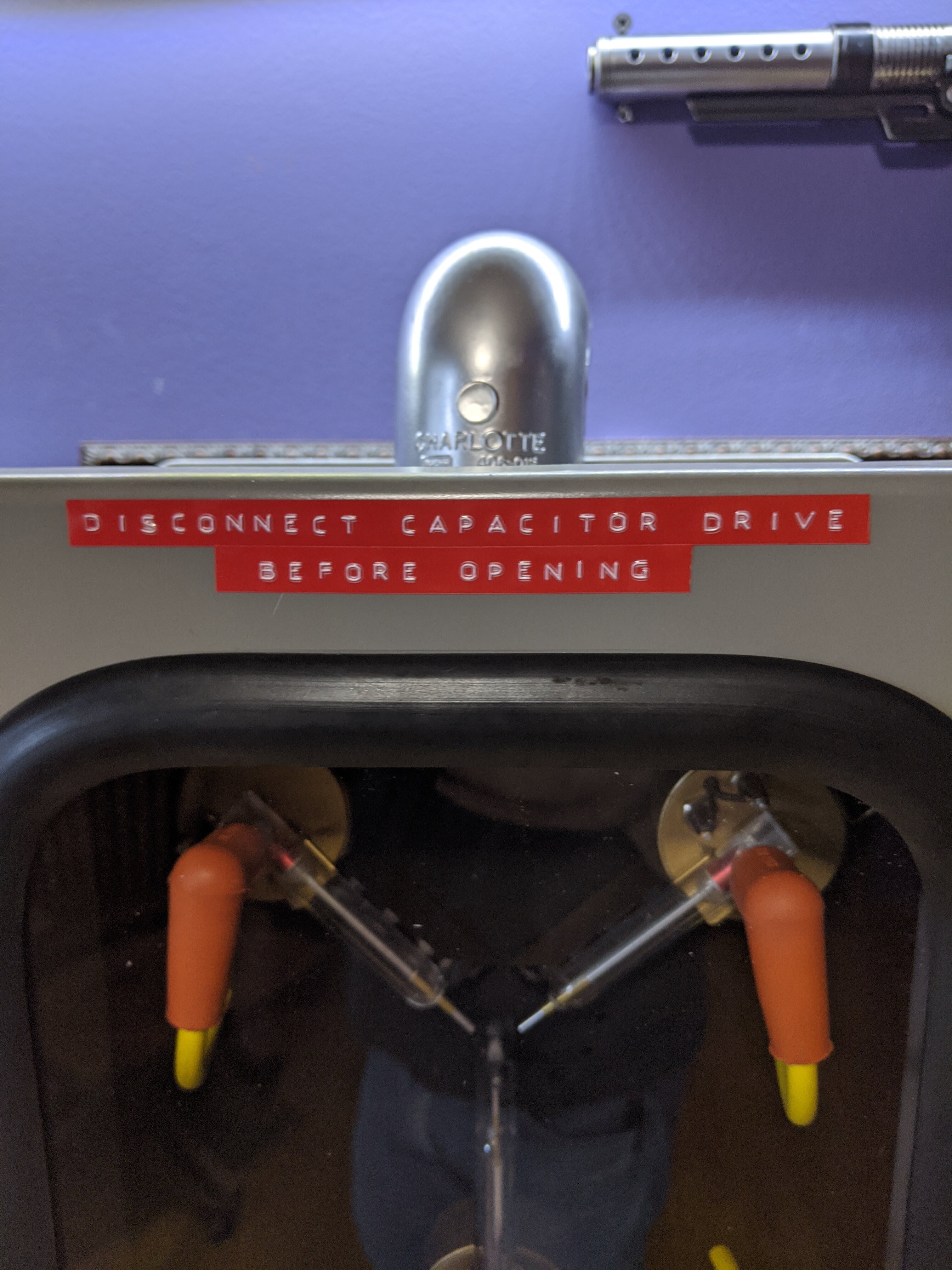

Surprisingly , the simpler stiff on here was the most challenging. Not entirely movie accurate but I like it! Someday I hope to educate myself with Arduino and make a better light sequence. I solved my remote issue by removing the remote sensor and placing it on top of the pvc elbow at the top of the box. Getting the plexiglass on the gasket was a lesson in patience that's for sure. Again thank you Valor for your help and advice.


Attachments

  • IMG_20210320_175248.jpg
    1.5 MB · Views: 16
  • IMG_20210320_175259.jpg
    1.5 MB · Views: 17
  • IMG_20210320_175307.jpg
    2.2 MB · Views: 16
  • IMG_20210320_175307.jpg
    2.2 MB · Views: 16
  • IMG_20210320_175345.jpg
    1.7 MB · Views: 15
  • IMG_20210320_175414.jpg
    1.7 MB · Views: 16
  • IMG_20210320_175646.jpg
    1.6 MB · Views: 21
