I've modelled, build, painted, lighted up a Reconnaissance Drone from 4th episode of The Book of Boba Fett.
Files are free available here Download free 3MF file Fennec Shand Reconnaissance Drone • 3D printer design ・ Cults

From the episode:

My Model:

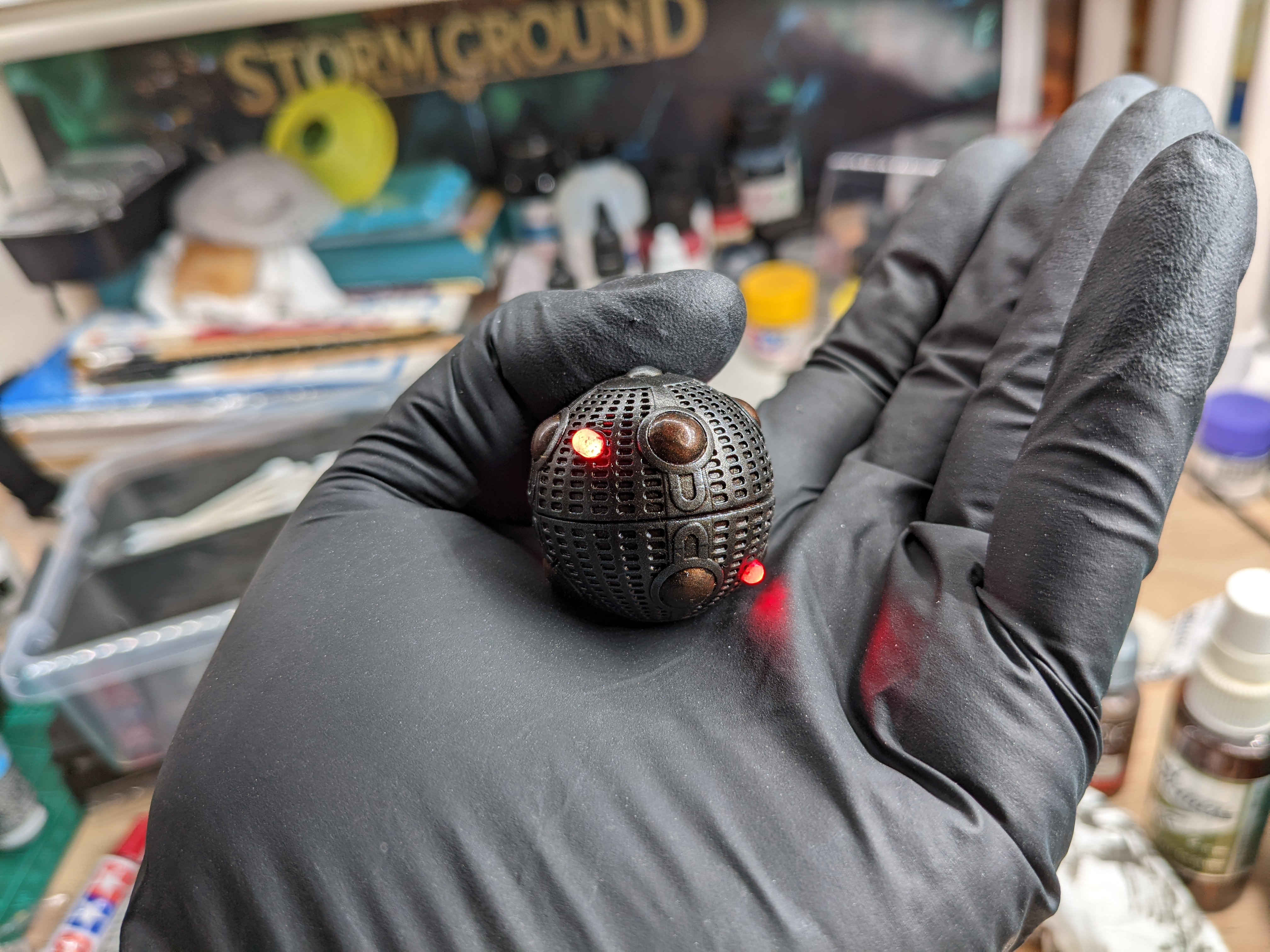

Build pictures:



[danvader]

Wonderful work !
Isn't it too small ?



[Synz314]

That was fast. Great job!



[Halliwax]

That came out wicked!!



[Mara Jade's Father]

That’s great. Love the little guy.

I do think you should have left the eyes black. I think the gold-ish tones you are seeing are just reflections of its own lights.



[masterjedi322]

Just amazing how quickly you whipped this up! Awesome!

Sean



[soswow]

Wonderful work !
Isn't it too small ?

I've used my best (and very quick) judgment. It can be scaled up. How big do you think it should be?

That’s great. Love the little guy.

I do think you should have left the eyes black. I think the gold-ish tones you are seeing are just reflections of its own lights.

Oh. Interesting. It is possible! Maybe we will see some actual prop pics from behind the scene.



[danvader]

I've used my best (and very quick) judgment. It can be scaled up. How big do you think it should be?

I could be wrong but I would say 20% more...



[Mara Jade's Father]

I did a PLA print yesterday. The detailing turned out nice but I have concerns about moving forward.



[joberg]

Difficult to gage size/scale looking at the hand vs prop. A woman's hand is, generally, smaller than a man's. So if you compare your hand size with your printed prop; it'll look smaller. I'll say it's the proper size, until you have clear measurement of the actress's hand



[woodywaverider]

I've modelled, build, painted, lighted up a Reconnaissance Drone from 4th episode of The Book of Boba Fett.
Files are free available here Download free 3MF file Fennec Shand Reconnaissance Drone • 3D printer design ・ Cults

From the episode:
View attachment 1537225
View attachment 1537226

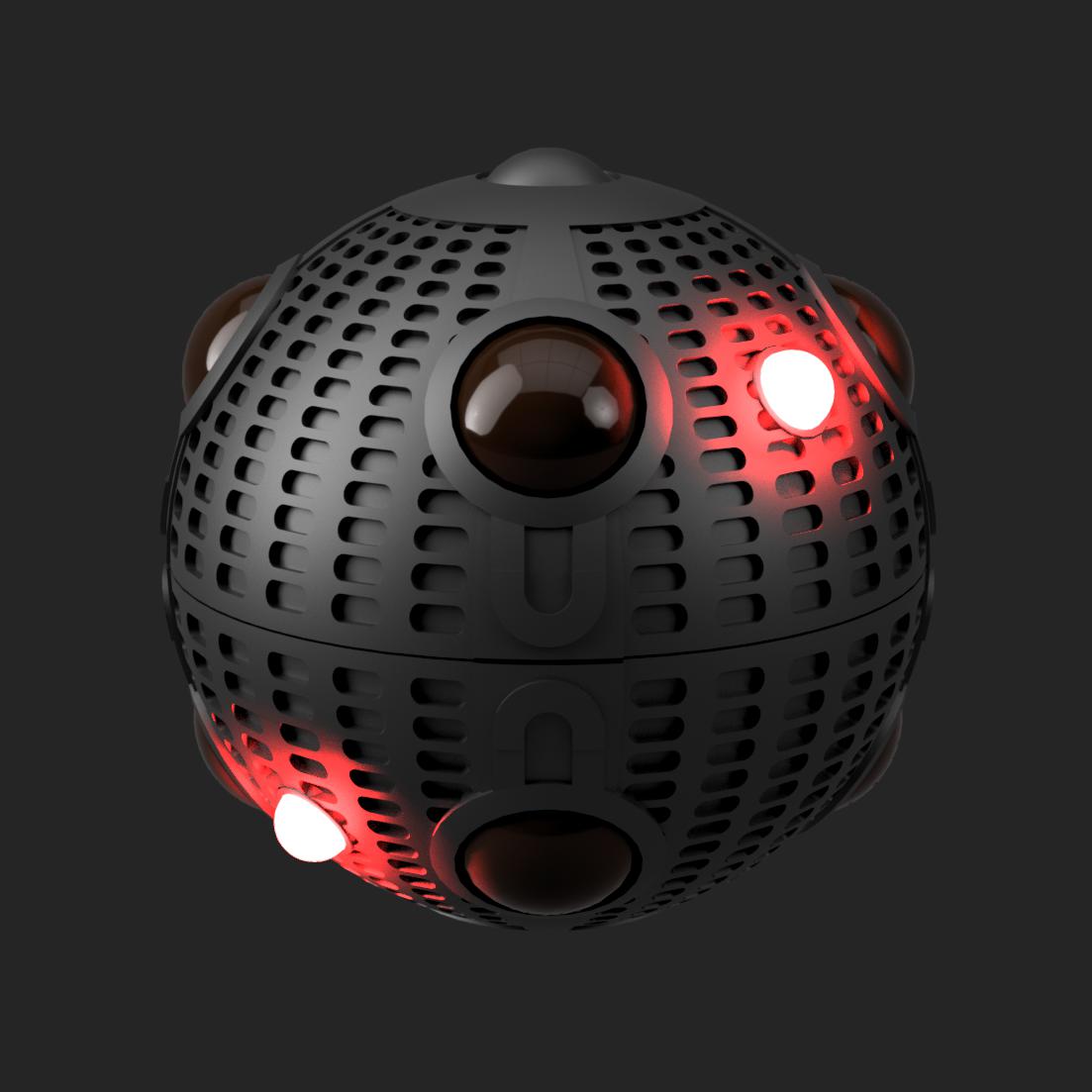

My Model:
View attachment 1537227

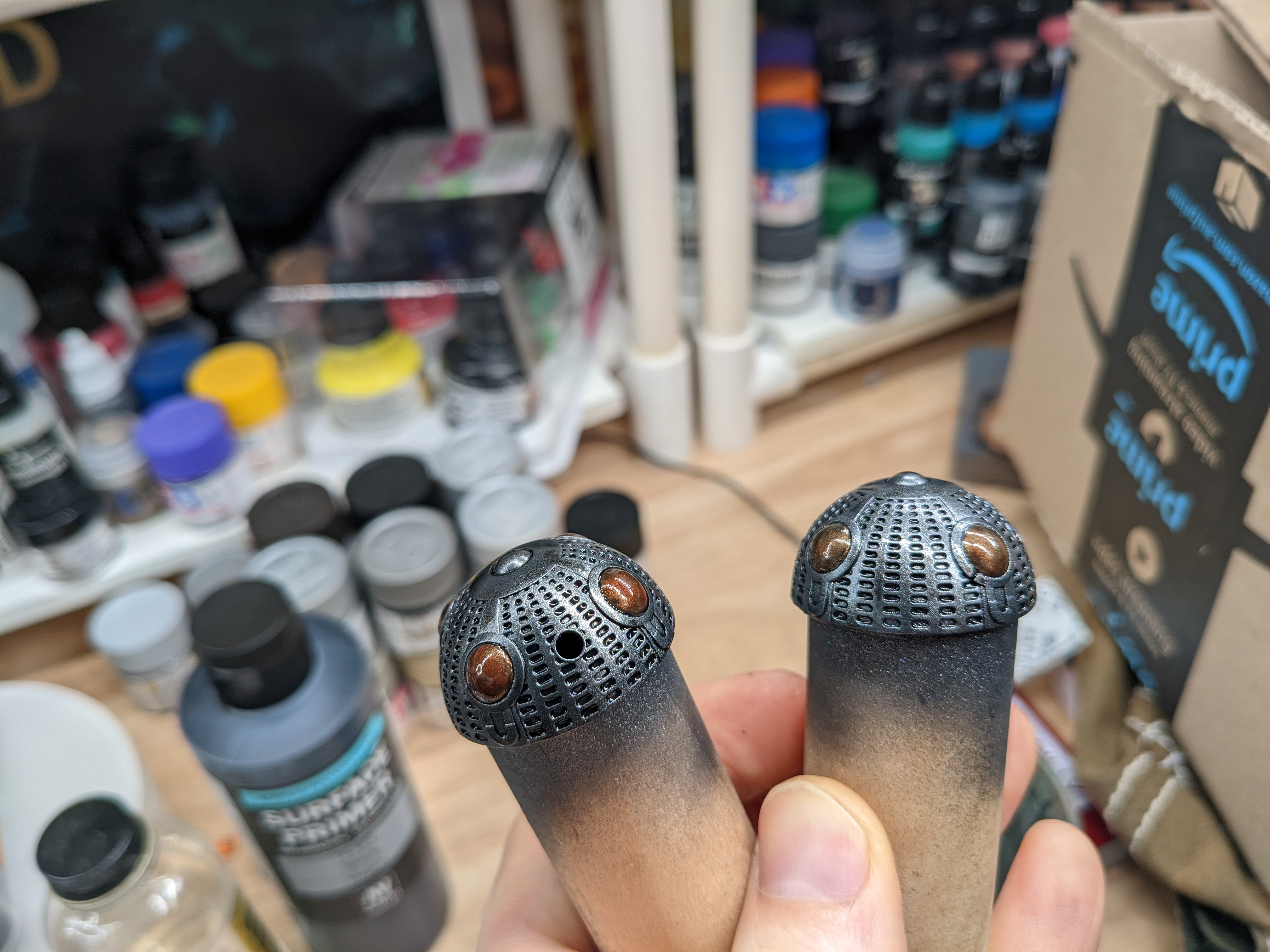

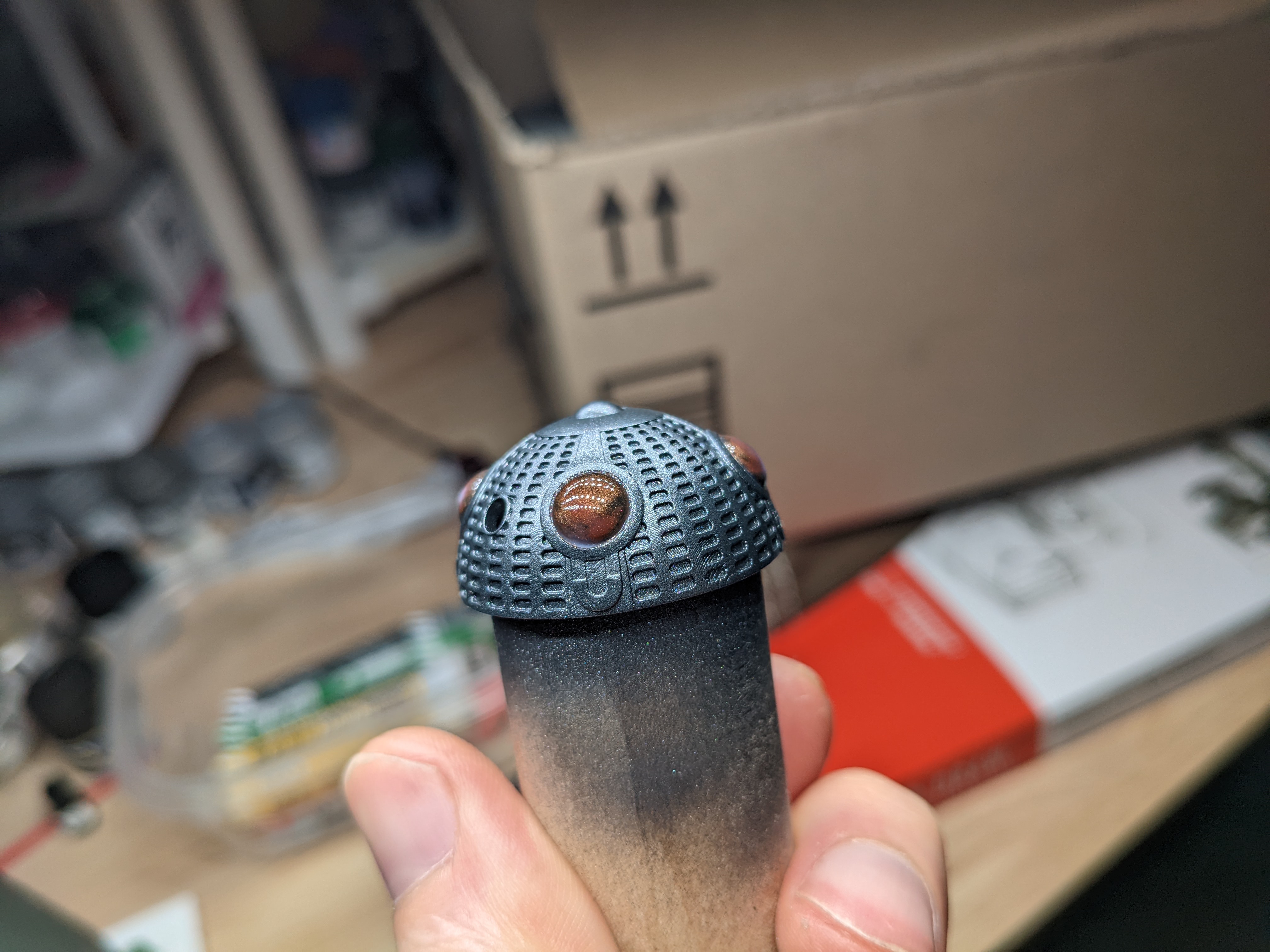

Build pictures:
View attachment 1537228
View attachment 1537229
View attachment 1537230
View attachment 1537231
View attachment 1537232
View attachment 1537233
View attachment 1537234

View attachment 1537235
View attachment 1537237
View attachment 1537236
View attachment 1537238
View attachment 1537239

Really cool, I knew this was small, didn’t it fit in the stock of her sniper riffle. Maybe that is based on a real world gun, you could use that as a size comparison?

I have questions about your wiring - are those magnets?? How do you stop them stick to the wrong con ruins and shorting??

I’d love one of these little fellows in metal, I know it’s just cgi but I wonder if there is some found part, kind of reminds me of a tea diffuser, hmm



[Mara Jade's Father]

I looked at some screen caps for size. It looks pretty small so I don't have any reason to doubt your original sizing.

My first print used the stl files that had supports. I think removing the supports removed the ridges in the edges that help lok them into place. They are gone and the contact surface is marred. I am printing the 3mf files with my own supports and placement. Let's see how that works out.



[danvader]

It seems to me that each led should be at the center of a recessed trapezoidal shape to be accurate



[Gee2]

Well that's just cool!



[Rich D.]

This looks awesome, nice work! The surface indentations on the original look slightly more rectangular to me and less like the pill shapes on the 3D model. Like a smaller corner radius.

It would be cool to structure the 3D print so that you could snap in glass marbles from the inside of the shell for the 'eyes'.



[Mara Jade's Father]

The other files were so much better.



[enterprise0216]

Really great work thanks for sharing the pics.



[soswow]

oh wow. so much stuff happened here!

It seems to me that each led should be at the center of a recessed trapezoidal shape to be accurate

Do you mind sharing pictures where you can see that + maybe some diagram of what you mean? I am happy to add more accuracy to the model.

The surface indentations on the original look slightly more rectangular to me and less like the pill shapes on the 3D model. Like a smaller corner radius.

Yes, you might be right. I was doing it in Fusion with history turned on so I can modify these things easily. I will take another look.

It would be cool to structure the 3D print so that you could snap in glass marbles from the inside of the shell for the 'eyes'.

The only fear I have - there will be too little material right on the edge of the circle.

My first print used the stl files that had supports. I think removing the supports removed the ridges in the edges that help lok them into place. They are gone and the contact surface is marred. I am printing the 3mf files with my own supports and placement. Let's see how that works out.

Why would you use supported STLs for FDM printing? Those are for SLA printing. Good people include those because supporting resin printing takes time.

Really cool, I knew this was small, didn’t it fit in the stock of her sniper riffle. Maybe that is based on a real world gun, you could use that as a size comparison?

I have questions about your wiring - are those magnets?? How do you stop them stick to the wrong con ruins and shorting??

I’d love one of these little fellows in metal, I know it’s just cgi but I wonder if there is some found part, kind of reminds me of a tea diffuser, hmm

It's a great idea to use the real stock for that!
Yes, those are magnets. Magnets are glued to cups on opposite sides, so they will not stick to the wrong sides. I've used magnets as switches + to hold cups together =) So when the part is together - it is turned on. In general, don't think too much about what I did. I was experimenting with a silly idea. It would have been better, to have a switch at the top, since I believe Fennec presses one of the poles to activate it anyway.

While you all here, I've made a short video demoing what I end with:



[soswow]

It seems to me that each led should be at the center of a recessed trapezoidal shape to be accurate

I think I can see it in the shot before it turned on.
Let me grab 4K version of this episode and take a closer look



[Mara Jade's Father]

Why would you use supported STLs for FDM printing? Those are for SLA printing. Good people include those because supporting resin printing takes time.

Mainly because I have only been 3D printing since last June and for the most part, I only have been dealing with STL files. A lot of what you just said does not make sense to me because I am still not up on all the terminology. When I saw the STL files, I naturally went for those. I know it is not unusual for designers to include supports for filament printing too to be helpful. I did not know if I could utilize the 3mf files until I tried this morning after the STL issues.

Anyhow, I really like the design. It looks great to me. I need to figure out what I am going to do for the lights. Not something I have done before.
