Fallout Alien Blaster Build

[franco358]

Thanks , these were just regular test castings , I'll pressure cast the next parts .



[Sluis Van Shipyards]

I've never done more than a two part mold. What was the reason that part needed a three part mold? I'm just curious.



[franco358]

I had a deep recess near the trigger area, that went almost to the back. Too big of an undercut . I wouldn't have been able to pull the part out of the mold.



[Sluis Van Shipyards]

Ah okay, thanks.



[franco358]

- - - Updated - - -

Tinted Cast parts .



[franco358]

- - - Updated - - -

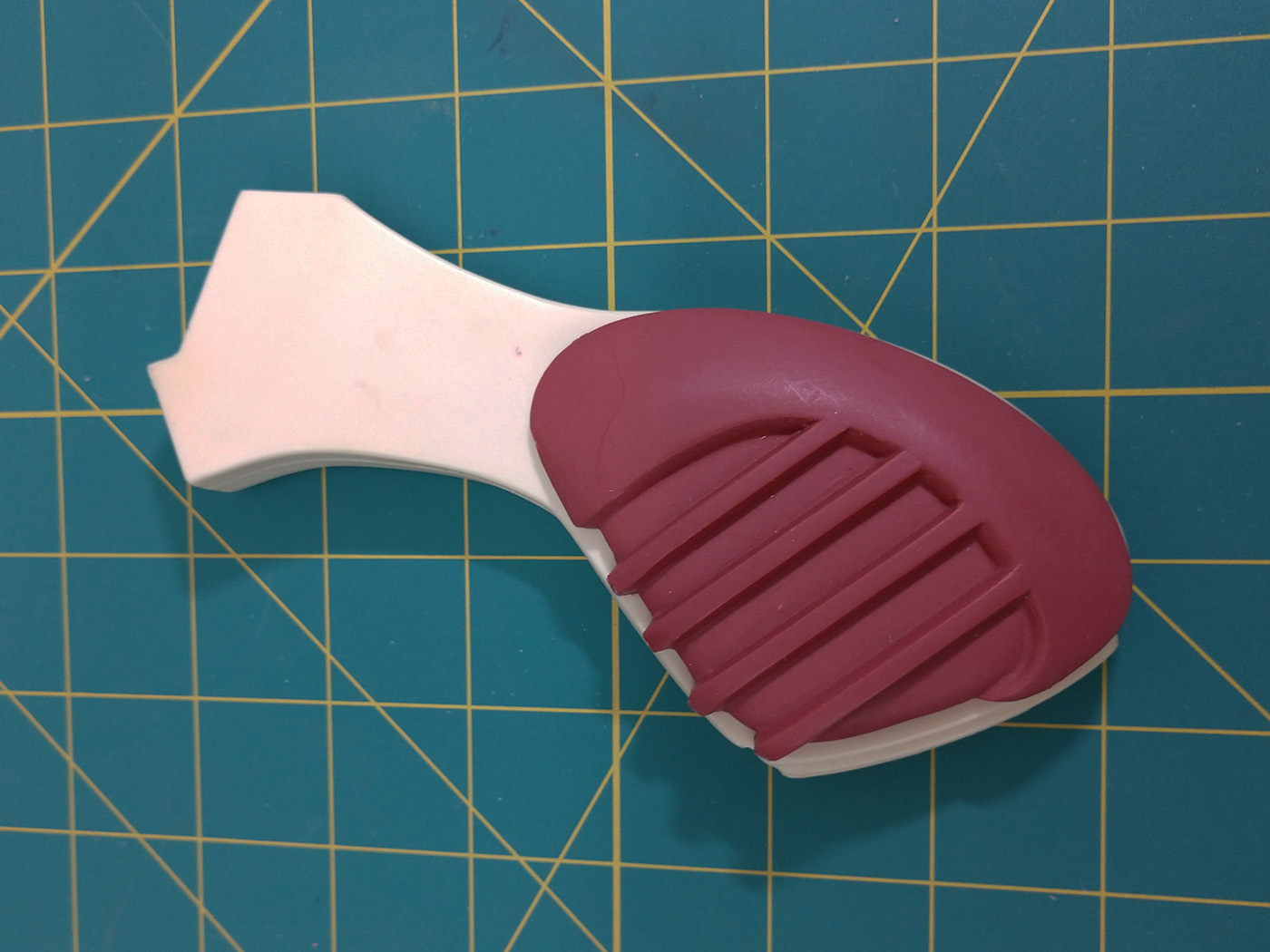

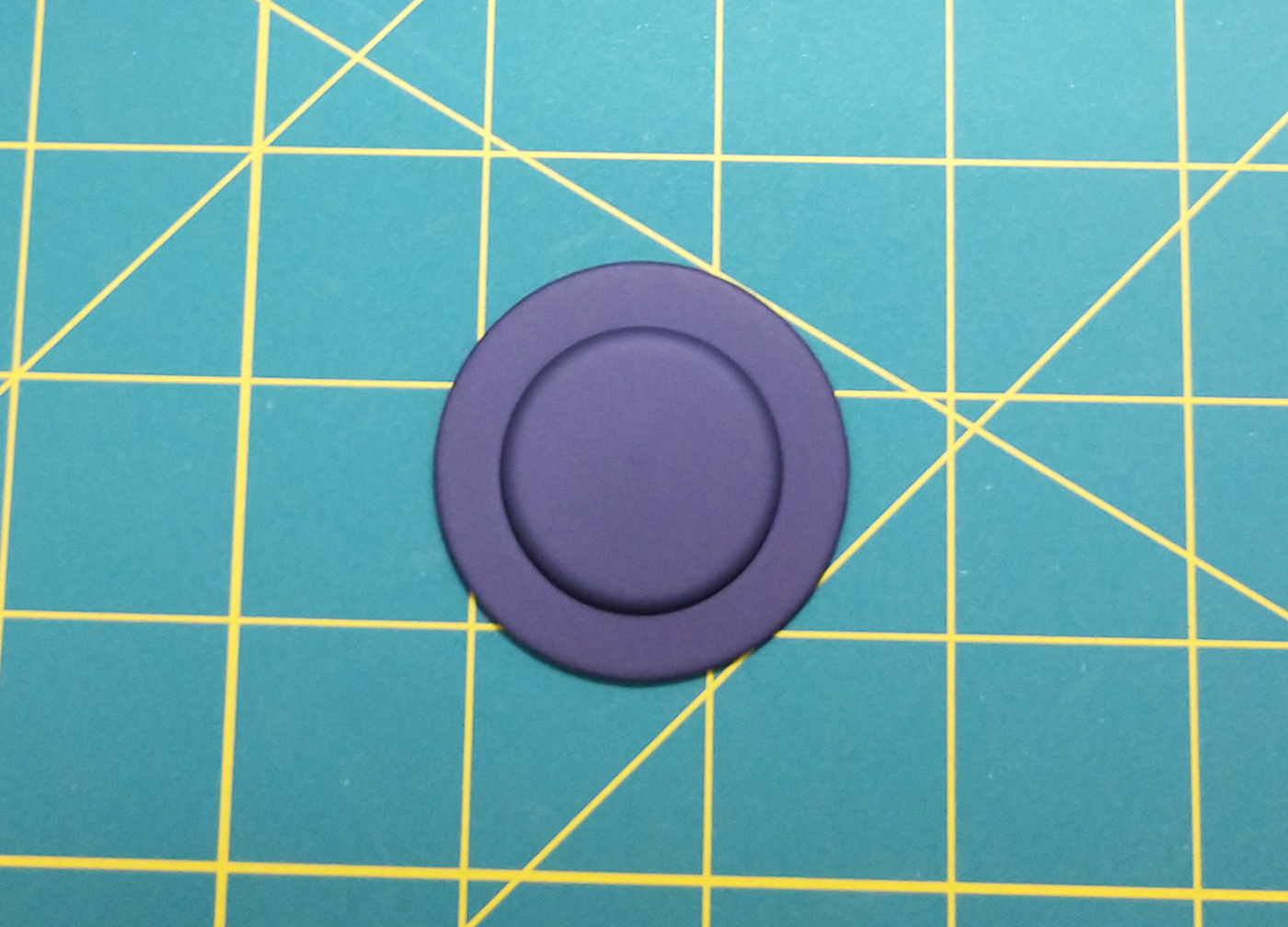

CAST PARTS



[franco358]



[franco358]



[franco358]



[franco358]

- - - Updated - - -

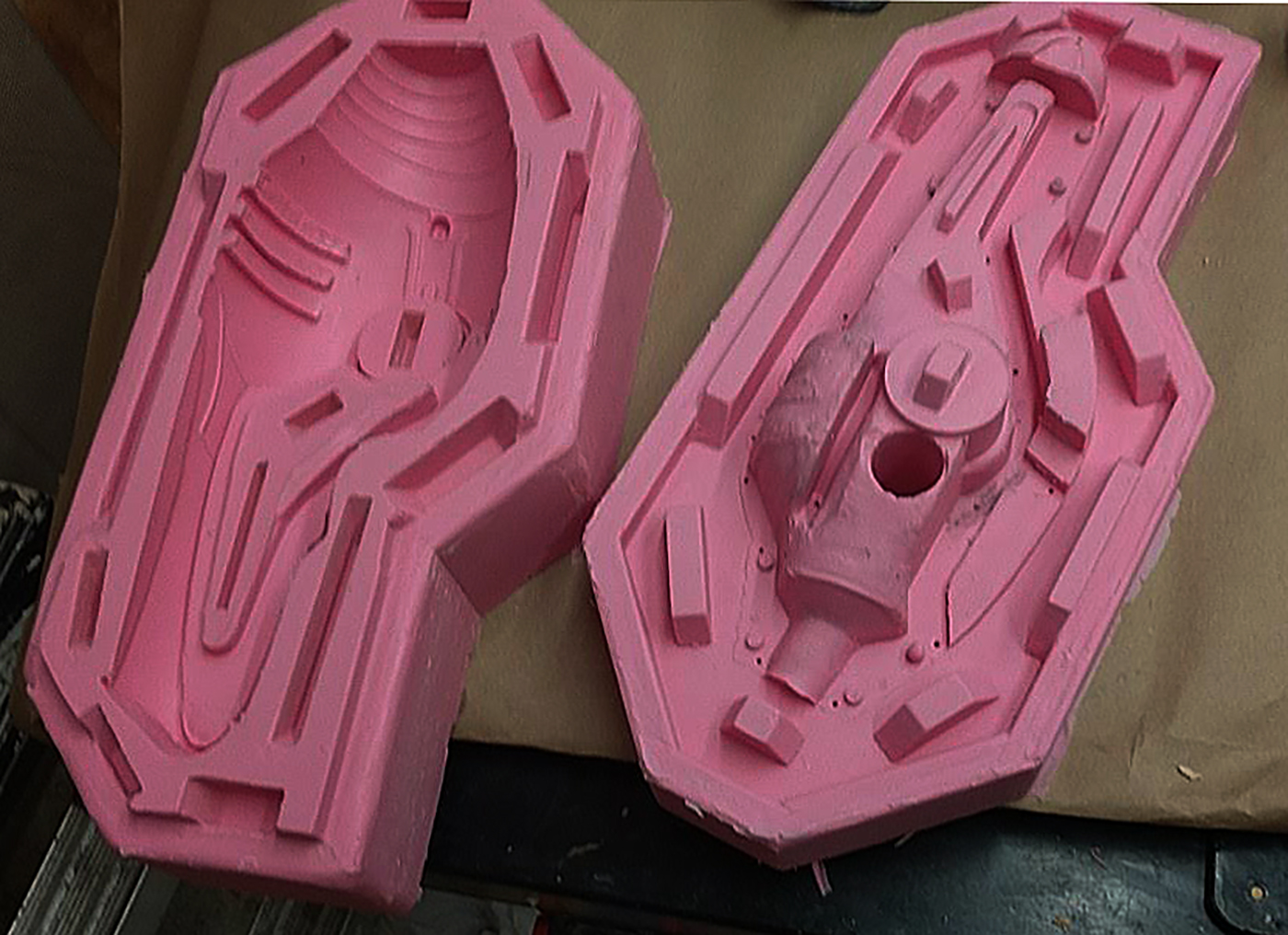

Finally started the mold for the main body. Still more keying to do and Clay up work.



[franco358]



[franco358]



[franco358]



[franco358]

- - - Updated - - -

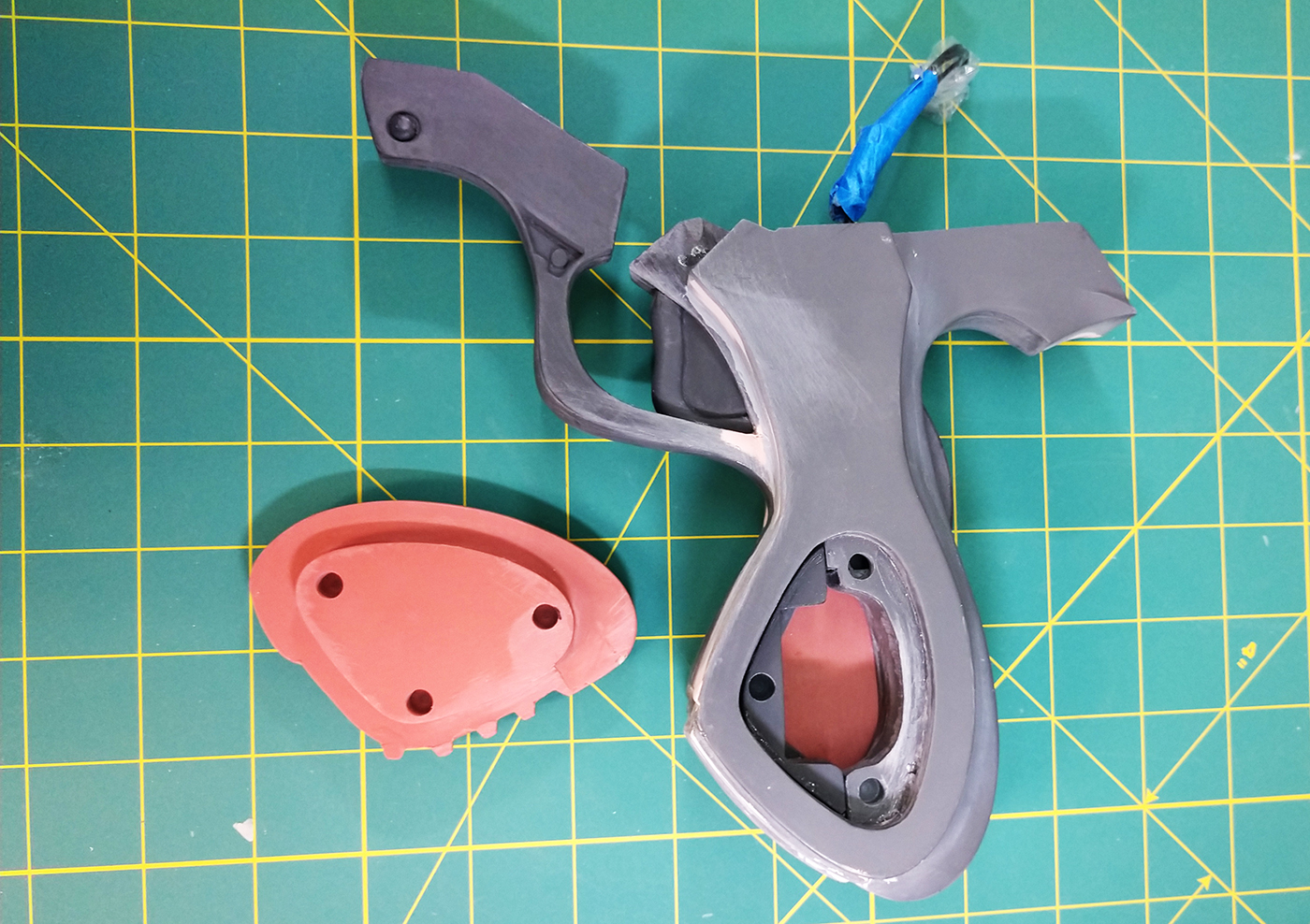

A test fit of the parts , note the parts still have bleeder and pour spout stubs so the fit is just loose.



[franco358]



[Sluis Van Shipyards]

Lookin good! I need to make my molds prettier! :lol Did you pressure cast that parts?



[franco358]

- - - Updated - - -

Wrapping up the build.

- - - Updated - - -

Yes , all parts were pressure cast.



[franco358]



[franco358]

Wrapping up the switch mech on Blaster Grip.



[franco358]

Adding distress nicks and dings before paint,
