Fallout 4 laser pistol build

[franco358]

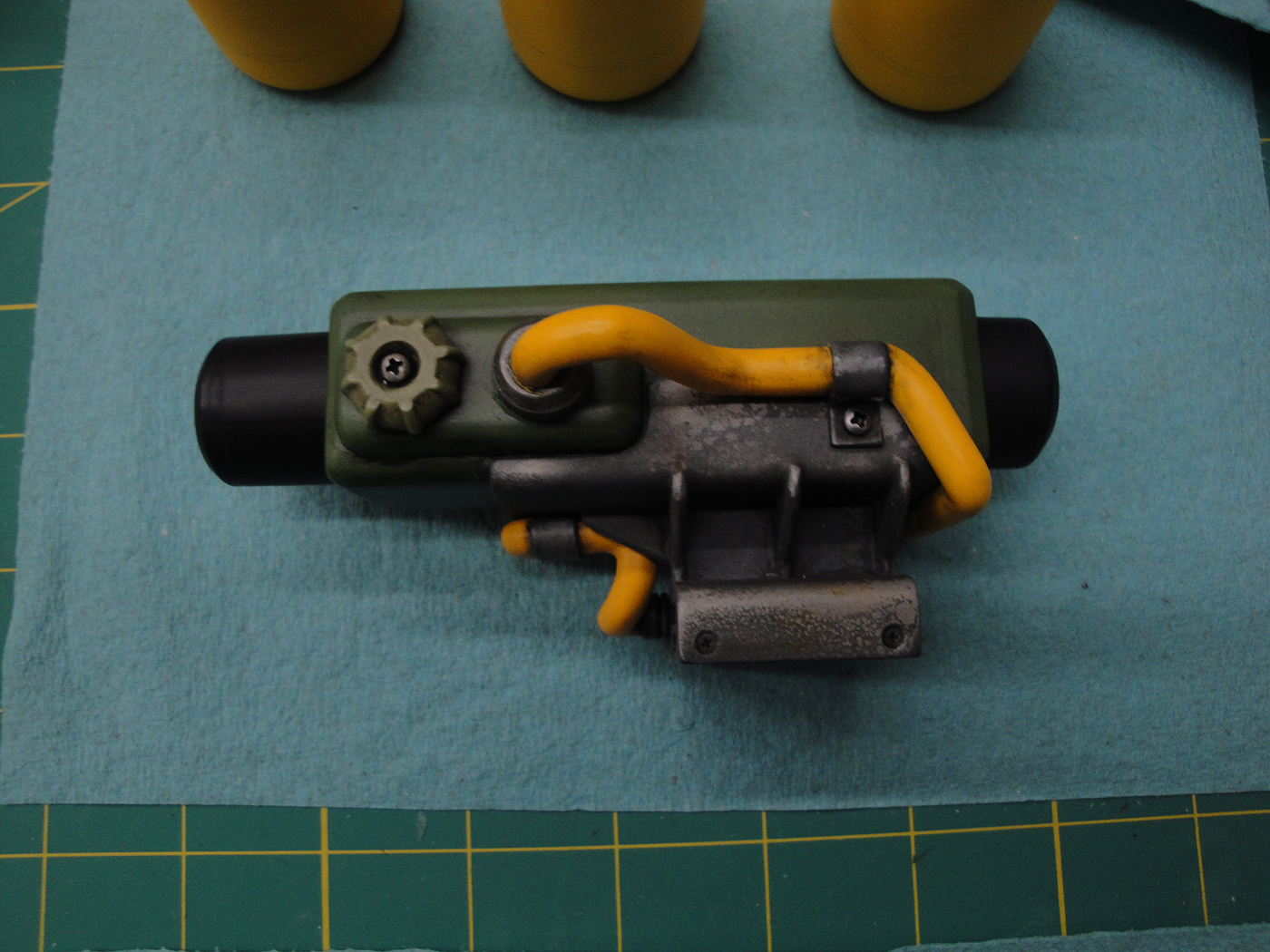

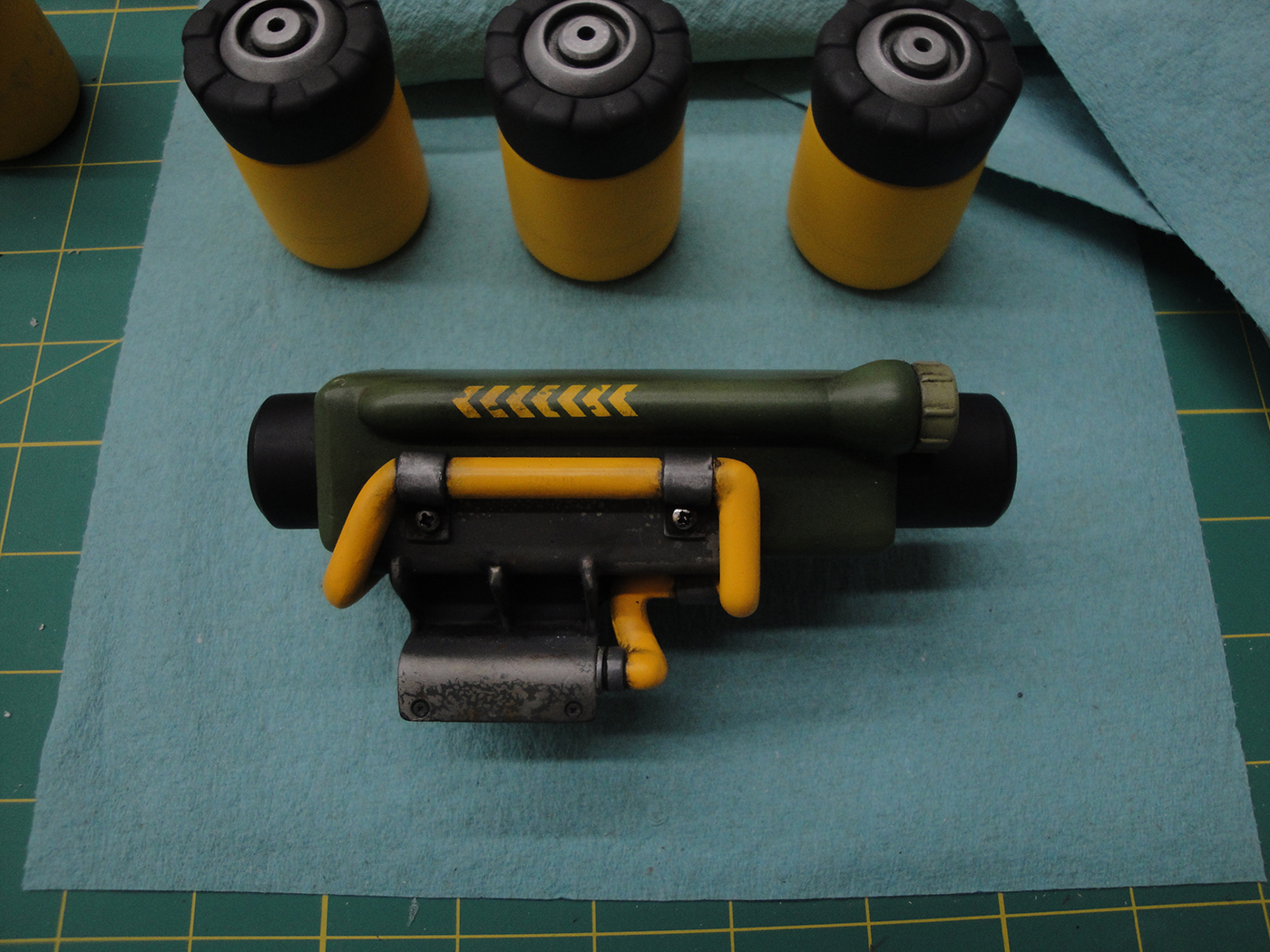

The Scope fabrication completed still more work to do on the paint finish .



[Sluis Van Shipyards]

Nice!

BTW while playing the game it got me wondering is the yellow piping on these laser weapons supposed to be wiring or hard line?



[franco358]

Hi Jason ,
It's supposed to be wiring . I used EMA PVC ( PLASTRUCT ) tubing .



[The5thElement]

That looks awesome. Love the design detail and the weathering is spot on.



[franco358]

Thank You



[Travis McGee]

i would lost a cast of this



[franco358]



[franco358]



[franco358]

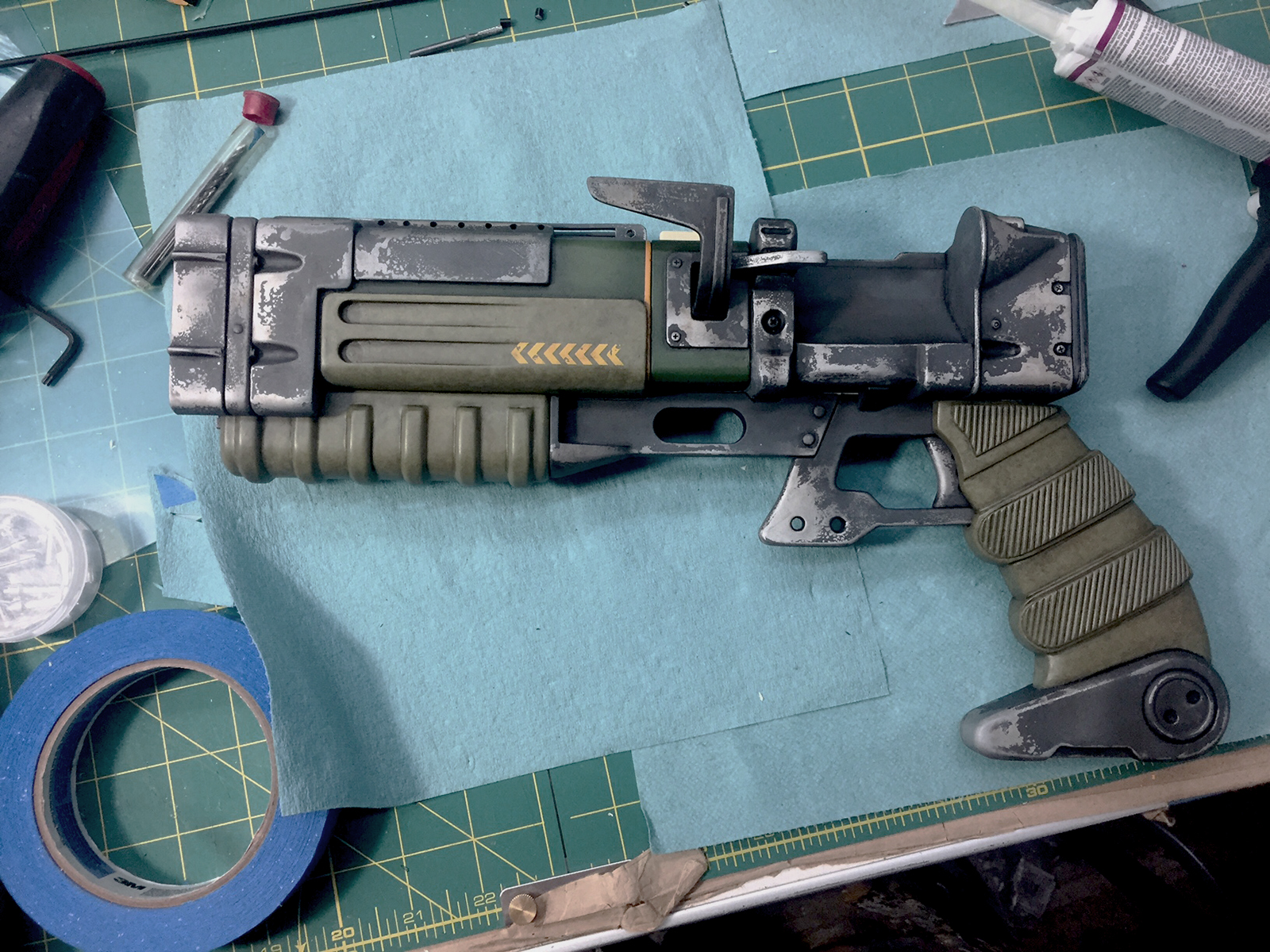

I had Great success with my vinyl cutter in making the Positive and Negative stencils. Using Hair Spray and a fine
brush I was able to put the chips and scratches on before I Air Brushed the Stencils .



[franco358]



[franco358]

- - - Updated - - -

MDF to make the Vacuum Bucks for the case.

- - - Updated - - -



- - - Updated - - -

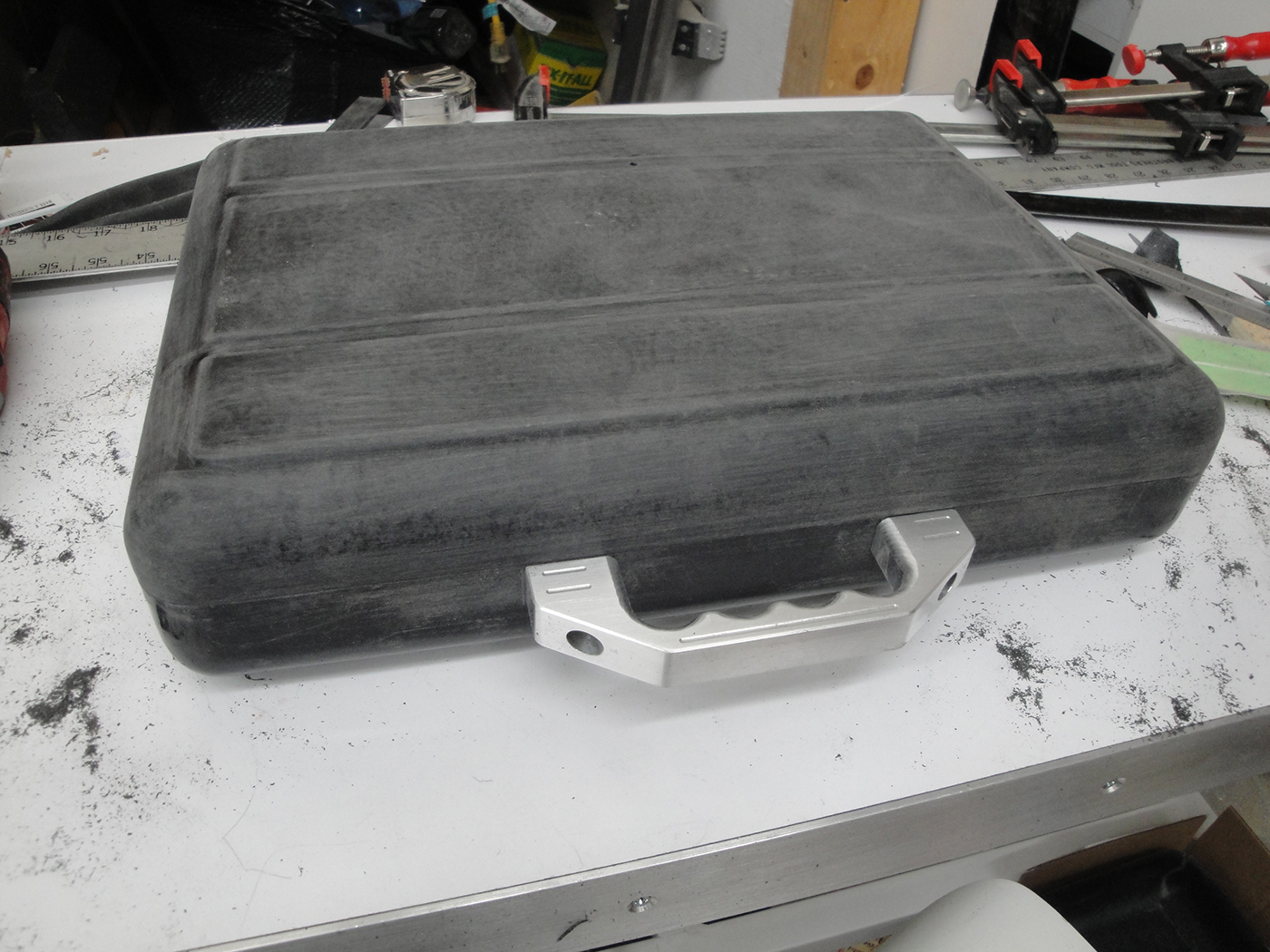

Routered Bucks.

- - - Updated - - -



- - - Updated - - -

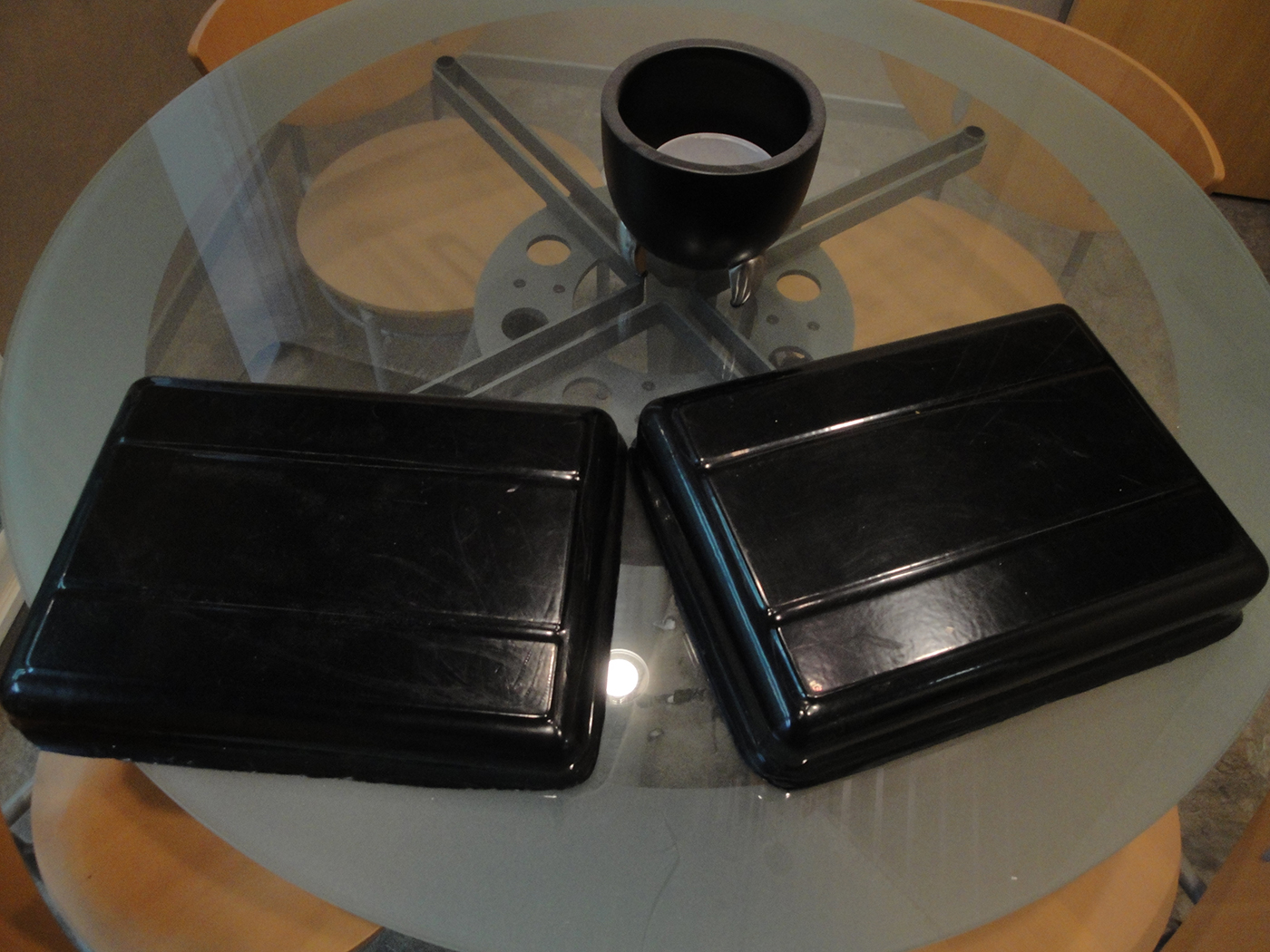

ABS Vacuumed case skins .



[franco358]

- - - Updated - - -

Sanding and prepping for paint .



[franco358]

- - - Updated - - -

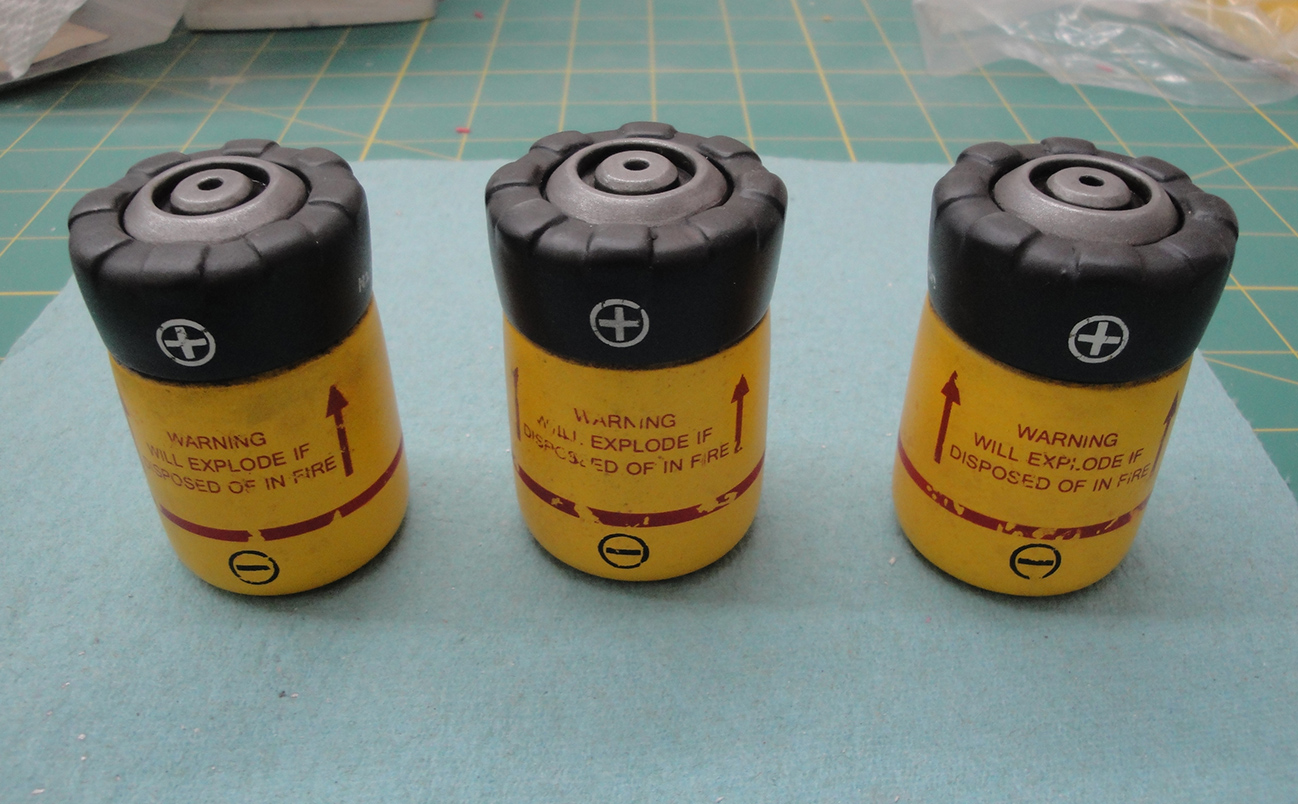

I had Great success with the Dry Transfers .



[Sluis Van Shipyards]

What type of dry transfers did you use, specific font? That looks good! My next project is a laser rifle so that could help!



[franco358]

It was a Kit called " Decal FX PRO " $85 Amazon . You need a Laser Printer and a Laminator . Its tedious work but the results are Fantastic .



[franco358]

I;ll get back to you on the Font , it was an odd font if I remember.



[Sluis Van Shipyards]

Aw crap, no laser printer. The font will help though. I have a decal kit for inkjet printers that I never used. They are water transfer though. The lettering on the laser rifle is probably the only thing concerning me that I haven't figured out how to do yet



[Dopavash]

Inspiring build! Looks great.



[franco358]

Thanks Dopavash



[franco358]

Sorry for the Delay , At Comicon the last 4 days
I used MYRIAD PRO for the warning sign and focus decal. MICROSOFT SANS SERIF for the Fusion Cel cap lettering . You may have to ply with the thickness and Kerning a bit.
