Evolution of the Countdown

[Ei luj]

Forgot some pix so here they are

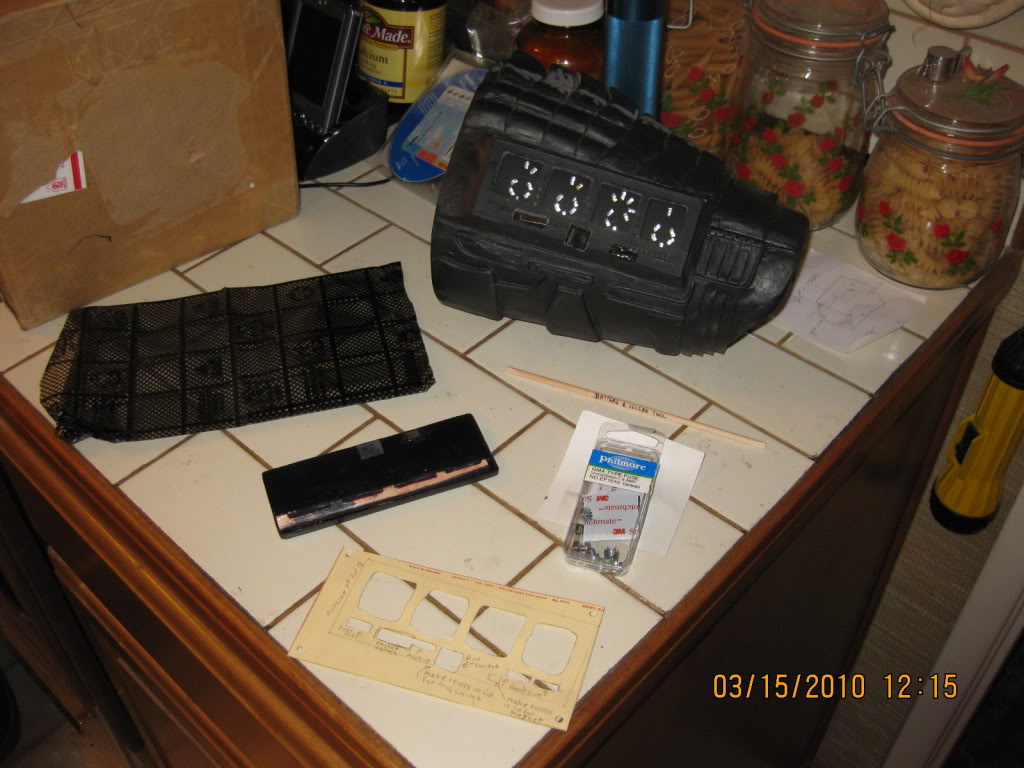

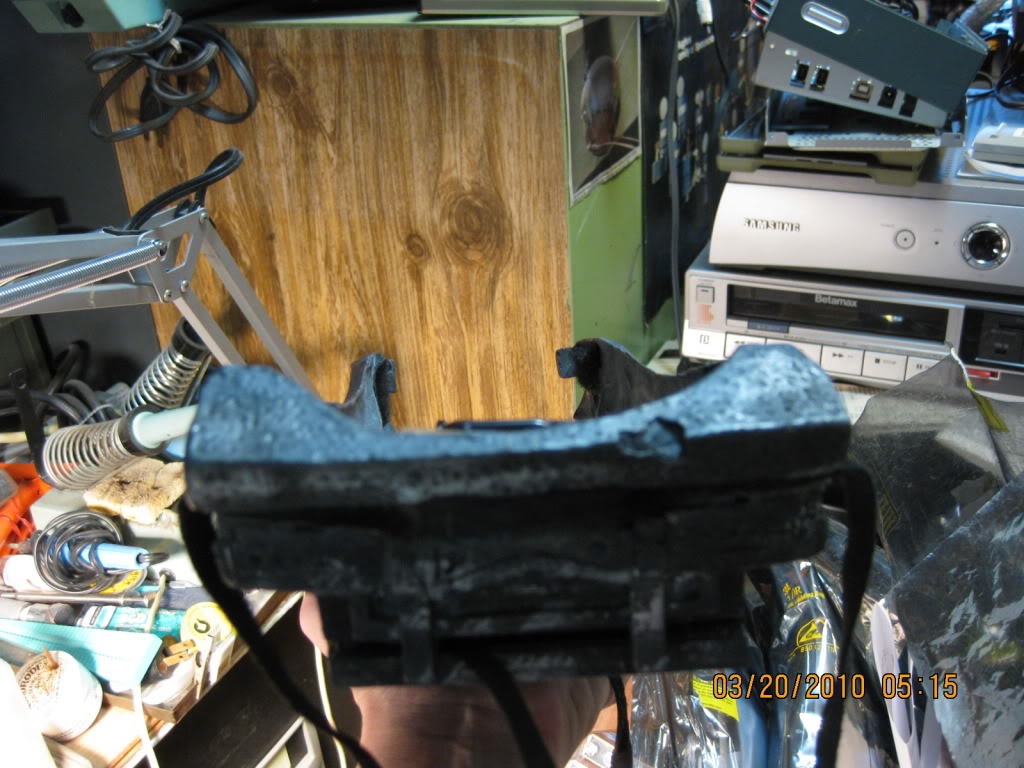

The whole kit in the gaunt (switches set in there because it has to come out for painting) plus accessories

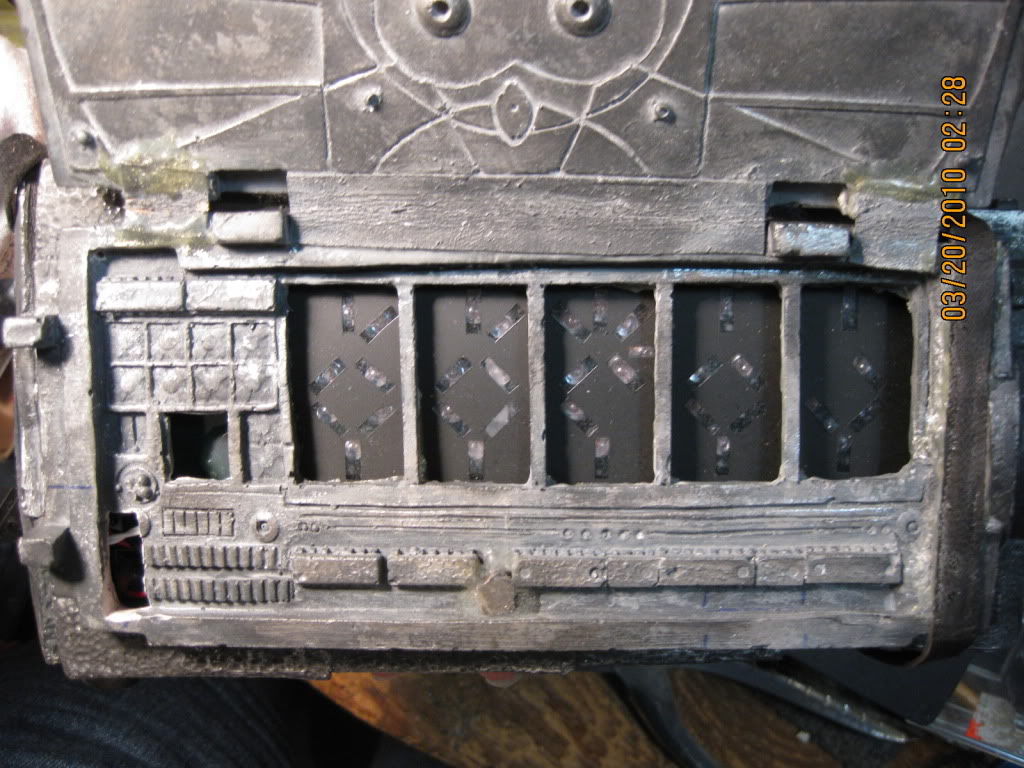

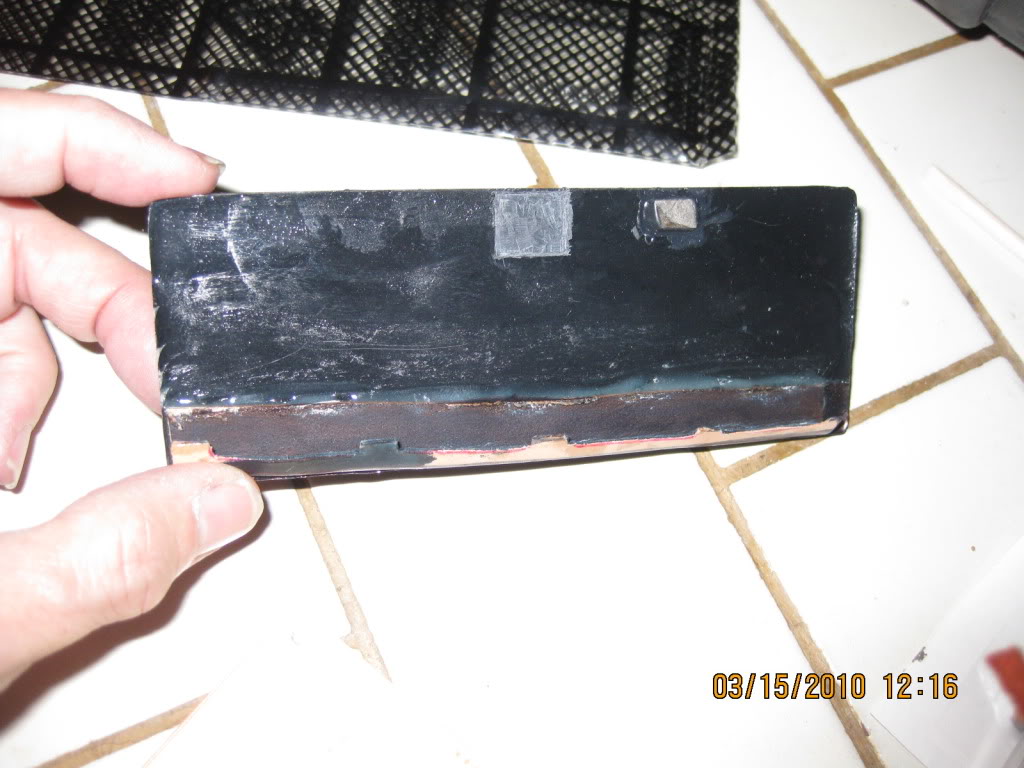

The detail of the lid- the hinge is leather....theres a cutout for the Run switch to fit ...plus a magnet; on the gaunt itself I steel-epoxied a piece of exacto knife...epoxy is black so I can cover the metal with it so blends in... Hmmm I think I have to disguise the On switch lever more little stuff to do

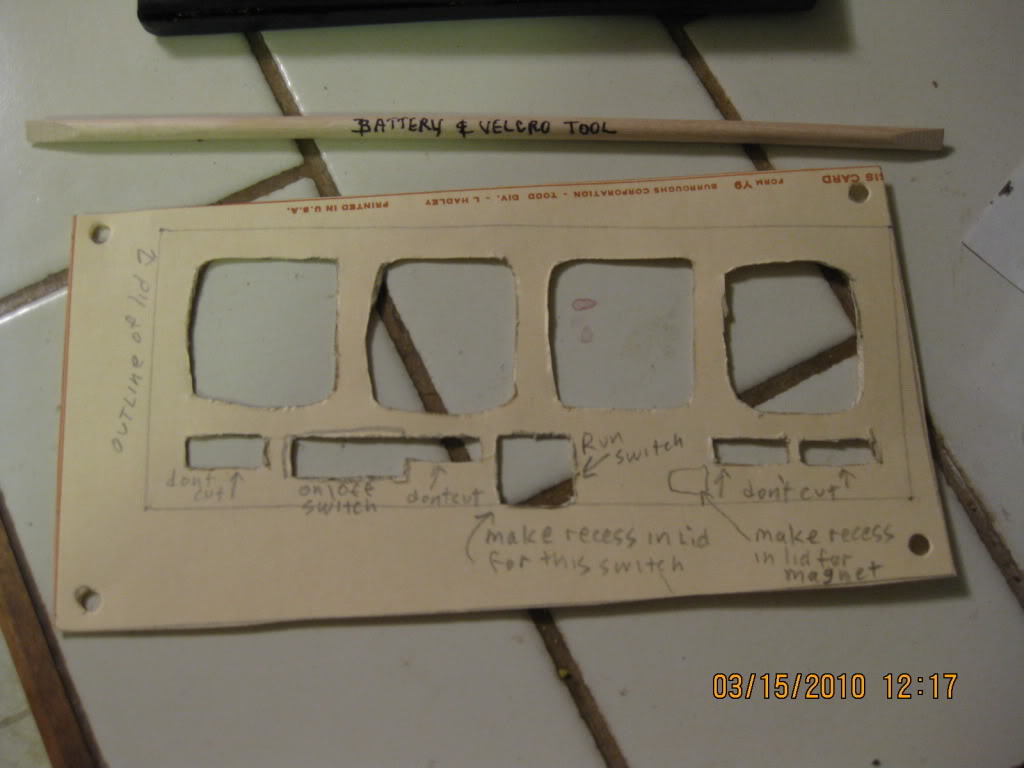

Closeup of the template; it helps locate switch holes lid magnet and switch recess plus metal piece

---
Ei'luj


(OT: bugs (virii) be DEAAAAD.....)



[froggy]

Can't beleived you dit it again !!!!!

It is just perfect julie.
Can't wait to received my copy


Thx you so much for you hard work on this one !



[Ei luj]

@ froggy

You are most welcome; its on its way

@ all

More info on the AVP ones; how it is installed using that leather piece and the posts: (warning- dialup killer; MANY PIX )

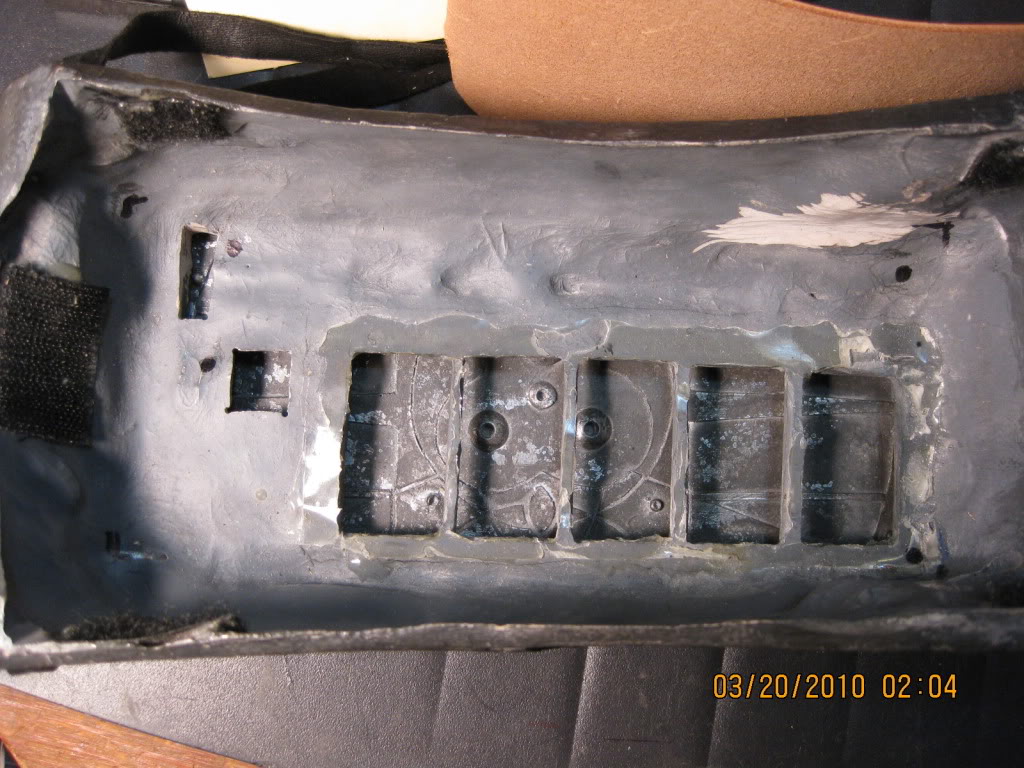

The gaunt needs to have had any inner bumps dremmelled out so the board either drops in or angles in.

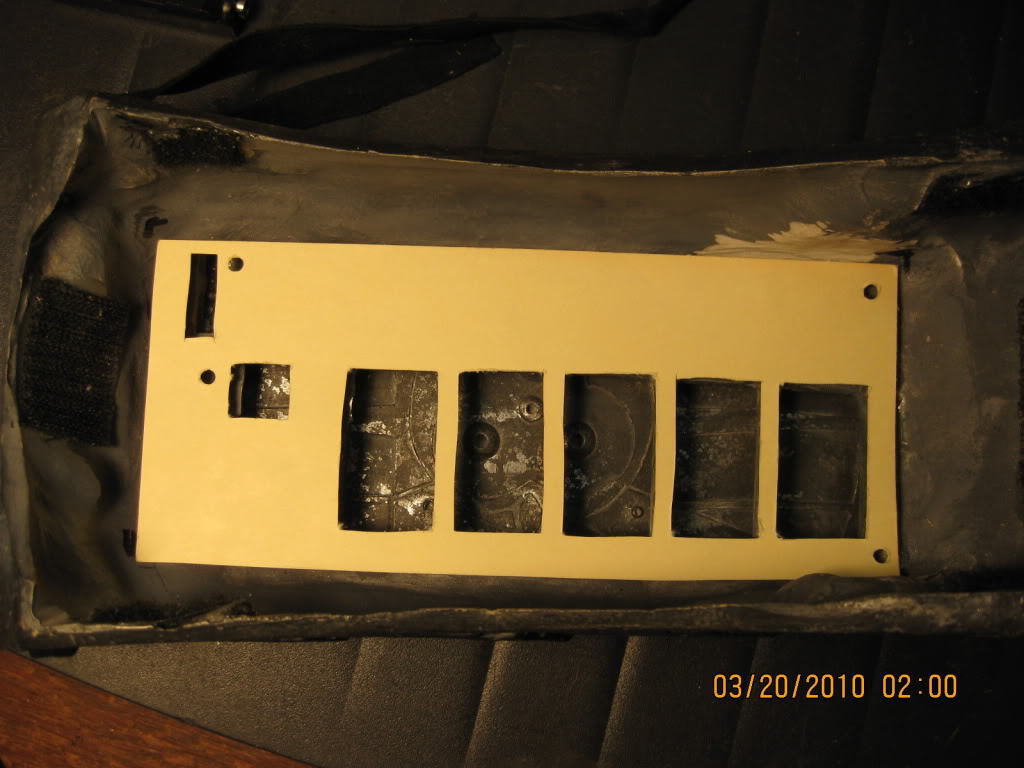

Put the 4 small round holes in the template then put it in the gauntlet so the LED windows line up then mark the holes and "board" corners for reference:

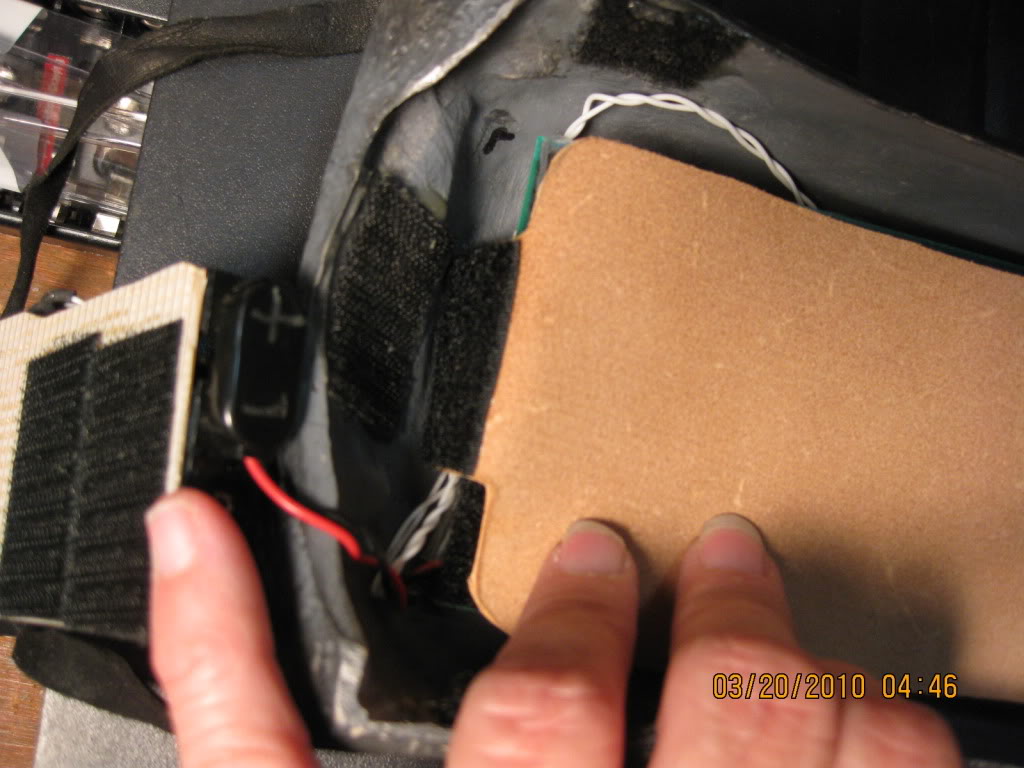

Put velcro square on the gauntlet at the elbow end right under the curve for the arm; also put a strip at the wrist end flat part

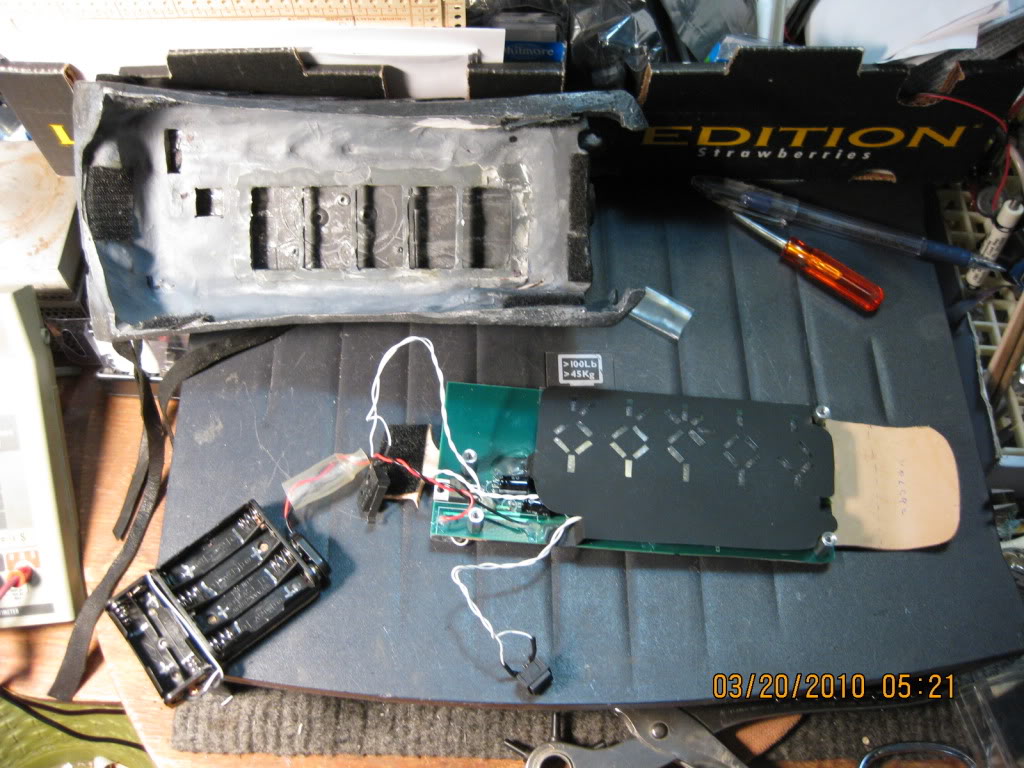

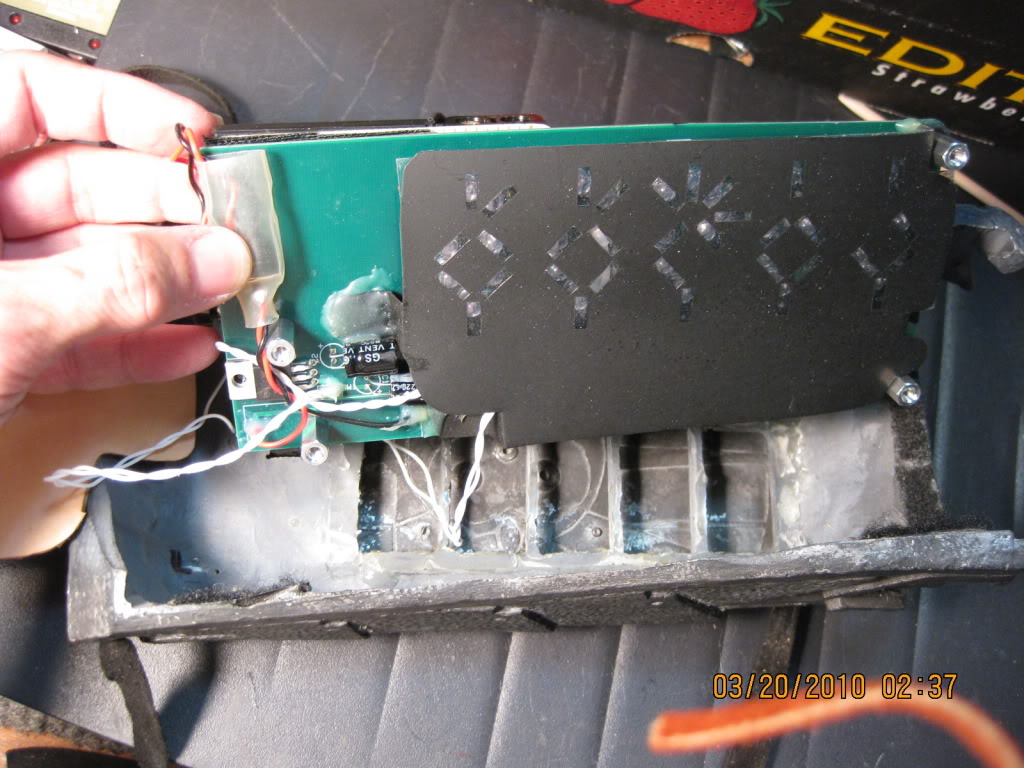

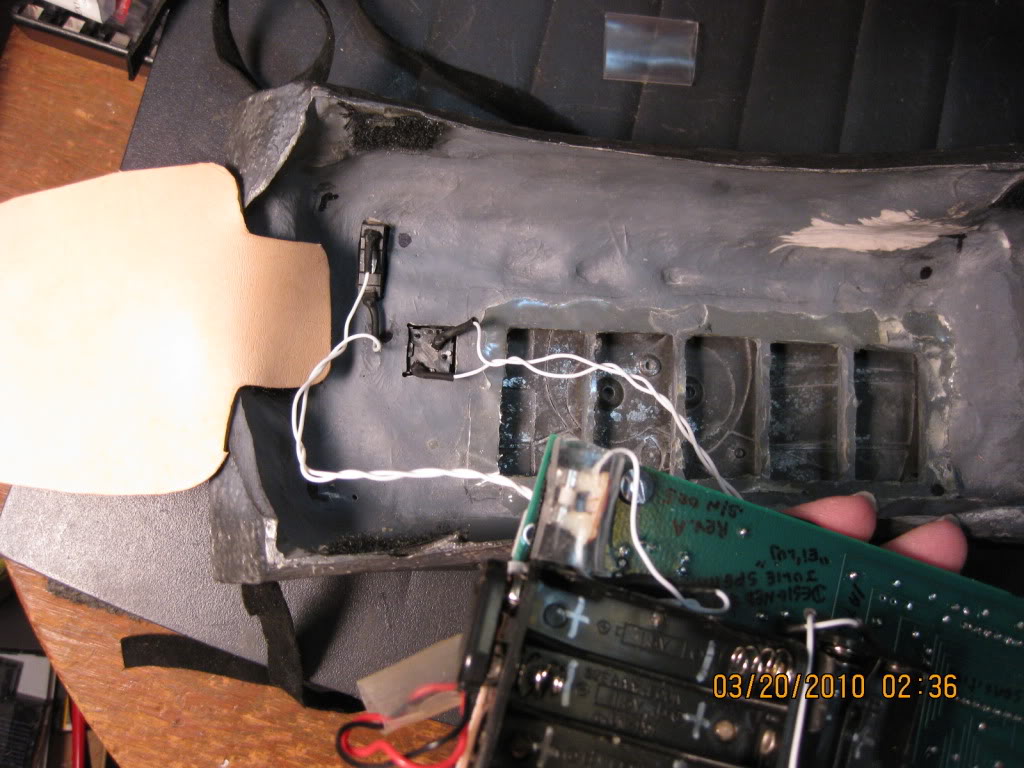

Put the board in the gaunt and line up the LEDs to the windows.

A small gap between the front to overlay at the elbow end is OK; if theres a larger one at the wrist end grind off some from the posts that go there

Slide the sleeve to the board end of the wires to keep it out of the way of the tab on the leather

Put the switches in and check the lid closes the on/off switch and the run switch is high enough; mark the levels. Don't glue them yet!

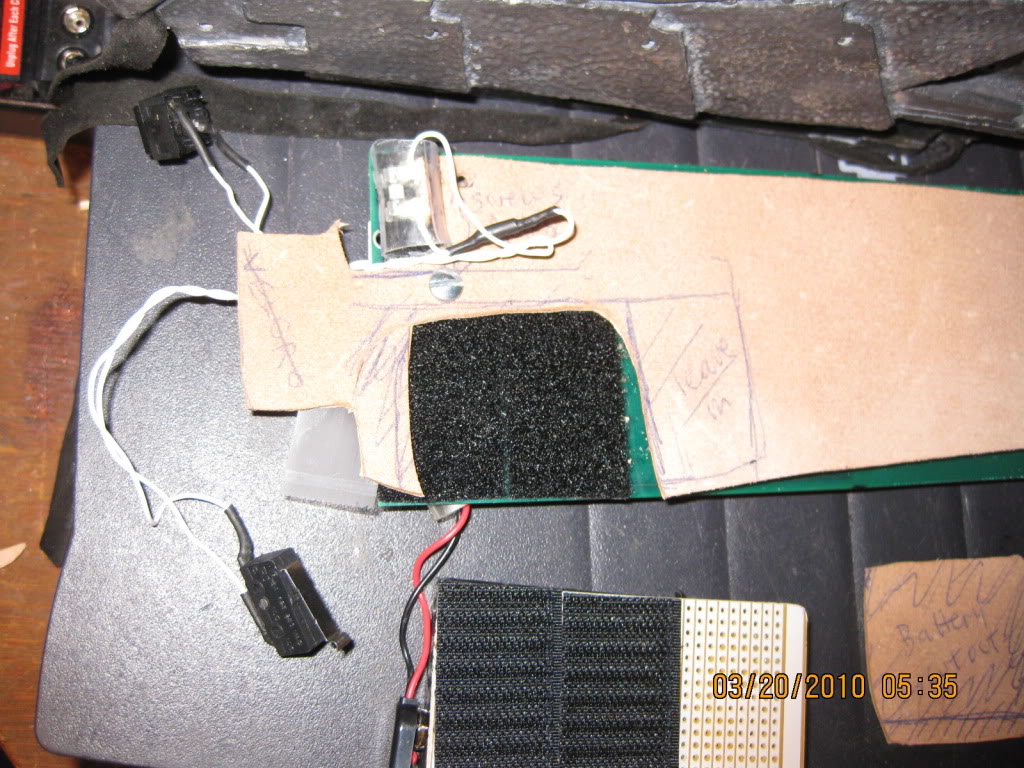

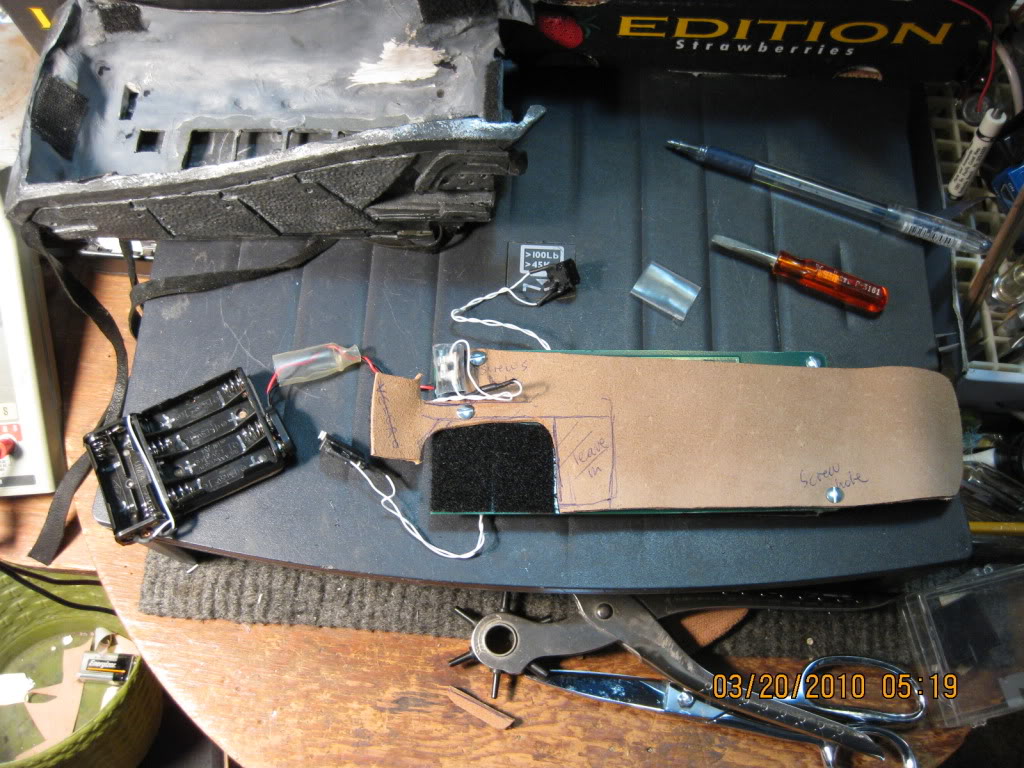

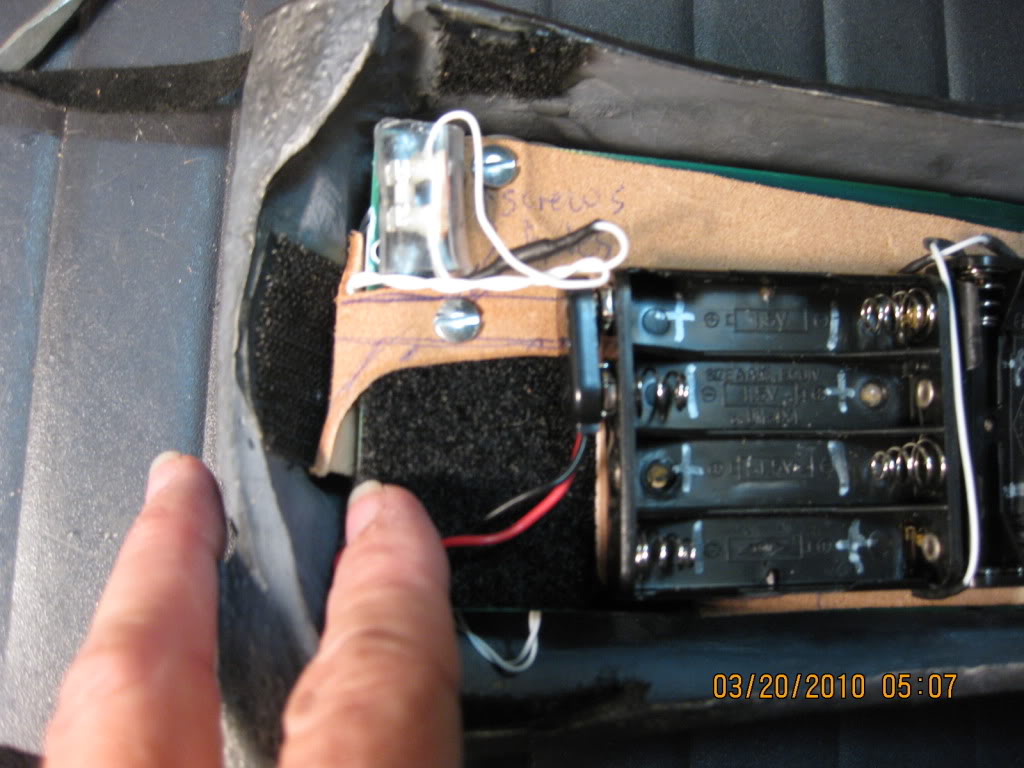

With the board in the gaunt and LEDs aligned lay the leather so it lines up with the board edge and the tab hangs over the elbow end. Mark on the leather the locations of the two elbow end screw heads the one wrist end screw head the fuze and battery velcro

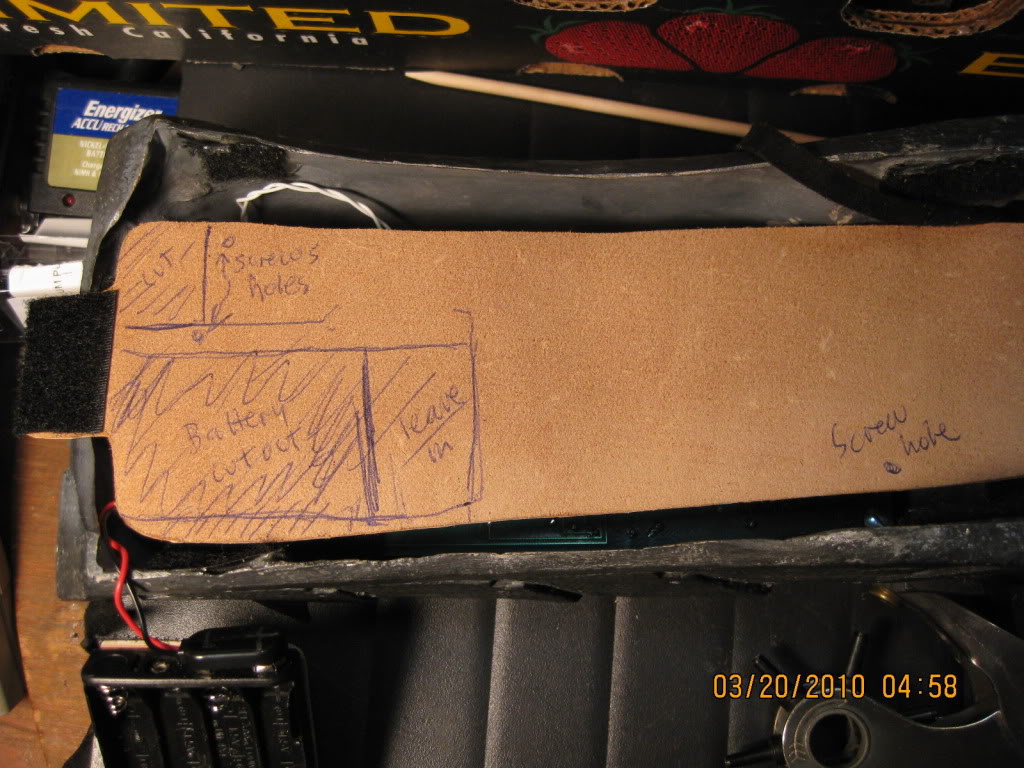

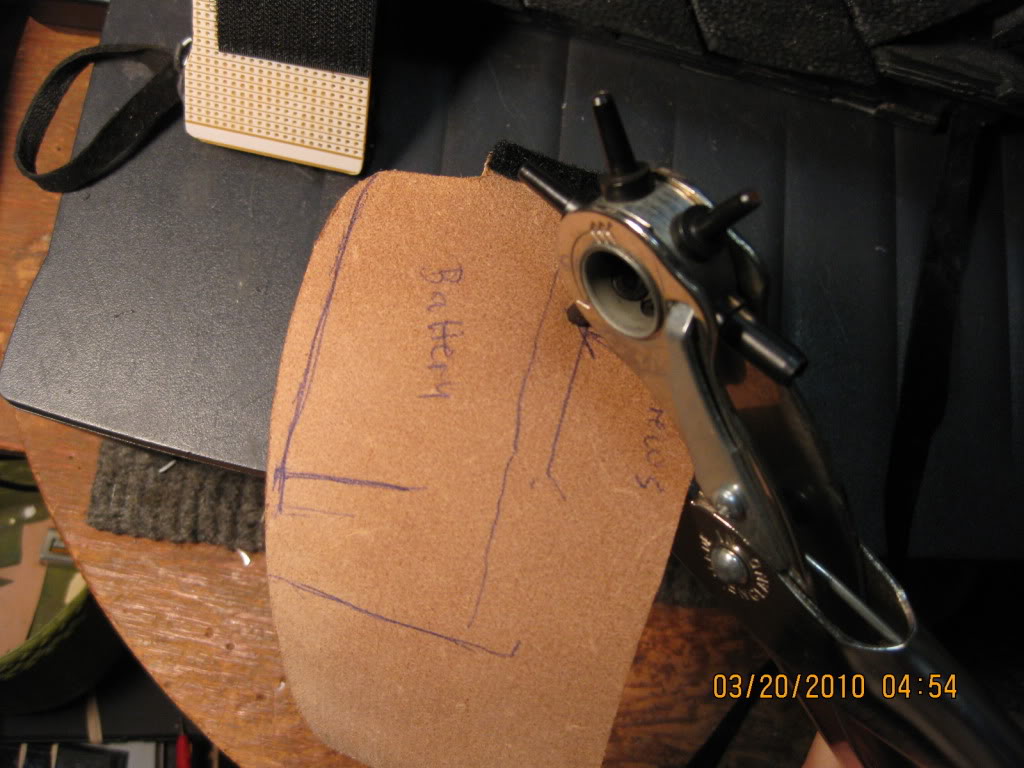

Use a leather punch to punch the 3 holes and cut out the rectangles for the fuze and battery (maybe leave leather over the fuze; see how it fits)

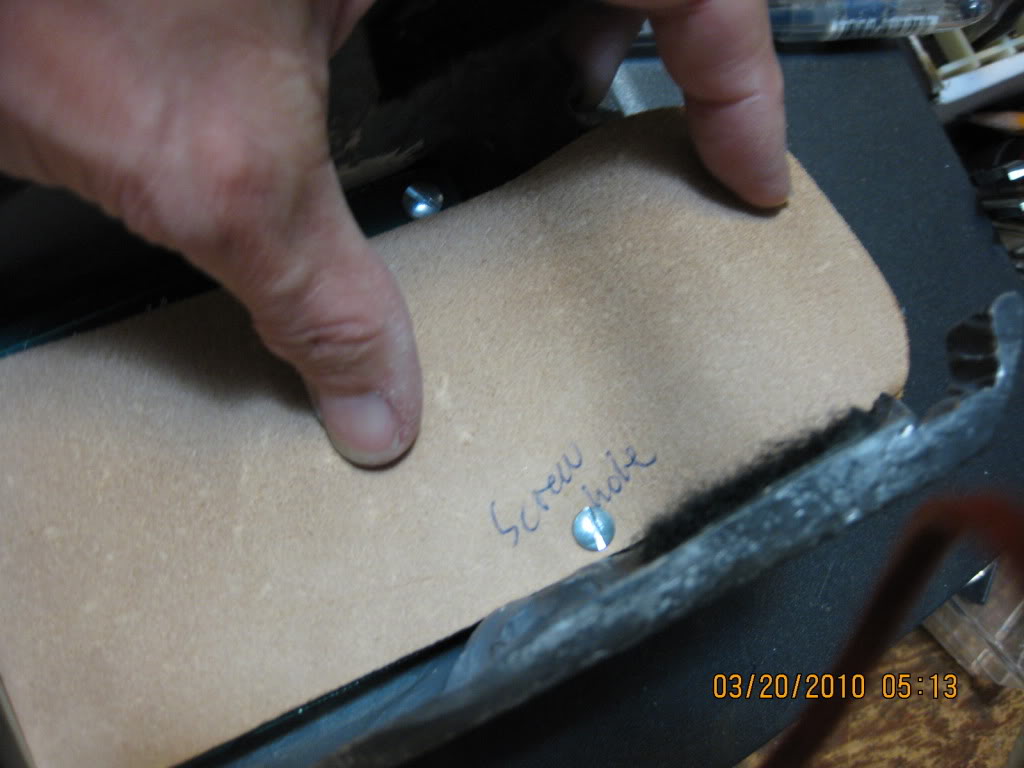

Now put the leather on the assembly using the screws and posts.

Maybe leave a thin strip along the elbow end to keep the tab from wiggling

Put velcro square on the elbow end tab; it tucks in here

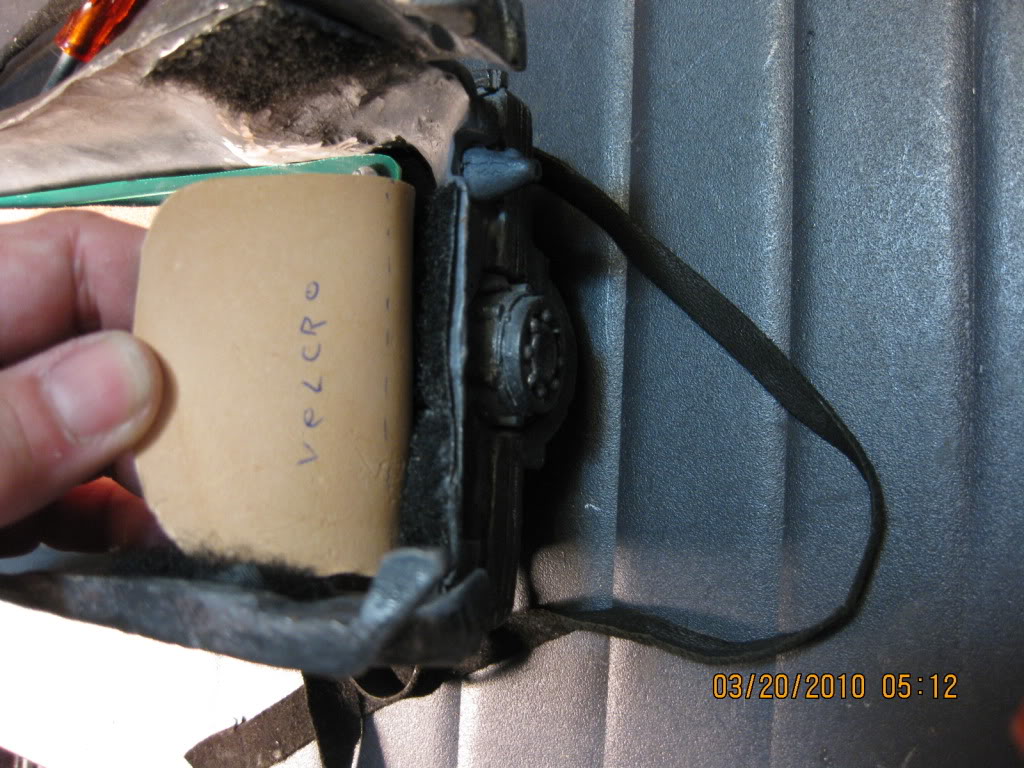

Bend the leather at the wrist end and put velcro on it corresponding to the flat part of the gaunt

Trim the excess leather that sticks out

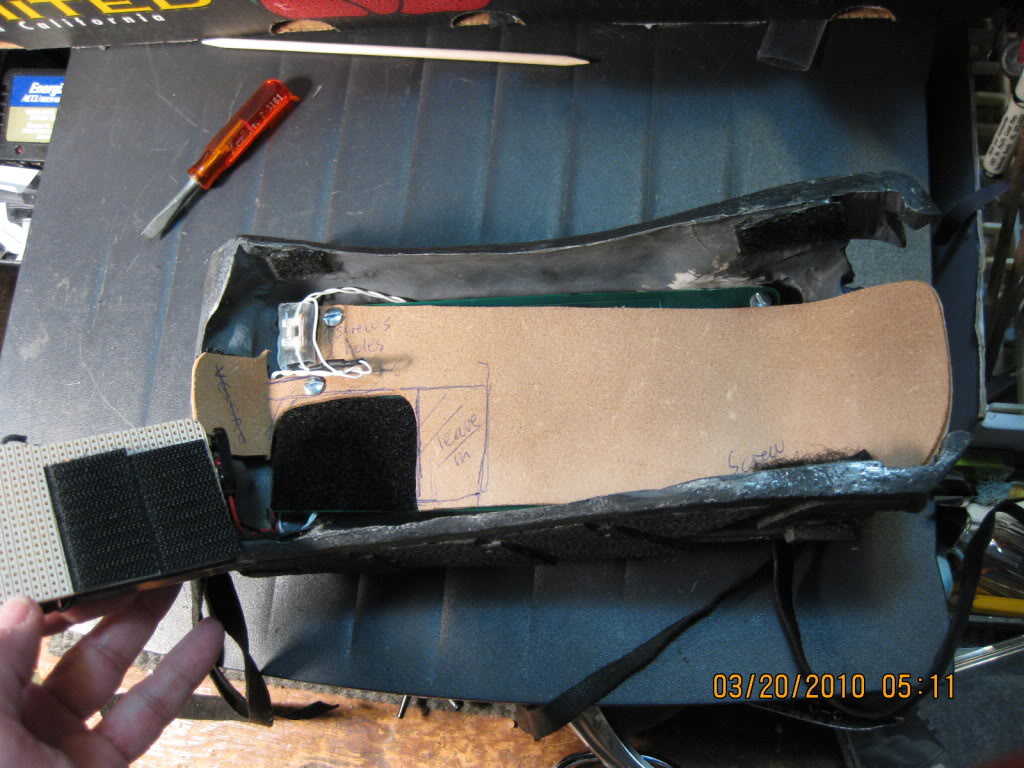

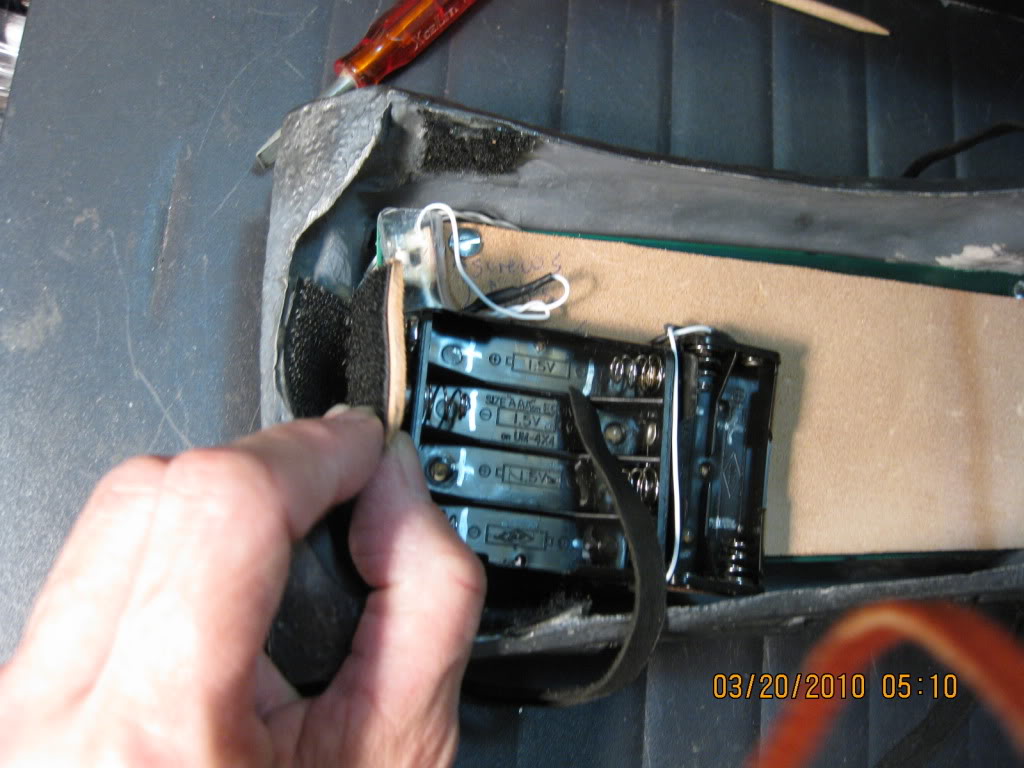

The back of the assembly with the leather on it:

The front:

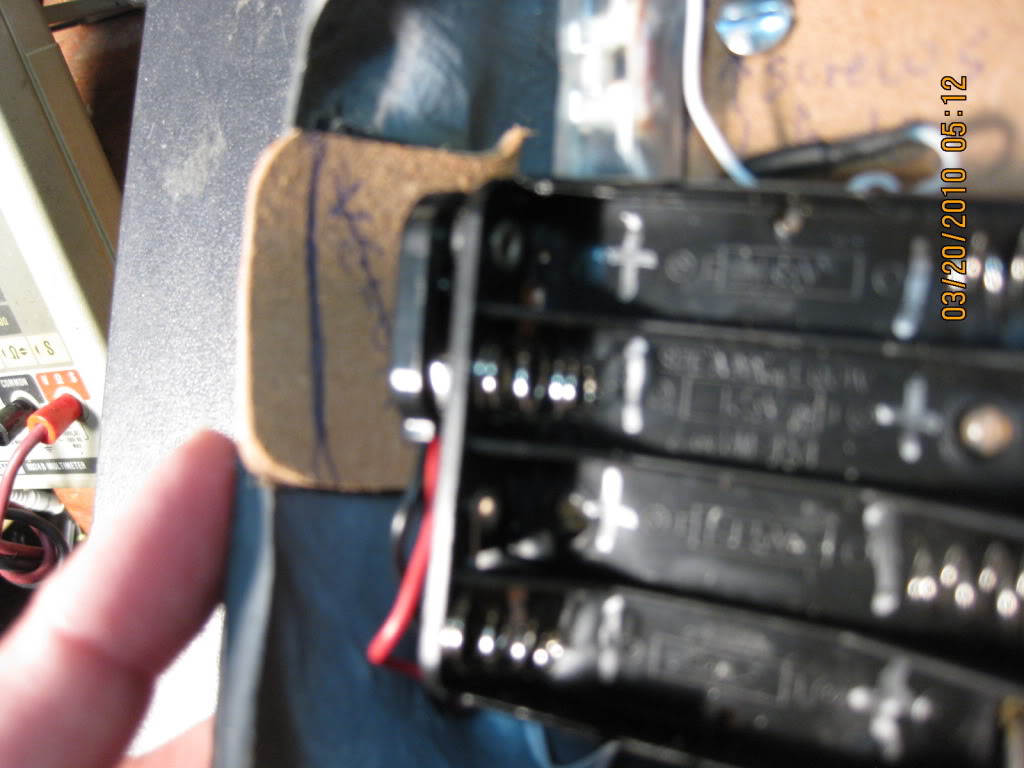

When its all in the gauntlet the battery doesn't stick up too far even with the leather in there:

Now the switches can be installed and glued.

Then align the LEDs in the windows and put the elbow end velcro tab down in the recess snugly. Do the same at the wrist end- bend the leather and secure it with the velcro. Now those posts don't need to be epoxied in; they just hold the board from moving up and down.

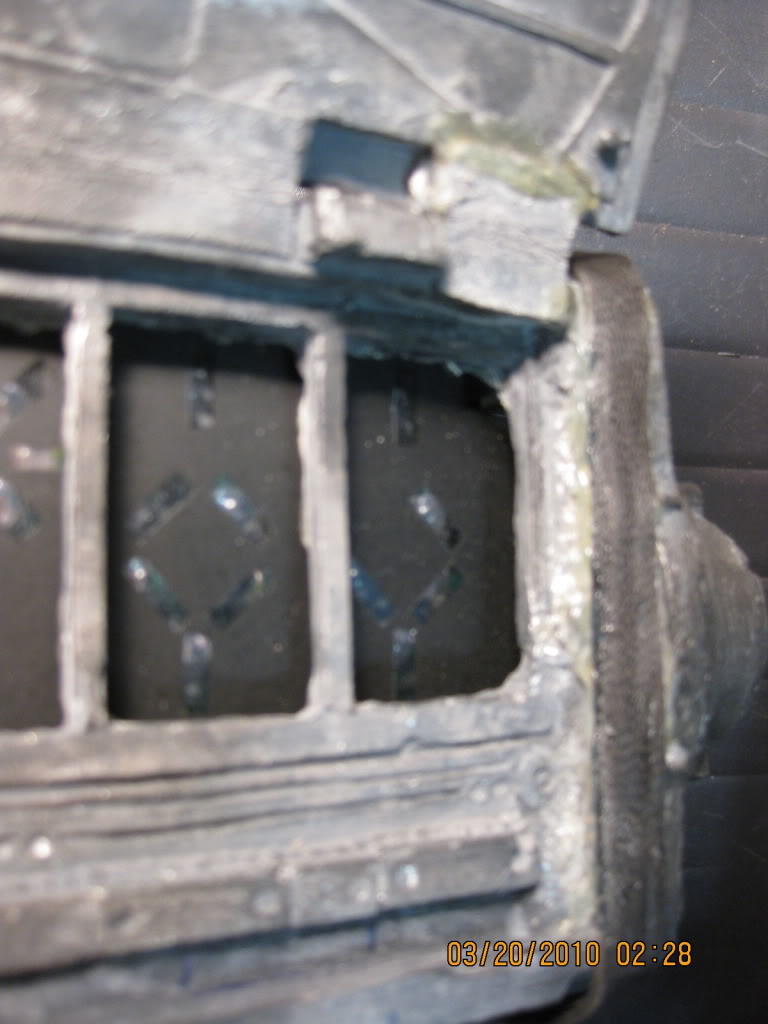

in this picture the switches aren't glued in... shows the alignment of the LEDs to the windows:

---
