    Hi all,

    Just starting up a thread on my Elysium AK47 build, its the second build ive put up on here and I find feedback helps with the motivation so here we go.


    First things first I needed a AK, living in Australia this proves to be difficult as we have pretty strict rules in regards to replica weapons so there will be a little more work involved but thats ok.

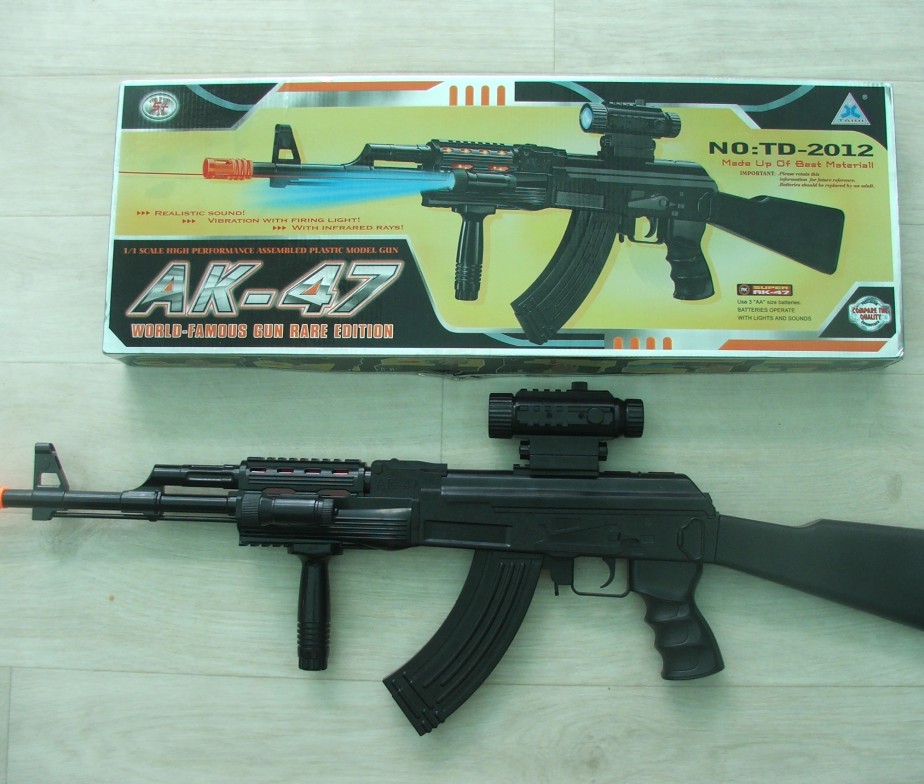

    So I picked up one of these, its fairly accurate most importantly its 1.1 scale


    After much sanding and filling and a pepakura grip, I had this,

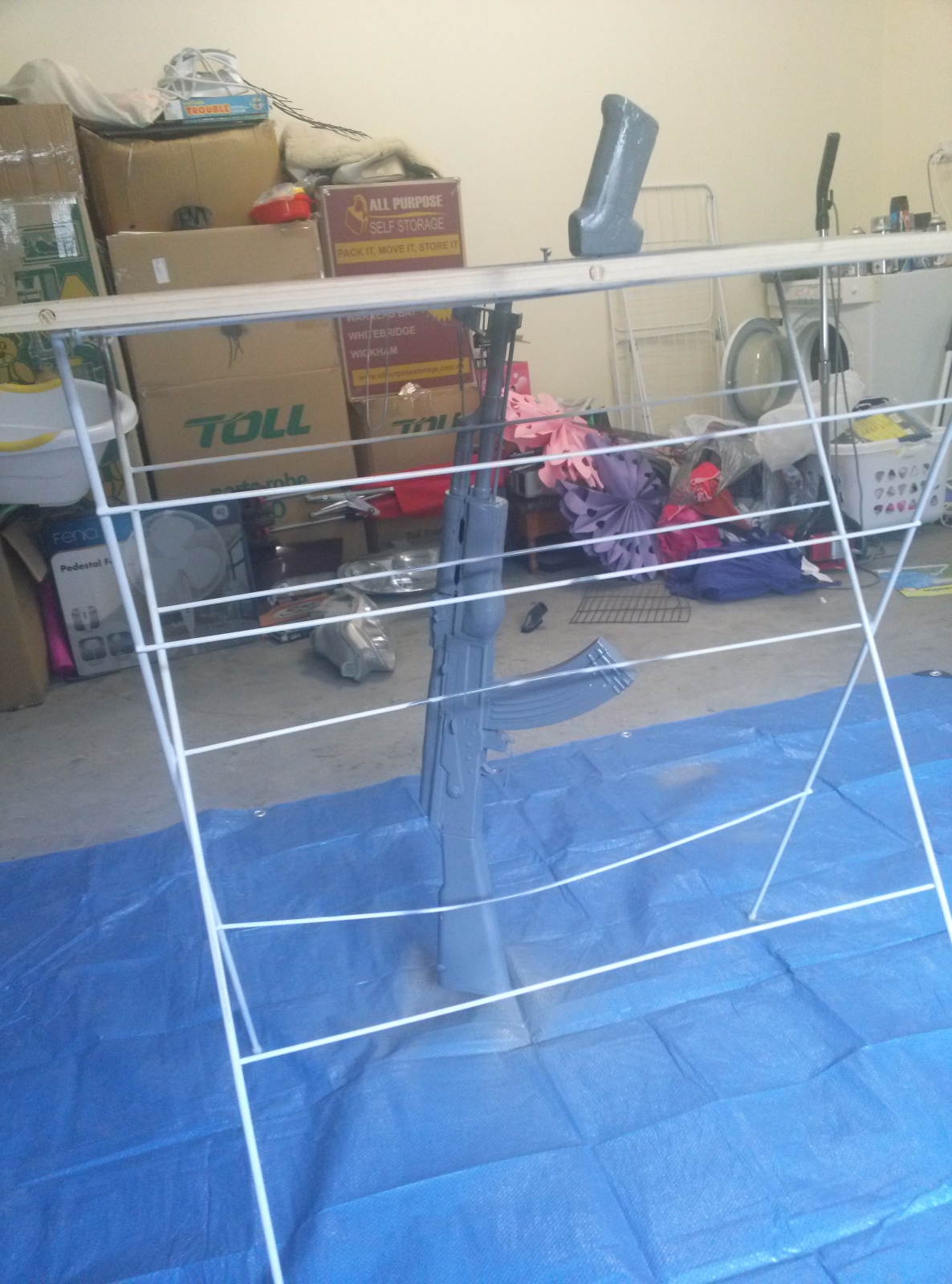

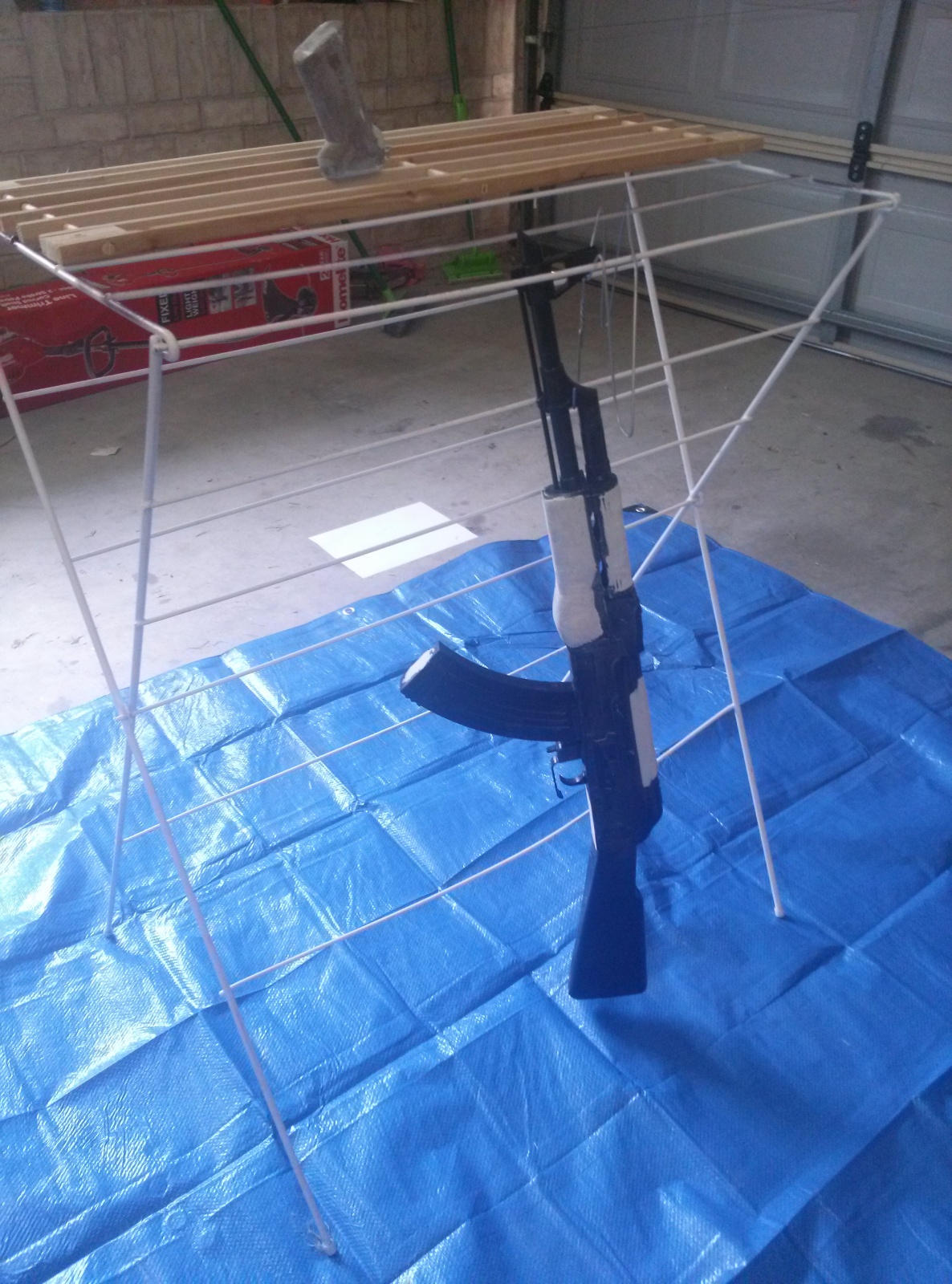

    First coat of primer,

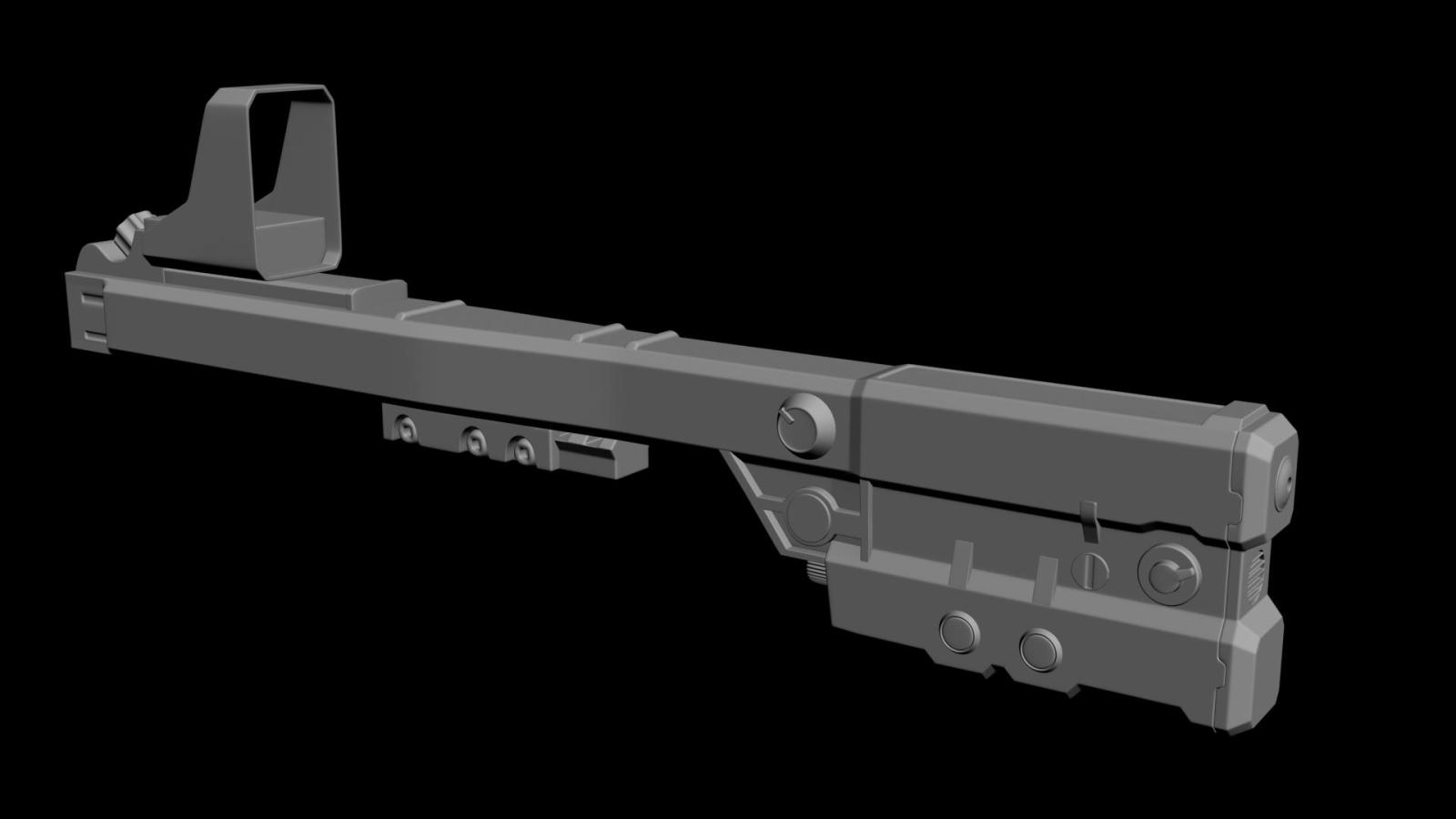

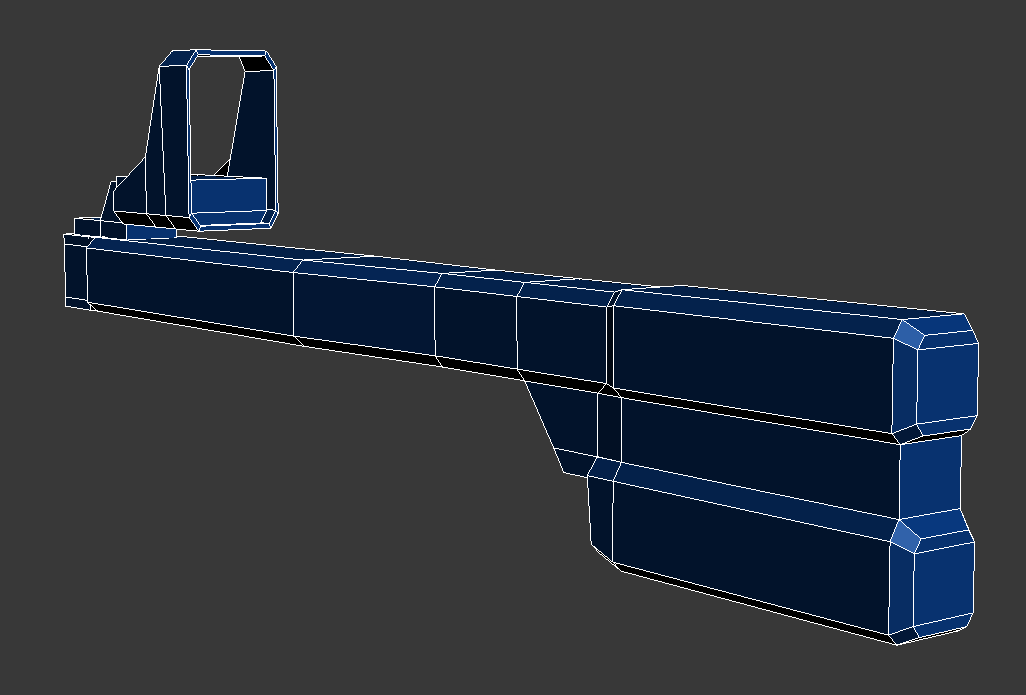

    And now for the sight, ive got about 10 years experience in 3d modelling so I am hoping to use this to have the sight 3d printed (if anyone has a good hookup let me know) here is the initial block out just getting the proportions as close as possible before I start the actual detailing process,


    Stay posted for more Info.

  2. Chaank

    Chaank Well-Known Member

    Trophy Points:
    916
    Where did you find the AK? Good score man!

  3. Darko

    Darko Active Member

    Trophy Points:
    261
    You can get taidi "toy" guns at markets and the like ive seen em around there but a good place is armoured heaven just google it, I actually bought off the guy before he had the site set up and he just had his stock and a ebay store but there are tons of decently detailed 1.1 weapons that dont classify as replicas.

  4. Chaank

    Chaank Well-Known Member

    Trophy Points:
    916
    Nice, I'll check him out. I've wondered about that. I'm new to Aussie and can't find much info on this subject. What is the difference between your AK a a replica? I can't get my head around it but I have seen lighters are novelties that look pretty real around Melbourne Markets...

  5. Darko

    Darko Active Member

    Trophy Points:
    261

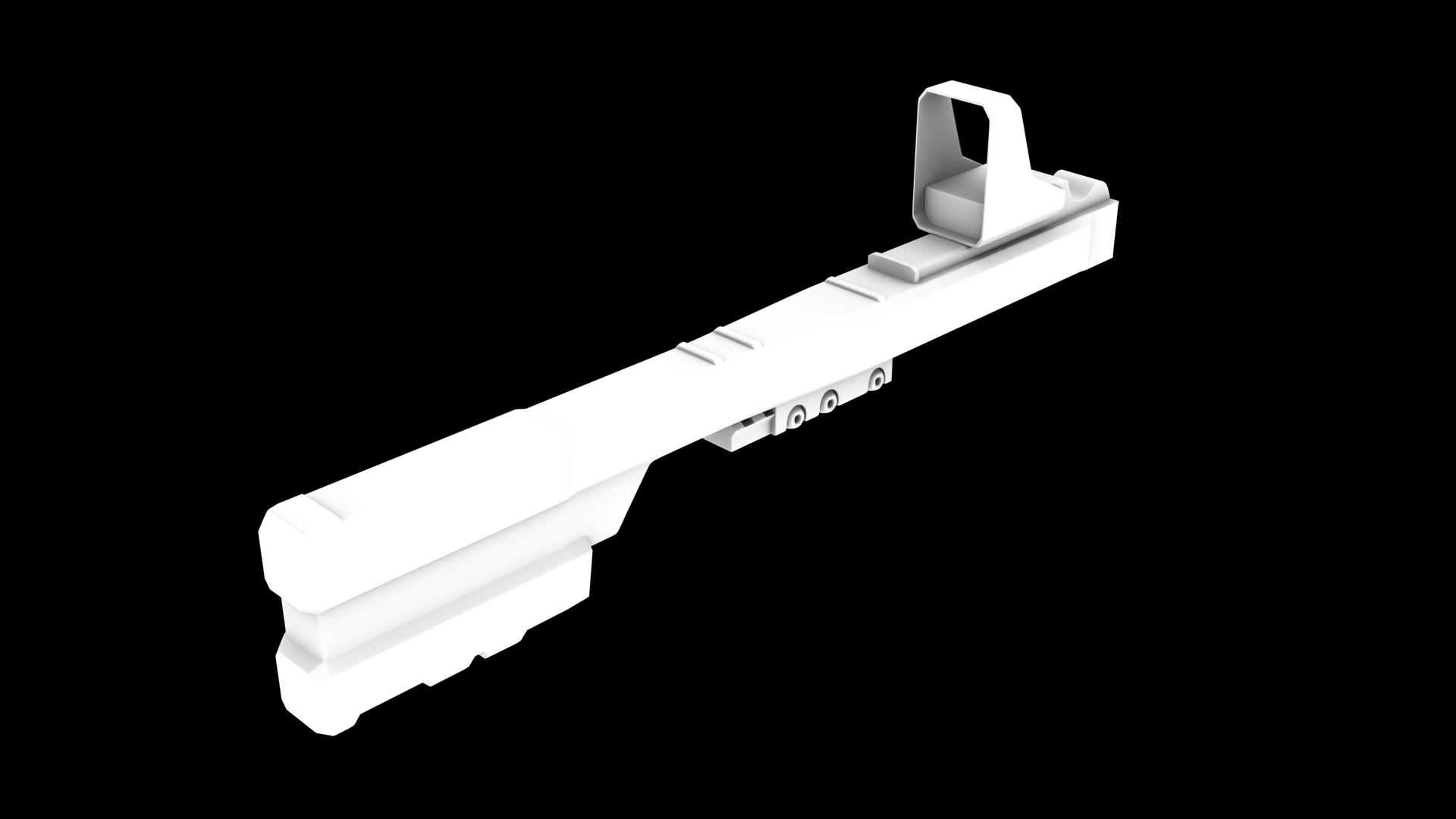

    Its kind of a loose term when it comes to "replica" weapons im not going to get into detail about the definition but there doesnt really seem to be any issue buying toy guns that are accurate as long as they arent straight up replicas like denix etc and as long as they arent airsoft and have a orange tip then you wont have problems make sure you look up your states rules and make your choice accordingly some states like queensland for instance allow any replica weapons however NSW for instance is very strict and require license. No issues with toys though. Anyway to stay on topic heres a quick render of my work in progress sight.


    Chaank likes this.
  6. Chaank

    Chaank Well-Known Member

    Trophy Points:
    916
    Thanks man. :cheers

  7. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    Awesome!

  8. KramStaar

    KramStaar Sr Member

    Trophy Points:
    1,960
    Chaank likes this.
  9. gunnerk19

    gunnerk19 Master Member

    Trophy Points:
    2,560
    $1000 for a Denix AK? Is that strictly related to Oz? Because you can get them for $250 here.

  10. paddyfritz

    paddyfritz New Member

    Trophy Points:
    17
  11. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    Let me know if you need any references; I saved the auction pics.

  12. Darko

    Darko Active Member

    Trophy Points:
    261
    Hey mate, any and all reference is good I have alot of photos but I bet i dont have ALL the photos.

    Another render, still plugging away in my spare time.


  13. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355

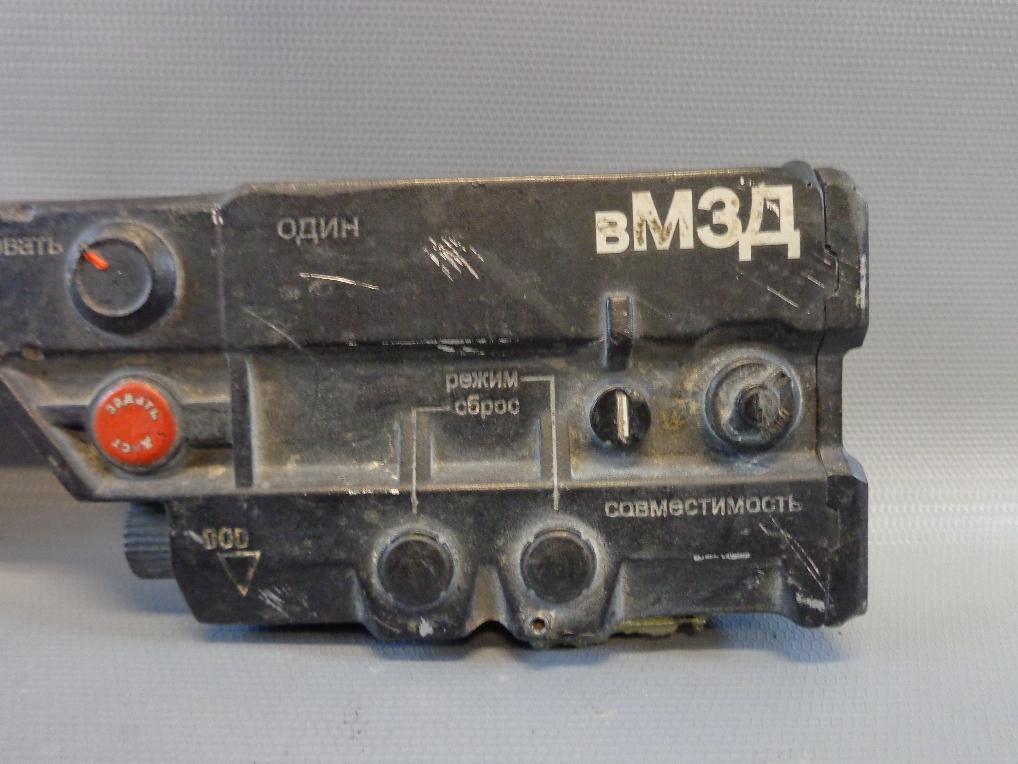

    Here's one for starters.


    Attached Files:

  14. KramStaar

    KramStaar Sr Member

    Trophy Points:
    1,960

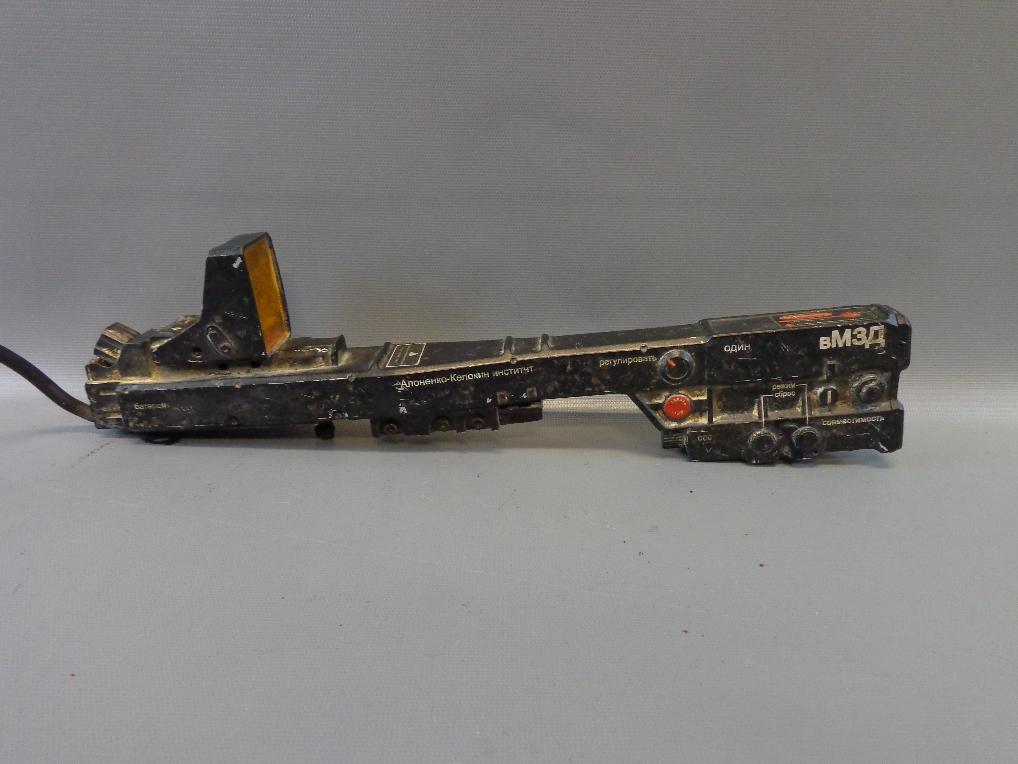

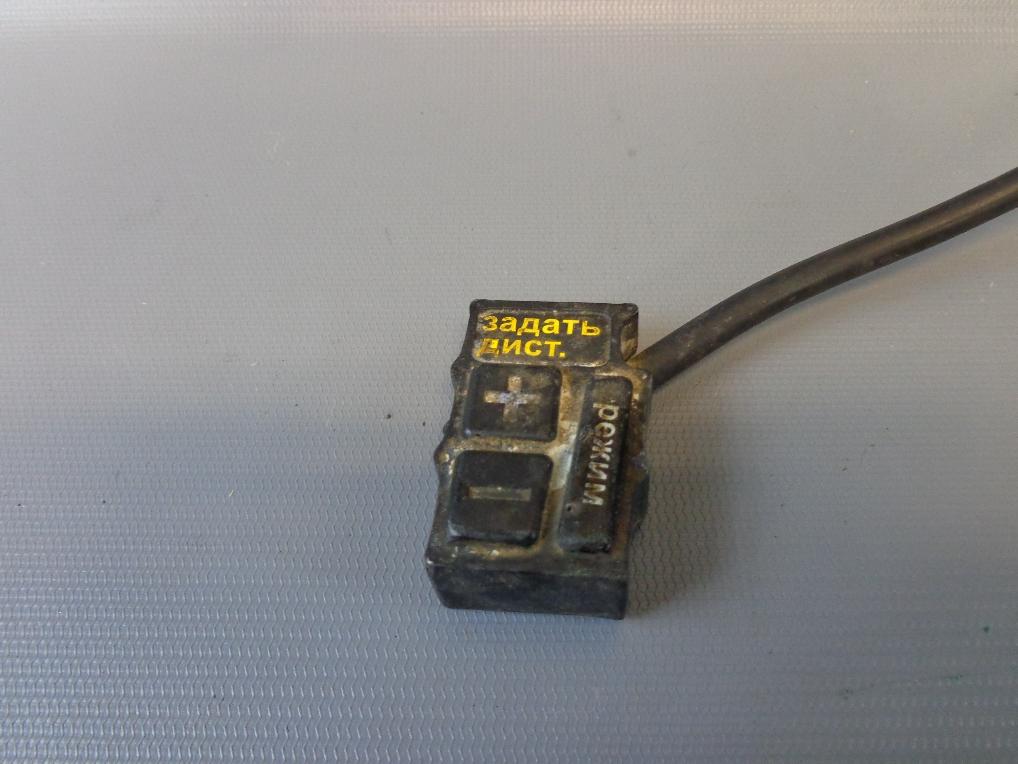

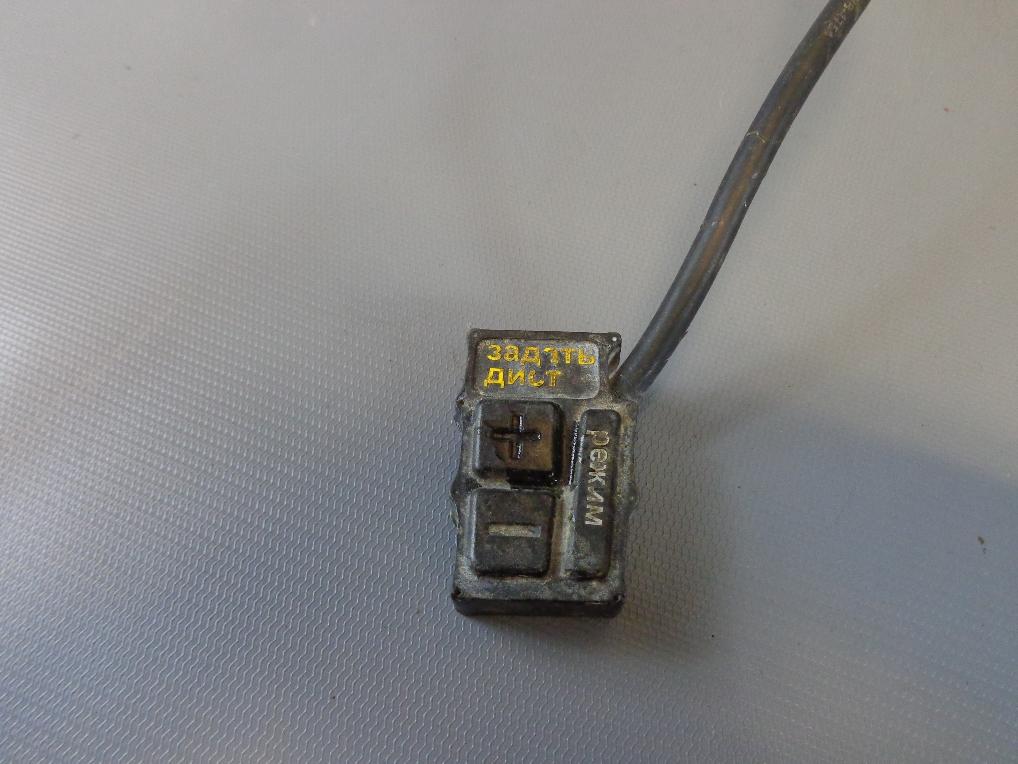

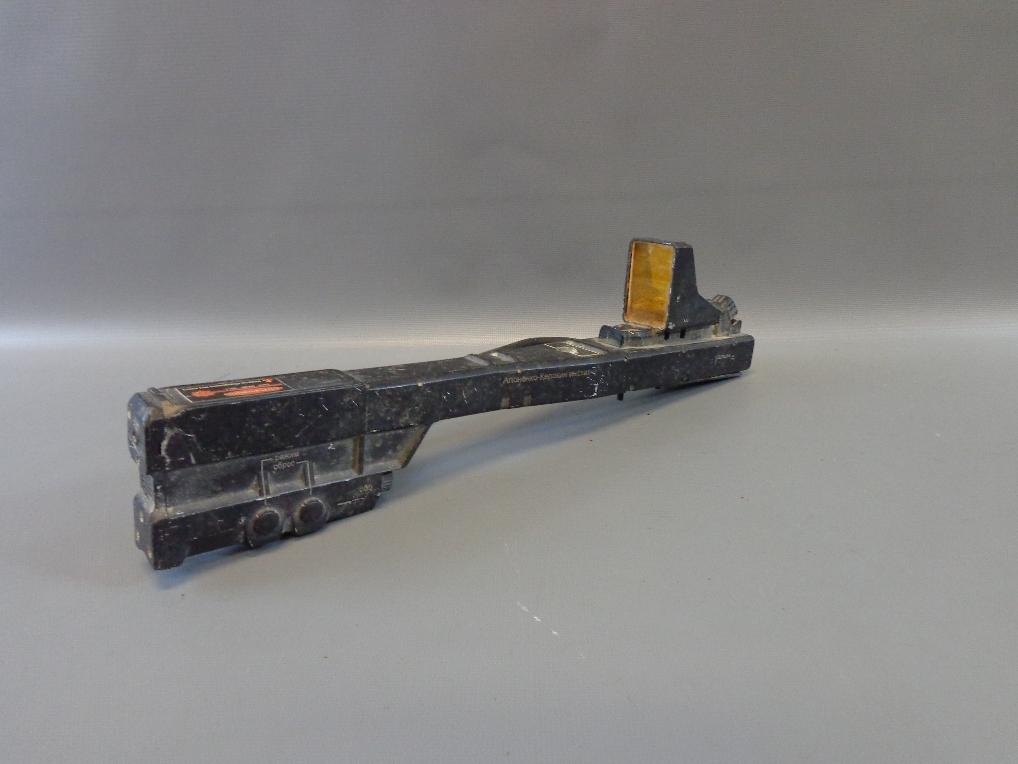

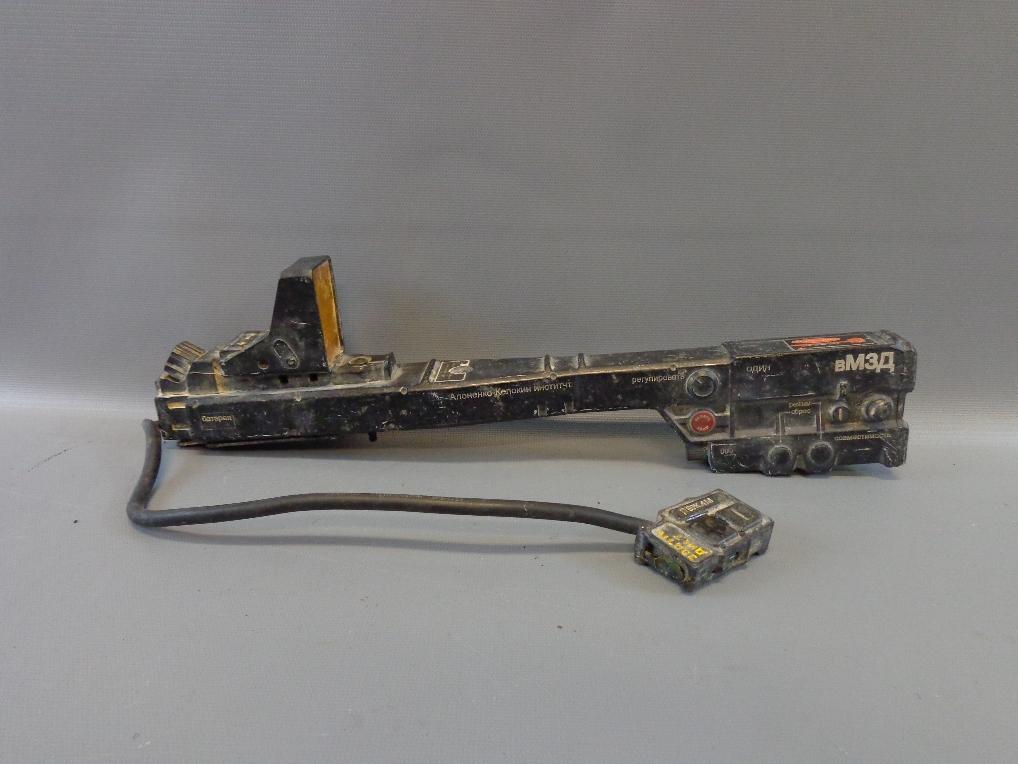

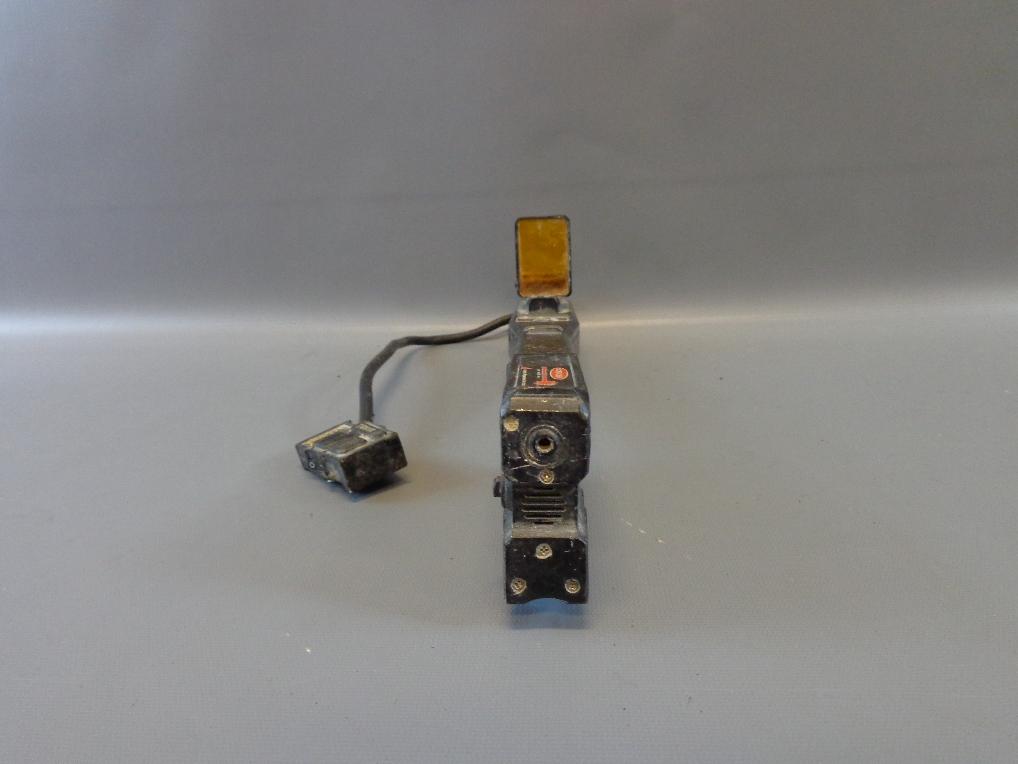

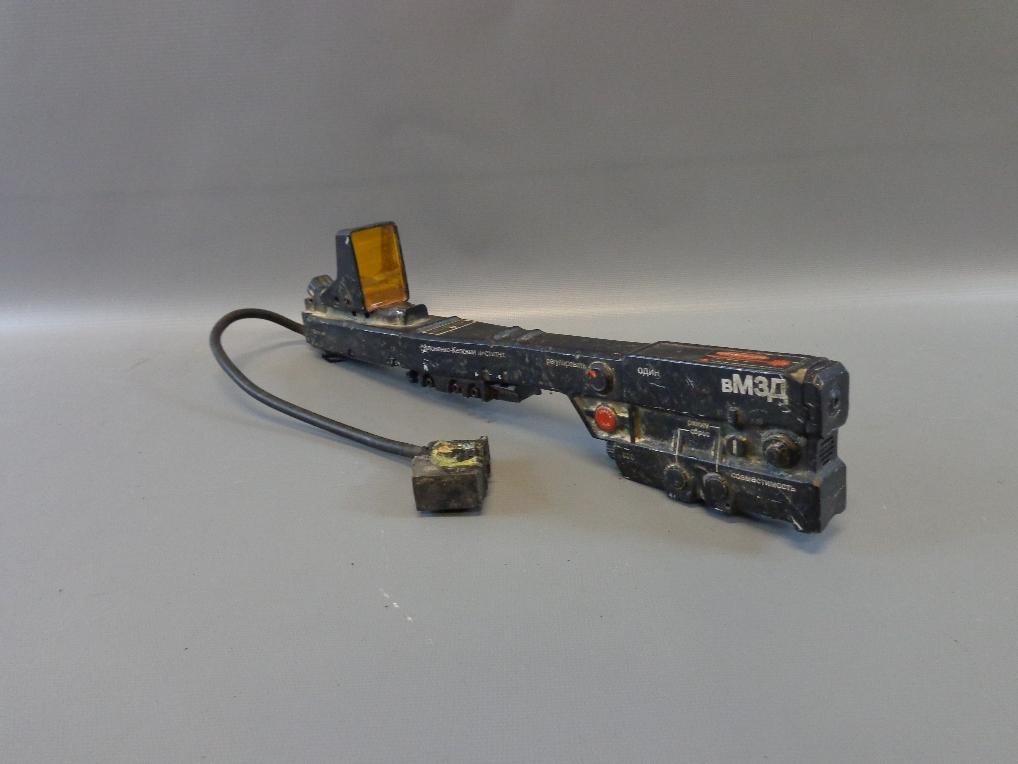

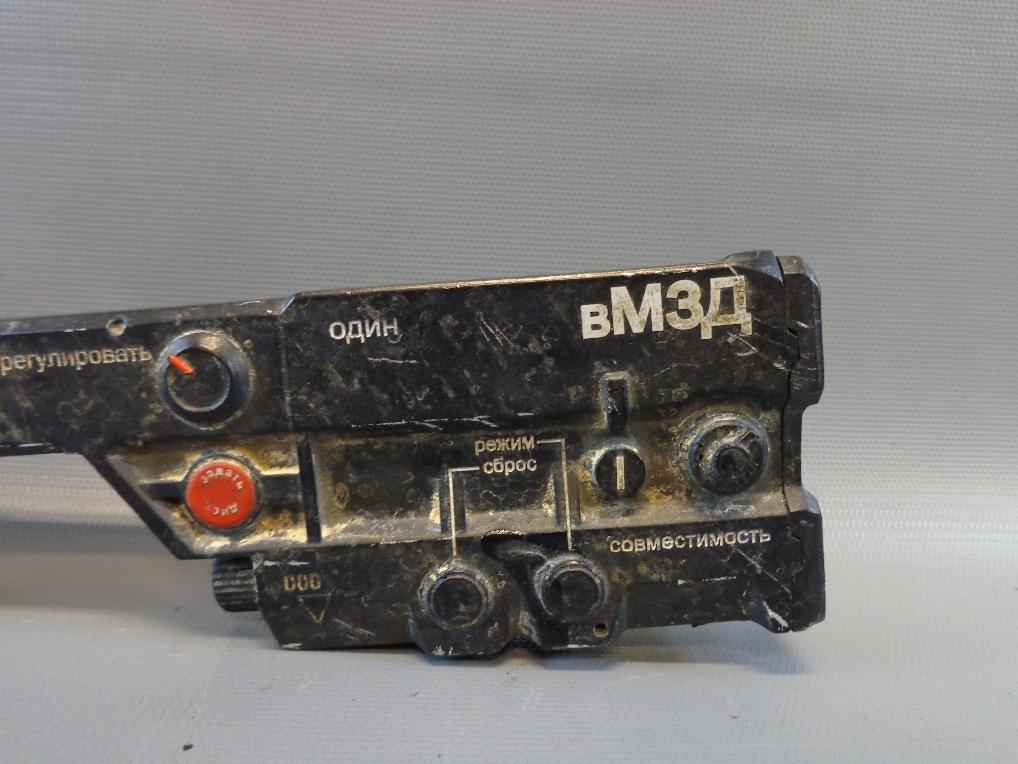

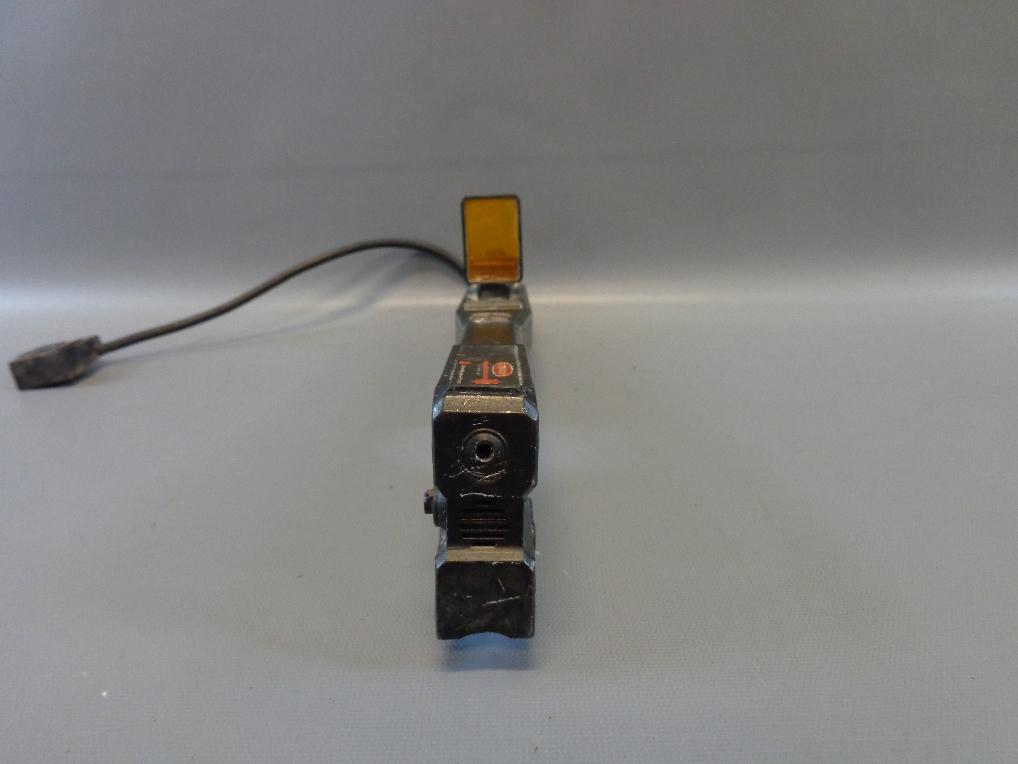

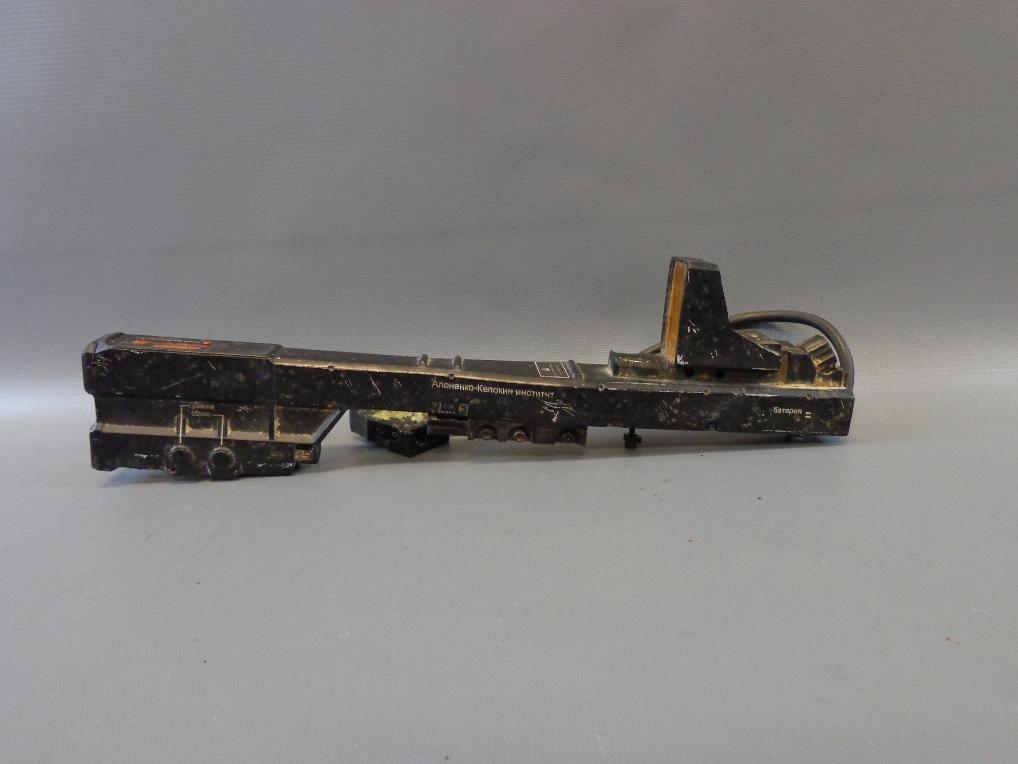

    More:
    14662989.jpg 14663022.jpg 14663021.jpg 14663020.jpg 14663019.jpg 14663017.jpg 14662993.jpg 14662991.jpg 14662990.jpg 14663023.jpg


    Attached Files:

  15. Darko

    Darko Active Member

    Trophy Points:
    261
    Thanks guys i didnt have some of those and they deffinately clear up a couple of things. Ill work some more on the model this afternoon stay posted.

  16. Darko

    Darko Active Member

    Trophy Points:
    261

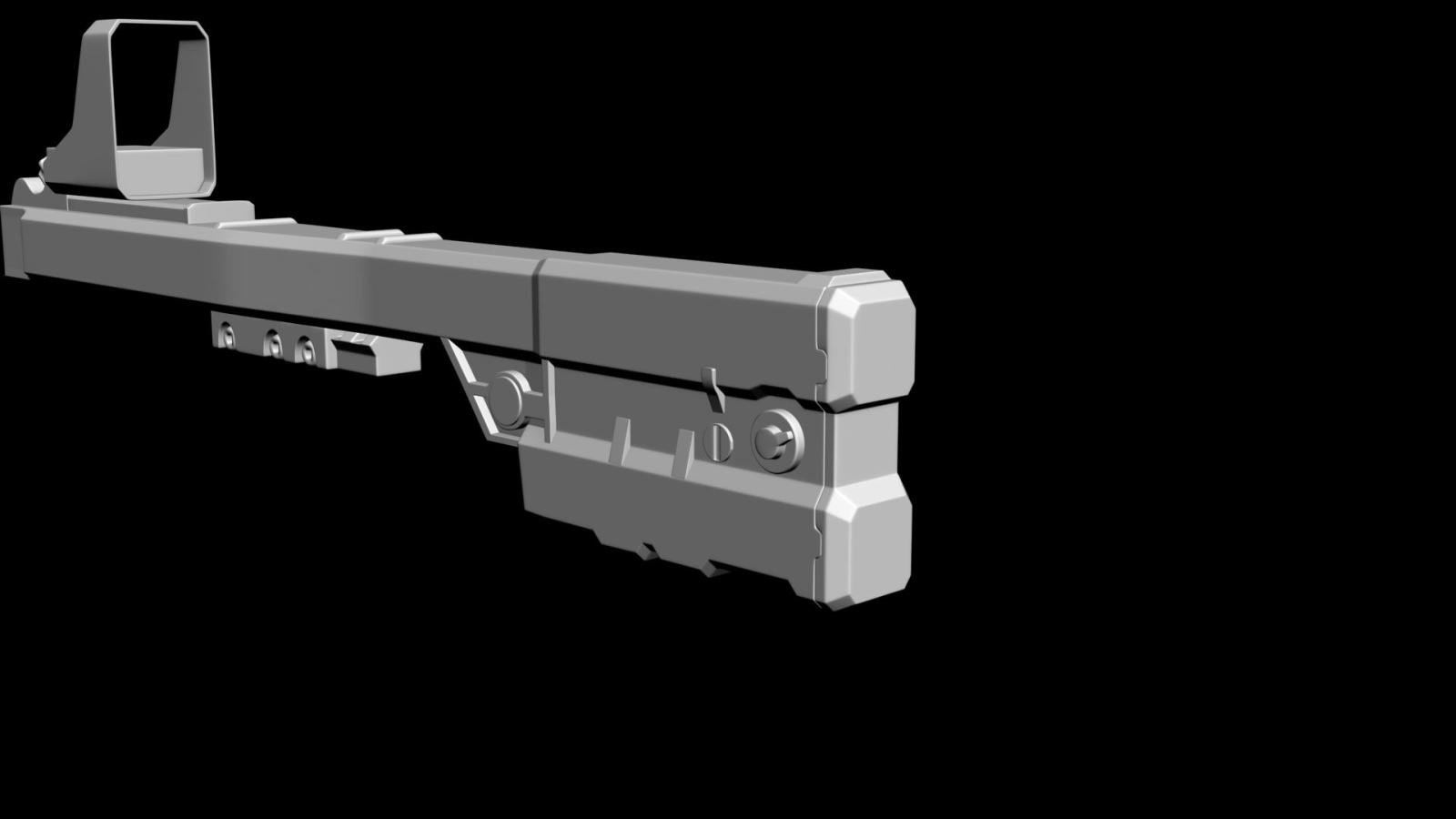

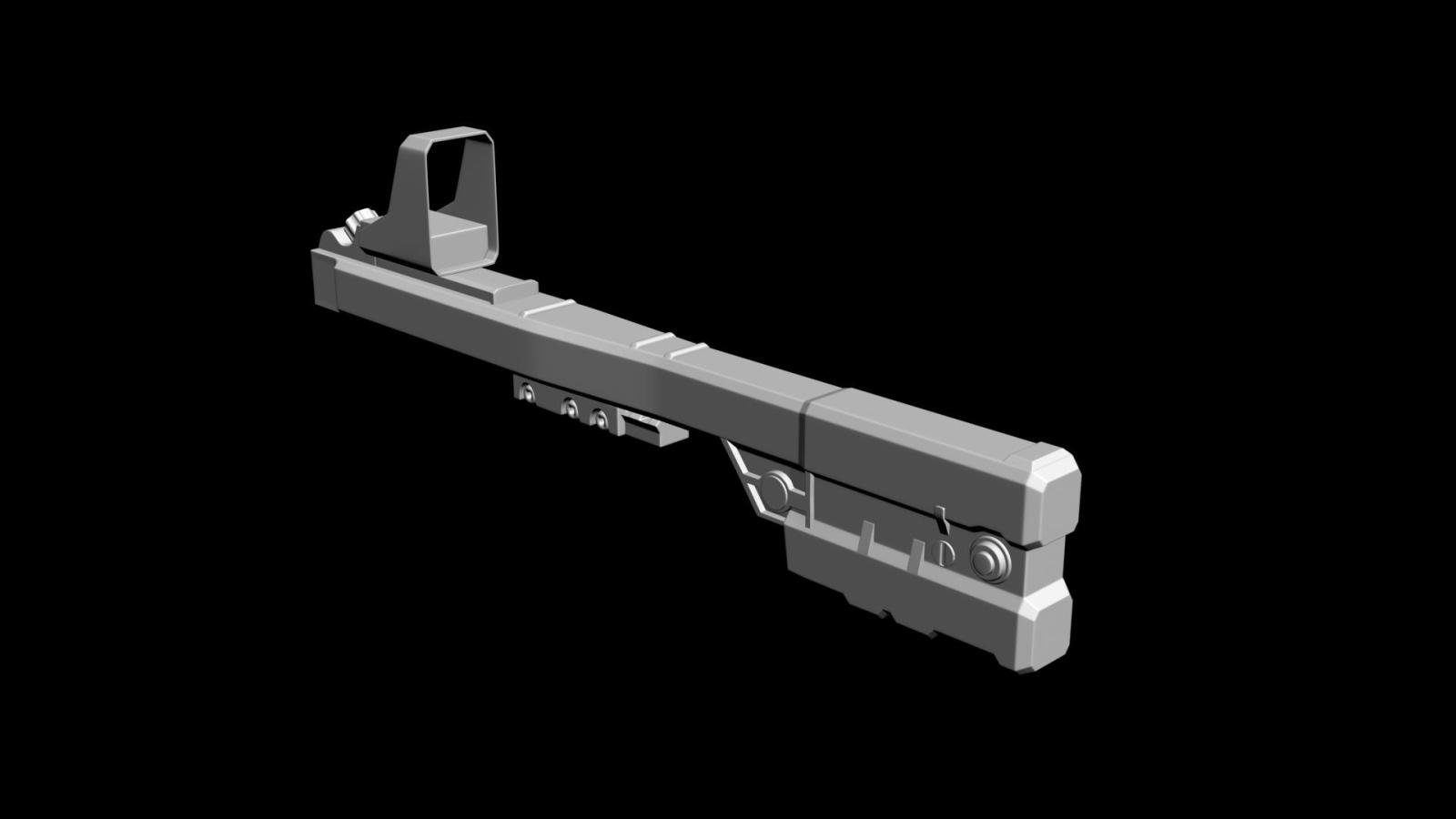

    More detail, its important to me to get the proportions right because then I can scale it all off the 20mm rail on the bottom.



    Attached Files:

    Last edited: Mar 17, 2015
  17. Muppetdaze

    Muppetdaze New Member

    Trophy Points:
    2
    Hmm couldn't you just buy an airsoft AK, there's enough cheap ones around, even if you buy a clear one and paint it

  18. Darko

    Darko Active Member

    Trophy Points:
    261
    Australia mate they arent legal, you need to register them like a real weapon and have a "reason" to own them for which this is none therefore airsoft is effectively illegal.

    KramStaar likes this.
  19. Darko

    Darko Active Member

    Trophy Points:
    261

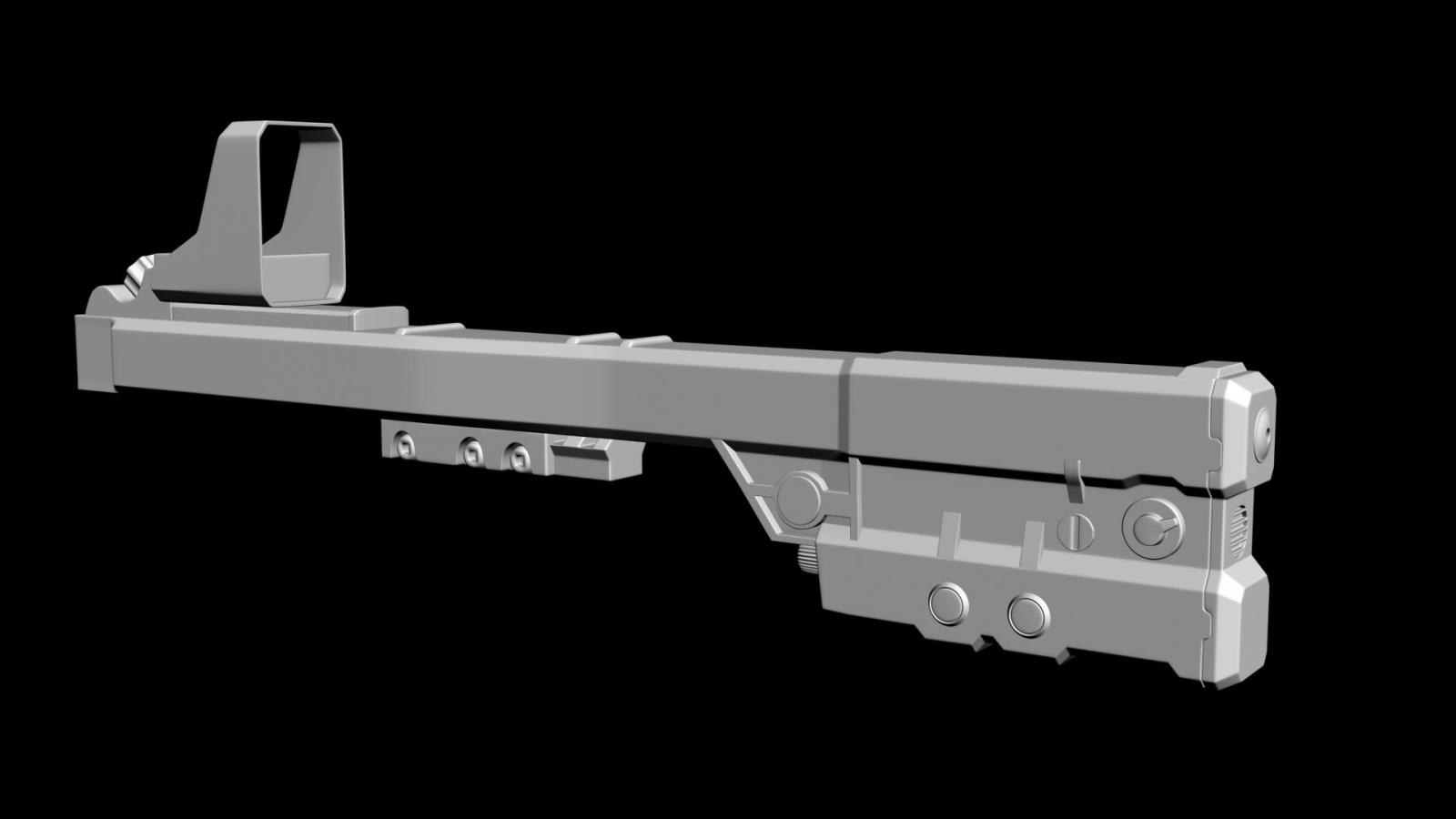

    Another render, getting closer to being done, deciding if I want to add the drilled holes to the model or to drill them post 3d print. If there is anyone on here that will print this cheaply please hit me up! gonna work on the decals soon also. If anyone is interested in this when im done I might do a run.


  20. Darko

    Darko Active Member

    Trophy Points:
    261
    Got the paints for the prop been thinking about how im gonna do the wood i was in bunnings and saw this wood grain vinyl that is used for florring surfaces and bench tops etc so im thinking about experimenting with applying it to the model then going over the vinyl with wood varnish to see if i get a realistic wood effect. Gotta concerntrate on the metal first.

  21. Darko

    Darko Active Member

    Trophy Points:
    261

    On goes the metallic charcoal. am I talking to myself in here or what!

  22. RogueTrooper

    RogueTrooper Well-Known Member

    Trophy Points:
    935
    Yes, it would seem so;)........good work so far, keep going. Check your view rate, tons of folks lurk and watch a build never to post, so don't get disheartened. It's a huge pain in the * living in Oz on the gun front, you can't even own a BB gun:lol.......get this build finished so we can see the results, promising work so far...chop, chop:D

  23. Tuckanator

    Tuckanator Active Member

    Trophy Points:
    361
    haha I'm one of those lurkers. Awesome build so far, im from Aus too and you've inspired me to build one now! Thanks for posting about armoured heaven, I was trying to find a cheap AK for a while. If you end up doing a run of the sight, I might be interested depending on price aswell

  24. Darko

    Darko Active Member

    Trophy Points:
    261
    Thanks for the kind words guys, ill defo do a run on the sight if there is enough interest to re-coupe my costs its more about the hobby than the money for me anyway I wouldnt mind seeing what people do with the stuff I create. Here is some more pics, once the metallic charcoal is dry i went over it with very light coats of matte black to darken it up then drybrushed silver, the metal effect is much better in real life than these photos.




  25. RogueTrooper

    RogueTrooper Well-Known Member

    Trophy Points:
    935
    Excellent weathering. Weathering is an art form all by itself. Most peeps over do it and it either looks dirty or simply doesn't look realistic enough. Great work keep going;)

    Agreed regarding the Toy Armory site. I'm surprised the ANSP haven't shut it down yet:lol

  26. Darko

    Darko Active Member

    Trophy Points:
    261
    Thanks mate :) and yeah armoured heaven is good for people like us because it gives us an avenue for prop building that we might not have thanks to restrictive airsoft/replica laws, to be clear the guy does not sell airsoft nor replicas he sells toy guns that can be used for cosplay or prop building which are perfectly legal. Heres the site if you guys cant find it (what is google lol).

    http://www.armouredheaven.com.au/

  27. Darko

    Darko Active Member

    Trophy Points:
    261
    Getting the scale correct on a basic ak 3d model, going to work on the decals and bullets soon and look for an Aus 3d printing service that will print out the finder for me.



  28. Barking Dragon

    Barking Dragon Well-Known Member

    Trophy Points:
    521
    Looking great so far mate and thanks for posting the link to AH, going thru their store now to buy a few things as well as an AK in case this project goes the way you hope ;) Loved Elysium and sooo bummed that Weta cancelled their Chemrail gun....i had it on order :(

  29. SATELLITE74

    SATELLITE74 Active Member

    Trophy Points:
    361
    Great progress,I've just found this thread.Fancied doing one of these myself as deactivated AKs are easy to get here in the U.K.
    But seeing as you're doing one and might be doing a run I'll hold on for a bit and see what you do.

  30. Grey

    Grey Sr Member

    Trophy Points:
    1,685
    This gun was the best thing about the movie. :lol

  31. Darko

    Darko Active Member

    Trophy Points:
    261
    Bumping my old thread but I want to talk about the progress of this, so I have a 3d printer now and I am wondering if I were to do a run of these how many people would be interested? I plan to 3d print this in the near future and potentially do a run of kits or even finished props.

  32. Jack

    Jack Well-Known Member

    Trophy Points:
    566
    Post in the JY, you will reach more people.

    I know I would be interested pending price...

  33. Darko

    Darko Active Member

    Trophy Points:
    261
    Yeah I might just make it and see how they go, next weekend hopefully I will be able to get into the 3d printer so ill update this with progress.

  34. veektohr

    veektohr Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,991
    I'd be interested.
