DL 44 (Mauser) measurement for scale

[Lorcoft]

Hi folks;

As many of you know, because of our pesky and antiquated laws in Canada, it's illegal to purchase or import any replica of a Mauser C96 (either Denix or MGC). This makes building a DL44 rather difficult. So.. I decided to model one in Rhino and 3D print it.

I've completed the model but I want to make sure that it's to the correct scale. Is there anyone who could tell me what the width of the lower receiver is at the top of the lip that the upper receiver slides onto from either the Denix, an MGC, or even an actual C96.

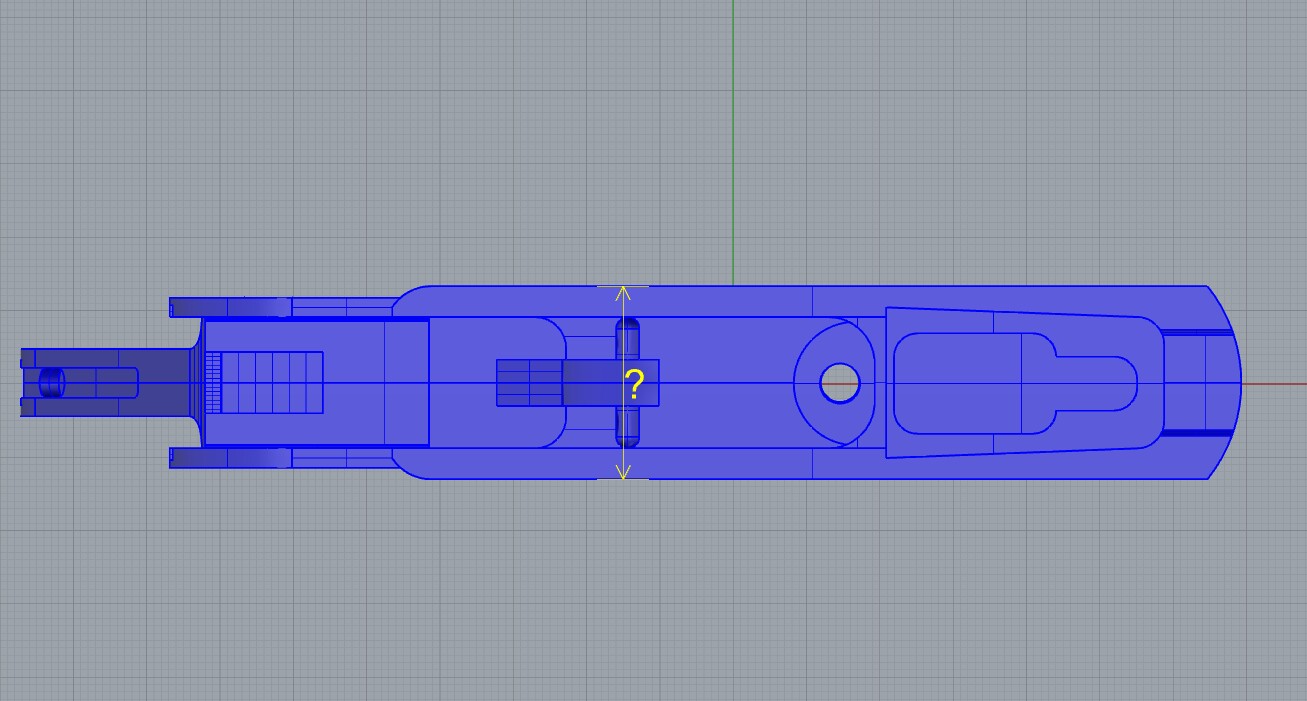

I've added a screenshot from rhino to show exactly where I mean.

thanks in advance;

Lorcoft.



[Corran Horn]

Ooooooooo I could use something like this.

I agree with the sentiment towards our irritating gun laws. I've wanted one for a long time too.

Sent from my Nexus 6P using Tapatalk



[tomm1999]

I will take some measurements when I get home if no one else can. I take it you want in MM not inches.



[Lorcoft]

Thanks Tomm; Yes, MM would be better than inches.



[tomm1999]

I am so sorry I forgot about this last night. It is 21.9mm

If you need any other measurements just ask.



[Darth Lars]

For other measurements, this was posted in the ANH DL-44 research thread a few years ago:


I'm sorry I don't remember who uploaded it; could not find it on Google Images.



[Lorcoft]

Thanks, those are both very helpful!!
