Build Thread - Fallout 4 Laser Musket

Discussion in 'Replica Props' started by RockIt, Sep 20, 2015.

  1. RockIt

    RockIt Active Member RPF PREMIUM MEMBER

    Trophy Points:
    213
    I'm super stoked to be starting up my newest build project - the laser musket from Fallout 4!

    59634-0-1436302265.png Fallout-Shelter-Preston.jpg IirHm87.png Laser_musket_promo_image.png

    Obviously the game hasn't been released (c'mon, Nov 10, get here faster!) so I'll be working off a handful of reference photos from their promo material and trailers. Just from that, it's super obvious that customization is going to be super prevalent in the newest Fallout - so I'm pretty stoked that my Laser Musket will (likely) be different from the next guys....who'll be different from the next guys!

    The build is going to be a mix of 3D printing (currently starting the CAD models as we speak), sintra, and misc other materials (like fasteners, piping, or tape). I'm also making it to generate a red charged plasma effect in the clear chamber. Sadly, crackle tubes have become scarce (would've been perfect!), so I'm going to jury rig the effect from some LEDs and Arduino-based micro-controller.

    I'll be starting w/initial CAD modeling and the preliminary prints first, then work from there.

    Question: if anybody knows of some good tutorials on triggering the circuit using the actual gun trigger, could you link me to them? I've built LED blaster props previously, but they're always on/off and not active trigger. Thanks!

  2. RockIt

    RockIt Active Member RPF PREMIUM MEMBER

    Trophy Points:
    213
    Slow progress is slow. Knocked out a couple comissions plus, the bigger time sink, < 1 month til the wedding. So all time/energy/money going into last minute wedding planning, coordination, logistics, etc. BUT! I've done some modelings, started printing a couple of the pieces. So here's a couple CAD in-progress shots for kicks 'n giggles!

    20150916_202007.jpg 20150917_222451.jpg

  3. RockIt

    RockIt Active Member RPF PREMIUM MEMBER

    Trophy Points:
    213
    Slow progress is slow. Then again, 3 weeks til the wedding. So any progress is nothing short of a miracle! But for this build I'm quickly realizing that since it has so many subsections and its being made out of more than just CAD models, I'm going to start sub-assembling it as I go along. So - have a progress pic showing part of the grip being put together. Still super raw. Prop is maybe 5% complete....


  4. jellis359

    jellis359 Jr Member

    Trophy Points:
    92
  5. RockIt

    RockIt Active Member RPF PREMIUM MEMBER

    Trophy Points:
    213
    Right on, those are some great models you've got so far. I'm definitely onboard to help where I can, thanks for the link!

    What I think is cool is Fallout 4 looks to be super customizable, including the weapons. The laser musket is slightly different in every single decent reference photo I've found so far. For example, I'm not installing the crank onto mine but instead, I'll be making and attaching 3-4 large batteries. I'm curious to see how the different builds turn out, different versions of the same core build.

  6. jellis359

    jellis359 Jr Member

    Trophy Points:
    92

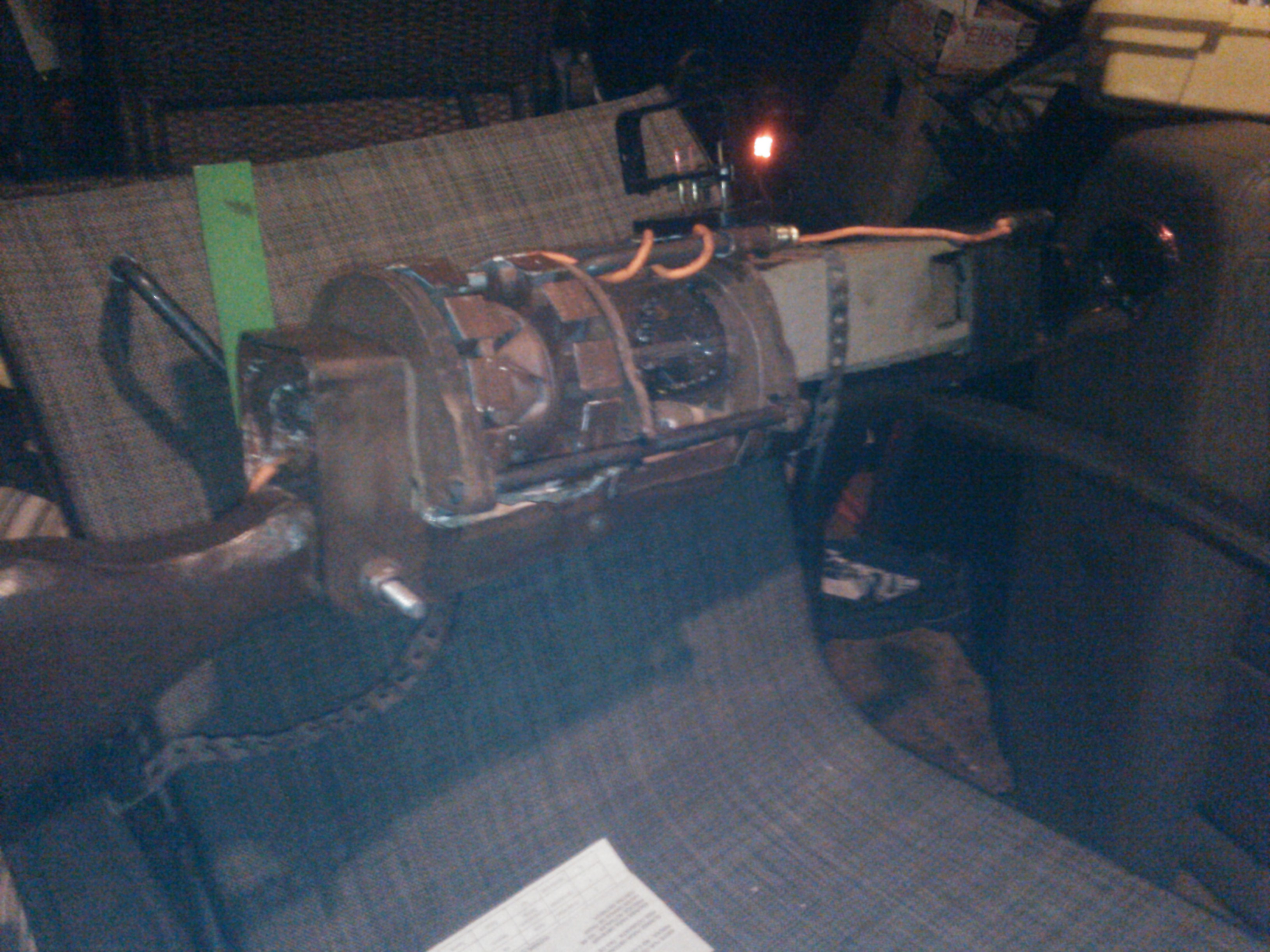

    uploadfromtaptalk1447567176611.JPG uploadfromtaptalk1447567191082.JPG uploadfromtaptalk1447567203296.JPG Thought you'd like to see my progress.


    Sent from my C811 4G using Tapatalk

    Cameron and erikv like this.
  7. RockIt

    RockIt Active Member RPF PREMIUM MEMBER

    Trophy Points:
    213
    Ok, after a few month delay (hooray life - but considering I now officially have multiple life events behind me, it should get better from here). Expect a photo dump with significant progress coming soon...

  8. RockIt

    RockIt Active Member RPF PREMIUM MEMBER

    Trophy Points:
    213
    Currently at the assembly stage. I've finished modeling, printing, filling, sanding, priming, and painting. I bought some lenses and sanded them down to fit into the lens holders. The neopixel LEDs are controlled using a flora arduino board, installed inside the back half of the musket, and accessed through a magnetic back panel. I'm putting the main sections together now, then will test the structural integrity of the full build (should be fine), touch up, add details, then weather and seal. Should finally be done soon! Also to note: I opted out of the crank because it was getting way too in the way for usage at a con or whatever.


    Attached Files:

  9. zapwizard

    zapwizard Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,341
    Looking good. I hope to build one of these some day.

  10. macmoholic

    macmoholic New Member

    Trophy Points:
    2
    If you have any in detail assistance you can share with the gears and lighting you added in that would be awesome, currently gathering materials right now and hoping this doesnt cost me a fortune. I hope the wedding was nice!

  11. RockIt

    RockIt Active Member RPF PREMIUM MEMBER

    Trophy Points:
    213
    Thanks! And go for it - ever since I starting building props a couple years ago, I've never found a hobby more rewarding. And when you get into fully scratch built and do EVERY aspect of it, it's just awesome. Plus you're left with something cool from one of your fandoms! Prop makers - we're professional hoarders ;-)

    Thanks! So I made a couple mods on my build, the most prominent one being no crank. I started to make one based off some gears I was 3D scanning for a base mesh model, but I quickly realized that since my end goal is to cosplay w/this prop (and not only have it for display), the gear was going to interfere waaaay too much. Between poking me constantly and worrying about its potential to break, I ditched the gears. If you've got a 3D printer tho, there's some good gear discussion at this thread: http://www.therpf.com/showthread.php?t=244785 by Aces

    As for the lightning, I (among others) have done extensive research into figuring out how to replicate that. Ideal choice: crackle tubes. Unfortunately, a few years ago tho became a) scarce and b) EXPENSIVE (if you can even find them). Cost prohibitive. So after looking into multiple options, I settled on programming an arduino microprocessor to randomize the LEDs in my crackle chamber (I'm using 1 ring of 24 neopixels and 3 cut/spliced strips of neopixels). I found that if you do this and then give that section of the musket a semi-reflective finish (interior), coupled with a matte finish on the outer section to diffuse the light, it actually works out pretty * good. Hope that helps!

    Last edited by a moderator: Nov 8, 2018
  12. RockIt

    RockIt Active Member RPF PREMIUM MEMBER

    Trophy Points:
    213
    Weathered, sealed and done! So flippin happy w/the final product. I realize I took some liberties w/the design (specifically leaving the crank off due to it continuously getting in the way, meaning it'd be crap to use at a con) but I'm totally pleased w/it. Plus, now I can turn and focus my attention on the costumes this will go with (a Boomer Vault 34 dweller and some T-60 Atom Cats power armor).
    PhotoGrid_1454967985523.jpg PhotoGrid_1454889016409.jpg

    - - - Updated - - -

    Here's a link to a video showing the LED crackle effort in action: https://www.instagram.com/p/BBkJPs4Ni5x/

    The LEDs are controlled using an adafruit neopixel microprocessor and powered with a 3x AAA battery pack.

  13. RockIt

    RockIt Active Member RPF PREMIUM MEMBER

    Trophy Points:
    213
    Also, day = made! My laser musket was featured on the official bethesda fallout account this week. So thrilled!

    Screenshot_2016-02-14-06-12-04.png bethesdahighfive.png
