All Aluminum Rocketeer Jetpack build

DavidJGuyton

Jr Member
Really nice work!
I'm curious what fastening methods you use besides the obvious rivets. Any welding or brazing going on?
There's a little welding, and I use Alumaloy in a few key spots too. The welding is at the tips of the boosters to complete the cones, the small spacer under the cone too. The radiator section is held together with long rods as rivets, but the center of that is all welded together. There's an internal structure connected to the main round vent which ties into the top part of the main center piece. All of that is welded together. There are welds holding the long vents together as well. I use the Alumaloy where the long center snout ties into the bottom center piece, and also along the edges of the flaps after I carve a V groove and bend the edges up to 90 degrees. But all the rivets you see are legit rivets doing what rivets are meant to do!


DavidJGuyton

Jr Member

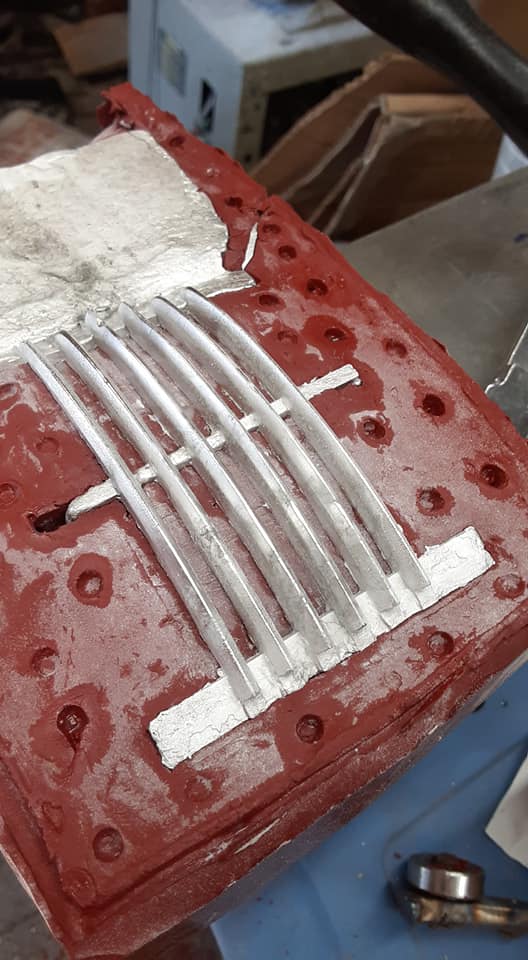

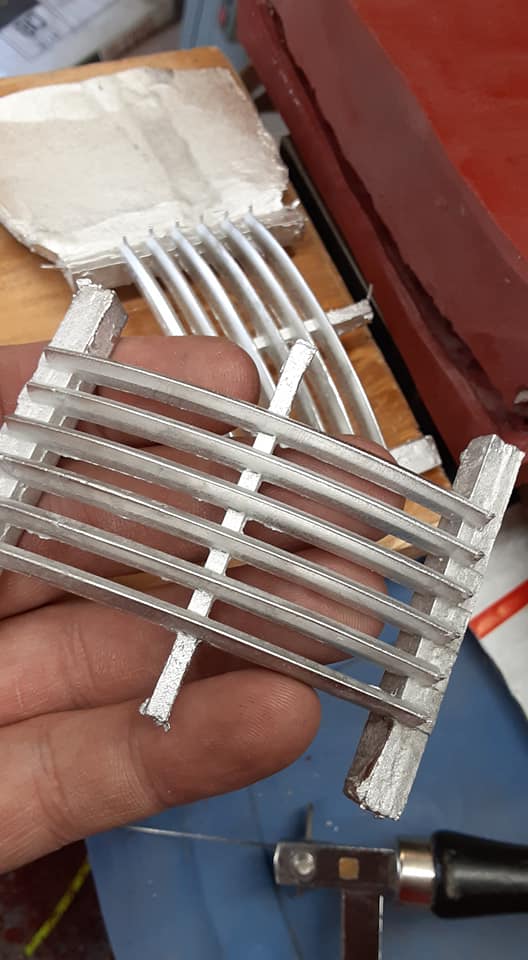

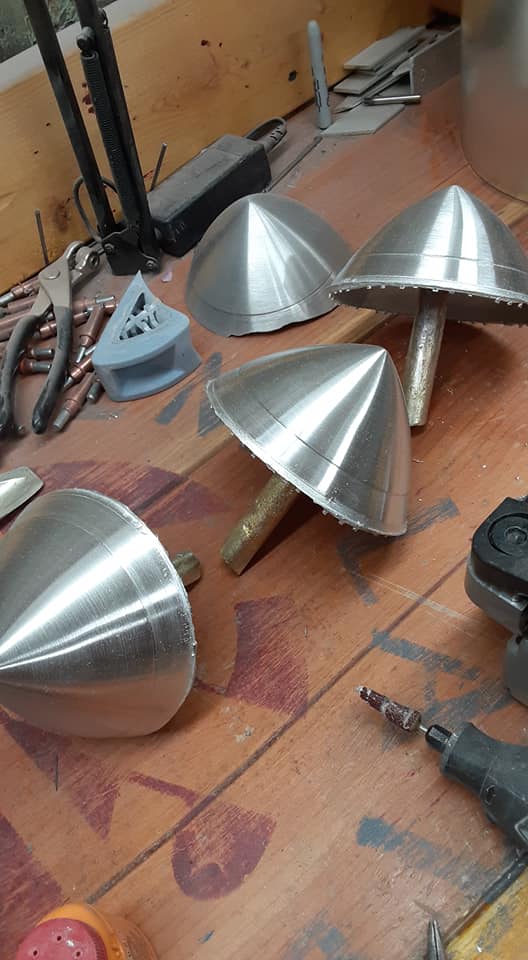

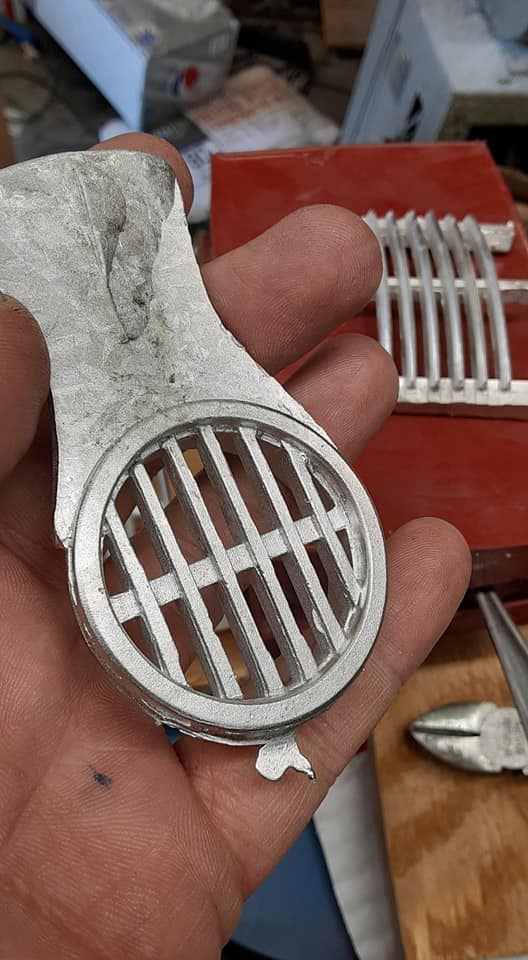

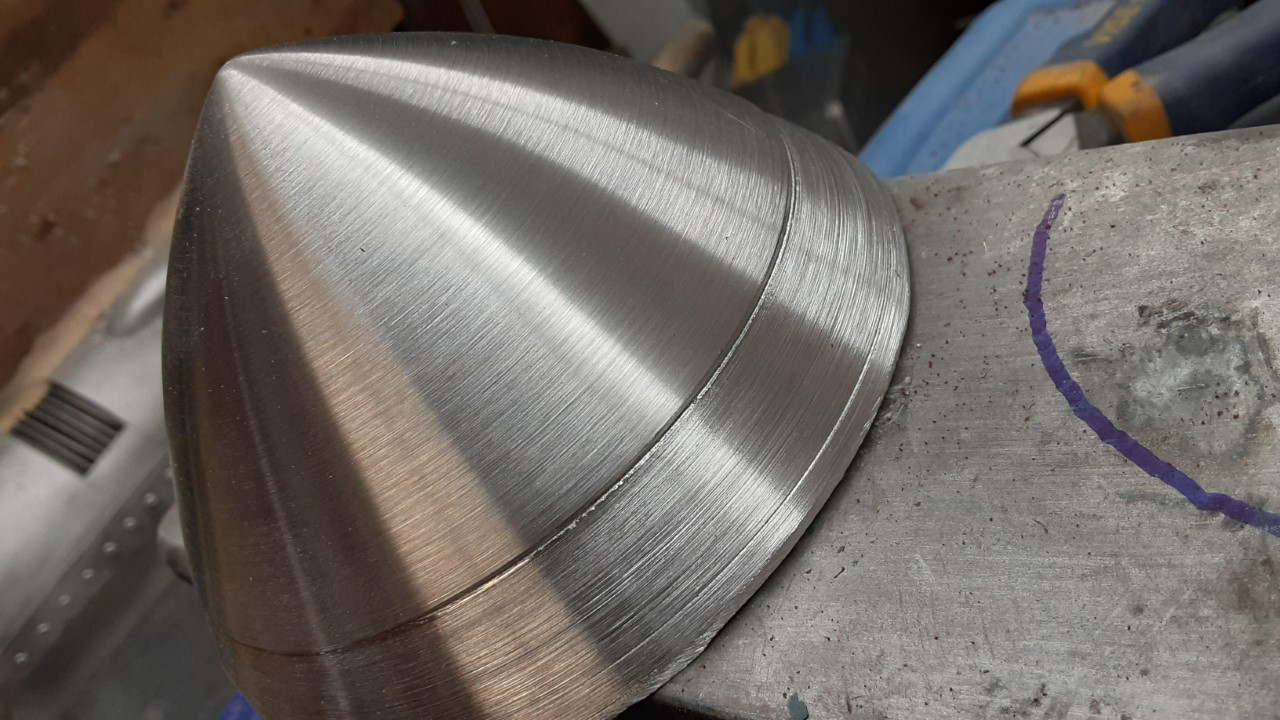

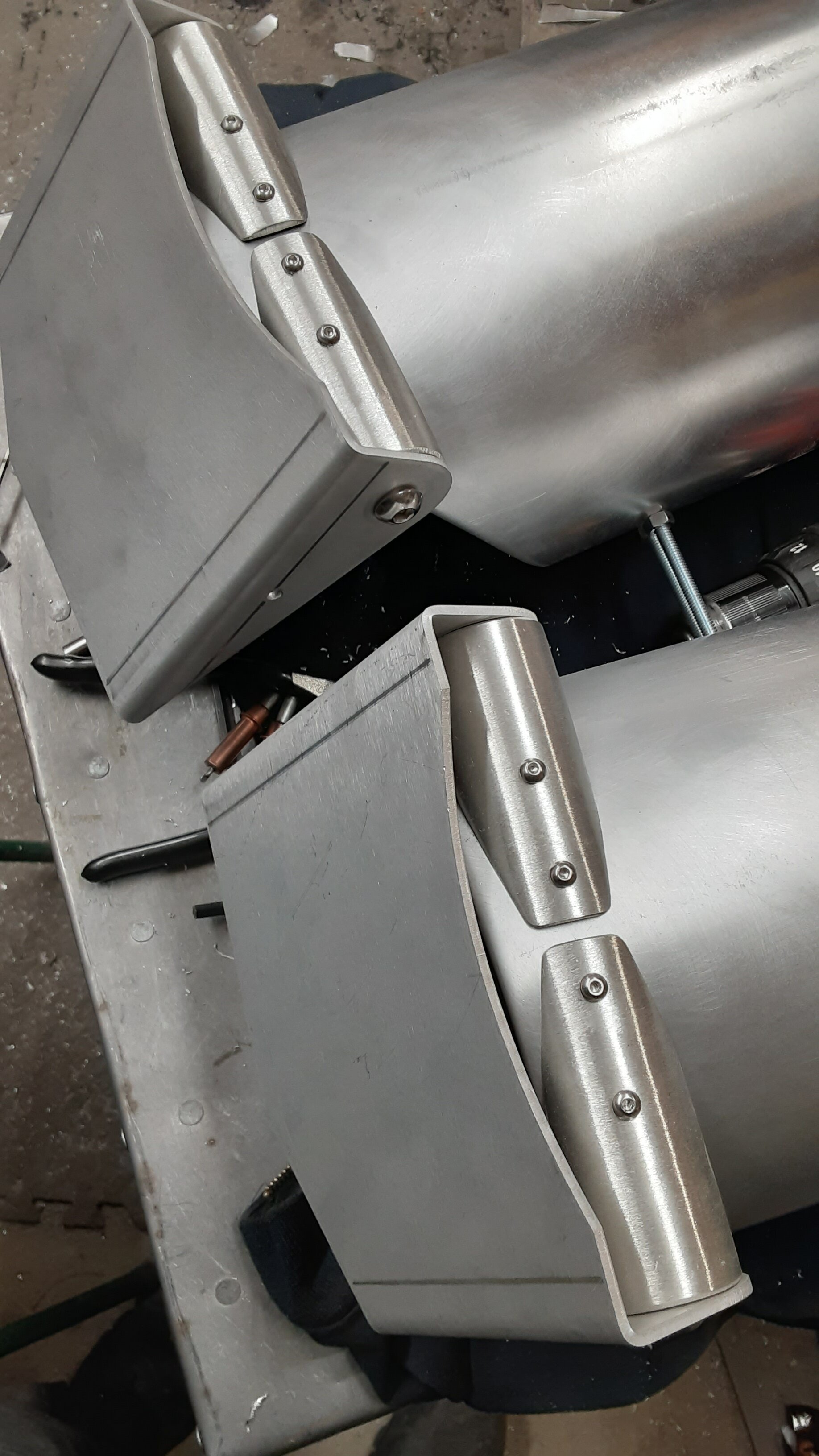

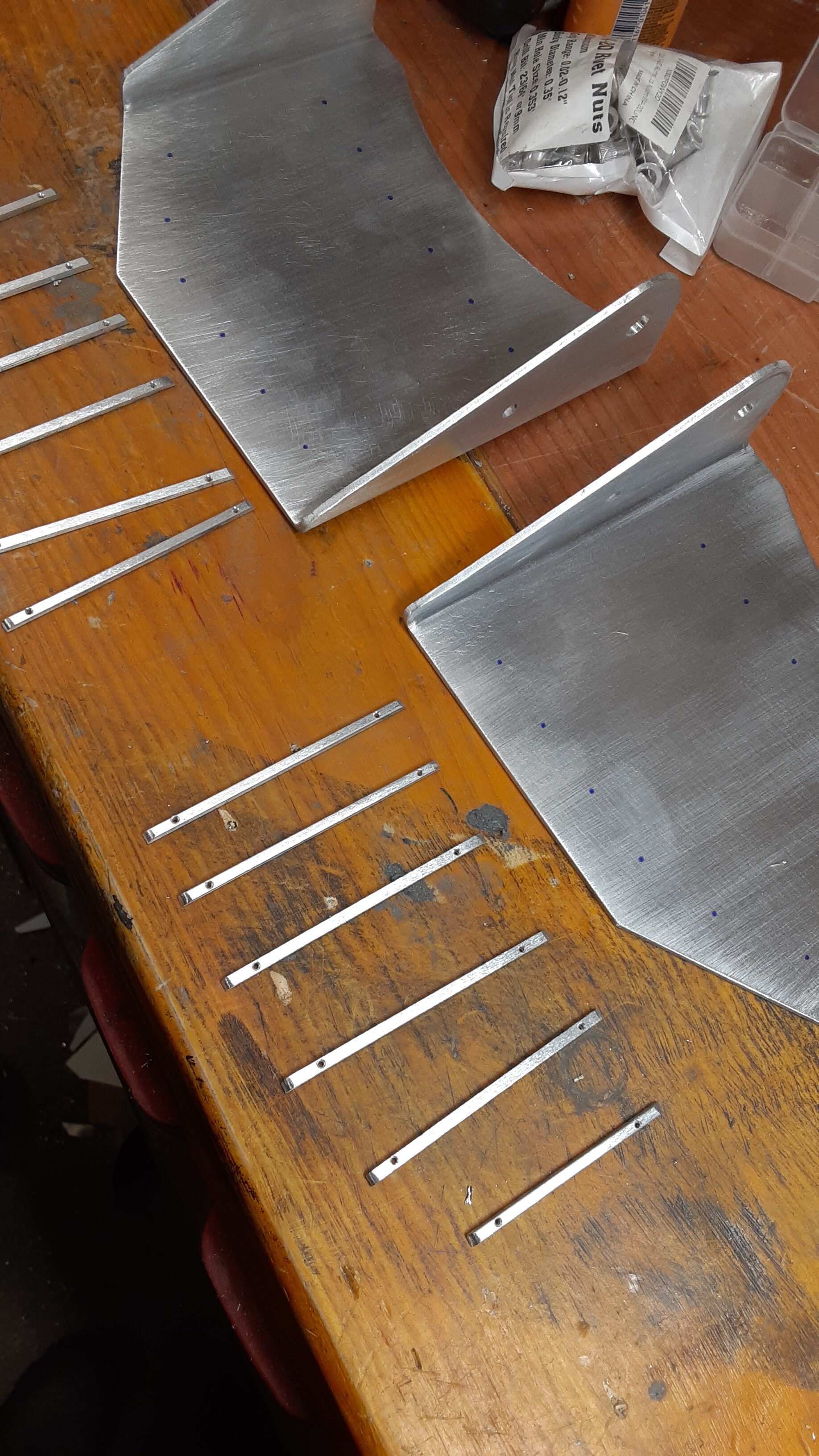

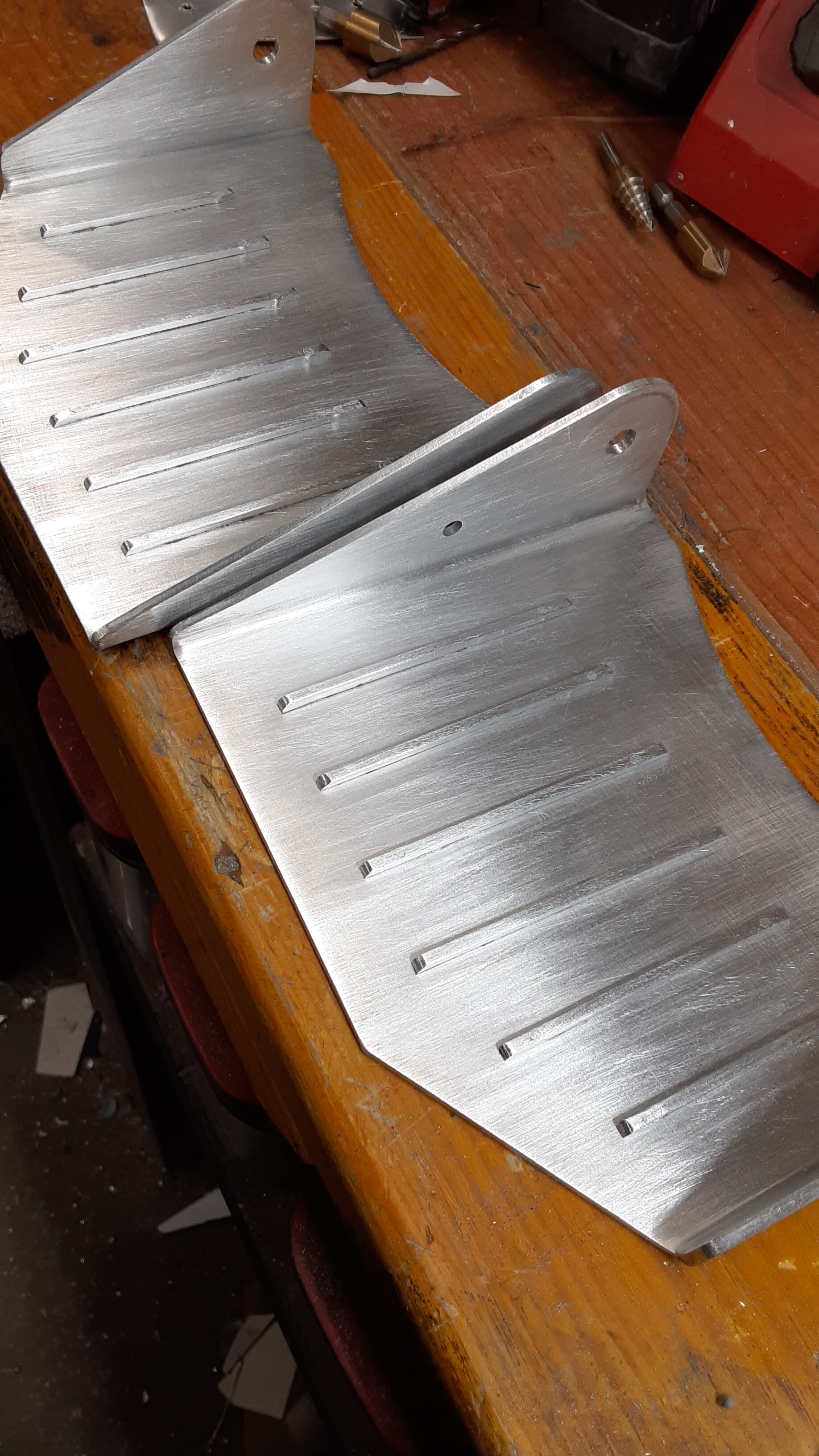

A few new pics. Working on upgrades to make the build a lot more accurate and a lot easier to reproduce the parts. These are cast in pewter. The nosecones I made by putting a huge chunk of plastic on the lathe and got it to the right taper. Then I made a fairly complicated two part mold that I was able to pour enough pewter into to force the pewter up the walls and into the right shape. The other parts are made by hand from aluminum, and then simpler two part molds are made from them. These parts are shown literally out of the mold, first try, without any cleanup done to them. I am also trying to cast the top radiator section, but I ran out of the mold material and I am waiting on new stuff to arrive before I can pour the second half of the molds. Even though my design is very accurate, none of the parts from the original plastic version are interchangeable. The boosters on the original are 7" diameter, and mine are 7.25".


Attachments

  • 20201104_180023.jpg
    218.3 KB · Views: 118
  • 124038853_206530364165163_6708524116189309758_n.jpg
    59.8 KB · Views: 119
  • 124097861_206530344165165_1398556402147616049_n.jpg
    53.7 KB · Views: 124
  • 124849659_206530297498503_1094454359213937155_n.jpg
    64.8 KB · Views: 126

DavidJGuyton

Jr Member

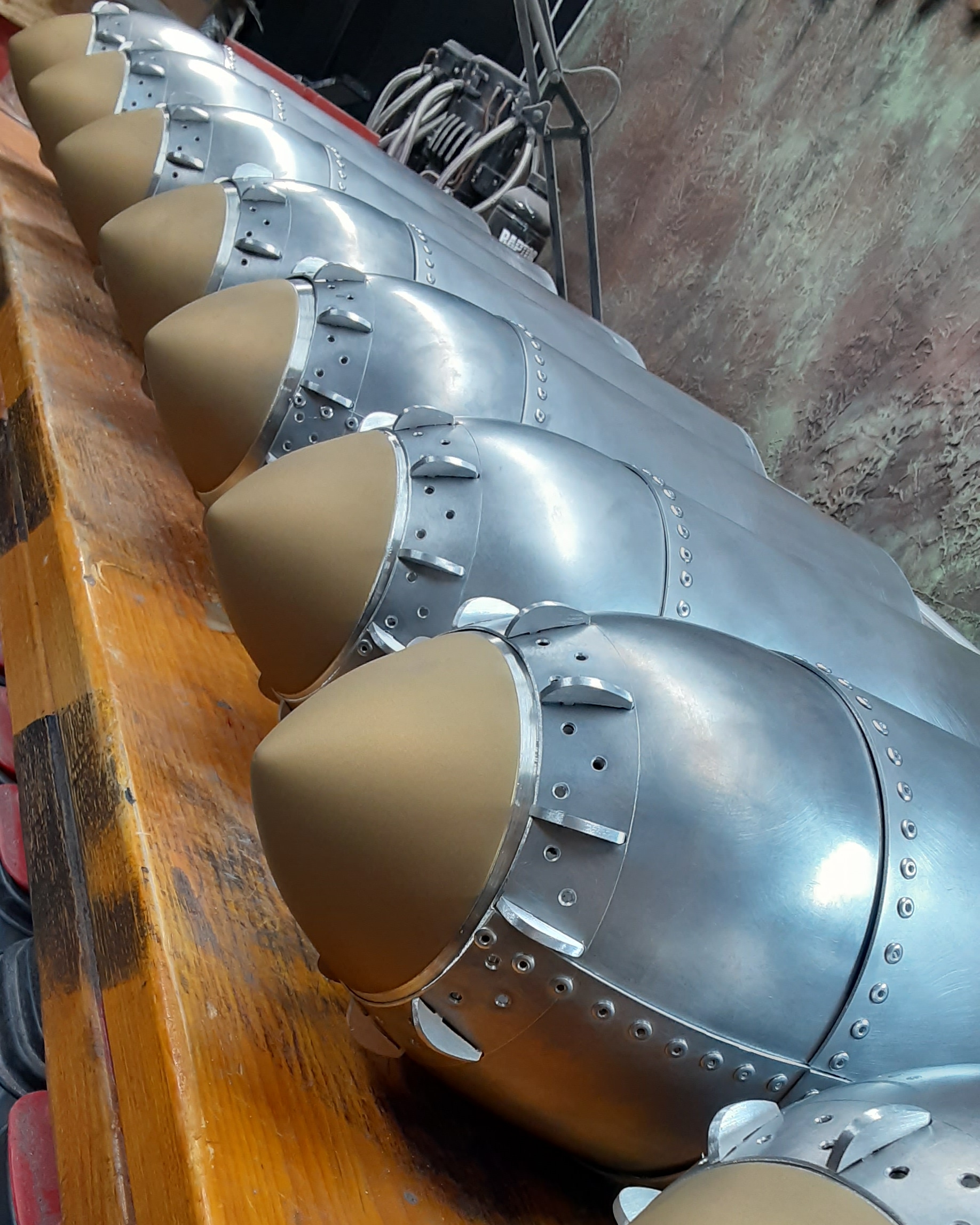

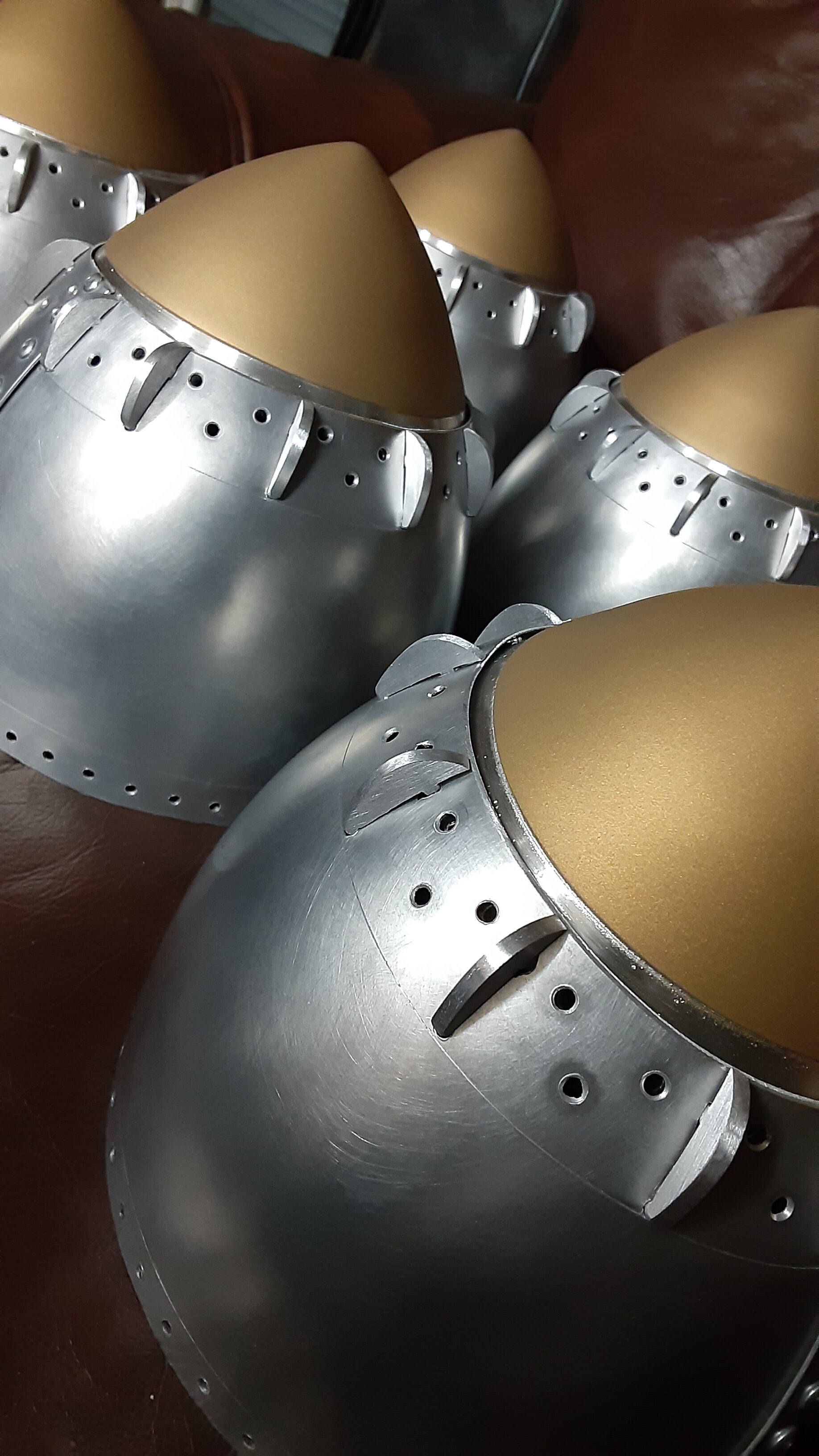

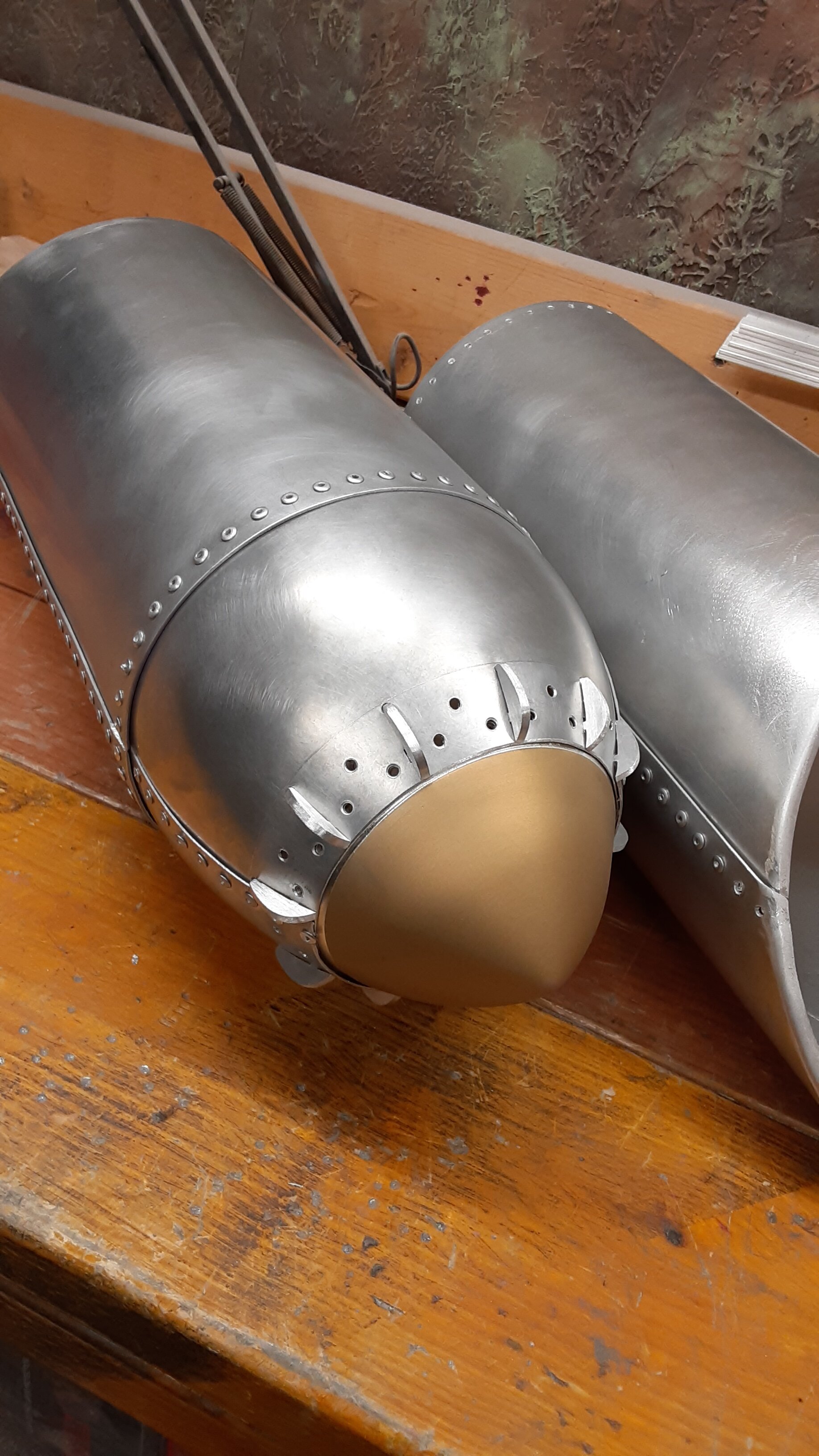

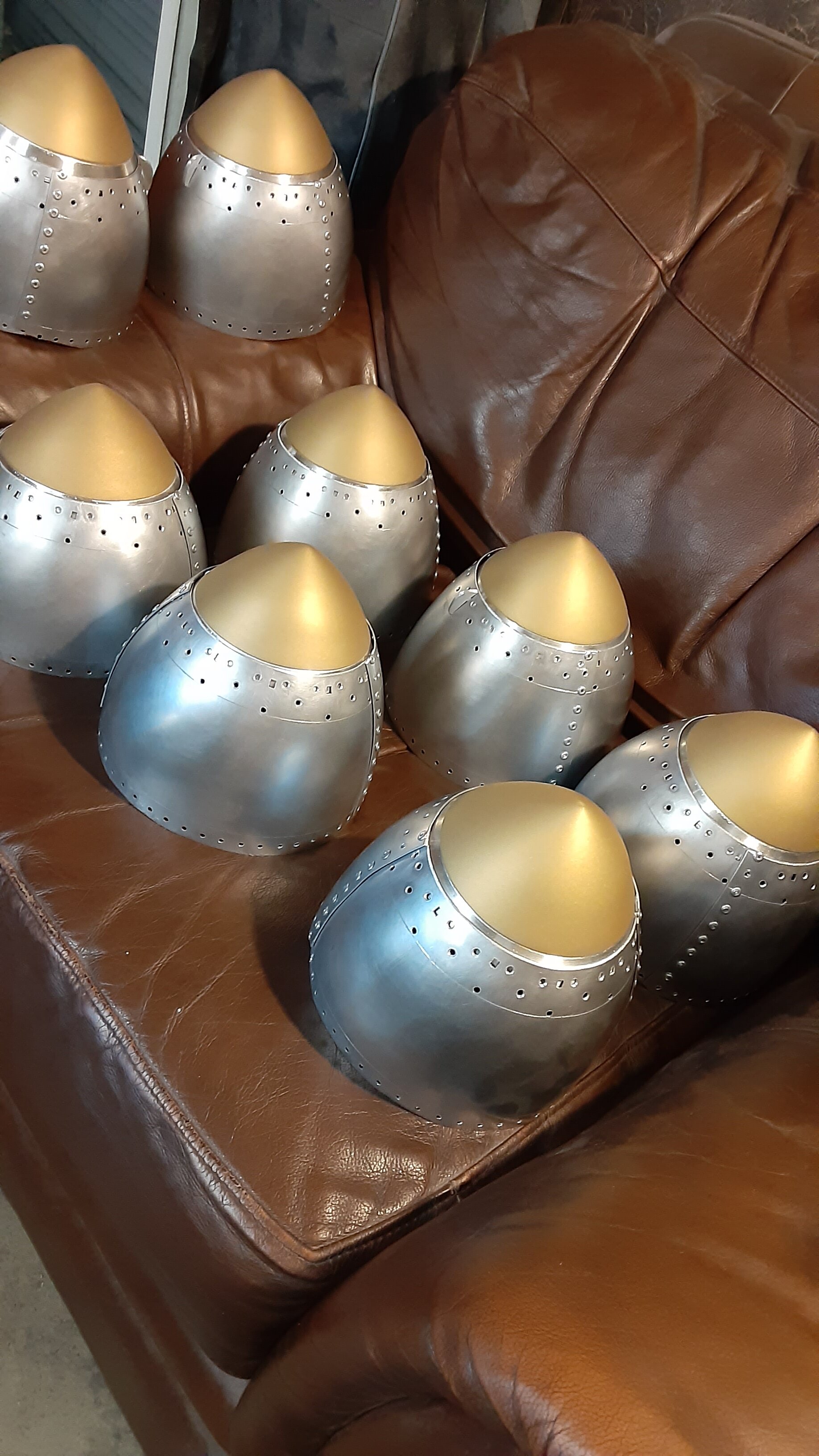

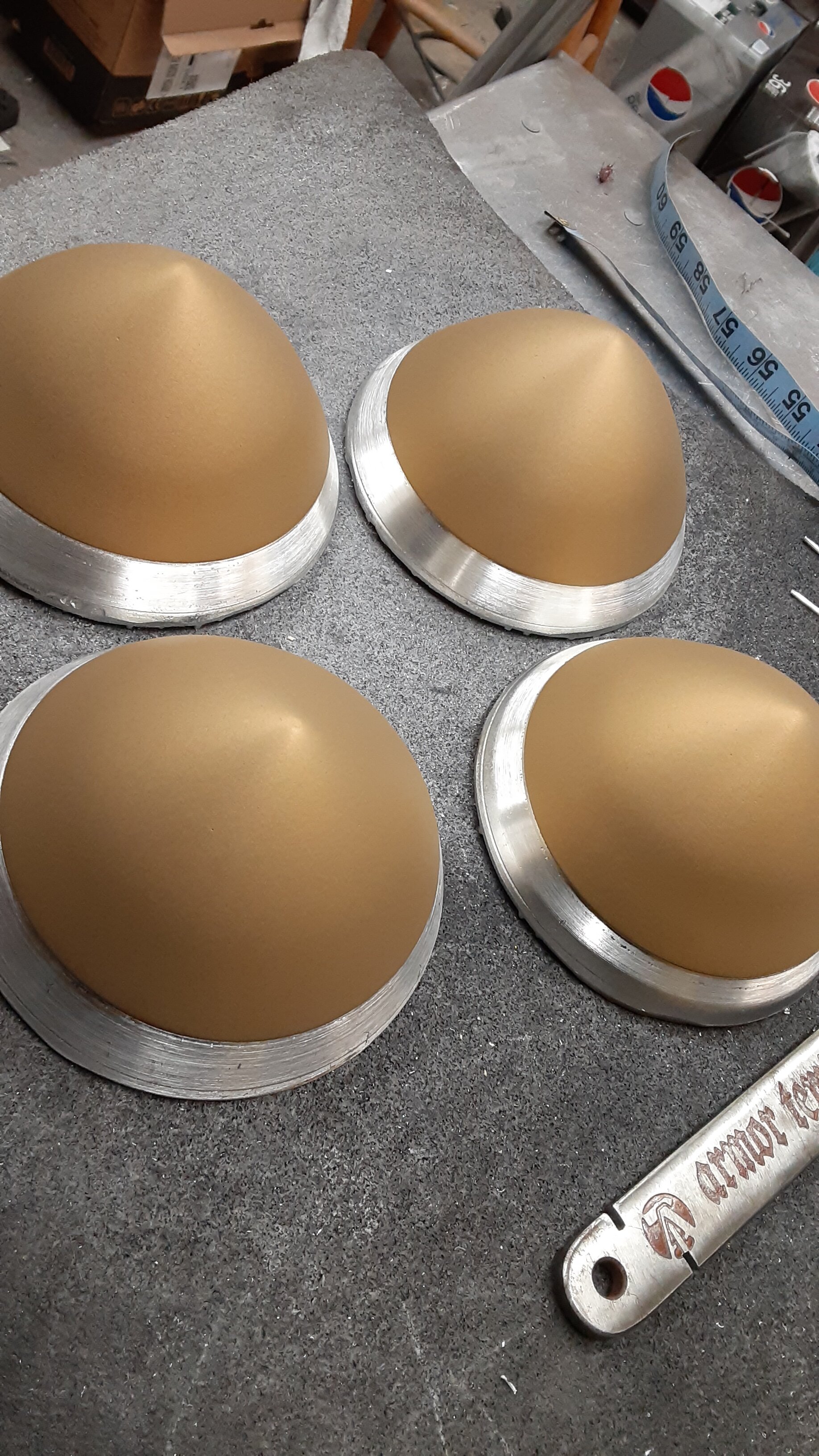

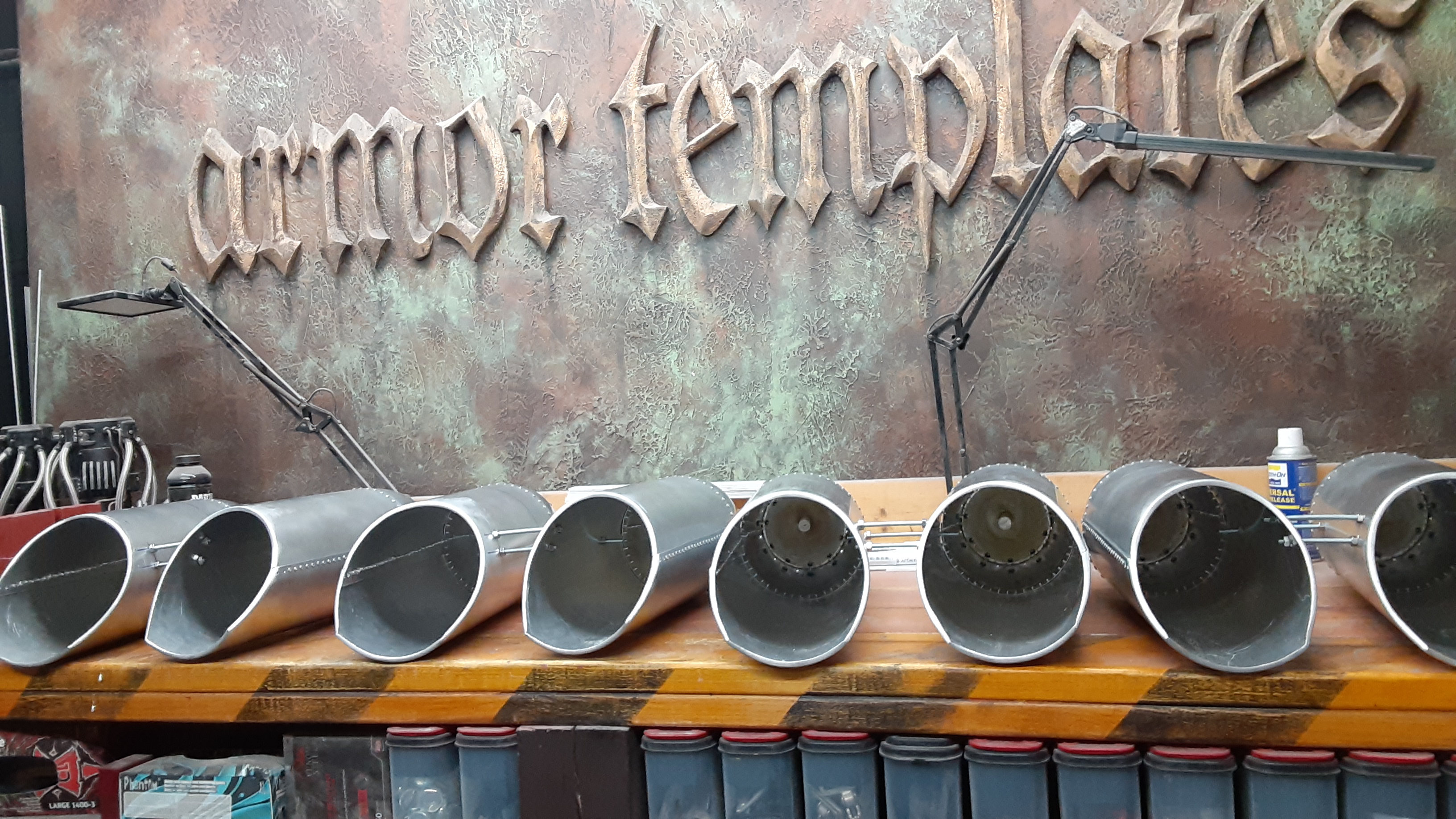

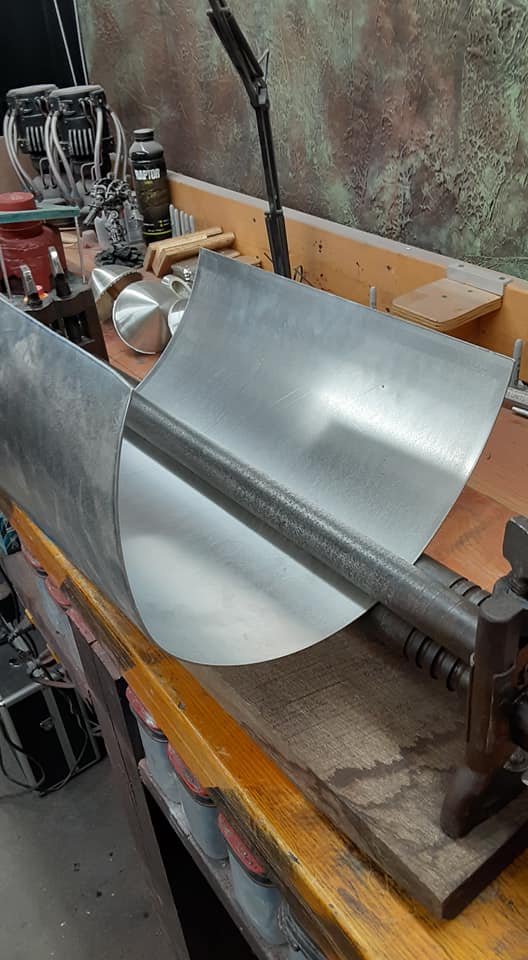

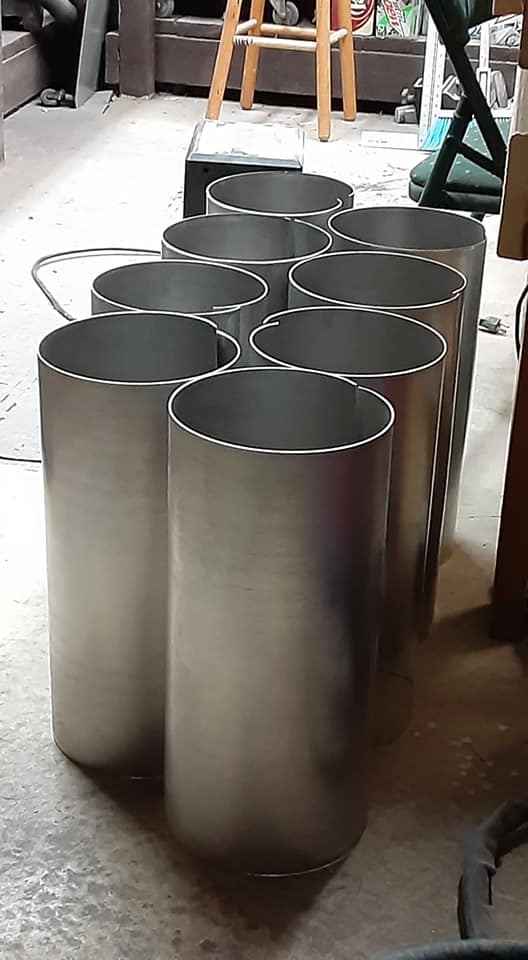

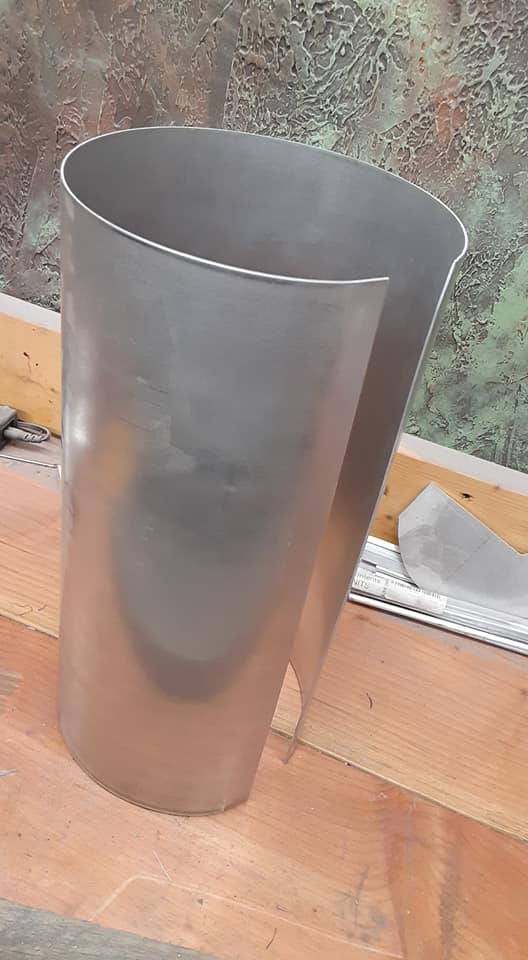

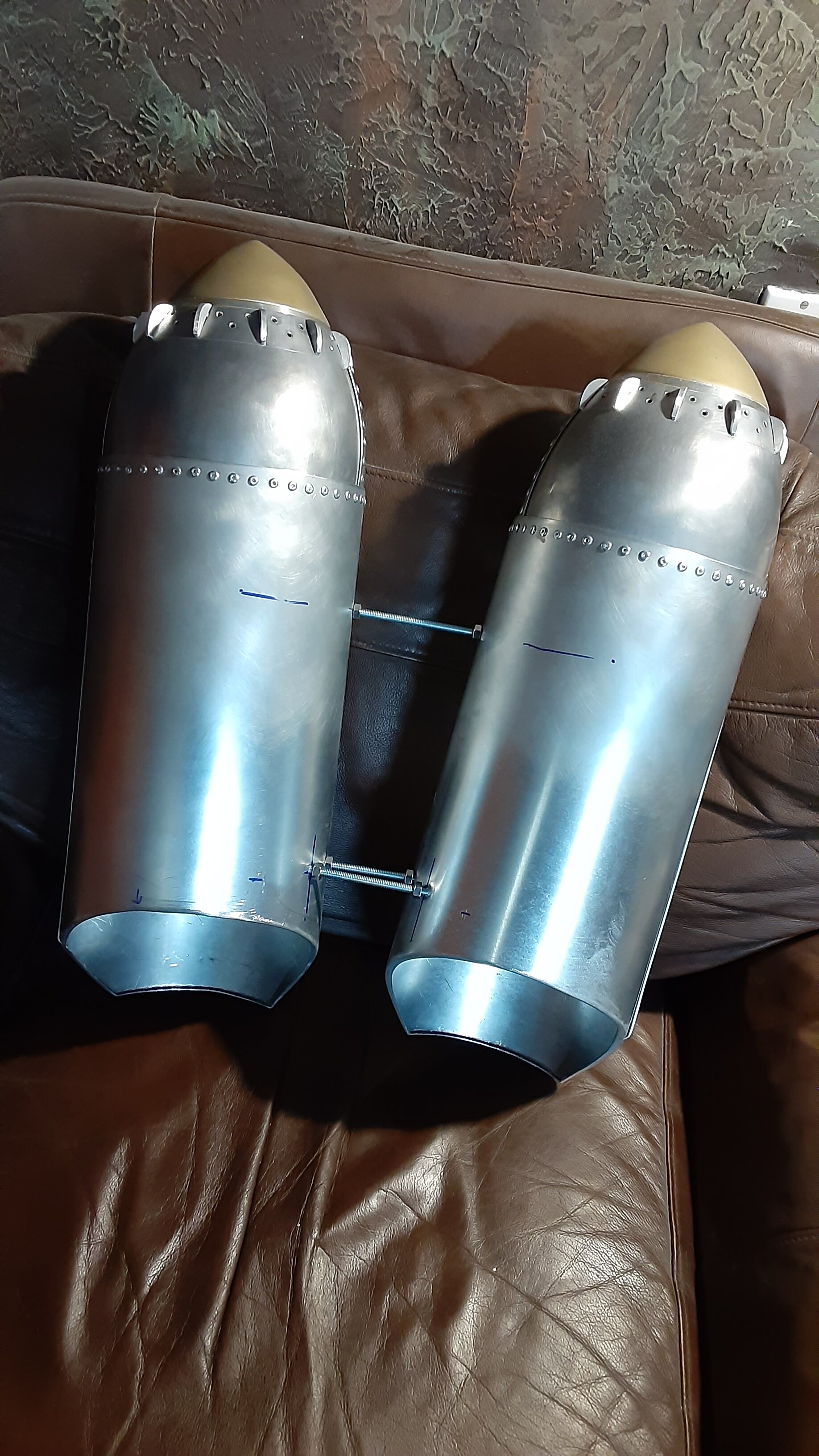

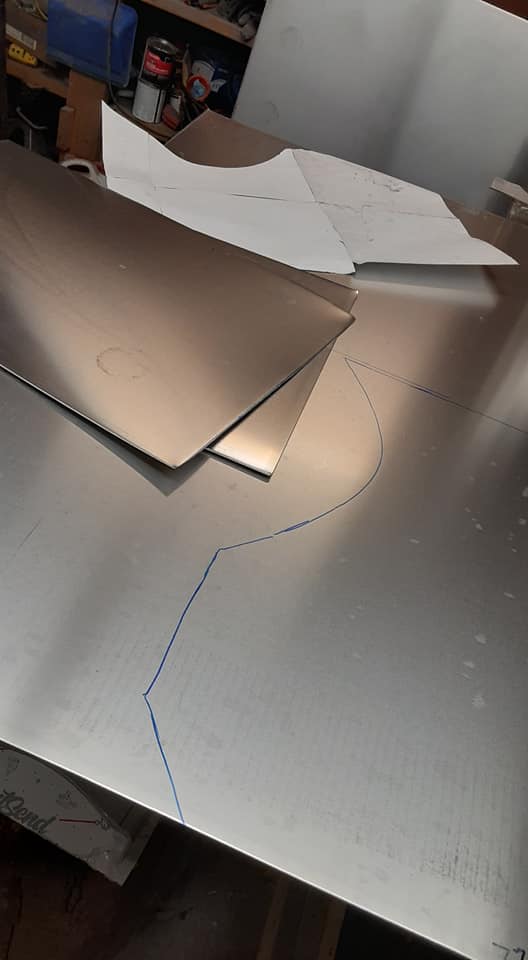

Small update. Nosecones came out excellent. Color is a custom mix of Cerakoat gold and burnt bronze. I made a huge mistake threading the top prong on the finlets rather than the lower one. Now I have to make corresponding square holes in the pewter nosecones. Could have saved a full day of work if I thought ahead and threaded the lower prong. I will have these bolted into pairs in 2 days.


chibobber

Active Member
Man,You have some mad skills. I can see why you used pop rivets. I have bucked a few rivets while helping build an experimental airframe and empennage. Clecos are a great aide when doing this kind of work. You may be making minimum wage with that amount of work.
Kudos to you!


DavidJGuyton

Jr Member
Killing it!

Hey what’s the name of your Etsy shop?
Shop name is ArmorTemplates but I don't have these for sale on there currently. These four are already sold. I wanted to take a little time between builds to make some updates and upgrades (the molds, etc) and people hunt me down trying to buy these even though they aren't listed anywhere.


DavidJGuyton

Jr Member

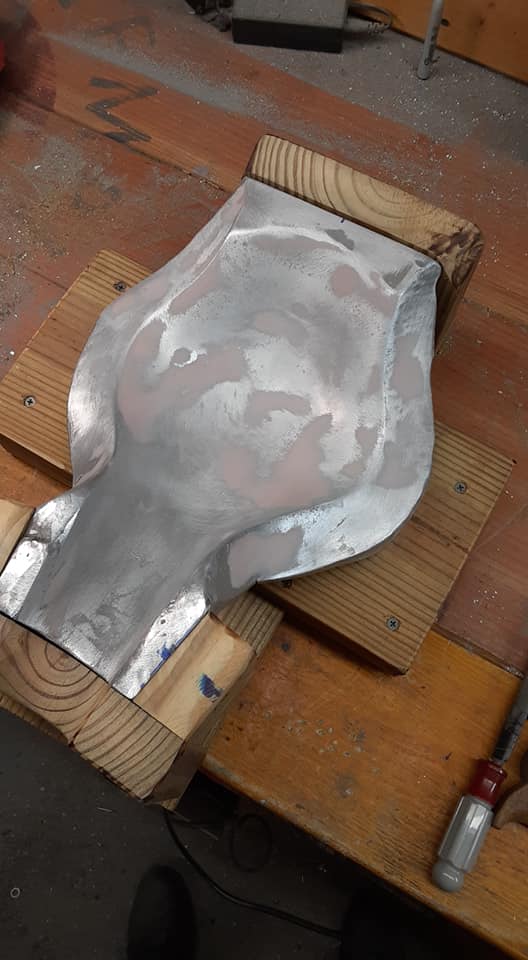

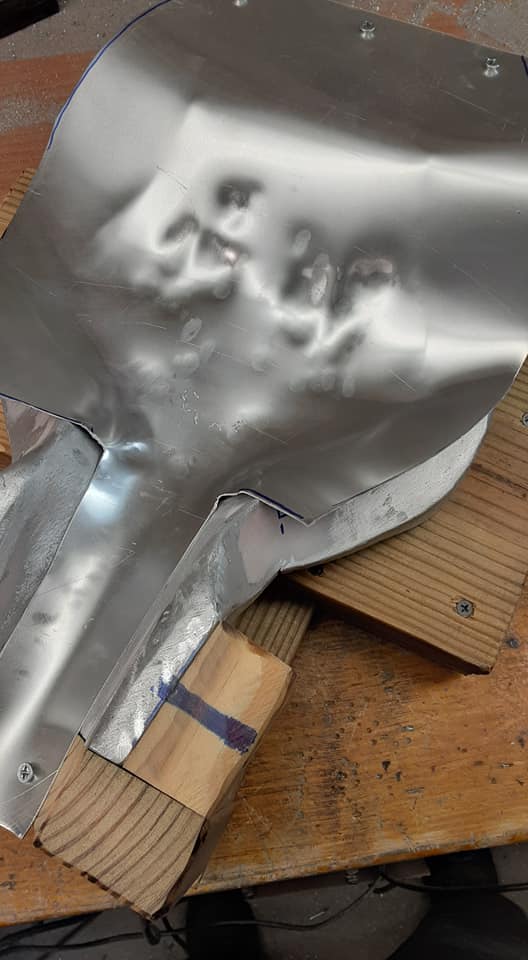

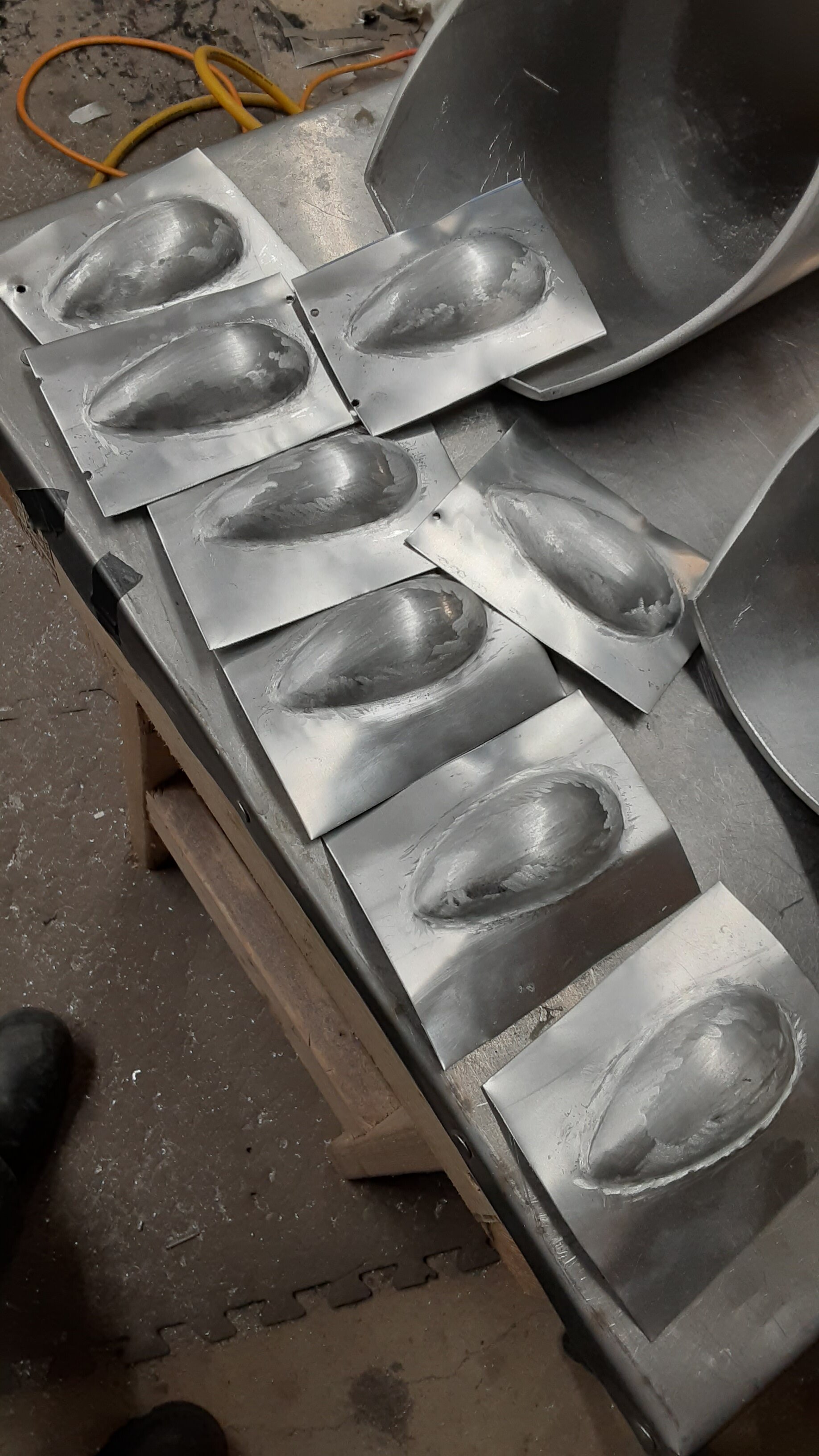

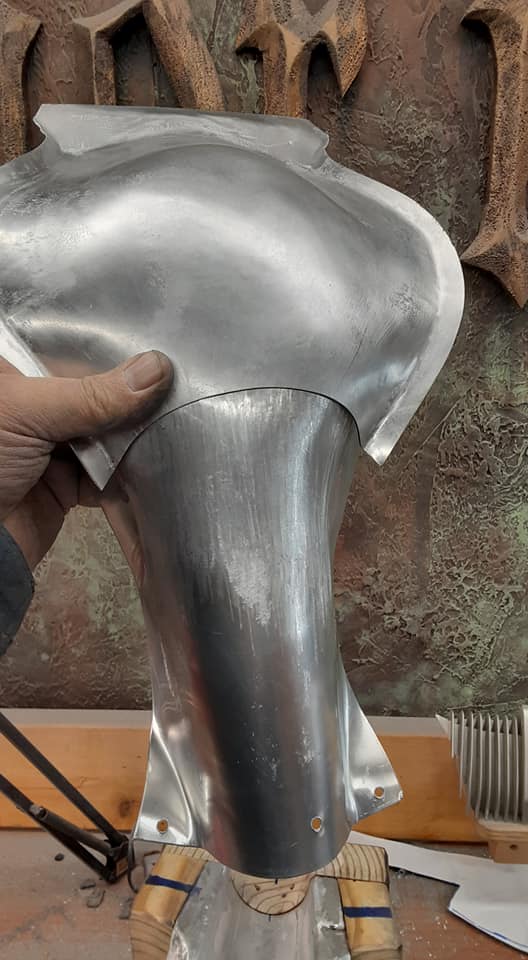

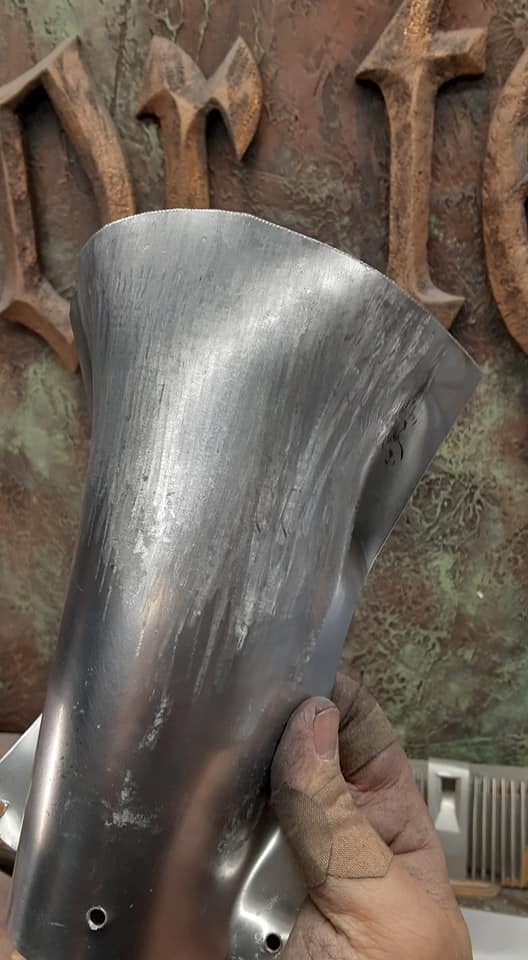

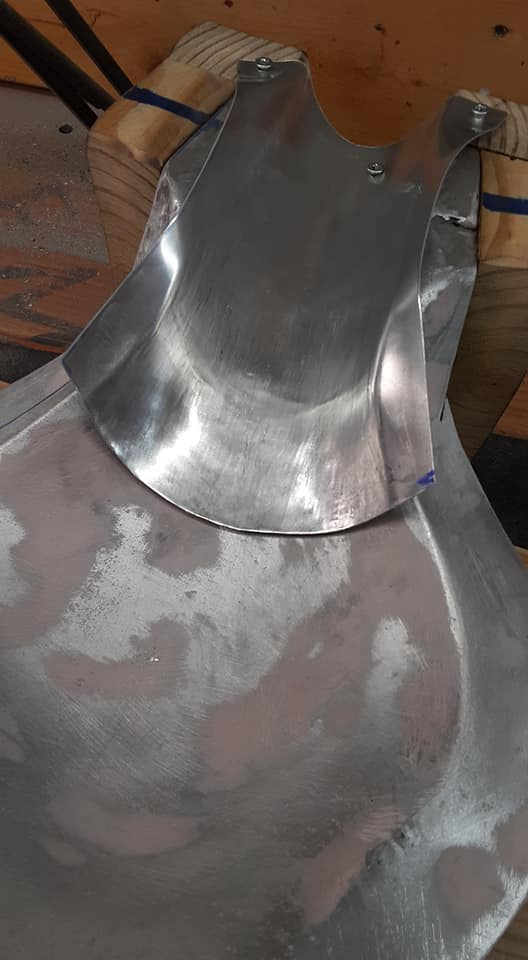

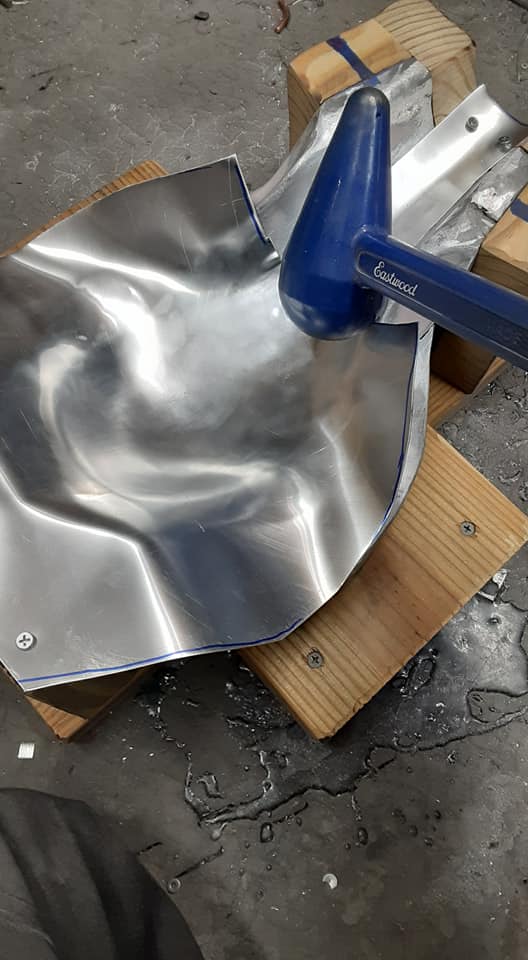

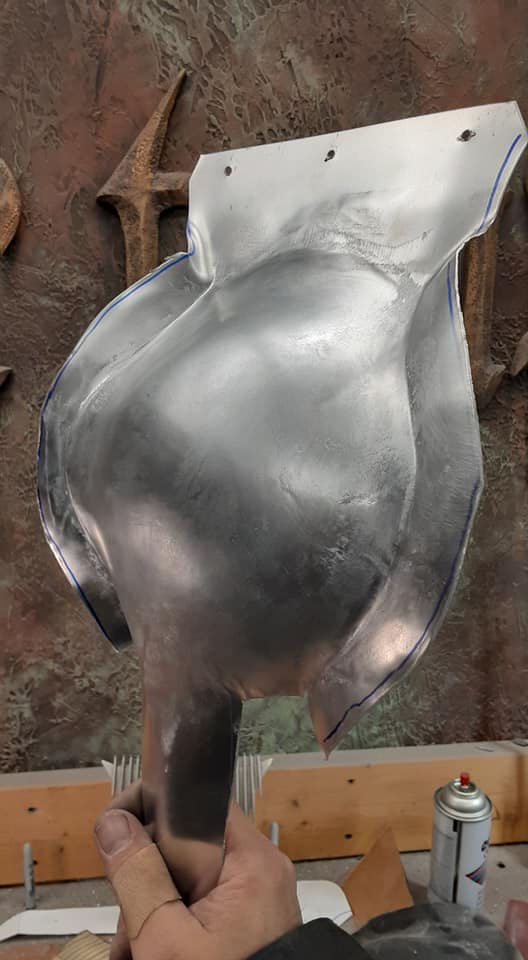

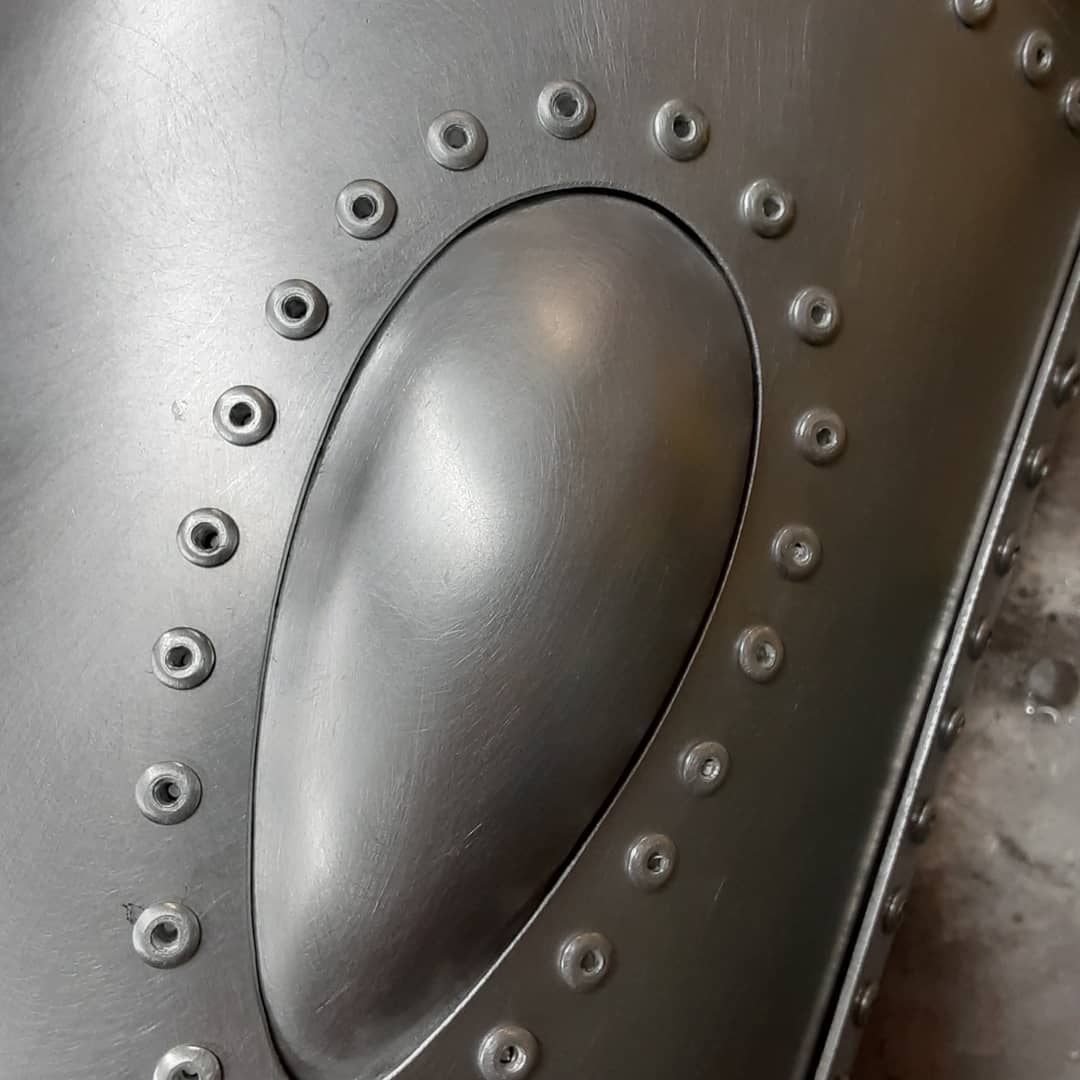

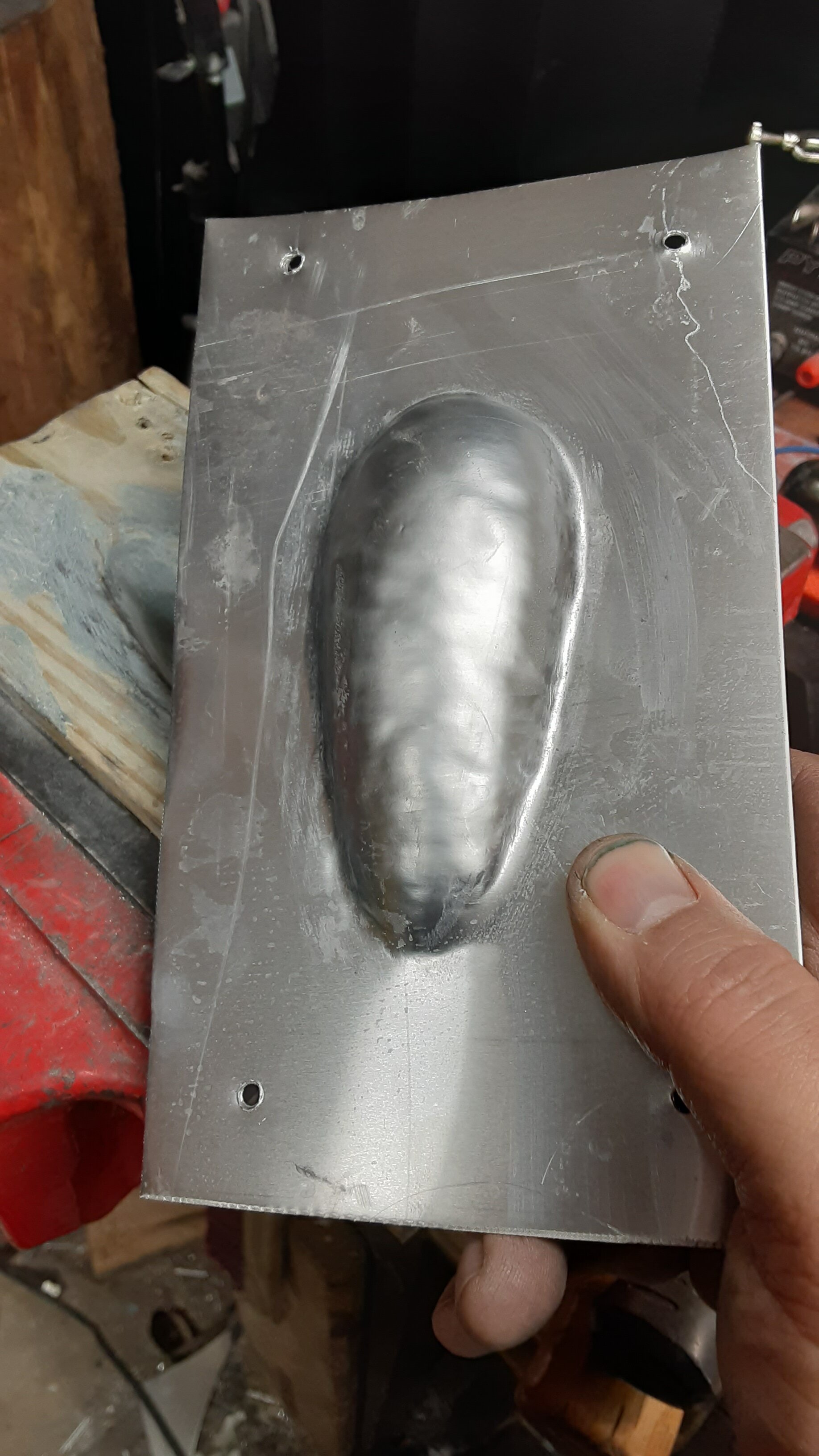

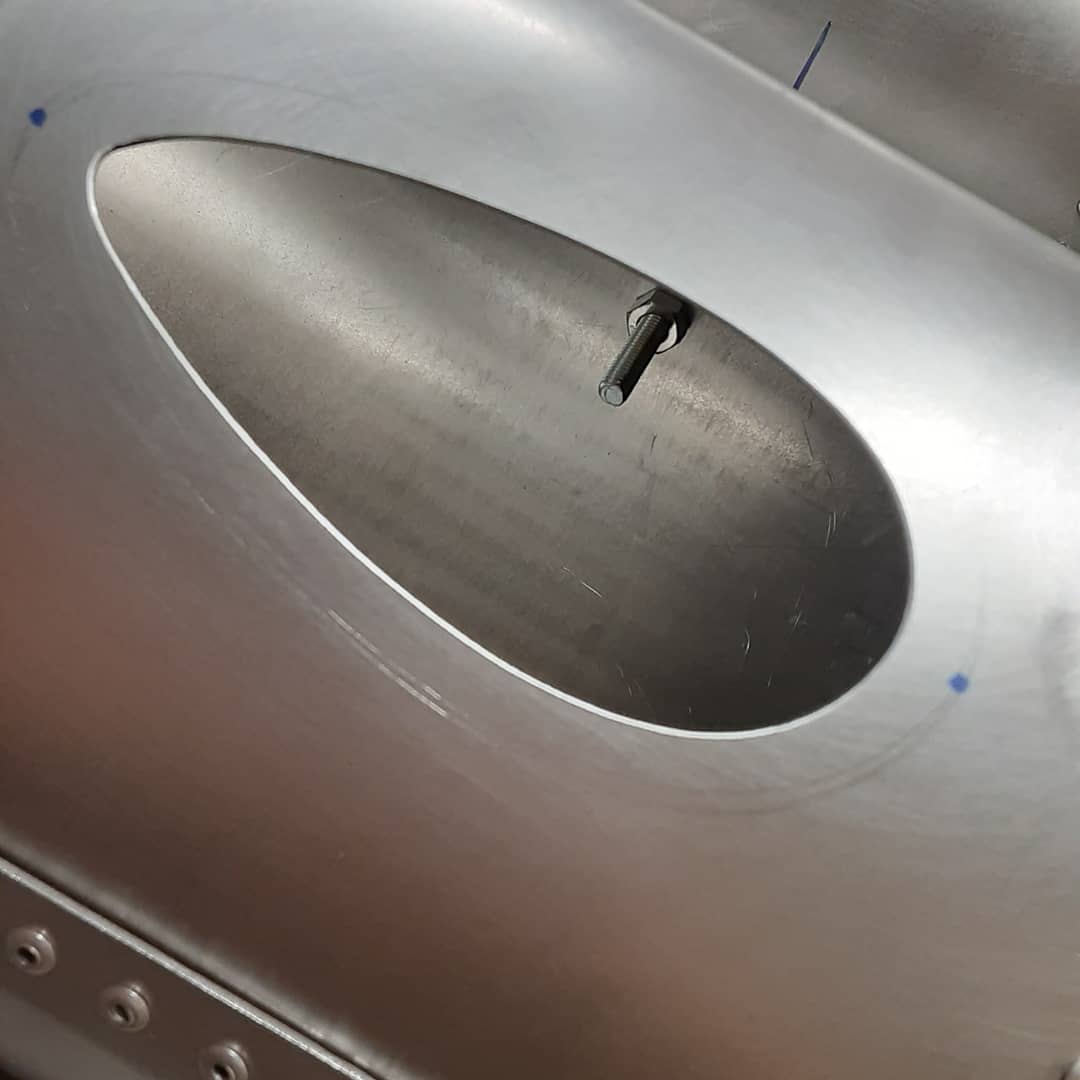

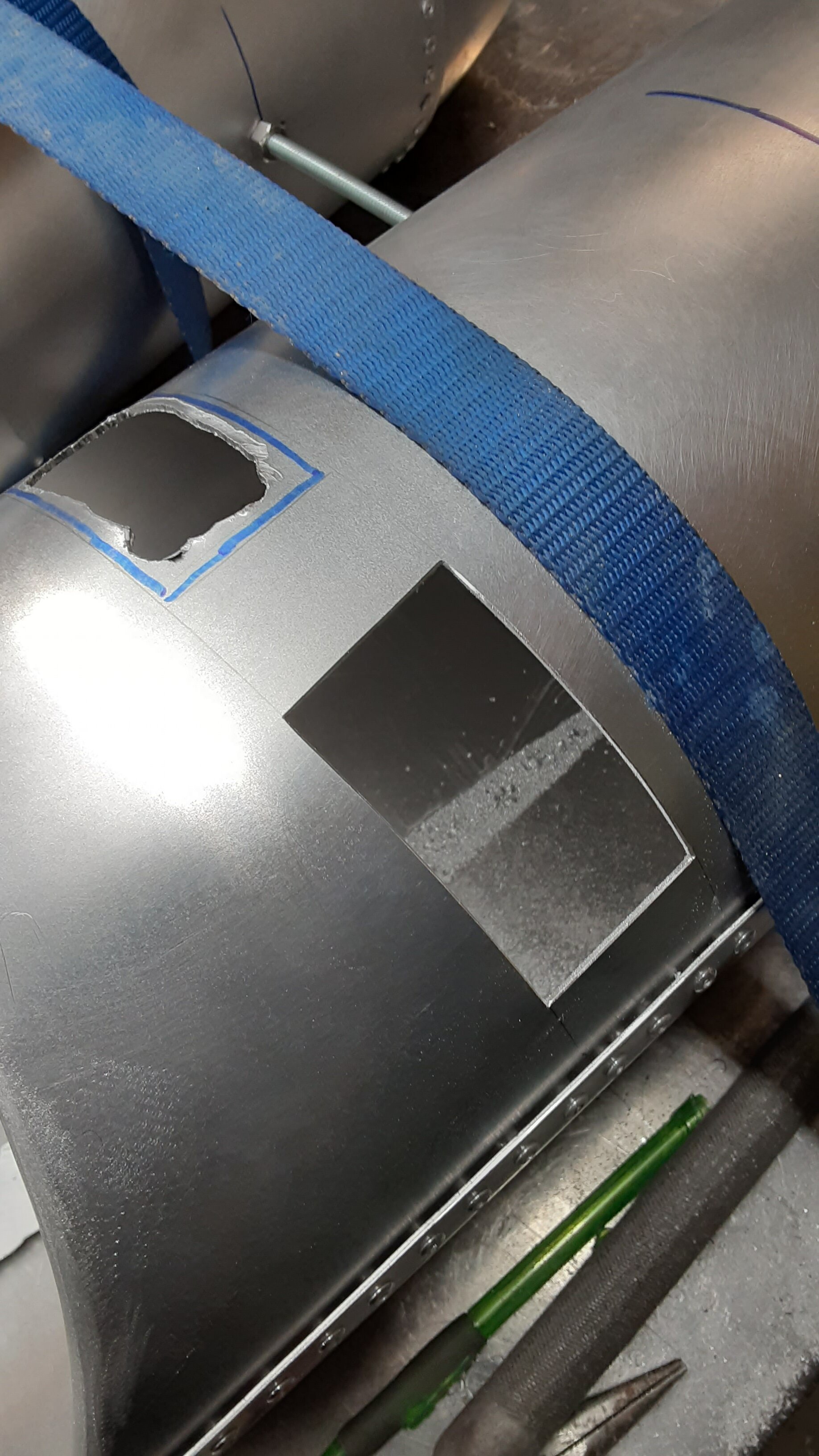

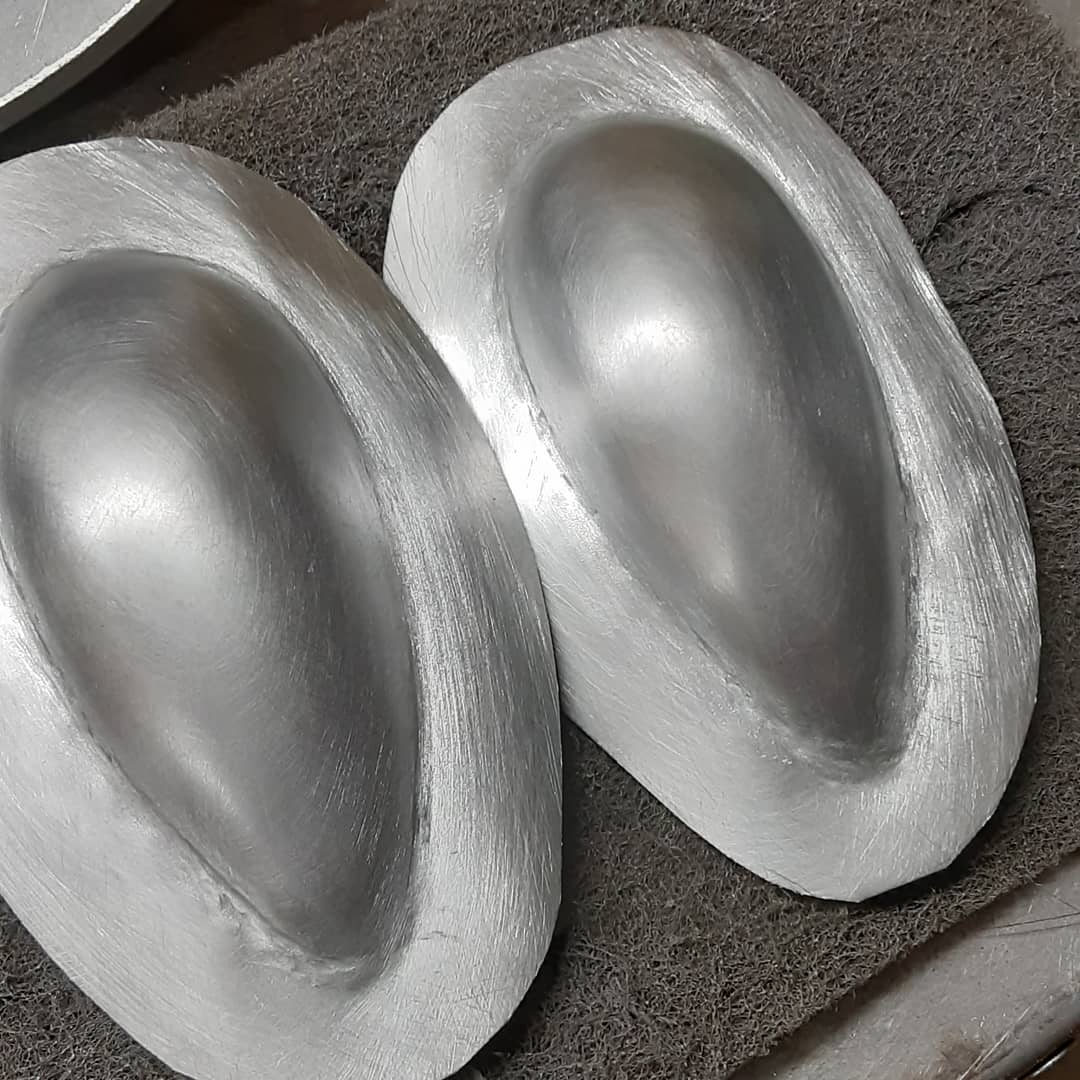

These pics may be out of order but you get the idea. I was able to have a fellow YouTuber (BuilderCreator) make a hammerform for me out of 1" thick aluminum. I had sent him a buck for him to copy and produce the part. I tested it out today and hammered out one cowl section and one lower cowl section. These are WAY more accurate than my previous version (see the first post in this thread). Note how flawless the transition is between the two parts where they come together. These parts still need a little clean up but they are the final piece to the puzzle needed to finish these jetpacks. I will be using these parts to make a mold to make the vent in the center and cast those in pewter like the other vents. Only another 10 days or so before these are available.
