Aliens M314 Motion Tracker - Yes, another one or two with CAD and 3d printing

[joberg]

Beauty all around



[paulsboutique]

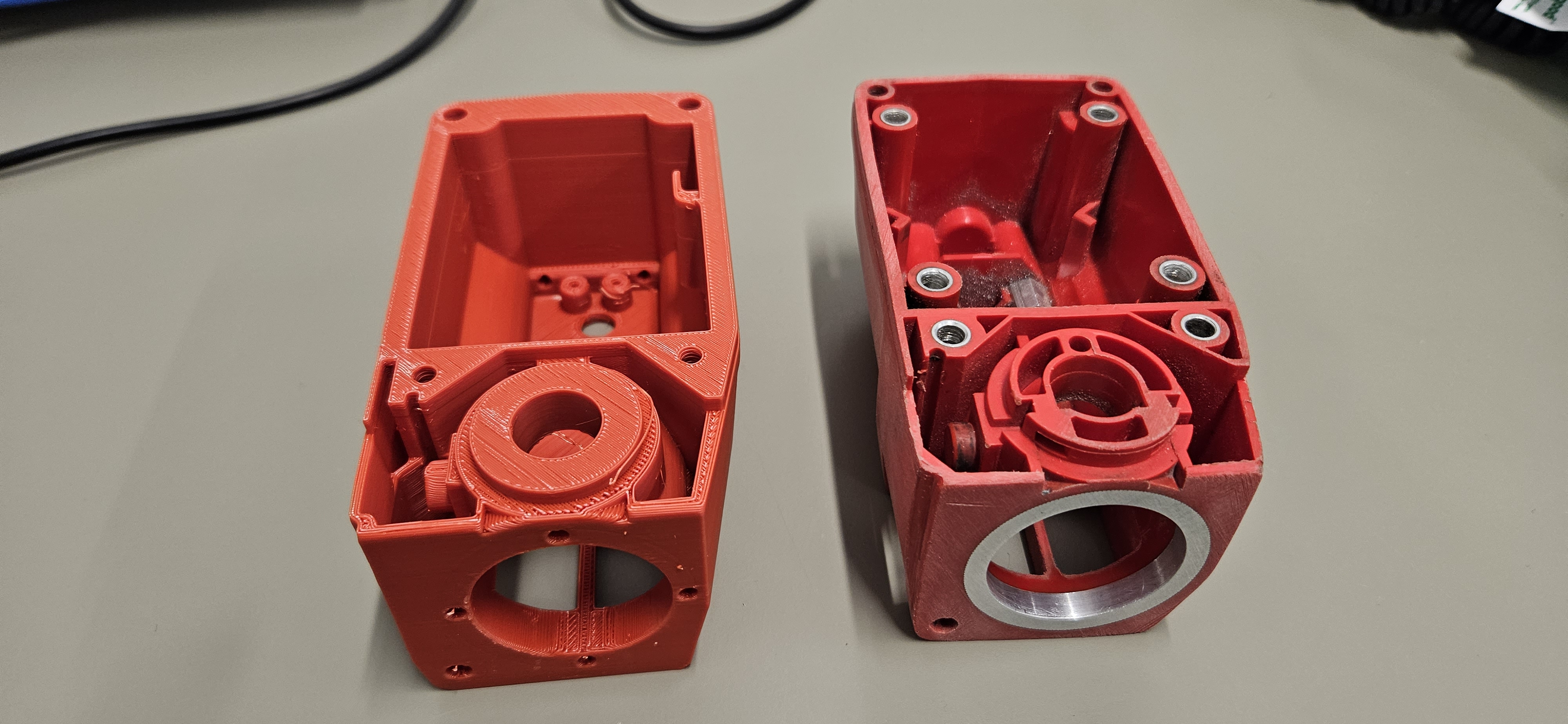

After a few mishaps with dimensions, the kango printed perfectly in ABS.

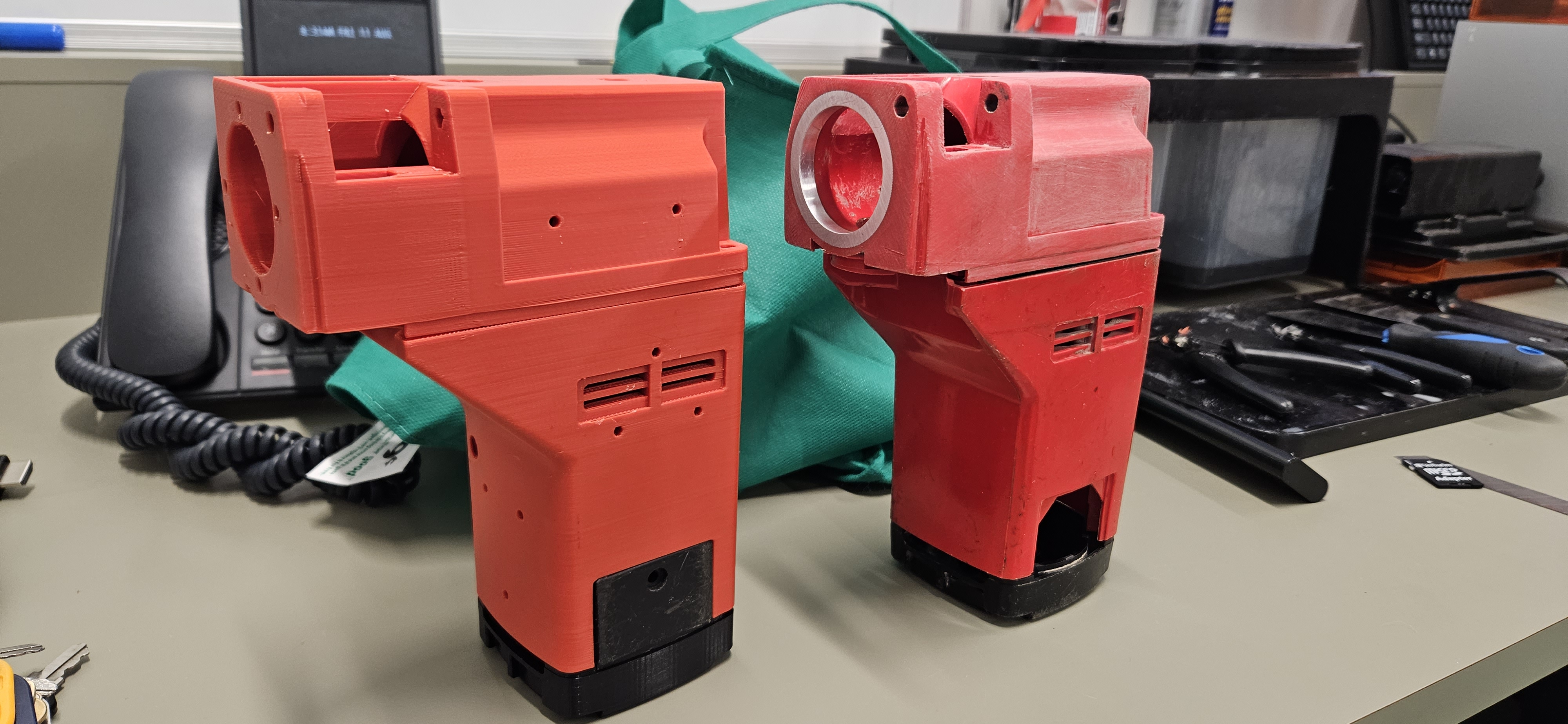

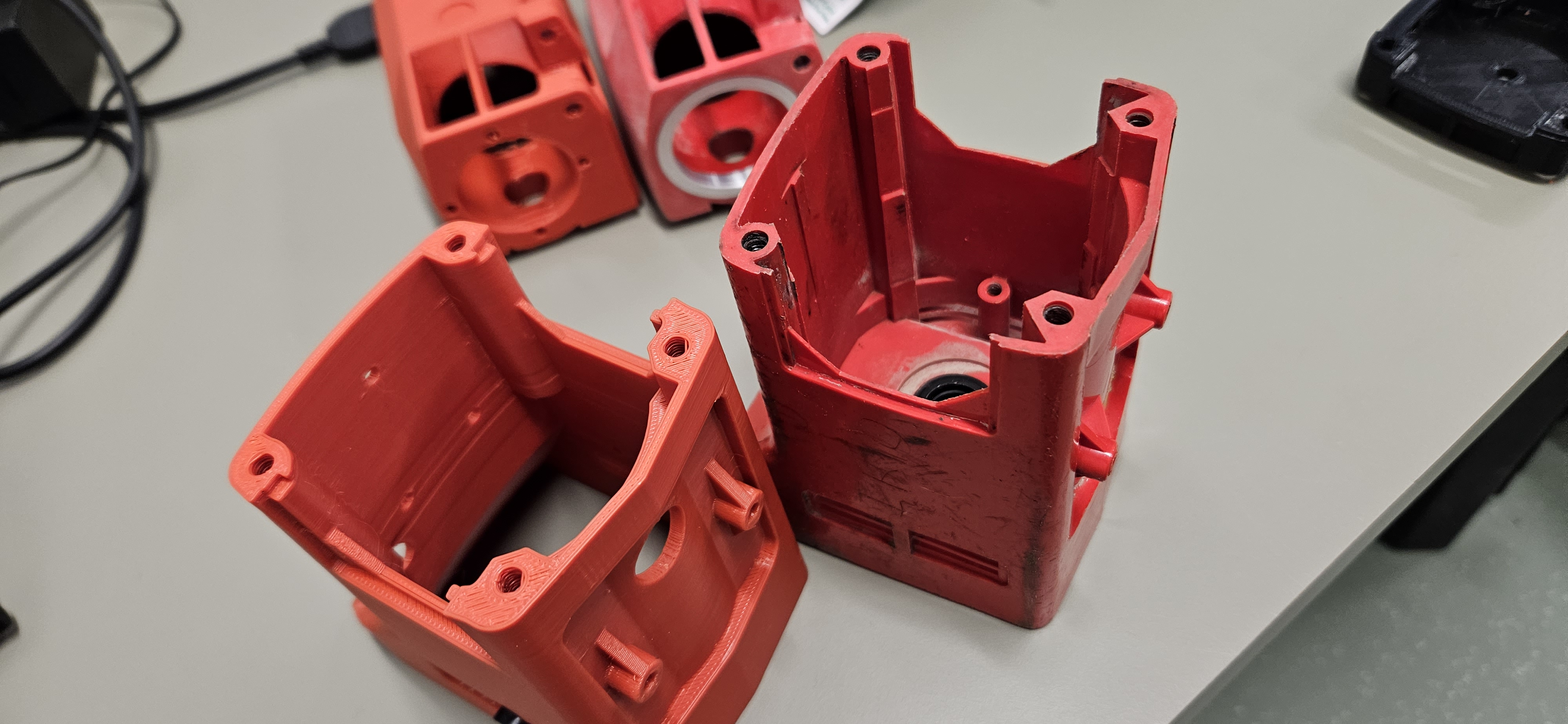

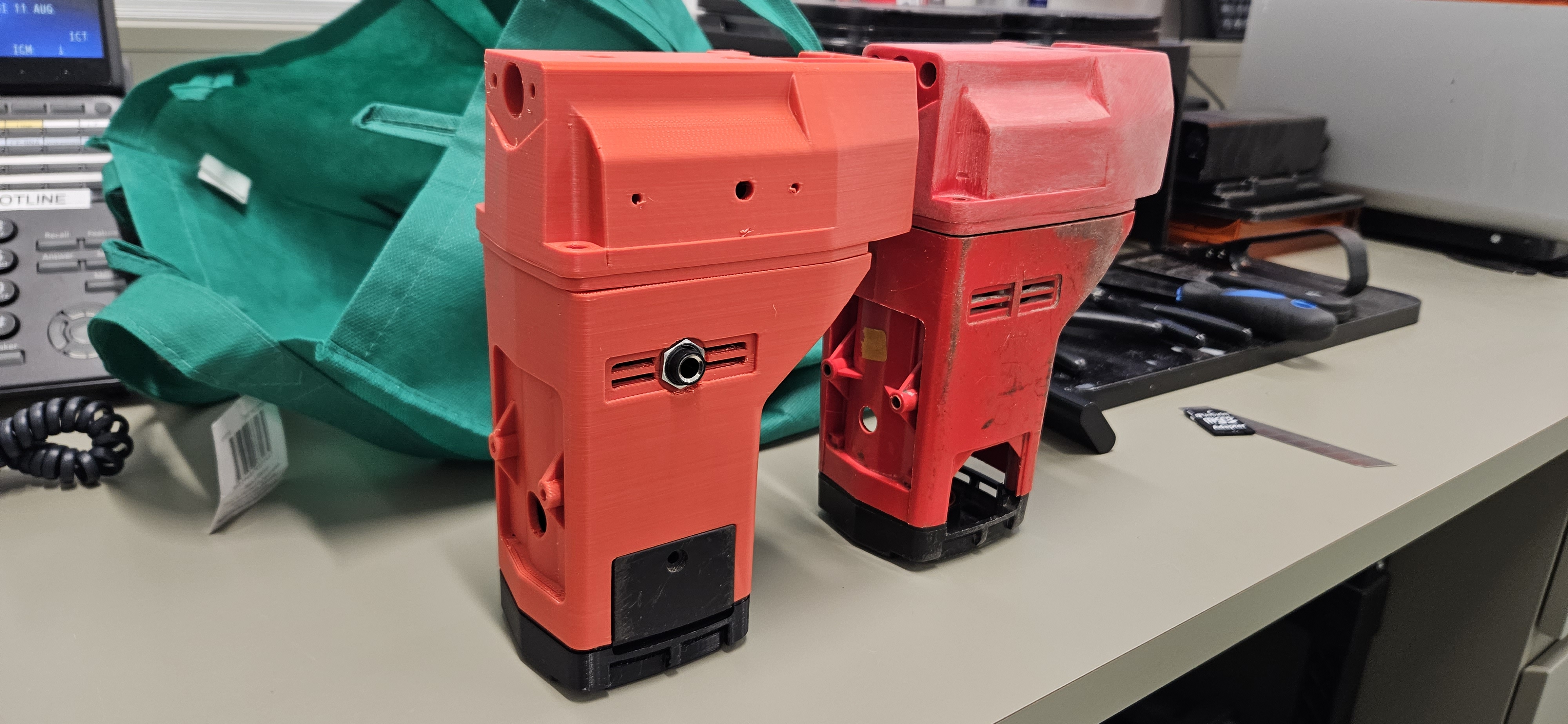

3d print on the left, original on the right.

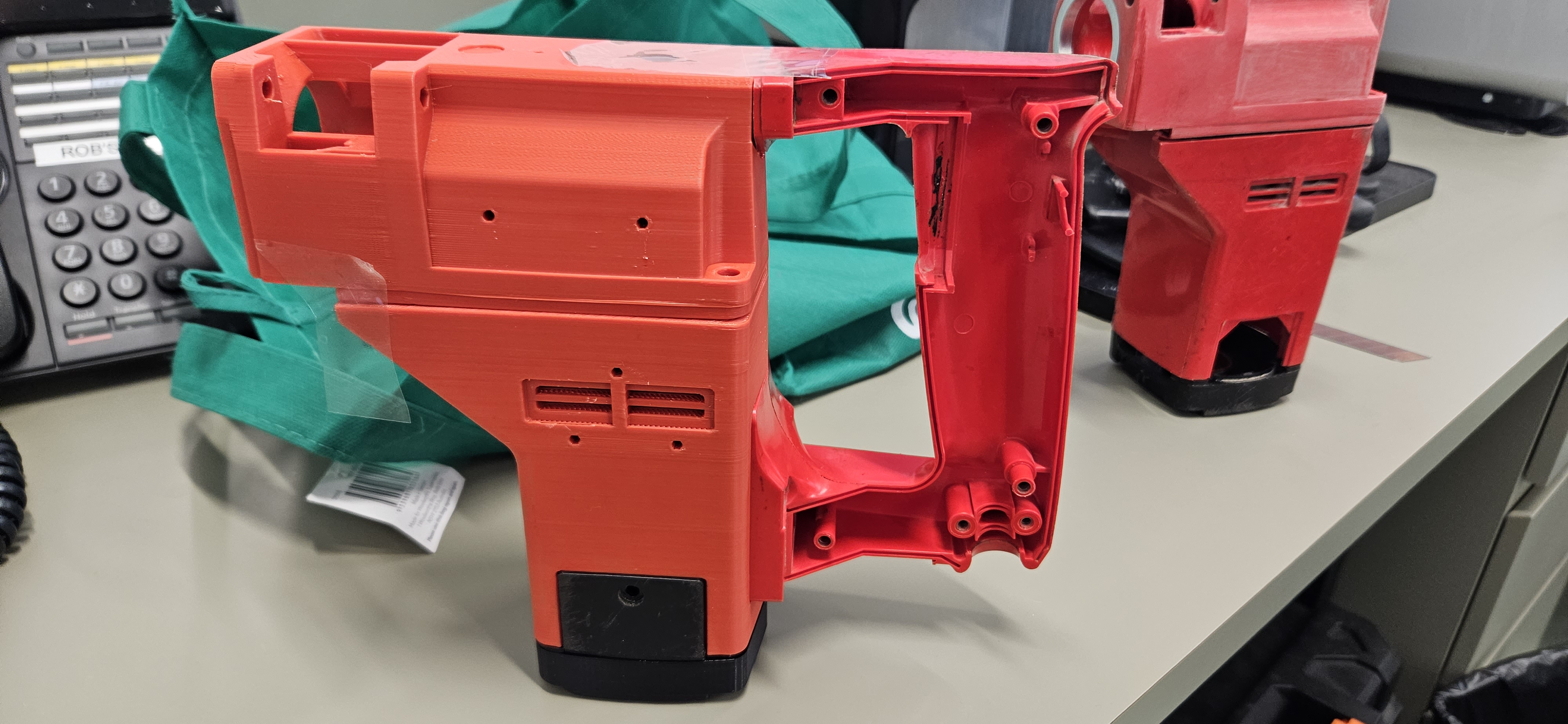

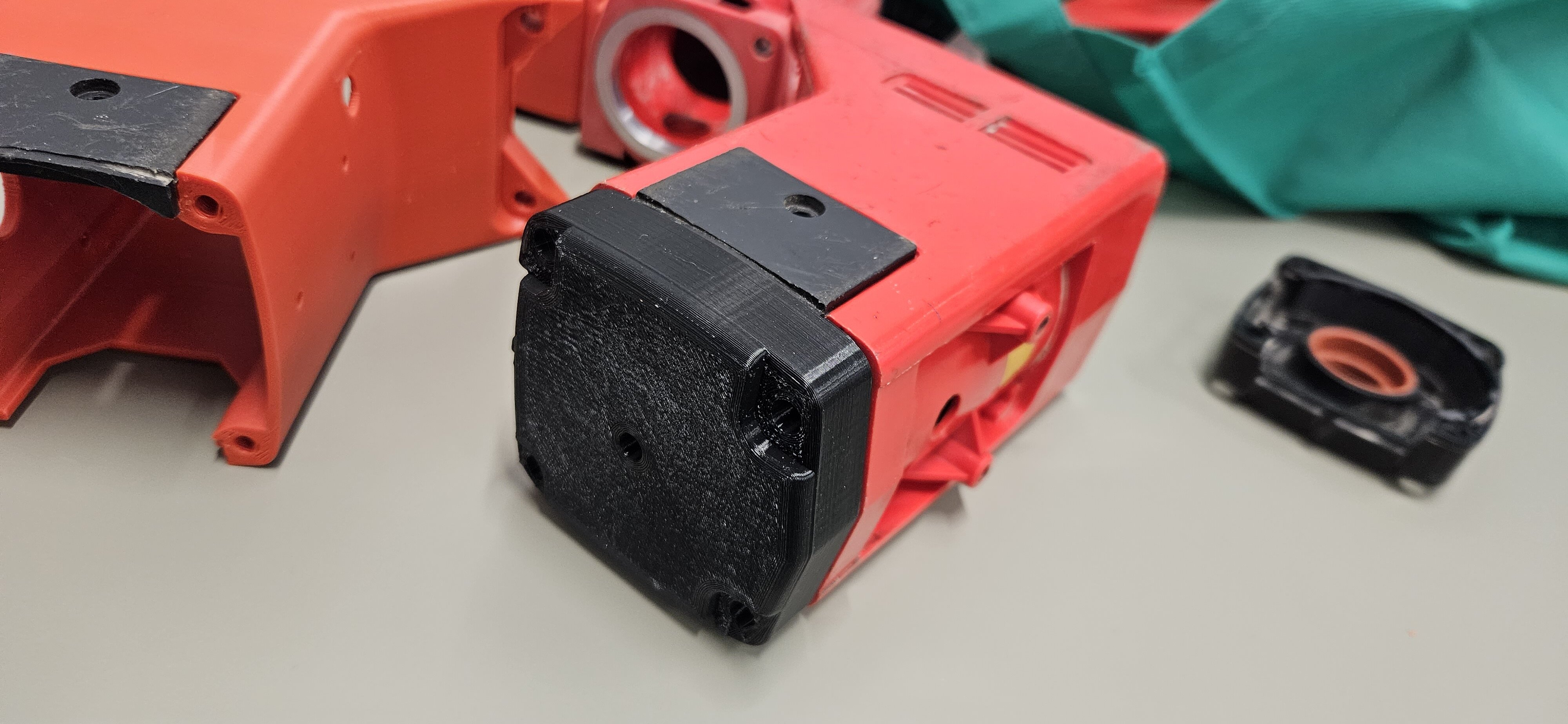

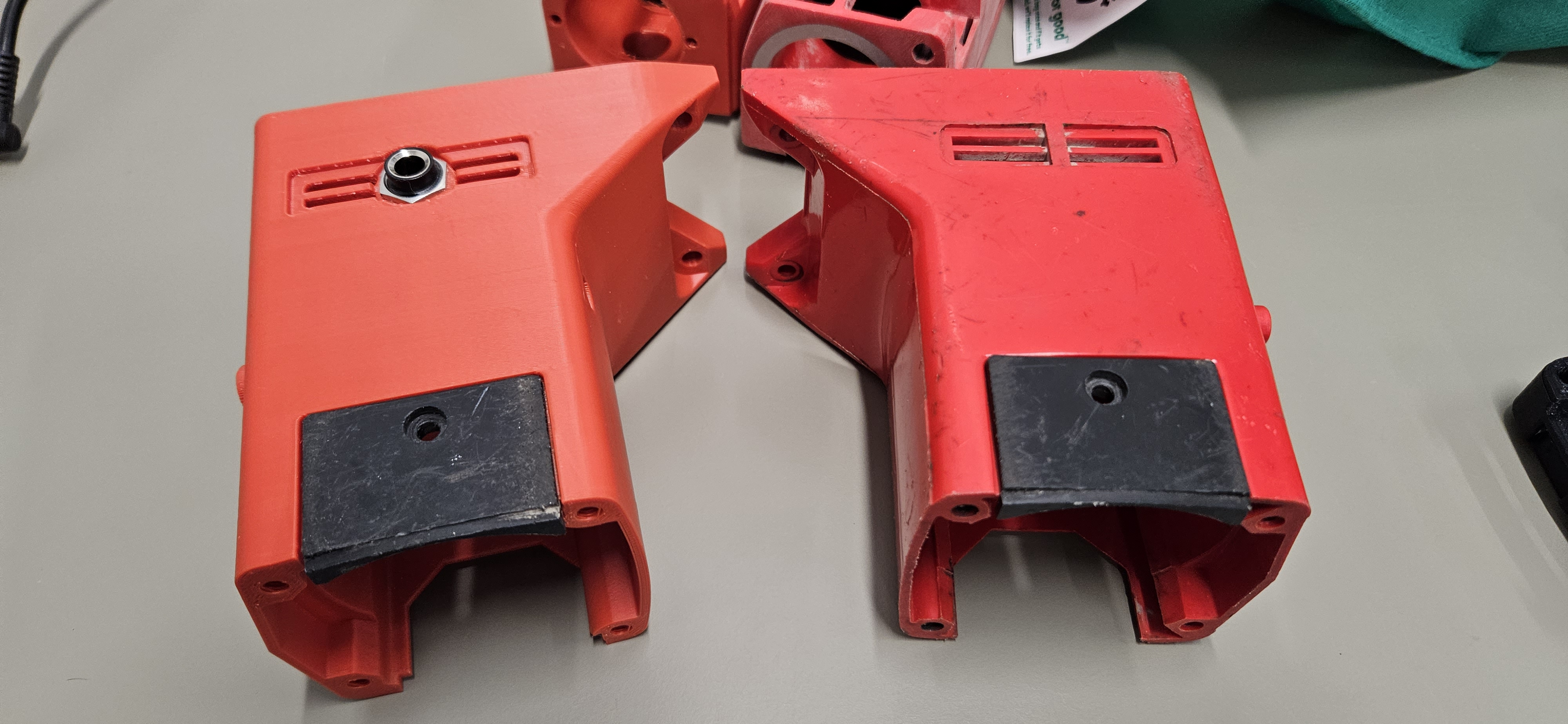

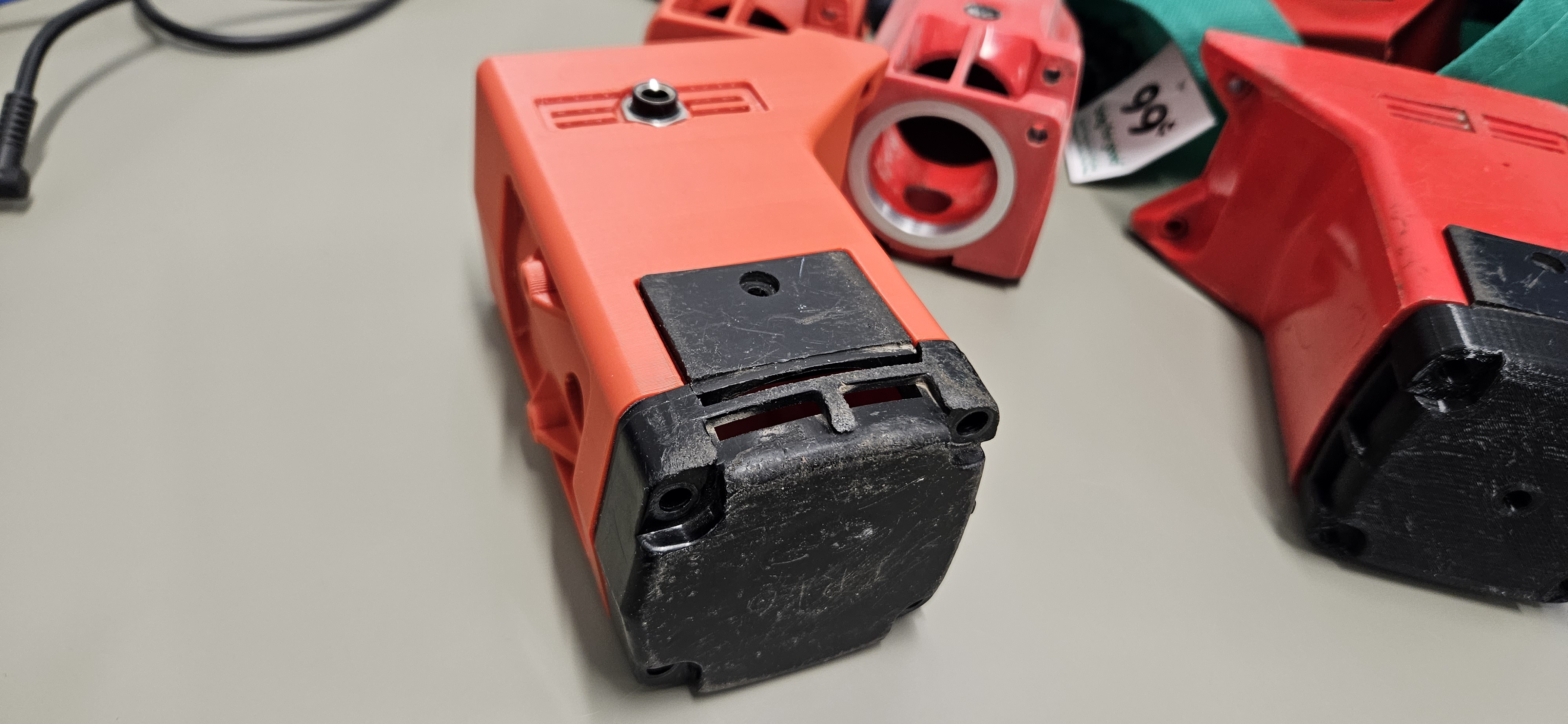

3d printed parts are fully interchangable with the original also, the first photo shows the 3d printed body with an original handle and the black brush covers are OG too.



[joberg]

WOW



[Dean O]

Wow is right! That looks fantastic. Now I need a second printer. There’s no way this will fit in my resin printer.



[paulsboutique]

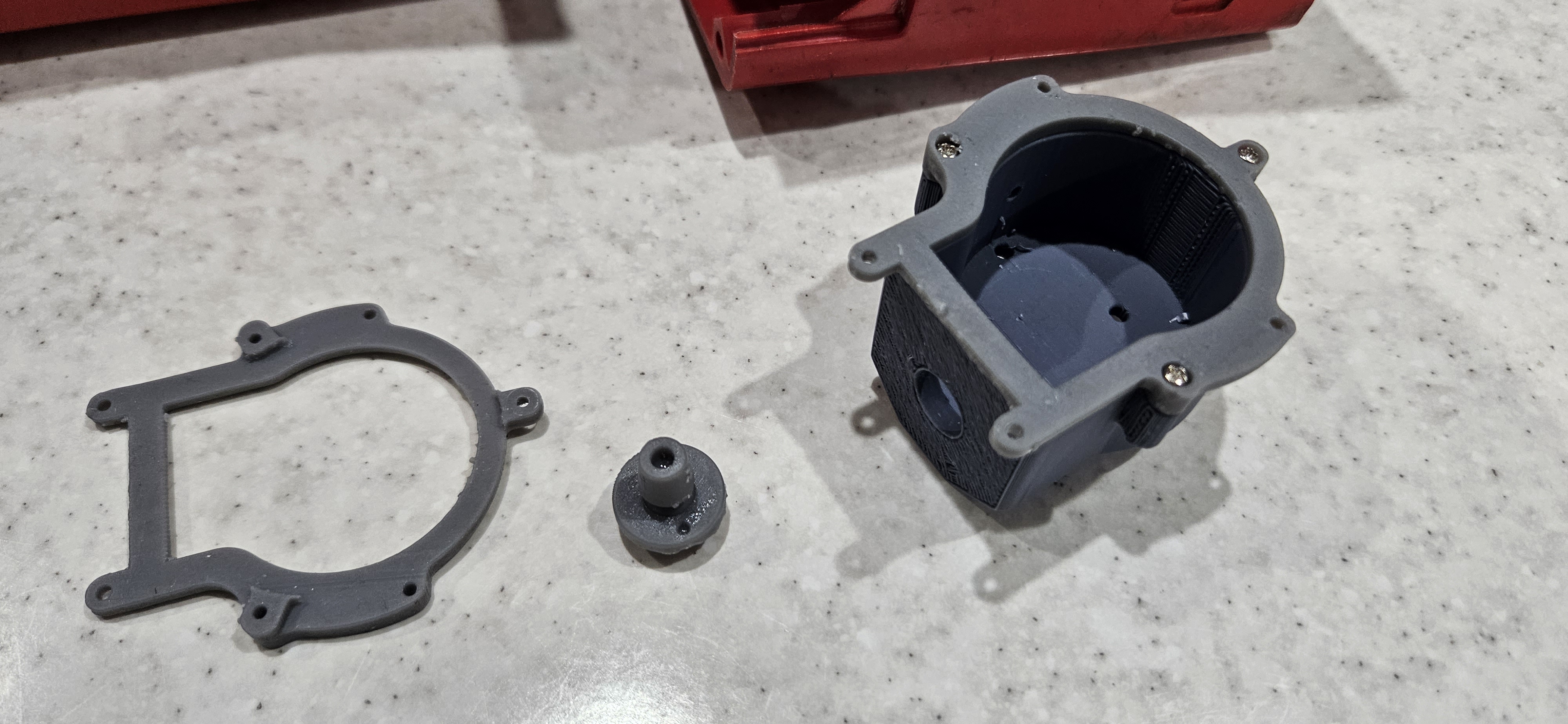

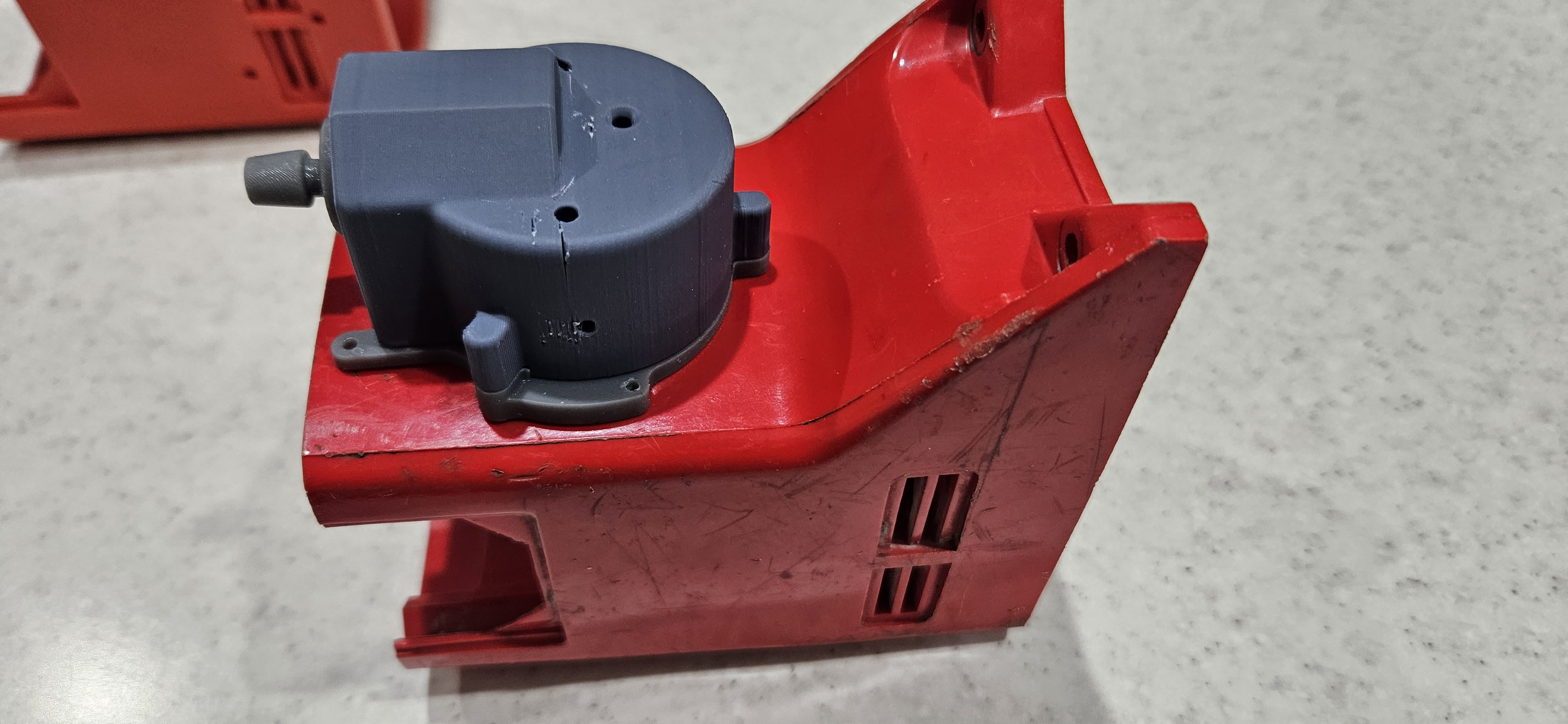

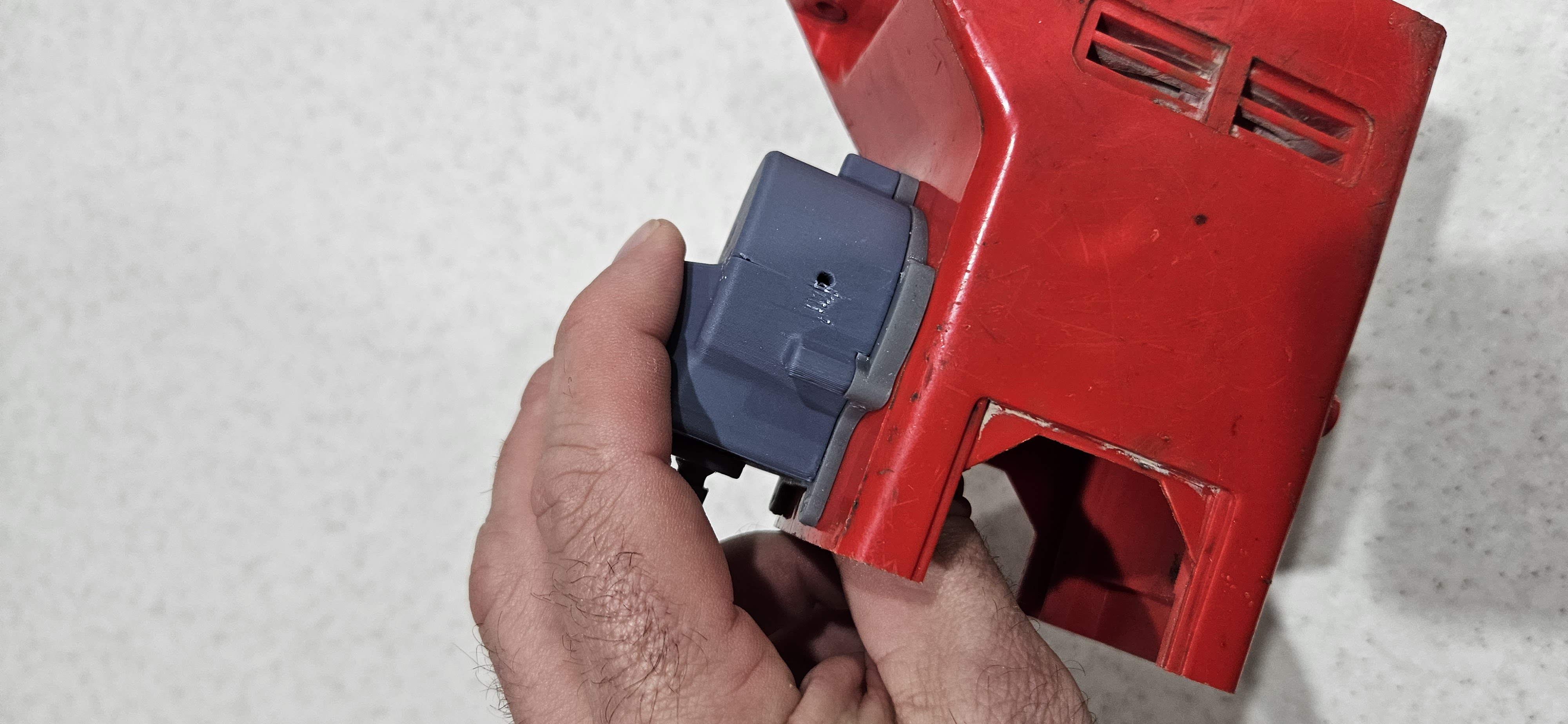

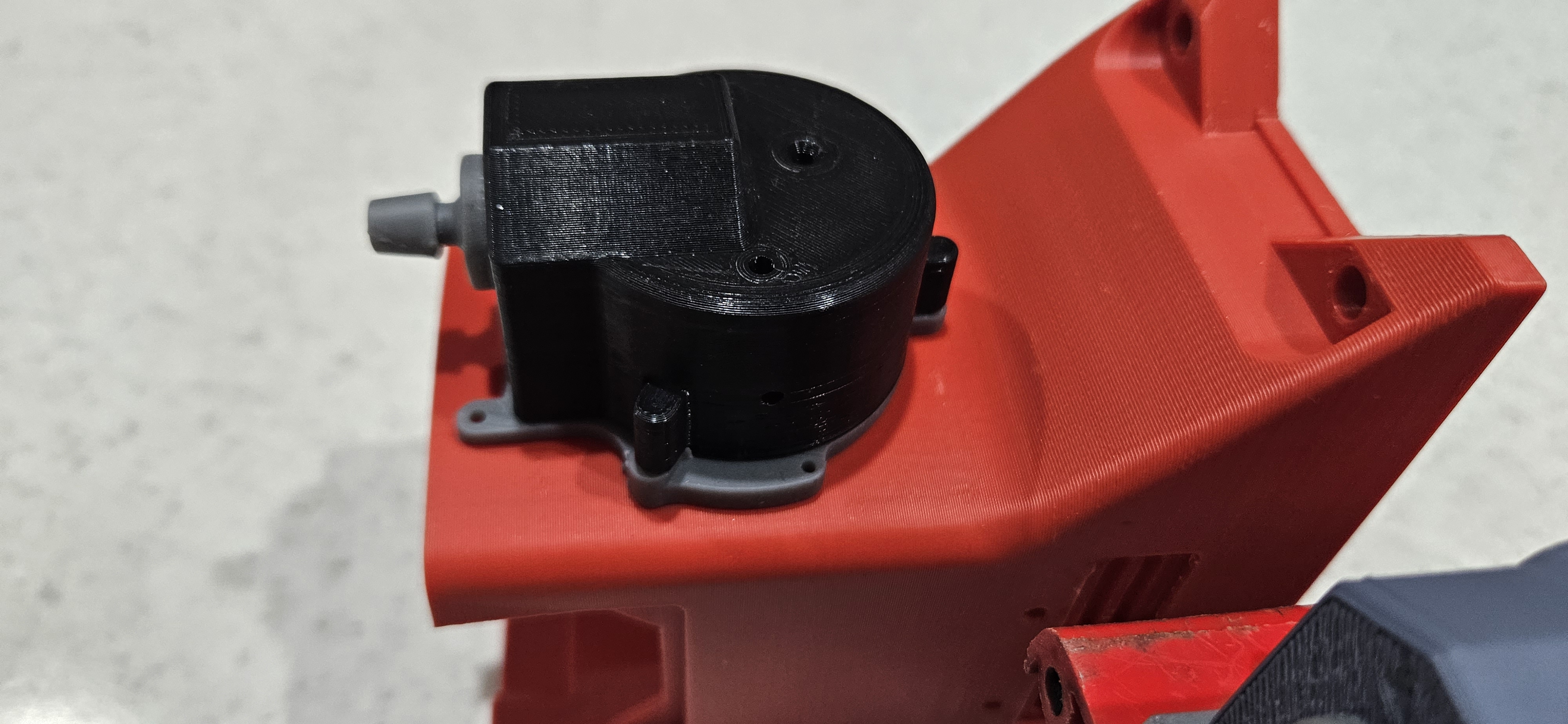

Pump widget all drawn up and test printed - pretty happy that it fits the profile exactly of the real lower of the kango. Bolts all together with 2mm screws. Mixture of FDM and SLA



[joberg]

Love it; I wouldn't even sand the printing lines...It has that heavy industrial WUTANI look



[ImperialWalker]

Commenting to follow and so the thread doesn't get locked. This is amazing.



[shaunsheep]

quite a achievement thus far cannot wait for further updates



[Knightmare]

Great project



[paulsboutique]

Thanks for all the feedback, i have not had much time for prop builds lately, but one small update.

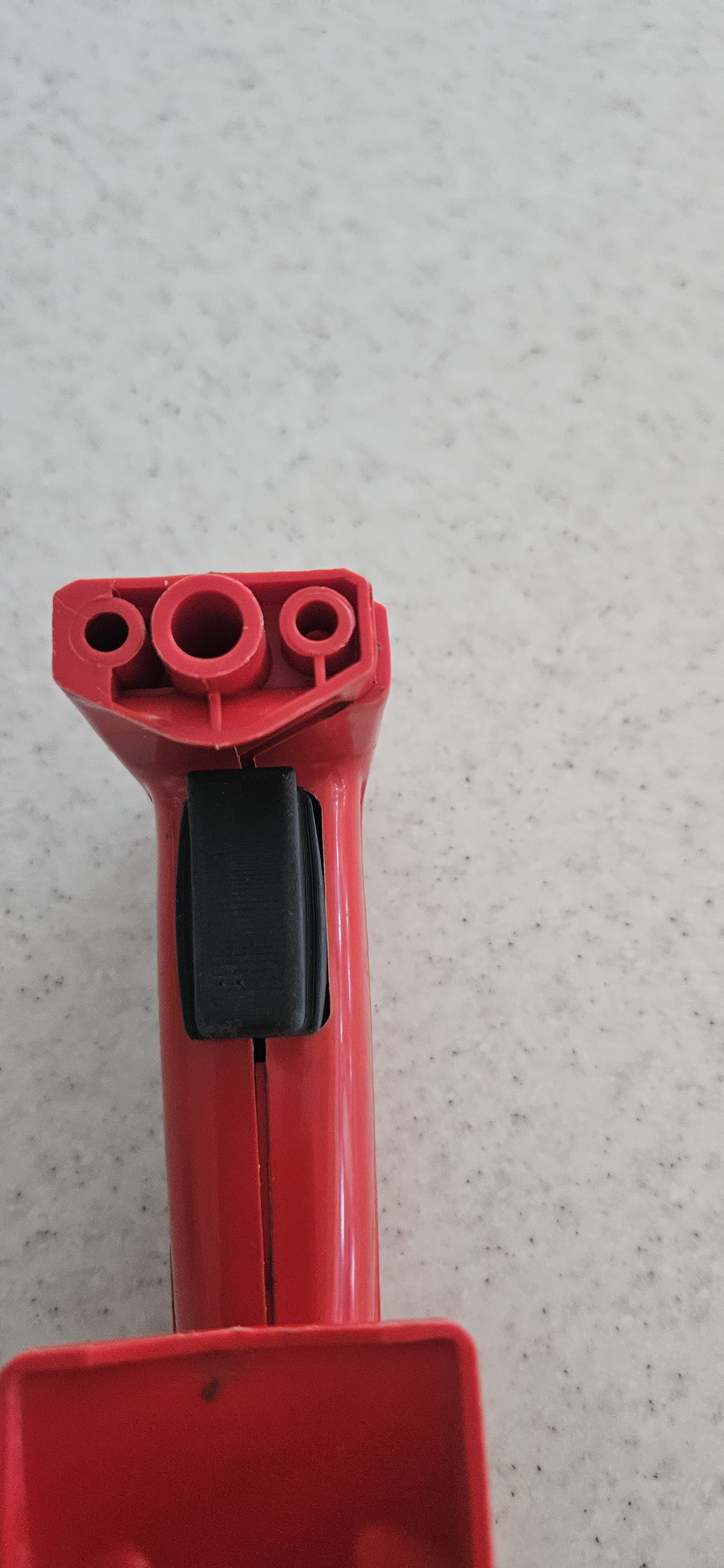

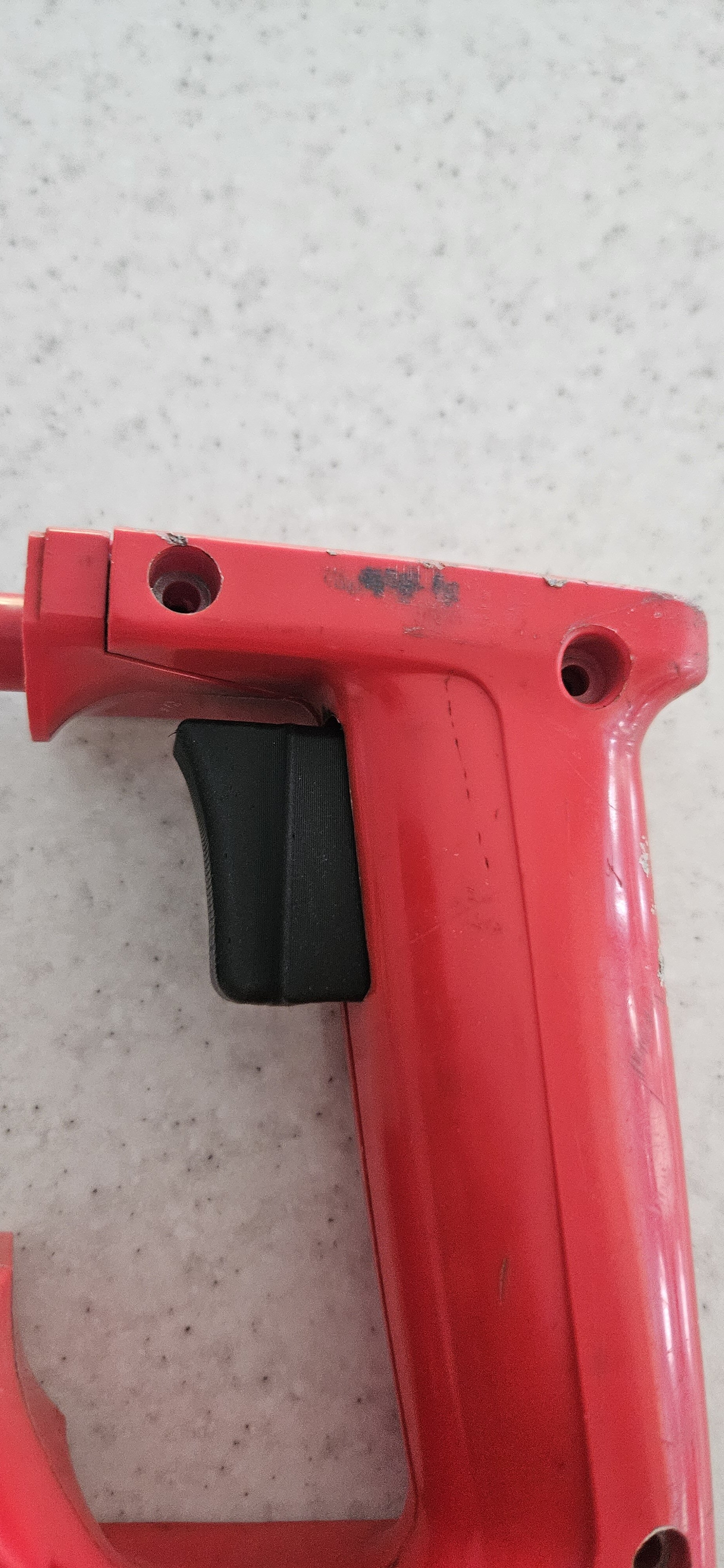

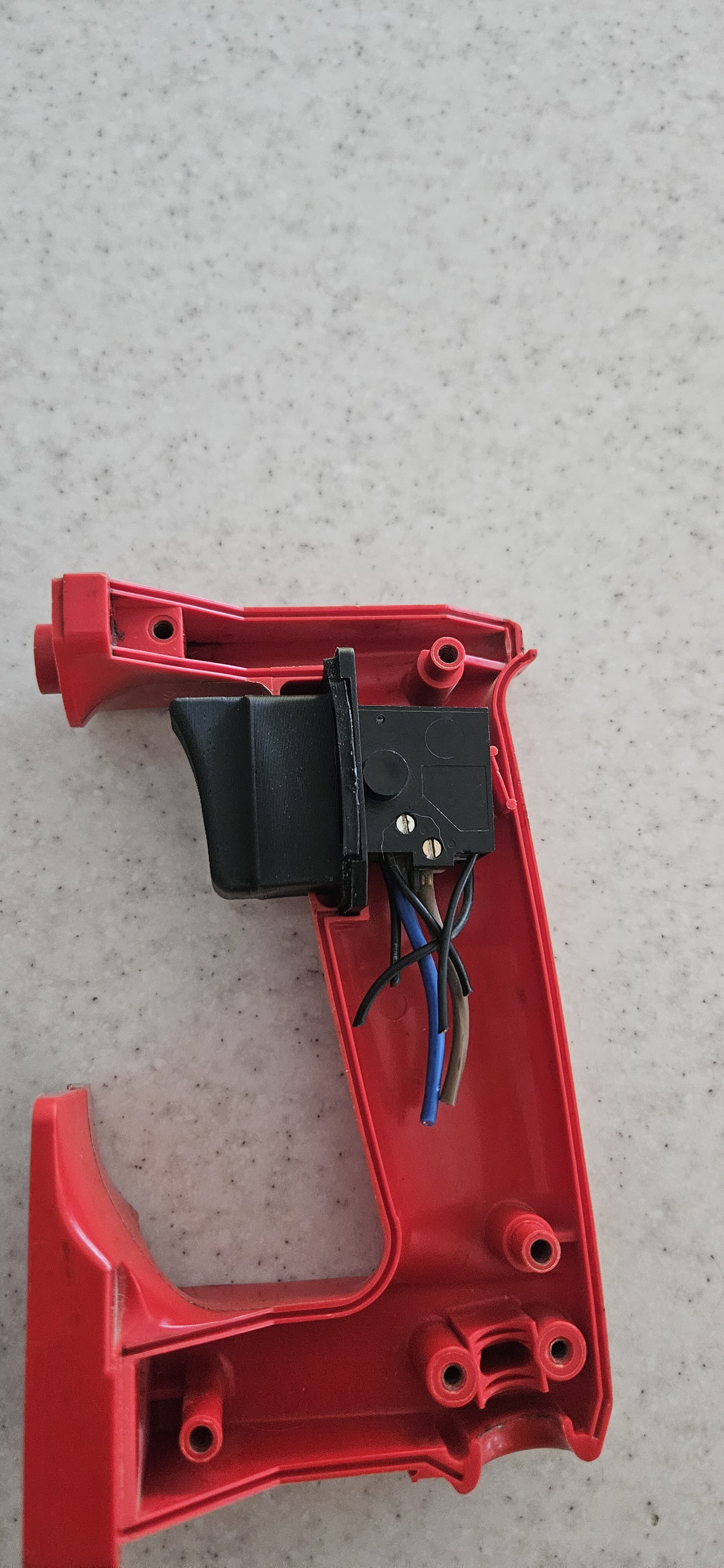

I modelled up the elusive trigger boot based on some reference photos of a largely unbroken original, which was supplied by a legend of a collector.
3d printed it out of TPE and fits the original backing plate and original switch.



[Yaan]

This is awesome. Thank you for your effort! That you even have the original to compare is really good. Som eventually i will get the chance to make a tracker! Will go perfectly with my pulse rifle....

Thank you so much!!!



[joberg]

Good job on that trigger



[paulsboutique]

Working on the hama at the moment, finished up the lower vivitar panel and knocked up the decal,

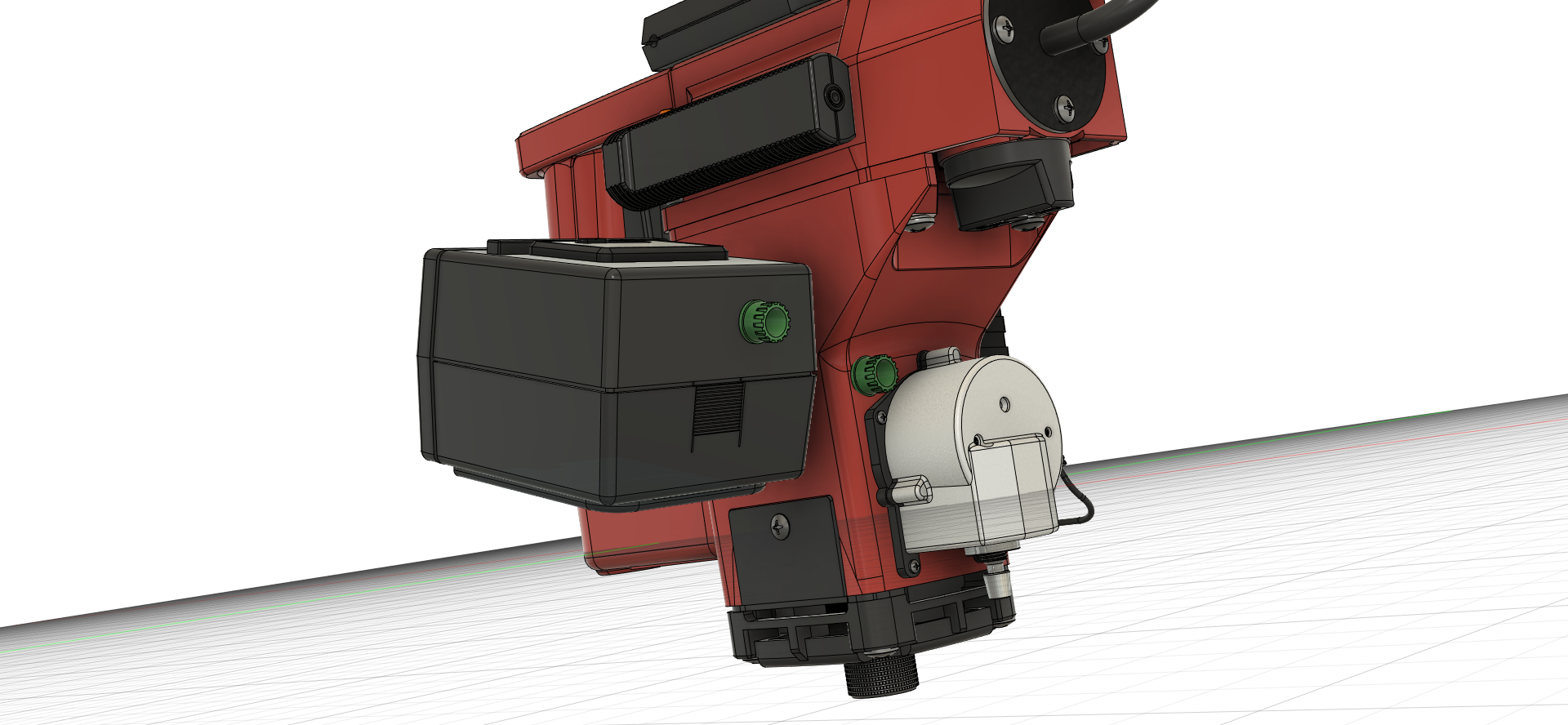

modelled up the green plastruct connectors for the cabling on the front.



[joberg]

F.A.B.



[TazMan2000]

Sharp.

TazMan2000



[paulsboutique]

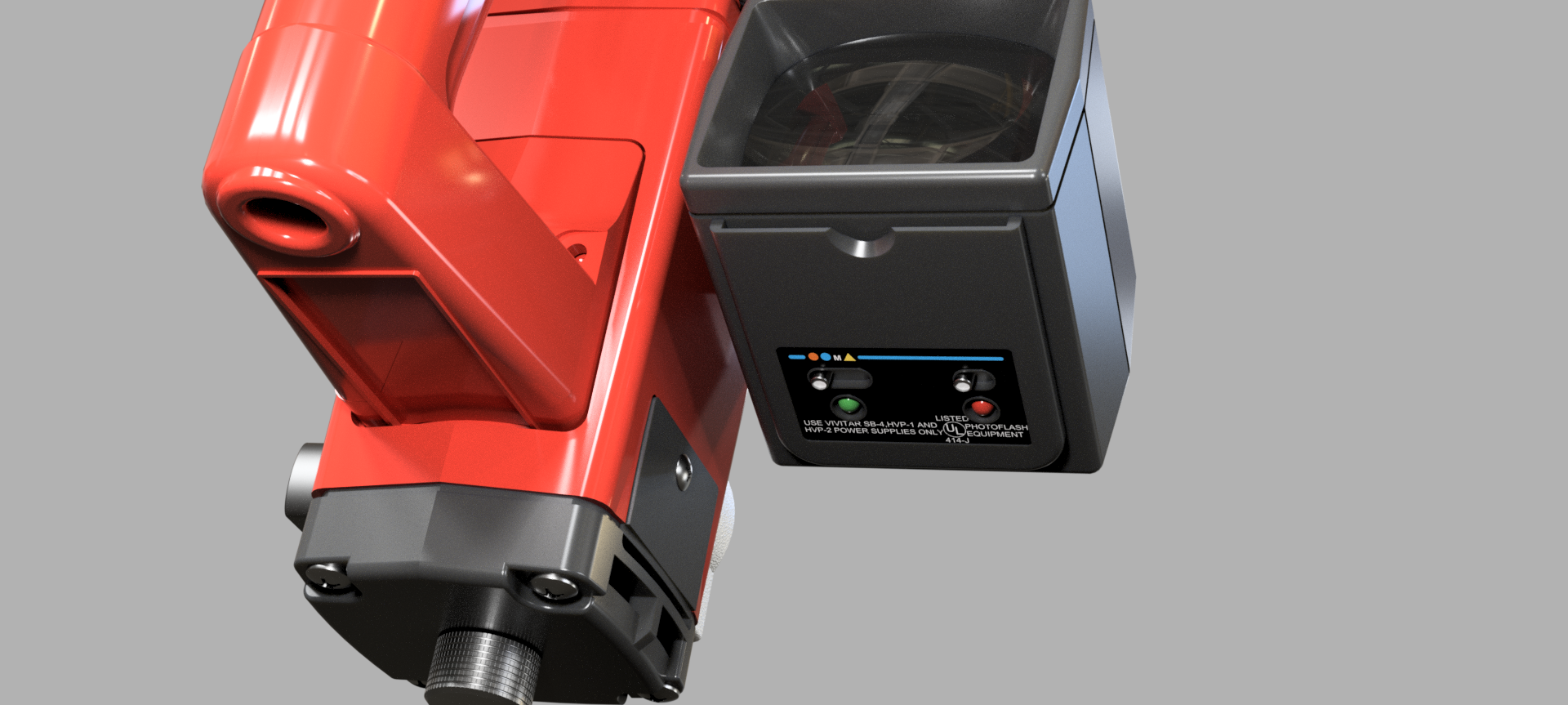

Last render on the hama.
- finished the top of the hama with the vivitar switch.

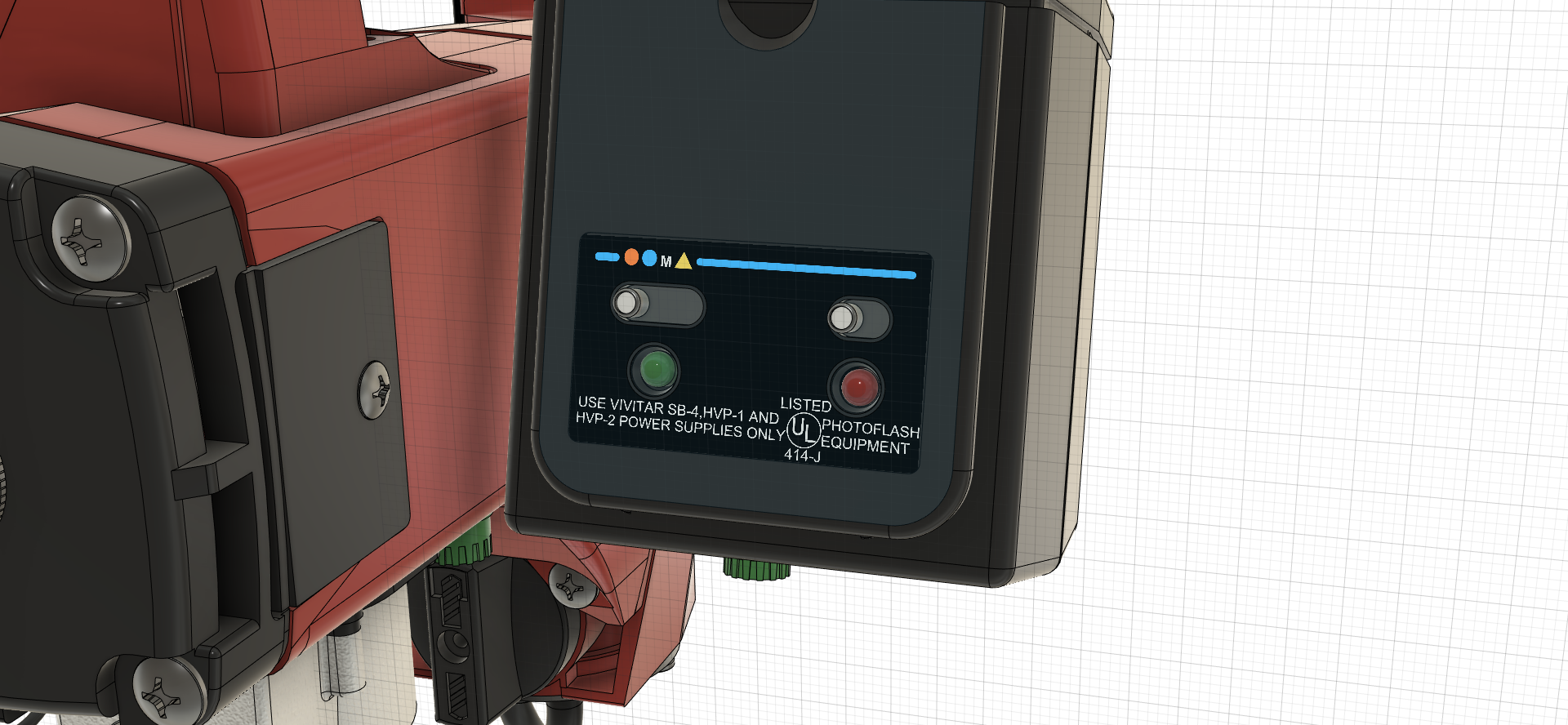

3 decals done to get the depth and I'll have to use a 1mm acrylic sheet cut on the laser to replicate the window. hopefully :/

Just electronics to model in now



[TazMan2000]

Last render on the hama.
- finished the top of the hama with the vivitar switch.
3 decals done to get the depth and I'll have to use a 1mm acrylic sheet cut on the laser to replicate the window. hopefully :/

Just electronics to model in now

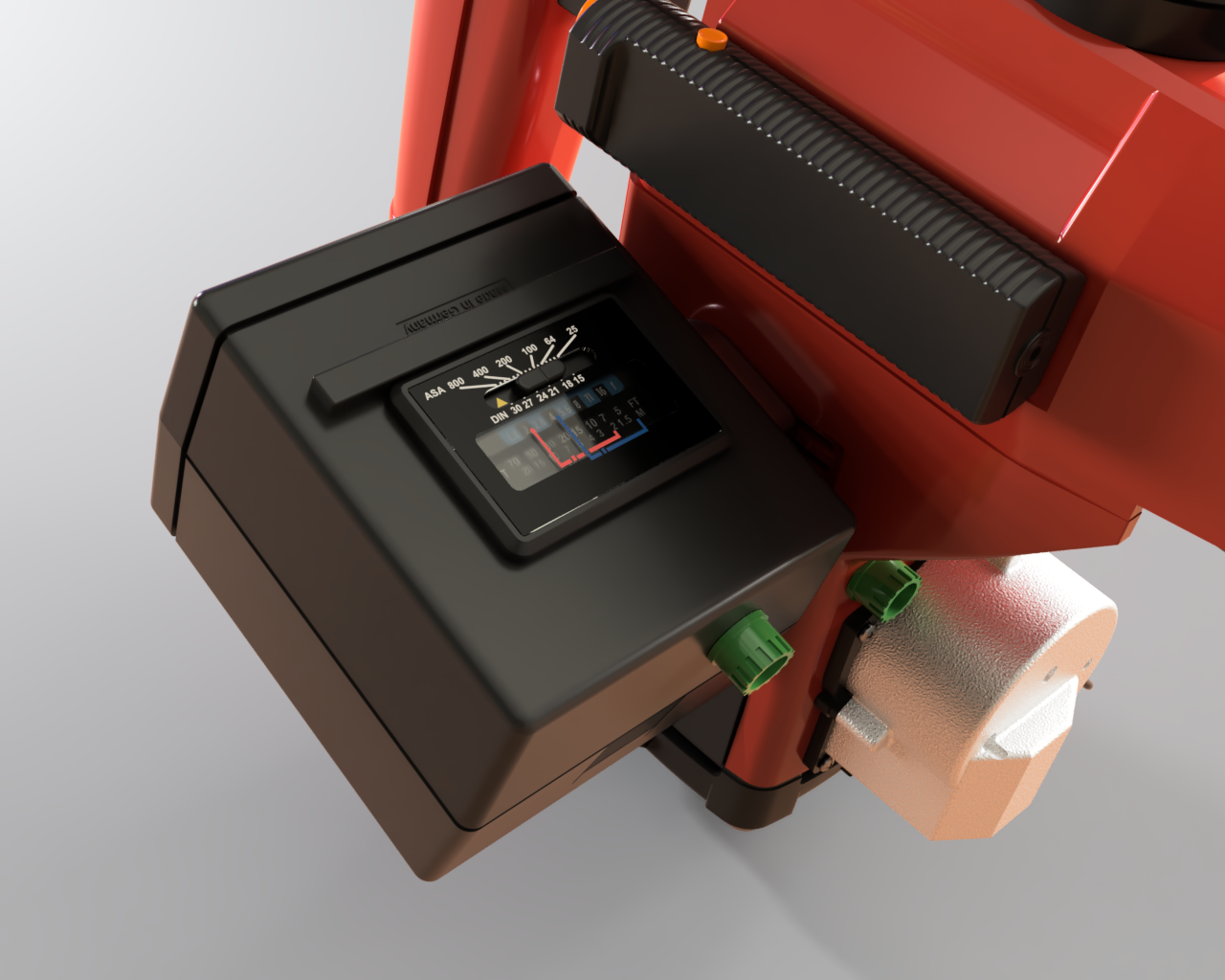

View attachment 1779826

OMG. Great renders.

TazMan2000



[joberg]

Just WOW



[paulsboutique]

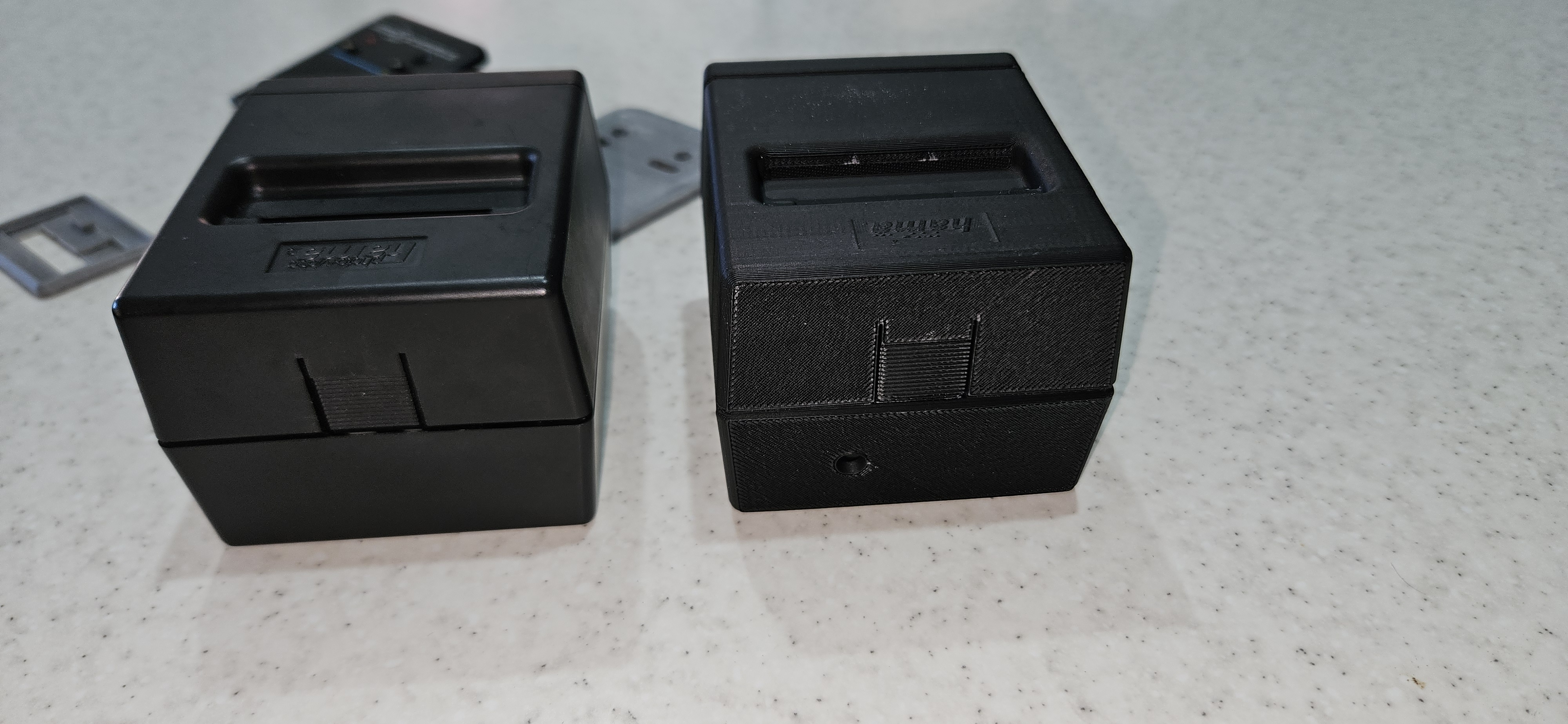

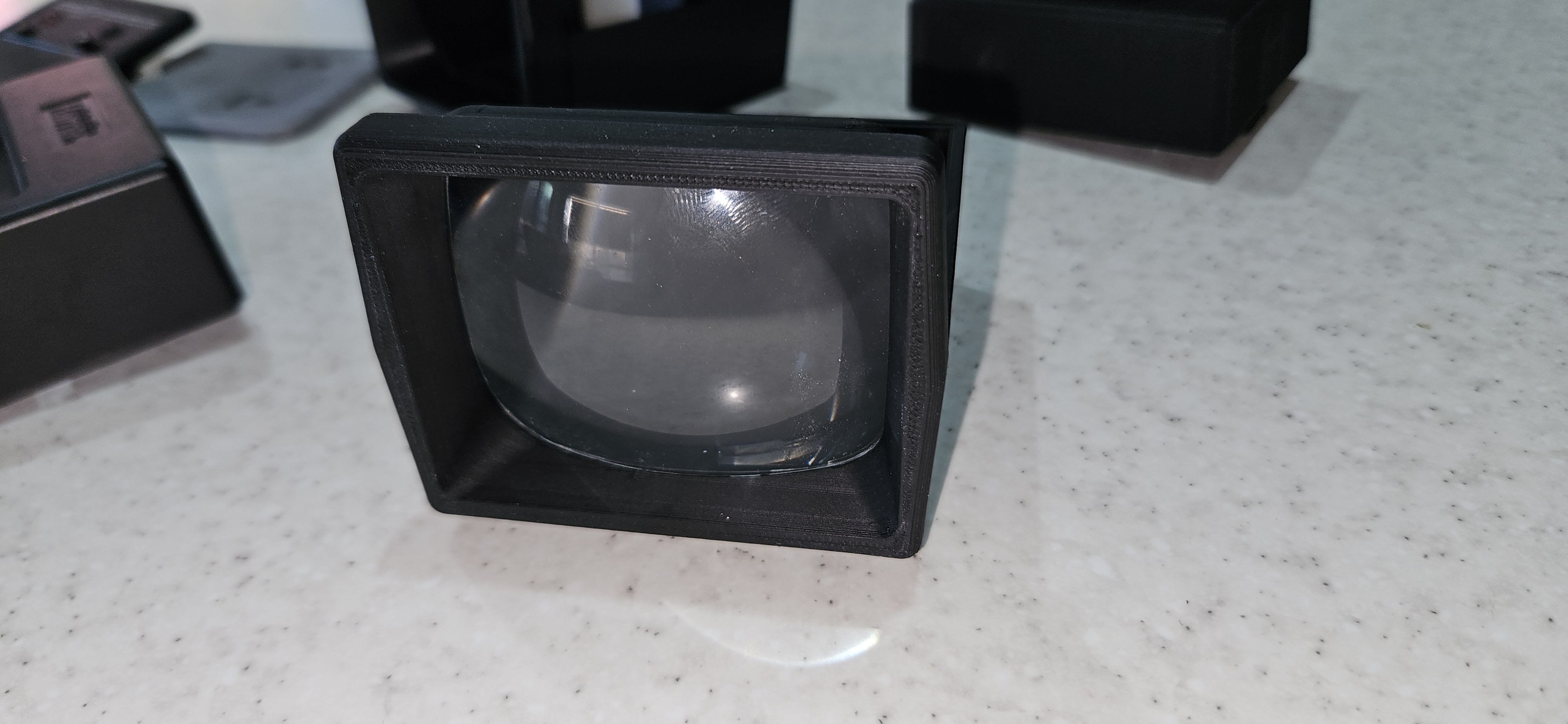

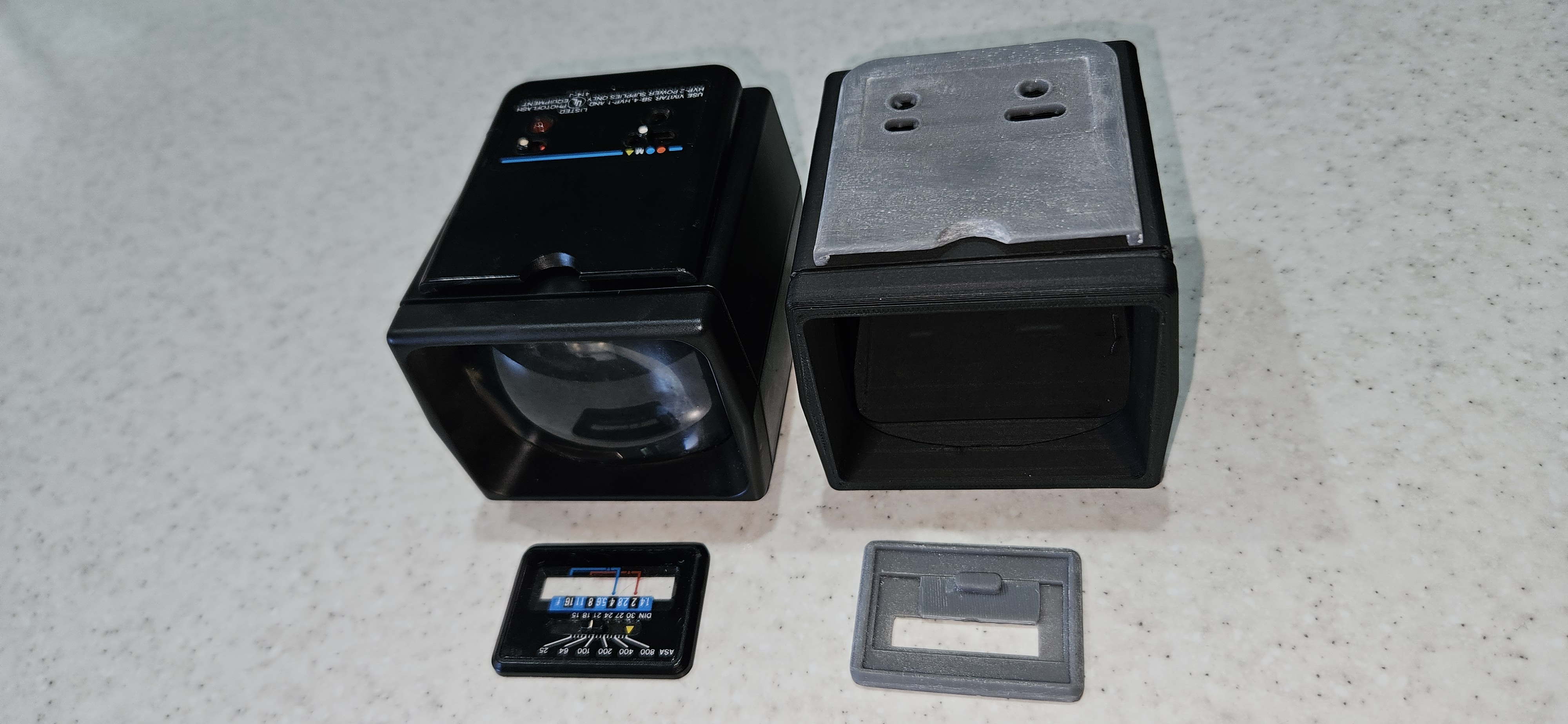

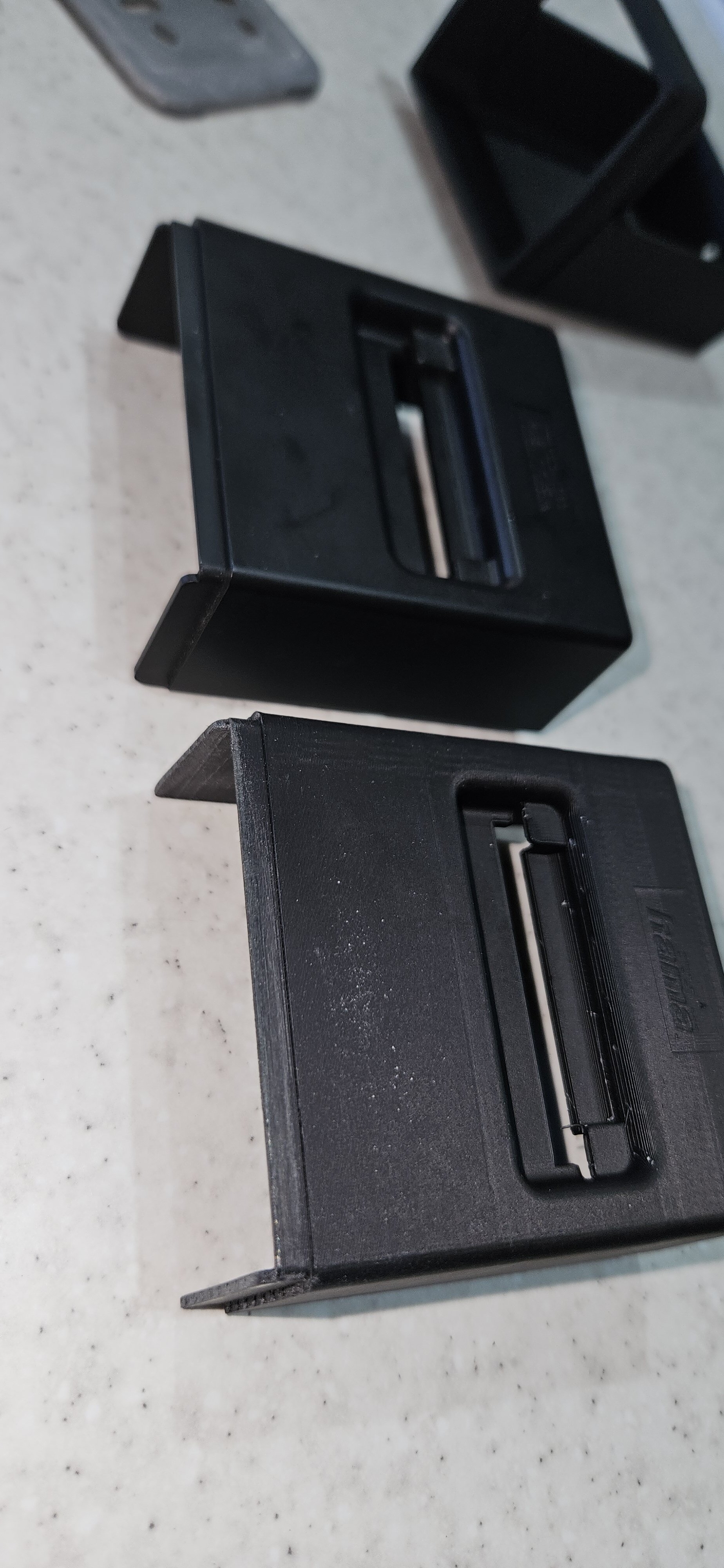

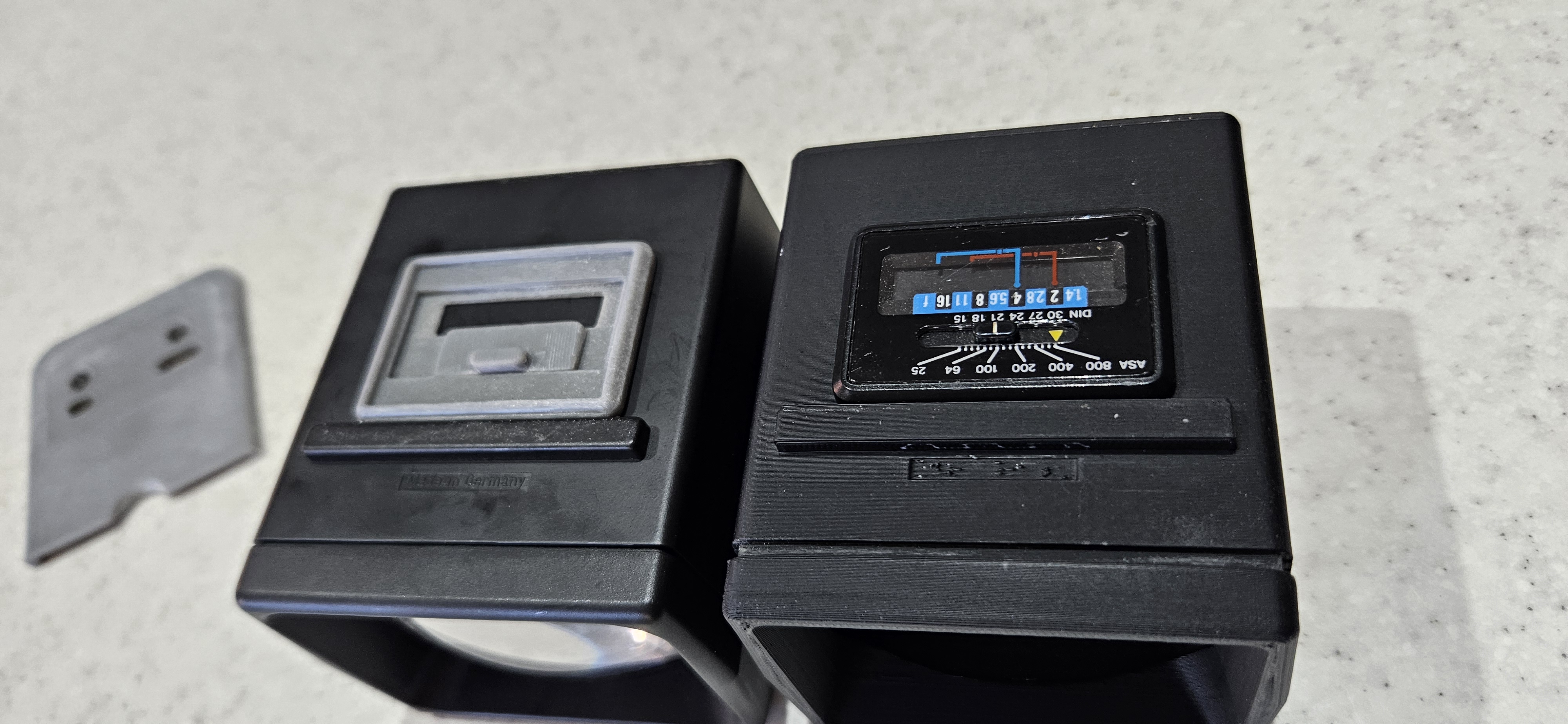

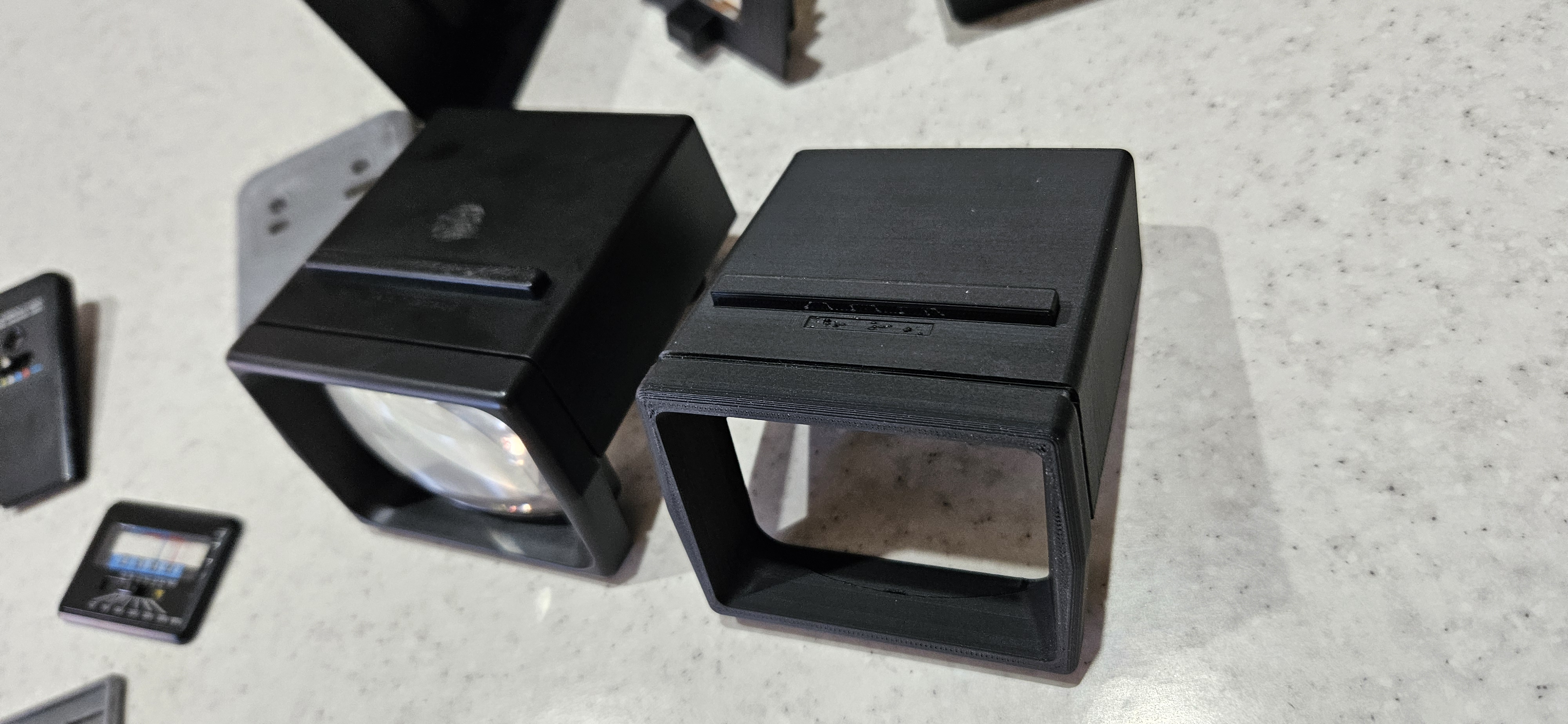

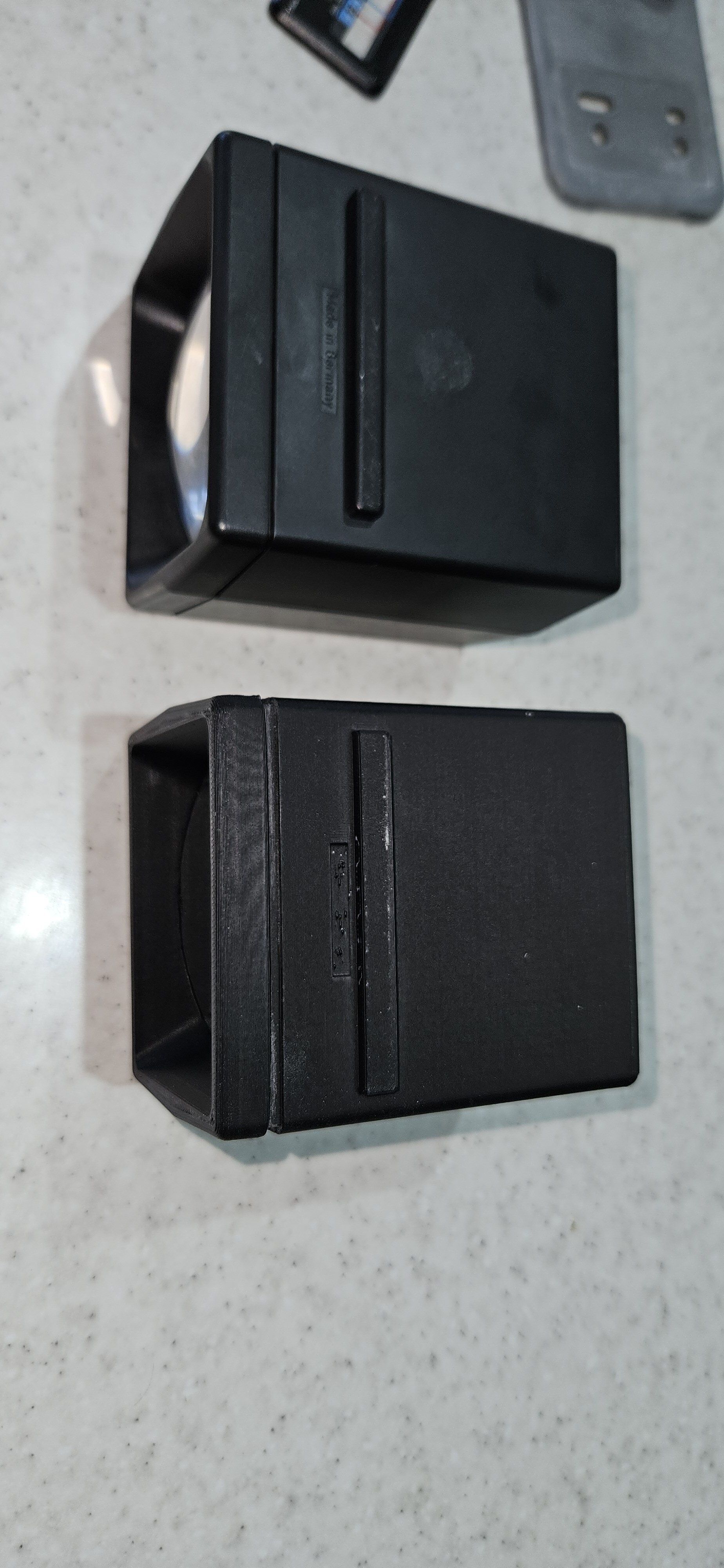

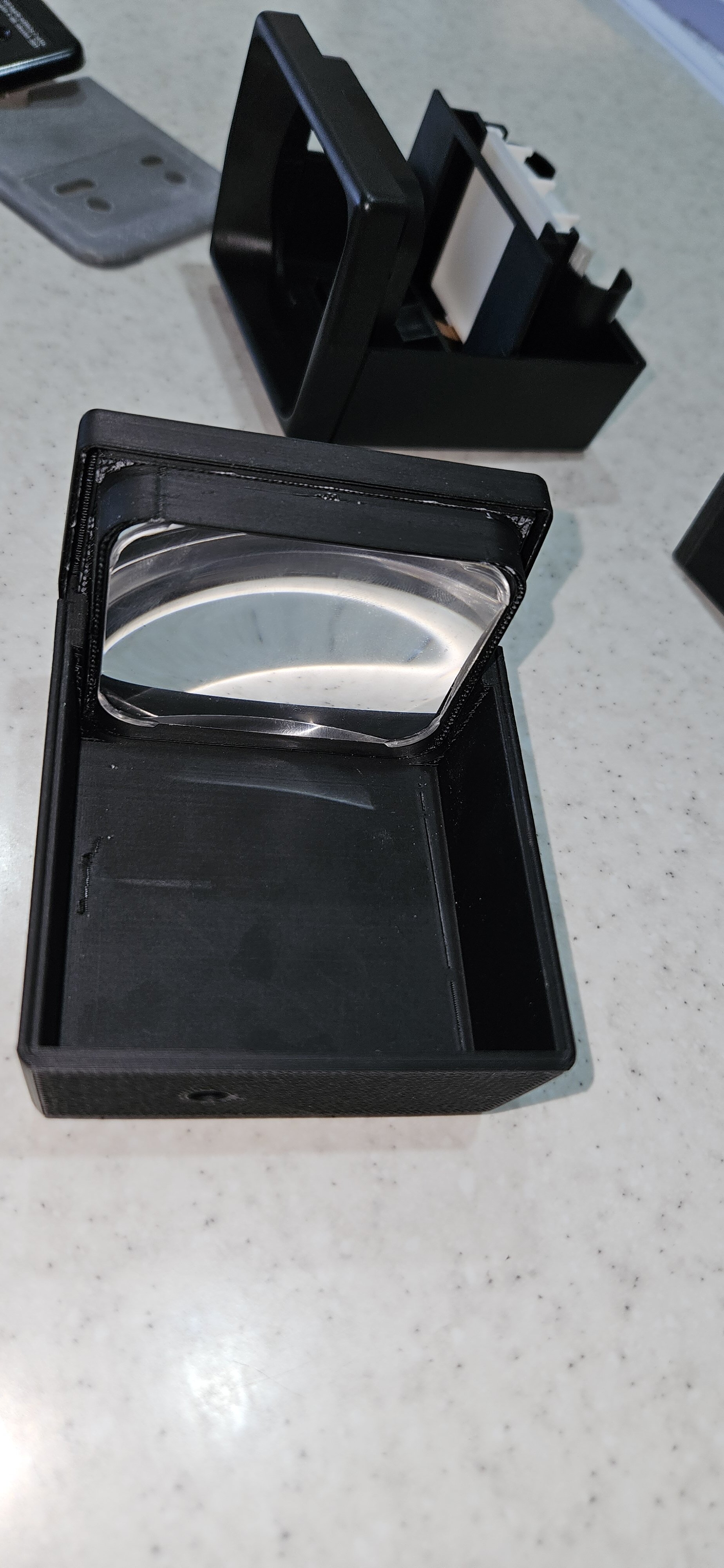

Stop .... Hama time .. ok print time. Printed out the housing on a fdm in ABS at .19, of course lost the logo details, but came out really nice. Had some dodgy old resin left over from last year in the form2 and printed the vivitar parts out. The lens from the original hama fits my print, so I'm close ... but a few tweaks are still needed ... anyhow pics tell a better story



[joberg]

Looking spiffy
