Aliens M240 Incinerator

[paulsboutique]

Im currently in the process of thrashing out a new build of an M240 flamethrower from Aliens.
Can anyone confirm if the top sight channel of the M16A1 carry handle was filled in on the original or left intact.


I have drawn the handle so far as per original M16A1
cheers



[paulsboutique]

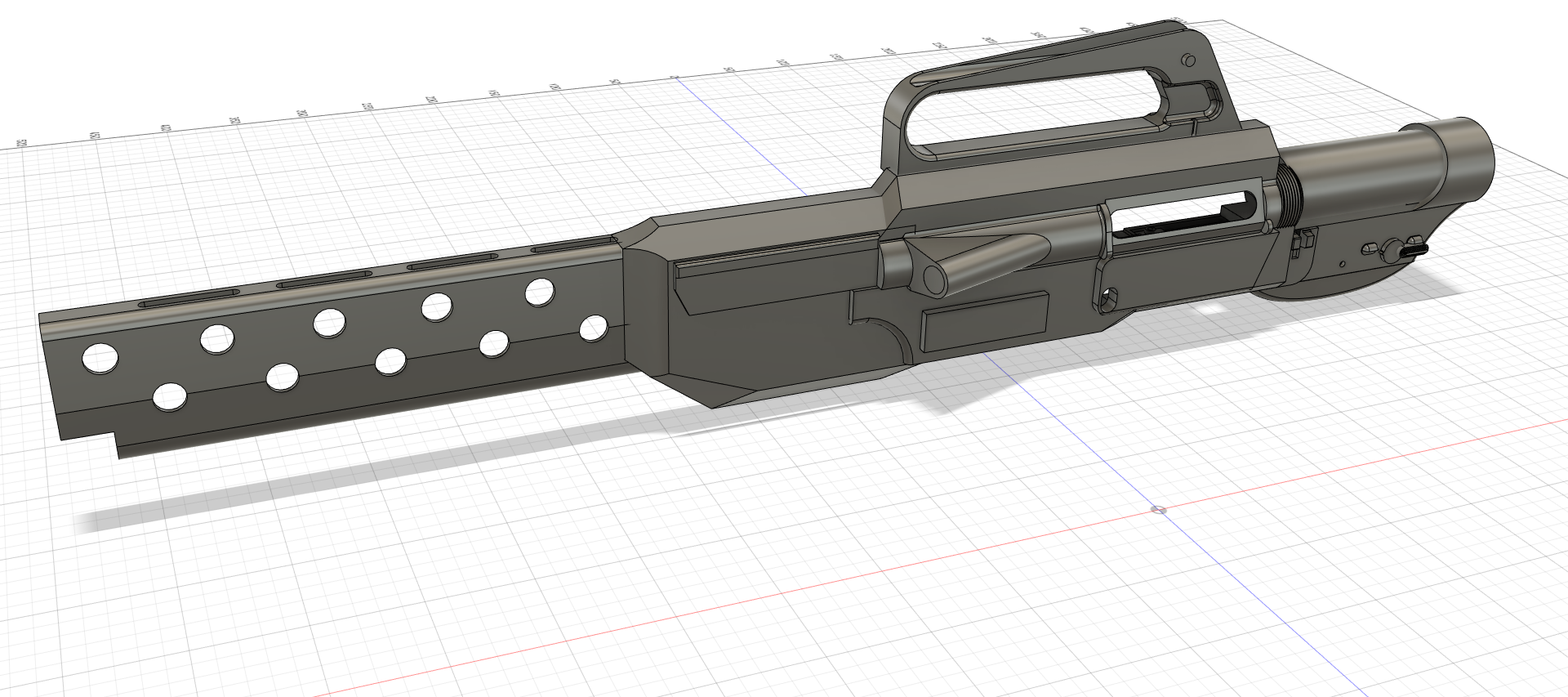

A bit more done on this - please chime in on accuracy as im releasing these files once done.



[paulsboutique]



[TazMan2000]

Very clean geometry. I can't believe there's not a horde of people interested in this and commenting.

TazMan2000



[joberg]

Really nice so far...keep up the great work and TFS with us those files once done



[Harada357]

VERY Nice work !!! Fine detail !!! impressive



[ghostryder]

looks great...

fwiw:



[ghostryder]



[RobertMuldoon]

There have been a couple in the Propstore auctions (with usual high res photos):

Prop Store Auction

ALIENS (1986) - Colonial Marine Flamethrower - Current price: £19000

propstoreauction.com

Also some concept art, but looks like they changed to the M16 after these: Entertainment Memorabilia Live Auction UK 2020 - Lot #22 - ALIENS (1986) - Three Hand-drawn Flamethrower Production Design And Concept Artworks



[Sundowner]

I was going to say the M16 receiver is backwards but it looks like that was intentional. After all these years I never noticed.



[Lear60man]

I was going to say the M16 receiver is backwards but it looks like that was intentional. After all these years I never noticed.

You and me both. Learn something new every day



[TazMan2000]

The real props look terrible. I know they are only going to be seen online for seconds at a time, but geez. I like paulsboutique design better, since it can be admired at length. If the prop makers for the movie had time (and money), they would have done it properly. But budget always plays a part.

TazMan2000



[paulsboutique]

thanks for all the comments and links - yes the originals are terrible, i will be smoothing some of the corners once im happy with the design, to try and keep some of the "bog" lines



[paulsboutique]

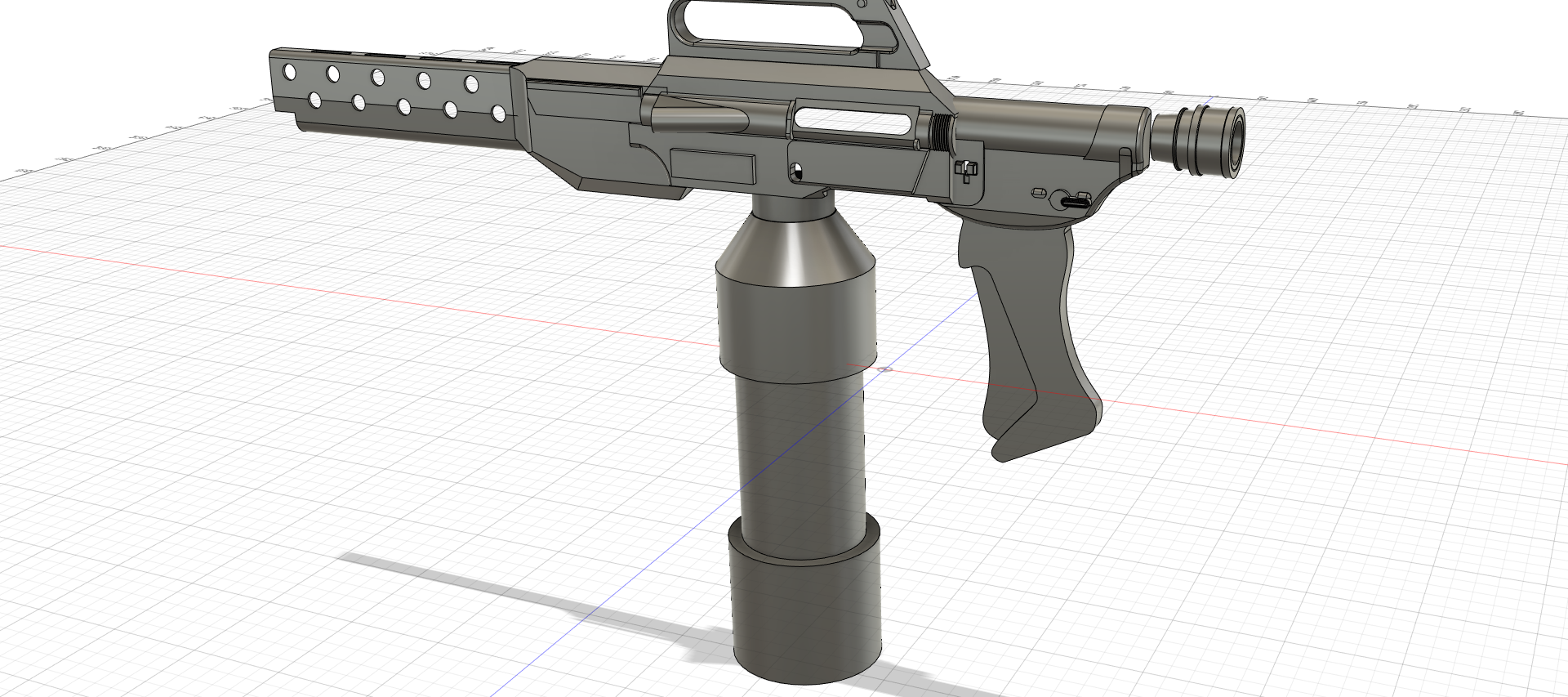

More shapes put down - rear end almost done. Would anyone have dimensions for the gas plug ?



[joberg]

Yes, movie props (there are exceptions of course) are usually ``rough`` looking in person...but they look good on film



[OB10]

I'm afraid I don't have any dimensions, but it's looking great so far!



[paulsboutique]

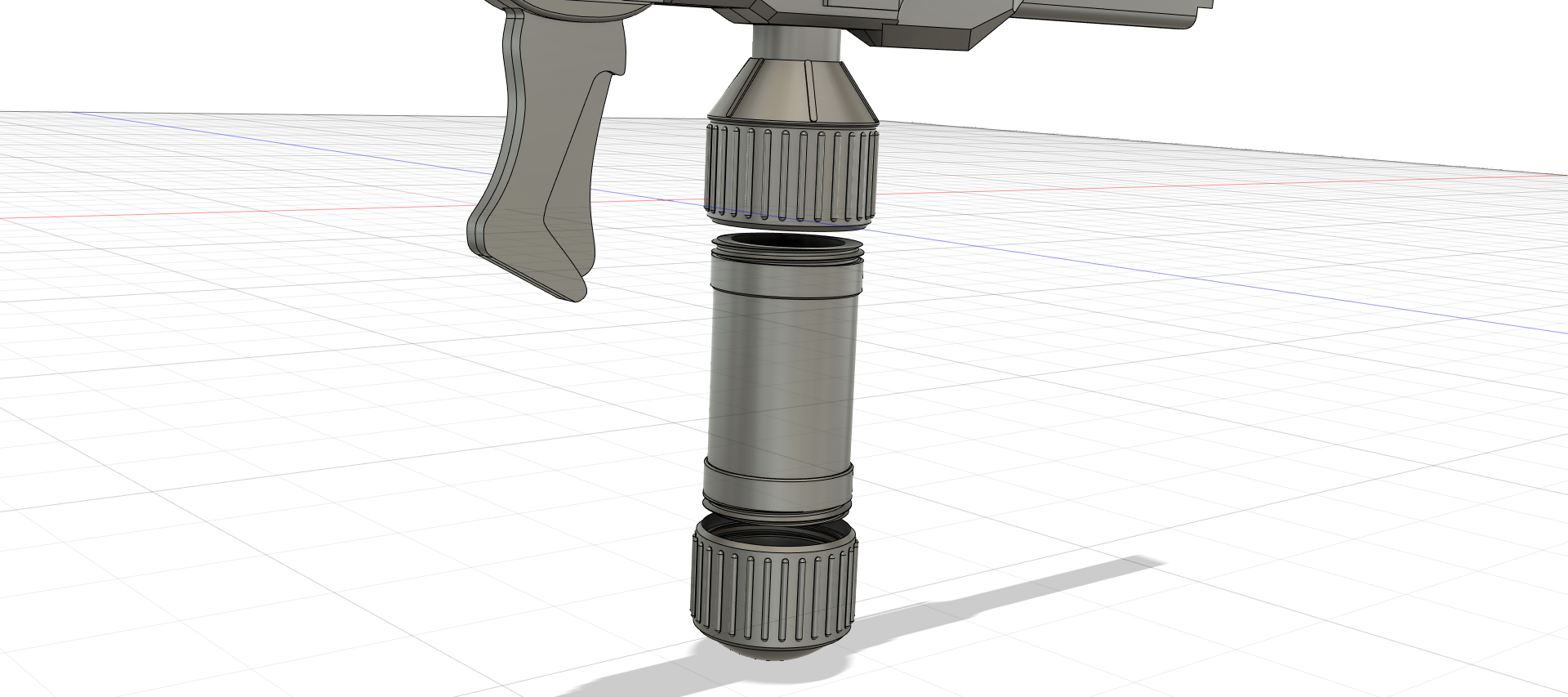

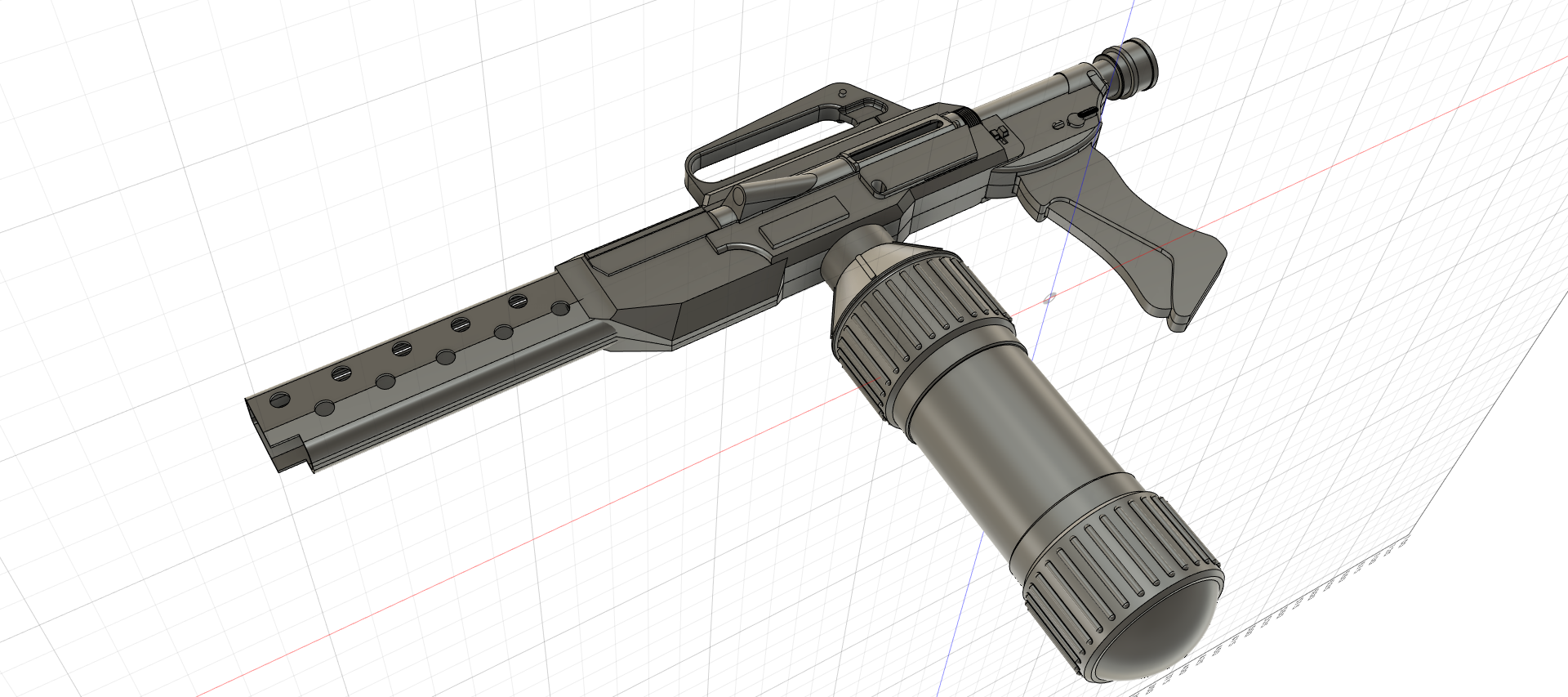

Canister done
-its hollow like the rest of the design and unscrews into three parts for printing

Starting to add detail to the right side



[Echo4890]

This is looking great. I'll be following this one!



[TazMan2000]

What I love about your builds is the mechanics. You design things like a machinist. It's not just a 3d print, you add functionality.

TazMan2000



[joberg]

Beaufiful indeed!
