8T88 from Star Wars Dark Forces 2
- Thread starter 8T88
- Start date
Millenniumf
Sr Member
Glad to hear it! I love the Dark Forces series, and I'm looking forward to seeing this one finished!
8T88
New Member

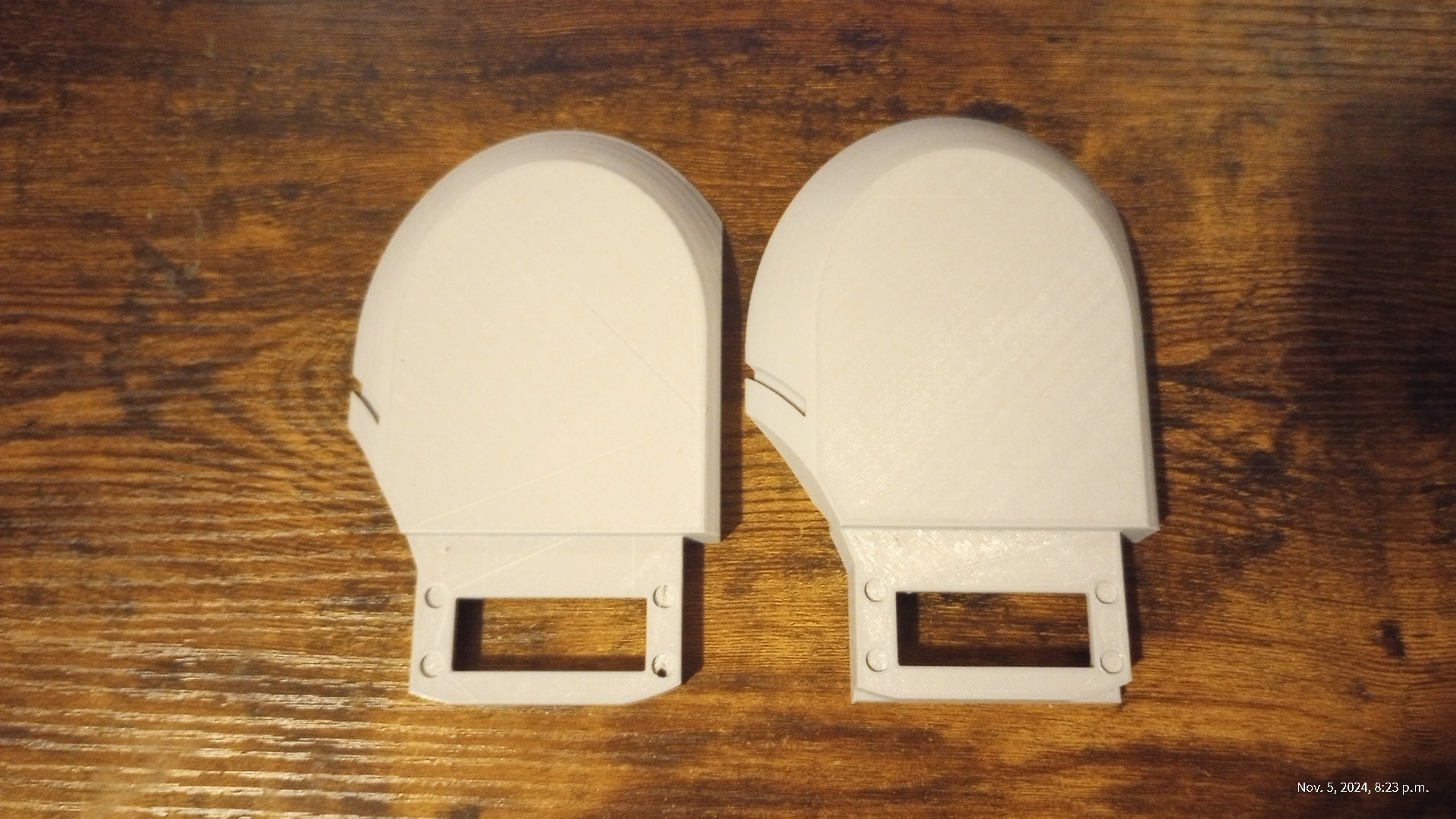

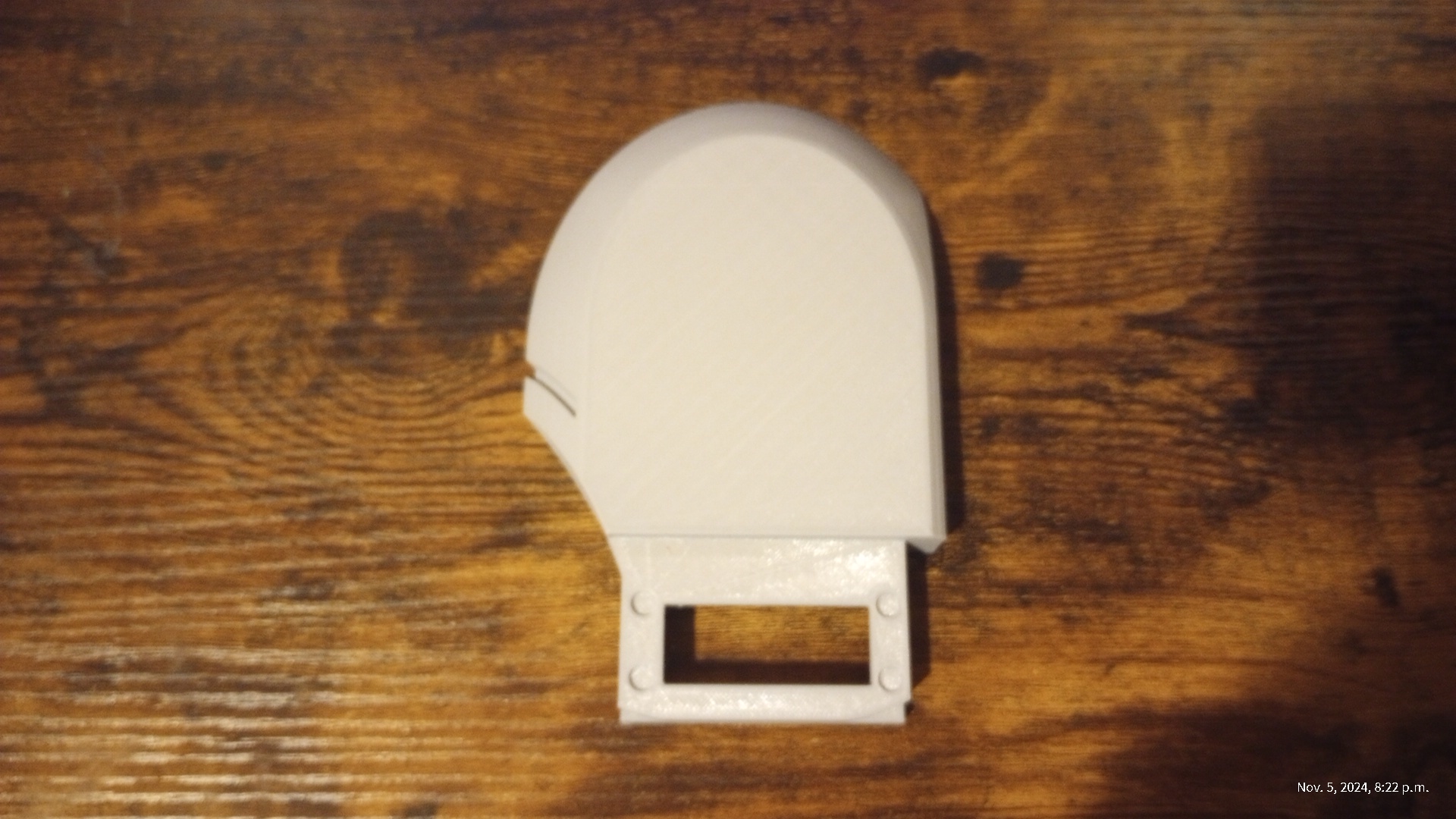

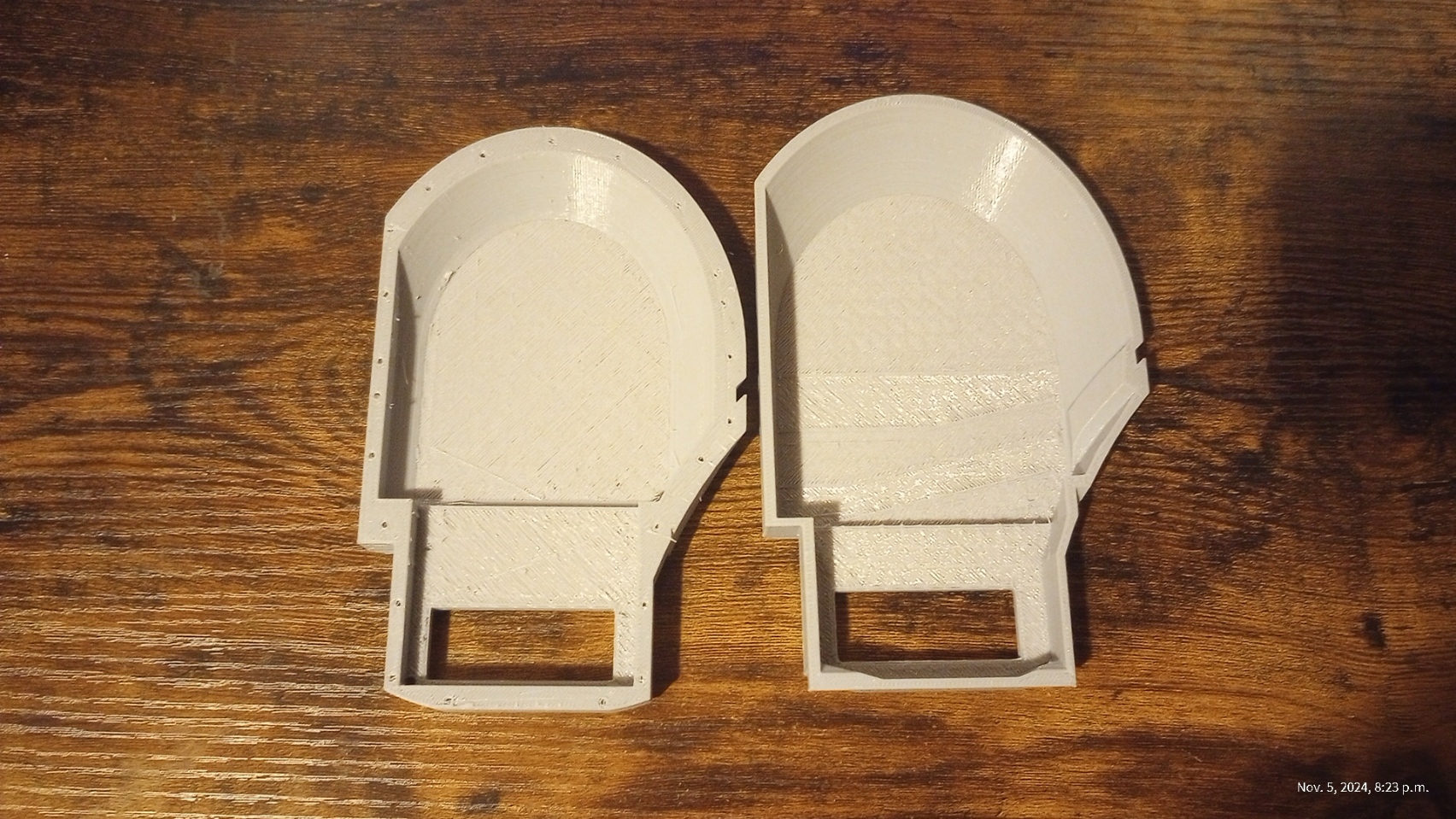

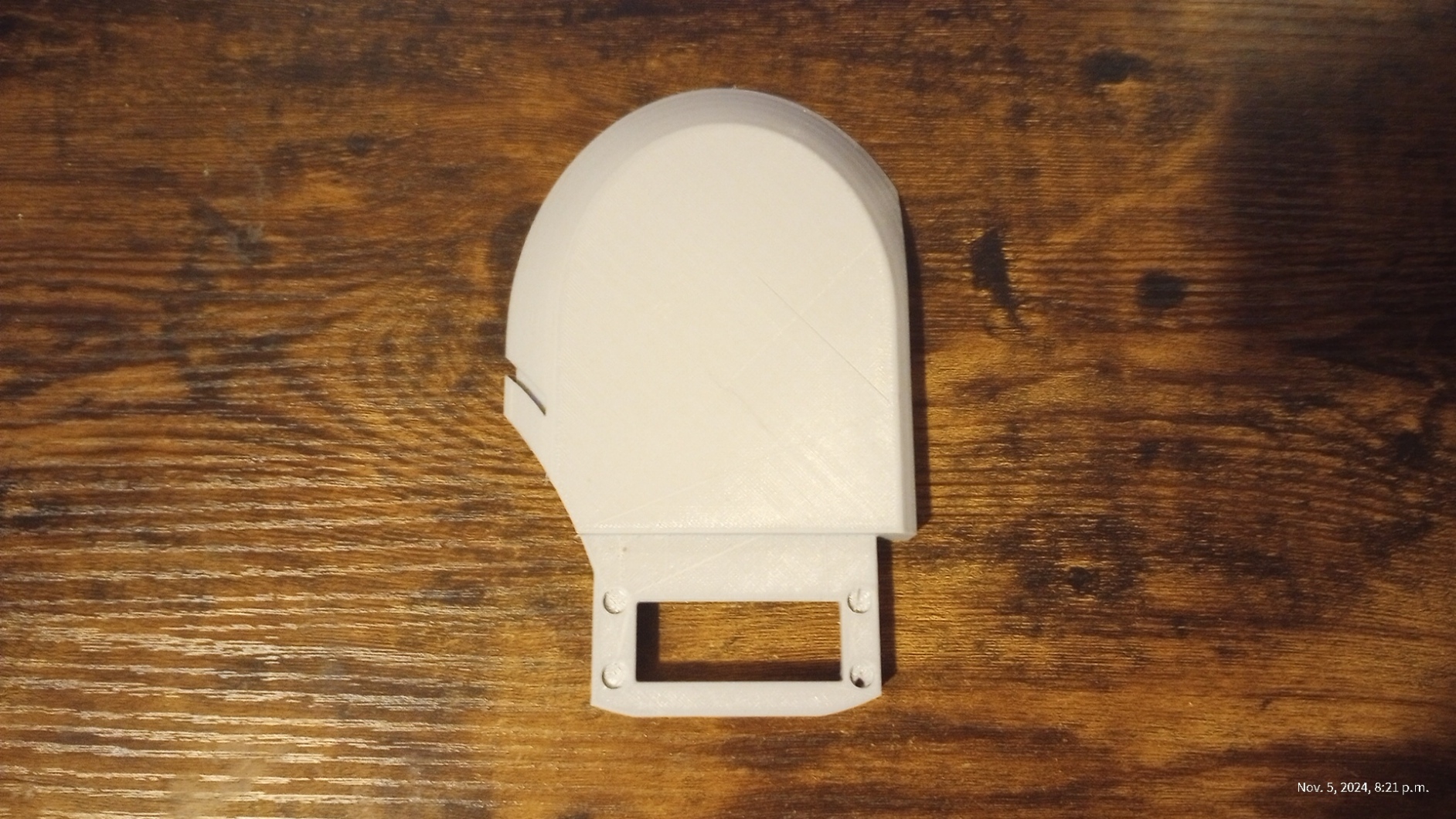

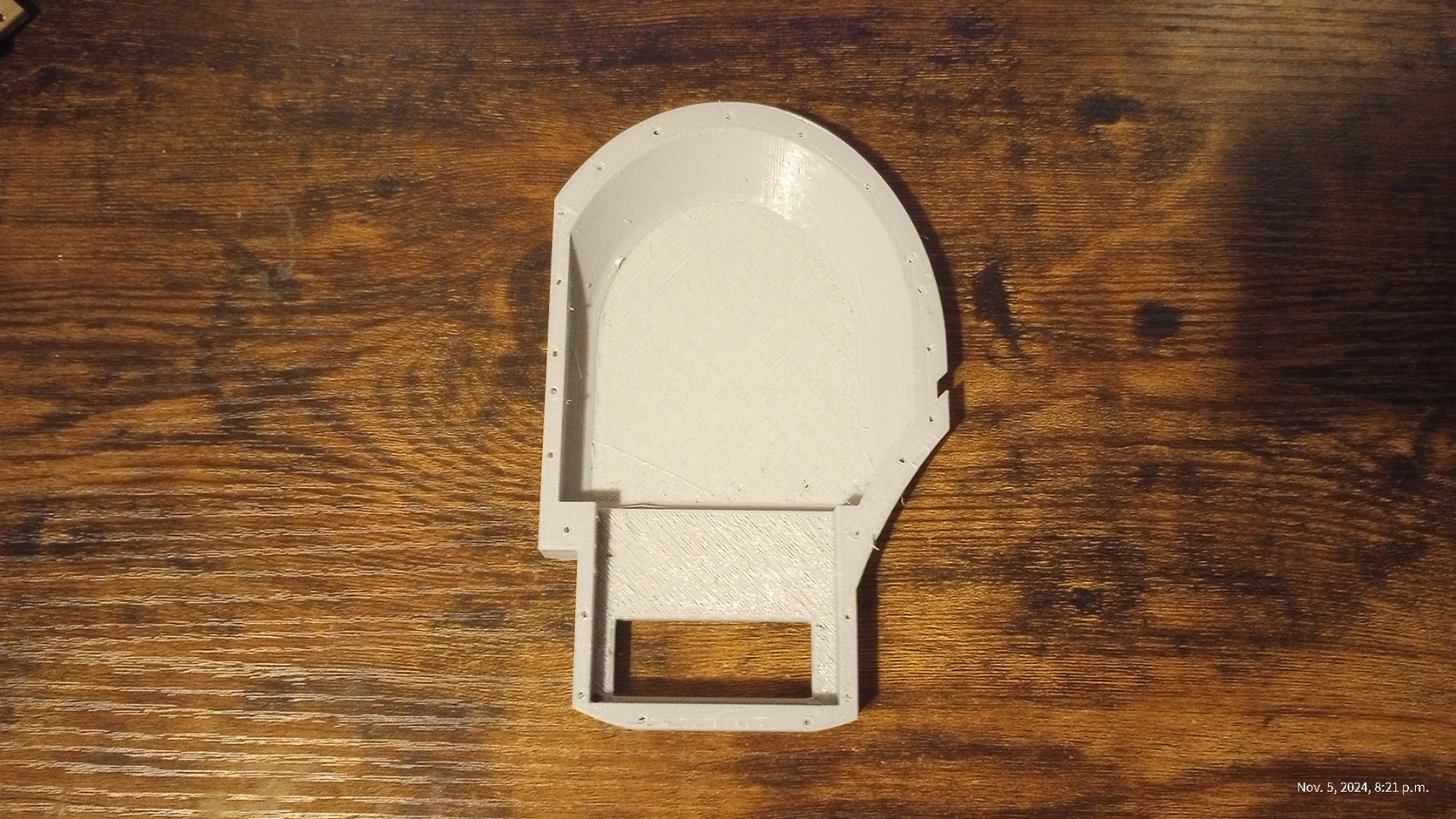

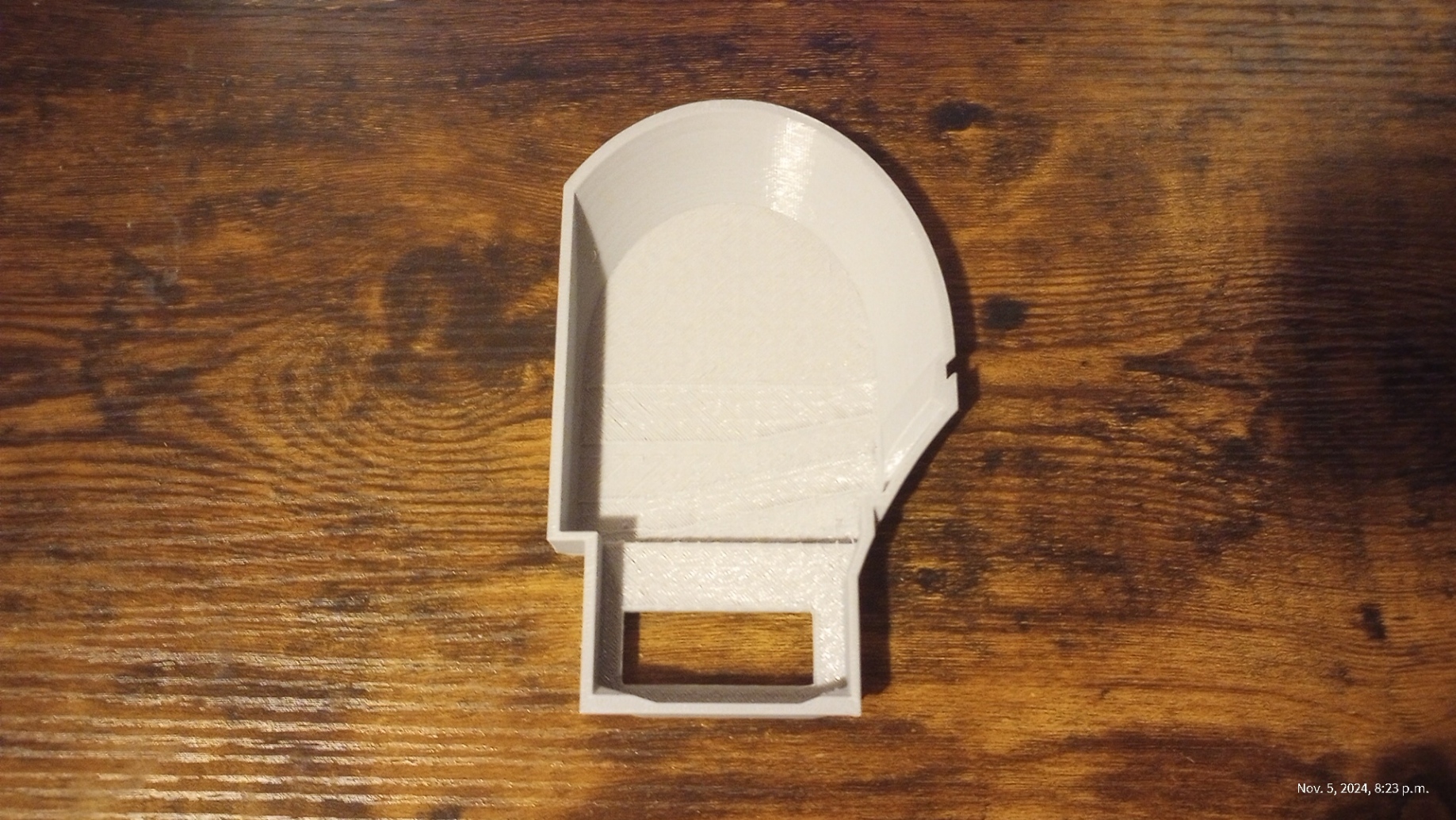

Did a test print yesterday which took around 8 hours to complete.
but after seeing how thick it was I decided to remodel the interior and try it again, the 2nd print was around 10 hours.

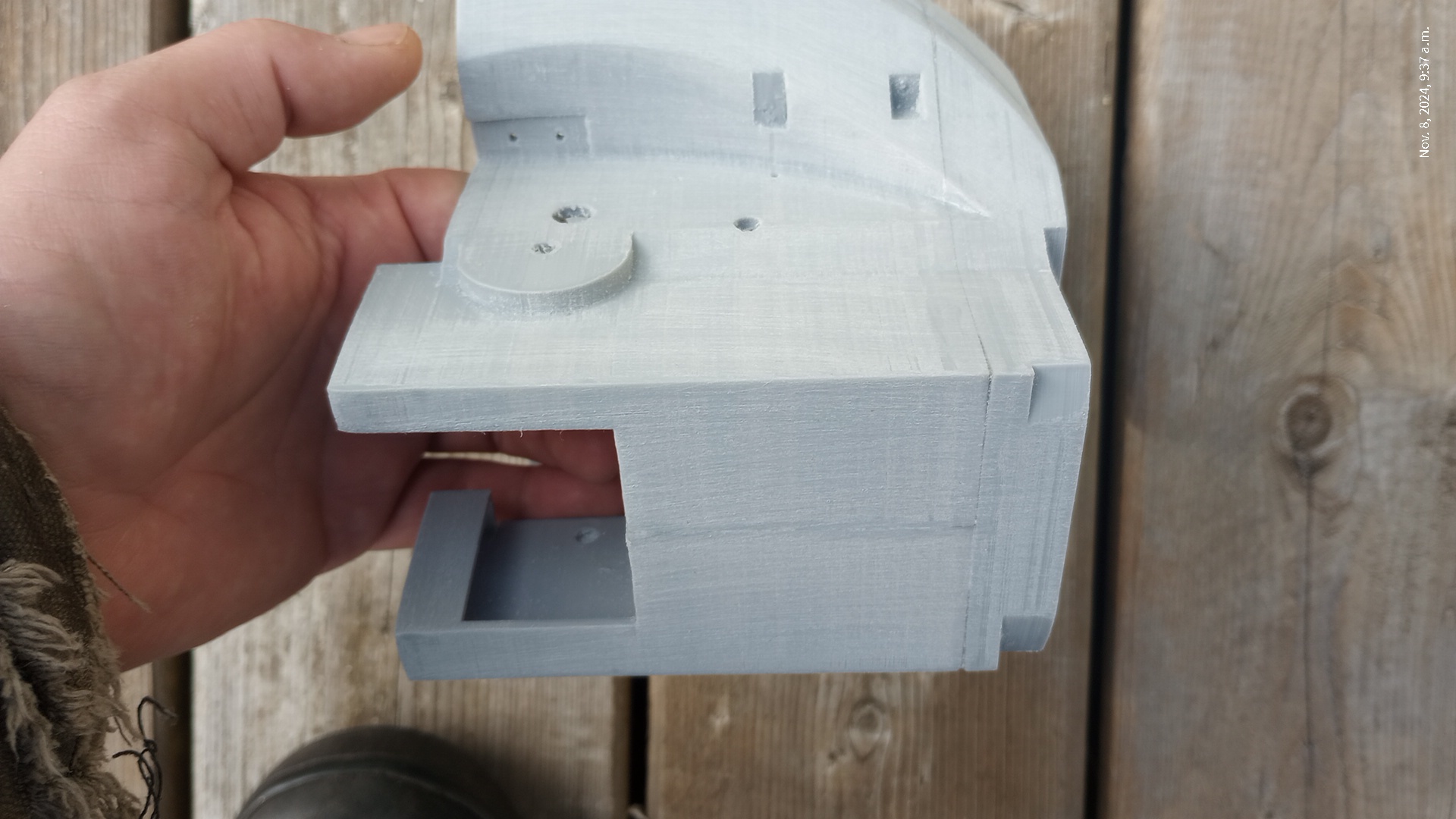

Sorry for the blurry picture, hot off the printer...
As you can see the walls are a lot thinner now.

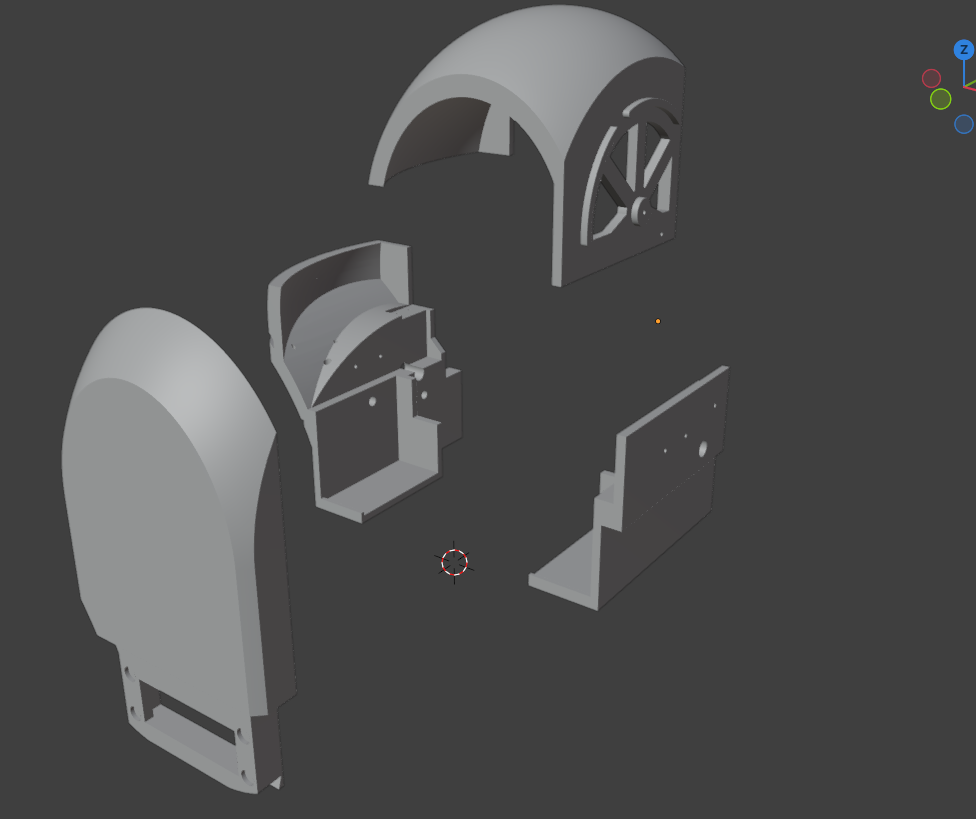

After redoing the interior walls I also had to redo the back head parts that attach to it, pretty sure I have to redo the left eye dome as well.

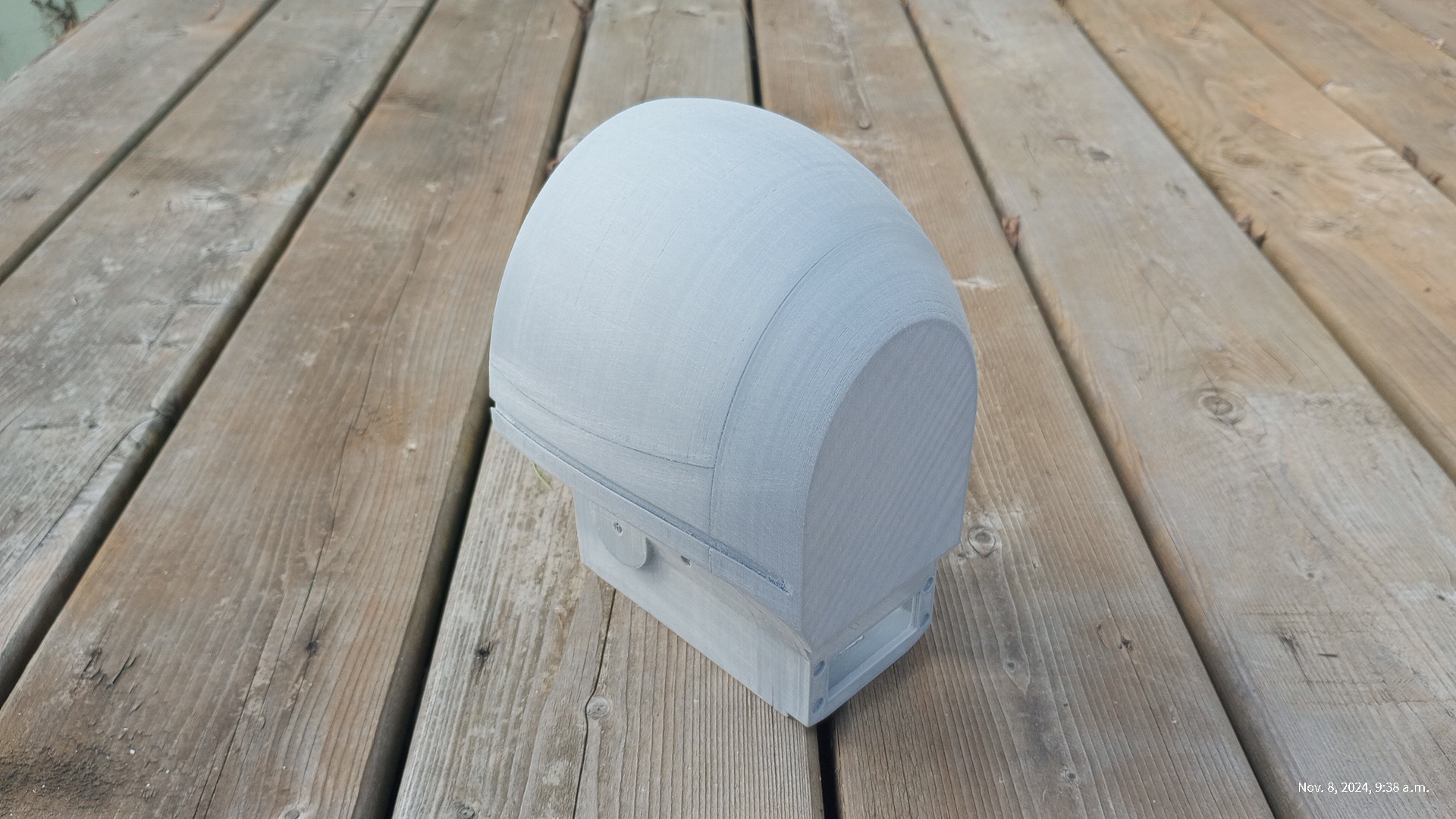

I should have the main head printed and glued together by Sunday.
but after seeing how thick it was I decided to remodel the interior and try it again, the 2nd print was around 10 hours.
Sorry for the blurry picture, hot off the printer...
As you can see the walls are a lot thinner now.
After redoing the interior walls I also had to redo the back head parts that attach to it, pretty sure I have to redo the left eye dome as well.
I should have the main head printed and glued together by Sunday.
8T88
New Member

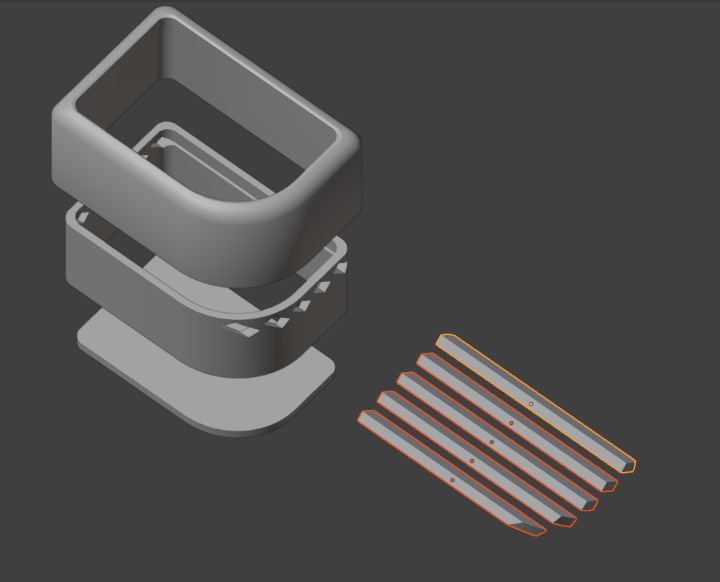

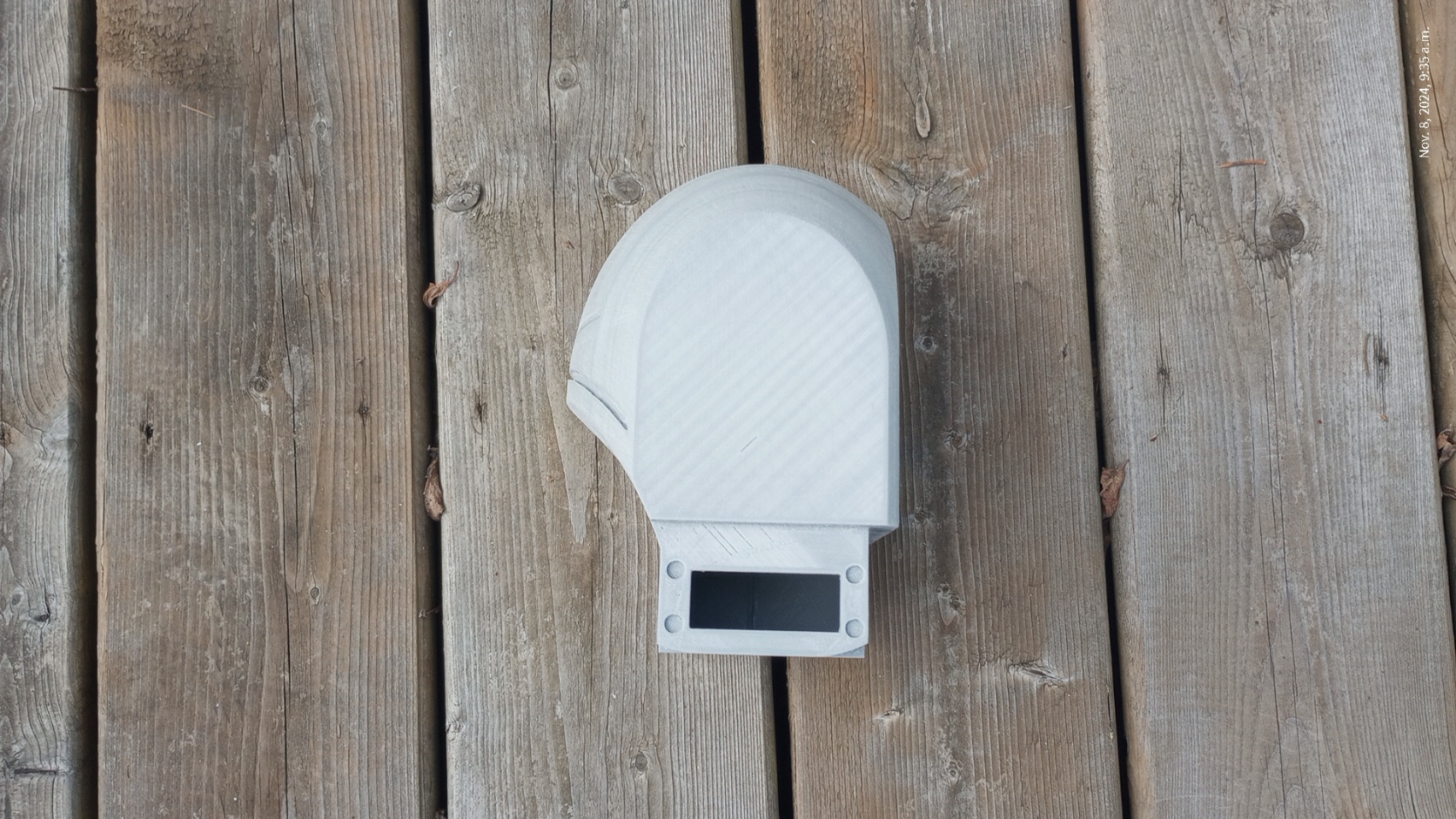

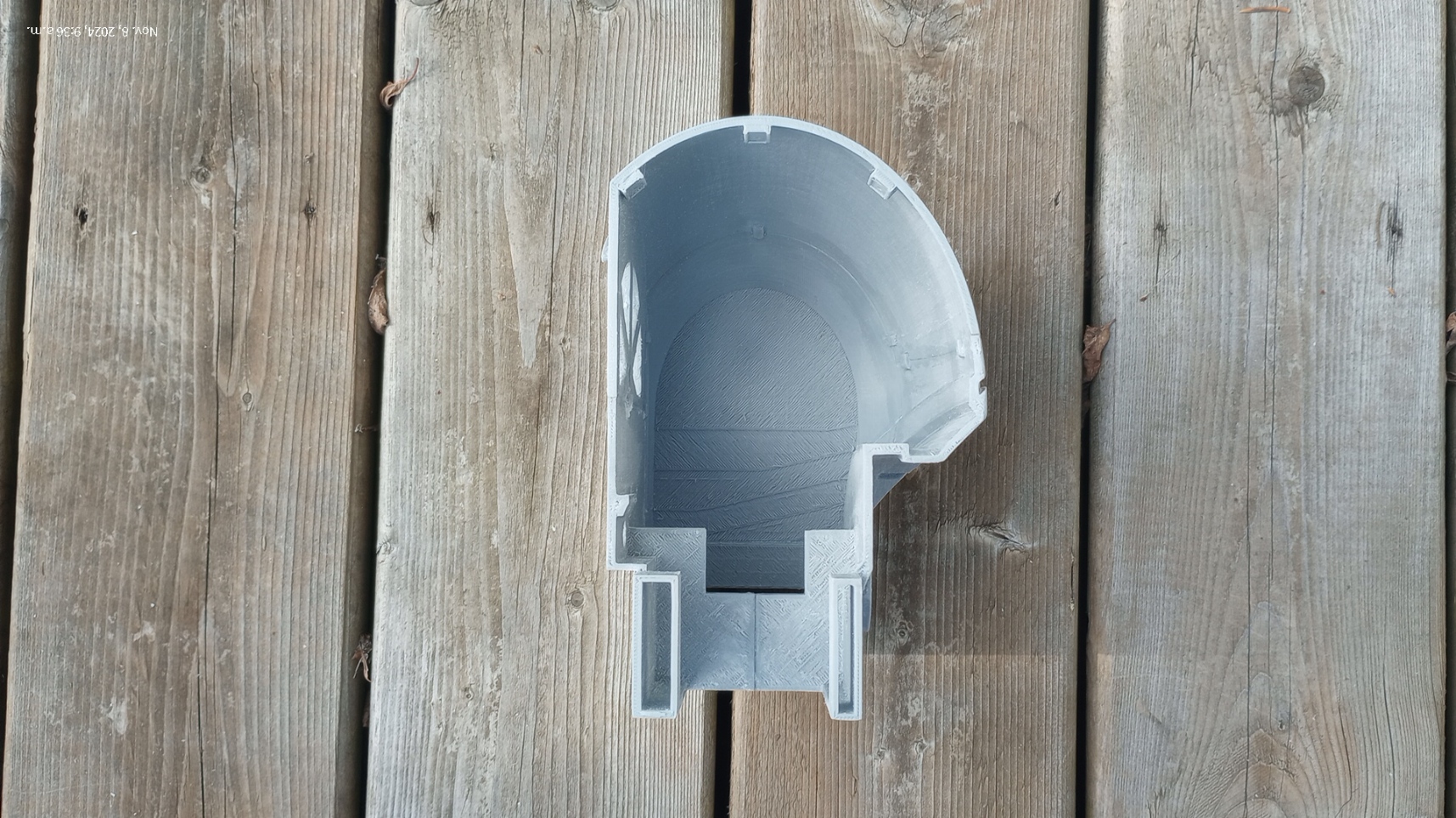

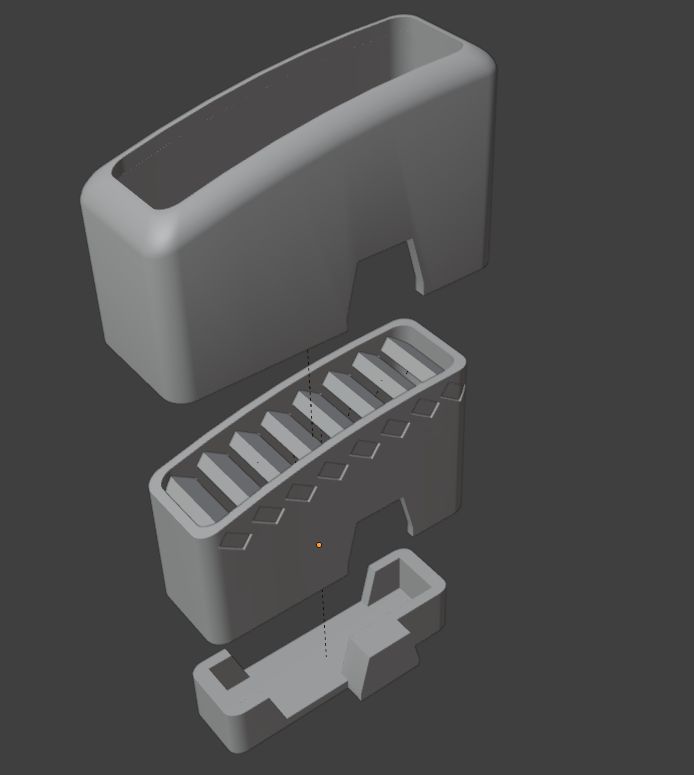

Had to remake the chin sensors so they would be easier to print, clean, and assemble.

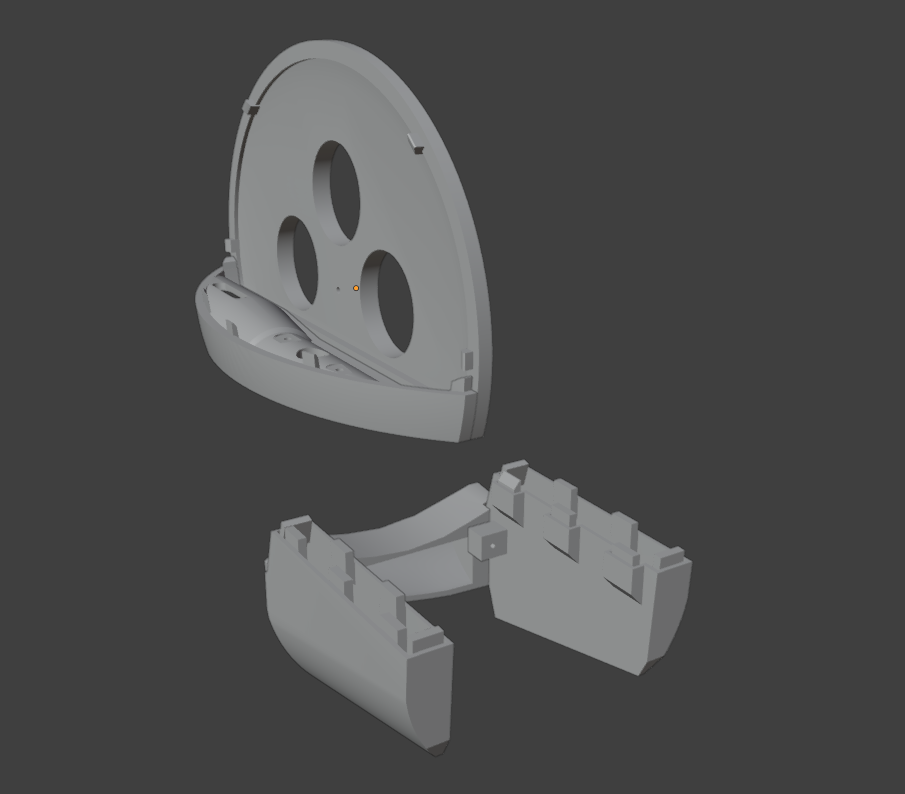

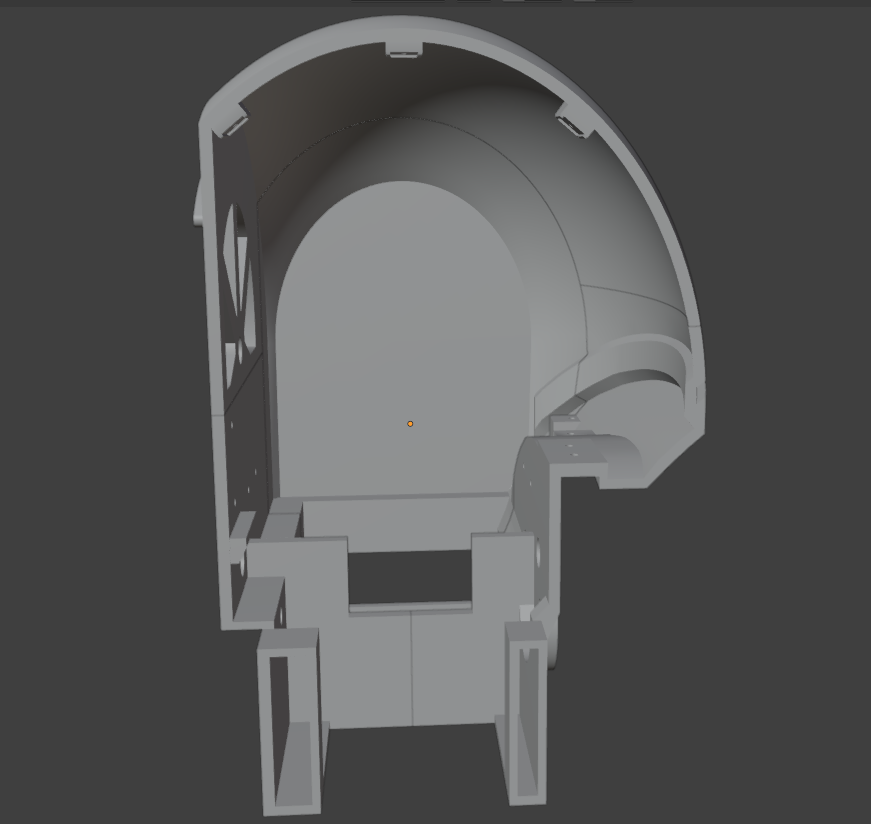

I am going to be redoing the eye dome on the left to be more like how I redid the head interior with indexing tabs, right now it uses pins and I'm just not happy with it plus redoing it will require less plastic so it will be worth doing in the long run.
Going to be redoing the headband and support for it giving the ability to add magnets.
I also have to redo the bowl on the back and the ring I use to attach it with, looking at pictures I noticed a detail I missed when I was first figuring it all out but it won't take long to fix since the proportions are all there.

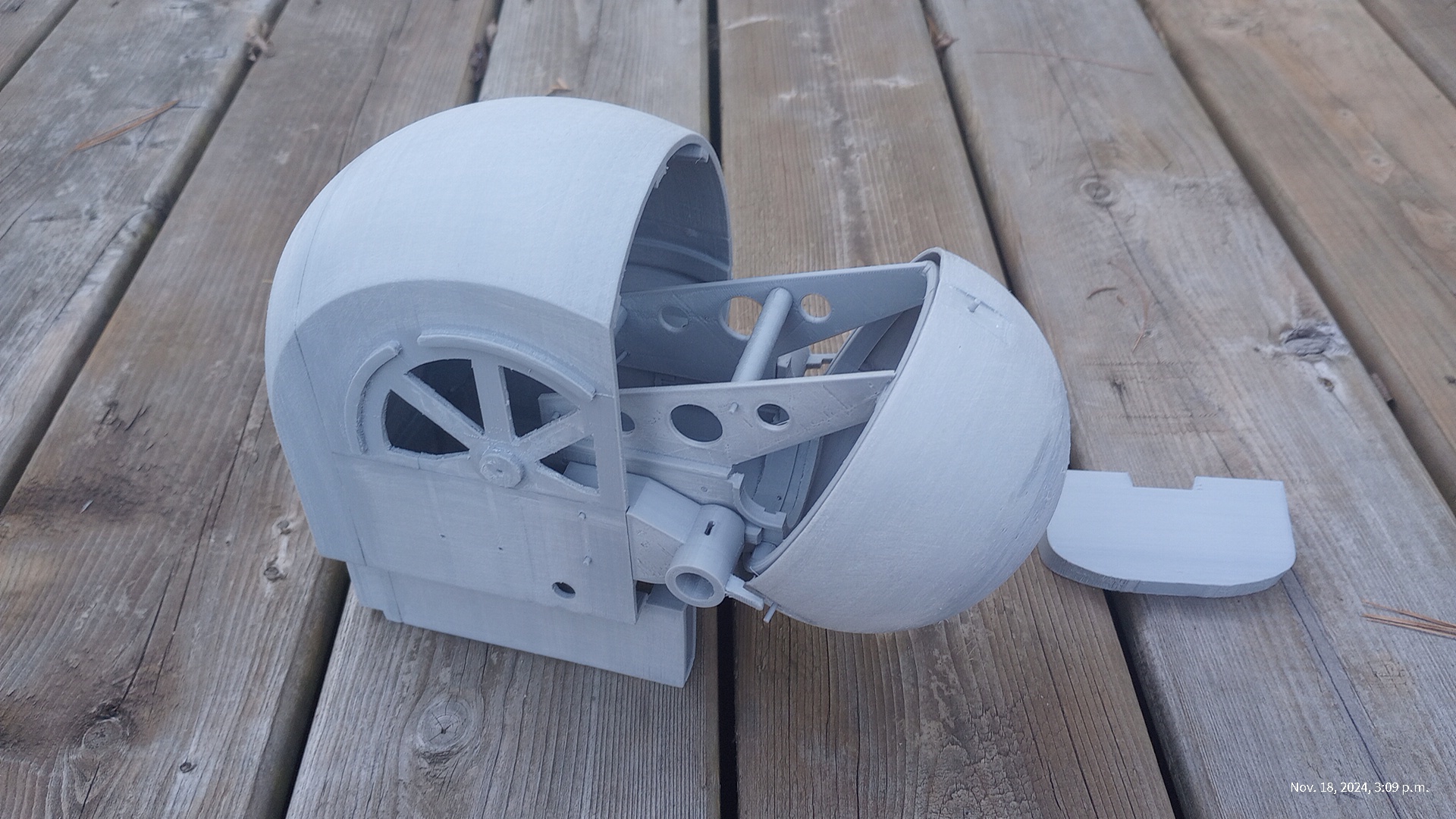

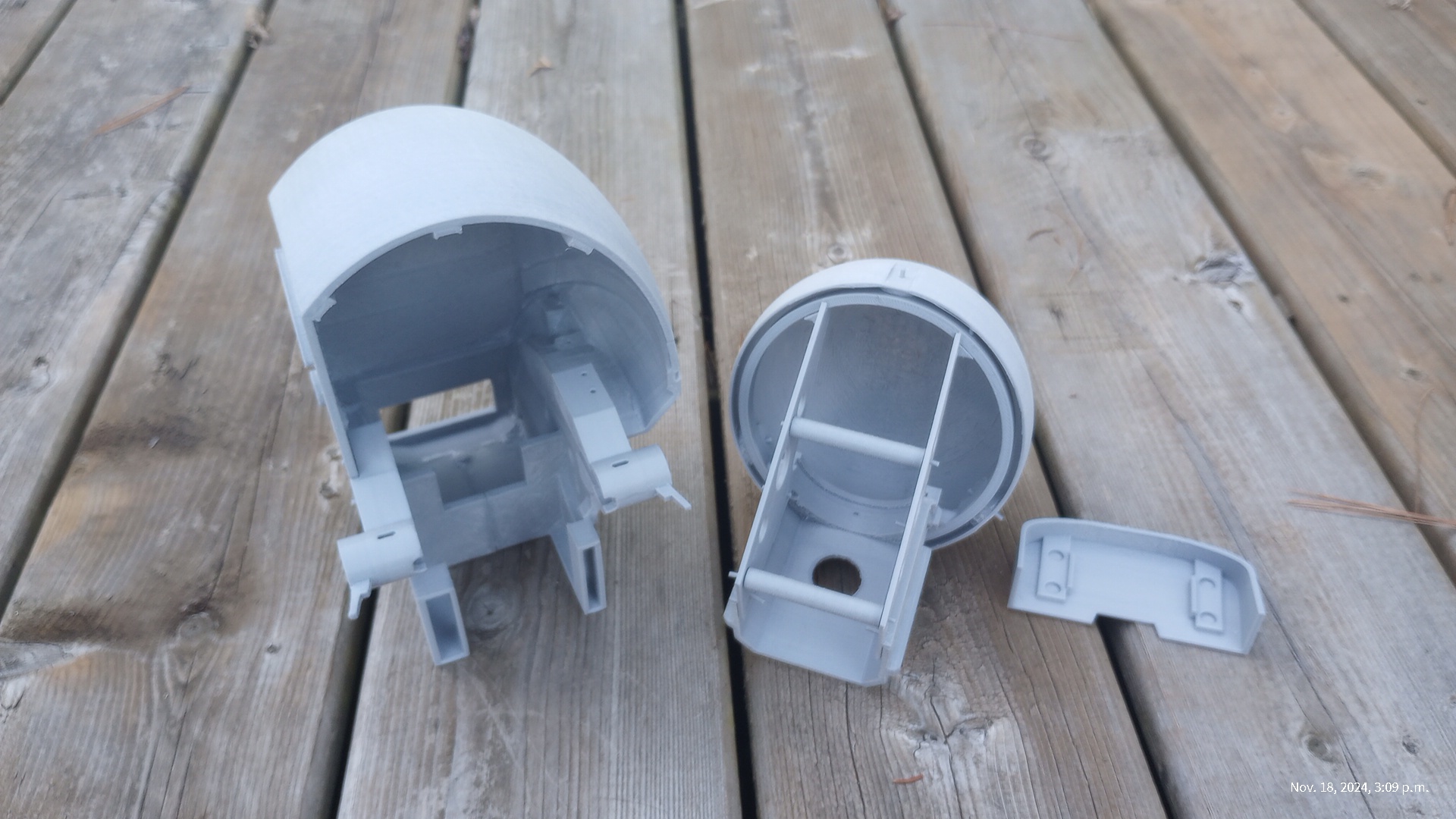

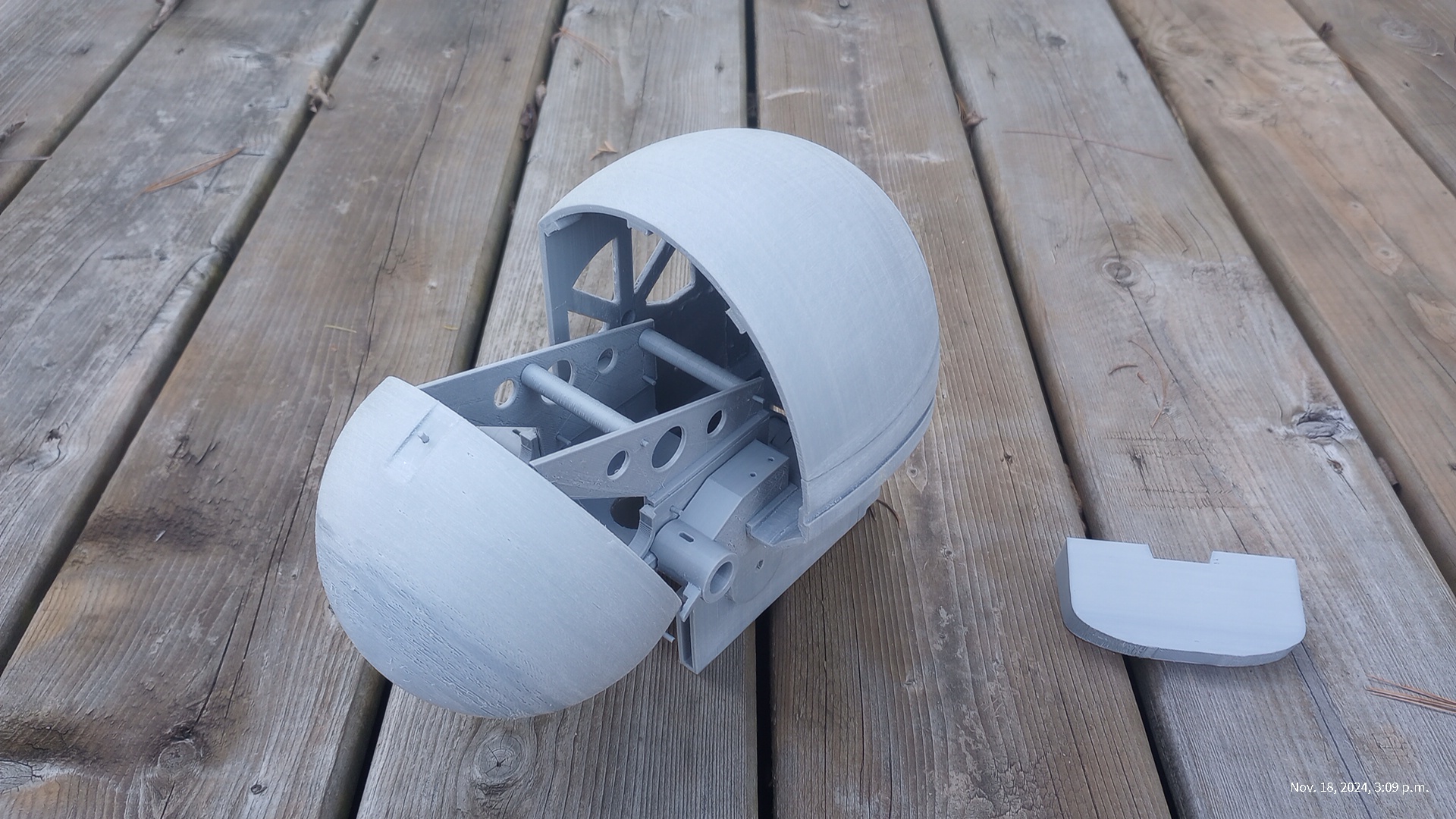

Printed parts pictures tomorrow to show what I have printed so far.
I am going to be redoing the eye dome on the left to be more like how I redid the head interior with indexing tabs, right now it uses pins and I'm just not happy with it plus redoing it will require less plastic so it will be worth doing in the long run.
Going to be redoing the headband and support for it giving the ability to add magnets.
I also have to redo the bowl on the back and the ring I use to attach it with, looking at pictures I noticed a detail I missed when I was first figuring it all out but it won't take long to fix since the proportions are all there.
Printed parts pictures tomorrow to show what I have printed so far.
jarodpenn
Well-Known Member
Any progress...?
jarodpenn
Well-Known Member
You are doing supurb work ‘88! So what are are your plans? Would it be possible to attain these files..?
8T88
New Member
Thanks!
Yes, I will be releasing the files I just need to figure out how I want to do it.
8T88
New Member

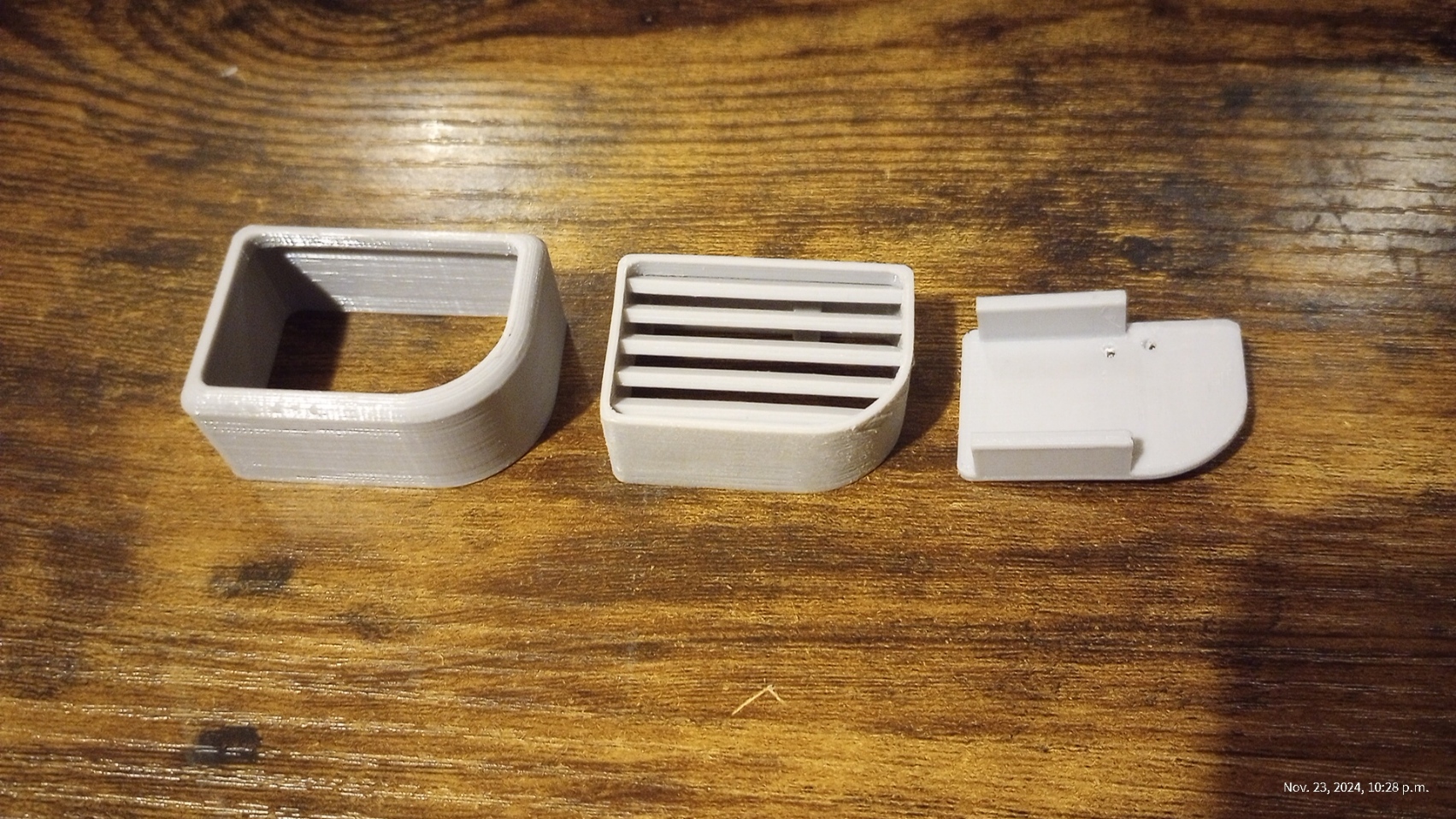

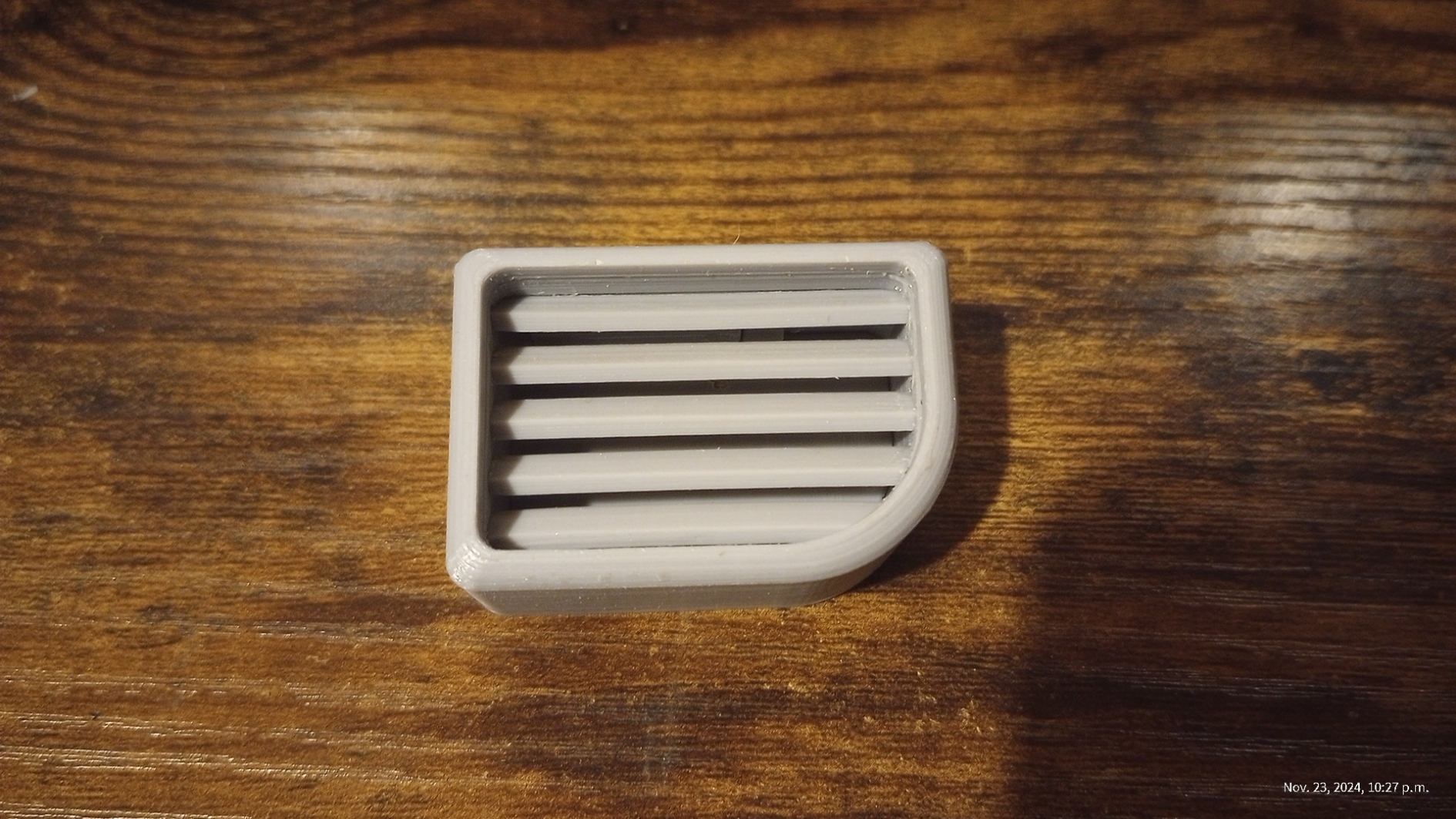

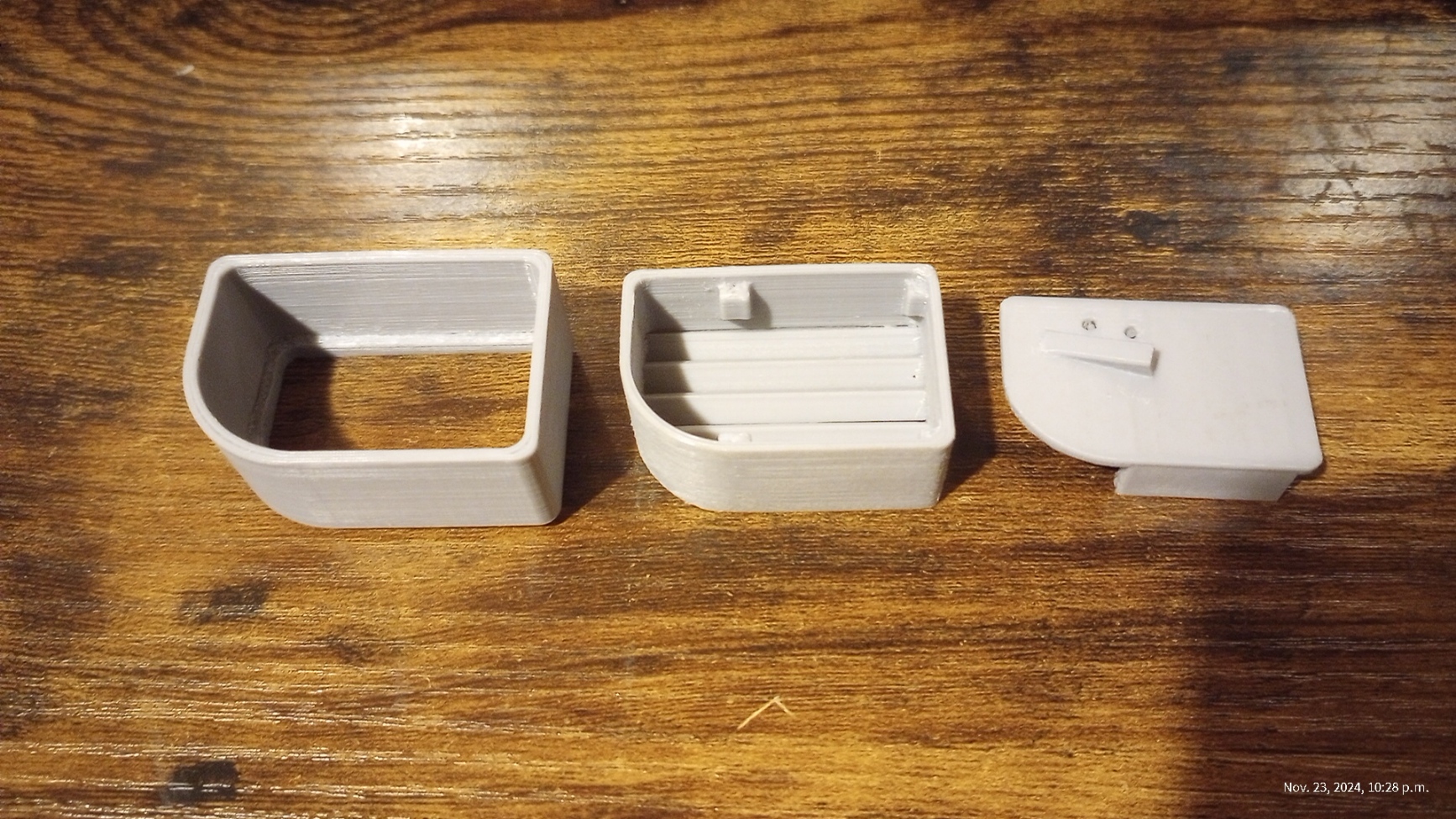

Got the left chin sensor printed.
Each fin is its own part for a total of 8 for the whole sensor, the right one is 11 parts.
Not sure if I want to glue the whole thing together or just add a screw, probably just add a screw on the underside through the two shells and backplate.
I also printed his right eyes
I rewatched the first video 88 is in only to realize after I printed them that I modelled his jaws wrong, so have to fix them but it will save on plastic in the long run for whoever else.
Also been rethinking the dome for the projector, I'd like so it can be removed and opened up for swapping parts in and out or for general maintenance.
Next up print the right sensor.
Each fin is its own part for a total of 8 for the whole sensor, the right one is 11 parts.
Not sure if I want to glue the whole thing together or just add a screw, probably just add a screw on the underside through the two shells and backplate.
I also printed his right eyes
I rewatched the first video 88 is in only to realize after I printed them that I modelled his jaws wrong, so have to fix them but it will save on plastic in the long run for whoever else.
Also been rethinking the dome for the projector, I'd like so it can be removed and opened up for swapping parts in and out or for general maintenance.
Next up print the right sensor.
8T88
New Member
Thank you!
I have plans for more Dark Forces 2 models after I finish 88's head, from there maybe do a few Dark Forces 1 models and then move onto Outcast and Academy.
There are also a few I'd like to have a crack at from Shadows Of The Empire.
jarodpenn
Well-Known Member
NICE!
You takin requests? I’m on the lookout for the wrench from Return Home to Sulon. That’s my favorite level of the game. I’ve done the black and yellow pyramid you see around the house. Posted it on Printables. I’d love to get some of the other trinkets you see scattered around Morgan’s house.
8T88
New Member
Possibly, do you have any screenshots?
jarodpenn
Well-Known Member
PM sent
8T88
New Member

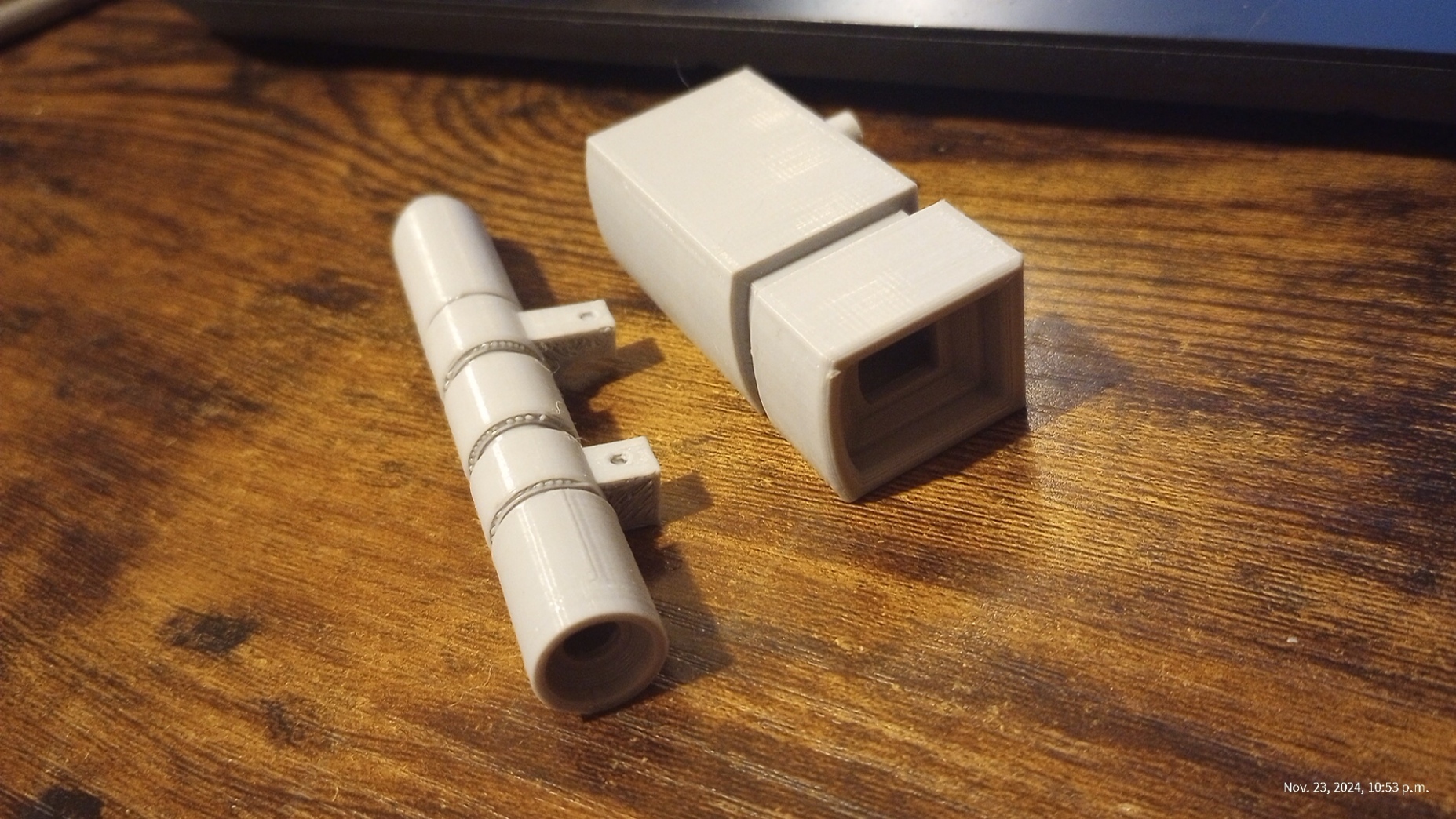

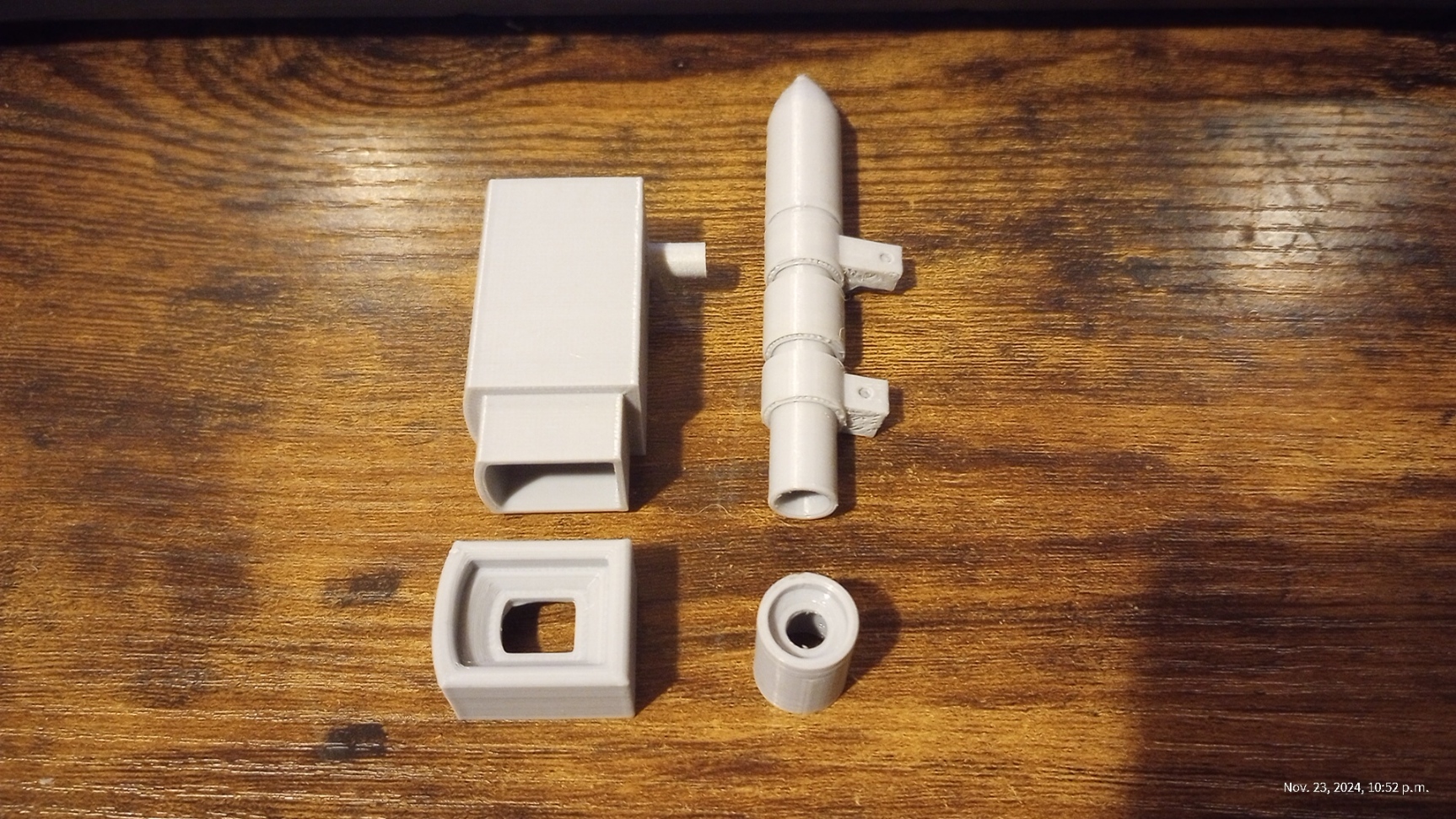

There a more screen accurate jaw, I still have to bend the left one towards the front, add bits here and there but overall it's not far off from final.
I'm not sure but I get the lore impression that 88's head design was intended for a different droid completely, his jaws and chin sensors were an after thought because they don't fit the curves and contours the rest of the head has or the design for that matter. I mean going by the ingame shots of him his jaws are bolted on so what does that say?
I'm not sure but I get the lore impression that 88's head design was intended for a different droid completely, his jaws and chin sensors were an after thought because they don't fit the curves and contours the rest of the head has or the design for that matter. I mean going by the ingame shots of him his jaws are bolted on so what does that say?
