bpatneaude
Active Member
No problem Chris I'll throw a set in my car when I go to the M's or RCCC for you.
Sent from my iPad using Tapatalk
Sent from my iPad using Tapatalk
DrscifiProps
Well-Known Member
Hans feet aren't at the bottom of a HIC
DrscifiProps
Well-Known Member
Well they are at the bottom just above the rim. I think the R5 is in the same proportion. I thought you meant touching the outer edge of the box
greedo
Well-Known Member
You guys lost me about four posts ago :confused
first off... You're not being a jerk at all. I always welcome any and all comments/critiques, etc.
secondly... This prop only existed in my head prior to this, so however it ends up is correct.
But seriously, I've tried to make this as close to a real HIC as possible, but I'm not tracking what you mean about the feet.
Let me me know if I'm missing something obvious
first off... You're not being a jerk at all. I always welcome any and all comments/critiques, etc.
secondly... This prop only existed in my head prior to this, so however it ends up is correct.
But seriously, I've tried to make this as close to a real HIC as possible, but I'm not tracking what you mean about the feet.
Let me me know if I'm missing something obvious
greedo
Well-Known Member
Thanks Paul!
... This is r2 builder Paul yeah? We did the droid races together at celebration if I'm remembering right.
I'll be making the trip down to R2LA this year, so it will be good to see you all again
Yes it is me! I look forward to seeing you there!
greedo
Well-Known Member
I've started the Carbonite effect. I did this with my HIC, and it worked great. After you have the bondo blending done, you just pour large puddles of glue in random areas. I then took my air hose and spread it around to thin the puddled areas out a bit.
You let the puddles dry for a couple of days and then do it again. After about the third to fourth time, the puddles start connecting and overlapping each other and it gives that layered Carbonite look
So far I'm at two layers. I'm hoping to be painting by Friday, but we'll see

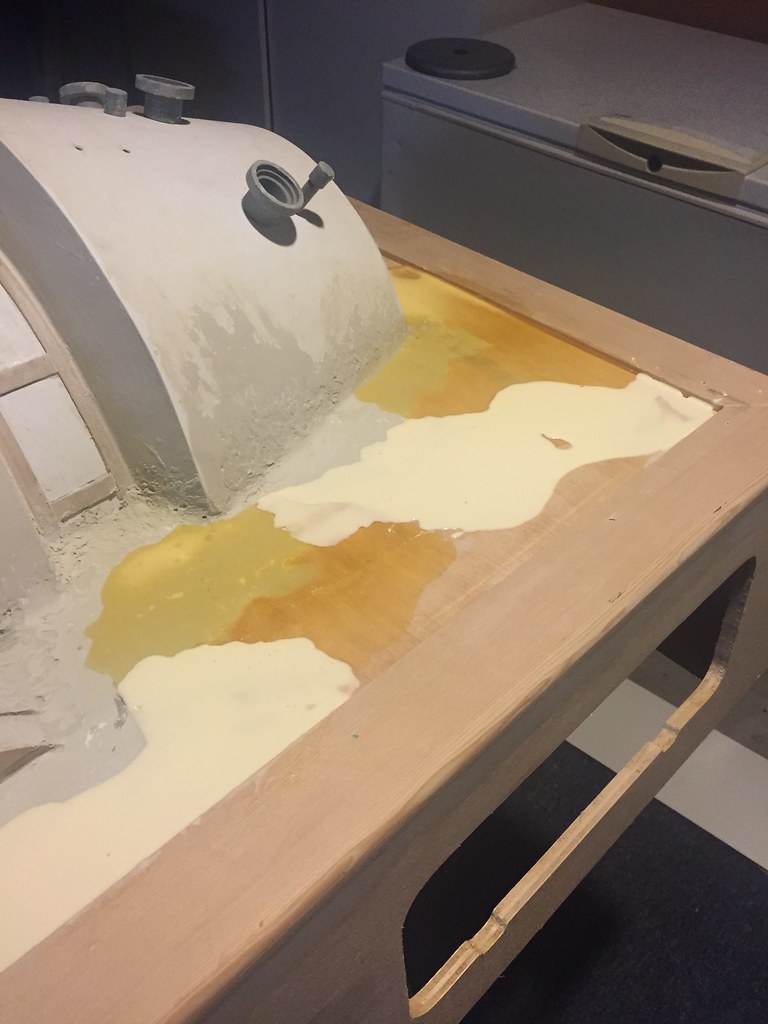

First layer puddled
Then spread out with air hose
Same area two days later. Starting the second layer here
RIC by chris stephens, on Flickr

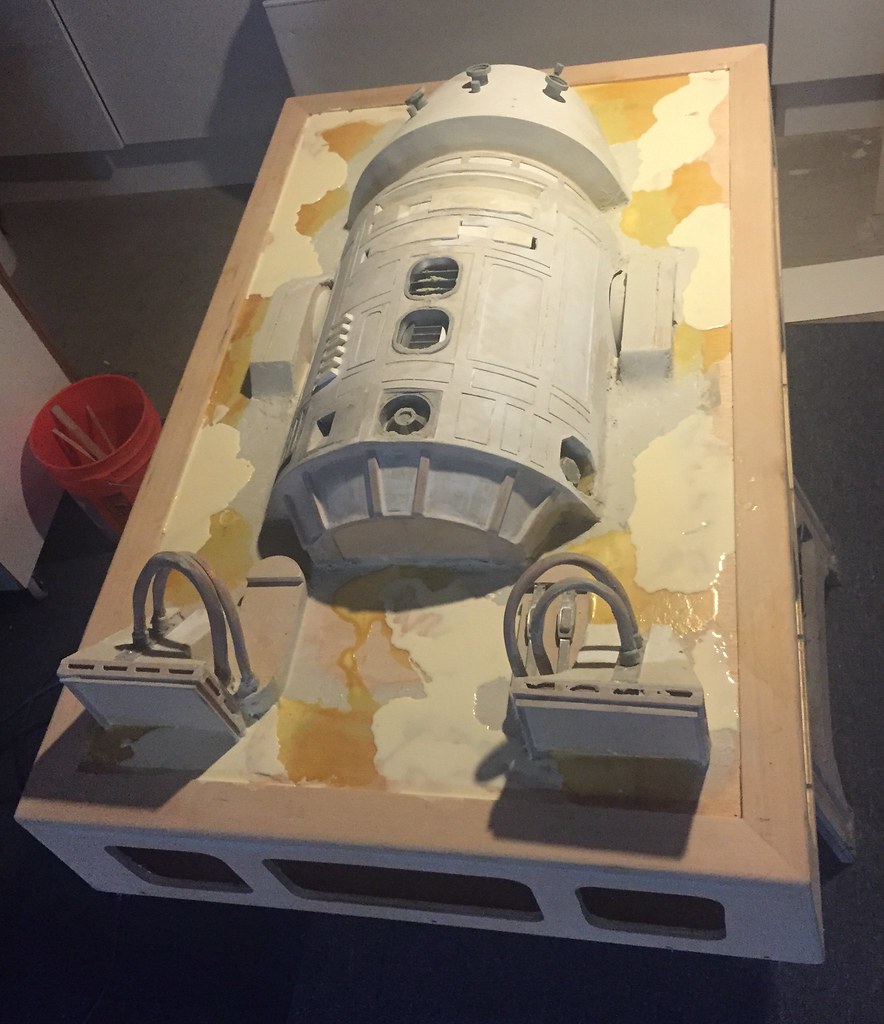

And an overall after second area is covered. It looks weird now, but after you paint it, it really comes to life
RIC by chris stephens, on Flickr
Here's a reference shot of what I'm trying to have come across on mine.

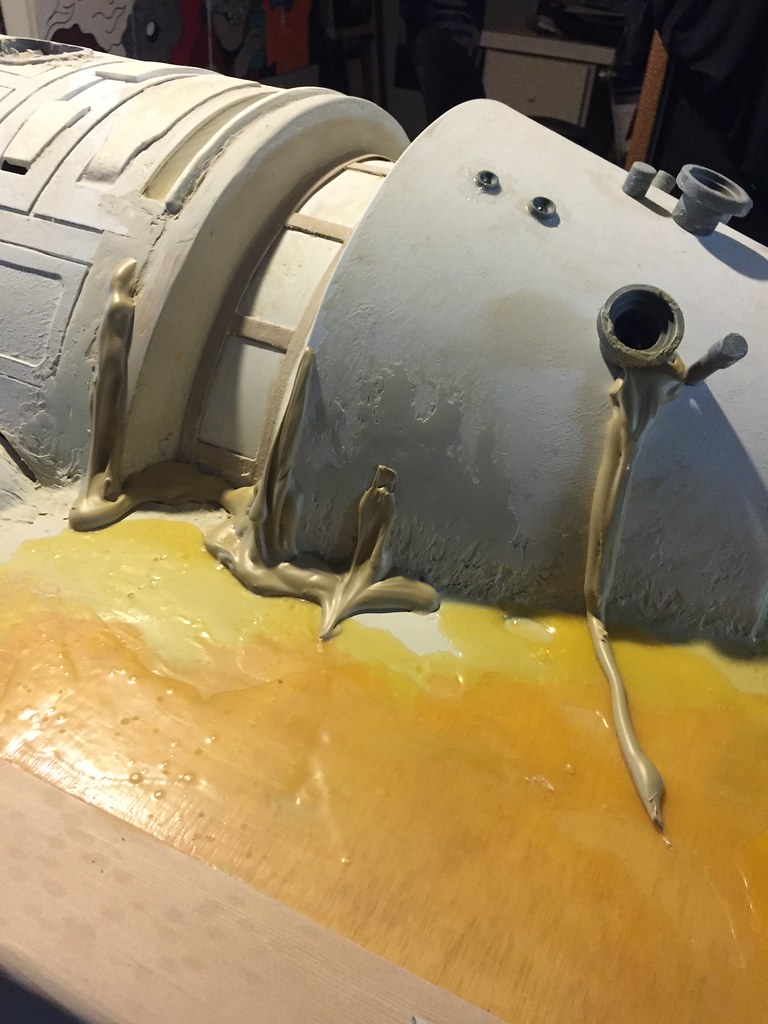

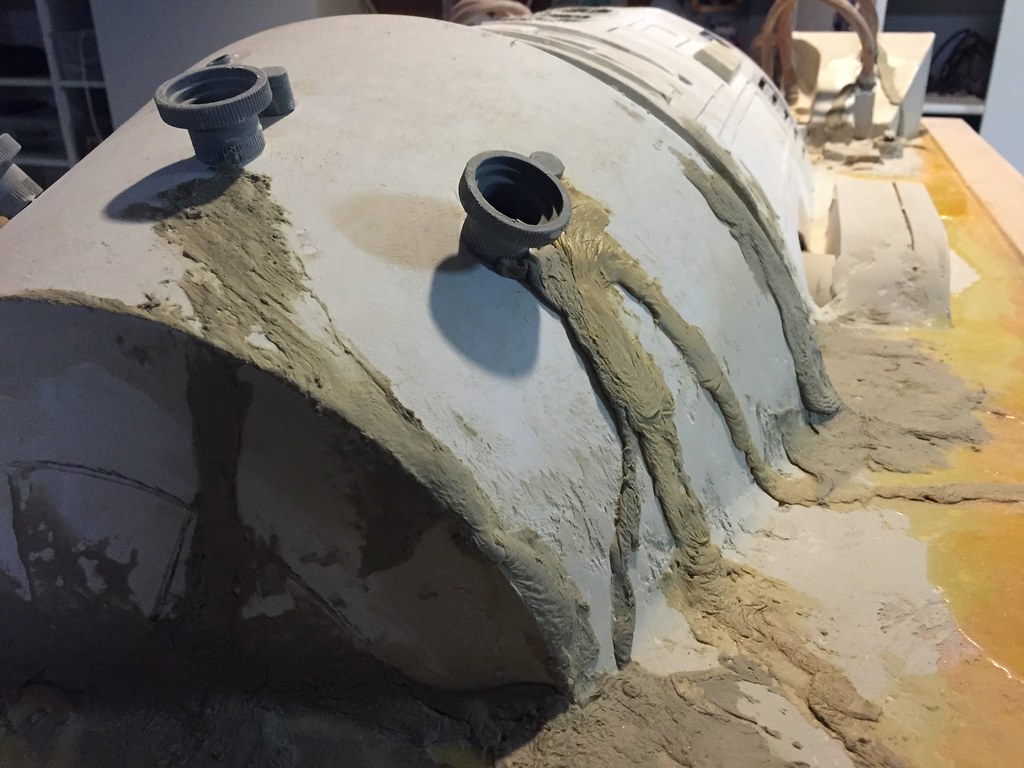

I'm using liquid nails and a big tile grout sponge. You're going to have to invision the final look after paint and weathering. Right now, there's a lot going on with different layers , each having a different color. It's going to really take shape after paint, so trust me...
RIC by chris stephens, on Flickr
RIC by chris stephens, on Flickr
RIC by chris stephens, on Flickr

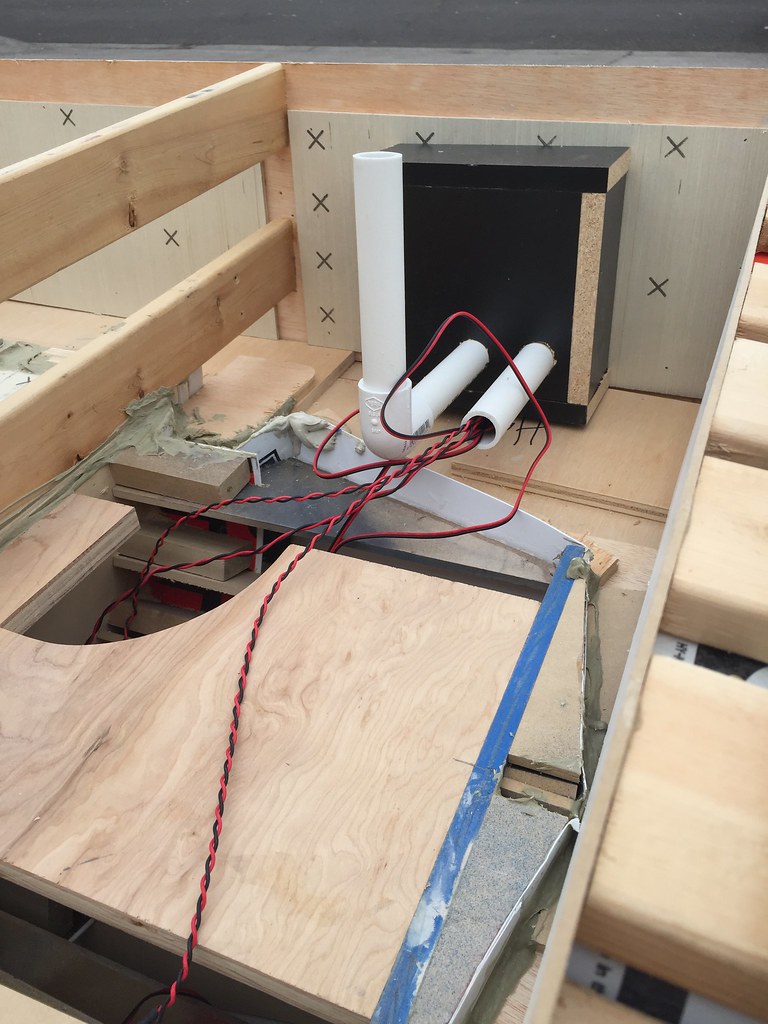

And earlier today, I put may panel backs on. I built a box in the hero panel so that I can have a place to house whatever electronics I go with. I also added PVC so that I can route the wiring from the eyes to the box. And also a second one for wiring out the back ( in case I go with a wall plug in set up).

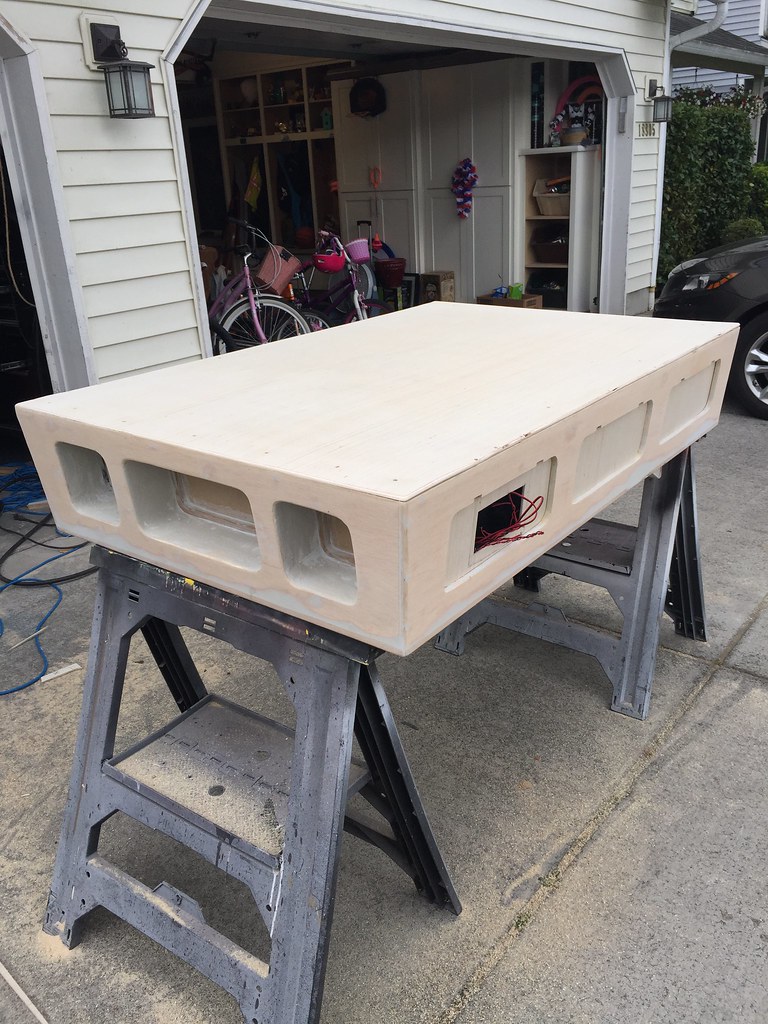

And since this will be on display in our Jawa area, I made a finished back for it. This way we can prop it up wherever we want and don't have to worry about a hollow back to hide from view.
RIC by chris stephens, on Flickr
RIC by chris stephens, on Flickr
RIC by chris stephens, on Flickr
You let the puddles dry for a couple of days and then do it again. After about the third to fourth time, the puddles start connecting and overlapping each other and it gives that layered Carbonite look
So far I'm at two layers. I'm hoping to be painting by Friday, but we'll see
First layer puddled
Then spread out with air hose
Same area two days later. Starting the second layer here
And an overall after second area is covered. It looks weird now, but after you paint it, it really comes to life
Here's a reference shot of what I'm trying to have come across on mine.
I'm using liquid nails and a big tile grout sponge. You're going to have to invision the final look after paint and weathering. Right now, there's a lot going on with different layers , each having a different color. It's going to really take shape after paint, so trust me...
And earlier today, I put may panel backs on. I built a box in the hero panel so that I can have a place to house whatever electronics I go with. I also added PVC so that I can route the wiring from the eyes to the box. And also a second one for wiring out the back ( in case I go with a wall plug in set up).
And since this will be on display in our Jawa area, I made a finished back for it. This way we can prop it up wherever we want and don't have to worry about a hollow back to hide from view.
Last edited:
Fantastic job so far! What an awesome idea!
greedo
Well-Known Member

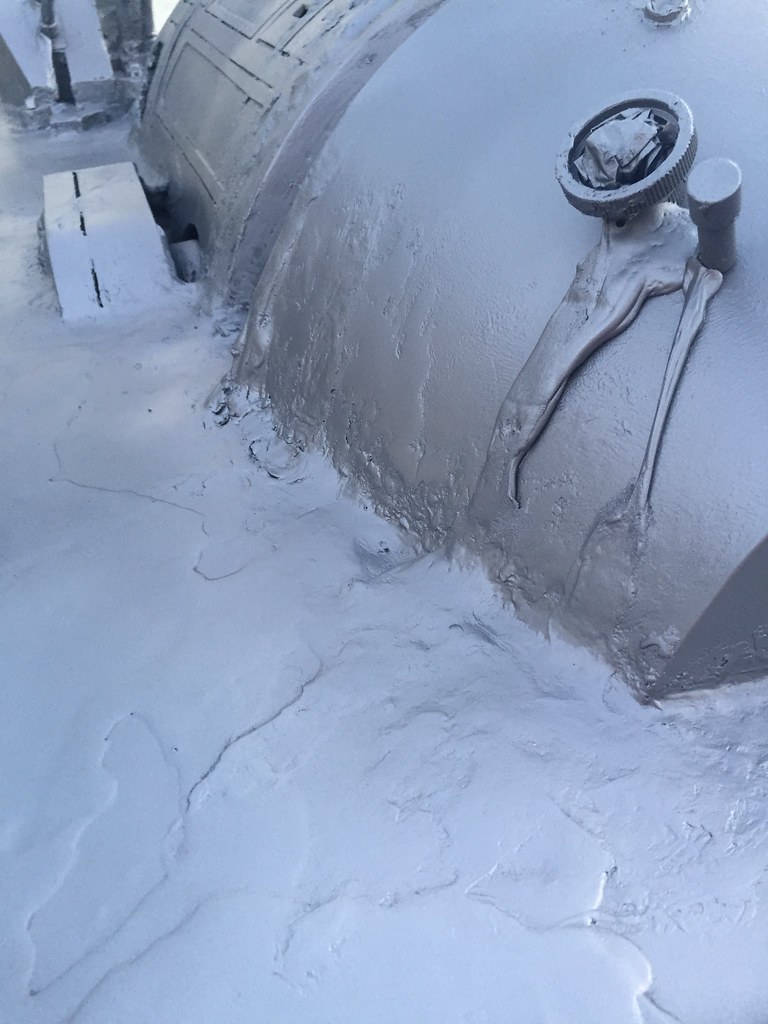

Small update with the very first coat of primer applied. It still has a LONG way to go, but at least now everything is the same color and you can see things better. I will still be filling in areas that I think need t be for full or spotty
RIC by chris stephens, on Flickr
- - - Updated - - -
i didn't want to loos ALL of the detail, but I've filled them in like this ..
- - - Updated - - -
i didn't want to loos ALL of the detail, but I've filled them in like this ..
Last edited:
greedo
Well-Known Member
Updates will start to slow down a bit as I work faster than paint dries. I'm out of things to do besides paint.
Here's where he's at as of this morning. Primer is done. Will start an antique nickel coat next. I still haven't decided on the color of the box yet. I've seen versions where the box is darker than the framed carbonite area and then I've seen versions ( including the visual dictionary) that have it all the same slate slab color throughout the whole piece.
I know.... Must be rough when these are the things keeping me up at night.
Here's where he's at as of this morning. Primer is done. Will start an antique nickel coat next. I still haven't decided on the color of the box yet. I've seen versions where the box is darker than the framed carbonite area and then I've seen versions ( including the visual dictionary) that have it all the same slate slab color throughout the whole piece.
I know.... Must be rough when these are the things keeping me up at night.
greedo
Well-Known Member
I loved getting it covered in primer. It's so much easier to see it as a whole now.

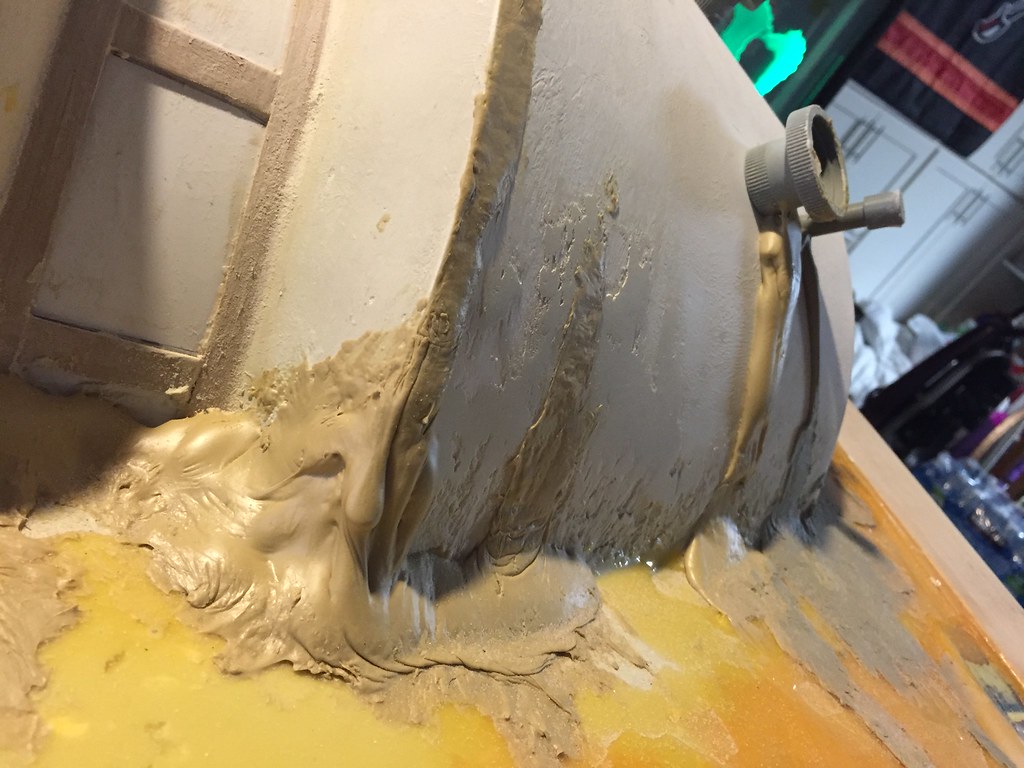

However, primer also shows you all of the flaws. I really am looking for a soft blend from the droid to the Carbonite. There are a lot of areas where the liquid nails shriveled up when it dried too... Not digging the look.
So, to take some of the sharpness out of these areas, I filled them in with drywall mud. I'll let it dry overnight and then sand it tomorrow. It looks drastic, but after its sanded , the differences will be subtle

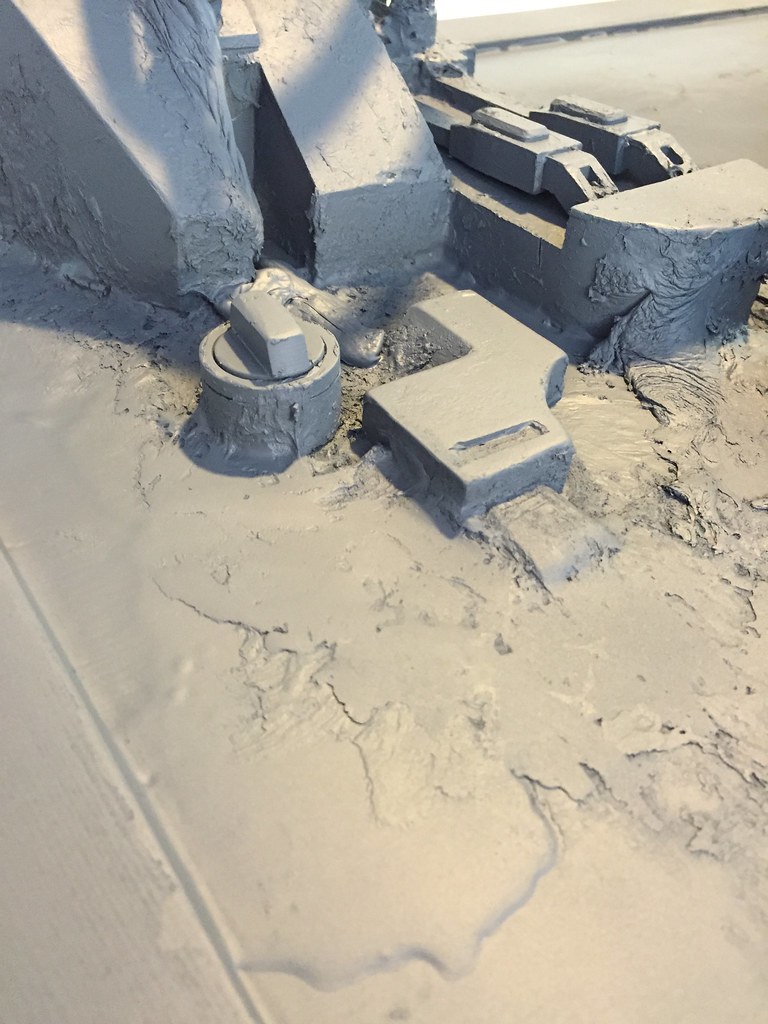

Here's what I'm talking about. Wrinkles and if you zoom in , you can see there are some sharp edges that could be blended better
RIC by chris stephens, on Flickr
RIC by chris stephens, on Flickr
Hate to end the day on the "before"', but Hopefully I'll have some pics ready by tomorrow night of the "after"
However, primer also shows you all of the flaws. I really am looking for a soft blend from the droid to the Carbonite. There are a lot of areas where the liquid nails shriveled up when it dried too... Not digging the look.
So, to take some of the sharpness out of these areas, I filled them in with drywall mud. I'll let it dry overnight and then sand it tomorrow. It looks drastic, but after its sanded , the differences will be subtle
Here's what I'm talking about. Wrinkles and if you zoom in , you can see there are some sharp edges that could be blended better
Hate to end the day on the "before"', but Hopefully I'll have some pics ready by tomorrow night of the "after"
Last edited:
newmagrathea
Sr Member
This would make a great lid to a chest freezer.
greedo
Well-Known Member

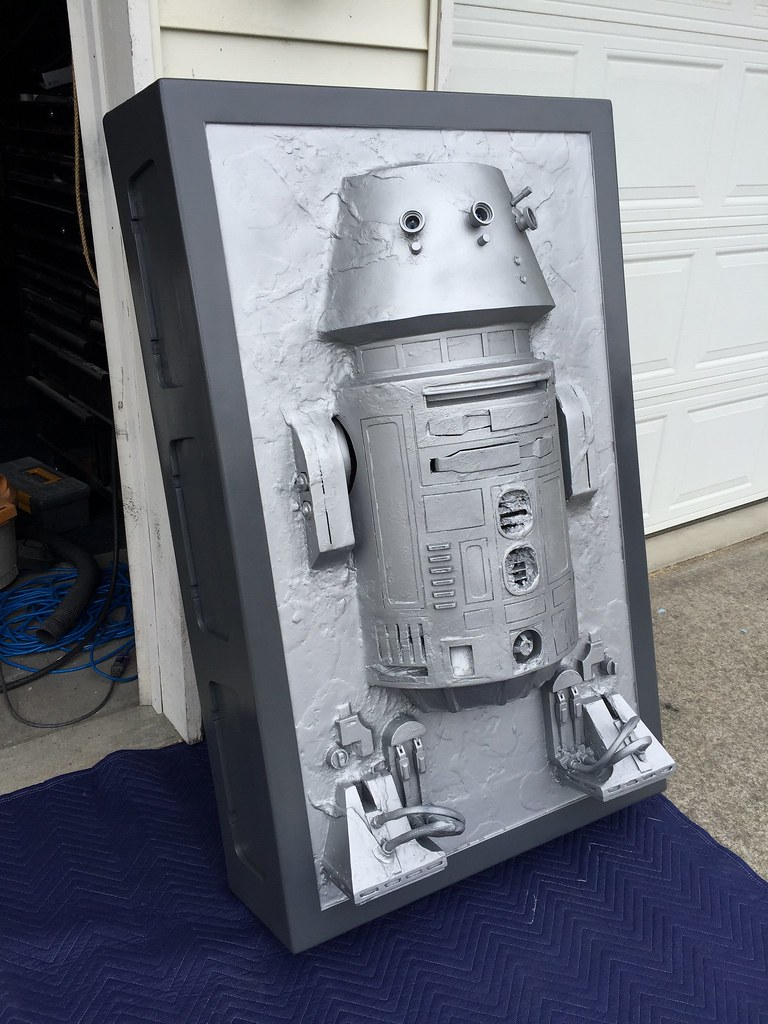

So after countless nights of losing sleep over which movie version to paint it , I flipped a coin and went with an ESB two tone.
I painted the box with several layers of nickel and black before putting the final coat of slate grey seen in the pics below. I did this because I think the box will take a lot of abuse over time and having black or metal show during damage/scratches is better than wood.
I still need to weather the carbonite area and clear coat.
RIC by chris stephens, on Flickr
I painted the box with several layers of nickel and black before putting the final coat of slate grey seen in the pics below. I did this because I think the box will take a lot of abuse over time and having black or metal show during damage/scratches is better than wood.
I still need to weather the carbonite area and clear coat.
Last edited:
