Helagaks Iron man Mark 42 ALL FILES RELEASED!!

[ironmaided]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

thank you so much for the files

no worries :thumbsup glad to help



[Keven Skywalker]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

been busy building the back. . .and it fits well with my jackieisrockin mark 42 chest. . .

https://m.ak.fbcdn.net/photos-a.ak/hphotos-ak-ash4/s720x720/1069818_484835498265581_593071093_n.jpg

almost seamless spine part

https://m.ak.fbcdn.net/photos-g.ak/hphotos-ak-ash4/s720x720/1000712_484835511598913_422703793_n.jpg

https://m.ak.fbcdn.net/photos-h.ak/hphotos-ak-ash4/s720x720/1000712_484835481598916_1642006356_n.jpg

next is again the bicep and the forearm. .unfortunately i'm having problems with rescaling my old unfolds so i figured out to make these

HELAGAK'S MK42 ARM.rar

this .rar file contains a .pdo file of the WHOLE ARM (shoulder, bicep, forearm) in one piece, for easy measurement, it also contains 3 separate files for the shoulder bicep and forearm

[url]http://dc693.4shared.com/img/bwPucLvz/0.2040202226331893/red_001.jpg[/URL]

----------------------------------------------------------------------------------------------------------------

i love to render so. . . side by side with the low poly game extracted mark 42

the helmet is from Gimpee

https://m.ak.fbcdn.net/photos-e.ak/hphotos-ak-frc3/s720x720/969686_484843524931445_623082170_n.jpg

Ironmaided try with the blackouts helmet, i think its the most accurate right now



[Helagak]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

Yeah, I'm guessing he got them from fin head. Does anyone know what happened to that guy? I tried to message him a while back and it says he's banned!? (finhead, that is)



[Keven Skywalker]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

as i know blackout was modeling himself and was planning a v2 even more accurate
by the way helagak did you recibe my pm from yesterday?



[ironmaided]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

Ironmaided try with the blackouts helmet, i think its the most accurate right now

i'm waiting for his v2. . .i'm getting problems with his v1 in terms of building



[streetsoul]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

i'm waiting for his v2. . .i'm getting problems with his v1 in terms of building

omarbou has judt released a mk 42 helmet buddy and its pretty accurate right down to the chin movement

- - - Updated - - -

http://www.therpf.com/f24/omarbou1s-im-mark-vii-pep-files-mark-vii-arm-mark-42-helmet-uploaded-170276/



[ironmaided]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

omarbou has judt released a mk 42 helmet buddy and its pretty accurate right down to the chin movement

- - - Updated - - -

http://www.therpf.com/f24/omarbou1s...-mark-vii-arm-mark-42-helmet-uploaded-170276/

now we're talking :thumbsup i'll take a look on those. . .i'm also having problems installing hinges to a mark 42 helmet unless the chin his separated. . thanks for the heads up



[Worthinator911]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

ok here it is:

NOTE: The scale on this file isn't the scale for the other parts (shoulders biceps etc.) and you must measure/scale this by yourself.

I unfolded this to fit a 5'6"* tall person. Thanks and enjoy.

*not so sure. . .use the measuring tool in pepakura designer 3 to figure out

CHEST

[url]http://dc689.4shared.com/img/Bl9ltvQD/0.902412069128978/kuugaabang1.JPG[/URL]

IM_MK42_NEW_CHEST_BY_HELAGAK_foam_by_ironmaided.pdo

BICEP (this is awesome!)

[url]http://dc689.4shared.com/img/yMgbhGNk/0.5214949505517953/kuugaabang1_1.JPG[/URL]

IM_MK42_NEW_BICEP_BY_HELAGAK_foam_by_ironmaided.pdo

V3 SHOULDERS

[url]http://dc689.4shared.com/img/p-ONokrS/0.08753107232115775/kuugaabang1_2.JPG[/URL]

IM_MK42_v3_SHOULDERS_BY_HELAGAK_foam_by_ironmaided.pdo

quick question is this the left or right arm?
and do u think ishould connect the shoulder to the bicep or the chest



[streetsoul]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

now we're talking :thumbsup i'll take a look on those. . .i'm also having problems installing hinges to a mark 42 helmet unless the chin his separated. . thanks for the heads up

yeh man the chins seperate aswell just like it is in the movie you no like in the poster were it moves forward



[Worthinator911]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

The thighs, shins and boots will be tackled in due time.
As for a neck, I have no immediate plans. Just use the mark 4 neck that is on this board. They are all very similar. But I might build it after the rest of the suit is done.

blackout has a good helmet and neck out http://www.therpf.com/f24/blackouts...-version-2-accurate-hd-helmet-inbound-185331/



[ironmaided]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

quick question is this the left or right arm?
and do u think ishould connect the shoulder to the bicep or the chest

this is the LEFT arm

i always connect the shoulder on the torso for proper mobility. .it's up to you where you will attach that part



[Helagak]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

My abs are well on their way but I didn't get as much done as I had hoped. Probably tomorrow.

And with the chest and back...

And some helmet shots just for fun. =D



[streetsoul]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

My abs are well on their way but I didn't get as much done as I had hoped. Probably tomorrow.http://i110.photobucket.com/albums/n91/helagak/ABS1.jpg

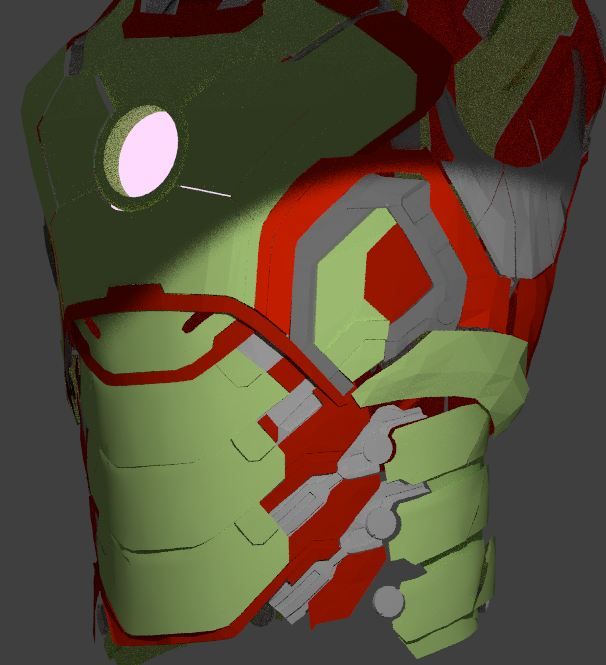

And with the chest and back... http://i110.photobucket.com/albums/n91/helagak/ABS2.jpg

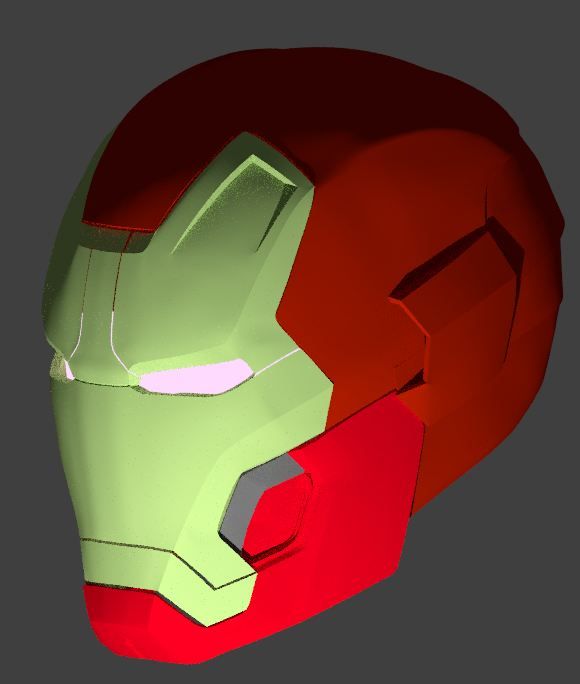

And some helmet shots just for fun. =Dhttp://i110.photobucket.com/albums/n91/helagak/helm1.jpghttp://i110.photobucket.com/albums/n91/helagak/helm2.jpghttp://i110.photobucket.com/albums/n91/helagak/helm3.jpg

looking good buddy looking good



[mushroomhunter]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

Holy crap you are a LIFE SAVER. San Diego Comic Con is right around the corner and I needed a back piece. THANK YOU THANK YOU THANK YOU!!!!



[mushroomhunter]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

been busy building the back. . .and it fits well with my jackieisrockin mark 42 chest. . .

https://m.ak.fbcdn.net/photos-a.ak/hphotos-ak-ash4/s720x720/1069818_484835498265581_593071093_n.jpg

almost seamless spine part

https://m.ak.fbcdn.net/photos-g.ak/hphotos-ak-ash4/s720x720/1000712_484835511598913_422703793_n.jpg

https://m.ak.fbcdn.net/photos-h.ak/hphotos-ak-ash4/s720x720/1000712_484835481598916_1642006356_n.jpg

next is again the bicep and the forearm. .unfortunately i'm having problems with rescaling my old unfolds so i figured out to make these

HELAGAK'S MK42 ARM.rar

this .rar file contains a .pdo file of the WHOLE ARM (shoulder, bicep, forearm) in one piece, for easy measurement, it also contains 3 separate files for the shoulder bicep and forearm

[url]http://dc693.4shared.com/img/bwPucLvz/0.2040202226331893/red_001.jpg[/URL]

----------------------------------------------------------------------------------------------------------------

i love to render so. . . side by side with the low poly game extracted mark 42

the helmet is from Gimpee

https://m.ak.fbcdn.net/photos-e.ak/hphotos-ak-frc3/s720x720/969686_484843524931445_623082170_n.jpg

The back piece is looking great! Kudos!

I also plan to use jackie's chest piece with this back. Would you mind sharing what scale you used for each? I built Jackie's MK42 chest using scale 425.232765.



[ironmaided]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

lookin good helagak :thumbsup the abs look killer

anyway i finished building the bicep. . .it's tough to build than what i've expected though but i like the finished product. . .next will be the forearms but maybe later this morning. . .i'm kinda sleepy now (it's 4:19am) and i'm on nocturnal mode now building these. . .i'll post pictures later

- - - Updated - - -

The back piece is looking great! Kudos!

I also plan to use jackie's chest piece with this back. Would you mind sharing what scale you used for each? I built Jackie's MK42 chest using scale 425.232765.

you may have to measure them according to your own back measurement. . .scales on jackie's files isn't the same with helagaks



[Helagak]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

Hey Maided, what are your body dimensions? (height/weight)
Your files are far too small for me. (5'10" 180lbs) so I scaled the chest piece and changed the paper to letter (no one in the US has access to A4 paper! :lol)
I also added in 3 pieces that you seemed to miss. I'm going to do this to all your files and add them to the first post. Your unfolds are great but it becomes an issue when I need to make all the parts bigger and the paper smaller! >_<



[Worthinator911]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

I agree with heal gal on that I used Jackie's forearm which was kinda large and iron maided's unfold of the bicep was kinda small. I mean I'm only 5' 4" and 100lbs so I want growing room but the scale doesn't seem right



[Helagak]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

That's a pretty Sexy lookin bicep there, worth! But yea, too small. Im going to resize all the files since I have to for me anyways and I'll post those on the first post as well.



[Helagak]

Re: Helagaks Iron man Mark 8/42 model and Pepakura files. COMPLETE RE BUILD!! new fil

Btw, here is the link to my MERICA' sized chest. http://www.4shared.com/file/9sSSLC6r/im_mk42_new_chest_by_helagak_f.html
