Zeiss Ikon Flash - Custom Lightsaber Build

Kylash

Master Member
RPF PREMIUM MEMBER
Yeah, I'll just have to get some of Roys tracks, that will solve that problem. I probably will end up using t-track afterall. I think the catalog grips are going to look too busy with the screws once I get the silver plates screwed down as well, and its more authentic to what would have been used. I can use the catalog grips on my McQuarrie style saber later.

Last edited:

Kylash

Master Member
RPF PREMIUM MEMBER
Kinda screwed up the spacing of the grips, they are a little uneven, but I think it adds to the charm. There is barely enough room between each for t-tracks if I decide to add them, but honestly now that I have these ones on, I'm kind of happy with it the way it is. I initially was going to try tapping the holes and screwing them on with hex screws, but after tapping them all, i could never get the grips to tighten down all the way and it just wasnt working, so i widened the holes and went with some good old reliable pop rivets.






I replaced the red wire with a thinner one so I could get it in more securely, and swapped sides because the exposed brass ring that the original was glued into got messed up. So i replaced that brass ring with a brass cap, which i think looks ok.




I may still play with the grip spacing a bit if it starts bugging me, but other than adding something inside the pommel to balance it a little better (its very front heavy) I think I'm done.


Kylash

Master Member
RPF PREMIUM MEMBER
Yeah I tried, they're pretty strong steel, I could barely drill the holes in them, but I agree.

Last edited:

Scott D

Sr Member
Looks good to me. Don't sweat a little uneven spacing. It isn't noticable.

Give the grips a "wash" with some black (or maybe dark gray) paint after scuffing them up.


thd9791

Master Member
RPF PREMIUM MEMBER
that looks excellent! good choice on,....everything! This looks great, especially next to the Obi


Kylash

Master Member
RPF PREMIUM MEMBER

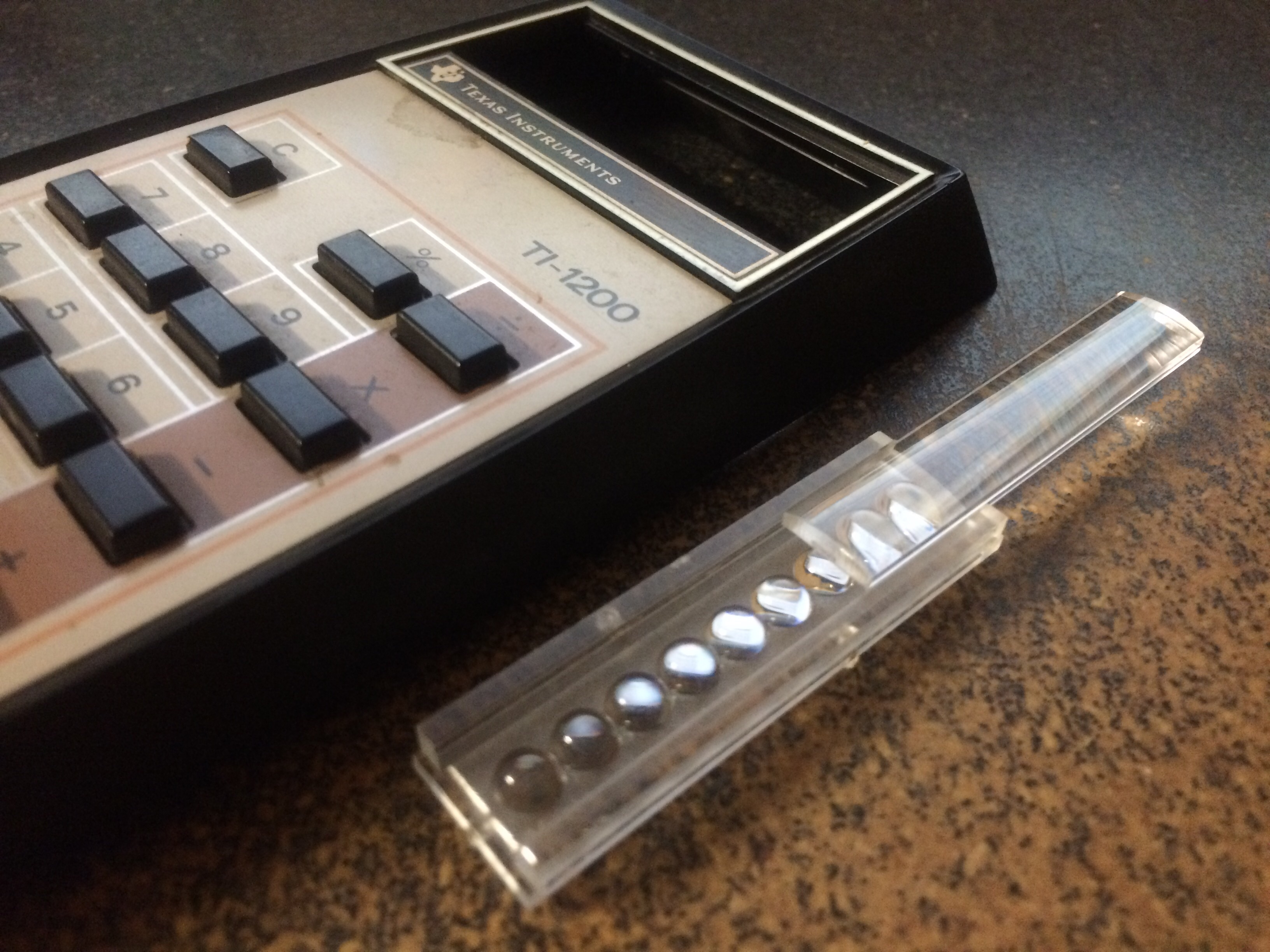

Just got a new calc bubble strip for this and had to share. I didnt know this bubble strip was so odd when i bought it, but look at this thing. The bubbles are recessed into a channel that then has a sliding curved cover that goes over the bubble. This makes the whole thing very thick, which i think will work well with my clamp.

image.jpg image.jpg

Last edited:

thd9791

Master Member
RPF PREMIUM MEMBER
That's really cool! I just found one that had 9larger bubbles and thick outer ridges, I guess these things can be very different!


modelcitizen

Sr Member
good stuff. the natural weathering always looks more visceral and real. i'd vote no on a fake grime prop wash.
one slight detail i'd mention. those two corroded screws...they would annoy any self respecting jedi i think.


Kylash

Master Member
RPF PREMIUM MEMBER
I cant do much about them, they are rusted in place and I've tried getting the rust to come off. I mean if Obi-wan let his go to hell, I cant see why I can't have a few rust screws :p

Last edited:

SethS

Master Member
RPF PREMIUM MEMBER
Hey Doc-- just curious. This thing looked about the usual 3 cell size, but that photo of it next to the Obi-Wan saber surprised me. How long is this thing?
It's one of my favorite customs here BTW.


Kylash

Master Member
RPF PREMIUM MEMBER
Thanks, it is for sure a 3 cell. Its about 10.5 inches long, but I made it longer with the emitter shroud piece. It's the same length as the Obi, just closer to the camera.
