Yet Another X-Wing Build

Discussion in 'Studio Scale Models' started by DeanB, Mar 24, 2015.

  1. DeanB

    DeanB Well-Known Member

    Trophy Points:
    566
    Ok, I'm late to the party, but I've been preparing for a long time. I've had an obsession with the X-wing since I was a teenager (a long, long time ago...), and I, like many others have wanted a truly accurate model of my own. I've messed around with this ever since finding the RPF in 2001, buying up a lot of old kits, contributing what little knowledge or insight I could (very little I'm embarrassed to say), and methodically working towards actually making something...

    I figured it's about time to show where I'm at, garner some critical input, and make faster progress to completing this!

    x-wing parts.jpg

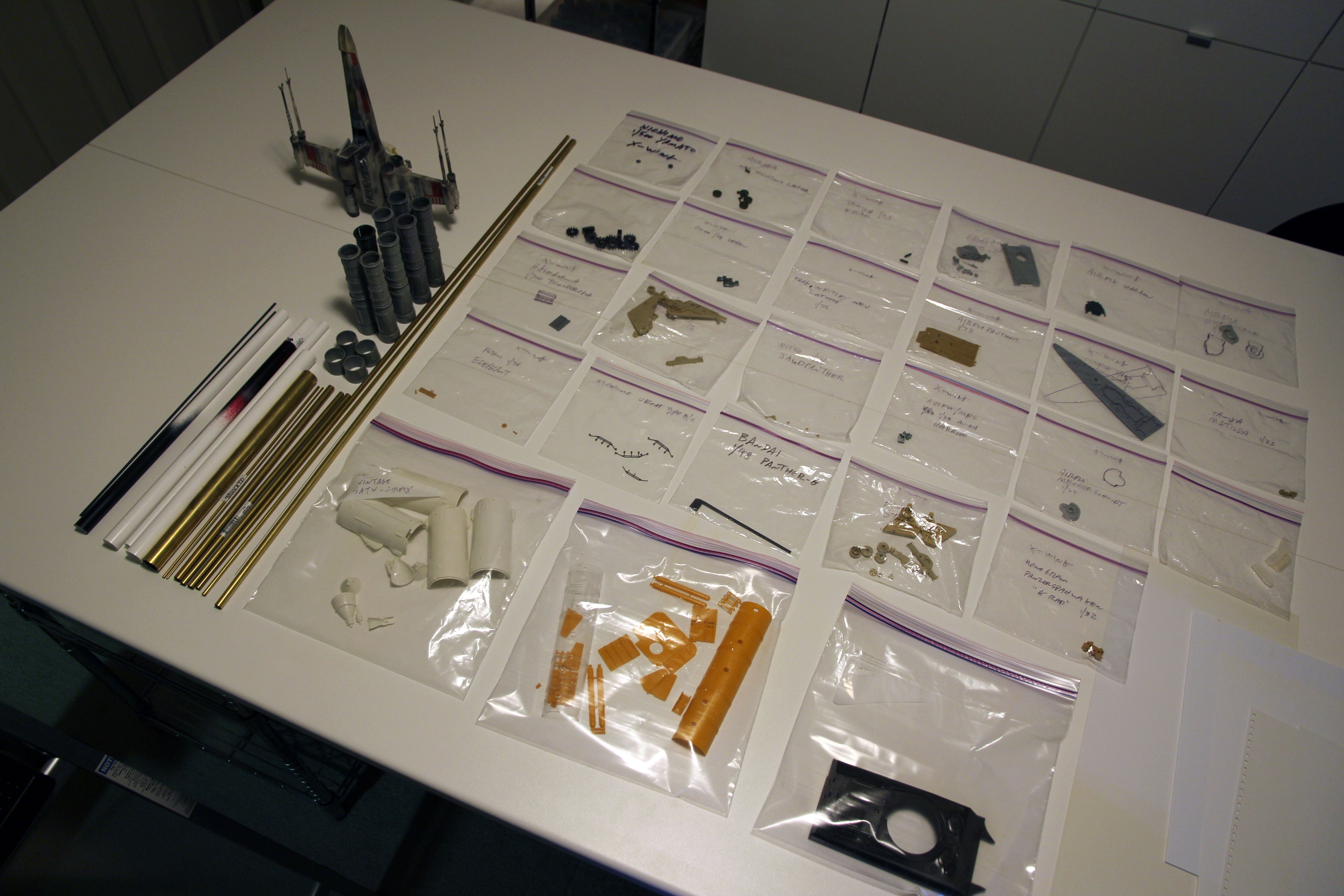

    My specimen baggies. I've collected all the necessary external kit parts, except for the cockpit...I'm planning on do full scale version instead.

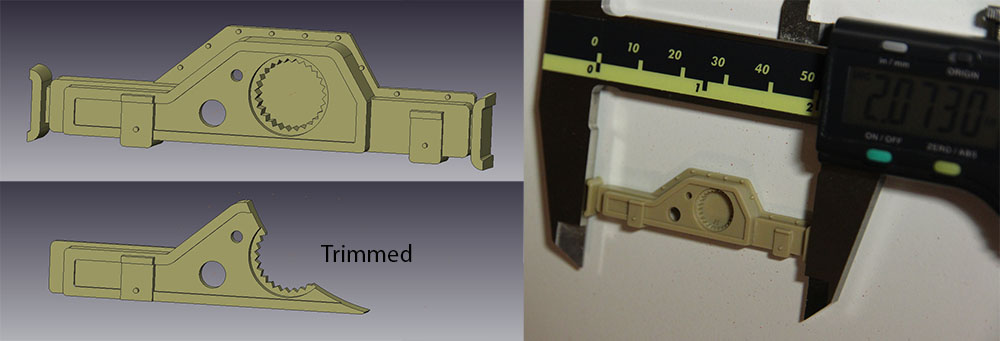

    Stug jack part.jpg
    I started doing small build experiments, but that got expensive after I trimmed away expensive parts, only to realize I needed to re-do the work. To prevent any more expensive experiments, and enhance the overall accuracy, I decided to methodically build all of the greeblies, and everything else in CAD. I've been at it for about a year and a half now, and I'm really pleased with the results so far. I'm figuring after all of this I'll have a great database to build a 1/12th scale version! Hopefully by then, I can afford a good 3d printer with a large build volume:p

    Fuselage.96.jpg Fuselage.97.jpg Fuselage.99.jpg

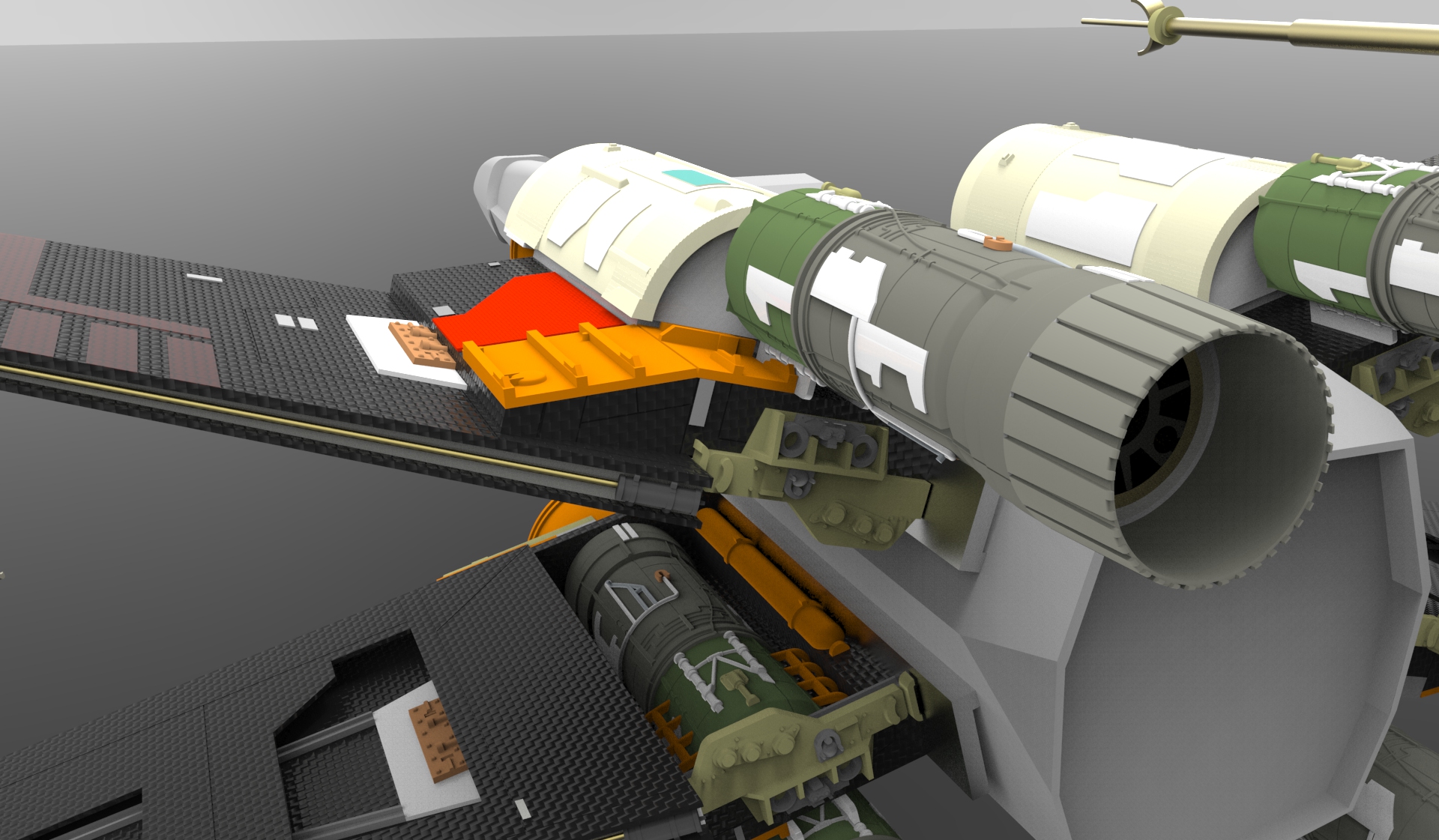

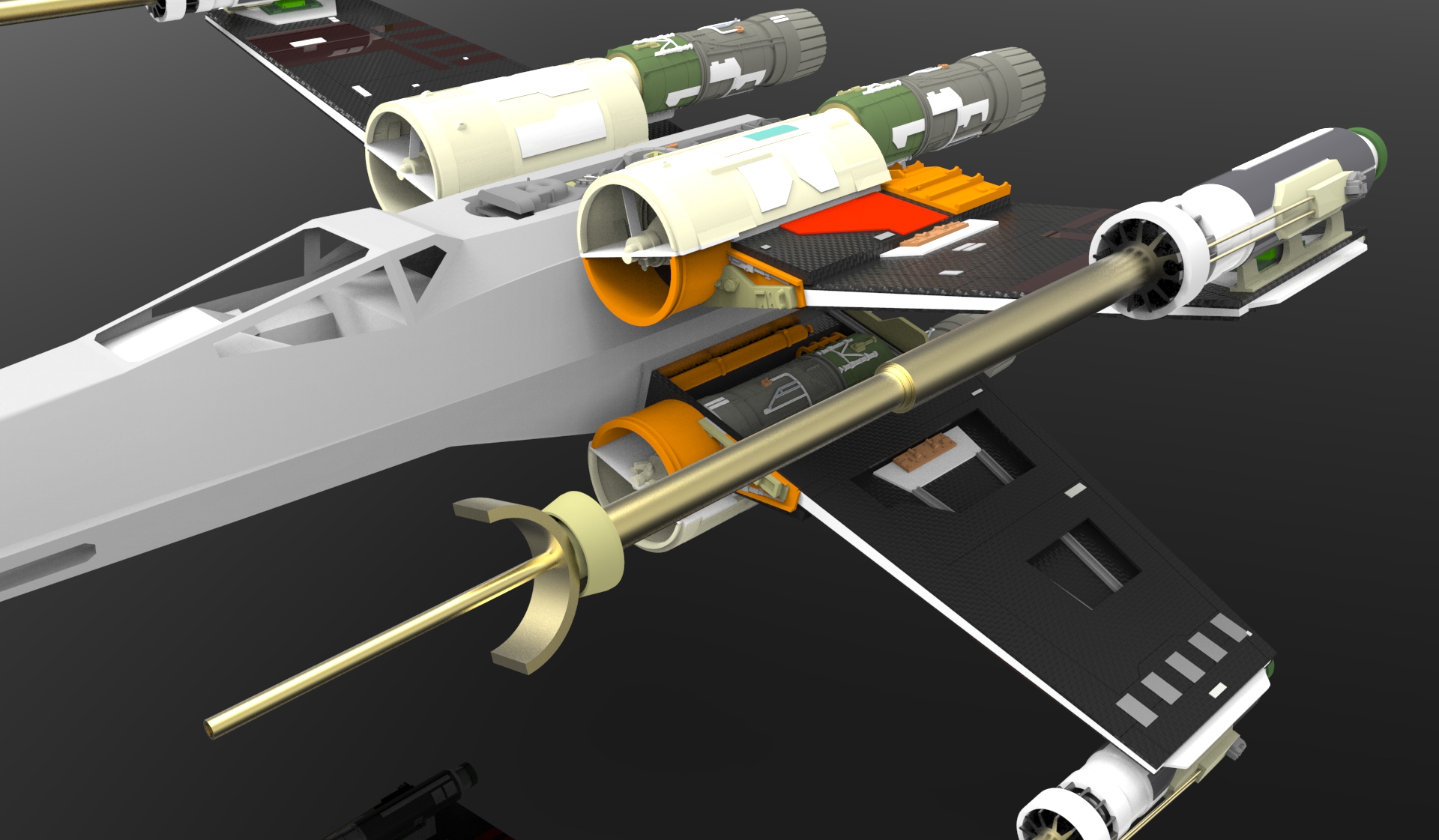

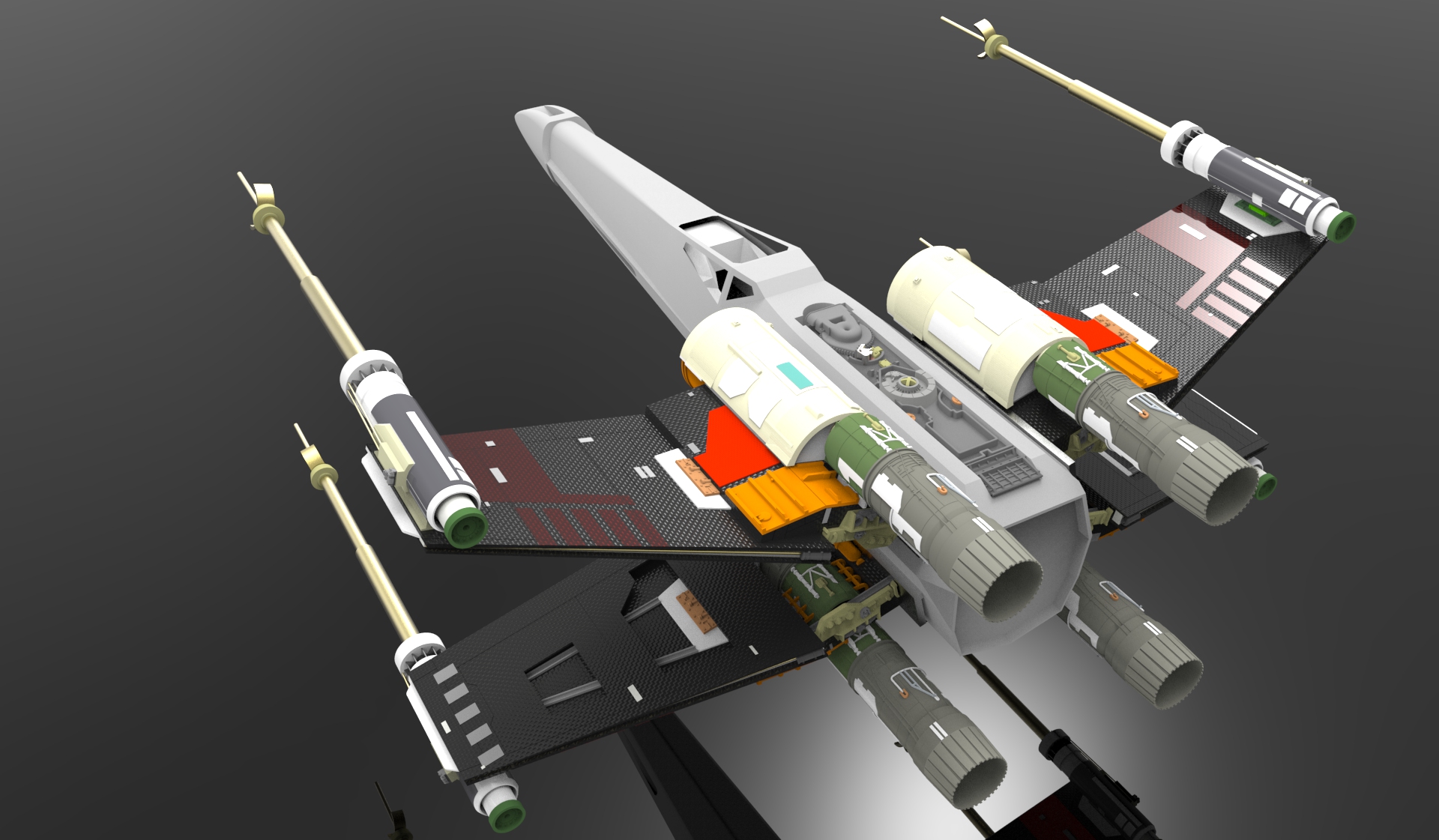

    Here's some renderings of how it's looking so far. The wings are all but done, and I'm currently working on the droid strip. The fuselage is a stand in for now. Based on what I'm learning from the wings and droid strip, I'll need to make some modifications to its length. Yes, those are Red 5 markings. I'm trying as best I can to match its unique details.

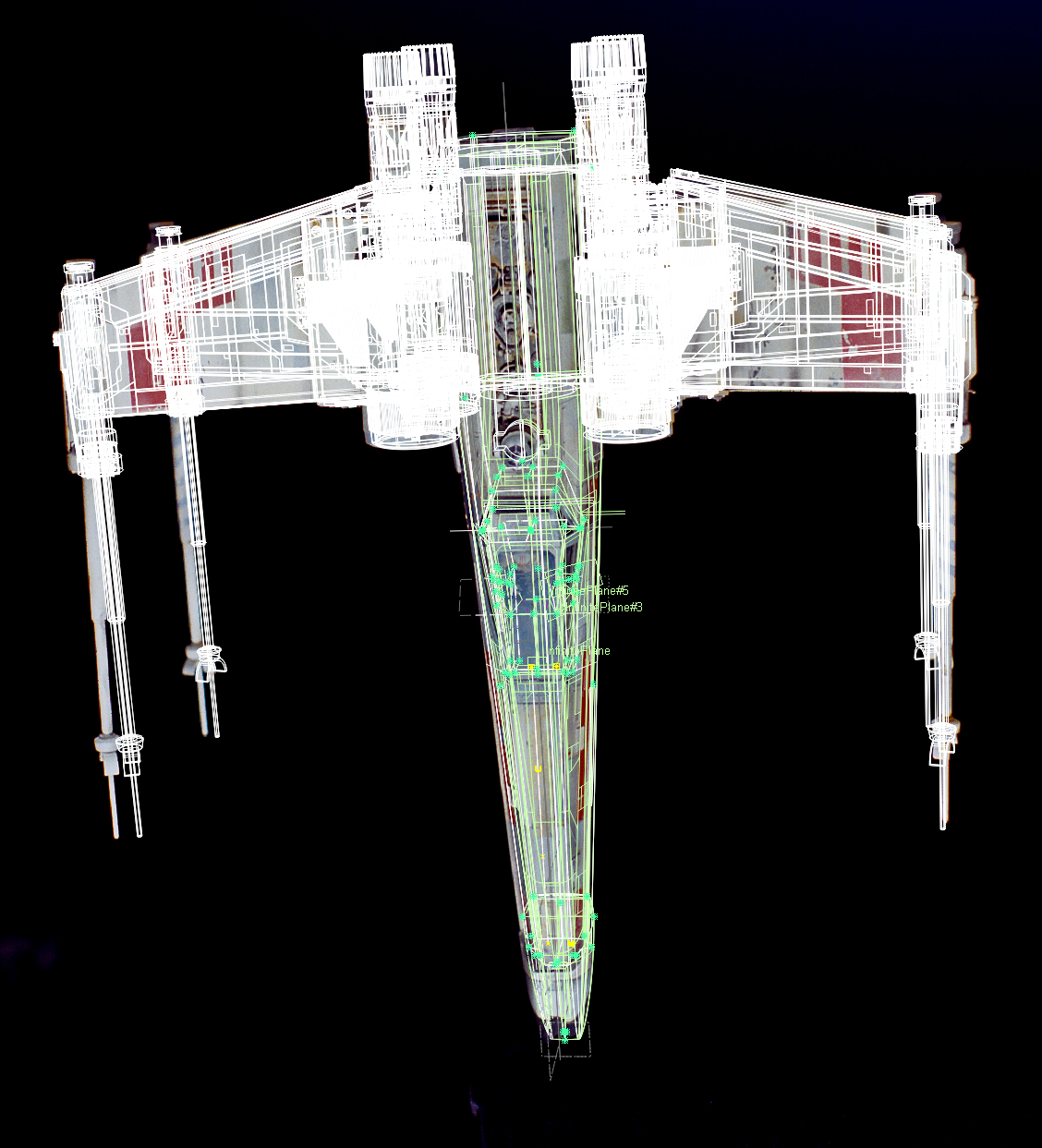

    x-wing persp analysis.png
    I've also been trying perspective matching of my work to the reference I have. This has helped me make a lot of critical decisions.

    I hope you enjoy! More to come.

    Dean

    StevenBills, eze38, Treadwell and 2 others like this.
  2. maxhebus

    maxhebus Well-Known Member

    Trophy Points:
    566
    That's brilliant!
    I can't wait to see how good this is gonna come out of a printer.
    1/12th going to be big.

    S

  3. StevenBills

    StevenBills Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,136
    Amazing. What part of Renton are you in? I'm originally from Maple Valley. The Great PNW!

    SB

  4. DeanB

    DeanB Well-Known Member

    Trophy Points:
    566
    I won't be doing a 1/12th version for awhile. Let me finish the 1/24th with actual kit pieces first! :) However, I do plan on printing the fuselage and cockpit. Not sure yet if I'll SLA or FDM the parts. I might actually objet print the cockpit and R2 because of its fine detail.

    -Dean

    - - - Updated - - -

    East Highlands...are you still in the area?

  5. StevenBills

    StevenBills Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,136
    Nope, moved out a while back. I've always wanted to make it back someday though!

    SB

  6. DeanB

    DeanB Well-Known Member

    Trophy Points:
    566
    I'm feeling pretty good with the overall accuracy of the wings, except or two areas. I'm hoping someone could help me out with the first one:

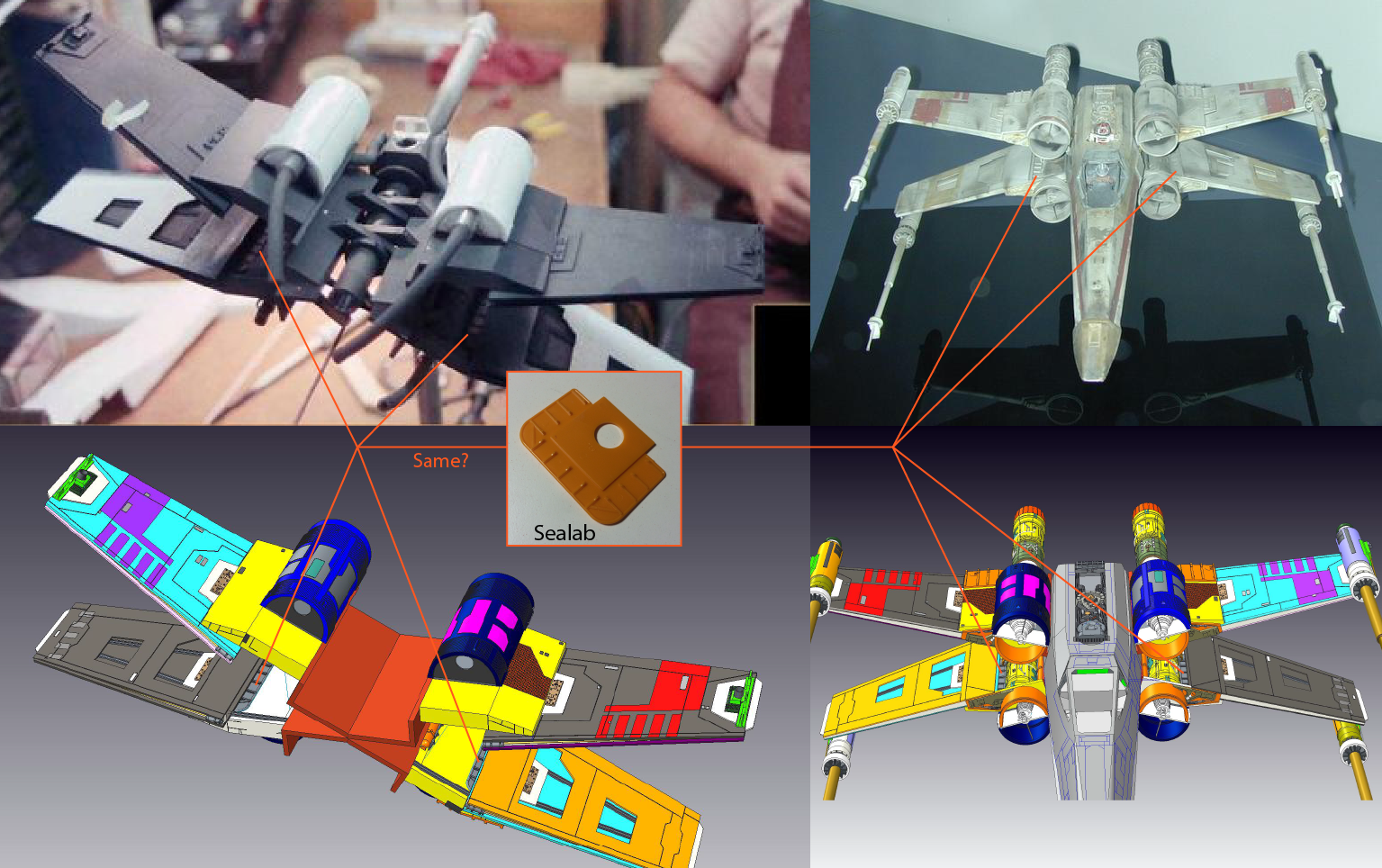

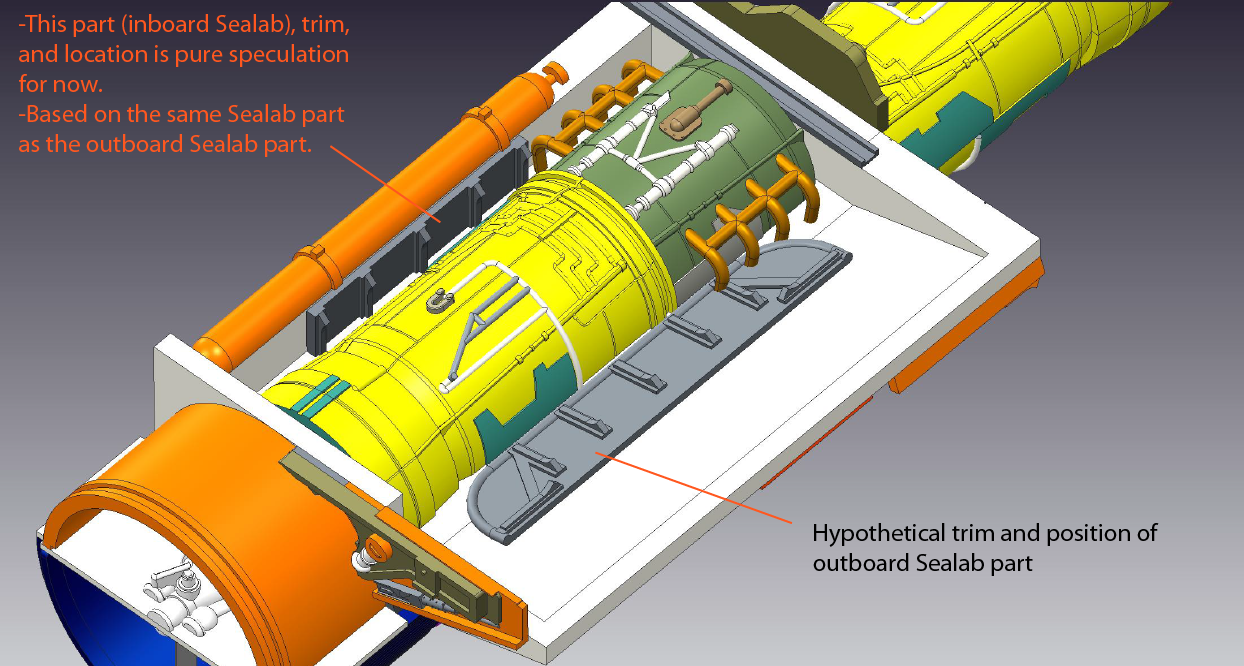

    I'm trying to better understand what details are present in the "wing box" area where one half of the F-4 engine resides.. My question is with the Sealab part (#62 in the kit). I've seen it referenced and used on several builds on this site, but I've never felt confident they were accurate. And my reference, no matter how clear and close up, has never given me a clear look inside the wing box. I've got a couple tantalizing, but not very clear views for the Sealab's use on the outboard side of the engine half (Hero, hollow wing model), but I'm stumped with its possible use on the inboard side.
    sealab-innerengine_hypothesis-01.png sealab-innerengine_hypothesis-02.png

    Thoughts anyone?

  7. moffeaton

    moffeaton Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,860

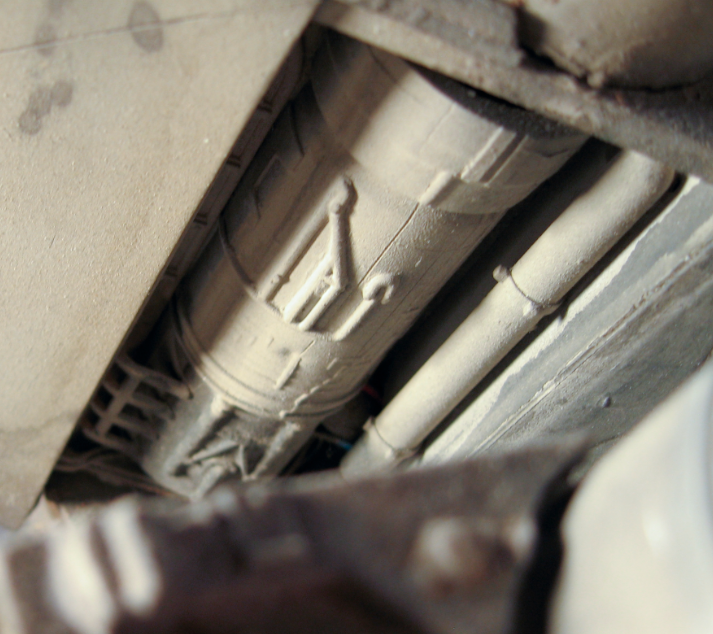

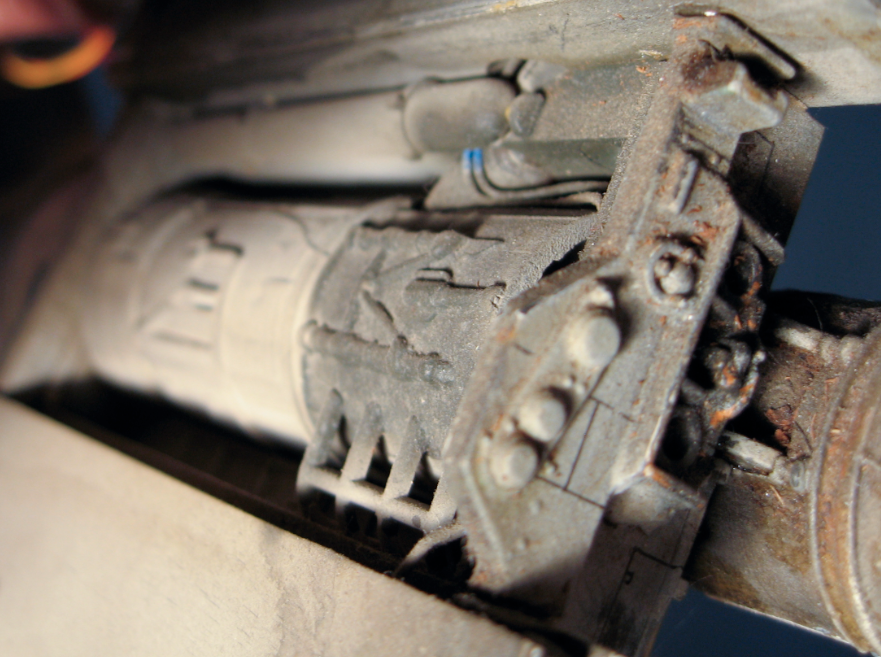

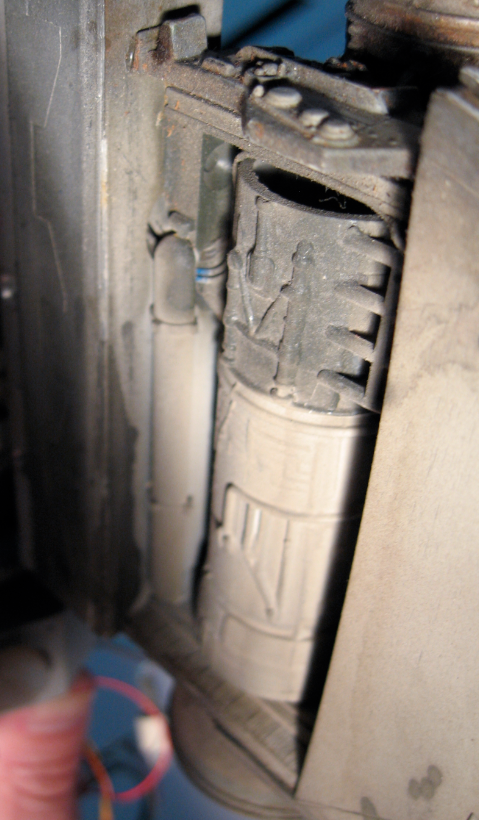

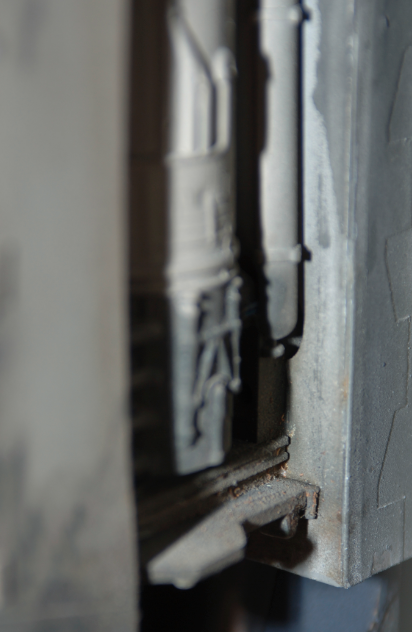

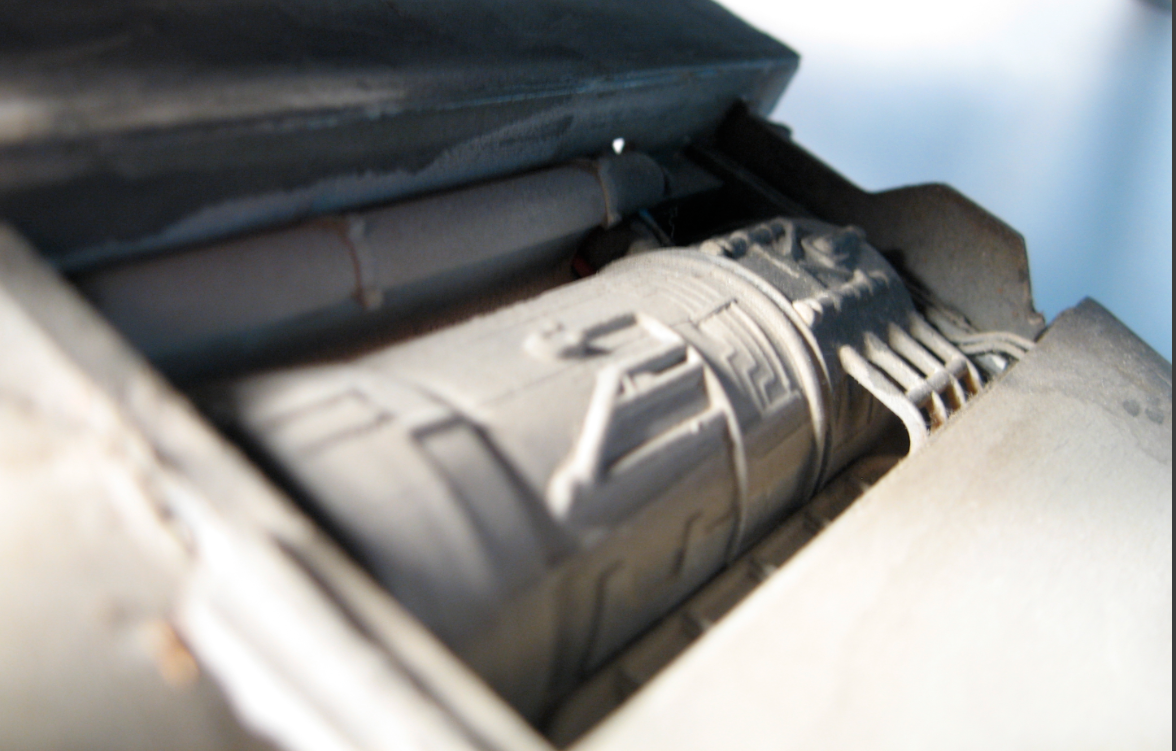

    These are all Red 5 - hope they help.
    Screen Shot 2015-03-30 at 10.14.48 AM.png Screen Shot 2015-03-30 at 10.14.26 AM.png Screen Shot 2015-03-30 at 10.14.12 AM.png Screen Shot 2015-03-30 at 10.14.05 AM.png Screen Shot 2015-03-30 at 10.13.54 AM.png Screen Shot 2015-03-30 at 10.13.27 AM.png Screen Shot 2015-03-30 at 10.12.57 AM.png

  8. DeanB

    DeanB Well-Known Member

    Trophy Points:
    566
    Wow! Yes, those are very helpful. Thank you very much. I'm picking out a number of interesting things. I'll post my updates later. In the meantime, I'm curious about a couple of details I've picked out.

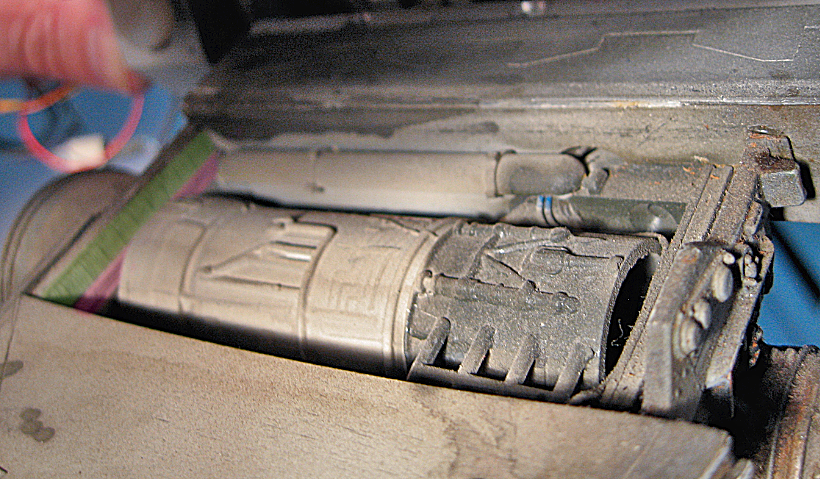

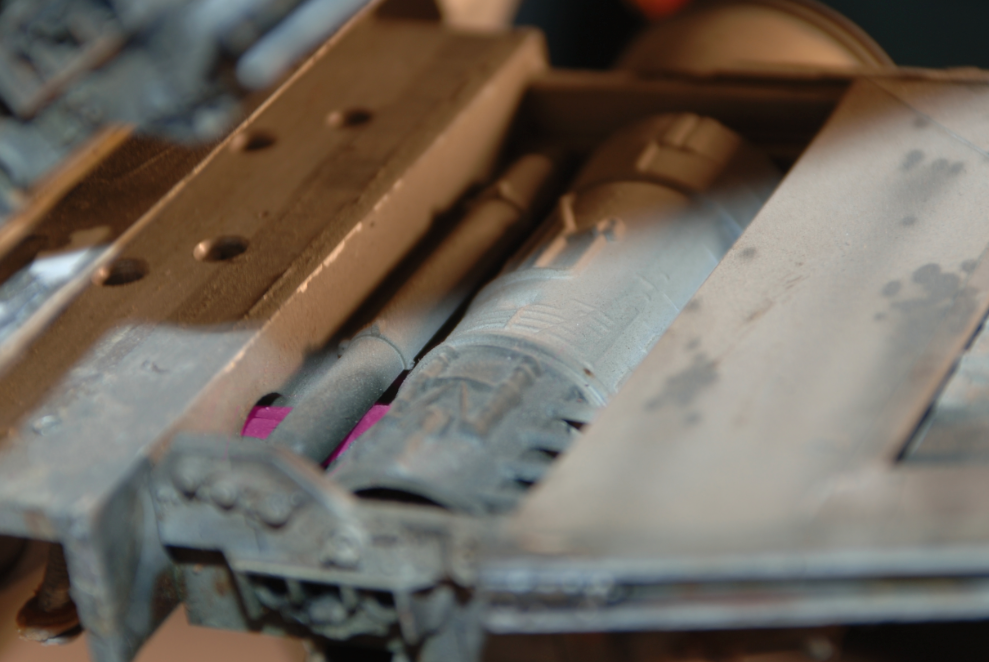

    I'm assuming this (pink highlight) is a conduit (rubber?), possibly to route wires to the cannon and engine lights. It also looks like some of the wires are routed outside of the conduit.

    wing box details.png
    The pink highlighted bit looks like the u-channel used on the other end of the engine box. The green highlighted piece above it looks familiar (pattern anyway), but I'm not recognizing the donor kit, or if it's a standard patterned sheet.

    Thanks,
    Dean

  9. Talkierg

    Talkierg Well-Known Member

    Trophy Points:
    866
    I used Plastruct CFS-4.

    Don

  10. DeanB

    DeanB Well-Known Member

    Trophy Points:
    566

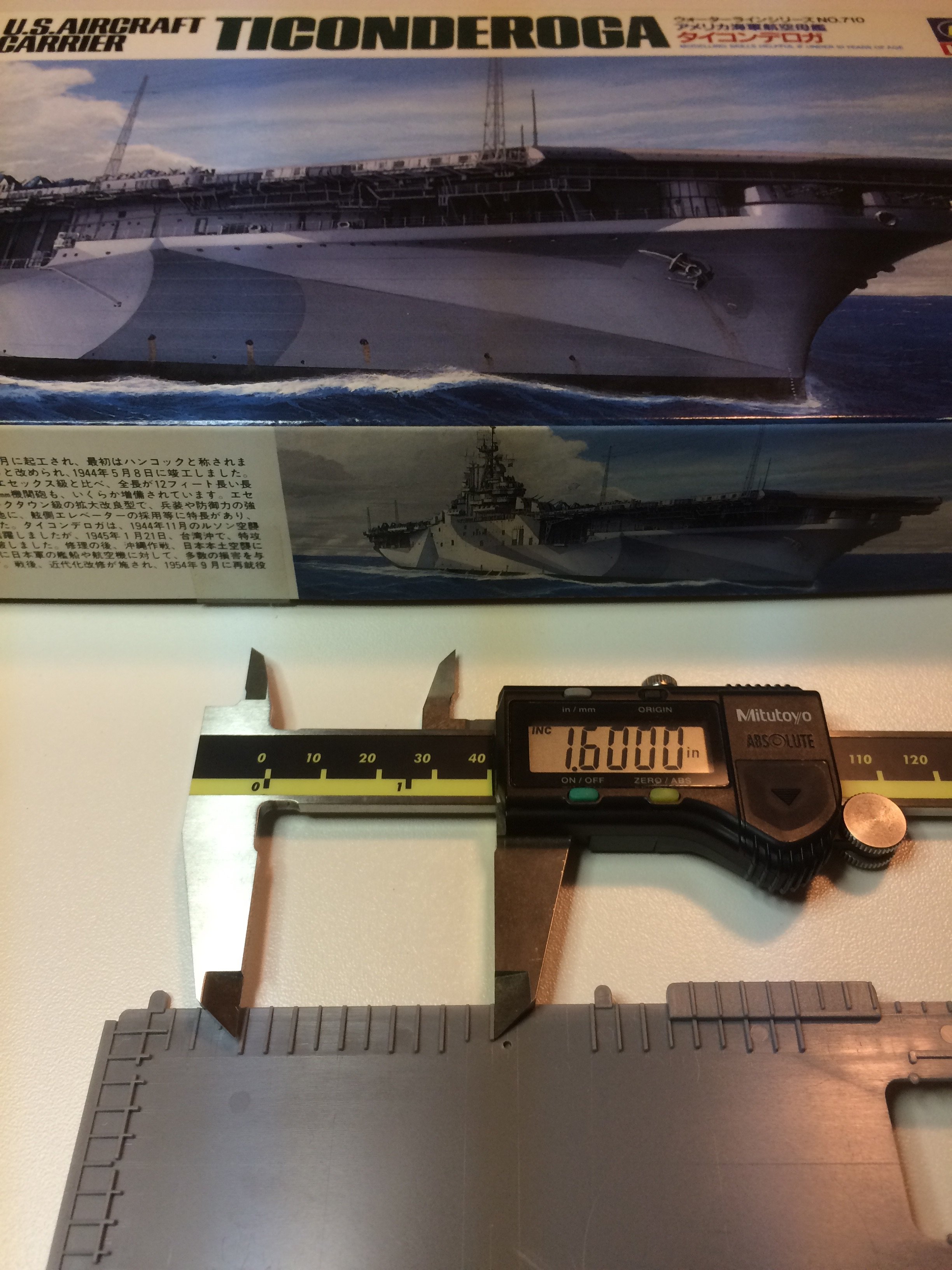

    Thank you Don. I've purchased the ABS version, C-4 (same dimensions). I had a hunch for the patterned part above the u-channel and pulled out my 1/700 Hasegawa Ticonderoga, Essex, and Hancock. The backside of their flight decks have a pattern that dimensions really close to the space available in my model. Of course it would need to be trimmed out. Am I hallucinating? The reference is admittedly hard to see.


  11. moffeaton

    moffeaton Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,860
    Glad it helped you! I love what you are doing here, and yeah you can see the surgical tubing in there...

  12. DeanB

    DeanB Well-Known Member

    Trophy Points:
    566
    Thanks for your support! I've been really happy with the clarity this approach has provided. I want to do this for the Y-wing as well, but I'm not looking forward to recreating the shear number of parts that will require.

    Since reappearing seemingly from nowhere, I'm thinking of using this method for the 2001 Aries 1-B. It seems a little more manageable (except for its size).


    Sent from my iPhone using Tapatalk

  13. DeanB

    DeanB Well-Known Member

    Trophy Points:
    566

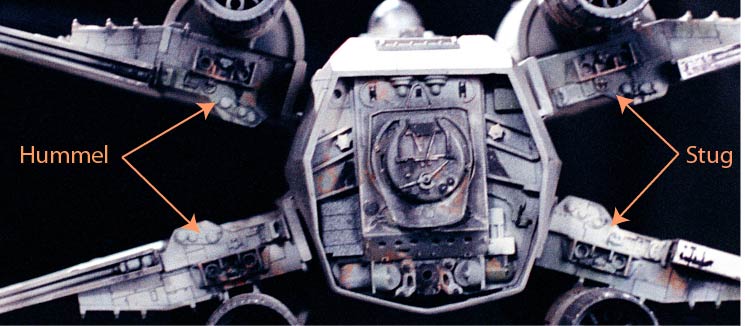

    Am I seeing what I think I'm seeing? Stug or Hummel?-01.jpg

  14. DeanB

    DeanB Well-Known Member

    Trophy Points:
    566

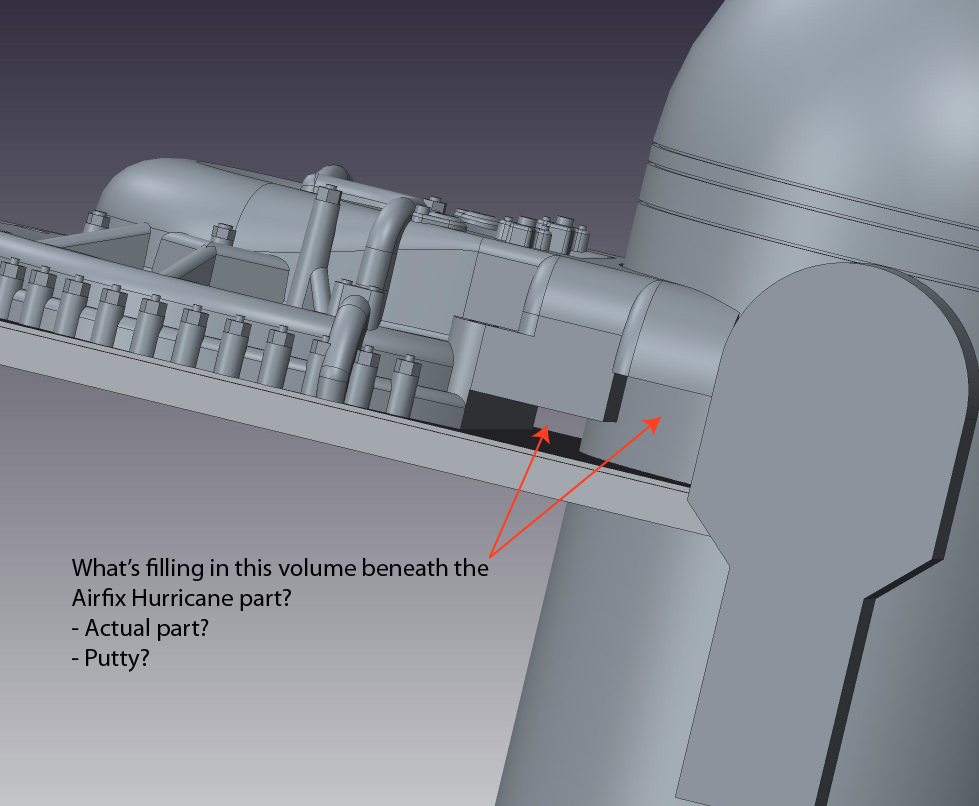

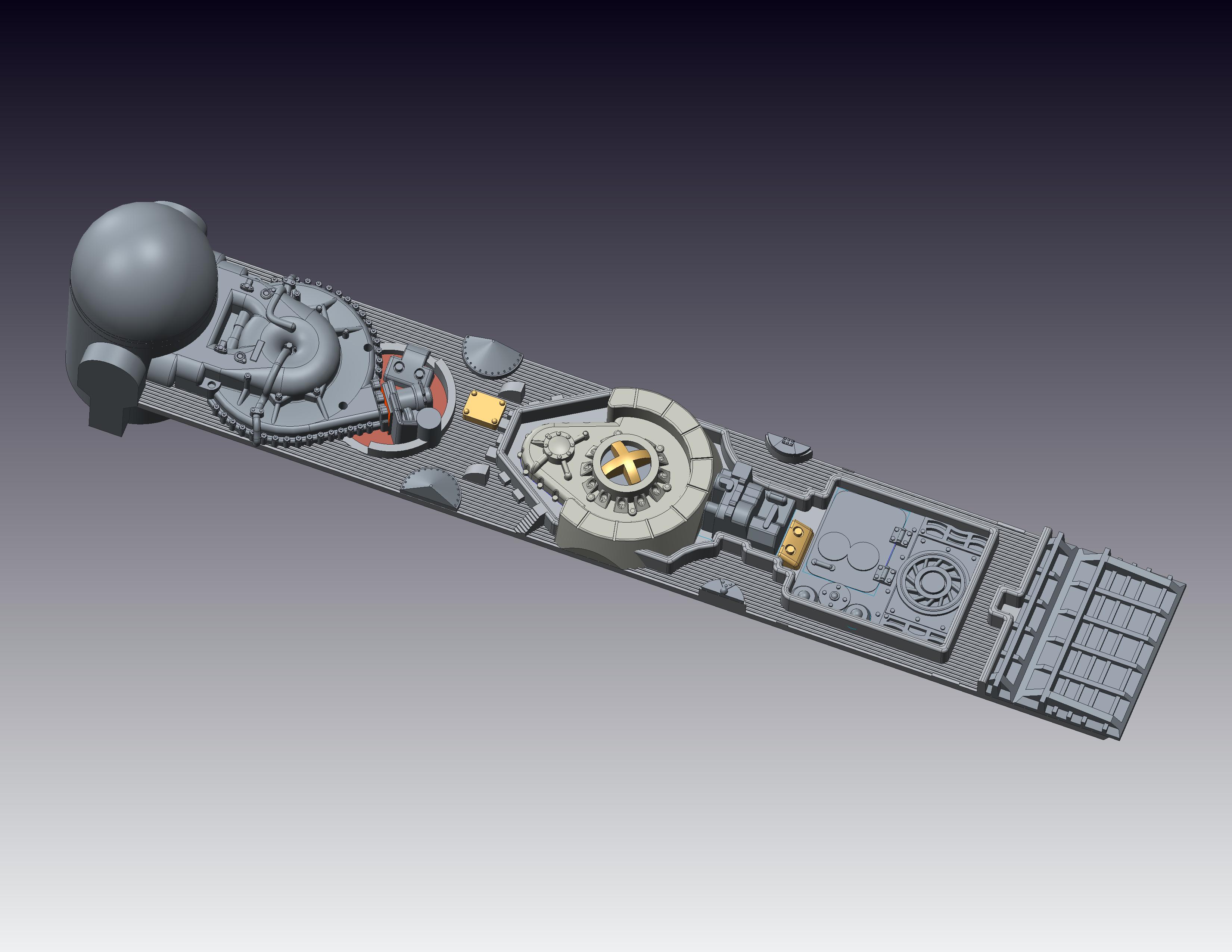

    Finishing the droid strip. Any ideas what's filling in the space beneath the Airfix Hurricane part in the region that butts up to the droid socket? Some reference I have seems to suggest a part of some hard to figure shape. Others look like a blob of putty. Thoughts anyone?

    -Dean droid_strip.jpg droid_strip2-01.png

  15. swgeek

    swgeek Sr Member

    Trophy Points:
    1,315
    As far as the Stug and Hummel parts, yes, you are seeing what you think you're seeing. For the droid strip, it looks like they clayed up the gap before they molded it.

  16. DeanB

    DeanB Well-Known Member

    Trophy Points:
    566
    I thought so. This is why I'm not physically building anything yet. I'm constantly discovering strange nuances like this.

    For the Hurricane part, I'm pretty sure it's putty as well I think I'll do something a little more purposeful looking. Thanks got your thoughts.

  17. DeanB

    DeanB Well-Known Member

    Trophy Points:
    566
    Happy New Year!

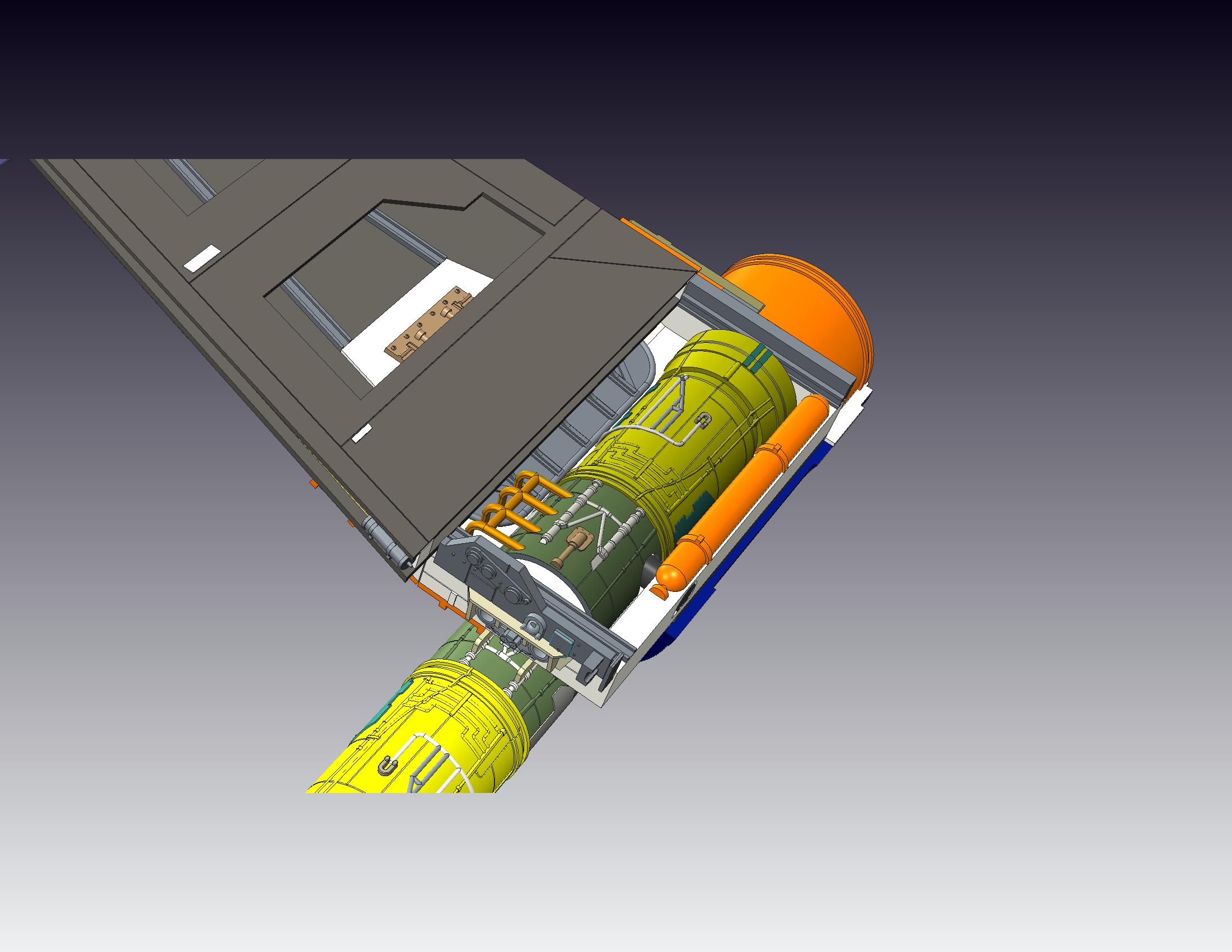

    I've been making steady progress over the past months...I've re-arranged the engine bits inside the wings, and added the Hummel jack parts to the back of the wings (Although, I just realized I arranged them wrong. I need to correct that). Looking more closely at my assertions in post #10, I've concluded I don't know what the heck is going on there. The photo is too out of focus to really know what's happening.

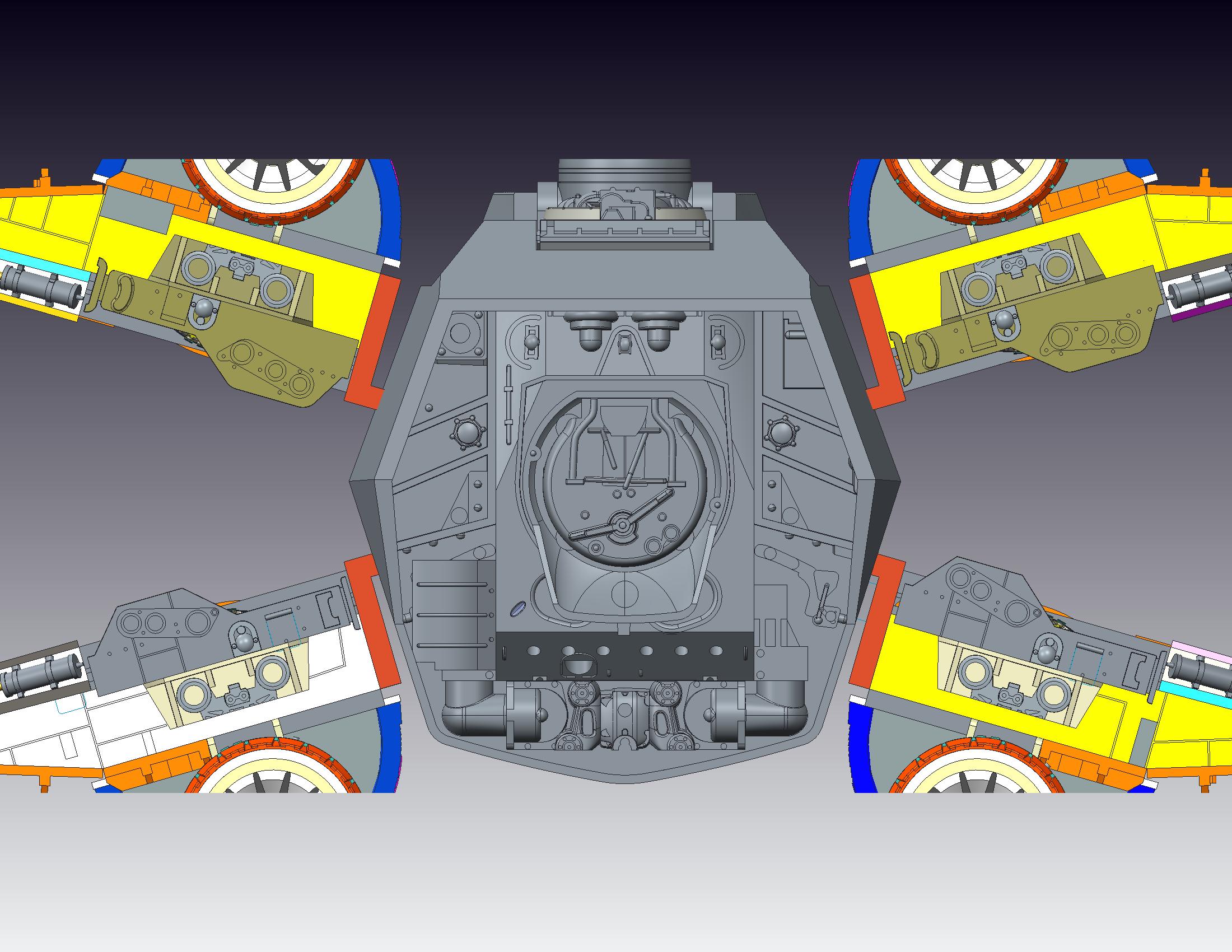

    The parts to the buttplate (I don't know what else to call that area!) are all finished (except the Sherman hull. I'm having a tough time modeling the rough casting features) and arranged.

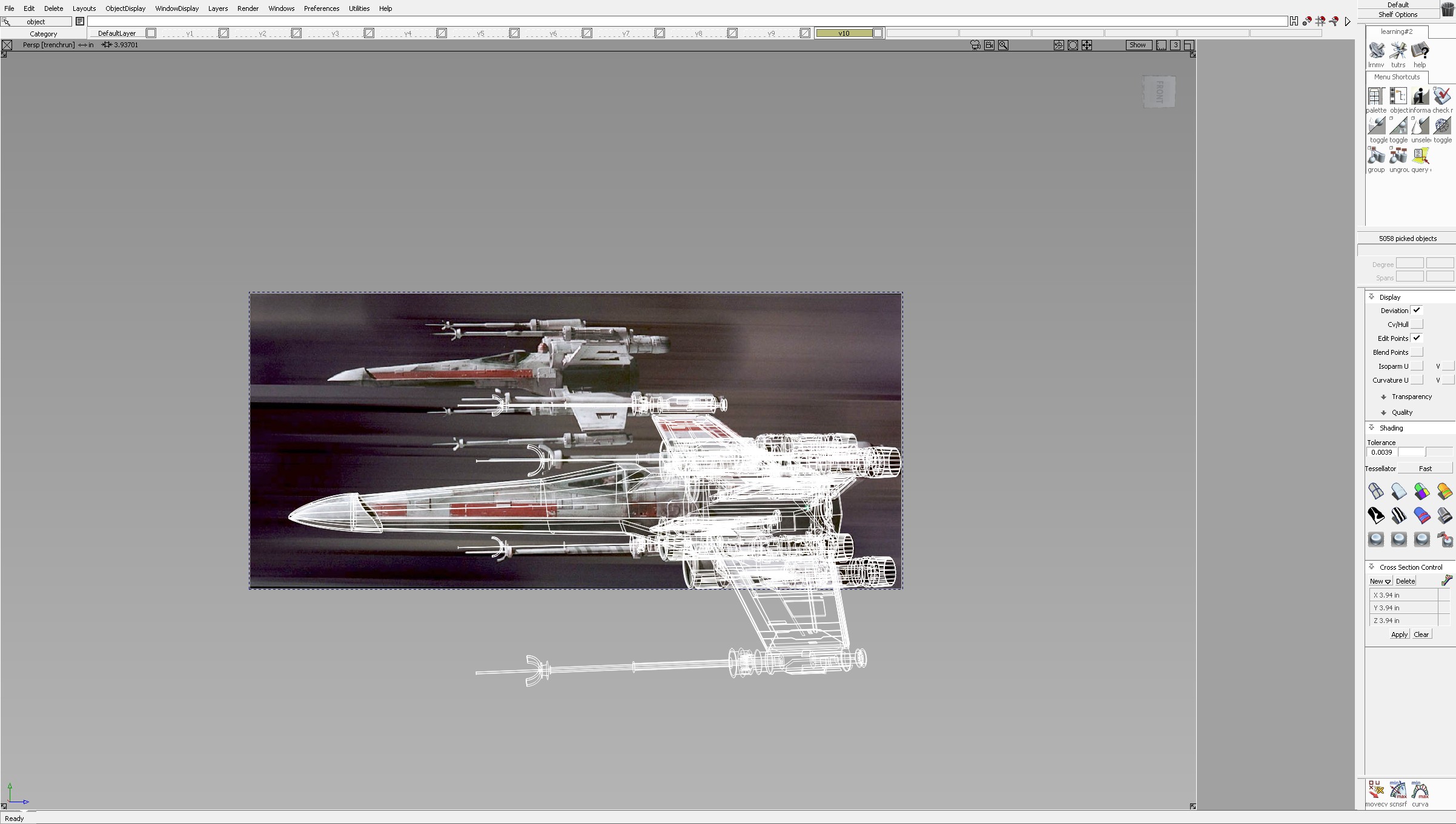

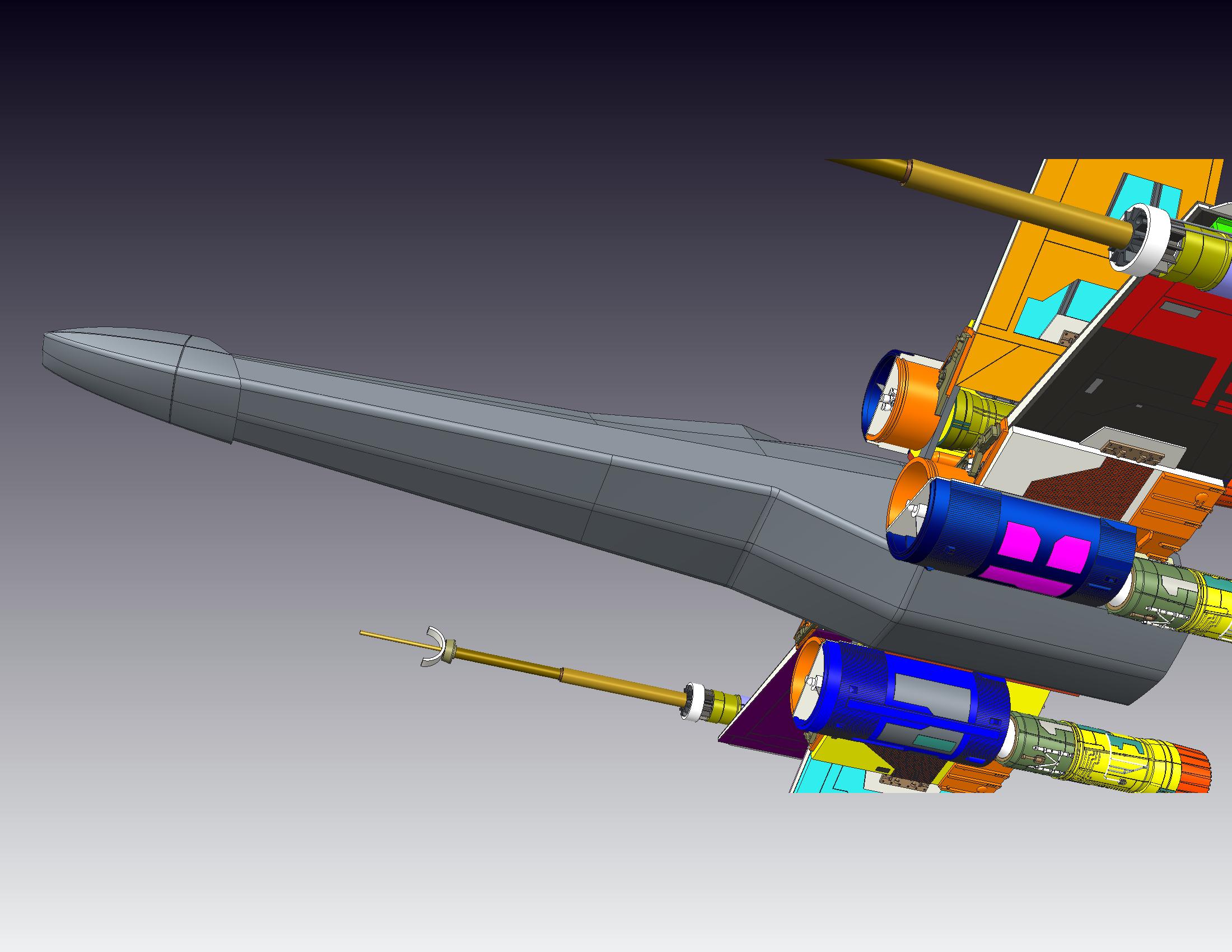

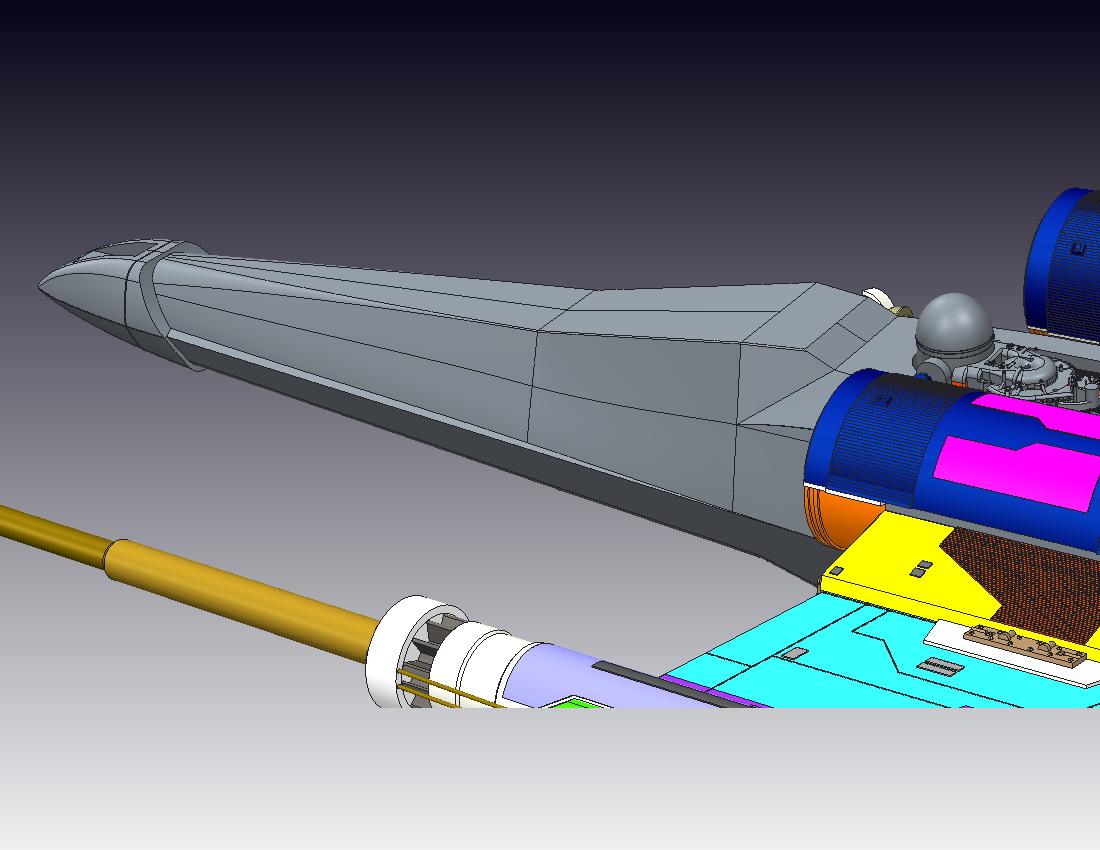

    The past two weeks I've been working on a complete re-work of the fuselage. It was originally a surface only model, now it's a parametric solid which is more robust and allows for easier tweaks. It also sets me up for detailing the final parts. During this process, I've been verifying and validating its shape and proportion through perspective matching of reference photos. I'm pretty happy with the result. I'm confident it's a good re-creation of the original Red 5 fuselage (minus the twisting and asymmetry I noticed in the original model). new-innerengine-arrangement.jpg buttplate_finished.jpg persp_match_trenchrun.jpg x-wing-final_assy.jpg fuse2.jpg

    greeble_gremlin likes this.
