Whats up guys,
So aside me painting star wars helmets and Boba fett stuff, im doing a model making degree that low and be-hold needs us to make a few models. So we have been given a brief of building a vehicle or architectural building from scratch, naturally I turned to star wars. And even though there are 100's of X wing threads on here, I had to choose it.
So we had a week to put together a presentation and create some 1:1 scale drawings to which we would either get the go ahead for our project or have to chose something else. So I spent 3 days reading up on the hero and pyro X-wing models which clearly was not enough time, and from what i found it would be nigh on impossible to create a true accurate X wing in the time I have (8 weeks), so I turned to the finemolds 1/48 model. I know its not accurate, but to me it looks like an x wing and thats good enough.
So I drew up some 1/24 scale blue prints but doubling every measurement on the FM kit, and also knocked up a very rough maquette just for a realisation of size,
With that done and a meeting with my tutor, I got the go ahead to build her. So I decided to start with droid strip. Now this isnt accurate, and I will be redrawing it on Rhino and 3D printing a better one. But this is my place holder for now, was also a good exercise in building small details in styrene.
With the droid strip I went to big at the start and had to squeeze everything in. So I will be redoing it, im pleased with how it came out and it will make a good piece to build around until I print my better version. So with that done, I ordered some polyurethane tooling foam to start work on the fuselage.
So using the blueprints I marked out my lines, both profile and top down, and ran it through the bandsaw, which left me with a rough X-wing shape;

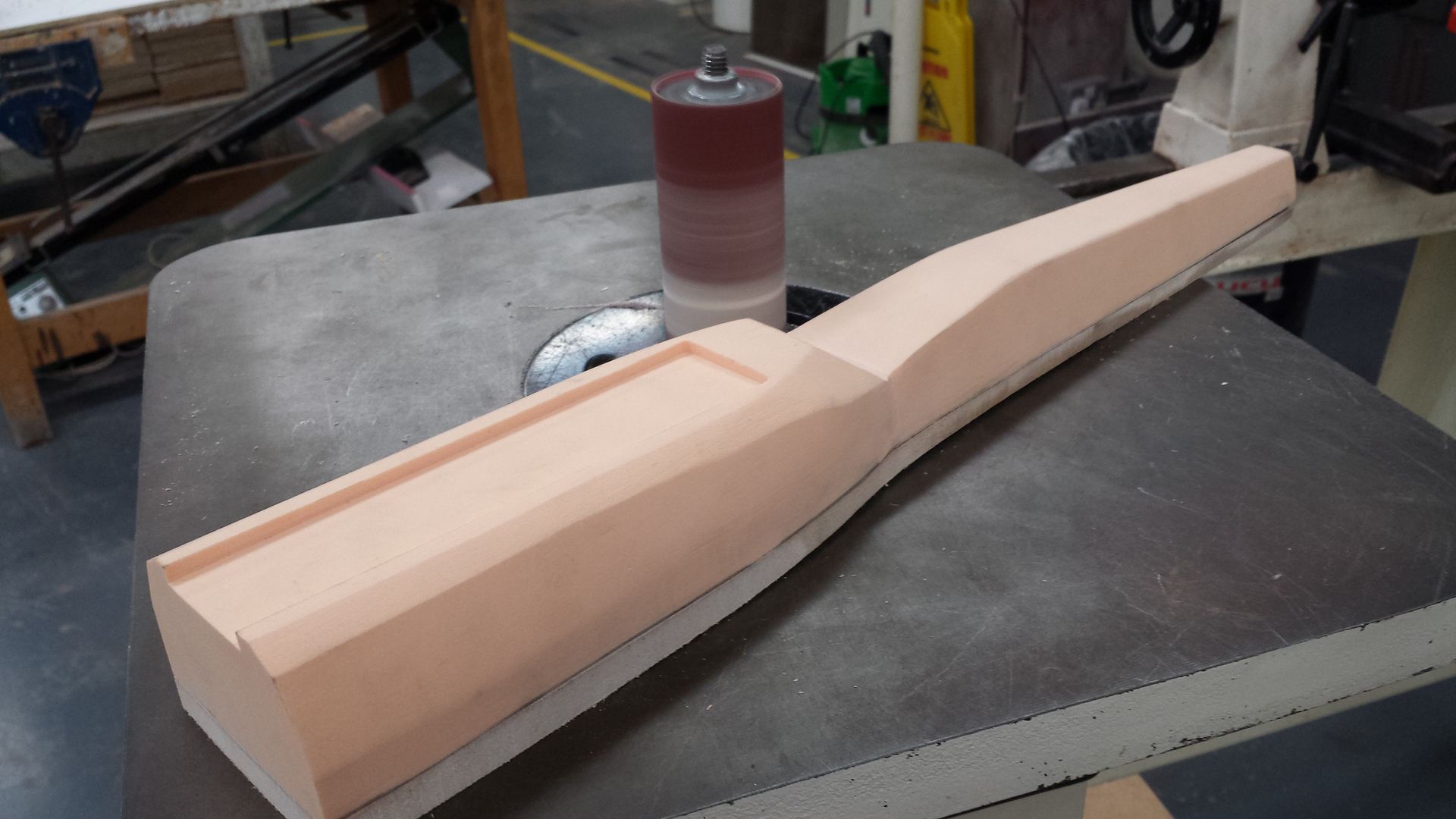

Then i spent the best part of 2 days drawing out all the bevels and angles and sanding them out with a sanding block. I first cut the fuselage in two, and once shaped, re joined them using pins and a bit or fast cast resin.
From those pictures, I also slimmed down the front more so as the bottom section creates a little overlap. I then had to cut out the droid strip section, which would need to be CNC'd. I should have done this before cutting, so I had to create a jig to be able to clamp it onto the milling bench.
A couple of screws and some MDF...
I then stuck it on the mill and started to mill out the strip;
...and then i was kicked out of our workshop for closing hours. So she's still clamped to the bed at this moment till the morning. I just need to straighten up the edge detail, then I can build a riser and get some vac pulls of the top half. Hoping to have a shell of both fuselage pieces and the canopy by the weekend.
Im pretty pleased with how its going, It not 100% accurate or to scale so that why ive put it in here, but as long as it looks like an X wing at the end of it I will be happy. Any pointers or tips any of you model veterans have I would be very grateful to here. Should have regular updates on this being that its my only Uni project, hopefully some vac pulls tomorrow.
Welsh
