The Keys Of Marinus

[nathanalaneller]

In the Doctor Who episode "The Keys Of Marinus" their a two pros I like to replicate. The 5 keys of Marinus with chain necklace, 6 including the fake key, & the time dial (AKA, time space manipulator).
Anyone have the DVD to this episode? I need a high quality pic of the circuit pattern on the key. This is the best I have at the moment.

With some extra pics of the dial.



[nathanalaneller]

Forget what I said about the screencaps, I found some.

I Cant quite make out what's in the tube part.



[nathanalaneller]

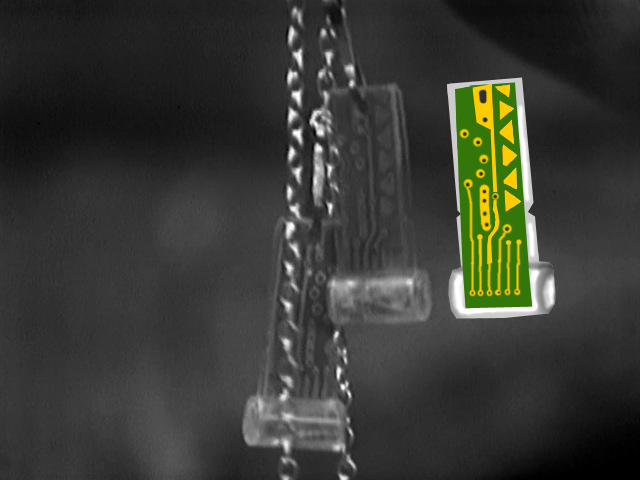

this is all I could make out on the circuit. I don't know what extra resistors or chips in the tube.



[13doctorwho]

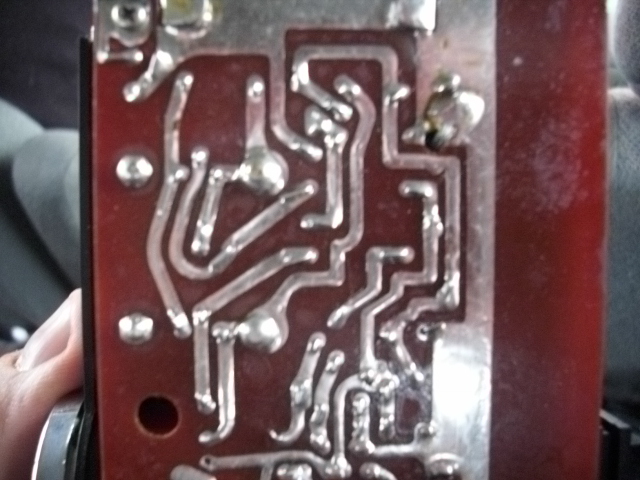

I would say you're pretty close on the circuit board. Keep in mind that circuit boards of that era were not green boards with gold plated connections. Boards out of older electronics are a tan color and the traces and connections are copper. They didn't coat the connections with gold till much later.



[nathanalaneller]

I would say you're pretty close on the circuit board. Keep in mind that circuit boards of that era were not green boards with gold plated connections. Boards out of older electronics are a tan color and the traces and connections are copper. They didn't coat the connections with gold till much later.

so, get a custom circuit board or make one via a kit, then color the board accordingly.



[13doctorwho]

Actually cheap boards are still made that way. When I get boards made by ExpressPCB they look like that if you order their low cost service. The green color comes from the solder mask. The best way to replicate this board would be copper tape on a piece of phenolic. Barring that you could paint styrene tan and put copper tape on that. Getting a board made would be costly and you would have to find someone to draw it up for you. I have made several custom boards for projects and it is not cheap.



[nathanalaneller]

Actually cheap boards are still made that way. When I get boards made by ExpressPCB they look like that if you order their low cost service. The green color comes from the solder mask. The best way to replicate this board would be copper tape on a piece of phenolic. Barring that you could paint styrene tan and put copper tape on that. Getting a board made would be costly and you would have to find someone to draw it up for you. I have made several custom boards for projects and it is not cheap.

Would their be a how to video or site I can look at? If you don't know any, maby you can point me in the right direction on what to search for.



[Angelus Lupus]

It looks to me like those designs might simply be scratched onto the clear plastic (perspex?) of the key, you can see where they're uneven and some parts aren't quite filled in. As for the cylinder part... If I strain my eyes and my imagination there might be a slot in the top that the rectangular part of the key fits in, then what looks like components inside would be the etched design distorted through the curved plastic.
(I could be wrong, if so I blame the number of painkillers I've taken for this toothache )

Edit: seems I was wrong: see below



[Angelus Lupus]

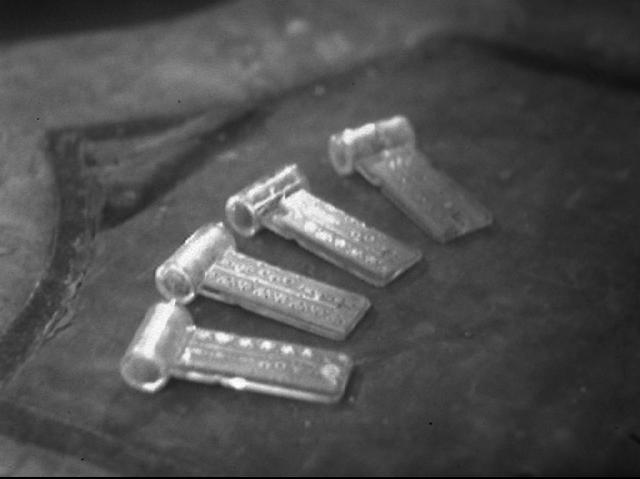

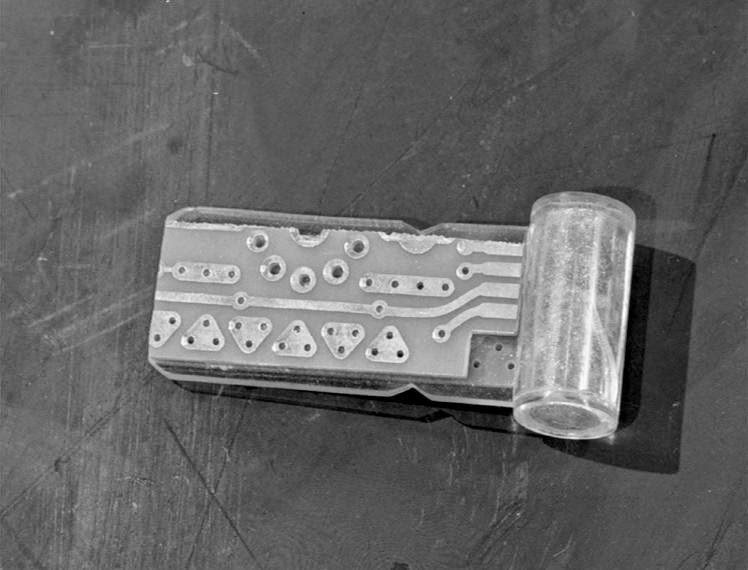

Ok, my google-fu turned up this, so I've deleted my original (wrong post) Enjoy!


And this one shows some variation in the keys, two with cut out corners (at least on the side we can see) and also which ones had holes for the neck-chain.



[13doctorwho]

ExpressPCB has free software for doing the artwork for printed circuit boards. I've used it a lot, but it's not intuitive. They may have some tutorials on their site. I am glad to see the post by Angelus Lupus. It's a great picture, I may make one myself!! That site is expresspcb.com.



[nathanalaneller]

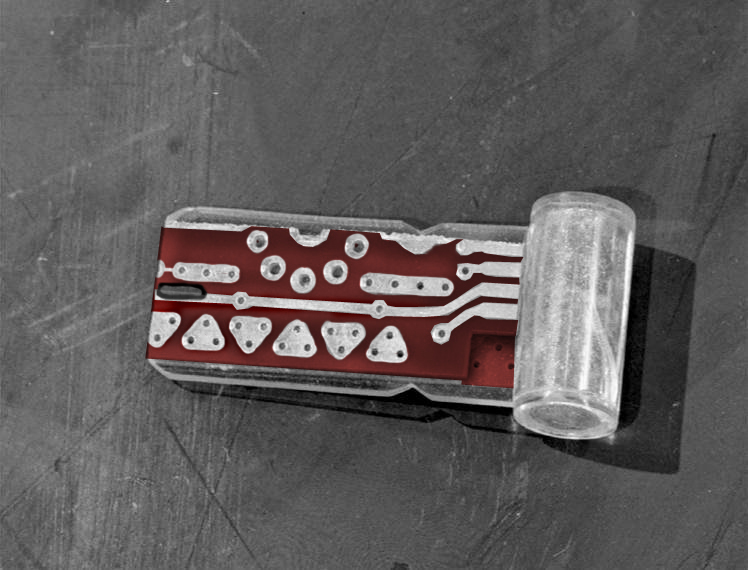

I made a photoshop of the clip hole placement & color for refrence.



[13doctorwho]

Looking at them I think they took a printed circuit board and cut it to fit. That's why the traces (the silver parts) go all the way to the edge and seem cutoff in some places. It's possible one large board was cut to make all of them and that's why they vary. Your photoshop looks good by the way.
