I dont think they can do it.

You have to change the pattern so they are able to do it.
You have to split the pants on those areas and add some so they can sew it.

And as i see it to be able to do so, you have to change the pattern alot.

Seperate the top from the pants. Then add area on the top and pants to sew them together later. And then split the pants on that area and add some to they can install te zippers there.


Sent from my iPhone using Tapatalk
You meann like this


Oh ^^ seems not to be as stressful to do as i thought. Wasnt sure if u can cut in all visible layers at once :)

Its a good idea. Less stressful as i would have done it. Lol

I think that shozld work. She could cut out the crotch of the suit and leave some to install the zipper and then use the extra crotch.

I think that works :)

But yes. U should talk with the seamstress about it :)




Sent from my iPhone using Tapatalk

Anybody printed a pair of soles yet, and then cast them in a "flexible" material? I am need of a pair size 11.5 or 12 US..

thanks so much for this work you have done Kenlandrum.

over the course of a few days i read through all of the pages and i think i may have found a 3d print solution for some people besides shapeways. there is a site called 3dhubs.com and its for local 3d printers in whatever area you live in. it seems like a company that started in Amsterdam, so im assuming it will help out people in Europe too. Anyways when i first tried to open the website it didnt work, so then i went to 3D Printing Trends | Top Printers, Materials & Manufacturers | 3D Hubs and that opened a different part of their site that worked fine and from their i just navigated back to the front page. hope that helps some of you out there. :)

Edit:mad:Kenlandrum i was checking out your website earlier today and just wanted to let you know when i click on any of the free files for ASM a page pops up that says the "file doesnt exist". im not sure if its my end, but i am using Firefox just help troubleshoot in case anyone else is having the same problems.

Last edited:
Hey I'm the new kid here, but can I literally take the updated file that you made (Revised 5-27-14 (reorganized pattern to fit "Fabric on Demand's" max width for Lycra of 58"- Also slightly more saturated colors to improve final print. All in CMYK and ready to upload.
jpg File:
https://drive.google.com/file/d/0B_sNvgA37t6qZjlaN3VrdGdBbUU/edit?usp=sharing) and just print it from FoD? I'm not too familiar with photoshop and all this CMYK file stuff you guys are talking about lol. I just want to print a costume.

This thread is for anyone interested in putting together an Amazing Spider-man 2 suit or display.
I'm really liking the ASM2 suite, and since I have the basics already, well here we go.

Some things you can find here are links to:

--Sizable .psd file for Amazing Spider-man 2--
It will be available in layers, 3d webs, muscle shading, colors, bricks, etc, so you may edit it how you like and send it to print! (always splurge for that sample print first!)


*NOTE:If you decide to take the pattern, call it your own, alter it to a newer outfit, post it on eBay, whatever, do as you please.
I just hope that it mainly gets into the hands of the folks on this board!

Disclaimer: I have not printed this pattern for myself nor have I had a test swatch printed yet. When I do this, if the colors, sizing or web alignment need adjustment, I will upload a revised file. Until then, you are on your own.

--3D CAD or 3D Print files for all of the webbing/spiders--
The idea is to use this file to print and cast or Mill and cast. The web file is being sized to precisely fit the color pattern file, so what ever you do to one, just do it to the other! * It is up to you to re-size the spider files.

--3D Print files for face shell and snap in eyes--
Once again, you will be able to print and/or cast these.

Anyway, here's what I have so far...
-K
-----------------------------------------------------------------

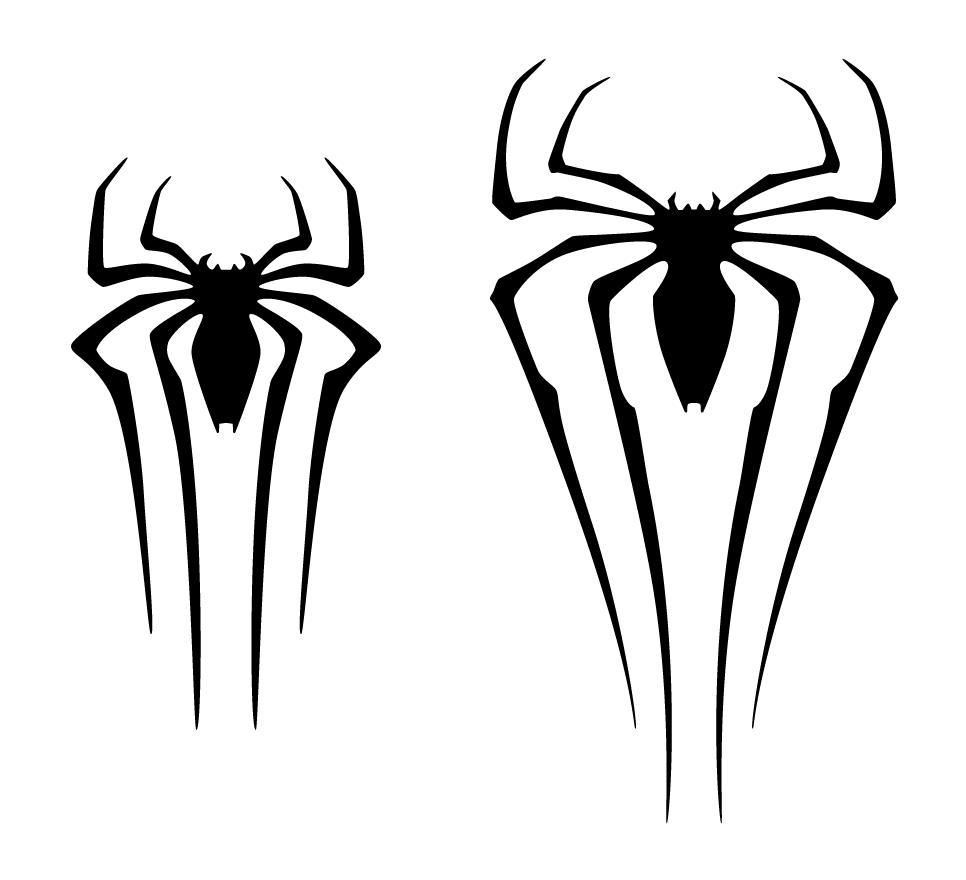

Spider Files
View attachment 304208

https://drive.google.com/file/d/0B_sNvgA37t6qQ3VsUXNJS3RyTWM/edit?usp=sharing

-------
Both spiders extruded and beveled slightly. In .stl format only.
https://drive.google.com/file/d/0B_sNvgA37t6qMEdfQkE0SzhyZ2c/edit?usp=sharing

-----------------------------------------------------------------

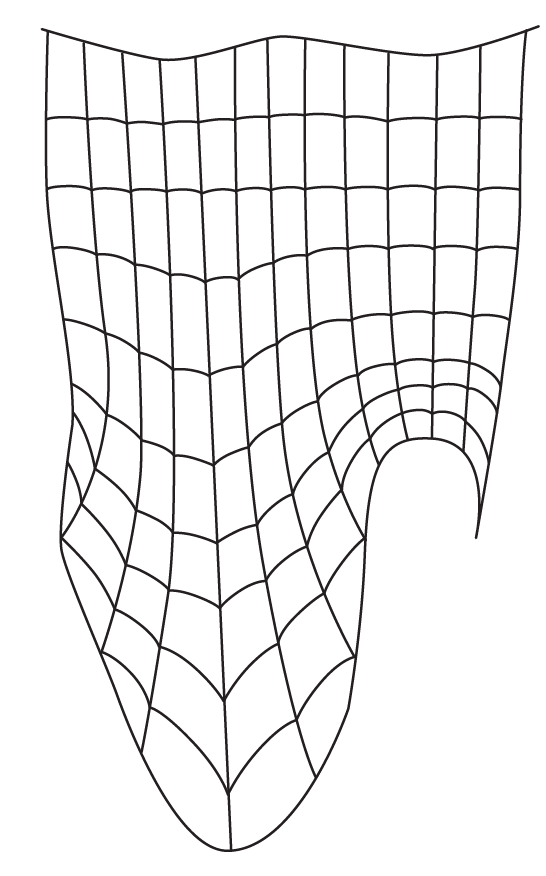

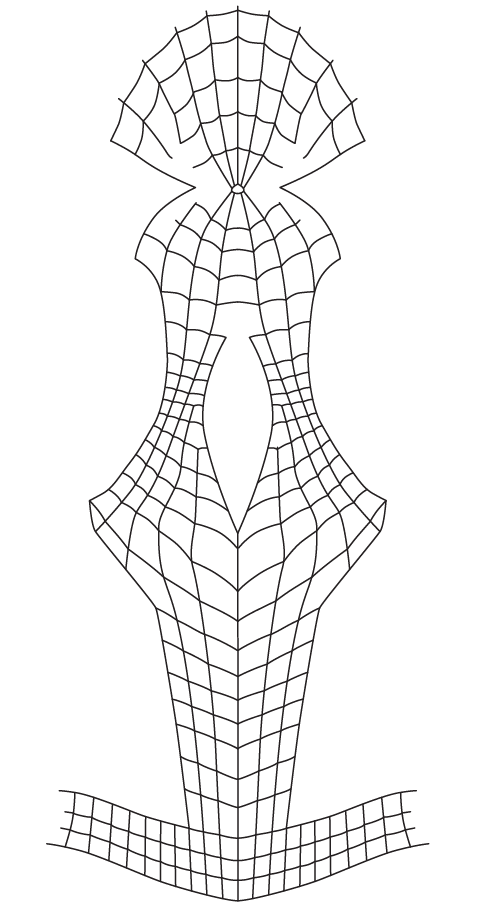

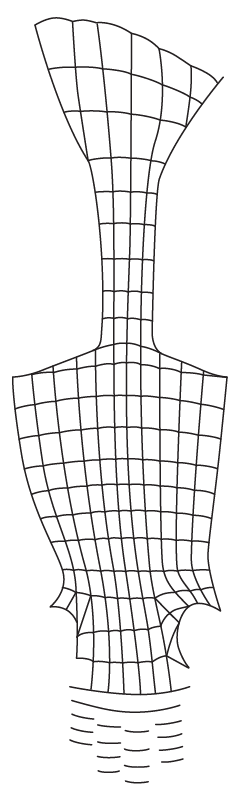

Webbing Files (
Revised 4-17-14)Zipped file for all of the web vectors.
View attachment 304580View attachment 304210View attachment 304211
https://drive.google.com/file/d/0B_sNvgA37t6qZXE0bk13eXlPWXM/edit?usp=sharing
-----------------------------------------------------------------


If you decide to print any of my files through "fabricondemand.com" it would be appreciated if you use the following link when purchasing your print! THANKS.
Custom Printed Lycra Superhero Costumes

View attachment 330704
Revised 5-27-14 (reorganized pattern to fit "Fabric on Demand's" max width for Lycra of 58"- Also slightly more saturated colors to improve final print. All in CMYK and ready to upload.
jpg File:
https://drive.google.com/file/d/0B_sNvgA37t6qZjlaN3VrdGdBbUU/edit?usp=sharing
--
Revised 5-03-14 (no muscle shading (though still on an unactive layer), darker blues, cut lines on lightly and converted to CMYK)
jpg File:
https://drive.google.com/file/d/0B_sNvgA37t6qWHFZQ2tod3liN2M/edit?usp=sharing

psd File:
https://drive.google.com/file/d/0B_sNvgA37t6qSTIwZWxzOHJac0U/edit?usp=sharing
--------
jpg for Mask ONLY file (CMYK):
https://drive.google.com/file/d/0B_sNvgA37t6qRnc3bDBiTXZmNUE/edit?usp=sharing

View attachment 321090


---------
jpg for Boots ONLY file (CMYK):
https://drive.google.com/file/d/0B_sNvgA37t6qU19ONnZqM0F0NnM/edit?usp=sharing
View attachment 327691
----------
jpg for Pants ONLY file (CMYK):
https://drive.google.com/file/d/0B_sNvgA37t6qZXdzaFJRdko3N28/edit?usp=sharing
View attachment 327751
---------------------------------
Bricks ONLY:
https://drive.google.com/file/d/0B_sNvgA37t6qTU1nendnazZpd3c/edit?usp=sharing

Disclaimer: I have not printed this pattern for myself nor have I had a test swatch printed yet. When I do this, if the colors, sizing or web alignment need adjustment, I will upload a revised file. Until then, you are on your own.

**ALSO: DO NOT SEND full .psd files to places like "FABRIC ON DEMAND"!
The layered psd is for individuals to edit the work in any way they see fit. When submitting to "fabric on demand" please only send a flattened jpg version of the file in cmyk. The psd files are way too large for them and it might cost the customer more $$ because if this.

Regarding Sizing the Suit... check the link below... toward the end of the page.
http://www.therpf.com/f78/spider-man...65/index2.html





Thank you.


-----------------------------------------------------------------

HAVE AN ISSUE WITH THE SIZE OF THE MODELS I HAVE HERE??
OK. I will explain how to remedy the situation... Last post on this page.
http://www.therpf.com/f78/amazing-spider-man-2-3d-print-files-pattern-free-208912/index34.html


3D Print Ready Shoe Sole Files
3D Shoe Soles - print ready .obj & .stl formats
View attachment 304231
Sole OBJ:
https://drive.google.com/file/d/0B_sNvgA37t6qTlhEb3RaMEhjdW8/edit?usp=sharing
---
Sole STL:
https://drive.google.com/file/d/0B_sNvgA37t6qMGt2amdPak83Q2c/edit?usp=sharing

-----------------------------------------------------------------

3D Print Finger Pads-Web Shooter Button
3D Finger Pads - print ready .obj & .stl formats


View attachment 304346
Finger Pad OBJ:
https://drive.google.com/file/d/0B_sNvgA37t6qWV9KaXNaWnpLc28/edit?usp=sharing
---
Finger Pad STL:
https://drive.google.com/file/d/0B_sNvgA37t6qWThwbGZFZE1YMlE/edit?usp=sharing
---------------------------------------------------------

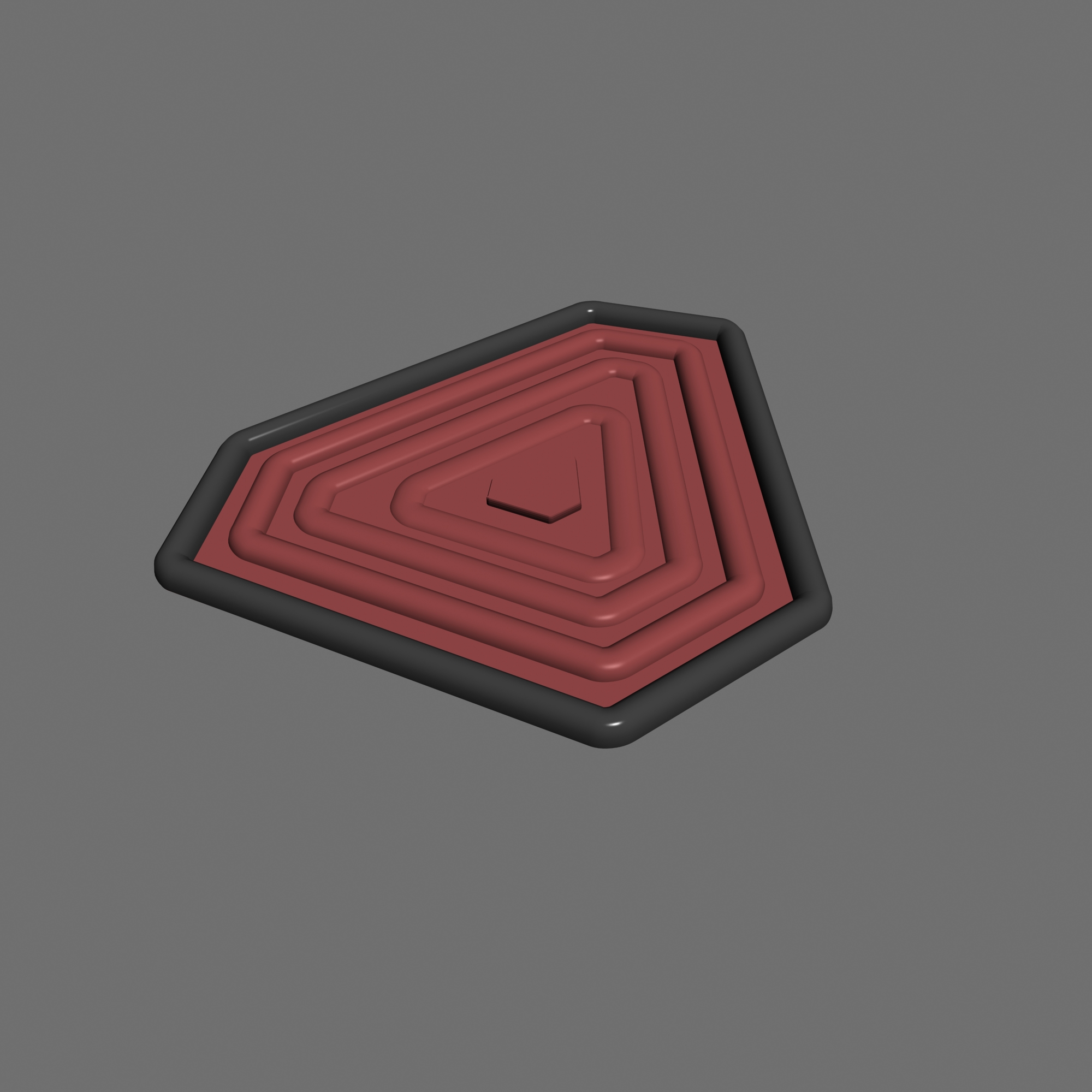

View attachment 304379
Web-Shooter Button OBJ:
https://drive.google.com/file/d/0B_sNvgA37t6qM0Vpd2VSZXI3TWM/edit?usp=sharing
---
Web-Shooter Button STL:
https://drive.google.com/file/d/0B_sNvgA37t6qVVNUM0ZmR29CelE/edit?usp=sharing

-----------------------------------------------------------------

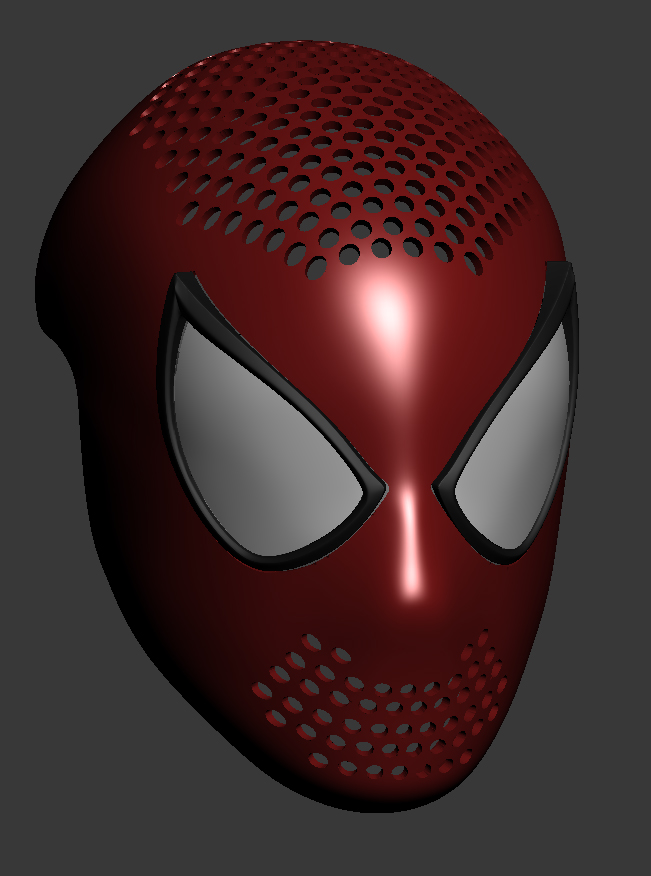

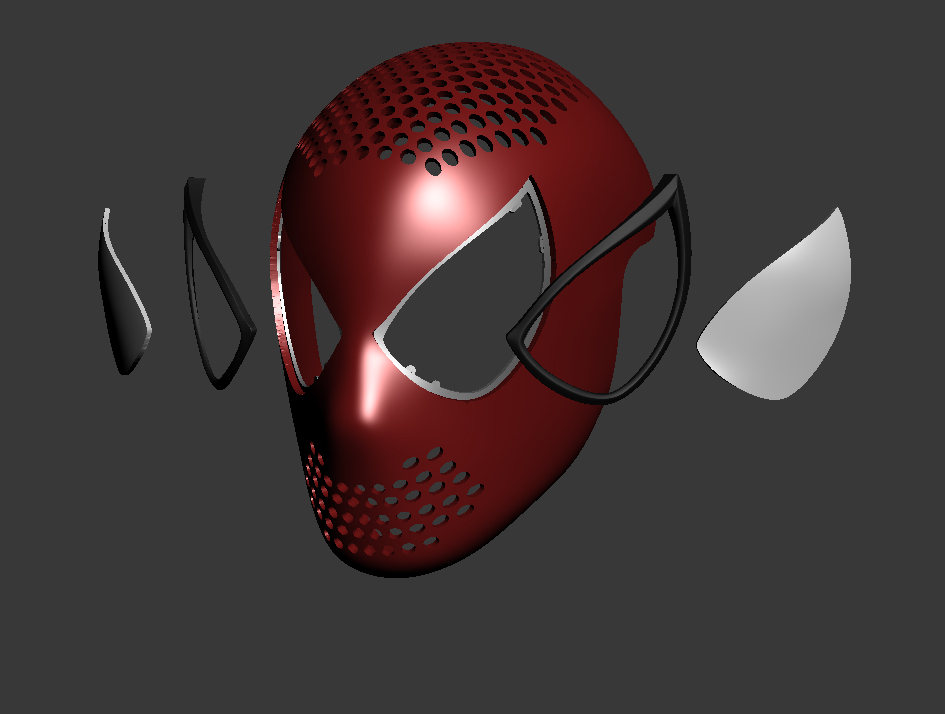

3D Print Ready Lens Files
3D Lens Frames - print ready .obj & .stl formats

View attachment 309986View attachment 309995
View attachment 313391

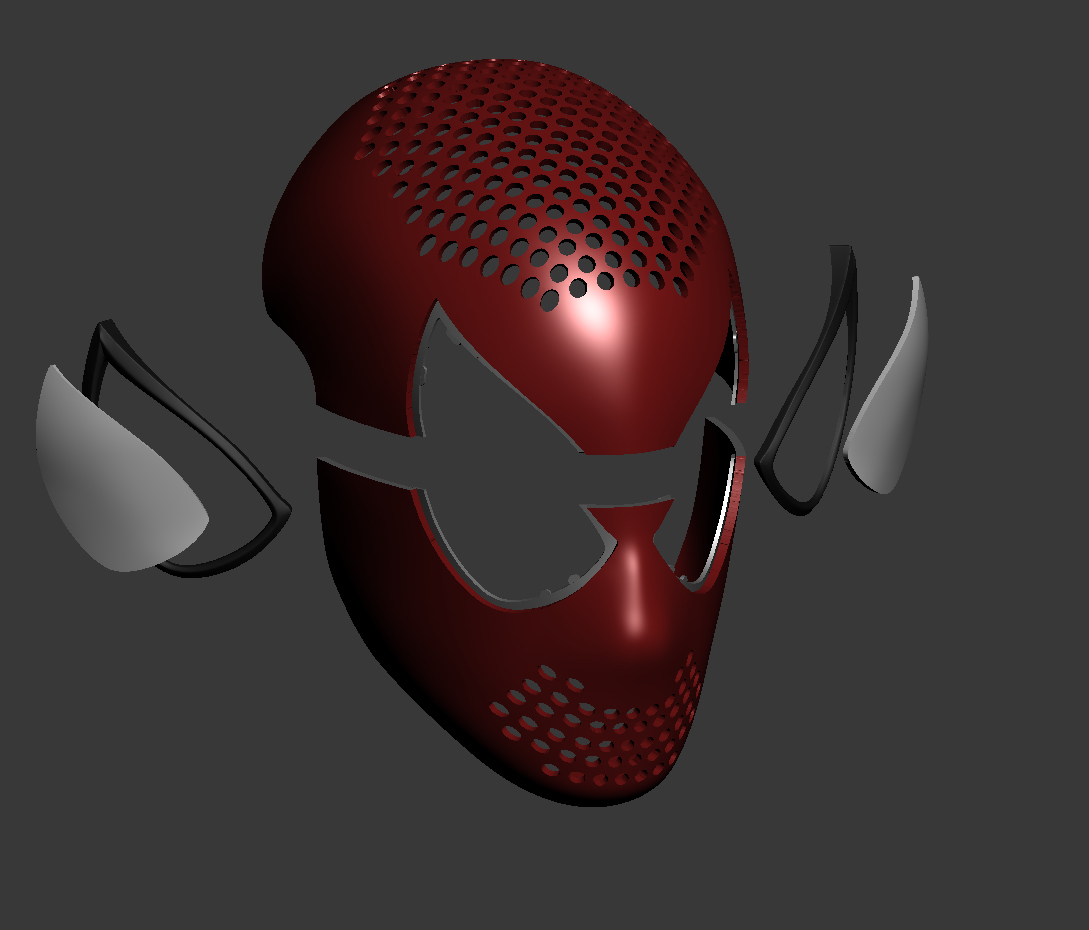

Face shell, eye frames and lenses all in one file in both .obj & .stl formats.
https://drive.google.com/file/d/0B_sNvgA37t6qR2poQ0ZTRFF0VnM/edit?usp=sharing

This file contains the Face Shell only. It has been split in two for easier printing. Same size as shell file above.
https://drive.google.com/file/d/0B_sNvgA37t6qQ0NuQ0dwTUtpSUE/edit?usp=sharing

----------------
View attachment 333532

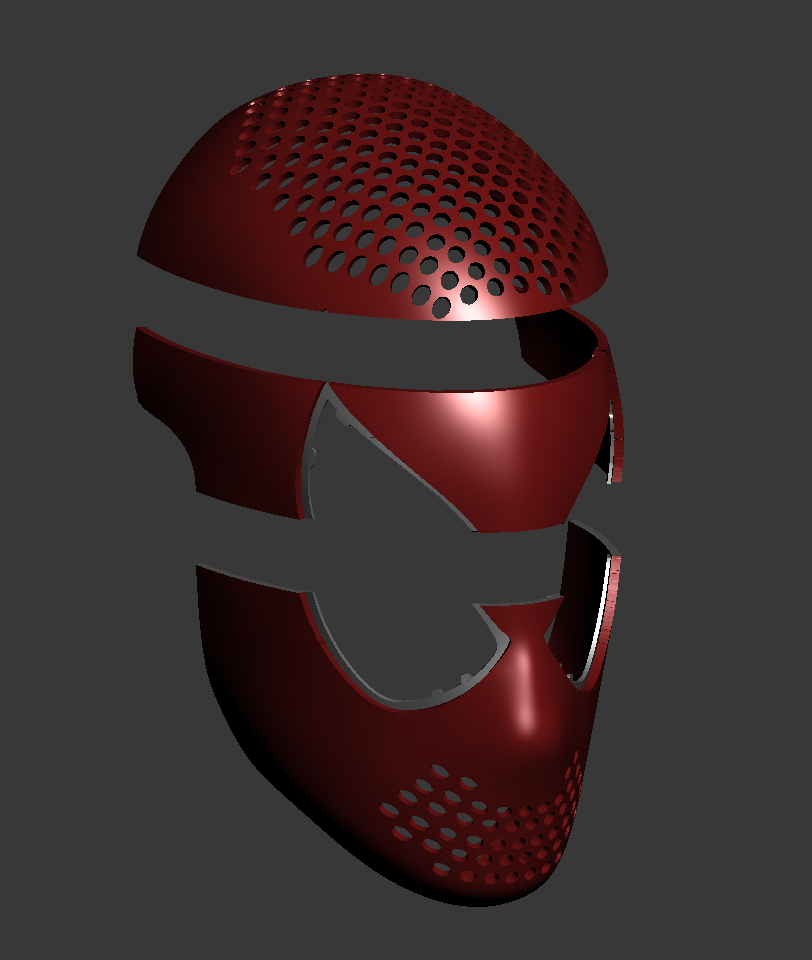

This file contains the Face Shell only. It has been split in three parts for easier printing. Same size as shell file above.
https://drive.google.com/file/d/0B_sNvgA37t6qbVh6TDdMeHhRQms/edit?usp=sharing

(This master file is sized to 28.3 cm from chin to top of head which is probably a little large for most so RE-SIZE ACCORDINGLY!)


--------------------------

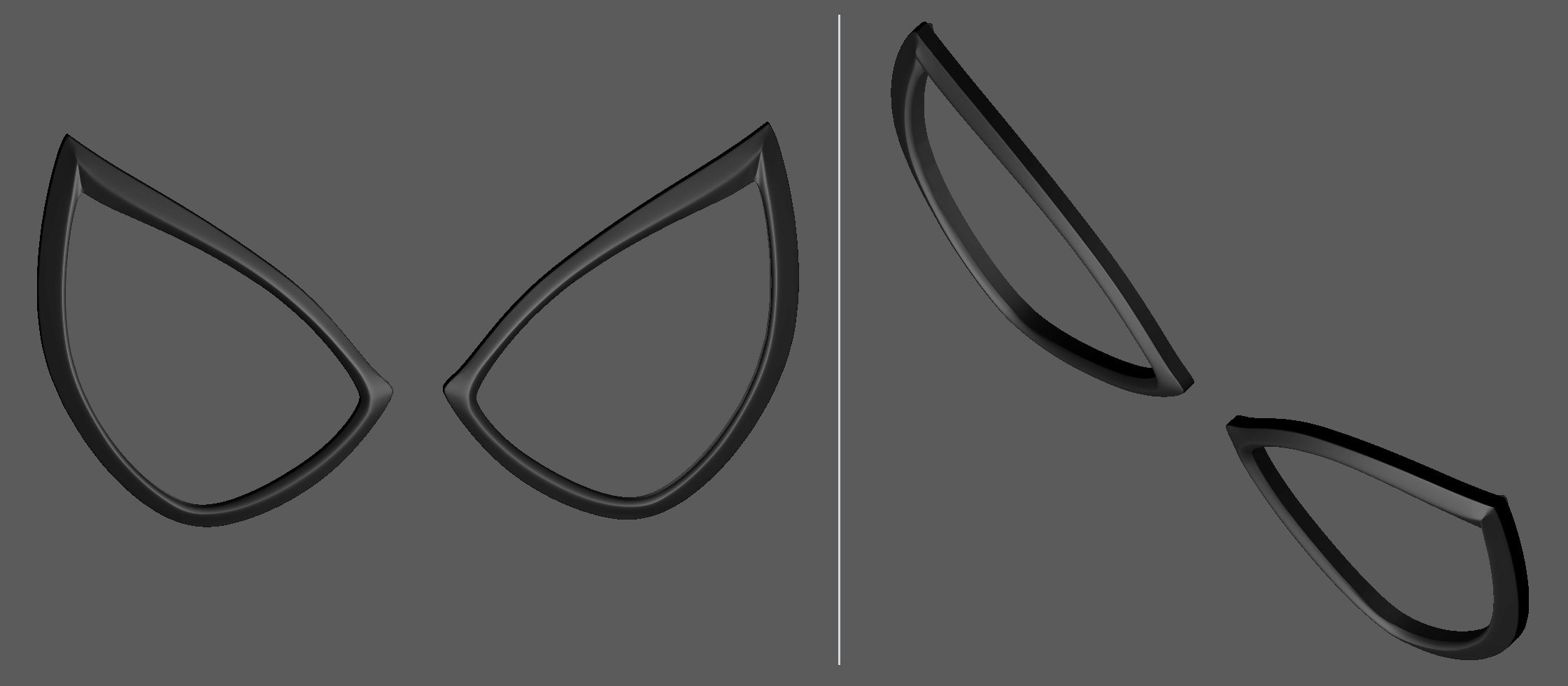

Flat frames only posted 5-30-14
View attachment 332044
Flat frames file. .Stl only. Re-size accordingly.
https://drive.google.com/file/d/0B_sNvgA37t6qRDN6UFRvZlZ5NXM/edit?usp=sharing

-----------------------------------------------------------------

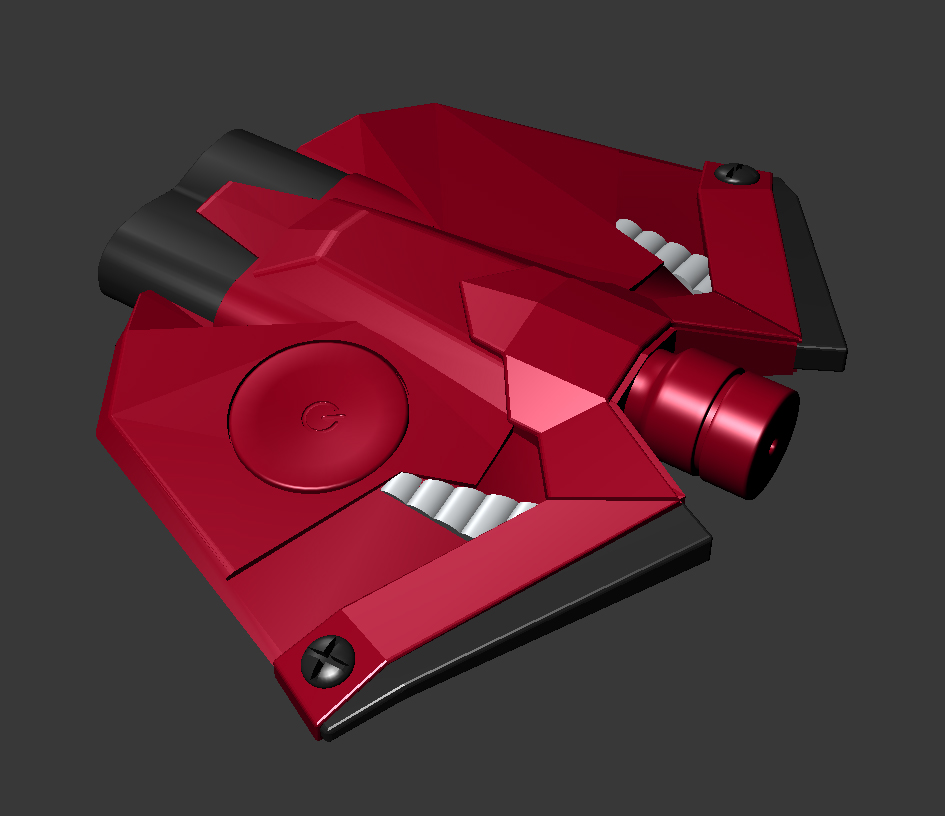

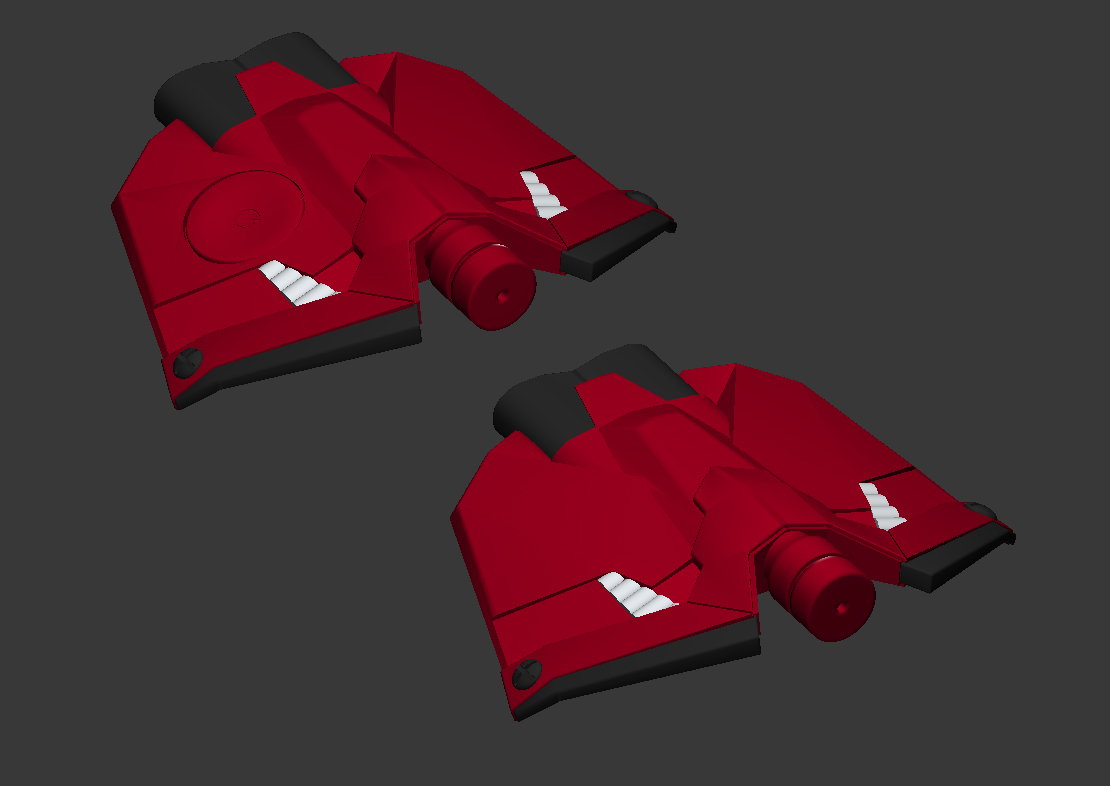

3D Print Web-Shooter Files (Revised 4-18-14)
3D Web-Shooters - print ready .stl format.

View attachment 312234View attachment 313389

https://drive.google.com/file/d/0B_sNvgA37t6qd1ZtbXhTeV8wQUU/edit?usp=sharing

-------

Here is the 3dsMax File of the final shooters:
https://drive.google.com/file/d/0B_sNvgA37t6qUGZYNldta0JzU0k/edit?usp=sharing

Hi ken, can you make the pattern have a place can install zipper at arm just like in movie
So that i can put my webshooter at my arms

Huh, I forgot all about those. No one has asked until now. I guess because unlike the beveled webs on the raimi suit, these look to be done with puff paint or something of the sort.
I'll look into these when I get some time.
thanks for the reminder!

Hi
Did you figure it out? I think it's black with a thin layer of shiny and reflective puff paint (shiny clear puff paint???)
