    Costume is complete as of October 2013. I can now begin the thread with some pictures of the finished build! Keep reading for all the juicy details though :)
    20140202_Gary Sterley_Space Marine (1).jpg 20140202_Gary Sterley_Space Marine (2).jpg







    I'm back! It's been a while since my last project. I am glad to say I finnally found my next build. I have decided to build myself a Warhammer 40k Space Marine :D


    Inspiration hit me the other day and I have been obsessing ever since. I've been scouring the internet for advice and resources. I found some FANTASTIC builds. Two in particular stood out and I will be using them as guides for my own build. I am building in EVA foam and am going BIG. Around 7 feet tall big.

    My guides will be the two following builds:
    Henrik Pilerud's fanmade Blood Angel Space Marine
    [​IMG]
    ---and---
    Hasenbrau's Ultramarine
    [​IMG]

    Both are fantastic. Updates incoming. I will keep you posted!

    Last edited: Feb 3, 2014
  2. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
    Re: Sylgian's 40K Space Marine [WIP]

    My first shipment of EVA foam has been ordered and is on the way. It was a good chunk of change so I am financially committed now, lol. I budgeted for about $2000 and I will be actively keeping track of expenditures this time around. I'll let you exactly how bad I blow the budget.

    I'm starting at the bottom and working my way up. That means boots first. Since the foam isn't here, and I am not naturally 7 feet tall. I will be building stilts to boost my height.

    I have been actively working on the proper scale to use for my pep templates and I have decided on 935. Its big, heres the footptint.
    [​IMG]
    Heres the plan for the stilts. They will primarily 3/4" PVC.
    [​IMG]
    I took some time tonight and designed and began 3D printing some brackets for the PVC pipes. (the wife got me a 3D printer for Christmas. LOVE her, and also love finding uses for it :love)
    [​IMG]
    These little brackets will hold my vertical stilt posts to the base. Why dont they make these? Oh well, PRINT EM.
    [​IMG]
    [​IMG]
    There are a few more items I need from the hardware store before my stilts can come together. More progress tomorrow.

    Last edited: Mar 18, 2013
  3. Darth Serberus

    Darth Serberus Active Member

    Trophy Points:
    341
    Re: Sylgian's 40K Space Marine [WIP]

    This is going to be an epic build!
    Who's a lucky boy getting a 3d printer? I'm dead jealous! Lol
    I'm subscribing!!

  4. DarkJester

    DarkJester Well-Known Member

    Trophy Points:
    566
    Re: Sylgian's 40K Space Marine [WIP]

    looking forward to seeing this come together, jealous of your 3d printer, but excited to see another of the space marine coming to life

  5. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
    Re: Sylgian's 40K Space Marine [WIP]

    Given I have little to do other than optimize pep patterns for foam or build stilts... today I built stilts. Most of them anyhow.

    I rethought my design based on some prototypes my friend and I built the other day. Below is the version 2. Scratch that, Mark II,. That sounds cooler. Thank you Iron Man.
    [​IMG]

    After a fun trip to the hardware store, and Harbor Freight. I had a pile of crap, a plan and a blown daily budget thanks to the tool store.
    [​IMG]
    Print and cut out template for the foot
    [​IMG]

    [​IMG]

    [​IMG]

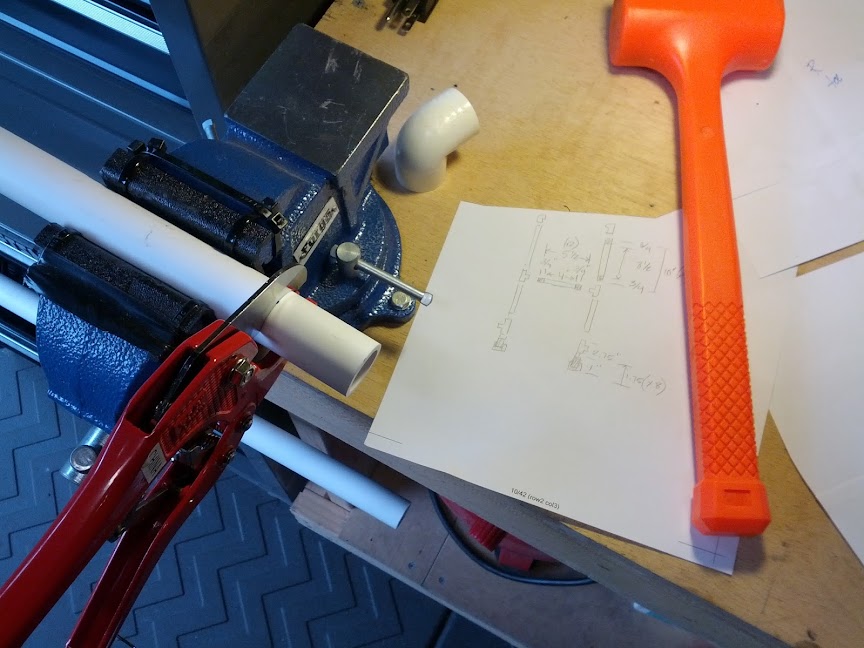

    MEASURE STUFF. Then cut and start assembling some PVC.
    [​IMG]
    Test fitting it up as I go.
    [​IMG]

    And BOOM. Stilts. Mostly done. Still need a base for my shoe, but you get the idea.
    [​IMG]
    [​IMG]
    [​IMG]

    I took 1" off the outside edge of the footprint. My logic is that more wood equals more weight. The footprint is plenty wide and stable as I have it. I will fill the gaps with a ring or two of extra foam when I make the boot.


    Attached Files:

    Last edited: Apr 19, 2013
  6. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
    Re: Sylgian's 40K Space Marine [WIP]

    Made a little progress today. My first order of foam is on its way. I was trying to find EVA foam, but ended up going with this Cross-Linked Polyethylene instead.

    [​IMG]

    From what I gather its very similar to EVA and sold under the brand name minicel around here. Correct me if I'm wrong. I believe xrobots used something like this in his iron man build. Just in case I only ordered $100 worth. If it fails me I wont be breaking the bank.

    On the construction front. Here is my stilt progress!

    Cut out the foot pads
    [​IMG]

    Secure the with conduit clamps and bolts
    [​IMG]

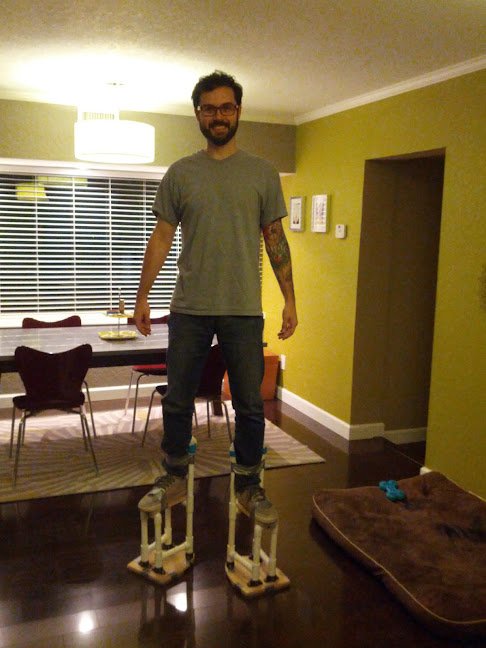

    Look like stilts
    [​IMG]

    duct taped them to my feet to test.
    [​IMG]

    I will need further tests with the leg strap in place around my calf. They are functional, but I think I'd feel better with them secured to my calf in addition to the foot strap. They were seriously wonky on grass, given the uneven terrain. Kind of scary even.

    Last edited: Apr 19, 2013
    OuterHeavenBoss likes this.
  7. msleeper

    msleeper Sr Member

    Trophy Points:
    1,355
    Re: Sylgian's 40K Space Marine [WIP]

    I am super excited to see this build progress, but please don't break your ankle or something with those stilts!

  8. MrBackpack

    MrBackpack Member

    Trophy Points:
    191
    Re: Sylgian's 40K Space Marine [WIP]

    could I buy some of those brackets for my own Space Marine build?

  9. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
    Re: Sylgian's 40K Space Marine [WIP]

    After last nights testing I think I will be making tweaks and building a Mark III version of the stilts. These will have the same material directly under my heel, but will flex directly under my toes. I think it will offer much better mobility and hopefully better stability on uneven ground.

    I am sketching designs right now. Hopefully I can work on that tonight.


    It is possible, but they take a ridiculously long time to print with 100% infill (12+ hours). The material is cheap, but the time is very valuable to me. If I were to sell them I fear I would have to price them unreasonably high considering how long they would occupy my printer.

    I wager you could find hardware solutions that would work equally well for considerably less.

    Last edited: Mar 20, 2013
  10. drknotter

    drknotter Active Member

    Trophy Points:
    341
    Re: Sylgian's 40K Space Marine [WIP]

    I'm sure you've already checked him out, but in case you haven't, user thorssoli did a build of a Warhammer 40K Space Marine here. I realize that you'll be going a different route by doing a foam build, but there might still be some useful stuff in there.

    Looking forward to your build! :)

  11. msleeper

    msleeper Sr Member

    Trophy Points:
    1,355
    Re: Sylgian's 40K Space Marine [WIP]

    Yeah speaking of thorssoli's build, have you considered using drywall stilts Sylgian? I'd have to re-read his thread but I think that's what he used. I can understand being budget conscience but if safety is a factor you may not want to try and reinvent the wheel.

  12. Benedictus

    Benedictus New Member

    Trophy Points:
    17
    Re: Sylgian's 40K Space Marine [WIP]

    Wow! To make a suit of Space Marine Armor is a childhood dream and wish you the best on the build! I look forward to your further posts!

  13. MrBackpack

    MrBackpack Member

    Trophy Points:
    191
    Re: Sylgian's 40K Space Marine [WIP]

    ah, that I understand.

    To the hardware store!

  14. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
    Re: Sylgian's 40K Space Marine [WIP]

    SUPER inspired by him. I know of the build, but didn't reference it only because the medium he used was different. He's amazing.

    Very True. I did consider proper drywall stilts, but decided against it for a few reasons. Cost was certainly one reason. My PVC contraptions cost me around $40. The real deal stilts were around $75 and some shipping.

    Secondly, the cheaper stilts I found were a minimum of 18" tall. My math says I should need around a 10" stilt for the scale I am using. I left mine tall for now, around 12" just in case.

    And lastly, I just cant help but want to put something together :$



    On a related note. I tested a Mark III stilt this afternoon. It involved a flexible foam base on the bottom of the stilt directly below the front half of my foot. Sadly, I did not find it beneficial. I will be keeping the Mark II, but experimenting was fun.

    The left drawing is what I attempted.
    [​IMG]

    During this testing I found that adding strapping around my calves helped quite a bit. I no longer felt I was in mortal peril when the stilts were fastened to both my foot and calf.

    Last edited: Apr 19, 2013
  15. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
    Re: Sylgian's 40K Space Marine [WIP]

    Based on my rough math, I took a moment and made a quick size diagram. The man is ~6' tall. The final Space Marine should be ~7'. The proportion of the model is a bit off. But this should be pretty close to accurate regarding height.

    [​IMG]

    Last edited: Apr 19, 2013
  16. MrBackpack

    MrBackpack Member

    Trophy Points:
    191
    Re: Sylgian's 40K Space Marine [WIP]

    do you plan on having fully articulated hands?

  17. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
    Re: Sylgian's 40K Space Marine [WIP]

    I'm still not entirely sure. In my mind I have three options. First, just wear some hockey gloves and let the arms look a bit short. Second, Non articulated hands that are attached to the forearm section, so the arms are the correct length. And third, I could assemble a hand that could have articulated fingers, operated from the forearm section.

    With the aid of some 3D printing, the 3rd option is possible. But it would certainly be time consuming.

    As of now, whats most likely to happen is option 2. Possibly morph that into an option 3 afterword. The articulated fingers would be a project unto themselves, so I don't want to tackle that along side the suit.

  18. r1racing

    r1racing Member

    Trophy Points:
    191
    Re: Sylgian's 40K Space Marine [WIP]

    hi!
    I am making my own armor, .. and I think its not a good idea startings with the stilts... you dont know how high you must go in order to keep your knees on place until you make almost the full armor..
    I started on chest, then arms, then cod, then legs... and I am working right now on foots, and NOW I see I need a 20cm stilts to make it look ok..
    by the way, its a very good work, of course... Please , keep updated..
    regards!

  19. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
    Re: Sylgian's 40K Space Marine [WIP]

    I totally agree with you. But luckily I had the same thought. My stilts are not cemented together yet, and I made them intentionally tall. Because they aren't yet cemented, I can still pop them apart and adjust the height as needed. They stand at 12" as they are.

    I am just antsy waiting for my foam so I jumped the gun on the stilts. Any excuse to build stuff is a good one.

    Dont mind the duct tape. I'll be working on the rigging this weekend.

    [​IMG]

    Last edited: Apr 19, 2013
  20. CJGrimm

    CJGrimm New Member

    Trophy Points:
    16
  21. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
    Re: Sylgian's 40K Space Marine [WIP]

    I am having a VERY hard time picking which chapter I want my costume to be. I would like to do a prolific chapter, but doing something outside of what contemporaries have done is also very appealing. I fear being derivative with so many options available.

    I have a few favorites (in no particular order):
    1. Space Wolves are neat. I love the color scheme, but I HATE all the fur and animal skull crap. It looks very barbarian. I guess I could ignore it?
    [​IMG]
    2. Dark Angels I like, but the monastic culture isn't really my speed and thorssoli did this chapter recently.
    [​IMG]
    3. Blood Angels look great and I like their lore, but you can see Henrick's amazing version in my first post. If I were to play, this would probably be my chapter.
    [​IMG]
    4. And finally... The quintessential Ultramarines. They might be a touch generic, but that means its also identifiable. So, its good and bad. I must admit they have a very nice look to them, with all the gilt and such. They are a strong contender in my mind.
    [​IMG]

    HELP ME CHOOSE!!!! Feel free to give suggestions and opinions.

    Last edited: Mar 22, 2013
  22. msleeper

    msleeper Sr Member

    Trophy Points:
    1,355
  23. Snapper15

    Snapper15 New Member

    Trophy Points:
    2
    Re: Sylgian's 40K Space Marine [WIP]

    Imperial Fists... Or Angry Marines Chapter.. Great start

  24. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
  25. msleeper

    msleeper Sr Member

    Trophy Points:
    1,355
    Re: Sylgian's 40K Space Marine [WIP]

    I totally get what you mean, with that much surface area it's easy for it to look boring or undetailed.

    The actual armor is supposed to be unpainted, hence the "grey". But they're also supposed to be covered head to toe in purity seals and other bling since they are literally the Inquisition's personal chapter. I've actually mused doing a female Inquisitor and a Grey Knight with a friend of mine, but that's on my "some day..." list.

    If you want crowd appeal (and I totally do not blame you) you should do an Ultramarine. The Space Marine game from 2011 put 40k kind of in the spotlight and everyone recognizes a Titus.

  26. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
    Re: Sylgian's 40K Space Marine [WIP]

    Time to work on a strapping system for the stilts. I went to the store and picked up some nylon webbing, glue and some foam letters I intend to use on the armor.
    [​IMG]

    Step one, print up some bits.

    Tri-glides and some rails to mount the straps with.
    [​IMG]
    Heel Plates
    [​IMG]

    Step two, stitch on a bunch of velcro, mount and enjoy!
    [​IMG]

    Last edited: Apr 19, 2013
  27. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
    Re: Sylgian's 40K Space Marine [WIP]

    It's finally here!!! FOAM! I hate waiting, but at long last I can get to building something.

    I compared this to some EVA floor mats I had. It is extremely similar in almost every way I could see/feel. The only difference I could find was that the EVA mat was just a tiny bit more dense. I think its going to work just fine.

    Construction beings this weekend. Very excited.
    [​IMG]
    [​IMG]

    Last edited: Apr 19, 2013
  28. made007

    made007 Sr Member

    Trophy Points:
    1,356
    Re: Sylgian's 40K Space Marine [WIP]

    How its going?
    I think the space marines are growing on me, lol
    I feel like building one ;)

  29. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
    Re: Sylgian's 40K Space Marine [WIP]

    Did some paint tests on the material. The density of the foam I have is certainly less than that of the EVA mats I had on hand. This makes it more flexible, and from what I can tell it will tear easier. Thankfully I don't think that it will be an issue. The good news is the finishes I achieved on my sample chips were nearly identical.

    [​IMG]

    Last edited: Apr 19, 2013
    Dan Gamble likes this.
  30. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
    Re: Sylgian's 40K Space Marine [WIP]

    And some build progress. I must say the hot glue/foam was harder to accomplish than I initially anticipated. Getting clean seams is a challenge. I will be filling the seams with latex caulk before painting, but I still need to maintain a high level of craftsmanship, if only for personal pride.

    TEMPLATES!
    [​IMG]
    [​IMG]

    I also found making bevels to be very troublesome with only a razor. I sanded these down to make them even. I may invest in a cheap hot knife to make this easier.
    [​IMG]

    Assemble! WARNING: painters tape was not friendly to the surface of the foam. I had to stick it to my shirt to de-tack it some in order not to mess us the surface of my foam.
    [​IMG]
    [​IMG]

    The stilt I just set inside to test it out. Looking good though.
    [​IMG]

    I had to modify my pep templates quite a bit while I worked. I expect the second boot to go a bit quicker. Hopefully my technique will improve as well. By the time i get to the chest/head my hope is that my glue seams will be much improved.

    Last edited: Apr 19, 2013
  31. made007

    made007 Sr Member

    Trophy Points:
    1,356
    Re: Sylgian's 40K Space Marine [WIP]

    Looking good
    I dont have any files
    But im gonna give it a go, probably sculpt the helmet and some parts, but ill be lookingbon gphe net to see what i can find
    I even bought the space marines game :)
    Keep em coming bro :)

  32. Darth Serberus

    Darth Serberus Active Member

    Trophy Points:
    341
    Re: Sylgian's 40K Space Marine [WIP]

    Beautifully neat work as ever mate.
    Looking purdy already!

  33. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
    Re: Sylgian's 40K Space Marine [WIP]

    The second boot is done. It went a little bit easier than the first. The stilts are not mounted yet either, but its progress. I will be starting on the shins tonight. The templates are printing out as I type this. More pics to come.

    I still have concerns over the finishing. Mainly in regard to the seams. I understand that they get a bit of latex caulk laid down to hide them, but I still fear I wont be happy with the results. We shall see.

    [​IMG]
    [​IMG]

    Last edited: Apr 19, 2013
  34. Amancue

    Amancue New Member

    Trophy Points:
    17
    Re: Sylgian's 40K Space Marine [WIP]

    I've heard good things about Smooth-On's Epsilon
    EPSILON® EPS Foam Coating Epoxy | Reynolds Advanced Materials
    it'll seal the foam good for painting,.... harden it while still remaining somewhat flexible
    and it smooths away seams, look up booksandcorsets here she talks about it

  35. crypto

    crypto Active Member

    Trophy Points:
    361
    Re: Sylgian's 40K Space Marine [WIP]

    Nice start bro !

  36. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
    Re: Sylgian's 40K Space Marine [WIP]

    Interest piqued! Ill be reading up on this today. Thanks very much for the info, I was not aware of this product.

  37. Amancue

    Amancue New Member

    Trophy Points:
    17
    Re: Sylgian's 40K Space Marine [WIP]

    Well it is rather recent just came out as of November

    Sent from my LG-G2x

  38. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
    Re: Sylgian's 40K Space Marine [WIP]

    Turns out I have a local vendor for this lovely Eplsilon product Amancue was so nice to turn me on to. I will have the smaller test amount in my hands tomorrow. I am very excited about giving it a try. Hopefully it will be the solution I am looking for.

    In other news, I did a test of the stilts a while back here is a link to the video: http://youtu.be/SpelhebVZAk

    I also added these details to the toes. I will be further refining the boots with more detail pieces and cutting out the shins tonight or tomorrow.

    [​IMG]
    [​IMG]

    Last edited: Apr 19, 2013
  39. chimmera30

    chimmera30 Well-Known Member

    Trophy Points:
    866
    Re: Sylgian's 40K Space Marine [WIP]

    beautiful work, I'll be following you build closely!!

  40. r1racing

    r1racing Member

    Trophy Points:
    191
    Re: Sylgian's 40K Space Marine [WIP]

    I´ll love to see the results of the epsilon on your costume.. Nice work on your feet!

    Keep us updated!

  41. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
    Re: Sylgian's 40K Space Marine [WIP]

    The Epsilon is here! I am eager to try it out, but need to wait until I have more than just a few hours in the evening to test it. I will have to wait until the weekend before I can get around to testing it. This isnt a huge deal considering how much foam I have to cut and assemble in the mean time.

    Tonight I added some detail to the back of the boots, traced my templates out for the shins, and completed the left shin and knee. I elected to mount the knee pad forward a little bit. Its hard to say what is accurate considering our reference material is 20mm tall, or comes in the form of various pencil drawings by Games Workshop artists. Other costumes I have seen mount the knees flush, I just thought having the lip looked more interesting.

    Pics are below. More updates forthcoming.

    [​IMG]
    [​IMG]
    [​IMG]

    The Coke can is just for scale
    [​IMG]
    [​IMG]

    Last edited: Apr 19, 2013
  42. Override

    Override Active Member

    Trophy Points:
    362
    Re: Sylgian's 40K Space Marine [WIP]

    Holy Crap those are huge! looking great

  43. huttman

    huttman New Member

    Trophy Points:
    17
    Re: Sylgian's 40K Space Marine [WIP]

    Didnt your mama ever tell you to never put your feet on the table? ;-)

    Dannicelook and doomsdesire6 like this.
  44. Override

    Override Active Member

    Trophy Points:
    362
    Re: Sylgian's 40K Space Marine [WIP]

    love it

  45. Amancue

    Amancue New Member

    Trophy Points:
    17
    Re: Sylgian's 40K Space Marine [WIP]

    those are looking awesome and the lines are sooo clean my order from smooth-on gets here tomorrow, cant wait to see what you think of the epsilon

  46. Geridevil

    Geridevil New Member

    Trophy Points:
    17
    Re: Sylgian's 40K Space Marine [WIP]

    Its a BIG projekt! Very cool!

  47. MrBackpack

    MrBackpack Member

    Trophy Points:
    191
    Re: Sylgian's 40K Space Marine [WIP]

    I can't wait to start on my own space marine.

  48. made007

    made007 Sr Member

    Trophy Points:
    1,356
    Re: Sylgian's 40K Space Marine [WIP]

    I want to see how the epsilon works with this :)

  49. Sylgian

    Sylgian Well-Known Member

    Trophy Points:
    567
    Re: Sylgian's 40K Space Marine [WIP]

    I plan on doing some testing with the epsilon tomorrow. I will take pictures along the way and keep everyone posted on the results.

    In other news, I have been plugging away at the foam construction. At present I have the legs fully built and the chest is mostly complete. I should have just enough foam to get the abs done as well.

    I will be placing another foam order this week. With the chest complete I will be working on the rigging of the armor pieces. There will be some suspenders and many other mounting points to keep me busy while the foam is on its way.

    Progress pics below. More to come soon.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: Apr 19, 2013
  50. r1racing

    r1racing Member

    Trophy Points:
    191
    Re: Sylgian's 40K Space Marine [WIP]

    waiting for more.. nice work!


Share This Page
