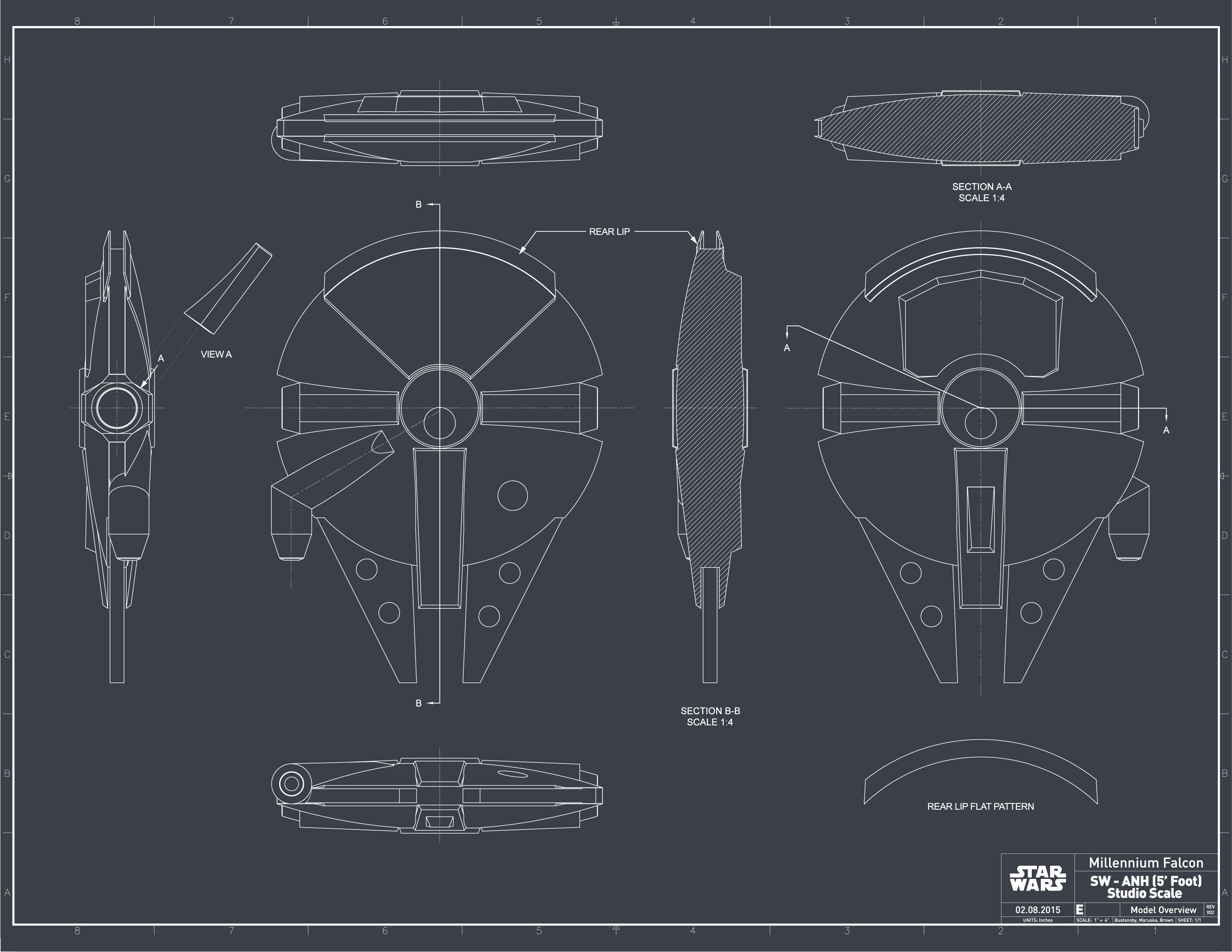

Per a few requests, I've uploaded a vector PDF to the grabCAD archive. It's un-dimensioned and Andre's drawings are the primary reference; this is just supplemental. It can also be opened in Illustrator for those looking to edit and hack around with it.
A jpeg preview below...
View attachment 436680
Cheers,
J.
Wow, this is awesome. Wish I'd have waited a few days to start on my Lightwave version. Would have been much easier with this drawing, LOL. Oh well, you guys rock ! Thanks again for this early birthday gift,
Joe
