Stop Motion Dinosaur (Harryhausen Style)

TheCopperhead

New Member
Here's a build I have recently finished, much in the style of the classic Willis O'Brien, Marcel Delgado, Ray Harryhausen style. (Step by step photos below)


IMG_4379.JPG IMG_4377.JPG


Finished armature.


Padding out with urethane foam sheets.


Head sculpted in Monster Clay.


Two-part plaster mould made of the head sculpt.


Wooden head skull (I attached wire to create the jaw articulation).

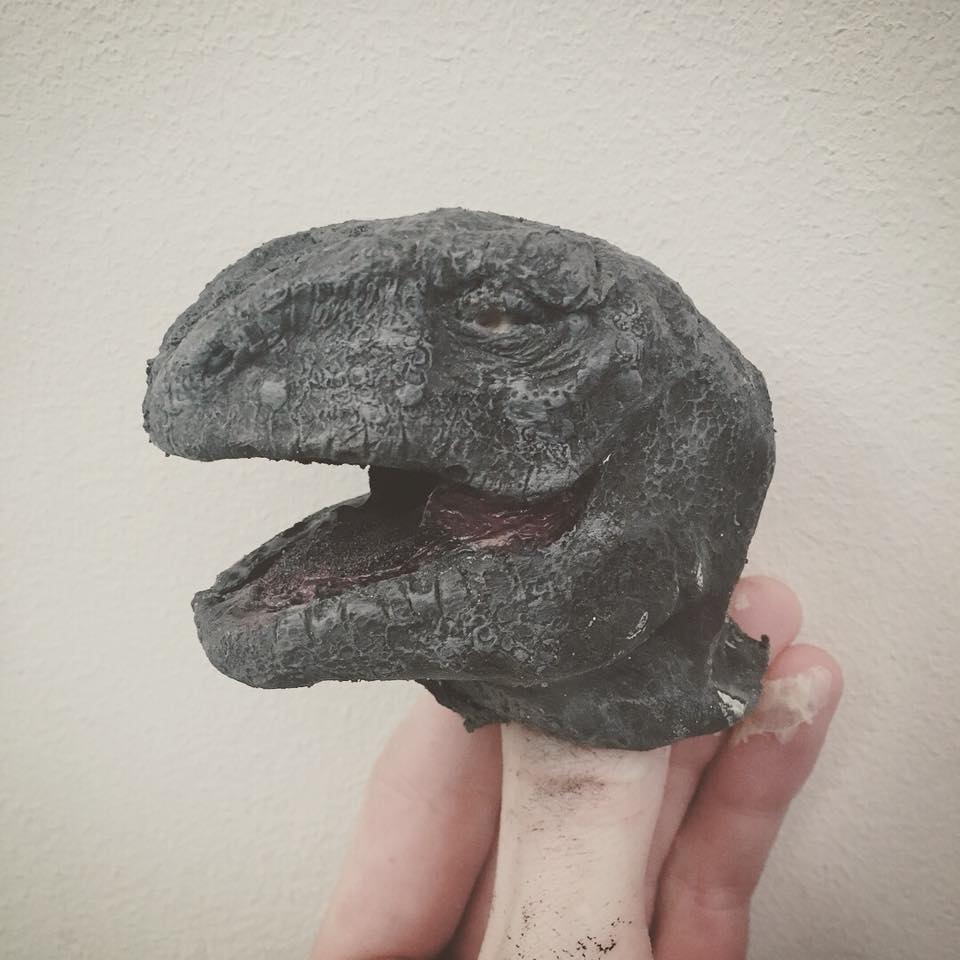

Latex casting with the armatured jaw inside.

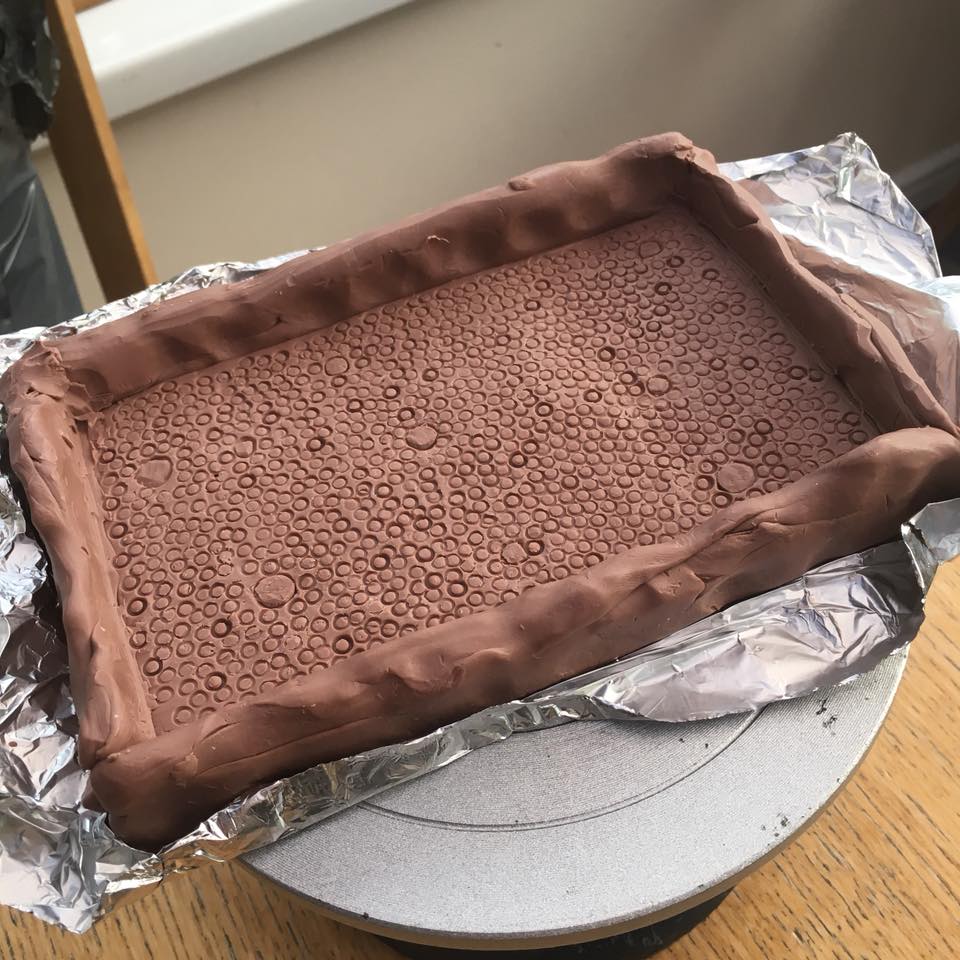

Monster Clay skin texture - this was moulded in plaster and then latex castings were made.

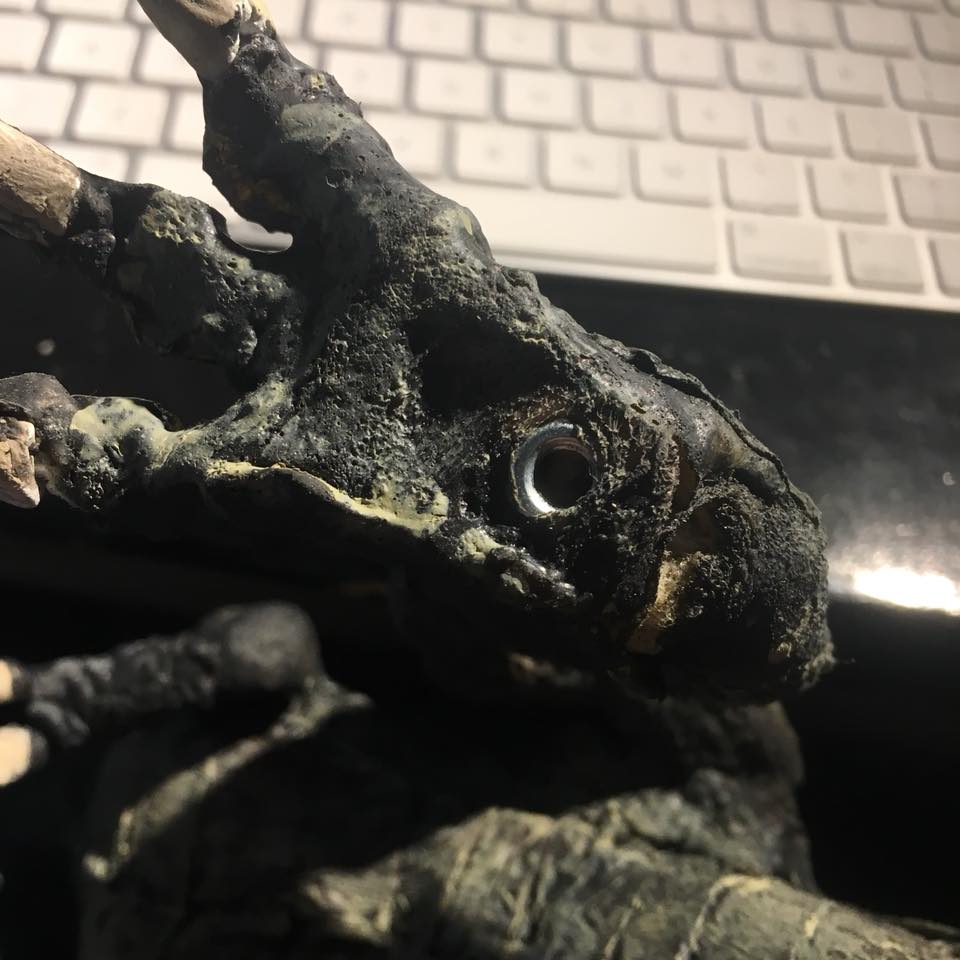

Skin applied. The claws and eyes were sculpted with Milliput and the teeth were from carved from toothpicks.


The feet were made up with wooden blocks with wire toes and a tie down nut embedded.

Some animation tests with the model.


Attachments

  • 35922831_785679774970814_3573002874298302464_n.jpg
    76.5 KB · Views: 527
  • 35922831_785679774970814_3573002874298302464_n.jpg
    76.5 KB · Views: 192
  • 35922831_785679774970814_3573002874298302464_n.jpg
    76.5 KB · Views: 204
  • 36003039_790365294502262_8179660851821674496_n.jpg
    132.3 KB · Views: 191
  • 36003039_790365294502262_8179660851821674496_n.jpg
    132.3 KB · Views: 172
  • 36003039_790365294502262_8179660851821674496_n.jpg
    132.3 KB · Views: 191
  • 37076052_806052799600178_2655165455450243072_n.jpg
    100.5 KB · Views: 563
  • 37076052_806052799600178_2655165455450243072_n.jpg
    100.5 KB · Views: 181
  • 37076052_806052799600178_2655165455450243072_n.jpg
    100.5 KB · Views: 164
  • 37740323_815840171954774_7507516667774107648_n.jpg
    81.9 KB · Views: 207
  • 37740323_815840171954774_7507516667774107648_n.jpg
    81.9 KB · Views: 178
  • 37740323_815840171954774_7507516667774107648_n.jpg
    81.9 KB · Views: 128
  • 35922831_785679774970814_3573002874298302464_n.jpg
    76.5 KB · Views: 169
  • 36003039_790365294502262_8179660851821674496_n.jpg
    132.3 KB · Views: 178
  • 37076052_806052799600178_2655165455450243072_n.jpg
    100.5 KB · Views: 177
  • 37740323_815840171954774_7507516667774107648_n.jpg
    81.9 KB · Views: 175
  • 35922831_785679774970814_3573002874298302464_n.jpg
    76.5 KB · Views: 126
  • 36003039_790365294502262_8179660851821674496_n.jpg
    132.3 KB · Views: 195
  • 37076052_806052799600178_2655165455450243072_n.jpg
    100.5 KB · Views: 146
  • 37740323_815840171954774_7507516667774107648_n.jpg
    81.9 KB · Views: 160
Last edited by a moderator:
Awesome stuff!

That dinosaur really looks like a Harryhausen creature - especially in the stop motion test clip. Well done.

Longer version of previous upload. Still problems with lighting, but this is still the test stages. Enjoyed animating the mini figure of myself! Forgot to add audio, but again this is merely a test video. The reason for the cuts is for insert close ups in between.
