SS A-Wing Hull Patterns and build

[3d-builder]

Been working on this for about a month on and off. Pics coming soon.....



[3d-builder]

bhyj



[3d-builder]



[Talkierg]

So this to be considered the V2 hull? Looks awesome Mike!

Don



[3d-builder]

So this to be considered the V2 hull? Looks awesome Mike!

Don

Yup V2 for sure....D

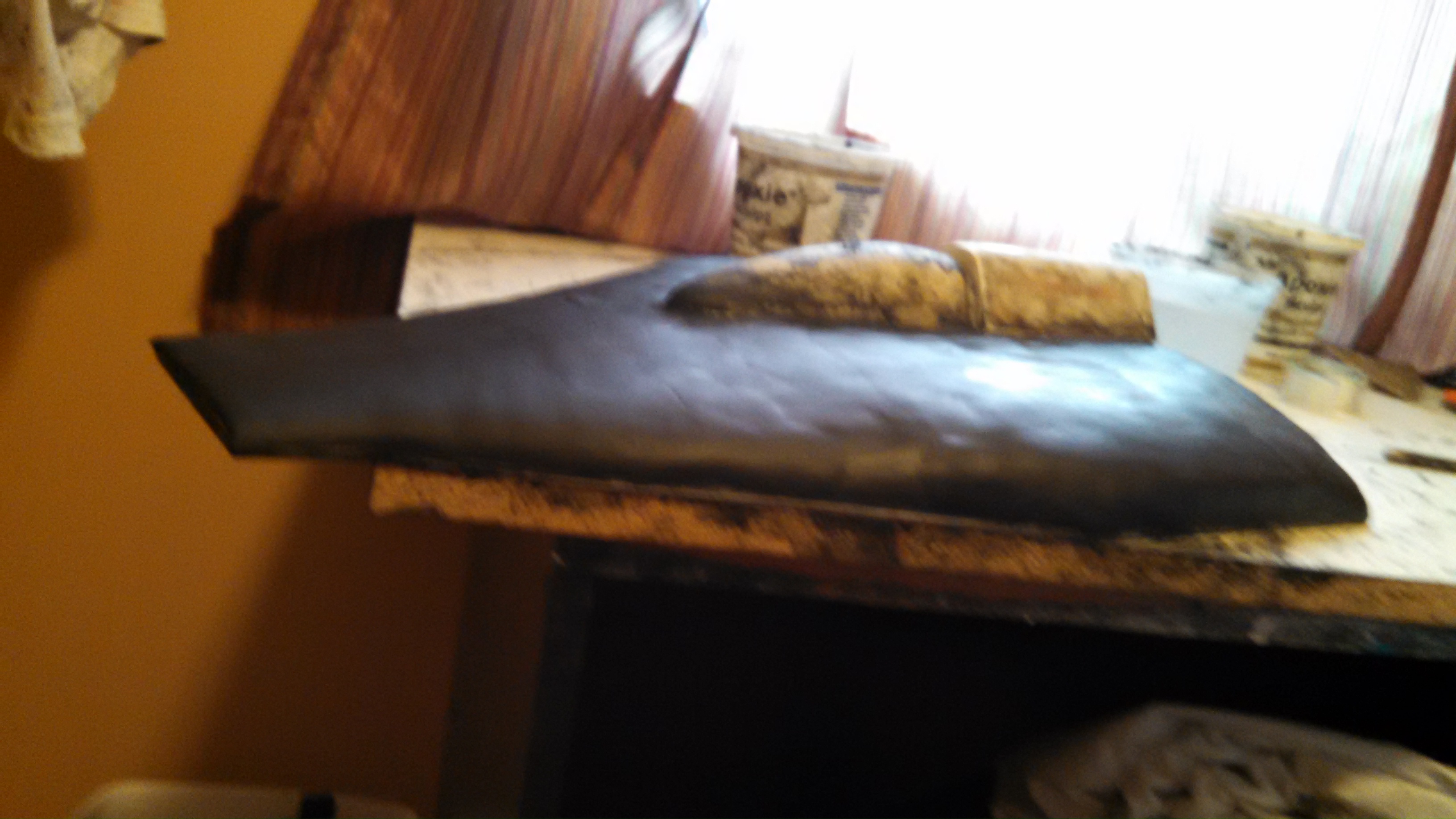

Top Hull pattern is finished....



[IEDBOUNTYHUNTER]

Great. Was wondering if you were going to start a thread on this.



[JPH]

ohhhh yeah!

Take yer time, and pics, looking drool-worthy



[3d-builder]

I put some parchment paper down as a barrier I am going to
clay the bottom hull to the top hull. This way I can make sure everything
lines up from side to side,I will be able separate them when finished.



[MonsieurTox]

Smooth !! I like that black stuff Mike, good luck with the second half !



[Talkierg]

Always admiring this kind of hand work,the true art of caftmanship:thumbsup

Don



[3d-builder]

Smooth !! I like that black stuff Mike, good luck with the second half !

THanks Julien 1st time trying the black......it's def messy but helps you
see whats going on.



[3d-builder]

Always admiring this kind of hand work,the true art of caftmanship:thumbsup

Don

Thanks Don :thumbsup



[Guy Cowen]

It wouldn't be a Mike build thread without seeing your socks, and so clean with all that black dust around, your almost as tidy as he who shall not be named



[3d-builder]

I am pretty sure I changed socks..... They were def black after sanding! LMAO Never as tidy as he who won't be mentioned...I work in a controlled mess at all times actually don't let the pictures fool you.



[3d-builder]

Ok sorting out the bottom hull with some sanding....


Couple things I wanted from the last time a good edge and the roundness at the back...


Added some tape to see the cut away areas......


Will be making new canopy and part that sits behind it....these are the old ones.




Separated ........



Weight both hulls....



[Guy Cowen]

You know what I feel about you and A-wings..... nuff said



[Scott Graham]

Nice stuff! Always precise. Heavy too, eh?



[Scratchy]

Absolutely love reading your threads, I've learned a lot on vacuum forming and the construction of, just by your images alone.

I have a question though, is the contour of the A-Wing body different when comparing the top to the bottom?

I've always liked the A-Wing, but never really looked hard at it to study the shape.



[Jediguy]

Pleaseeeee pleaseee make this a kit!!



[3d-builder]

Pleaseeeee pleaseee make this a kit!![/QUOT. If you want one take the time to learn how to do it.....as you can see its a lot of work.
