Hi Guys,


I have decided to get back into one of my old builds and actually finish it this time...
I started a second helmet as I found a Pepakura file that was taken from the original 3D character design files and is a 1 to 1 match in every detail.


I have added a few pictures of the progress of the build.

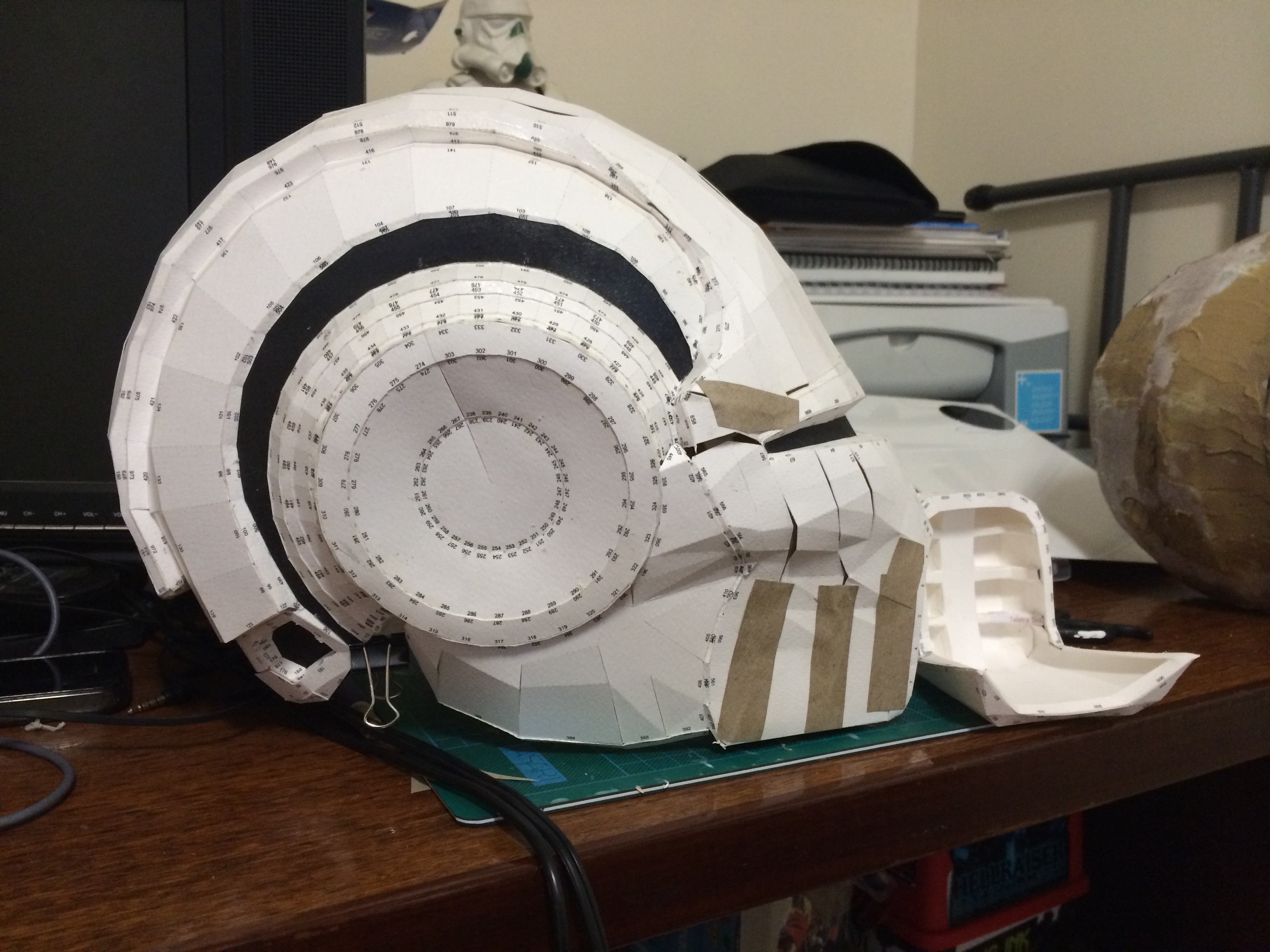

After hours of cutting out all the pieces (about 3 - 4 hours) I got stuck into gluing it all together, but before i finished gluing the bottom sections I had to check that it fit my head here are some shots of the test fit.



[Murderink]

- - - Updated - - -



[Murderink]

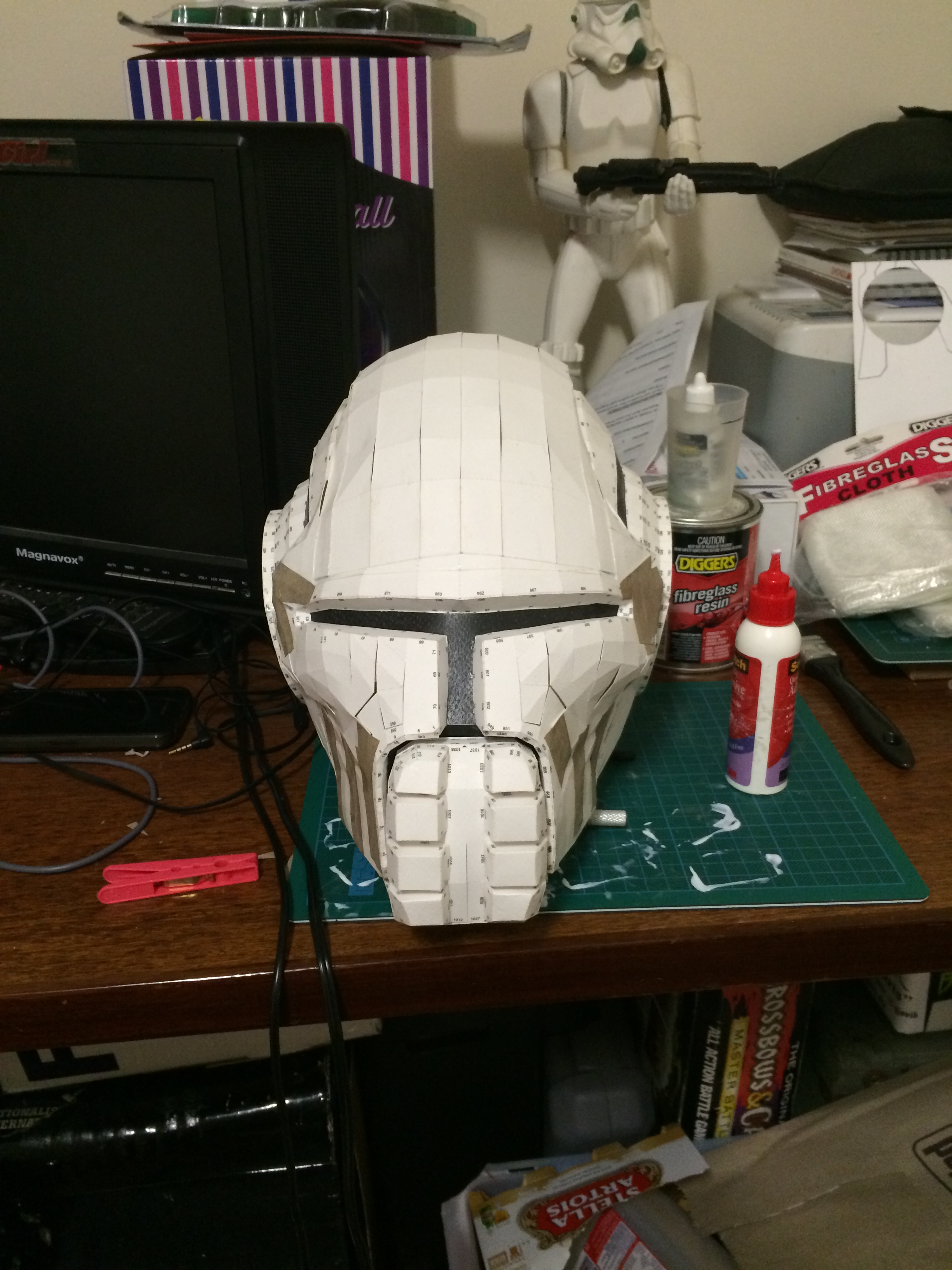

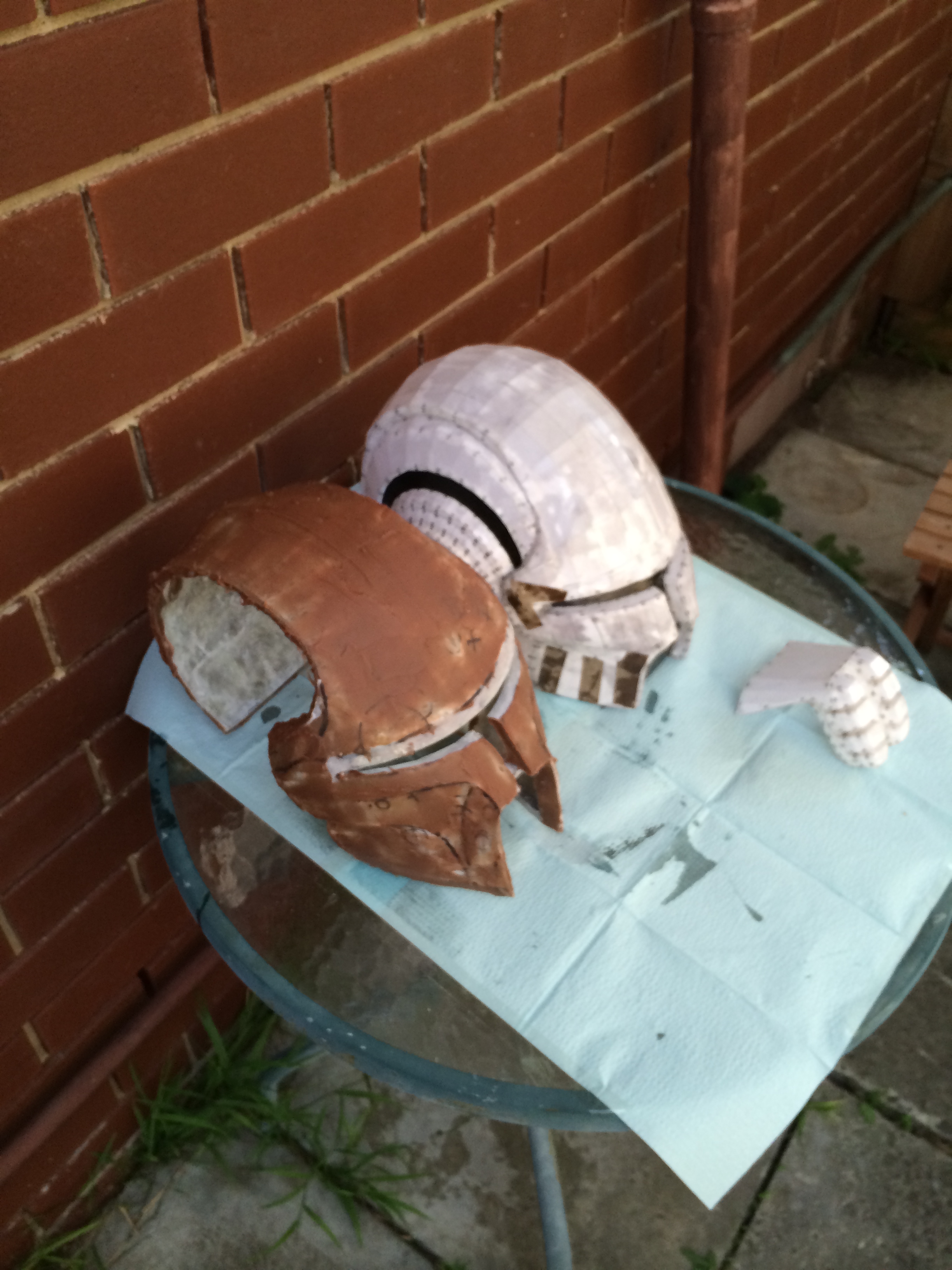

Once that was done, I gave it 4 coats of fiberglass resin.... 5 hours later it was dry.


- - - Updated - - -

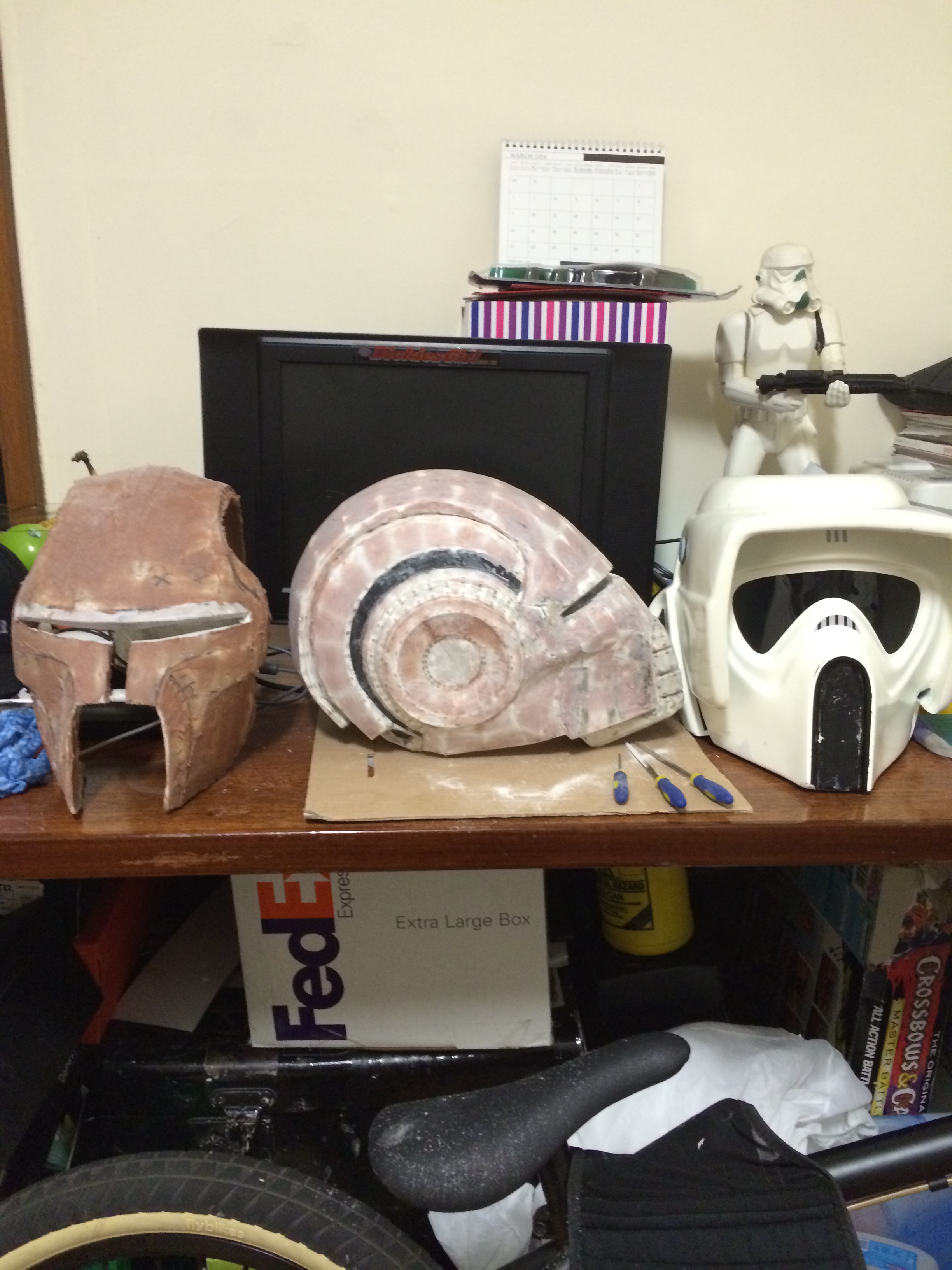

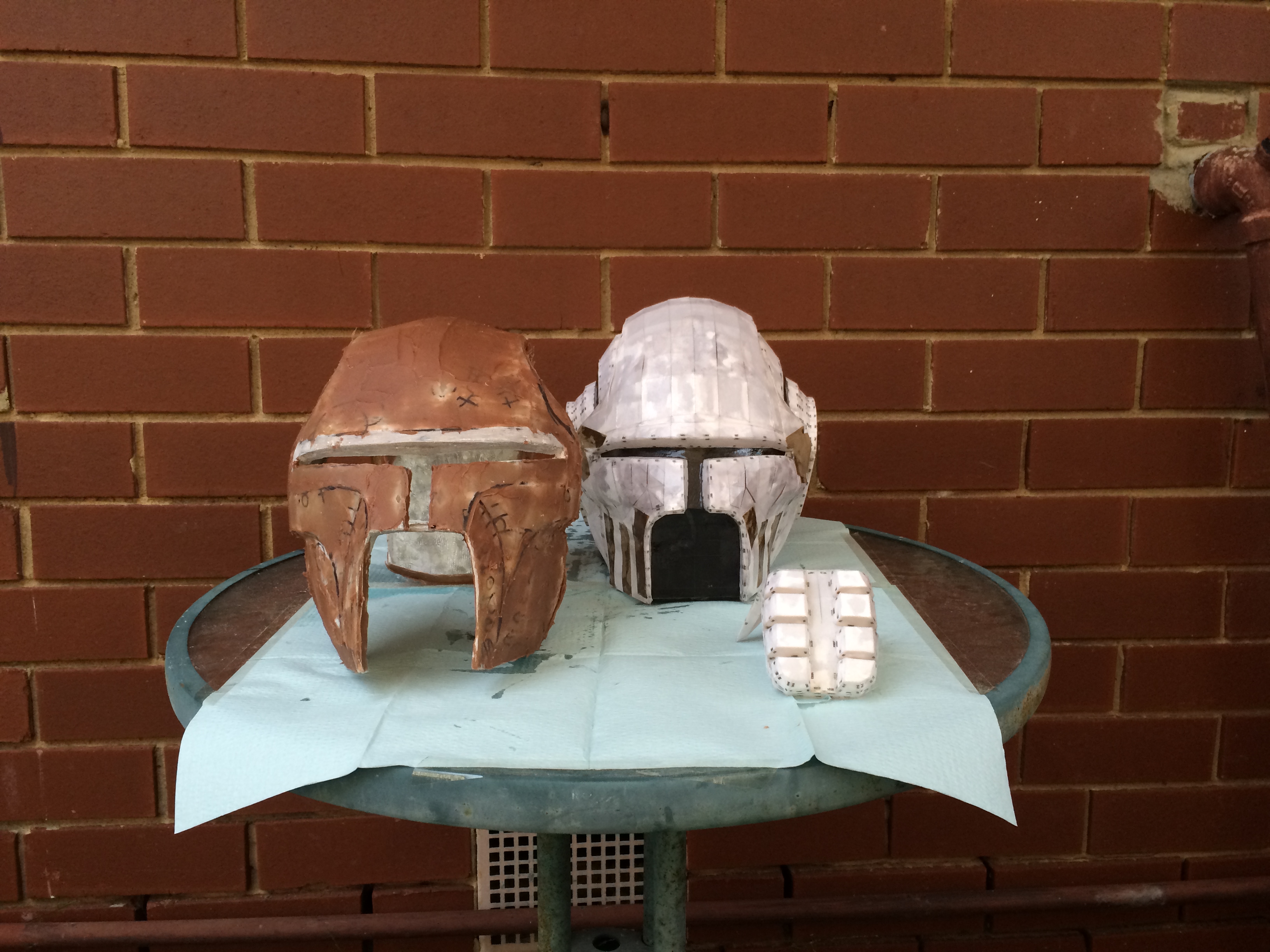

As you can see, compared to the original one I started on the left there was quite a difference in size and shape although I did quite like the shap edges on the face of the original.

- - - Updated - - -

Next step was to start laying the fiberglass down, this was a sticky process and due to that no photos were taken while I was doing this.

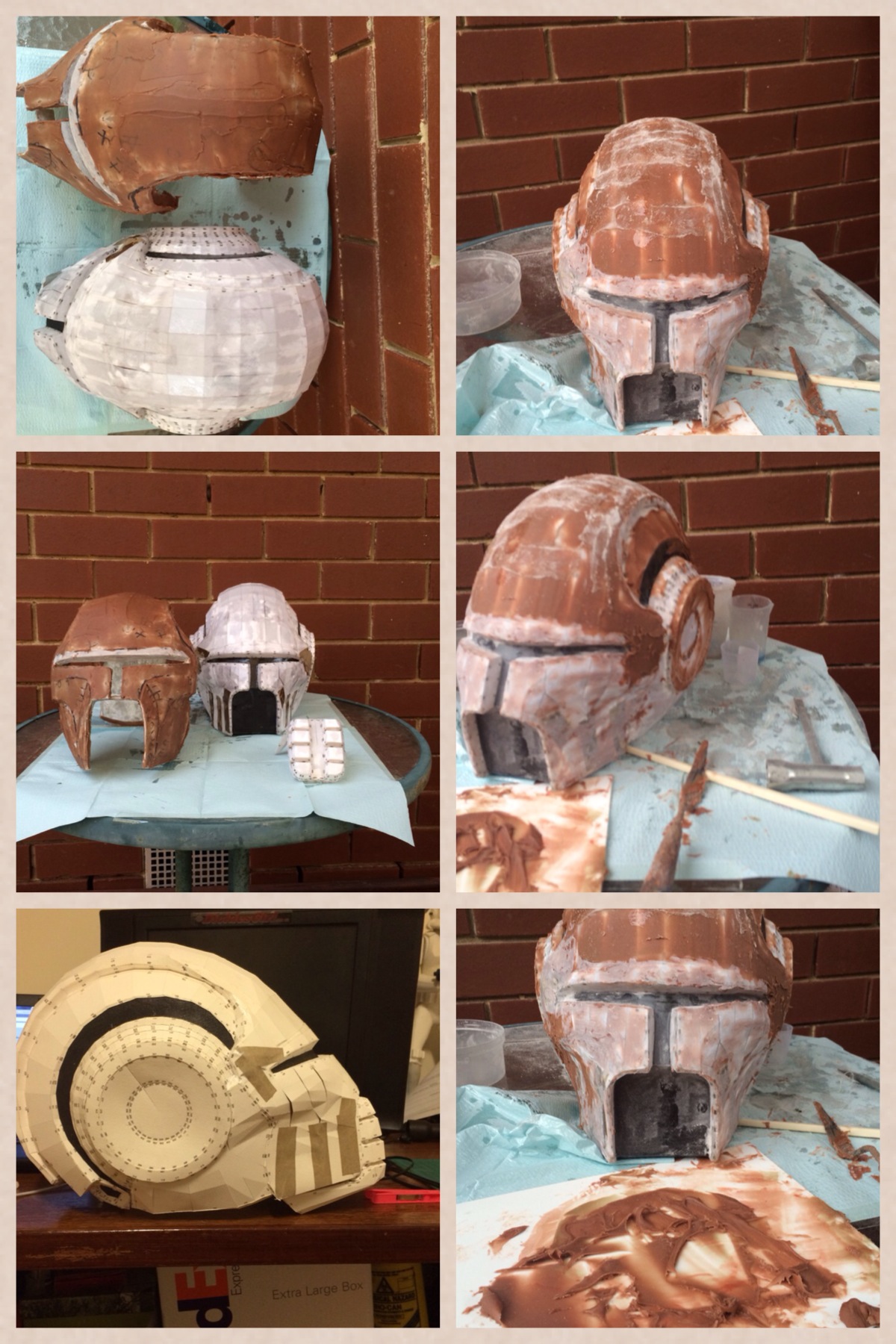

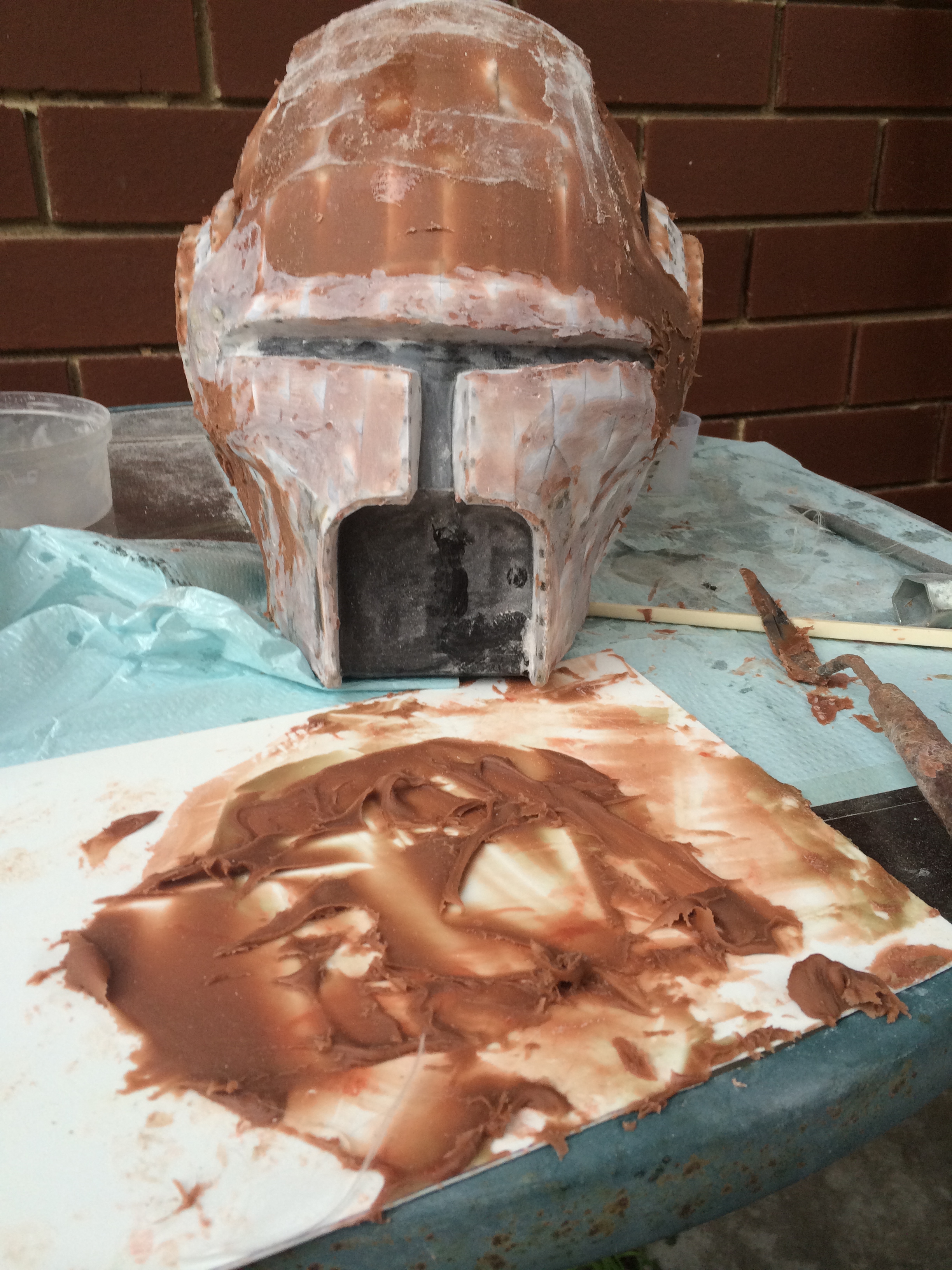

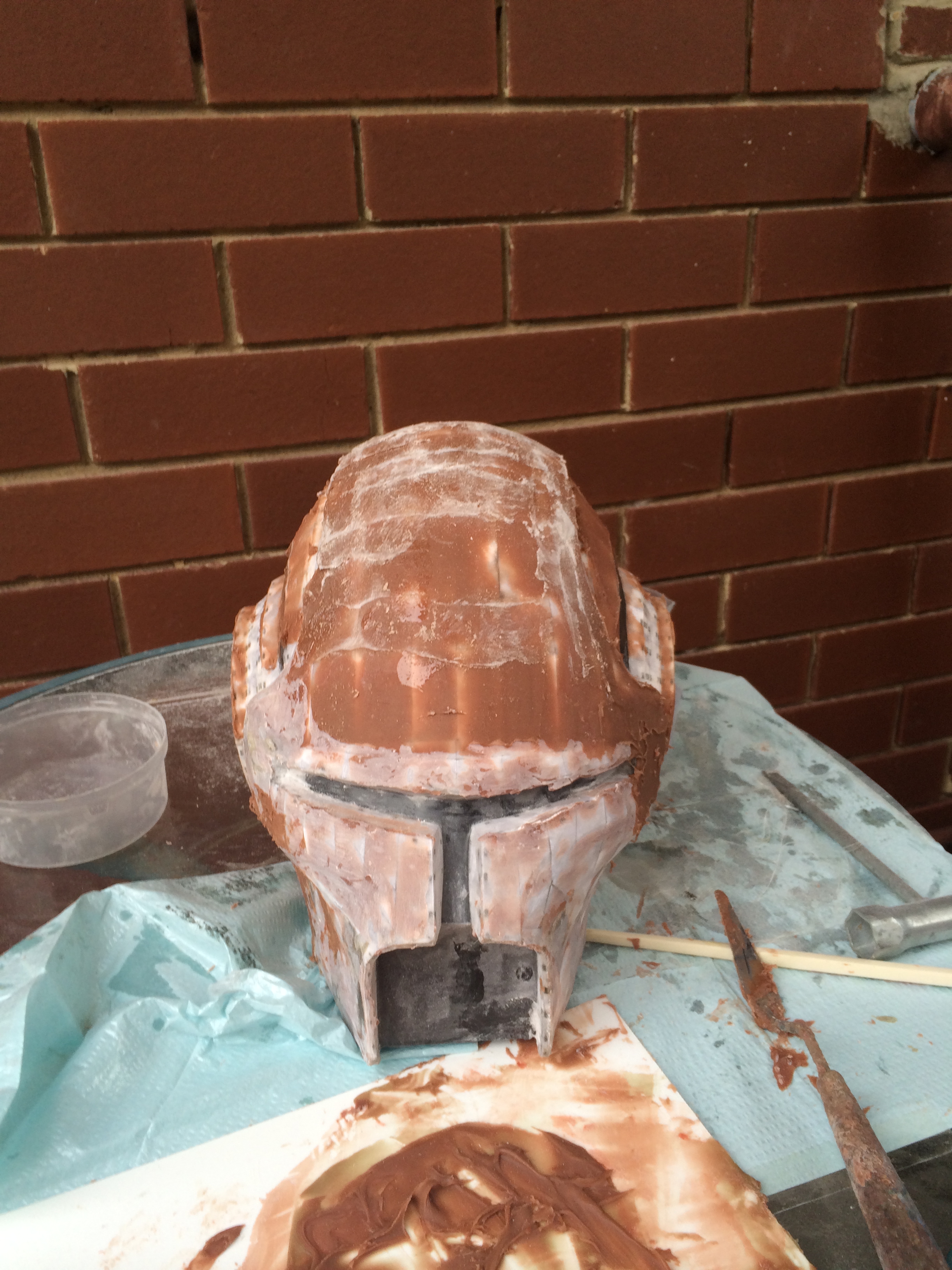

Then I got stuck into using the plasti bond, I used the same method as I did for the Bikerscout and Boba Fett buckets (nice thin layers) so this process is pretty quick if you keep the layers thin.


- - - Updated - - -

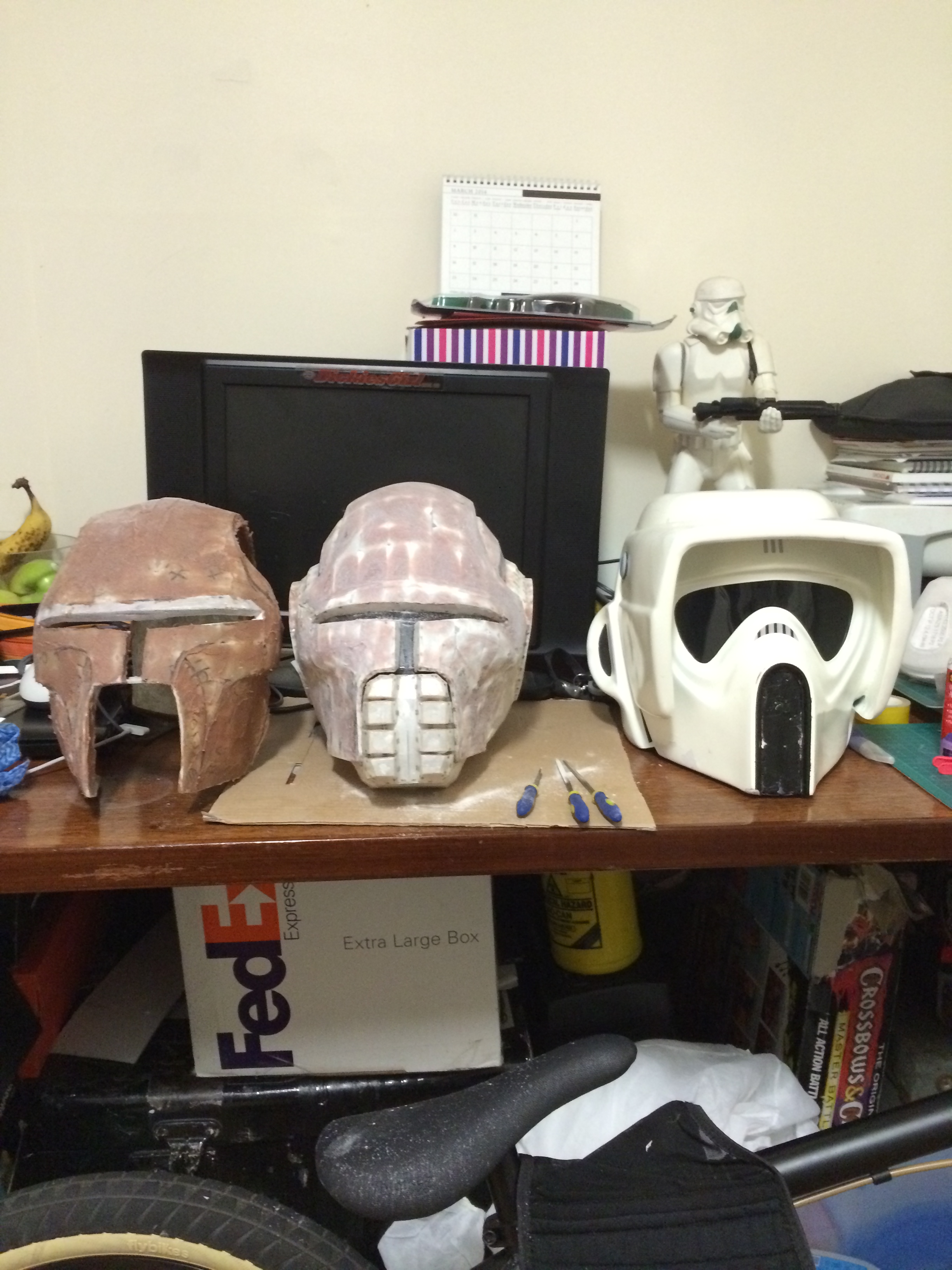

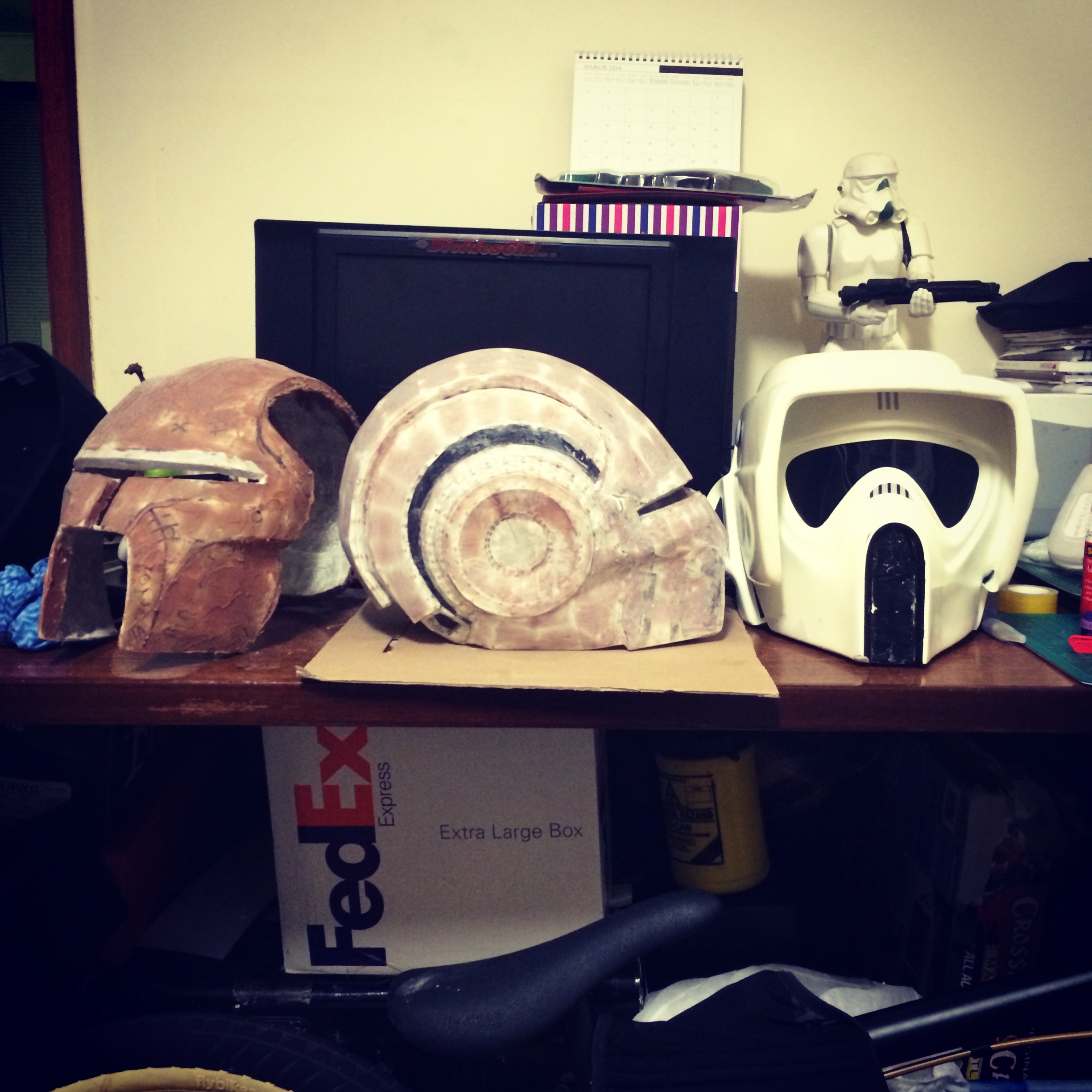

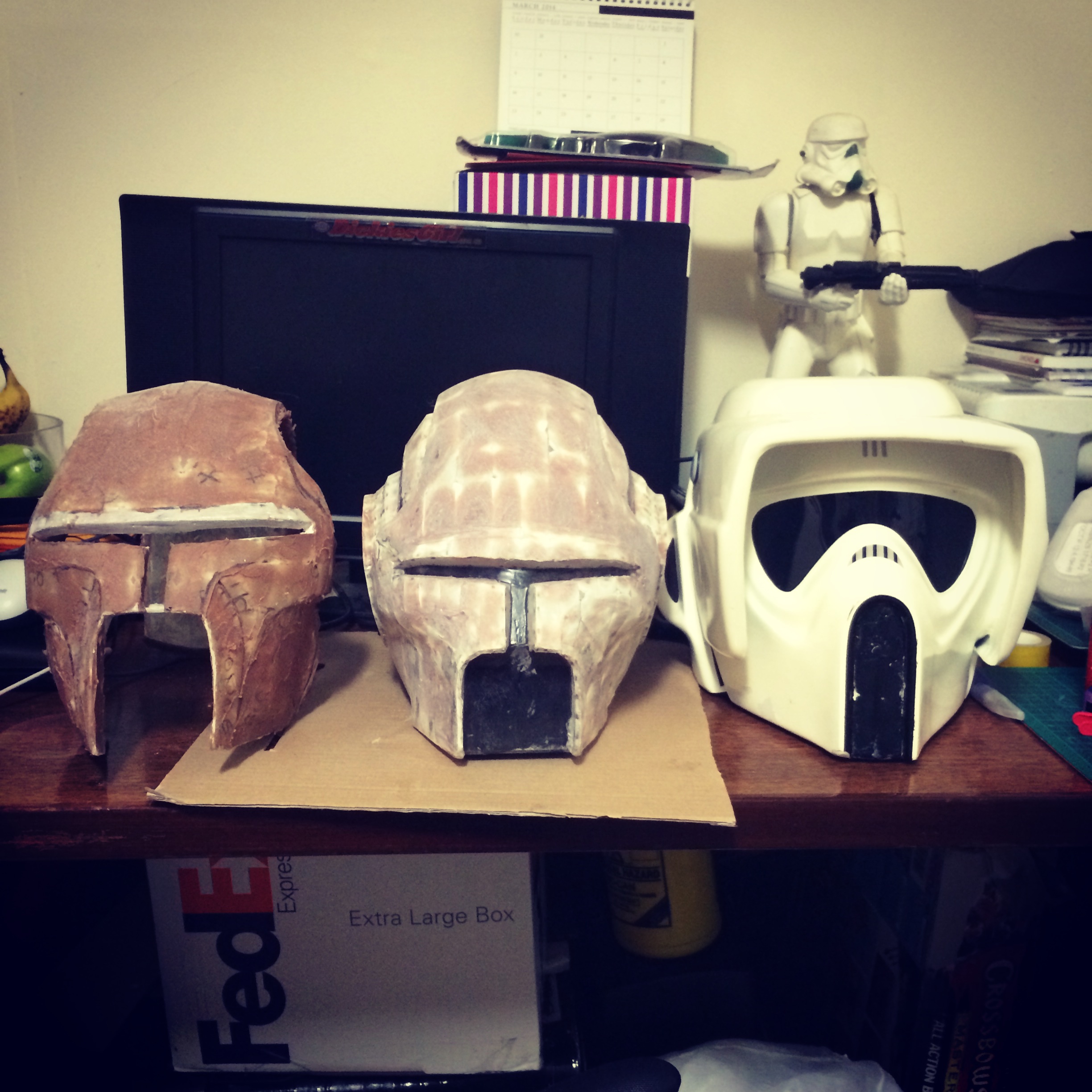

So the long weekend came to an end and this is where I am up to at the moment.

- - - Updated - - -

Got a little side tracked last night and started stripping the Bikerscout bucket so I can fix some chips and cracks and redo the snout details.
so this is where I am at, hope to find some time tonight to finish off the ear details and get the visor cut out.



[Murderink]

Well I built up the courage this afternoon to cut the helmet into sections..



[Murderink]

View attachment 318663View attachment 318664View attachment 318665View attachment 318666View attachment 318667View attachment 318668

- - - Updated - - -

Here are some test fit pics, Next step is to add some overlap on the ear sections so it sits under the main face plate.

- - - Updated - - -

View attachment 318673View attachment 318672View attachment 318671View attachment 318670View attachment 318669View attachment 318674

- - - Updated - - -

View attachment 318679View attachment 318678View attachment 318677View attachment 318676View attachment 318675View attachment 318680

- - - Updated - - -

View attachment 318681View attachment 318682View attachment 318683
