"Ready Room Scale" Stargazer parts ID and build

ProfKSergeev

Well-Known Member
RPF PREMIUM MEMBER
Hey, stevie! I have; just need to photograph it and post the shots here. Thanks for prodding me!


ProfKSergeev

Well-Known Member
RPF PREMIUM MEMBER
Back on the wagon, trying to finish this for Wonderfest! (Anyone here attending?)

My most recent task was to recreate the detail highlighted in red below.

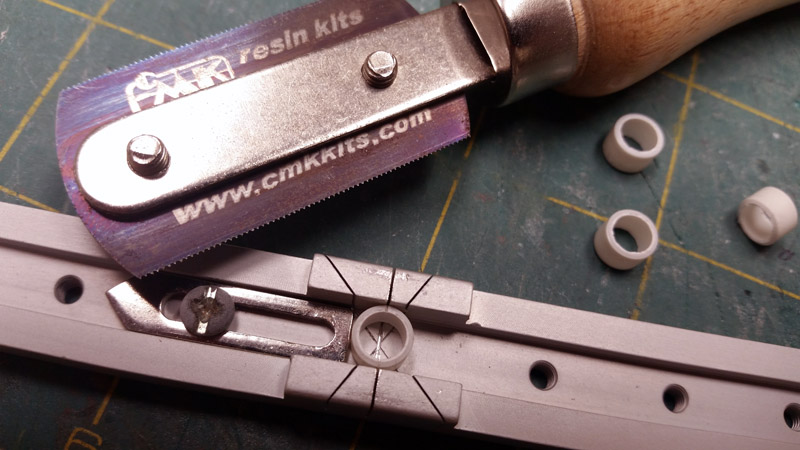

It doesn’t appear on the ready room model, but my build is a hybrid of it and the filming miniature, so I began cutting …


... bending ...

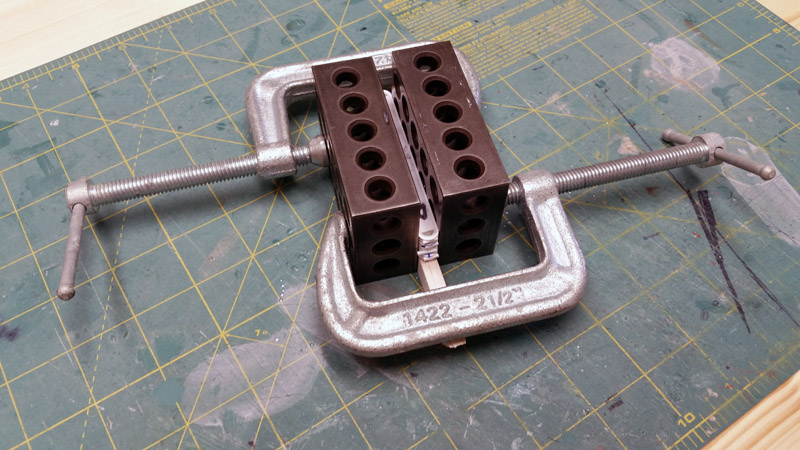

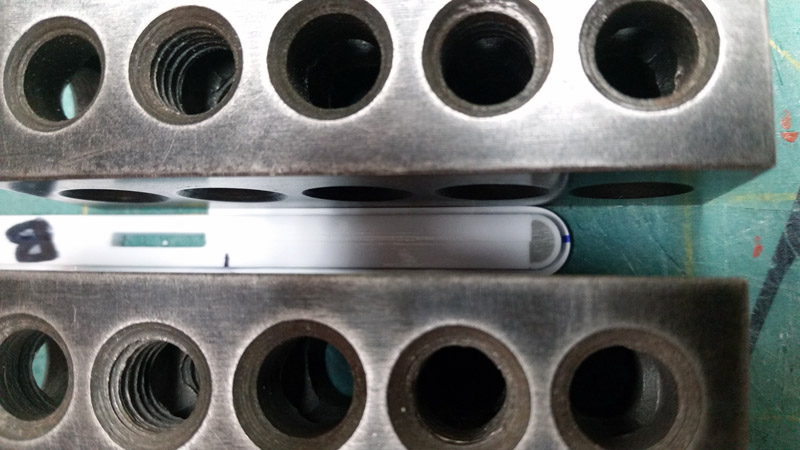

... clamping ...


... gluing ...

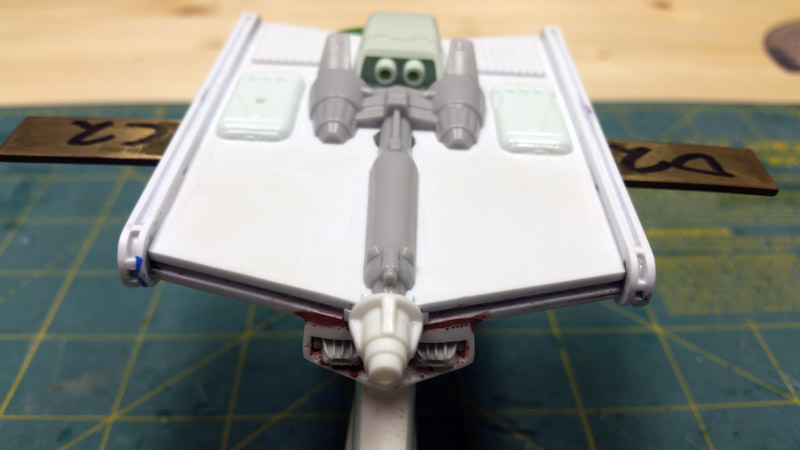

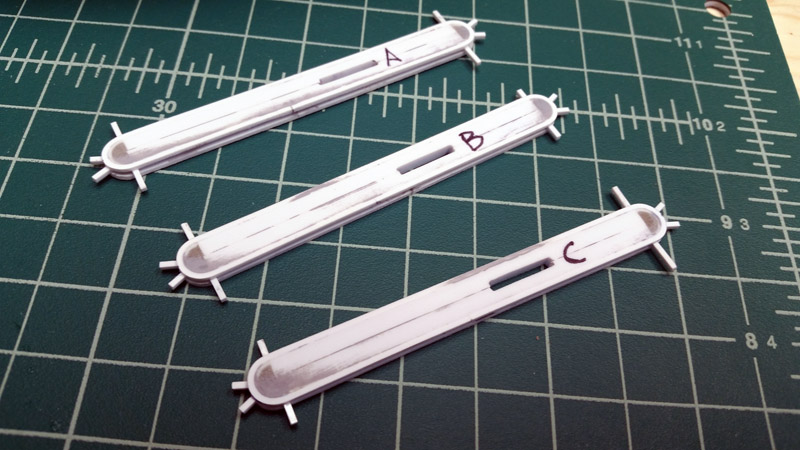

... and assembling.


There was a little bloodletting in there too, but I won’t show you those pictures; they ain’t pretty.

Last edited:

ProfKSergeev

Well-Known Member
RPF PREMIUM MEMBER
Today I invaded a friend's better-equipped shop for a pressing task.

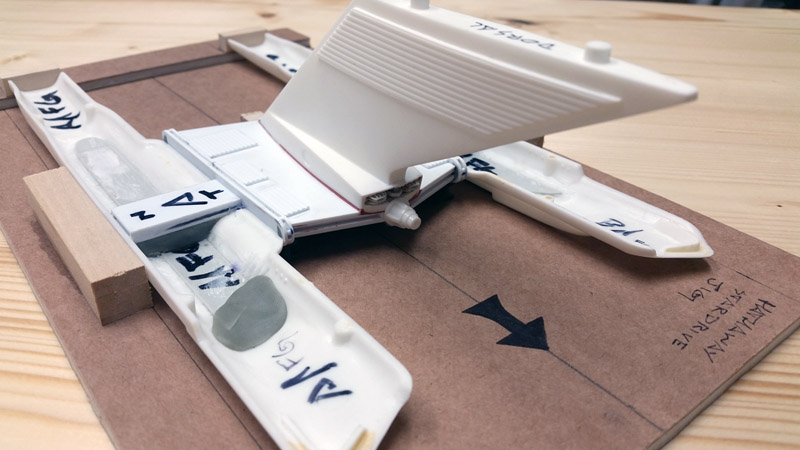

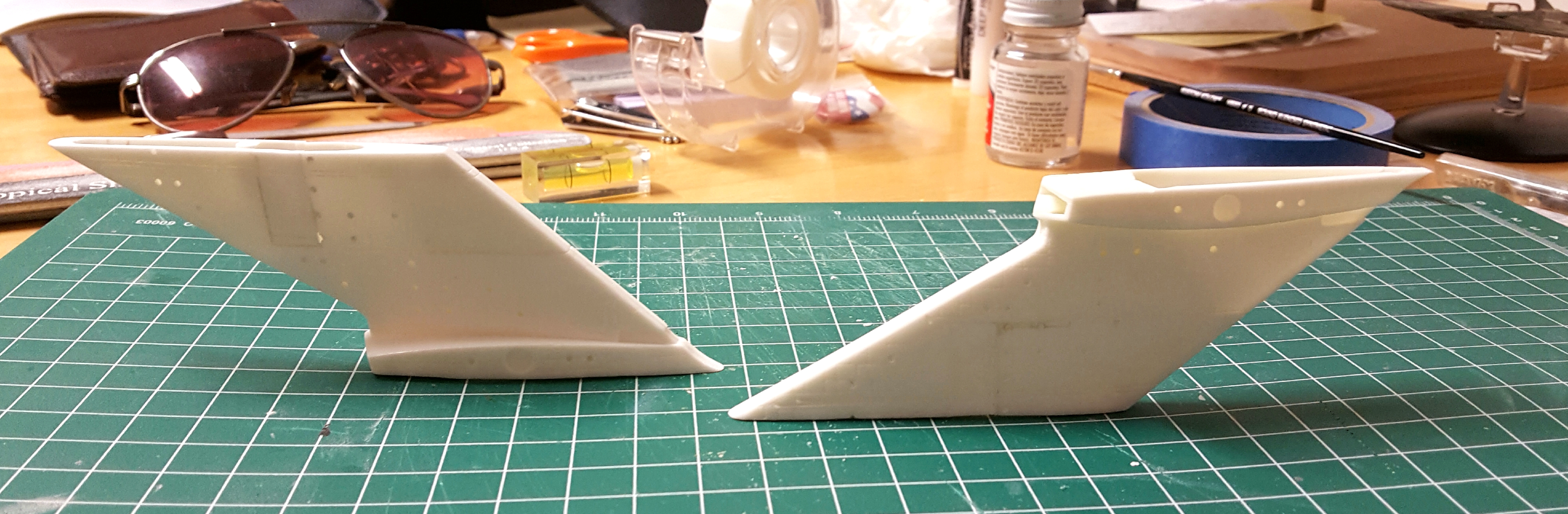

These rods go straight through the aluminum support and into the necks, making them (more or less) rock solid. As you can see, there's some play. Like many men, I need bigger rods.



Finally, we started CNCing the base, a loose replica of the "strategema" board from the episode in question.



stevielewis

Well-Known Member
I like the fact that the original prop still exists! Wish the photos they took were just a little clearer, but I think I can figure out what I need from them. Still not sure about the two small domes on the underside of the main hull near the front. :)

I like where you are going with your build, Prof. It's really coming along nicely!


ProfKSergeev

Well-Known Member
RPF PREMIUM MEMBER

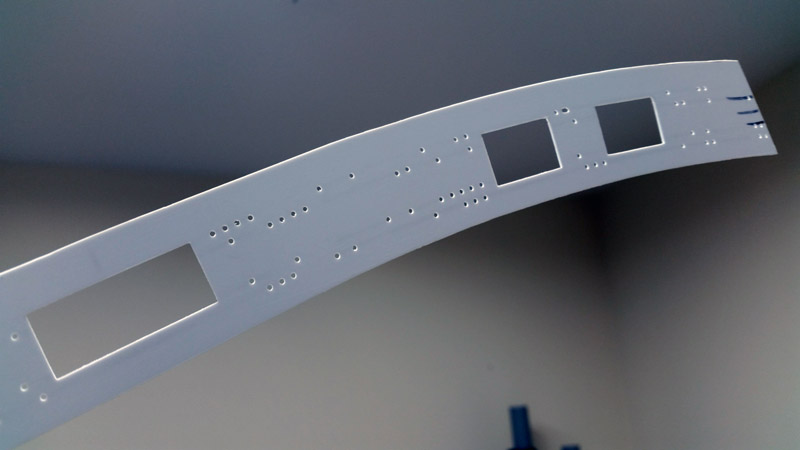

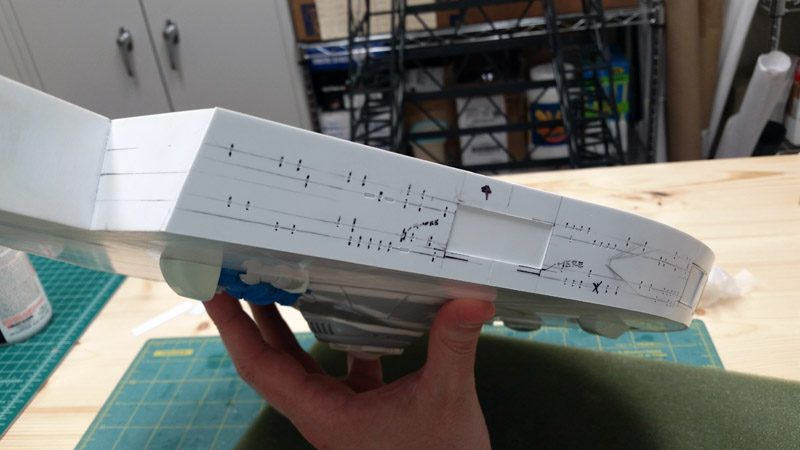

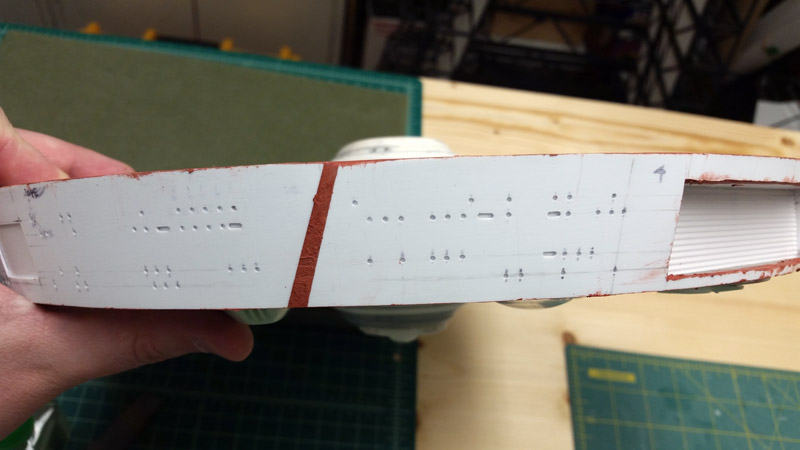

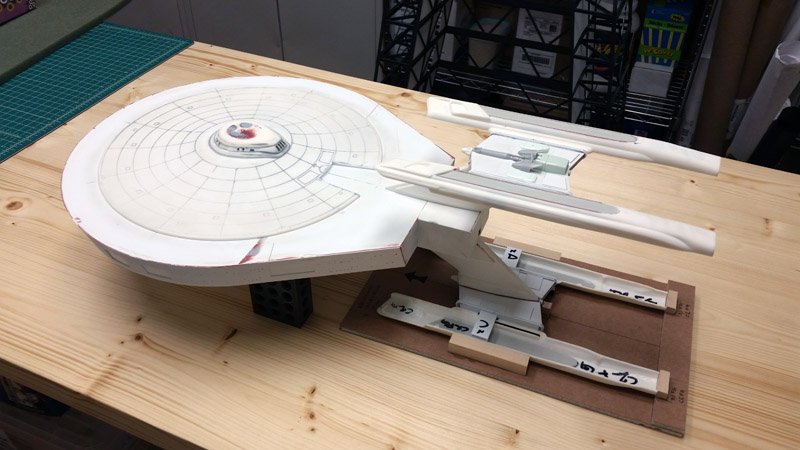

An inexcusably bad photograph, but at the very least it proves I've cut, sanded, and glued all the little fiddly bits that belong on top of the saucer. It's taken me three damn days. Primer tomorrow, Scout's honor.
