JMChladek

Sr Member
I wouldn't say interest has necessarily "died" per se, maybe just gone into hybernation. I personally have been working on some other projects, but I have still been collecting some Stargazer bits here and there. Last year at Wonderfest, I was also able to get my grubby paws on a Sci Fi Spaceship Miniatures Constellation class vaccuform kit. While I know it is based more on Greg Jein's studio model than the Ready Room model, I got it for help with how some of the elements fit together. Plus, it will likely end up being a 3D blueprint for my ultimate dream project, which is a Constellation/Stargazer in 1/350 using the Polar Lights Enterprise refit kits (of which I have two in storage).


nick daring

Sr Member
RPF PREMIUM MEMBER
I picked the vaccuform kit a little while ago too. Never built on before. Should've fun once I get to it.

Like you said, it'll be s good primer before tackling the real deal scratch built version one day.


ProfKSergeev

Well-Known Member
RPF PREMIUM MEMBER
Glad to hear everyone's still stoked about the Xabungles! Hope to have an update soon from our caster.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

emojo5

Well-Known Member
I would be interested in a few of these as well (2). Do we know what the cost will be on this go round? Thanks.

-emojo5/Ed


ProfKSergeev

Well-Known Member
RPF PREMIUM MEMBER

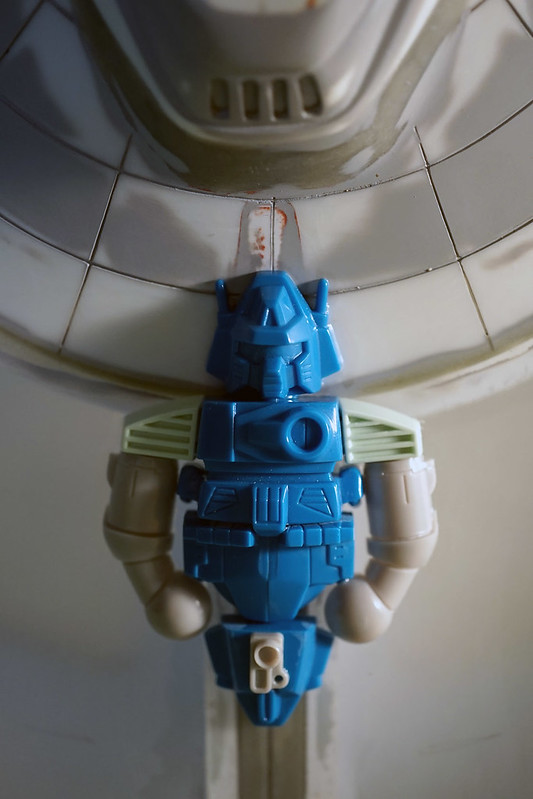

Got the Xabungle back from the caster, so I'm free to butcher him, which I did!



I wasn't content simply to glue a whole robot onto the underside of my model, so I chopped and channeled the pieces and added a few more from the other donors. This is a little closer, if only in spirit, to how Greg Jein detailed this area on the shooting miniature.


ProfKSergeev

Well-Known Member
RPF PREMIUM MEMBER
Fortunately, no. The head and chest both split in the middle, so all I had to do was glue them down. Some minor surgery was performed on the legs, however.

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

stevielewis

Well-Known Member
Stargazer pics 1002.JPG Stargazer pics 1005.JPG Stargazer pics 1006.JPG

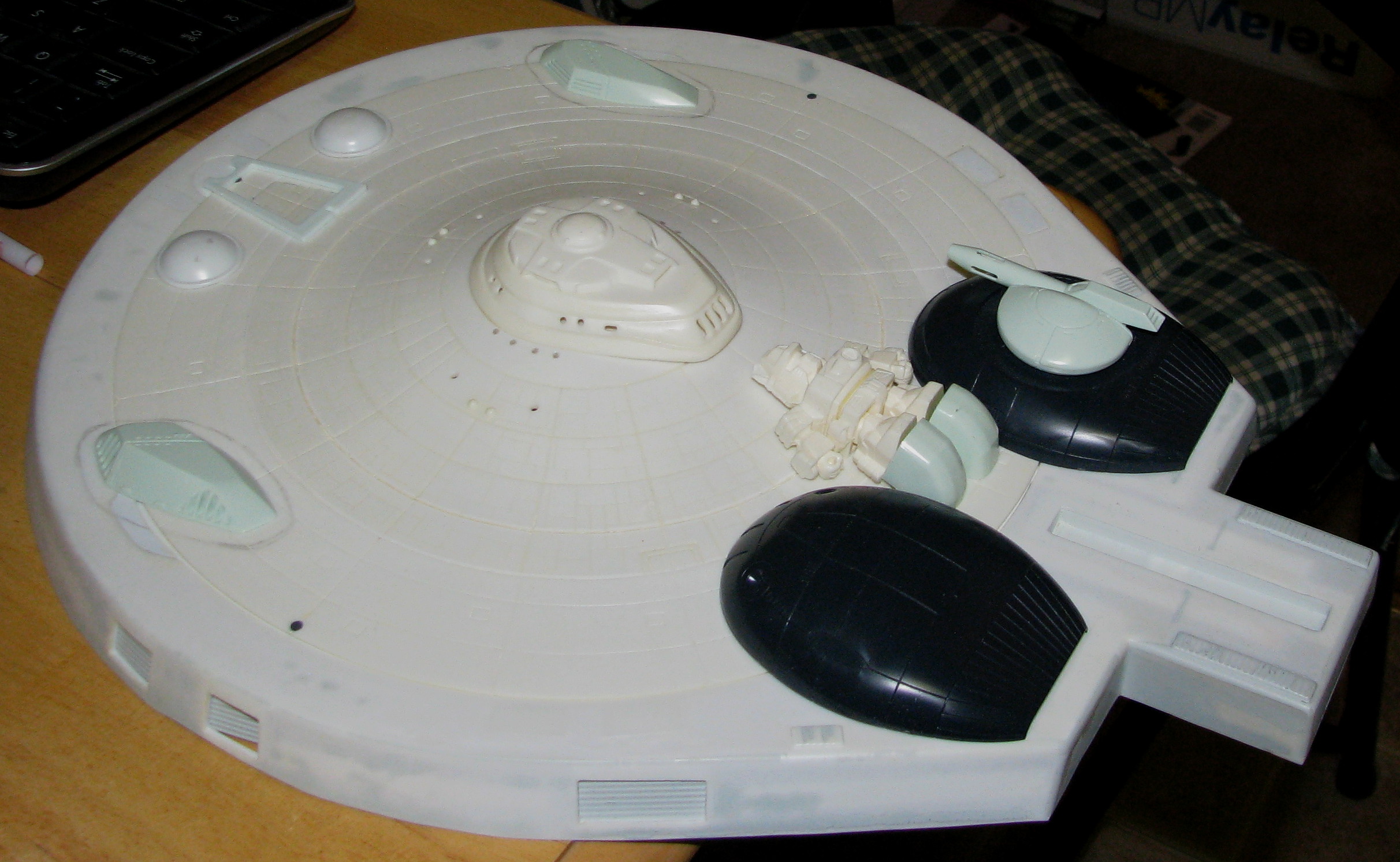

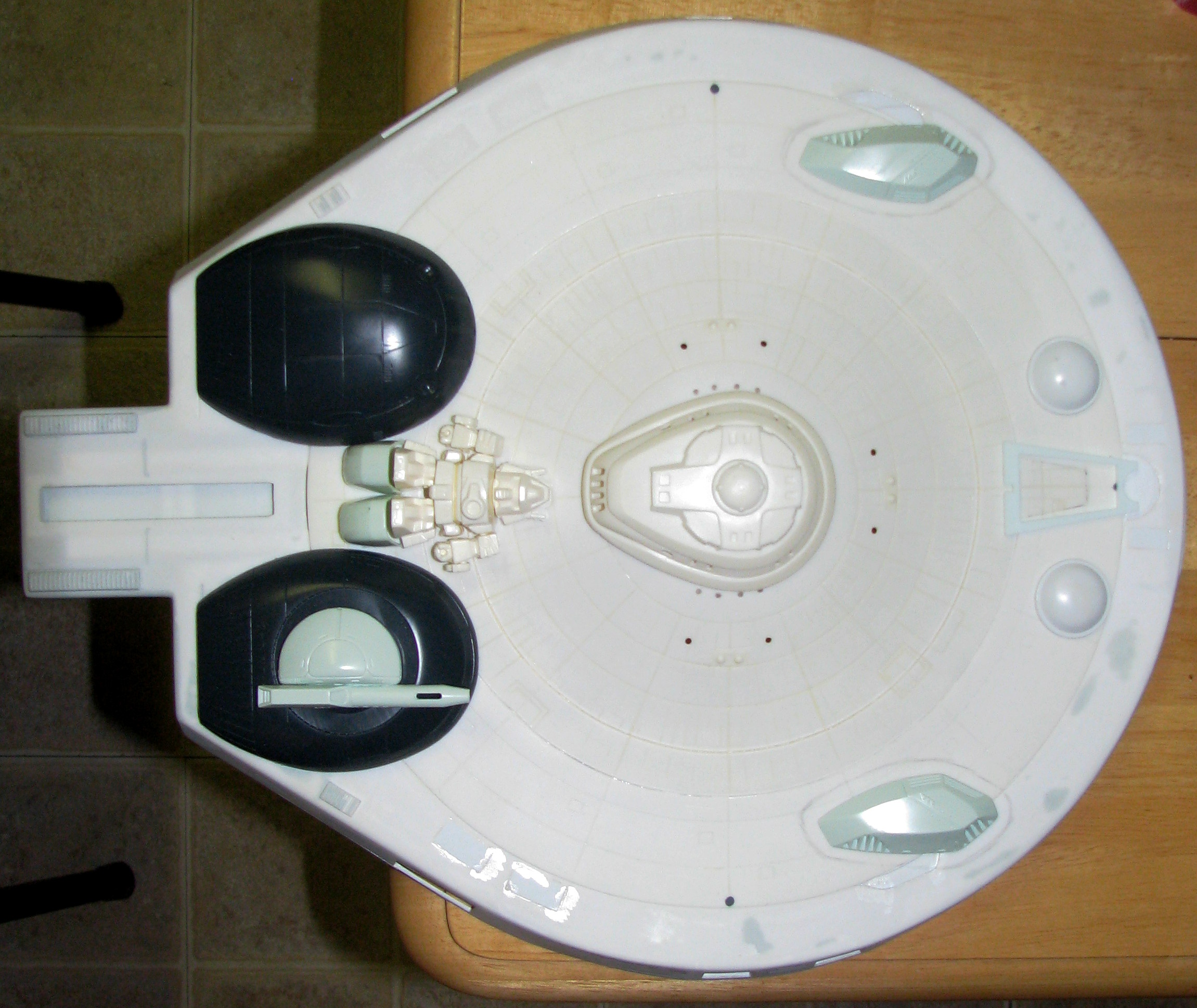

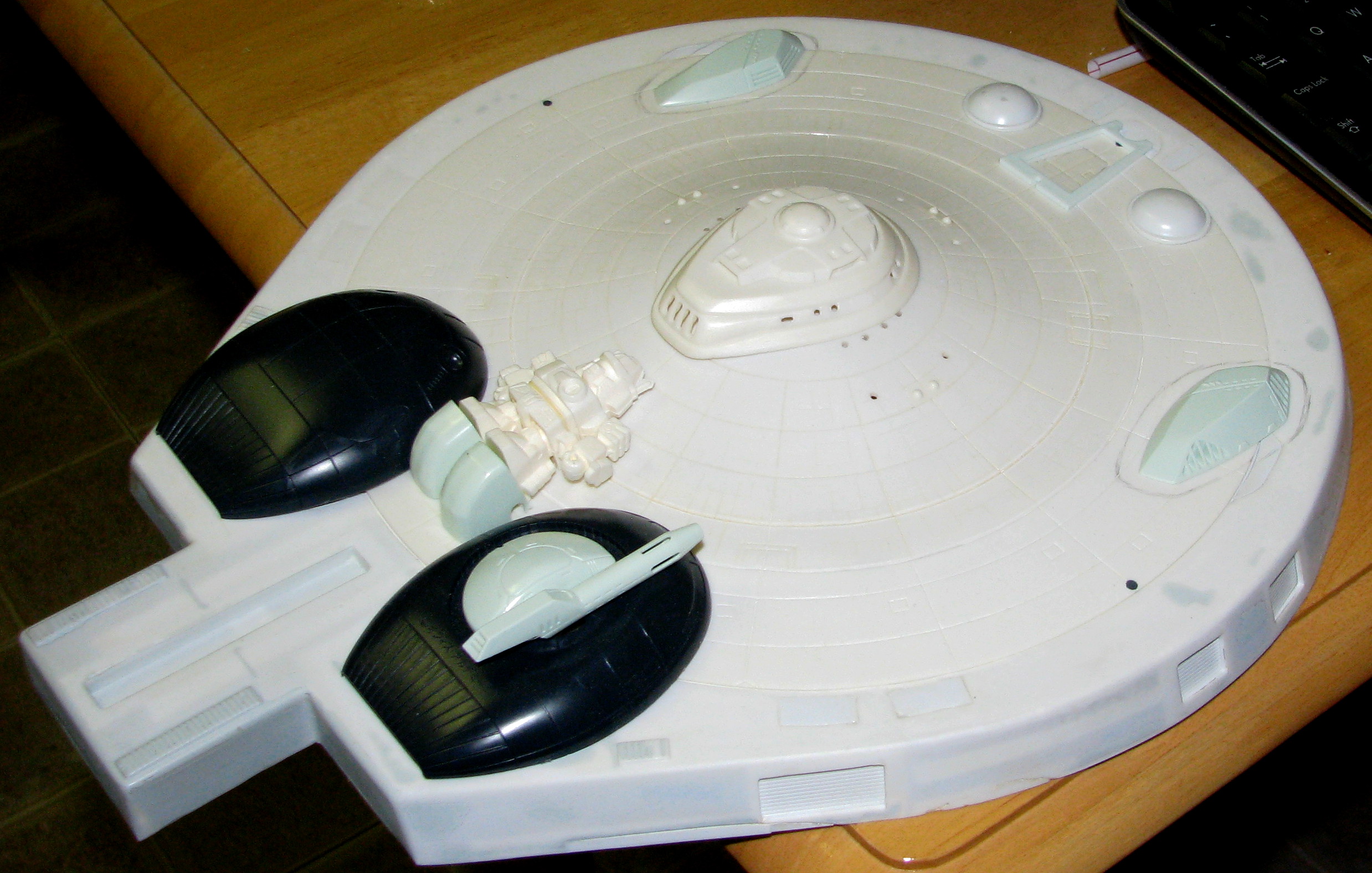

Hi all...I forgot to post these here...these pics are the latest mock up I have using the XaBungle Robot man with the parts that go on the feet. Also, I am using the round blisters from the vacu-form Stargazer kit. Although not accurate, they are the best thing out there until these parts can be identified.


stevielewis

Well-Known Member
USS Stargazer underside yellow.jpg

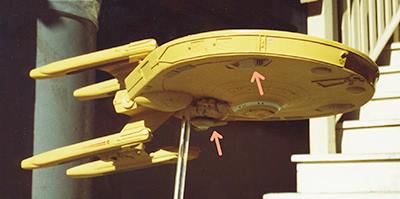

Found this picture online today, of the underside of the yellow model in Picard's Ready Room on the Enterprise D. The pink arrows point to the parts used from the Orguss Flyer, which we have already identified. What is nice about this pic is that it shows the bow of the underside, especially the two round blisters, as well as what is in front of the tri-angular part from the Guarma-Zan kit stand. Unfortunately this is the largest size of this pic so identifying these parts are going to take someone with excellent eyesight. Good luck!

I just found this pic on Rick Sternbach's Facebook page, so Rick gets credit for posting it originally. Thanks Rick.

Last edited:

ProfKSergeev

Well-Known Member
RPF PREMIUM MEMBER
Thanks for posting that, stevie. I asked Rick if he had it in a higher resolution and he said if he finds the original photo he'll re-scan it. Keep your nacelles crossed!


Dart

Well-Known Member
RPF PREMIUM MEMBER
More info is great! Now, I wonder what those small blisters are from near the bow? Hoping Mr. Sternbach can find the original and scan it.


ProfKSergeev

Well-Known Member
RPF PREMIUM MEMBER
Oh, I asked him about those as well. He agrees with me that they probably aren't kit parts but domes from EMA/Plastruct, specifically VHE-32. I'll take a shot of mine soon.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

stevielewis

Well-Known Member
I hope he can find a higher resolution pic. That would really help with identifying these parts.

That would really be helpful if the EMA/Plastruct domes are what we need.


stevielewis

Well-Known Member
Here's a wild idea about the round blisters...anyone have a 1/144th scale Saturn 5 rocket model? See how the first and second stage tank domes look as a possibility. That's the impression I get for those round blisters.


ProfKSergeev

Well-Known Member
RPF PREMIUM MEMBER
Well spotted, stevie! But I'm a bit confused: where exactly do these parts go? Would you mind circling the area in an image? Maybe I'm just extra dense today ...


stevielewis

Well-Known Member

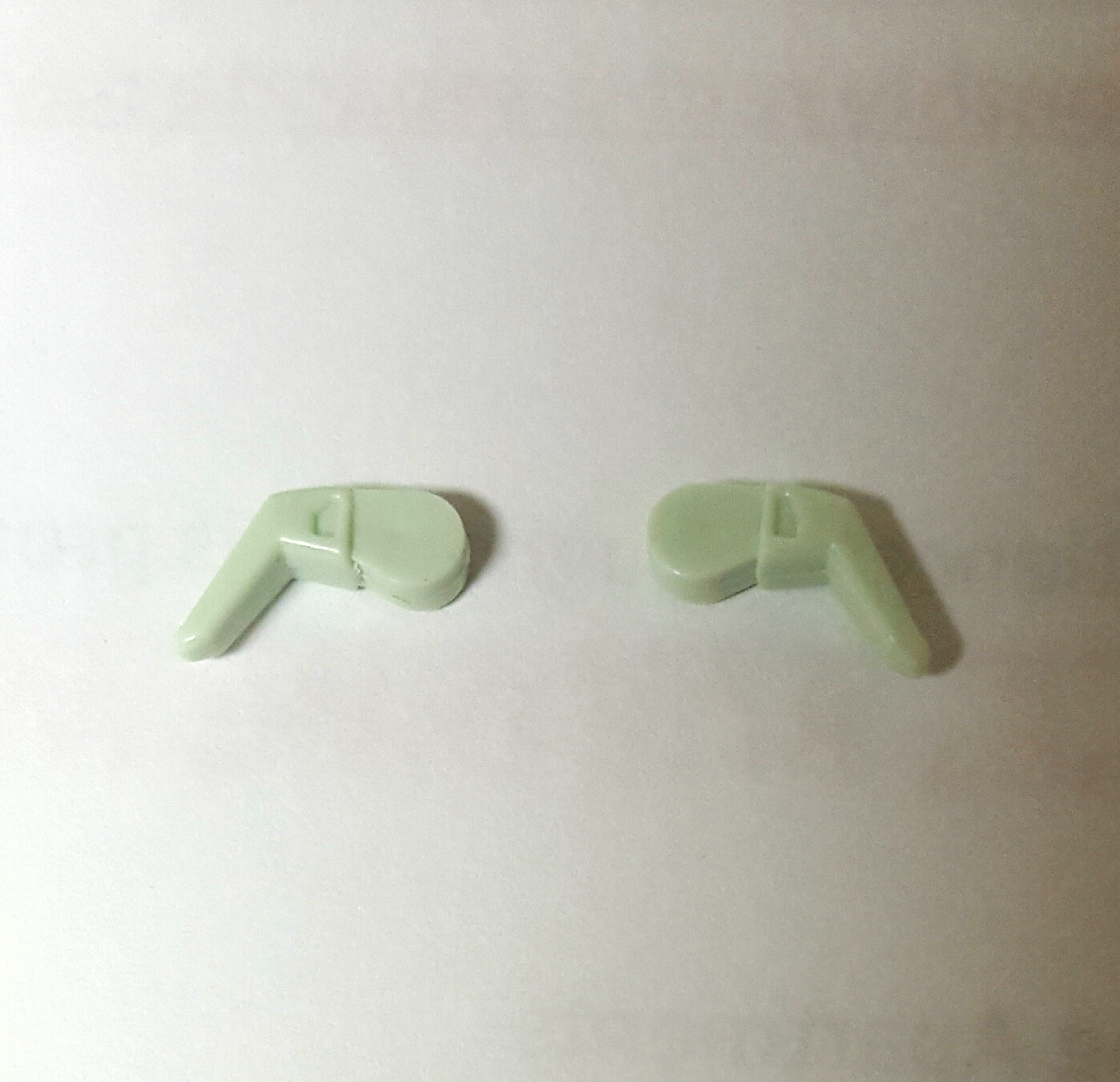

On the picture I posted July 27th of the yellow Constellation model, it shows the front of the Ready Room model, not totally clear, but you can make out what is there. Click on the pic for a larger version. Once open, look to the large front shuttle bay. On either side, what look to be dark spots are the shadows cast by these parts, with what almost look like "U" shaped or horseshoe type parts that I can't figure out. I checked the two "thumb" parts on my built Stargazer model and they pretty much match what can be seen in the photo of the yellow model. I hope that helps you find them now in the picture. I'll see what I can do with circling the parts and posting here.

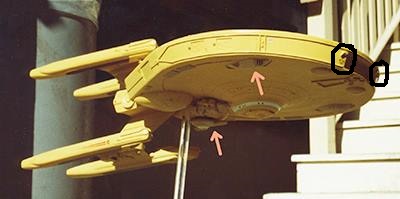

The two parts are circled in black. Again, click on the pic for a larger version.
