Pedro

Sr Member
RPF PREMIUM MEMBER

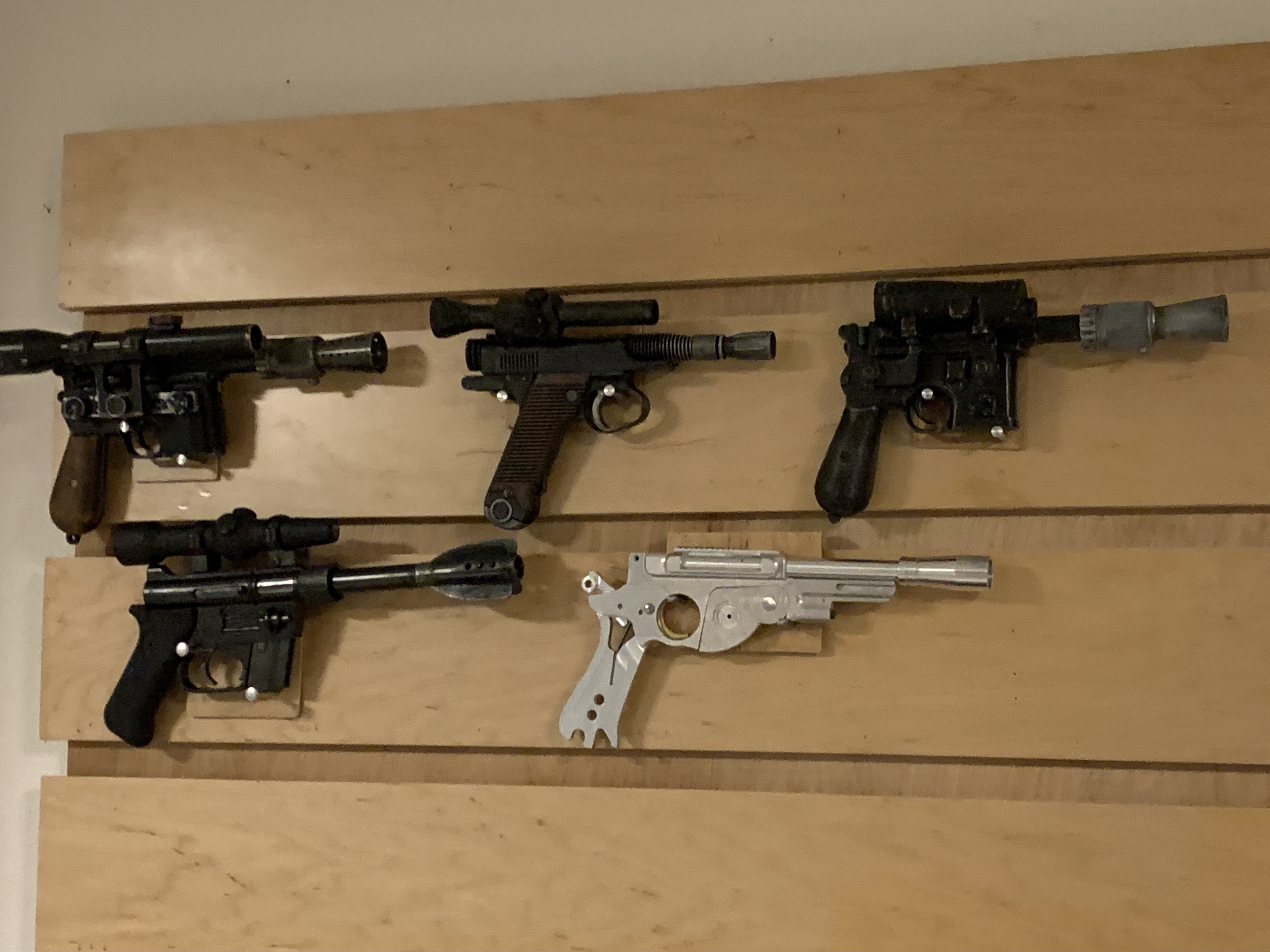

Oh, and I’m building this...as George Carlin said, I need a place for my stuff!






Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Pedro

Sr Member
RPF PREMIUM MEMBER

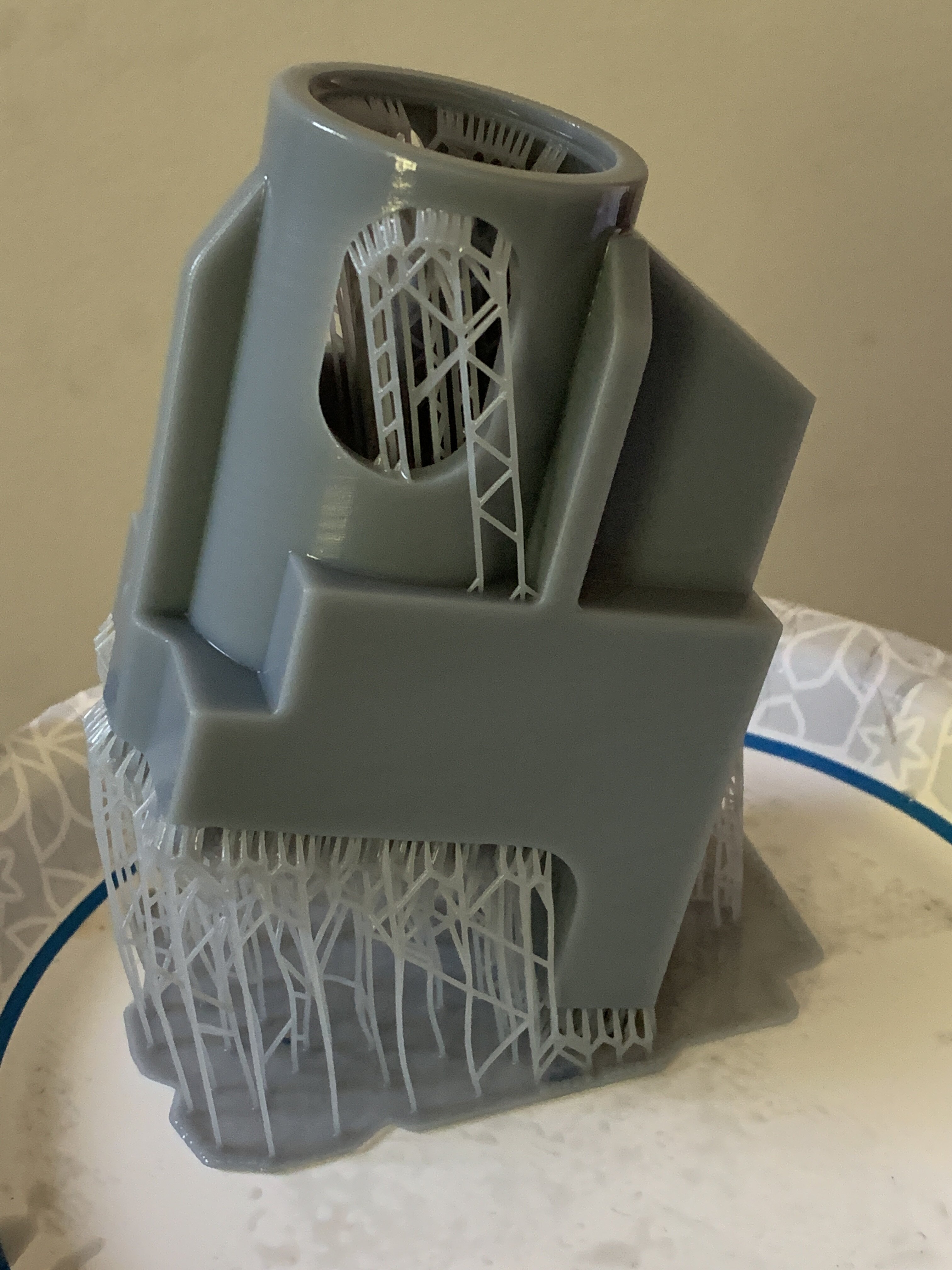

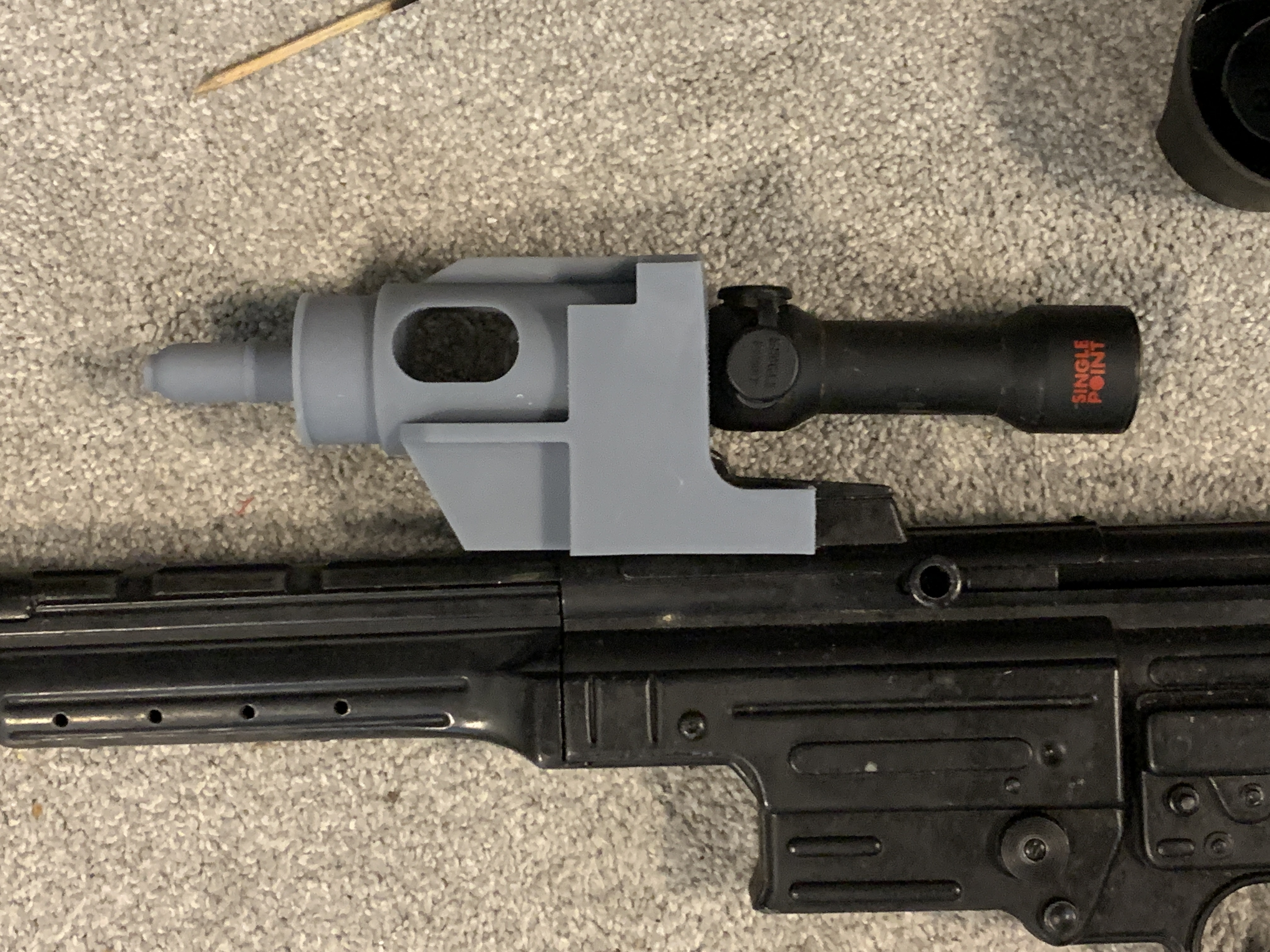

So this guy came off of the printer last night...just ordered accurate(?) scope rings for the Singlepoint. Now how the heck am I going to make the wood forend??




Pedro

Sr Member
RPF PREMIUM MEMBER
If you e PM’d me and I haven’t replied I’m sorry, not ignoring you! Busy week, and an interview today. I will reply in the next day or two. Sorry!

I’ve almost finished making a new AR-7 from scratch, starting from diagrams of th real thing. The other I printed seems fairly accurate, but best to start from scratch. So I may be able to help with DL-21 base guns after all. No pic at the moment, on my phone.

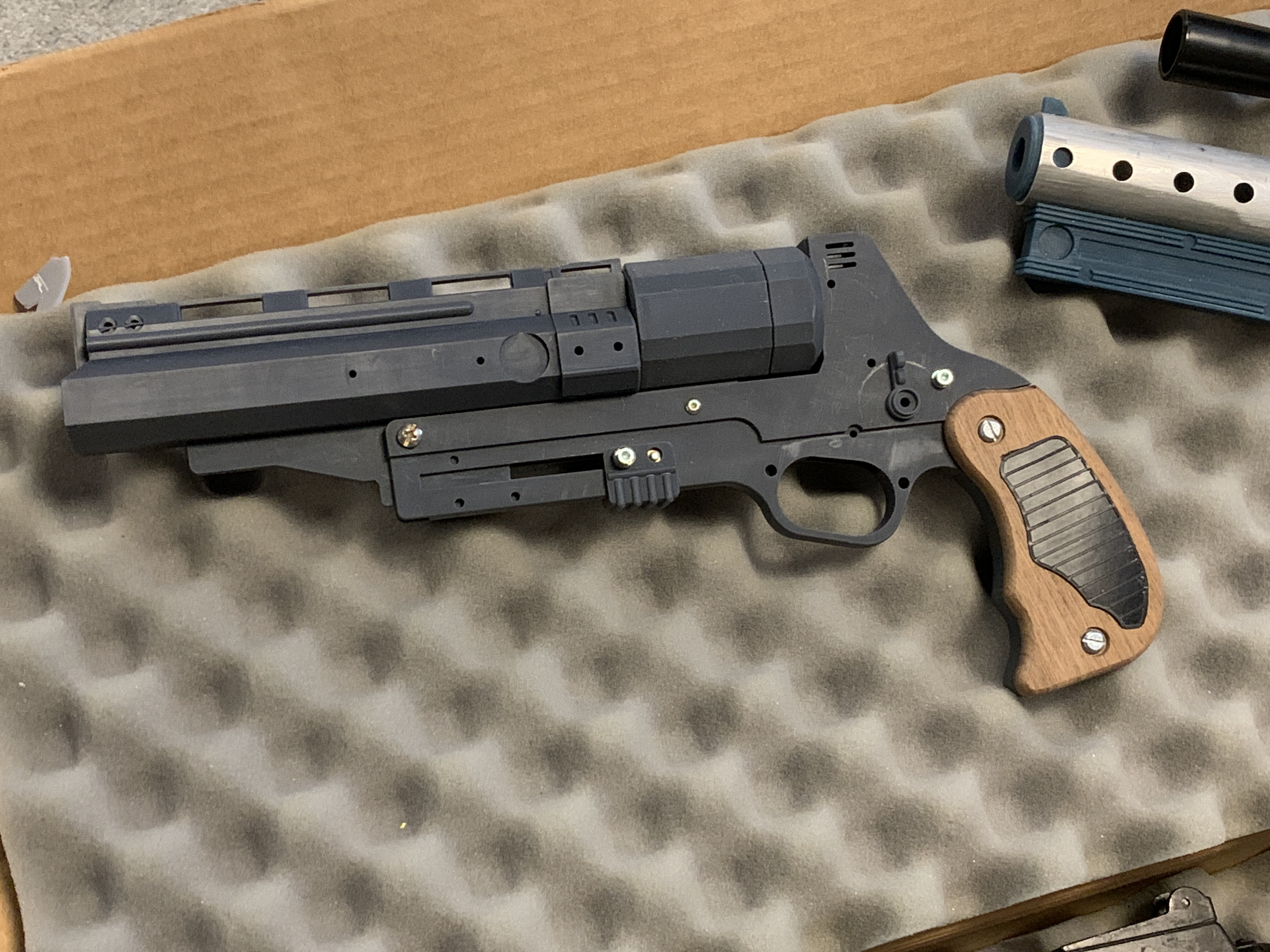

I have just about finished the RSKF-44 3d model/print though, and will attempt a run of the two Beckett guns. This one is fun to hold! I’ll be adding laser engraved emblem and side plates as well. Pew!


Pedro

Sr Member
RPF PREMIUM MEMBER
Yeah, I can share the file with you OdiWan72. I'm not sure it's ready for prime time yet though, I still have some tweaks to do and detail to add. You have a Mars, right? This barely fit, would definitely print better on a larger bed since this is a less than ideal orientation (notice the curve on the back where the Singlepoint goes in...should be straight). Anyway, Markus - just PM or email me, I'll set you up... :)

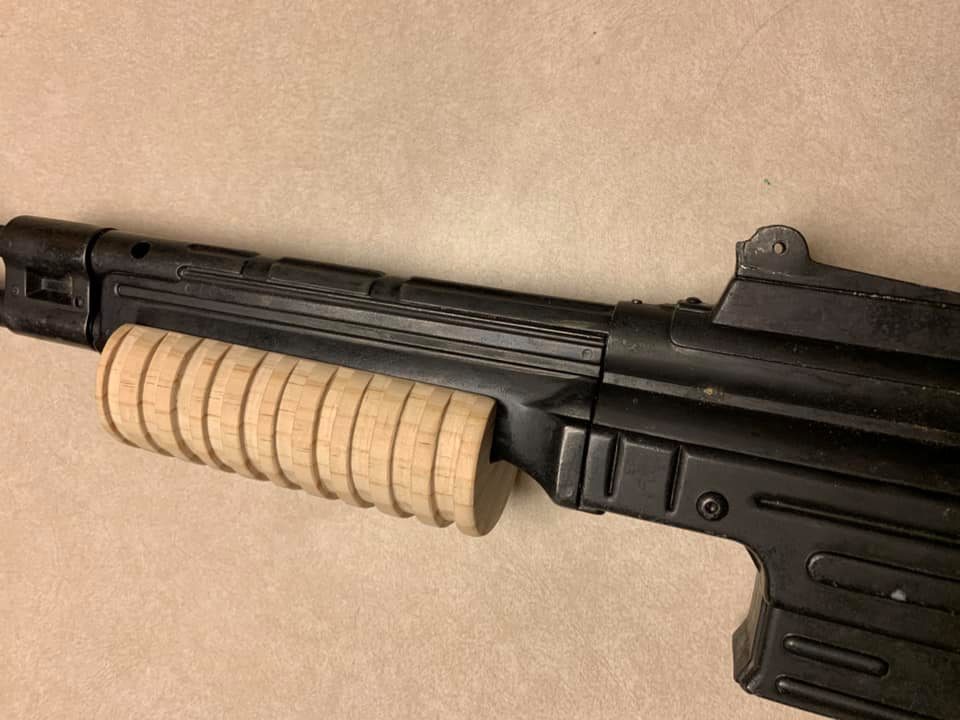

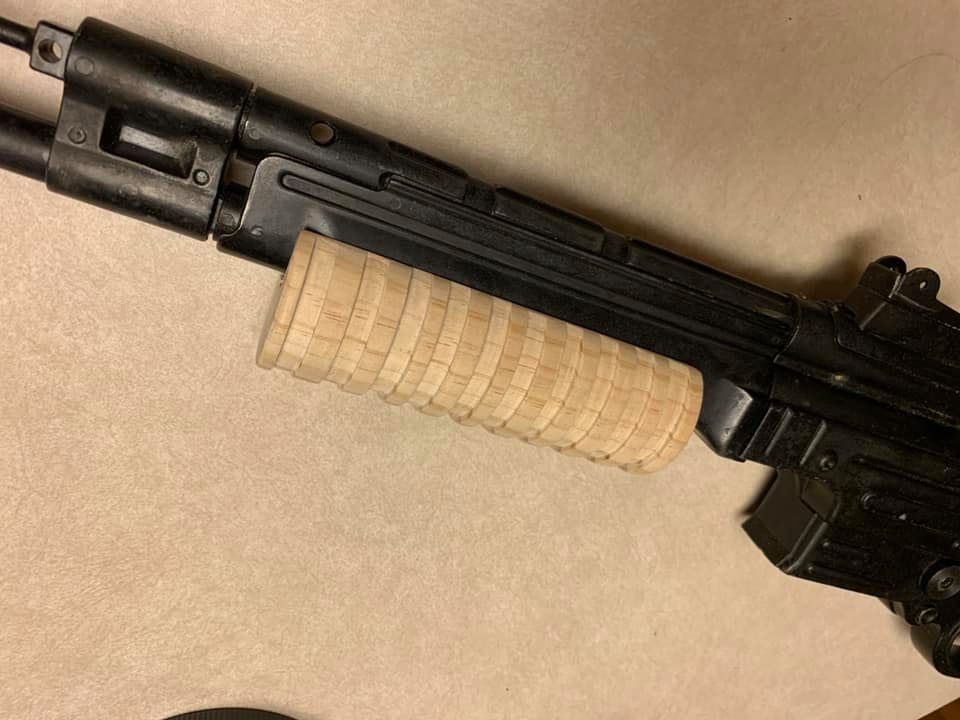

Speaking of which, I was able to knock out this foregrip on my tiny lathe over the weekend. I lathed this from a 2” pole and cut the notch with a table saw. It’s sloppy as hell (very little experience with the lathe), but so is the original. ;) This is intended to replicate the Prop Store gun that was auctioned off a while back (hence the uneven ridges, like a lightsaber!). After studying the available references and screenshots, I believe that these were individually lathed for each prop. Most seem to have 12 ridges, this one has 10, and at least one had 13. Pretty happy with how this came out. If anyone has any good references of this prop I'd be grateful if you shared!



Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Pedro

Sr Member
RPF PREMIUM MEMBER

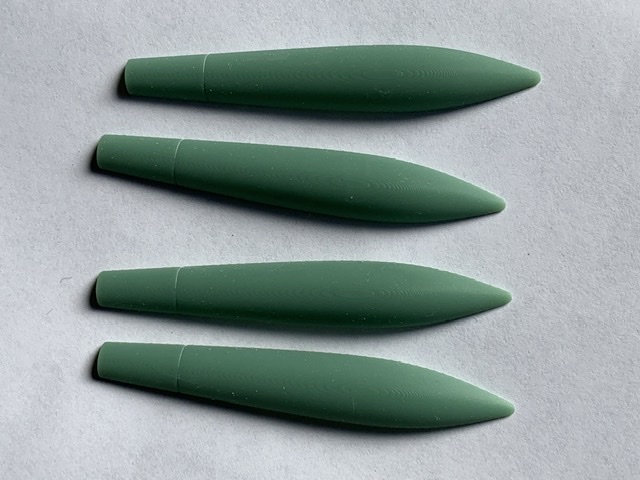

I keep updating the title, then moving on to some other blaster hah! Anyway, inspired by a request for some bomb halves for the DL-18 I decided to try mixing up some green resin to print them. This way no green base coat is needed for that chipped black paint look on the real prop. Here’s what I came up with...could be a little more “olive” I guess (though they’re less pastel color in person), but cool regardless.


OdiWan72

Master Member
RPF PREMIUM MEMBER
just went through all your updates...what a journey. GREAT WORK and great attention to detail!

Love your paintwork, especially the "metal" flashhider and mortar fin and the wood effekt. How did you archieve these?


Pedro

Sr Member
RPF PREMIUM MEMBER
OdiWan72 Thank you! Detail is the whole point, right? ;)

The Nambu grips were the first time I've really tried "wood". It was not that hard actually...I basically scratched the heck out of it to create some "grain" using scriber/knife/steel brush, etc. I sprayed it brown (rust actually, it was on hand), then added layers of some other brown streaks with cheapo craft paint I stole from the kids. I also used both black and brown shoe polish to build up some layers, scratching and messing it up along the way. I didn't expect it to be so successful honestly. I'm getting better at real wood, so probably won't practice this much. :D

The metal on the mortar fin, flash hiders, and some other stuff is my super top secret. In digging for ways to paint over patches in Denix/metal parts I came across "cold galvanizing" spray paint. Depending on the brand, it's up to 90% zinc. Well zinc blackens with Aluminum Black (AB) etc, so...yeah it works! In short, I prime with CRC cold galvanizing spray bomb and dunk it in Birchwood Casey (there are some other brands of this type of paint of course). It's SO COOL to watch plastic parts suddenly take on this black patina! I use this on almost every project - The Cara Dune blaster is all paint using this method.

I've played with this a lot, and found a lot of different effects you can get. First of all, the paint is a trip - it's a bit soft at first, but hardens up and adheres well. I like to bake it at 200F for 15-20 minutes if the parts can take it, it seems to harden it up, or at least speed the cure. Looks like grey primer, but if you polish it up well with a paper towel it starts to turn silver! You can polish before or after blackening.

Since it has such a high metal content, you can just dunk parts in Aluminum Black, or apply with cotton balls, q-tips, brushes, whatever. Take care with little creases, surface tension tends to keep the fluid out of them. I also decanted some into a bottle so I can do brush touch ups, or other weathering fiddles. You can add paint, blacken again, etc to get various looks. You can also dilute and/or re-use the blackening solution for subtler/slower blackening.

Layering is the key for me. I somehow decided that a layer of clear shoe polish would be good for building up layered paint, protecting the base coats, which turned out to be correct. That helps me get to the base coat color (usually silver/something) without going all the way to the plastic.

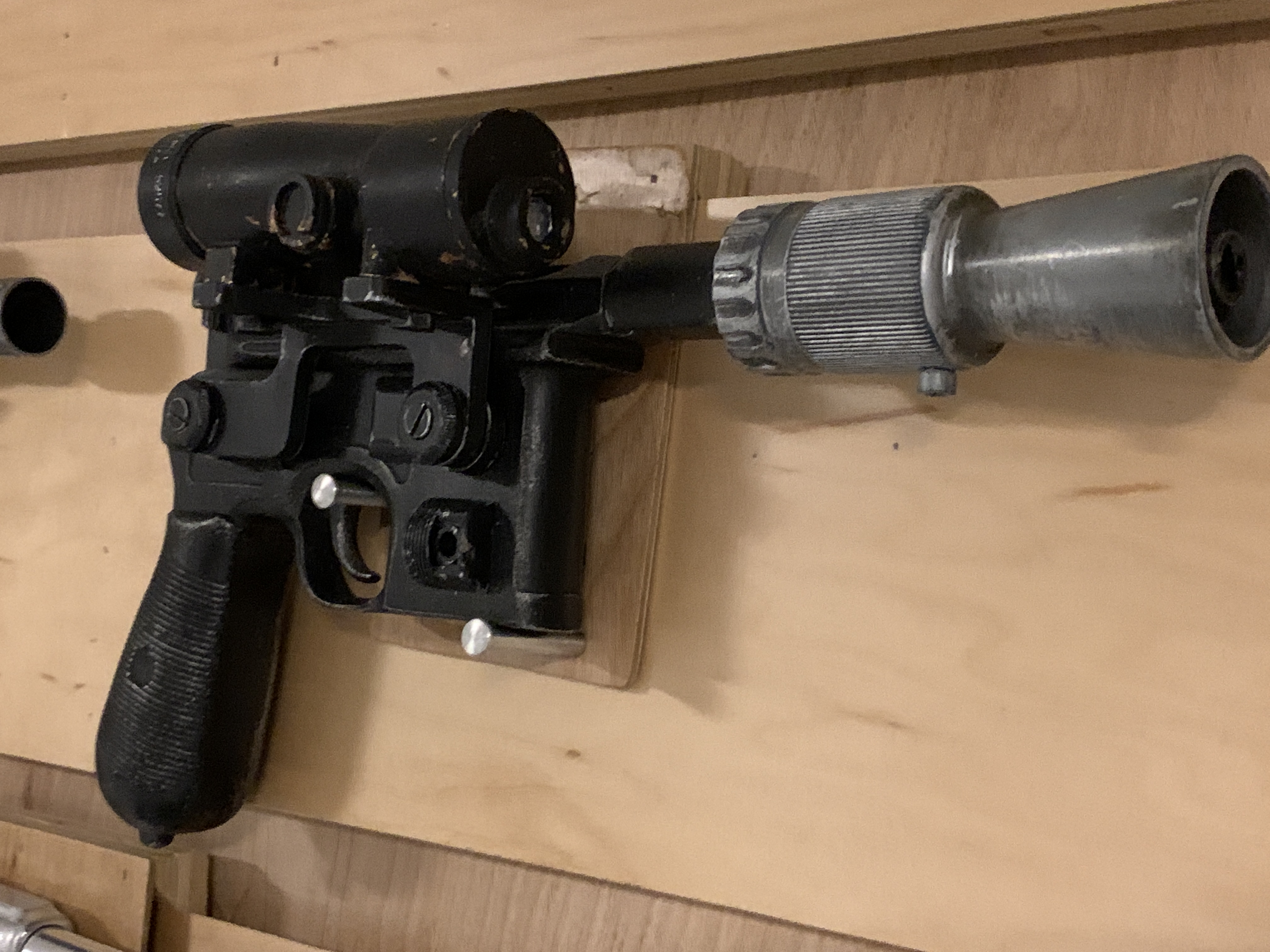

If I remember correctly , the Muppet DL-44 flash hider was done like this:
  • - Spray bomb "alumunim" (several coats). I wanted this heavy so I wouldn't polish all the way through when messing with the zinc paint.
  • - Kiwi wax, applied per directions
  • - CRC Zinc-it (several coats)
  • -Polish with paper towels
  • -Birchwood Casey Aluminum black dunk
  • -More paper towel polish, and #0000 steel wood. I hold the flash hider with the wool and rotate it carefully. This reveals some paint underneath and creates the "lathe marks". You could do brushed metal etc with steel wool.
  • -More AB to darken a bit more if I remember, then more "polishing"
  • -Final coat of Kiwi wax
If you look closely on the bottom you can see sort of a darker scar/thingie. That's the dark resin showing through, went a little far with the steel wool, but I liked the overall look and nervous to try to touch up that spot!

The mortar fin on the DL-21 was different - Here it was almost all layering of zinc paint and blackening solutions. I dunked, polished, scratched, streaked/dabbed/flicked with various blackening fluids and a brush or q-tip, brushed on splotches of zinc paint, etc. I just kept fiddling with it and looking at references until I thought it looked authentic. Oh, and this one has some graphite and "chrome" fingernail powder rubbed on as well. Sometimes they act as kind of a resist to the blackening fluids, which gets interesting.

Cara Dune's blaster is mostly straight up CRC dunked in AB. The flash hider was done pretty much like the DL-44, paying attention to keep a lot of the black in the creases/corners.

I dunno, I just fiddle a lot with materials, the parts make themselves I think. :) I hope some of this is helpful to you folks!

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

OdiWan72

Master Member
RPF PREMIUM MEMBER
OdiWan72 Thank you! Detail is the whole point, right? ;)

The Nambu grips were the first time I've really tried "wood". It was not that hard actually...I basically scratched the heck out of it to create some "grain" using scriber/knife/steel brush, etc. I sprayed it brown (rust actually, it was on hand), then added layers of some other brown streaks with cheapo craft paint I stole from the kids. I also used both black and brown shoe polish to build up some layers, scratching and messing it up along the way. I didn't expect it to be so successful honestly. I'm getting better at real wood, so probably won't practice this much. :D

The metal on the mortar fin, flash hiders, and some other stuff is my super top secret. In digging for ways to paint over patches in Denix/metal parts I came across "cold galvanizing" spray paint. Depending on the brand, it's up to 90$ zinc. Well zinc blackens with Aluminum Black (AB) etc, so...yeah it works! In short, I prime with CRC cold galvanizing spray bomb and dunk it in Birchwood Casey (there are some other brands of this type of paint of course). It's SO COOL to watch plastic parts suddenly take on this black patina! I use this on almost every project - The Cara Dune blaster is all paint using this method.

I've played with this a lot, and found a lot of different effects you can get. First of all, the paint is a trip - it's a bit soft at first, but hardens up and adheres well. I like to bake it at 200F for 15-20 minutes if the parts can take it, it seems to harden it up, or at least speed the cure. Looks like grey primer, but if you polish it up well with a paper towel it starts to turn silver! You can polish before or after blackening.

Since it has such a high metal content, you can just dunk parts in Aluminum Black, or apply with cotton balls, q-tips, brushes, whatever. Take care with little creases, surface tension tends to keep the fluid out of them. I also decanted some into a bottle so I can do brush touch ups, or other weathering fiddles. You can add paint, blacken again, etc to get various looks. You can also dilute and/or re-use the blackening solution for subtler/slower blackening.

Layering is the key for me. I somehow decided that a layer of clear shoe polish would be good for building up layered paint, protecting the base coats, which turned out to be correct. That helps me get to the base coat color (usually silver/something) without going all the way to the plastic.

If I remember correctly , the Muppet DL-44 flash hider was done like this:
  • - Spray bomb "alumunim" (several coats). I wanted this heavy so I wouldn't polish all the way through when messing with the zinc paint.
  • - Kiwi wax, applied per directions
  • - CRC Zinc-it (several coats)
  • -Polish with paper towels
  • -Birchwood Casey Aluminum black dunk
  • -More paper towel polish, and #0000 steel wood. I hold the flash hider with the wool and rotate it carefully. This reveals some paint underneath and creates the "lathe marks". You could do brushed metal etc with steel wool.
  • -More AB to darken a bit more if I remember, then more "polishing"
  • -Final coat of Kiwi wax
If you look closely on the bottom you can see sort of a darker scar/thingie. That's the dark resin showing through, went a little far with the steel wool, but I liked the overall look and nervous to try to touch up that spot!

The mortar fin on the DL-21 was different - Here it was almost all layering of zinc paint and blackening solutions. I dunked, polished, scratched, streaked/dabbed/flicked with various blackening fluids and a brush or q-tip, brushed on splotches of zinc paint, etc. I just kept fiddling with it and looking at references until I thought it looked authentic. Oh, and this one has some graphite and "chrome" fingernail powder rubbed on as well. Sometimes they act as kind of a resist to the blackening fluids, which gets interesting.

Cara Dune's blaster is mostly straight up CRC dunked in AB. The flash hider was done pretty much like the DL-44, paying attention to keep a lot of the black in the creases/corners.

I dunno, I just fiddle a lot with materials, the parts make themselves I think. :) I hope some of this is helpful to you folks!

Believe it or not, but I used the Zinc-spray with Alumablack several times before myself...but never with these great results.

Thanks for the tutorial!!!


Pedro

Sr Member
RPF PREMIUM MEMBER
Believe it or not, but I used the Zinc-spray with Alumablack several times before myself...but never with these great results.

Thanks for the tutorial!!!

You're welcome, hope people find it useful! I'm actually not too surprised, I kind of assumed that I'm not the first person to think of this. :) Maybe different brands don't work as well? There's a lot to explore here, I've been thinking about messing with electro plating...apparently you can make graphite rich paint that works for this.


dkraude

Active Member
RPF PREMIUM MEMBER
You're welcome, hope people find it useful! I'm actually not too surprised, I kind of assumed that I'm not the first person to think of this. :) Maybe different brands don't work as well? There's a lot to explore here, I've been thinking about messing with electro plating...apparently you can make graphite rich paint that works for this.

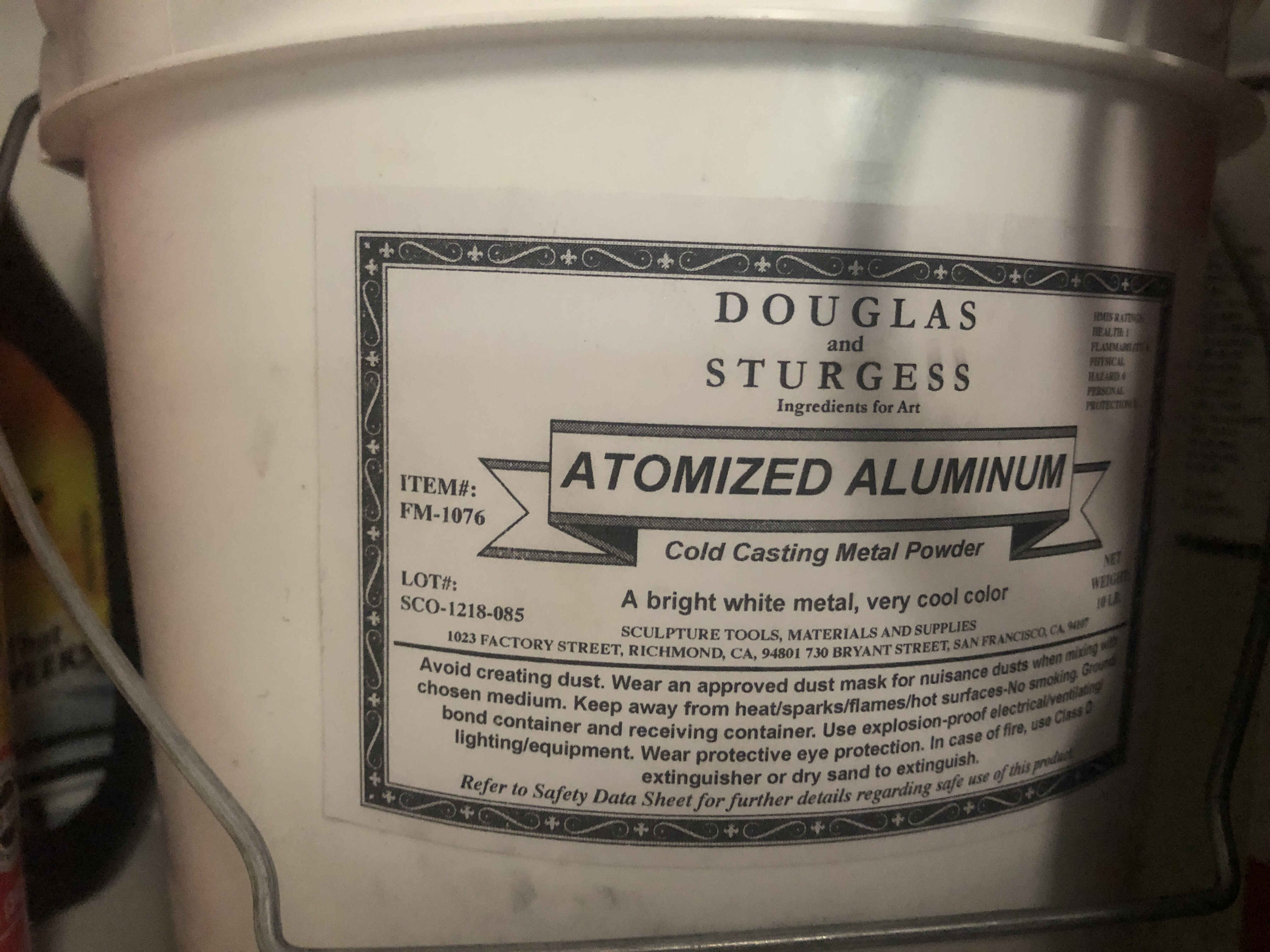

I’ve looked into electroplating as well but I haven’t tried it yet. Would be interested in following your progress on that as there are quite a few smaller parts that I would like to plate with copper and then nickel. I have heard of the graphite technique but read somewhere that there are better results with mixing the paint with atomized (powdered) aluminum. I purchased some myself but haven’t had time to test.


Attachments

  • image.jpg
    2.6 MB · Views: 14

Pedro

Sr Member
RPF PREMIUM MEMBER
I’m ha e both powders on hand, just need to get around to playing with it, need some other chemicals.

I did have mild success playing with etching aluminum using a 9v battery and salt water. My kids were not impressed I’m afraid!


OdiWan72

Master Member
RPF PREMIUM MEMBER
I’ve looked into electroplating as well but I haven’t tried it yet. Would be interested in following your progress on that as there are quite a few smaller parts that I would like to plate with copper and then nickel. I have heard of the graphite technique but read somewhere that there are better results with mixing the paint with atomized (powdered) aluminum. I purchased some myself but haven’t had time to test.

Be careful when using aluminum powder...ALWAYS wear a respirator. This stuff messes up your lungs and will give you long term health issues


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Pedro

Sr Member
RPF PREMIUM MEMBER
Be careful when using aluminum powder...ALWAYS wear a respirator. This stuff messes up your lungs and will give you long term health issues
Absolutely! I work with enough terrible stuff, always careful. My mom (a doctor) always gives me dirty looks when I show off some new bottle of horror that I've picked up. ;) I bought the alu dust to see if it would work like graphite or nail powders, rubbed into various finishes. It does nothing lol. I have zinc too. And 32oz aluminum black that terrified my mother!


dkraude

Active Member
RPF PREMIUM MEMBER
Absolutely! I work with enough terrible stuff, always careful. My mom (a doctor) always gives me dirty looks when I show off some new bottle of horror that I've picked up. ;) I bought the alu dust to see if it would work like graphite or nail powders, rubbed into various finishes. It does nothing lol. I have zinc too. And 32oz aluminum black that terrified my mother!
:cry: Have you tried mixing it in the paint? You can brush it on and sand with 400 grit sandpaper in between coats.


Pedro

Sr Member
RPF PREMIUM MEMBER
I haven't, I kind of tossed it in a drawer after fiddling for 10 minutes. Sounds worth a try! Did you get some good results?


dkraude

Active Member
RPF PREMIUM MEMBER
I haven't, I kind of tossed it in a drawer after fiddling for 10 minutes. Sounds worth a try! Did you get some good results?
I have not tried mixing it in the paint but I have mixed the aluminum powder into resin to cold cast a part and when buffing the finished part the aluminum shines through nicely. I would imagine if you were going to try to electroplate a printed part, the aluminum in the paint would yield the same result and act as a conductor for the process of bonding the copper to the part. You can then bond nickel to the copper. I have not had the time to try it out yet. Let's see who tackles it first. My money is on you. :)
