New Wolf Bio Mask (From 3D To Resin)

[NeXXt]

Hello, folks! That's my first prop in AvP universe — movie mask of Wolf (bio). Started to design in 3D from planar mesh. Right now it's on unfolding stage.

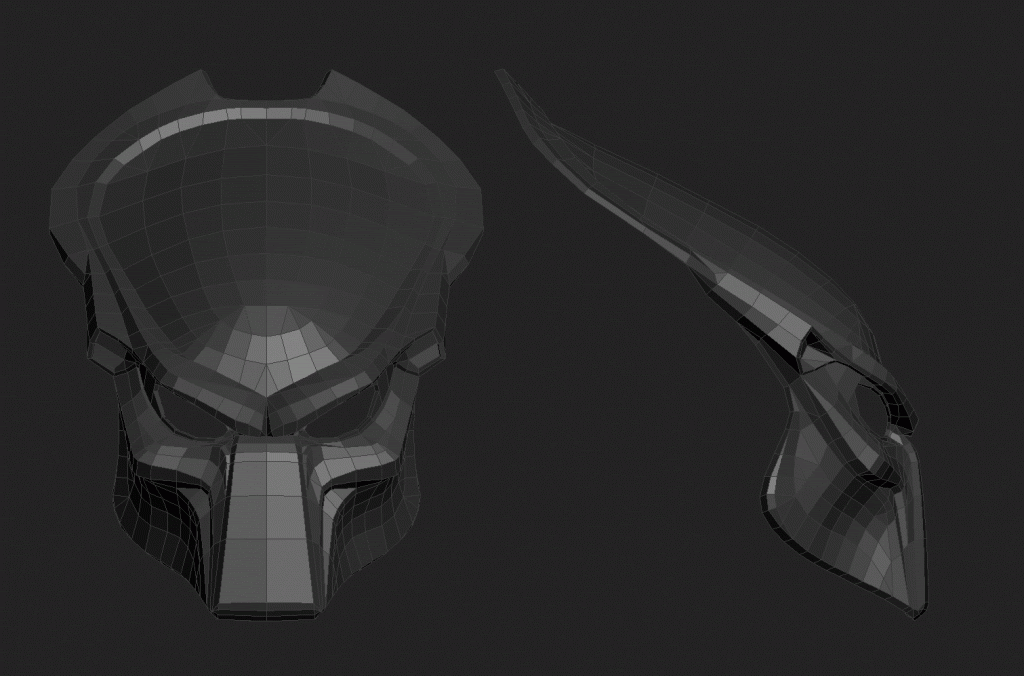

1st stage. Preliminary forms (symmetric halfs) and wrong proportions.

2nd stage. A bit closer to movie model has better shapes but not so good.

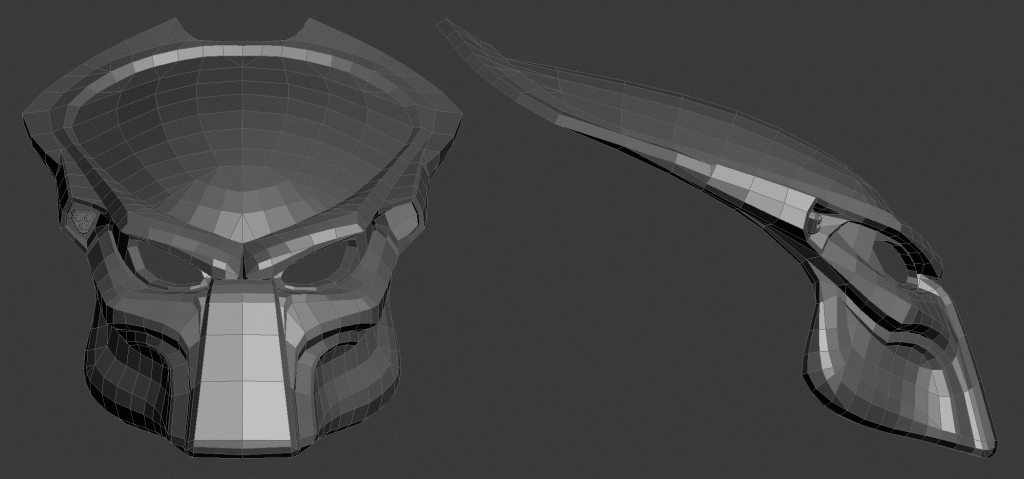

3rd stage. Almost done.

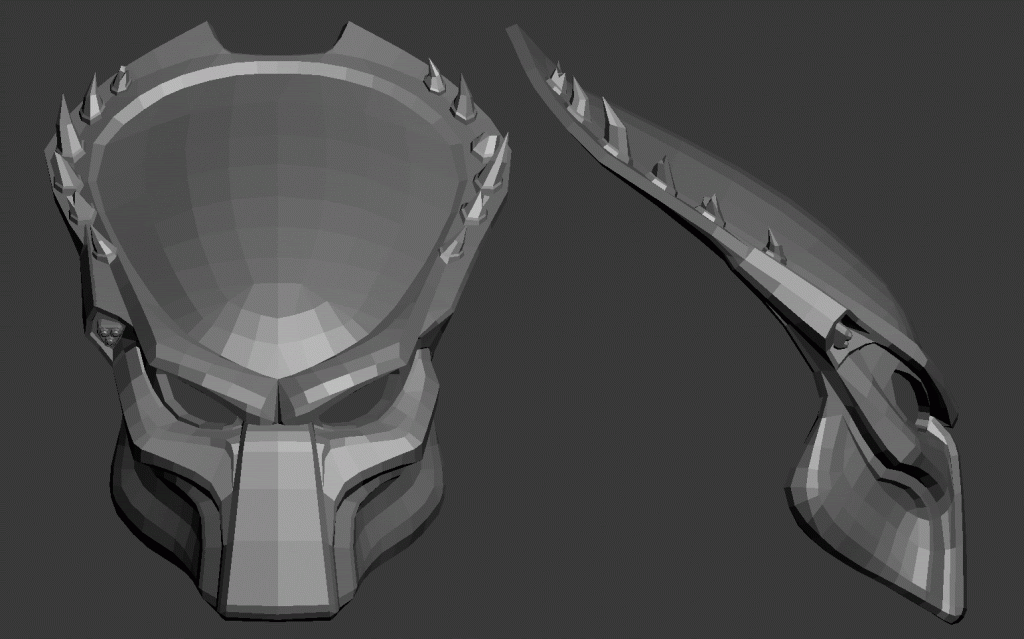

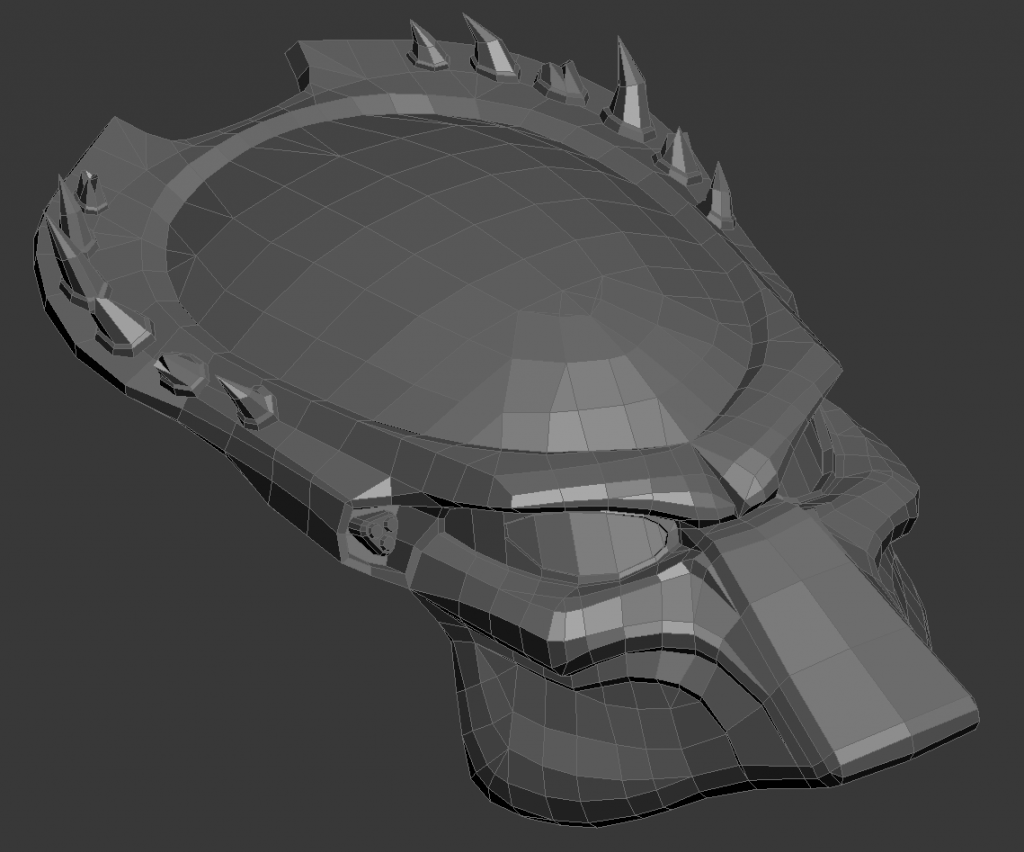

Added horns and laser targeting module for correct appearance.

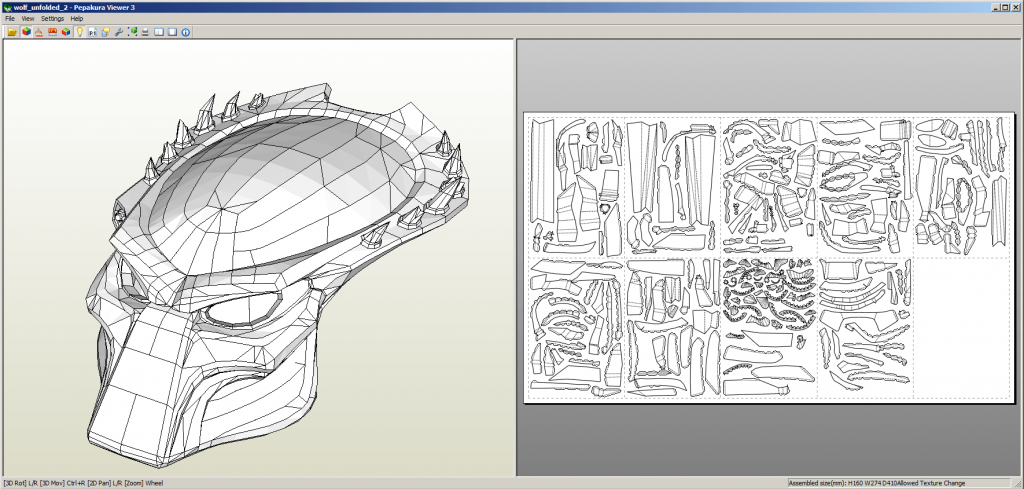

Exported as .3ds and ready to unfold in PD.

Sorry for my English (i'm from Russia).



[made007]

Thanks for the file
The bio is awesome



[made007]

Do us a detailed backpack....... Lol just saying ;D



[DMTDeadpool]

Ooo I so want to make this with pep!



[NeXXt]

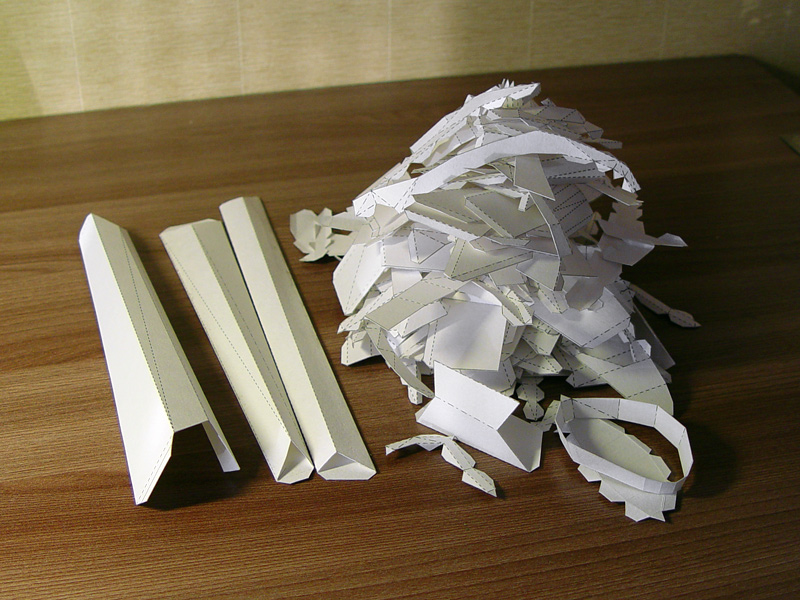

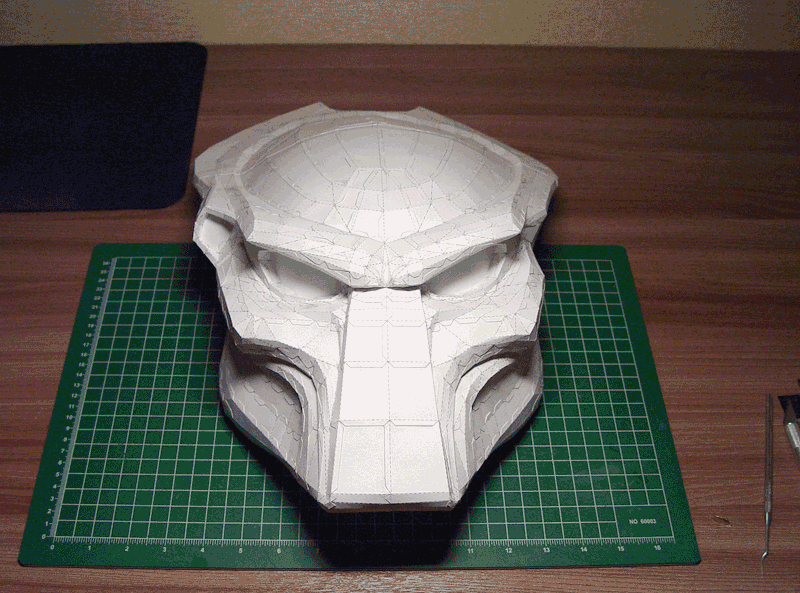

I unfolded and printed the mask on A3 paper (200g/m2) and complete it.

Work in process

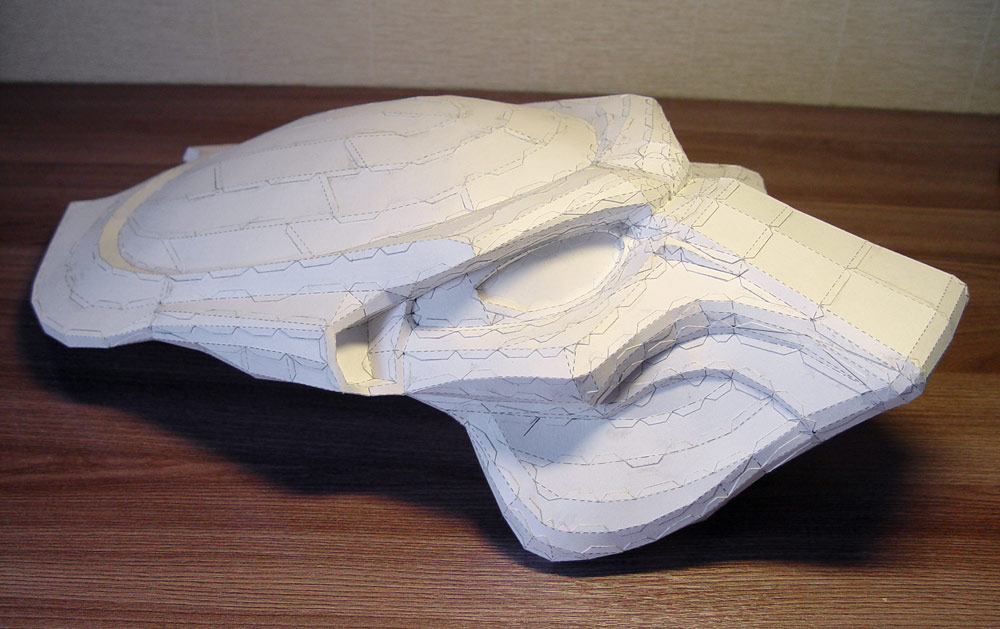

And now the final result (horns and laser module i'll make a bit later).

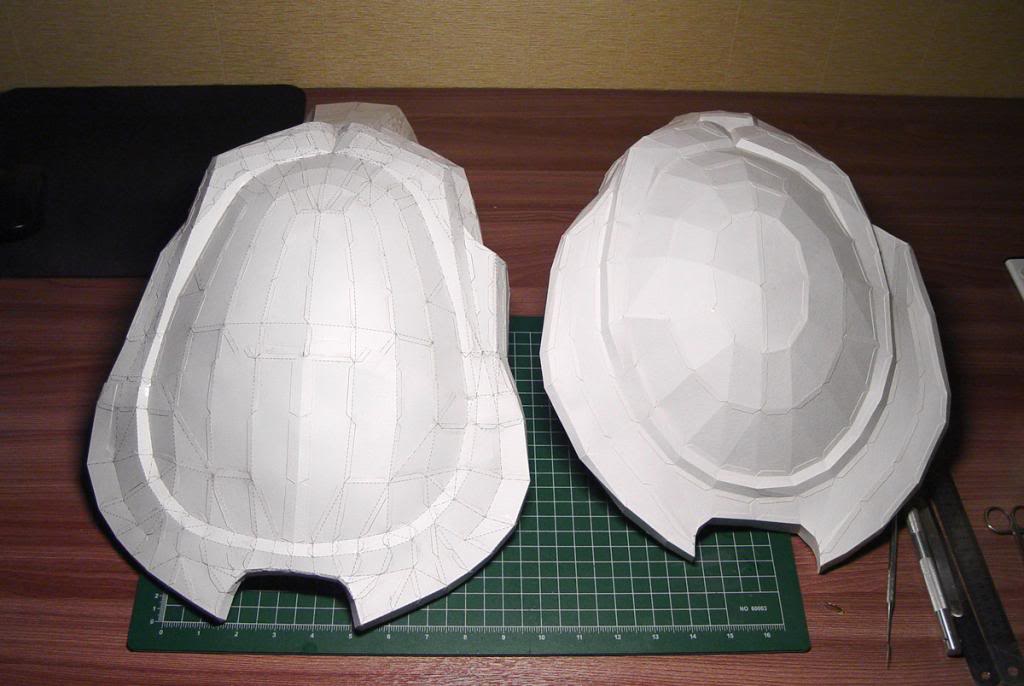

Compared with previous probe (game model):

made007, thank you!
DMTDeadpool, i'll post PEP-file after re-unfold the final version (now the head part is too long)



[NeXXt]

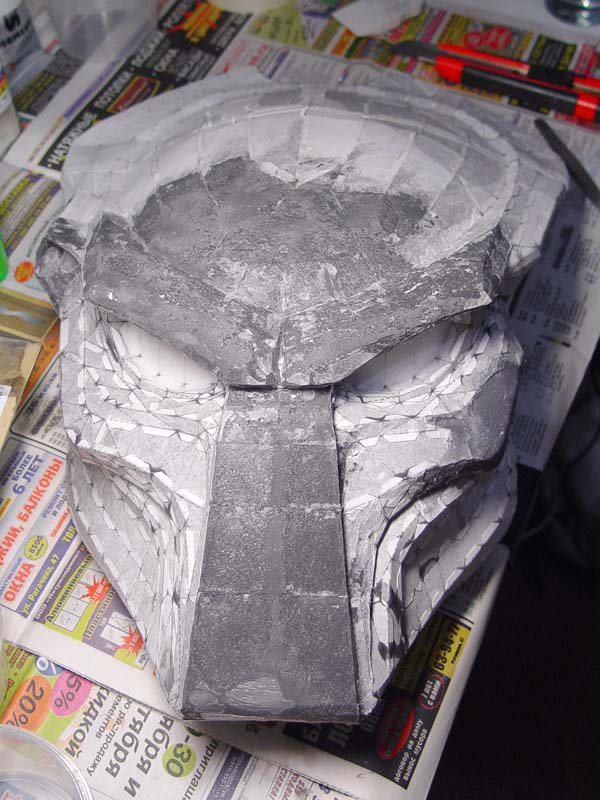

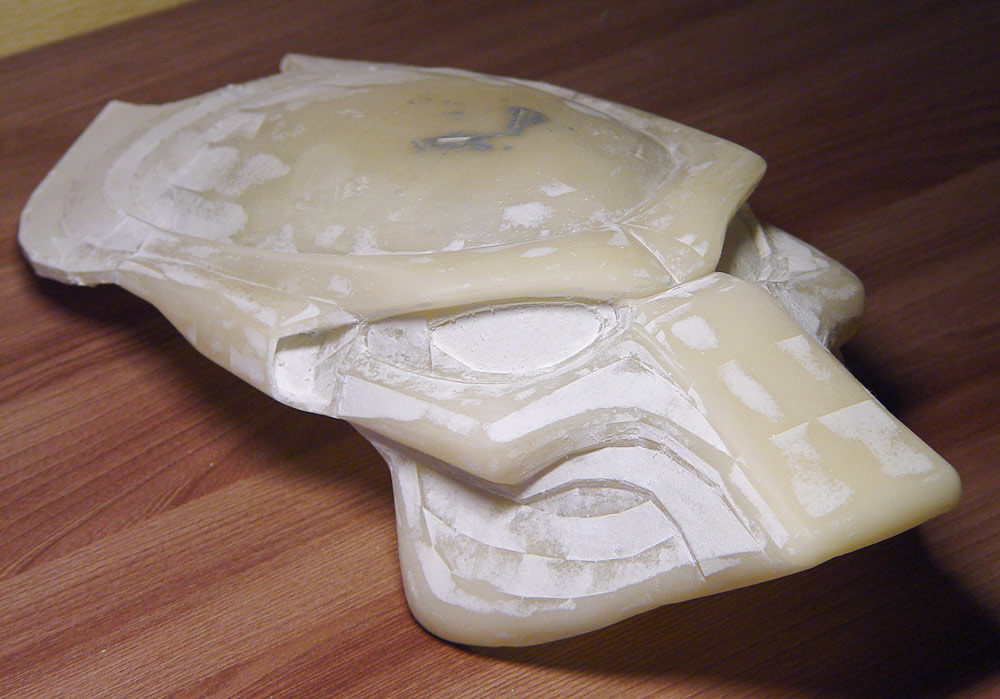

My first test formed with urethane resin (Protocast 85R). Paper matrix was grinded off with sandpaper and dremel.

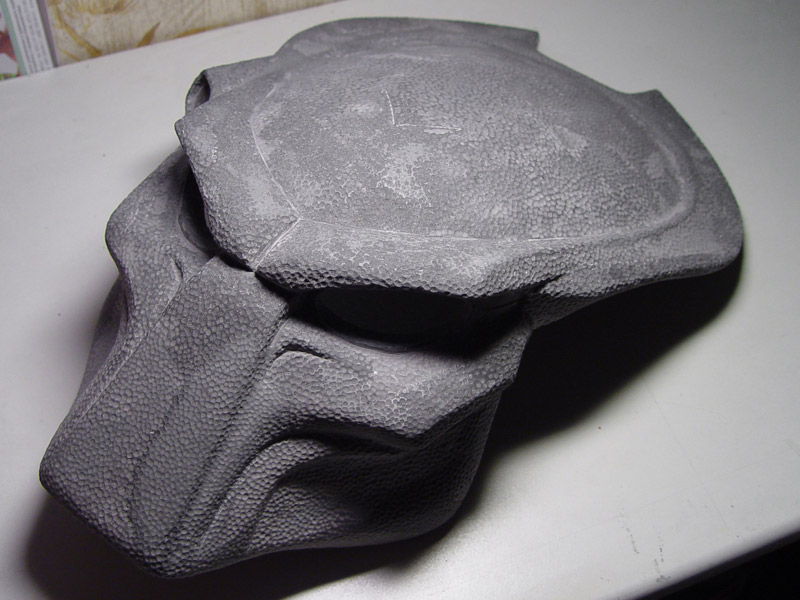

Added irregularities on whole outer surface with dremel and spherical grinding stone.

Now I'm working with renewed 3D model (got back to the start).



[Biggdaddy]

How did you do that. I want to do this, it would make it so easier for me to make a cast.



[Lowdmekon]

Lookin good loving the detail.



[afedorniak]

well done!!



[NeXXt]

How did you do that. I want to do this, it would make it so easier for me to make a cast.

I used paper model as a casting form for urethane resin (Protocast 85R): step by step a small parts of resin (around 40-60g) fill into paper model. But better way is in using of epoxy resin for impregnation of paper model and using urethane resin for making main layer thickness.



[NeXXt]

Thanks!

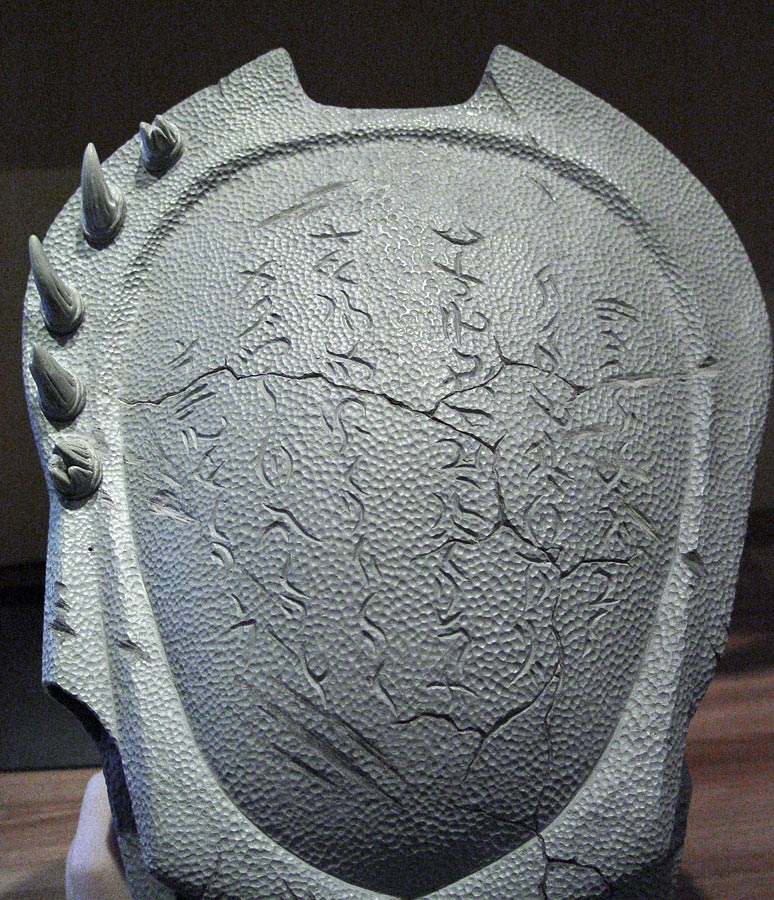

Work with signs, cracks, dents (dremel + conical, cylindric metal milling cutters). Added horns (epoxy clay).



[NeXXt]

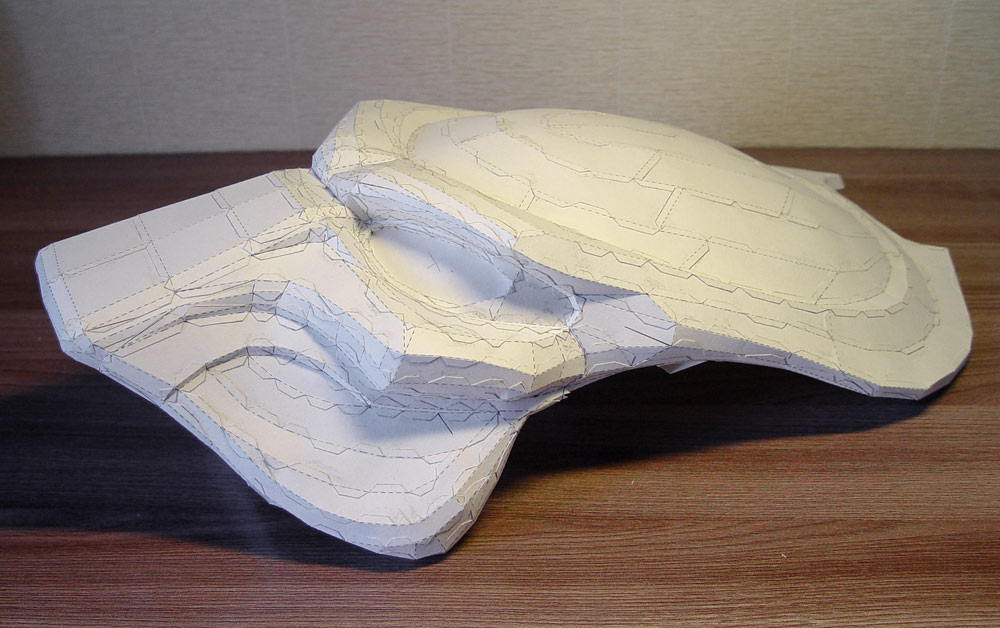

Updated (redone) and re-unfolded 3D model (corrected face angle and eyes, simplified mesh and corrected separation).


Second version awaits impregnation with resin.



[Darth Will]

WOW!  Impressive.



[metalzeus]

Do you have the file for the pdo?,Its really impressive.



[AlphaTech686]

Very cool stuff. I don't know which is harder this or sculpting in clay.



[NeXXt]

Do you have the file for the pdo?,Its really impressive.


Yes. You may take it here:
Small version (150 х 260 х 420 mm)
Big version (175 х 306 х 494 mm)
All files made for A3(420 x 297 mm) paper.



[Kithunter]

Digging it from start to finish,  that is totally badass.



[The Sculptor]

I must say that you are very talented beyond belief bro. I have been trying to download the files though and i just keep getting execution files that want to install into my computer. arent these supposed to be pdo files? If i can get the pdo files from you that would be awesome. maybe by email? files should be small enough to send that way



[The Sculptor]

Alls cool about the files. it seems that to get the actual files free without 4shared trying to install their programs is to register with them to get the no bs files. lol I cant wait to start cutting. i also wanted to ask why you would glue the tabs on the outside of the mask? is it because you are covering the outside and it gives the inside a cleaner look?



[NeXXt]

I must say that you are very talented beyond belief bro. I have been trying to download the files though and i just keep getting execution files that want to install into my computer. arent these supposed to be pdo files? If i can get the pdo files from you that would be awesome. maybe by email? files should be small enough to send that way

No problem, let's try to attach it here (I use 4shared and it needn't use some of external soft in free mode).
Yes, external tabs gives less problems with grinding off the paper surface.

Work in progress.
