Narrowing down the list of 3d printers. Purpose : Prototyping Helmets and Armor

Discussion in 'General Modeling' started by Caille, Jun 11, 2015.

  1. Caille

    Caille New Member

    Trophy Points:
    17
    So after weeks of research I have finally narrowed down my choice of 3d printer. With knowledge of what I want to do and what I hope to buy I was able to begin a search in earnest and learned a great deal about the machines. First off, as TheRPF has always been a look first ask after you have a direct question place I will list what I am looking for in a printer.

    -Relatively large print bed, as I will be using this to prototype pieces I will want a print bed that is capable of handling reasonable sized chunks of the models I use. Main use will be prototyping helmets and armour. I am looking for about 8inches+ cubed. This will not be used for final product but rather for prototyping. On rare occasion it may be used to make parts, but I am more likely to resort to traditional casting in the end.

    -Relative ease of use. I am not a 3d printing enthusiast; yet, therefore a self built DIY printer is not ideal. Likewise a difficult to tune printer is also not ideal. An easy to use software with a comfortable learning curve. Something easy to learn and hard to master would be nice.

    -Relatively good layer resolution, 20 microns to 50 microns would be ideal. 100 microns would be "acceptable".

    -Heated Glass Bed and Auto leveling preferred but not necessary I have other tools in my home I have to manually level and I imagine a bed heater is a common mod on most (though integrated protects MF warranty).

    -Finally software and support. Whether open sourced or proprietary it is important to me to have good support for the printer and the woes I may face.

    -Of near non import is speed of print. I would rather quality than speed. The less time I can spend doing finishing work, the more time I can spend molding and working on model variation or fine tuning.

    So with those in mind and google as a friend I began to hit the top 3d print review sites. After extensive research I came up with a few options by comparing things like trending charts, major review sites and forum posts.

    -Ultimaker 2, normal or extended. Or alternatively the Ultimaker Original + and add on some goodies like a second extruder nozzle, may be a bit too DIY for my first foray.
    -Lulzbot Tazbot 5. Printbed Size and a good support reputation make this a strong contender. Also this one works with a lot of materials.
    -Formlabs F1+. Wow those lines, WOW those lines.....nomnom smooth.

    As you can see I have two extruder type printers on there and the one really commercially available resin printer as well. The F1+ may not meet my ideal bed requirements but the resin style can handle fine detail a bit better.

    Looking at each of these I can see a price point and quality point emerging. $2500-$3200 seems to be the range of bot I am personally looking for.

    Each has strengths and weaknesses, The Ultimaker has the best layer thickness of the extruders, ranging from 20microns to 200. F1+ has the best ability to print fine detail and curves and the Tazbot has the largest bed and widest range of materials.

    I know we have makers here who own these machines and I would like to hear your opinion on each.

    In the end I will have to choose what feels best for me. But as The RPF has long been my preferred source of information on costuming and design I am keen to hear what my fellow RPFers think.

    A note, Makerbot's Replicator 5th Gen was nixxed from the list after extensive thought about the mixed reviews it receives. Either love or hate, it induces strong emotion. Coupled with its proprietary software it is 4th on my list but did not clear the top 3. Airwolf is a brand I cannot find enough information on to add to my main consideration list but one that I have considered.

    Eventually I will probably get an F1+ even if I get another printer to start, the lines are just too nice. But again I would like to hear from you guys.

    Caille

    Nwerke likes this.
  2. Galane

    Galane New Member

    Trophy Points:
    17
    What I'd do is find people who own each of those printers and send them a sample 3D object to print at the best quality they can, then send the prints back. Some people will charge for materials plus a bit for their time.

    I'm working on building my own 3D printer, which is going to be made extremely rigid. I saw a Solidoodle 2 in operation and was not very impressed with its single sided build platform support where I could see a tiny wiggle in the platform.

  3. Caille

    Caille New Member

    Trophy Points:
    17
    Solidoodle did not even make my top 5.

    I imagine I can use the 3d site that does trend analysis and check with builders. But honestly if I can get some RPFers to chime in it would be wonderful.

    DIY has its appeals, but sadly is a bit beyond my comfort atm.

    Caille

  4. moztech

    moztech Member RPF PREMIUM MEMBER

    Trophy Points:
    117
    Have you thought about building your own, you could most likely build a printer that will meet you specifications for allot less than buying one.

  5. Caille

    Caille New Member

    Trophy Points:
    17
    Thought about it but decided against it. Actually said as much in my op, if a bit wordy of a way to get to the point and then again last post. DIY printers are, at this point beyond my comfort zone.

  6. Galane

    Galane New Member

    Trophy Points:
    17
    There are some vendors on eBay that sell complete kits with all the parts. Easiest would be one that already has the firmware loaded onto the control board. There are many printers based on the old Prusa Mendel that had a frame made of pieces of threaded rod - and is a terrible design.

    The first big alteration to the Mendel design was directly replacing the threaded rods with aluminum extrusions. Then someone realized that the triangular side frames weren't needed with the much stiffer extrusions. Then cut out metal and acrylic frames appeared in many variations. But the core mechanicals of how the extruder and build platform move still go back to the Mendel.

    One thing you should look for in the Z axis of any Cartesian movement 3D printer, ground (not rolled) ball screws of C5 or lower number. The layer heights will be more precise and consistent than with even the best precision threaded rod. With consistent layer heights, you'll reduce roughness caused by greater/lesser squeeze out of the plastic when the Z axis doesn't move as much up or moves up too much from less precise threaded rod. Look carefully at pictures of various 3D prints and on the ones done on printers with lower precision Z movement you'll see what looks like varying horizontal striation patterns. Another issue with this on printers using two threaded rods for the Z axis is the low precision will cause a slight and varying tilt of the gantry with each move. Good ball screws will ensure both sides of the gantry move up the same amount every time. Printers with a single side Z drive like the Solidoodle and PrintrBot eliminate that tilting by only using one threaded rod but they still have the varying layer height and less rigidity - unless the slide for the Z axis is made very rigid.

    Here's what I'm using as a core framework for my 3D printer.
    [​IMG]Impact tester by g_alan_e, on Flickr

    All precision machined, linear bearings in the cross bar that slides on the vertical rods. Probably cost a 4 figure sum when new, I got it surplus for $10. The build platform will slide on a THK HSR30 block and rail. The hot end will slide along the cross bar on a THK HSR25 block and rail. I'm planning on using ball screws on all axes rather than belts. I may add some bracing to the vertical rods as they can be wiggled a bit, the length enables slight flexing.

  7. flimzy

    flimzy Well-Known Member

    Trophy Points:
    587
    I've been using the Ulitmaker 2 now for a year and its the machine of choice in my job. (Movie props) I started of with the maker bot 5th, this was the worst experience of my life. the machine promised a lot and gave very little . Makerbot support is a con. Luckily I bought thought a very respectable compony that helped me out and eventually replaced the makerbot with the Ultimaker.
    Even though the UM has a slightly smaller bed then the MB it is vastly superior , the heated bed means no messing about with tapes and rafts. ( simply paint a thin layer of watered down PVA on the glass. I did this when I first started and its still fine.)
    The machine takes up less real-estate on your desk and its one of the quiatist on the market. Its easy and cheep to get spares for. you will need to change the PTFE part after a wile. its very easy to clean out blocks. not that I've had that many.

    Don't worry to much about bed size because as you get better you'l find is much better to print large things in small part and glue them together. With long large prints you always risk fails.

    Cura is one of the best slicers,

    So in conclusion if your just starting out and want an out of the box, working 3D printer. The ultimaker 2 is the one to go for.

    Bogleo and Nwerke like this.
  8. darthviper107

    darthviper107 Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    846
    I would say Ultimaker 2--it's well reviewed, should be not that difficult to use and as a filament printer it'll be cheap and fast to print large parts.

    For props, you don't need high resolution layers, because it's easy to sand the surface without destroying the detail since there's not usually small details.
    I've got the Form1+ and it's great for small objects with high detail, but I wouldn't want to use it for full sized props, that would be overkill, plus the resin costs $150 a bottle, you can get the same amount of material for a filament printer for $20-$40
    Also, the Form1+ has some requirements as to how the model is constructed and set up to print so that you get the best results, that can be annoying to deal with.

    Teddyboy16 and Nwerke like this.
  9. Nwerke

    Nwerke Master Member

    Trophy Points:
    3,810
    I've not heard a bad thing yet about Ultimakers, and I use their excellent Cura software on my Makergear M2 (also a solid, well-engineered machine that gets very good reviews and has *fantastic* customer support which I can vouch for myself).

    For your purposes I think you would find a Form1 is not the best fit. Seconding darthviper here - you don't need 0.02mm layer resolution; if you're doing that with a filament type printer you'll find sanding that is much the same as sanding .2mm layers for armour pieces. In any technology, the finer the layer height, the more days you add to the print time. :lol I print 1:1 scale pieces at 0.1mm most of the time (the M2 can go to 0.06 'officially' and much lower if you want to, but it is rarely worth it).

    If you think you'll be doing lots of small highly detailed pieces then yes, get a Form1. Otherwise I'd say look at Ultimaker or the new Taz, or if you want to save about a grand and a 8" x 8" x 10" build volume works for you, consider Makergear.

  10. Nwerke

    Nwerke Master Member

    Trophy Points:
    3,810
    If you go with an FDM machine, pick one that gets good marks for bed leveling. I'm not sure how I feel about automated bed leveling - it strikes me as potentially 'another thing to go wrong', haha. Most of the time, once you're set up, you don't need to look at this very often. It's maddening when it's gone out of true, though, so you don't want a unit that requires complex work to get back in true. (The M2 for example has 3 Allen screws to adjust, and I can fix it while it's running.)

    Also *definitely* go with a heated bed. You might not want to print with ABS, but then again, you might. And it makes life easier for PLA too.

  11. flimzy

    flimzy Well-Known Member

    Trophy Points:
    587

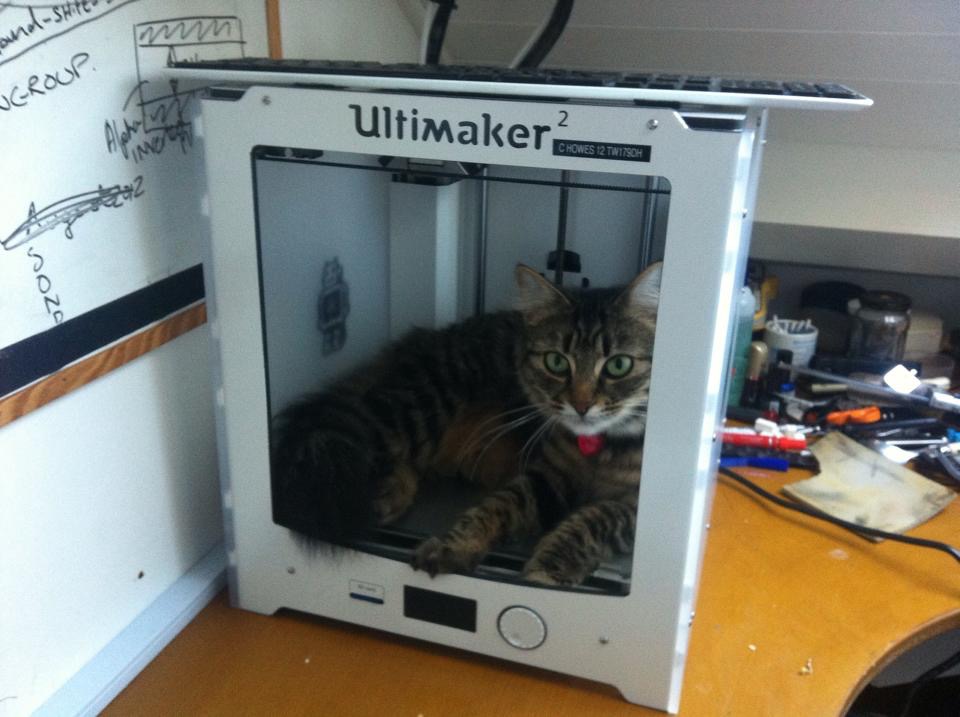

    IMG_0054.JPG the one problem I ever had with my Ultimaker 2 was finding hair on the build plane one day. never found out why ?

    Teddyboy16, swgeek, Bogleo and 2 others like this.
  12. Nwerke

    Nwerke Master Member

    Trophy Points:
    3,810
    :lol hehehe

  13. bwayne64

    bwayne64 Well-Known Member

    Trophy Points:
    815
    Man I had no idea the technology was this advanced, Wow! Now if you could just get them big enough to print super models, LOL.

  14. star-art

    star-art Sr Member

    Trophy Points:
    1,290
    I've been having trouble deciding between the MakerGear M2 and the Ultimaker 2. I think I read somewhere that the Ultimaker requires a proprietary filament? That is one thing I'd like to avoid because it drives up the cost of making parts. It's also why I won't consider a Form 1 -- the going rate for resin is $40-$60 per liter and they charge $150.

  15. Chaank

    Chaank Well-Known Member

    Trophy Points:
    916
    Love these threads! Cheers Fellas:cheers

  16. flimzy

    flimzy Well-Known Member

    Trophy Points:
    587
    you can use Any 3mm/ 2.75 filament on the ultimaker 2. because the feed speed, bed head, head and biuld speed are all editable in Cura and once the print start. So you can adjust any setting on the fly. I haven't herd of a filament that you can't use yet, I've tried filament from 3 different venders so far and not found any difference ( although I do like http://colorfabb.com in Europe.) I haven't tried the rubber filament yet.
    Also the one advantage of the Ultimaker is the amour of desk space it doesn't take up. because it is enclosed you can stack book (or what ever you want) up against it with no worries of interrupting a print.

    Last edited: Jun 15, 2015
  17. star-art

    star-art Sr Member

    Trophy Points:
    1,290
    Is the filament for the Ultimaker an odd size? Most of the filaments I see online are 1.75 mm. I can also find 3mm but it doesn't seem to be as common. Maybe that was the issue?

    I must admit, it is a difficult choice. The MakerGear M2 seems to be solid, reliable, and very well built. It's also nearly $1000 cheaper than the Ultimaker 2. But, it doesn't come with an enclosure.

    The most important thing for me is that I can take something out of the box, plug it in and start printing (and, most importantly, get good results!). I need to spend my time designing and building models rather than tinkering with a new machine. :)

  18. darthviper107

    darthviper107 Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    846
    He meant to say 1.75mm not 2.75mm

  19. star-art

    star-art Sr Member

    Trophy Points:
    1,290
    The Ultimaker store says their filament is actually 2.85mm in diameter. It sells for roughly $35.50 US per spool but you get only 0.75 kg instead of 1 kg. So, definitely more expensive than other options. But, if this printer works with other brands/sizes of ABS spool, that's definitely a plus. :)

  20. Nwerke

    Nwerke Master Member

    Trophy Points:
    3,810
    The 1.75mm standard is starting to replace the older 3mm sizes. The M2 runs on 1.75mm (PLA or ABS, or various other kinds) but can take slightly larger or smaller sizes as long as you adjust for it in the software (which is good because a lot of what's sold as *any* given filament size is actually under or over-size. Anything which will run on Cura should be able to do the same.) Up to a limit, obviously a 1.75mm printer can't use 3mm filament.

  21. Nwerke

    Nwerke Master Member

    Trophy Points:
    3,810
    I haven't found an enclosure to be vital, FWIW. Certainly not enough to warrant an extra $1000; if I was going to spend that I'd probably look at a Taz, for the bigger build volume.

    I went for the kit version M2 and saved more $$$ - not only because I'm cheap, but because these are *all tinkerer machines*, at this stage. I figured if I'm going to have to tinker with it anyway at some point, building it myself will probably be a worthwhile investment of time.

    It was. The kit, documentation and support are all excellent. It took four evenings and I was printing. It's enabled me to troubleshoot much much much much MUCH more effectively than I would have if the guts of the thing had all been a mystery to me.

  22. swgeek

    swgeek Sr Member

    Trophy Points:
    1,315
    I don't have a ton of experience with printers, (printed parts, yes) but, we just got an Ultimaker 2 at work, and so far I am very impressed. No fails, yet, and the prints, even on a medium resolution have turned out really nice.

    Last edited: Jun 16, 2015
    Nwerke likes this.
  23. Nwerke

    Nwerke Master Member

    Trophy Points:
    3,810
    For things which are basically robotised hot glue guns which operate almost totally 'blind', what they can do is fairly amazing.

  24. Caille

    Caille New Member

    Trophy Points:
    17
    Decided on and Ultimaker 2. Buying it this week. Already have a few .stil files ready to go. Including a simple helmet (Jedi Temple Guard)

    Pretty excited.


    Caille

  25. Chaank

    Chaank Well-Known Member

    Trophy Points:
    916
    Did you buy yours here Nwerke or from their site?

  26. flimzy

    flimzy Well-Known Member

    Trophy Points:
    587
    As the Ultimake is an open source printer there are load of community hacks .
    3mm filament is 2.85 . I had the same problem when I started till I found out you just order 3mm. there is a E bay PTFE tube the convert the Ultimake to run on 1.75mm Filament that people have had great success with but as it works out of the box perfectly well with the 3mm (2.85) theres no need. IMG_0825.JPG this is a part I've just printed at standard settings. it took an hour. larger part I print a fast setting because I know its easy to topstop fill and sant if you don't need super detail. This is a part of my 6th scale spinner project you can find here on the site.

    Nwerke likes this.
  27. star-art

    star-art Sr Member

    Trophy Points:
    1,290
    Great tips and advice, thanks all!! :)

  28. Nwerke

    Nwerke Master Member

    Trophy Points:
    3,810
    Chaank I went via their site, there is no Aussie dealer AFAIK. Makergear couldn't have been more up-front - they were worried that I'd struggle without local support, and stressed they couldn't ship warranty parts with free postage overseas which I thought was fair enough. The one time I had to make a claim was for a faulty fan (I couldn't find the right spec at the time locally, but have done since - I wouldn't have bothered them otherwise as they're hardly expensive). I paid shipping, but Makergear shipped me about four fans instead of just one.

  29. flimzy

    flimzy Well-Known Member

    Trophy Points:
    587
    the best tip I was ever given was, 1-10 PVA dilution mix with water painted on the glass. perfect adhesion every time. I have 2 sheet of glass so I can swop them out wile one is cooling down ( increasing my printing time) I painted my glass a year ago and still no need to wash it off for another coat. no messing about with hair sprays- glues or tapes.

    Nwerke likes this.
  30. Nwerke

    Nwerke Master Member

    Trophy Points:
    3,810
    I've got hairspray on kapton. I just use an old can with a stuffed nozzle, it piddles out as a liquid. Spread it around by hand, it dries as the bed warms. Same result - you rarely need to re-apply and you get amazing adhesion. Great idea to have that second sheet of glass!
