Hey everyone,

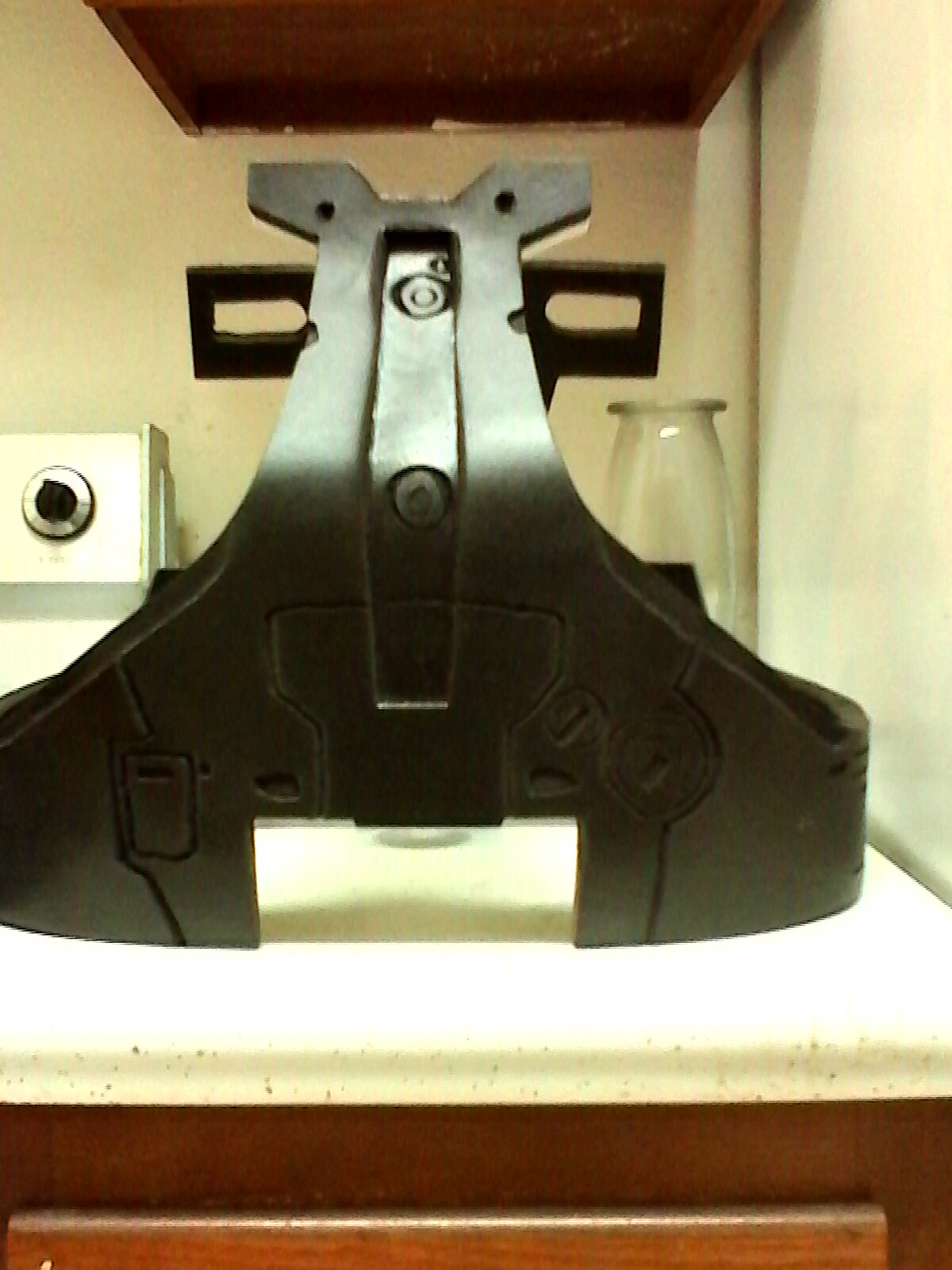

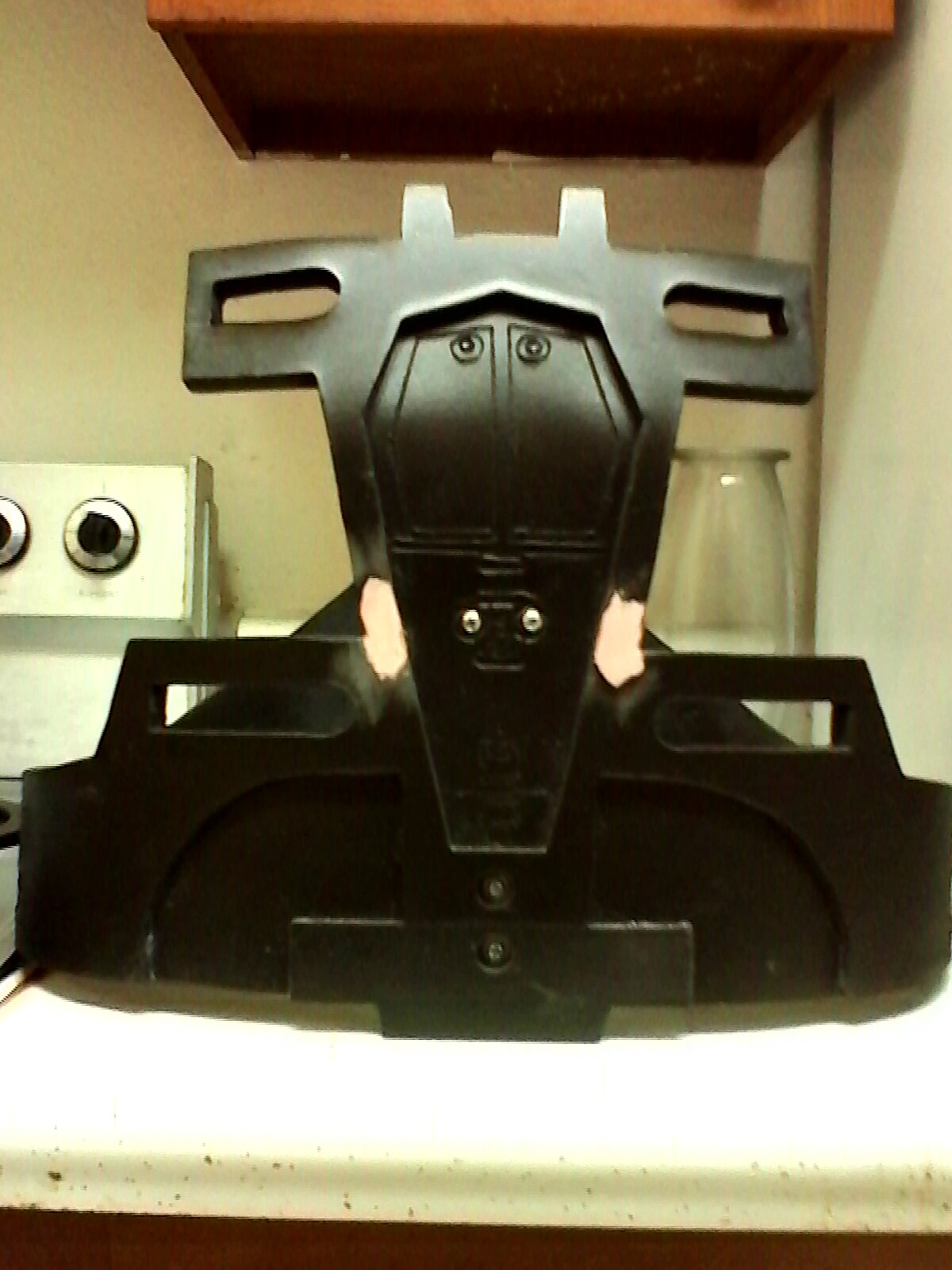

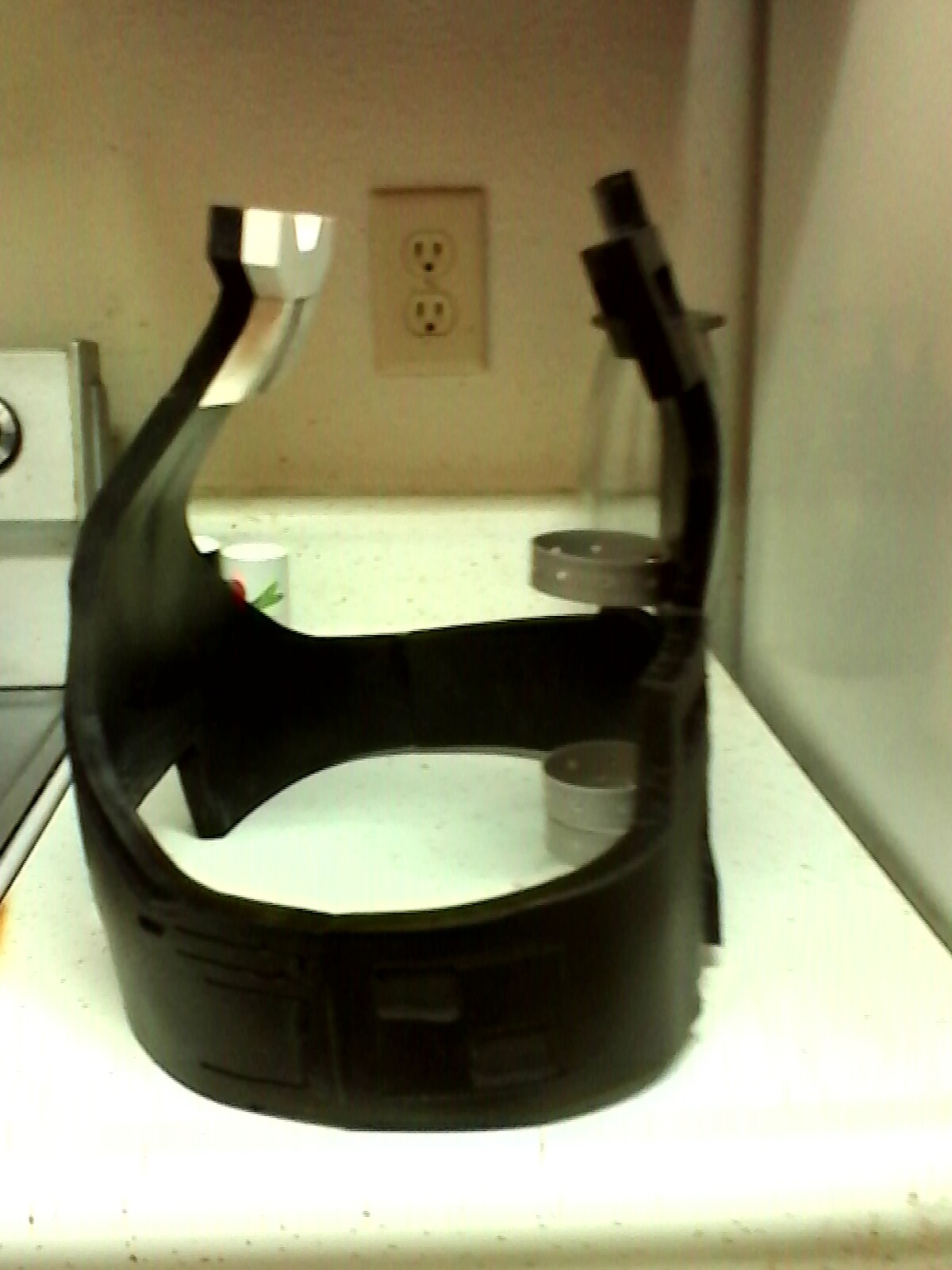

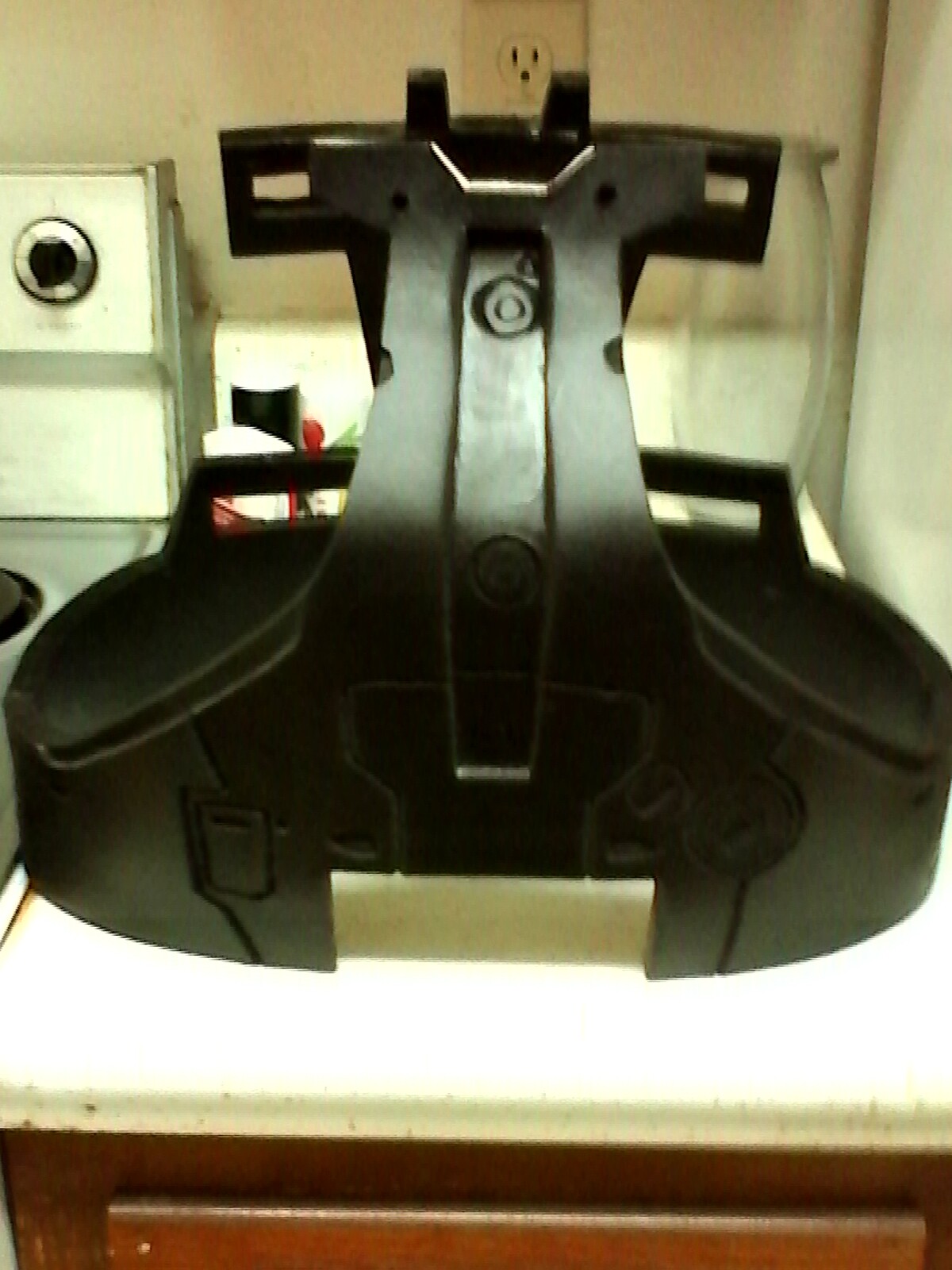

Just posting an update on my T-800. I'm working on the chest cavity, and it's coming along great, but slow due to the freaking cold weather here in Iowa. I only get a couple hours here, and there when I can stand working working in the outside garage. I created the front and back plates, and glued them together. Not perfect, but looks pretty good. I put a lower pvc beam on the bottom to plates to give it support once mounted, but looked crappy, so took it out, and now using a plastic strap that goes around the support pole going up the inside. This will leave plenty of room to add all the pistons, hoses, and other things. I'll attach a few pics to show you my progress, but I also have a general question. Toward the lower section of the chest plate, there's a mechanism. I'll attach a pic for that as well. I need to know if it moves in and out or if it is stationary? Also, is it one piece or two? I have paper cut outs for templates, and it's in 2 pieces, top and bottom. Any help would be appreciated as I'm trying hard to make everything movie perfect.

Thanks


Attachments

  • IMG_20210108_175548.jpg
    251.3 KB · Views: 31
  • IMG_20210108_175619.jpg
    271.3 KB · Views: 29
  • IMG_20210108_175640.jpg
    254.6 KB · Views: 27
  • IMG_20210108_175702.jpg
    211.9 KB · Views: 33
  • chest mechanism.JPG
    chest mechanism.JPG
    10.2 KB · Views: 32

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Too Much Garlic

Master Member

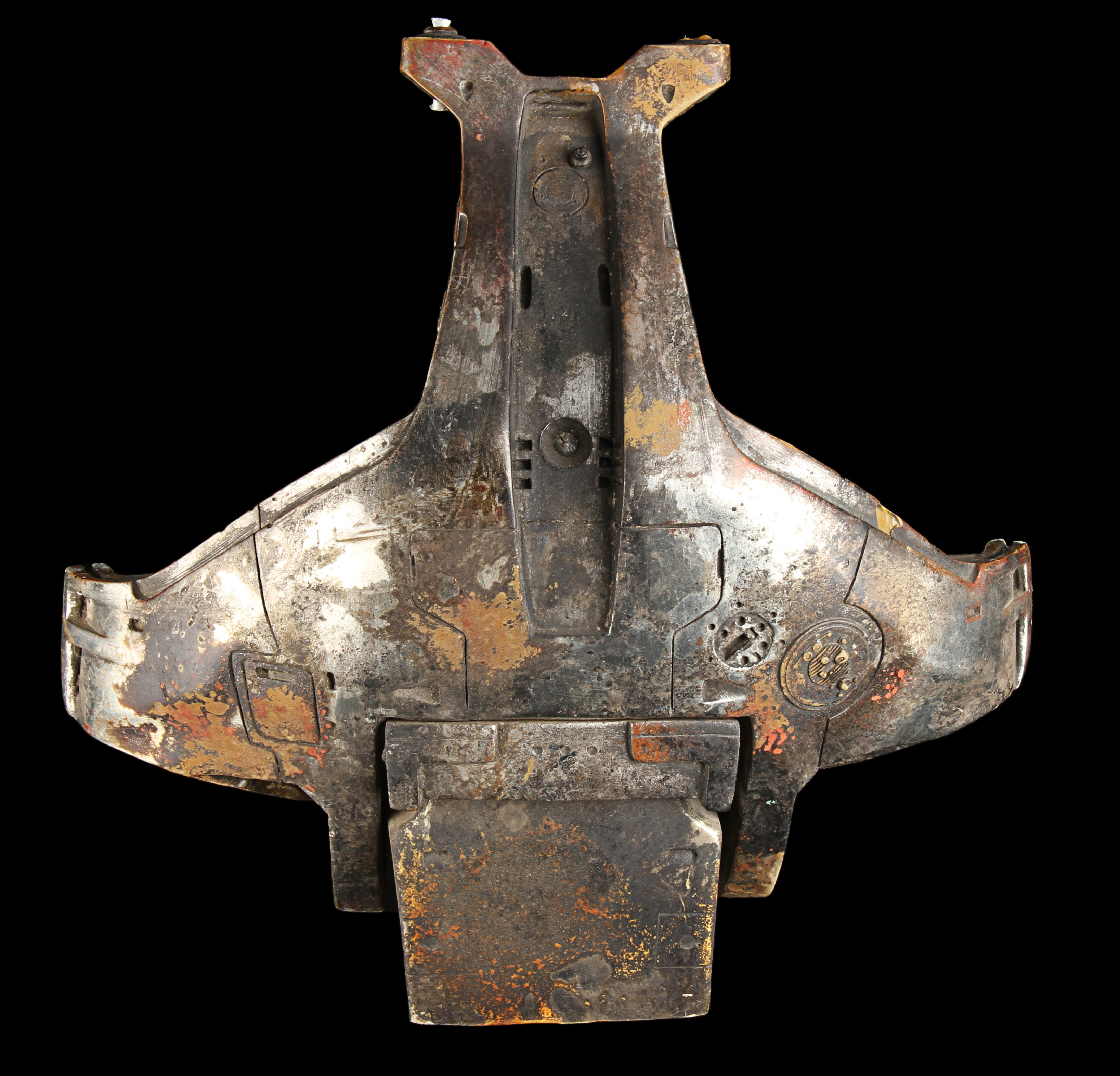

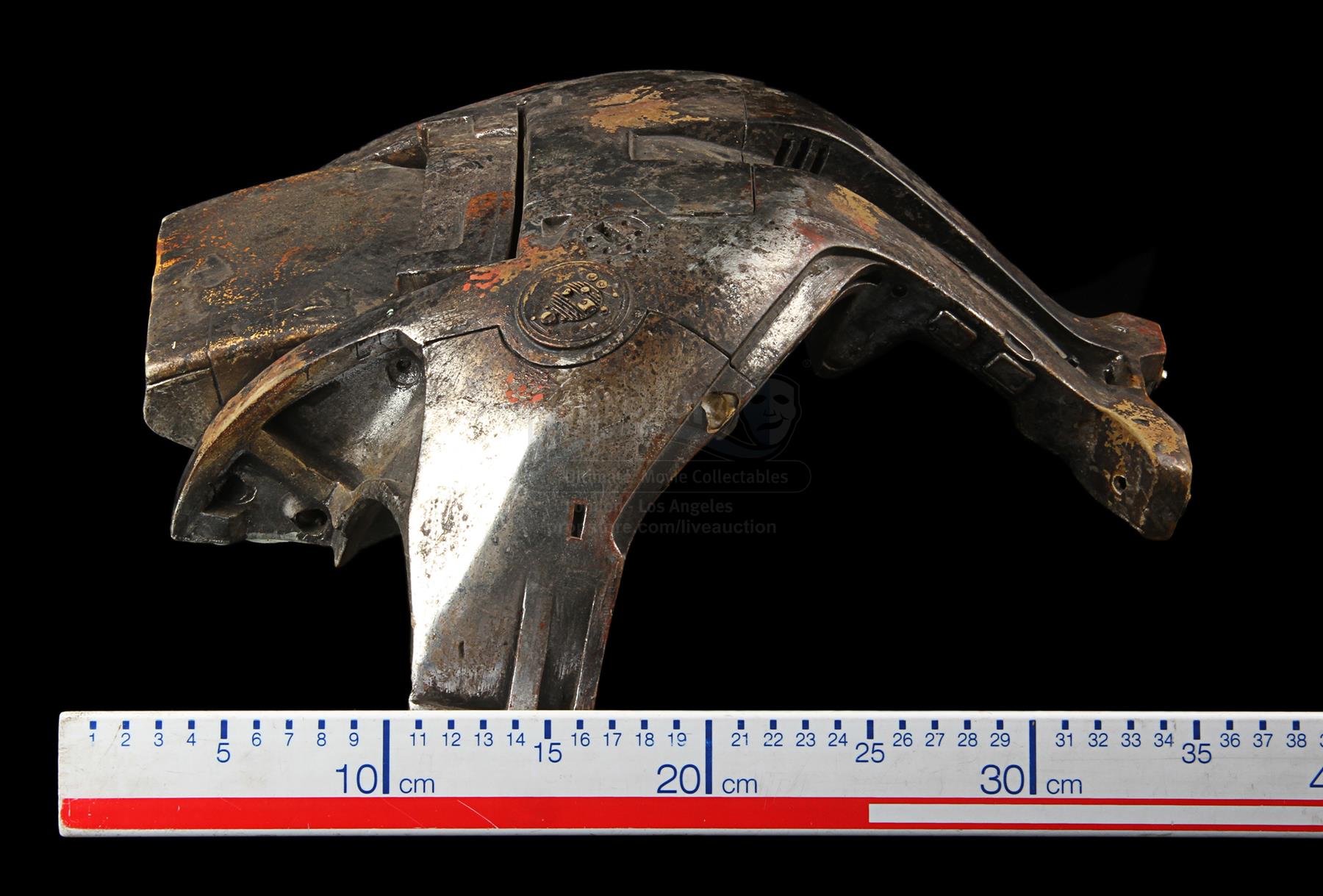

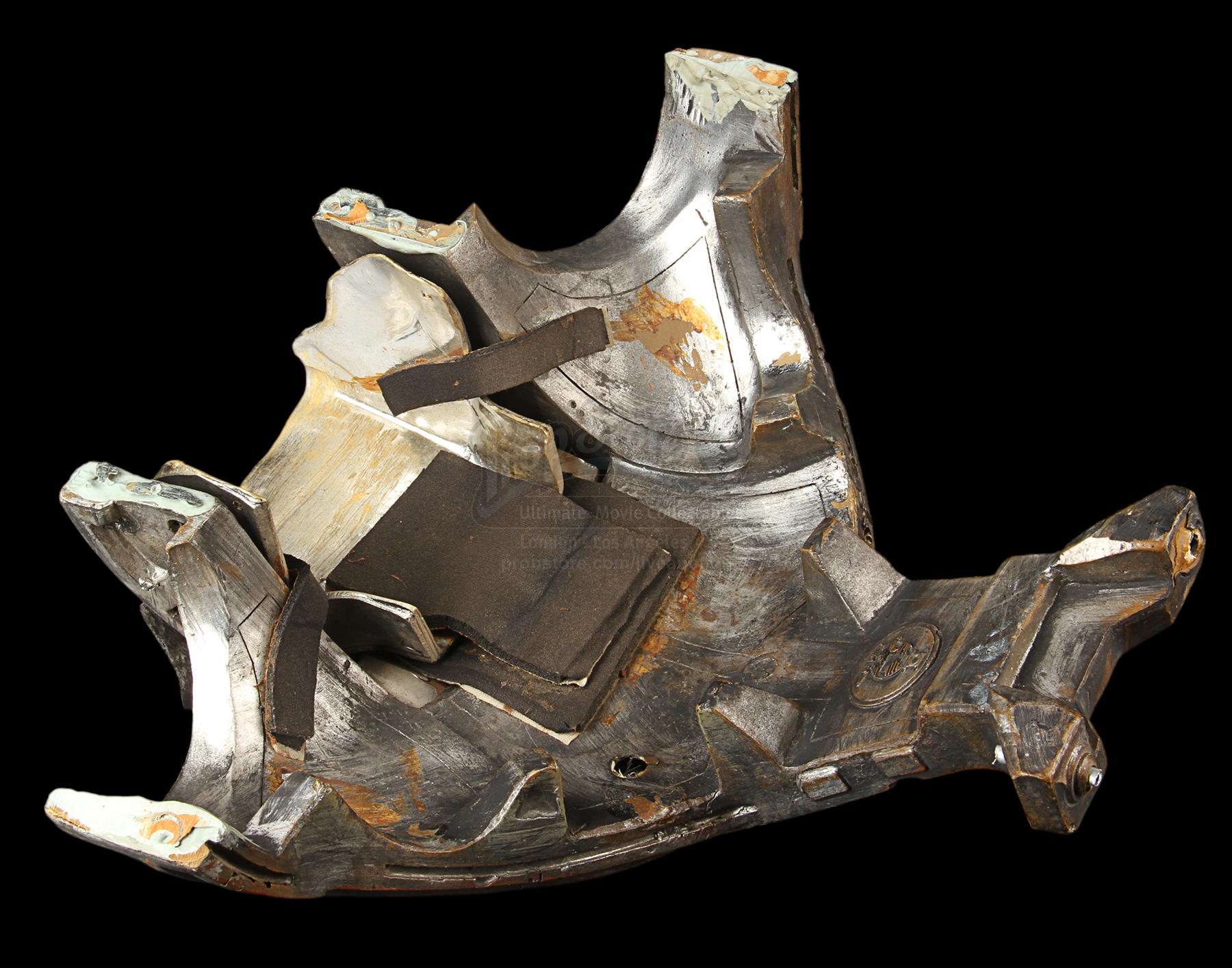

The battery cover (I think that's what people call it), is two parts - the rectangular top part with the two upside down L shapes, and then the bottom plate. They are not lined up like in the illustration above or the way most licensed companies and private people use to assemble it, but the bottom plate tucks in under the rectangular piece. Also, the rectangular piece isn't totally straight from side to side - it actually curves a little. As seen in the example it seems pretty clear it was supposed to stay in place and not move around. The pictures are from a recent Propstore auction.

T2 - Endoskeleton - Chest - 03 - 03.jpg T2 - Endoskeleton - Chest - 03 - 06.png T2 - Endoskeleton - Chest - 03 - 11.jpg


iowadude41

New Member
The battery cover (I think that's what people call it), is two parts - the rectangular top part with the two upside down L shapes, and then the bottom plate. They are not lined up like in the illustration above or the way most licensed companies and private people use to assemble it, but the bottom plate tucks in under the rectangular piece. Also, the rectangular piece isn't totally straight from side to side - it actually curves a little. As seen in the example it seems pretty clear it was supposed to stay in place and not move around. The pictures are from a recent Propstore auction.

View attachment 1411932 View attachment 1411933 View attachment 1411934
Thank you for that valuable information. It helps me a great deal. I'll just figure out how to connect both of them so the bottom section can slide back towards the spine.


Too Much Garlic

Master Member

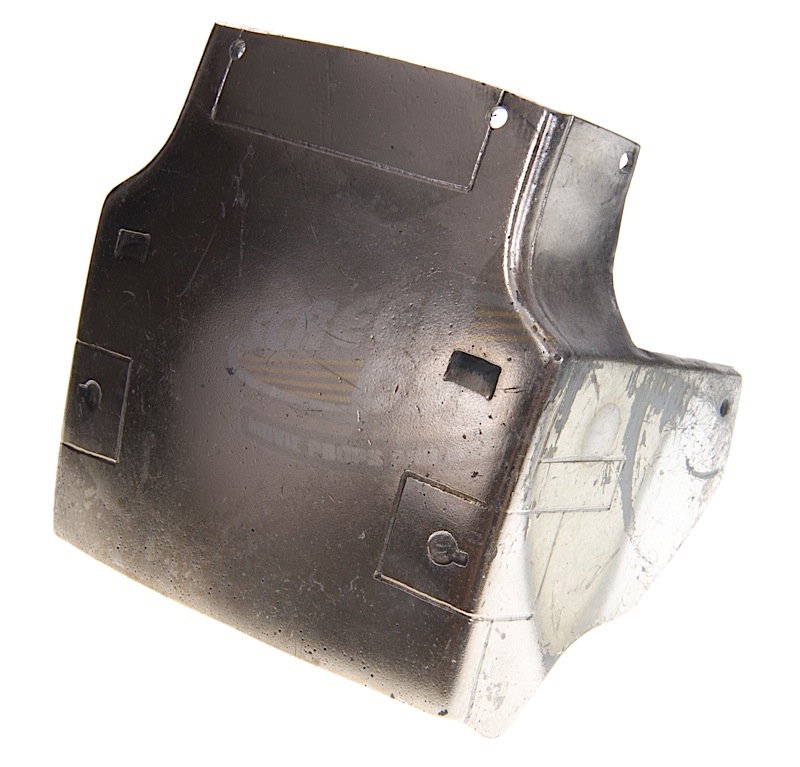

I also have this one of the bottom piece without the rectangular piece.

I can't remember the link to the original site I found this picture from, so if anyone knows, please post it here, as I thought it was a great resource for screen used props.

T2 - Endoskeleton - Neck & Abdomen Pieces - 04.jpg
