My animatronics cannon design

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

DHB

New Member
Hello everyone

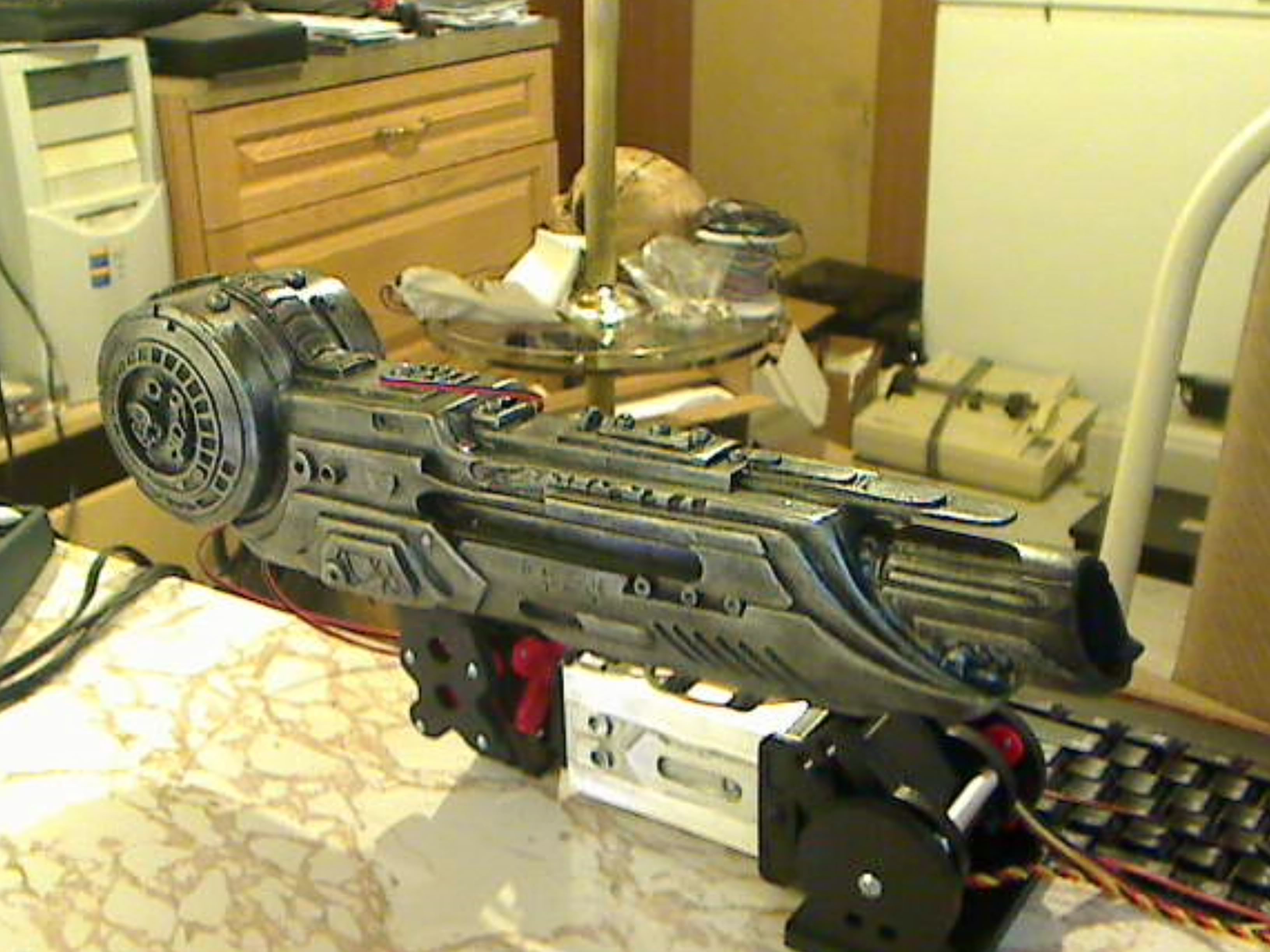

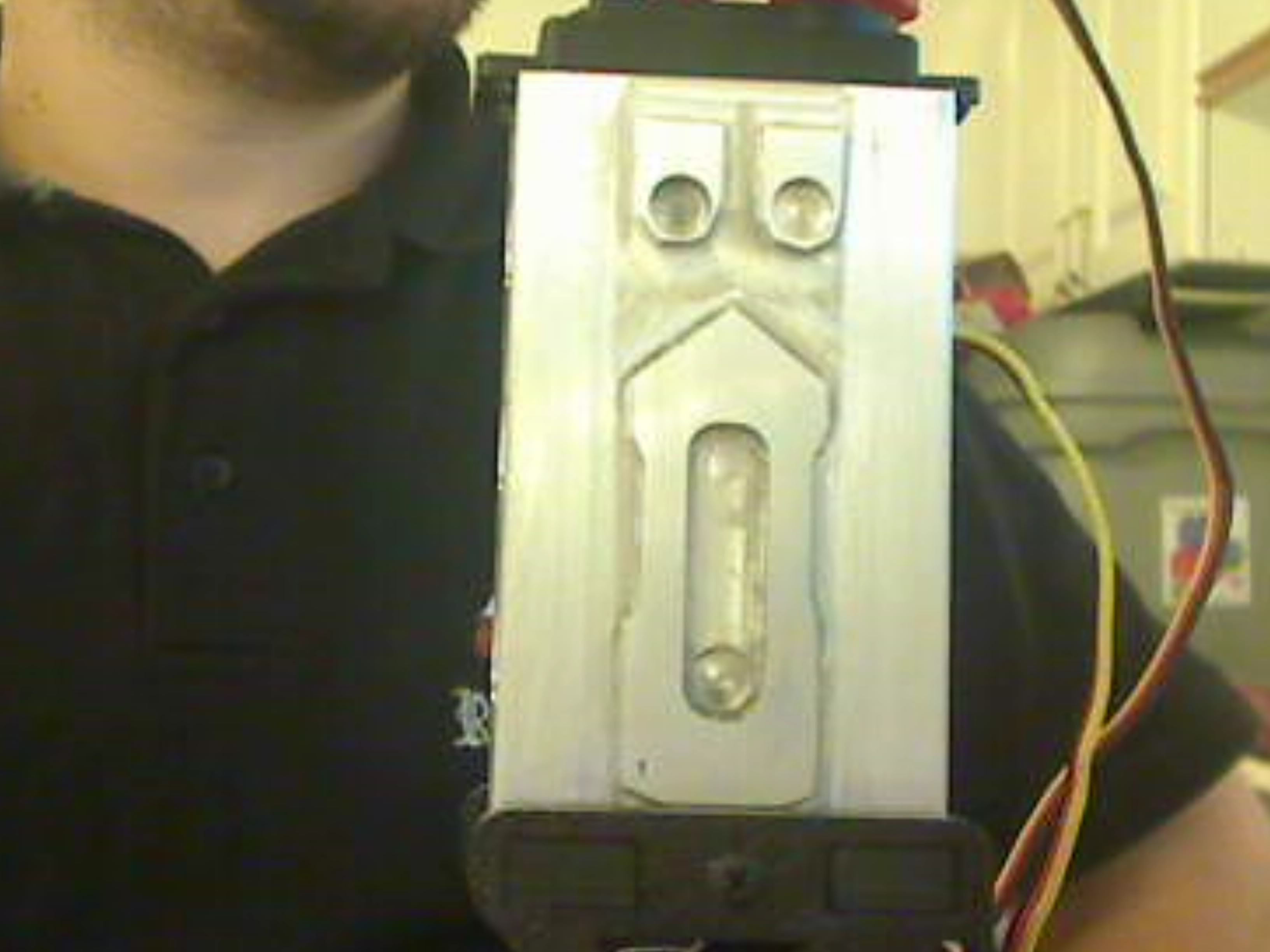

Here is my W.I.P. animatronics cannon design. I’m using the arduino duemilanove microcontroller as it’s the easiest to learn because it’s open source. I’ve set it up to use the Wii nun chuck for pan/tilt control with full use of the joystick as well as the accelerometer, laser on/off, led firing with use of the z and c buttons. I still have loads of programming to do as it progresses. I don’t have a video yet but it will be coming soon. I got the midsection of the arm machined out of solid aircraft aluminum and I really like how it turned out. I still have to paint it as well as the servo parts. Fun fun painting will be the last thing to do. :)

Here are some pics for your enjoyment







here is a link to the rest of the pics
http://s784.photobucket.com/albums/yy126/D...20Cannon%20WIP/

More to come......



David


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Honus1

New Member
Very cool! It looks like you're using the servocity DDT500 tilt for the bottom of the arm and the SPT-100 pan/tilt with HS322 servos for the top. What does your cannon weigh? What servo are you using on the bottom tilt mech?

Jerome


DHB

New Member
Thanks Jerome

I'm using the HS-985MG for the bottom tilt mech and my cannon is very low in weight. the SPT100 with the HS322HD servos have no problem at all moving it. Here is a list of some other parts that I will be using

Basic Micro R / C Bit Switch to control the lasers and the led so that i may use a separate power source
http://www.robotshop.ca/basic-micro-r-c-bit-switch.html

Wii Nunchuck I2C Breakout Board
http://www.robotshop.ca/solarbotics-wii-nu...kout-board.html

SeeedStudio Electronic Brick Arduino Shield
http://www.robotshop.ca/seeedstudio-electr...o-shield-2.html

DFRobot I / O Expansion Board for Arduino v5
http://www.robotshop.ca/dfrobot-i-o-expans...arduino-v5.html


And there will be more parts to come lol



David
