Mold question

Discussion in 'Replica Props' started by jas070680, Aug 17, 2015.

  1. jas070680

    jas070680 Active Member

    Trophy Points:
    391
    Hi,

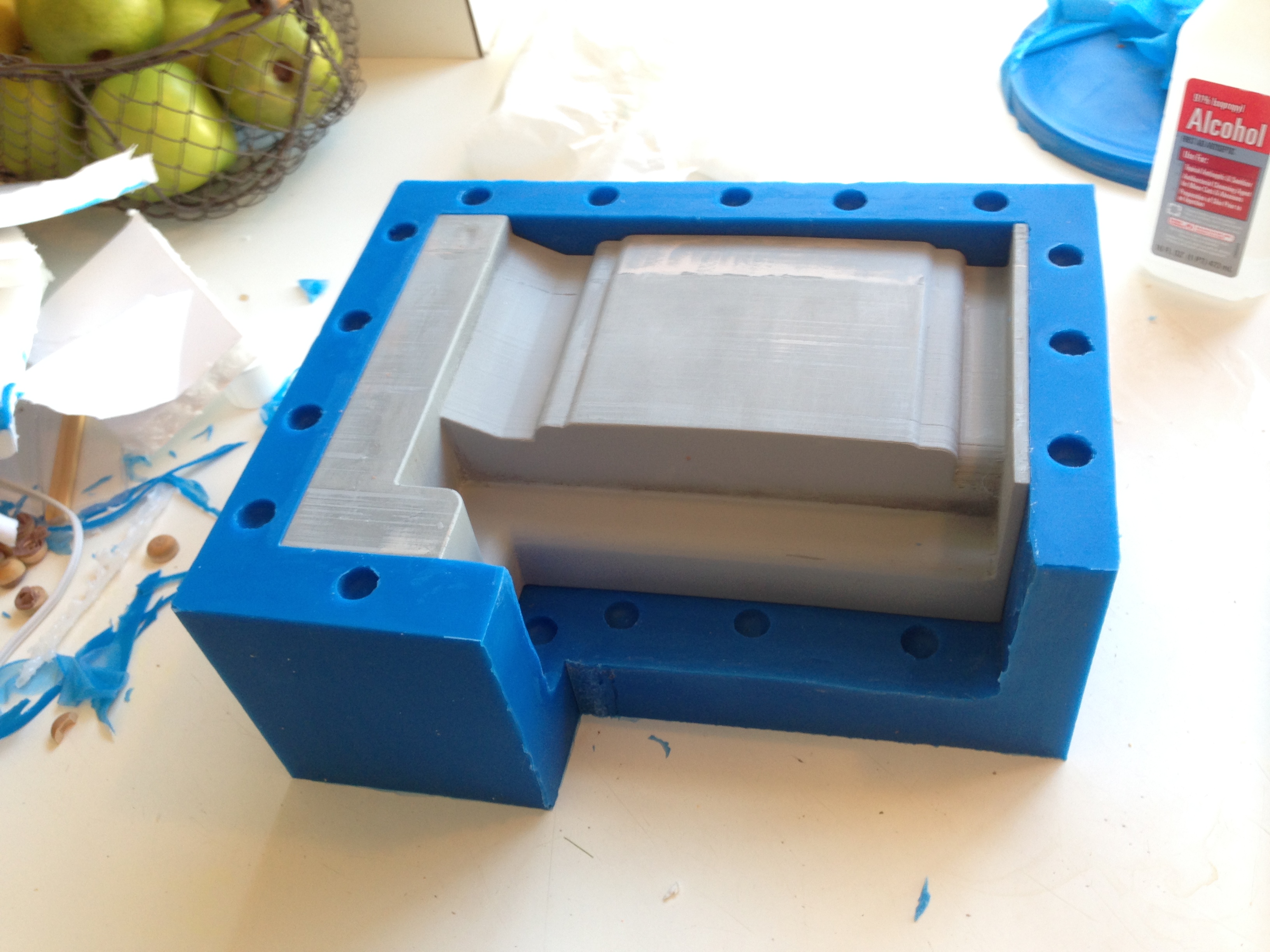

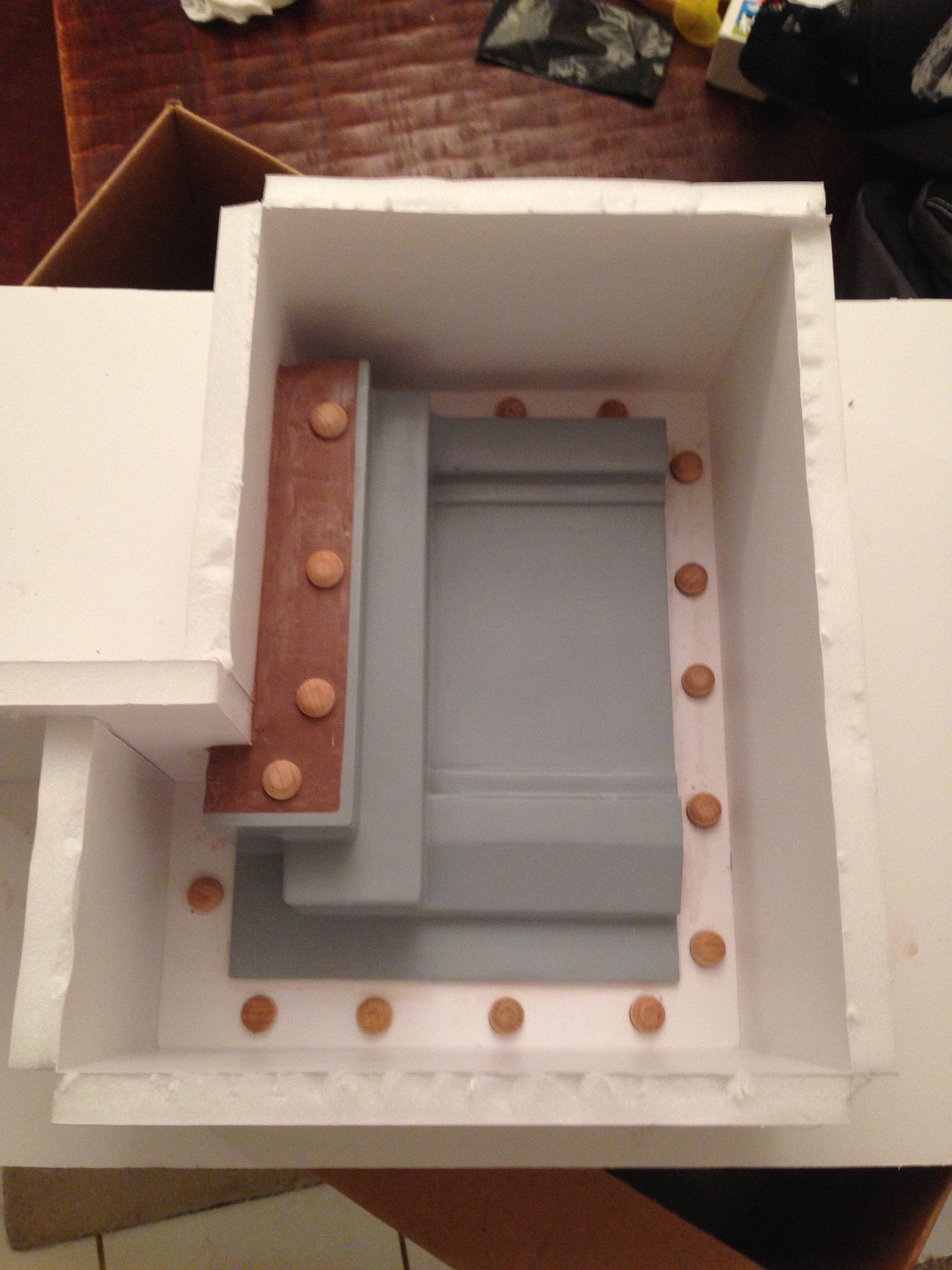

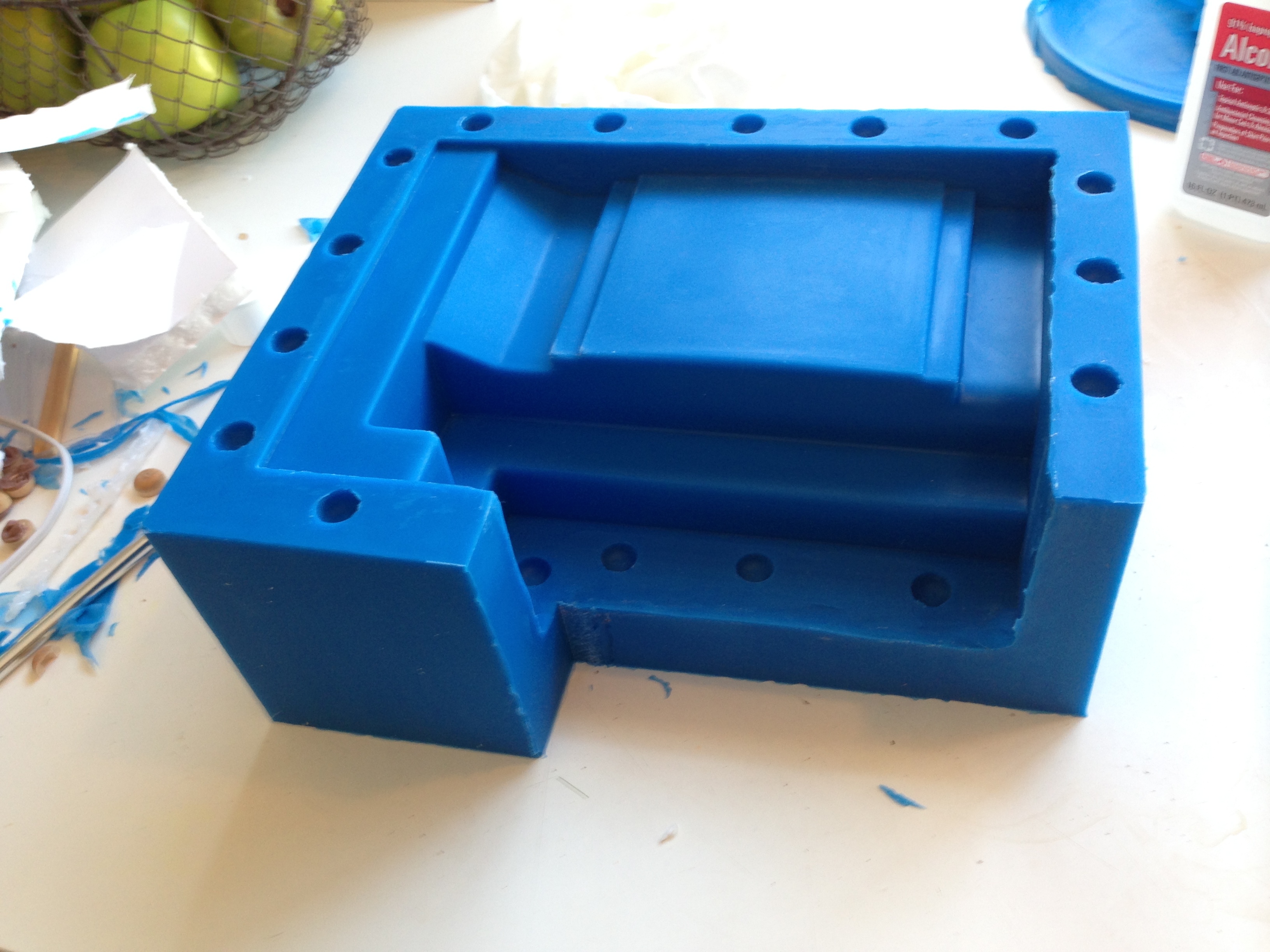

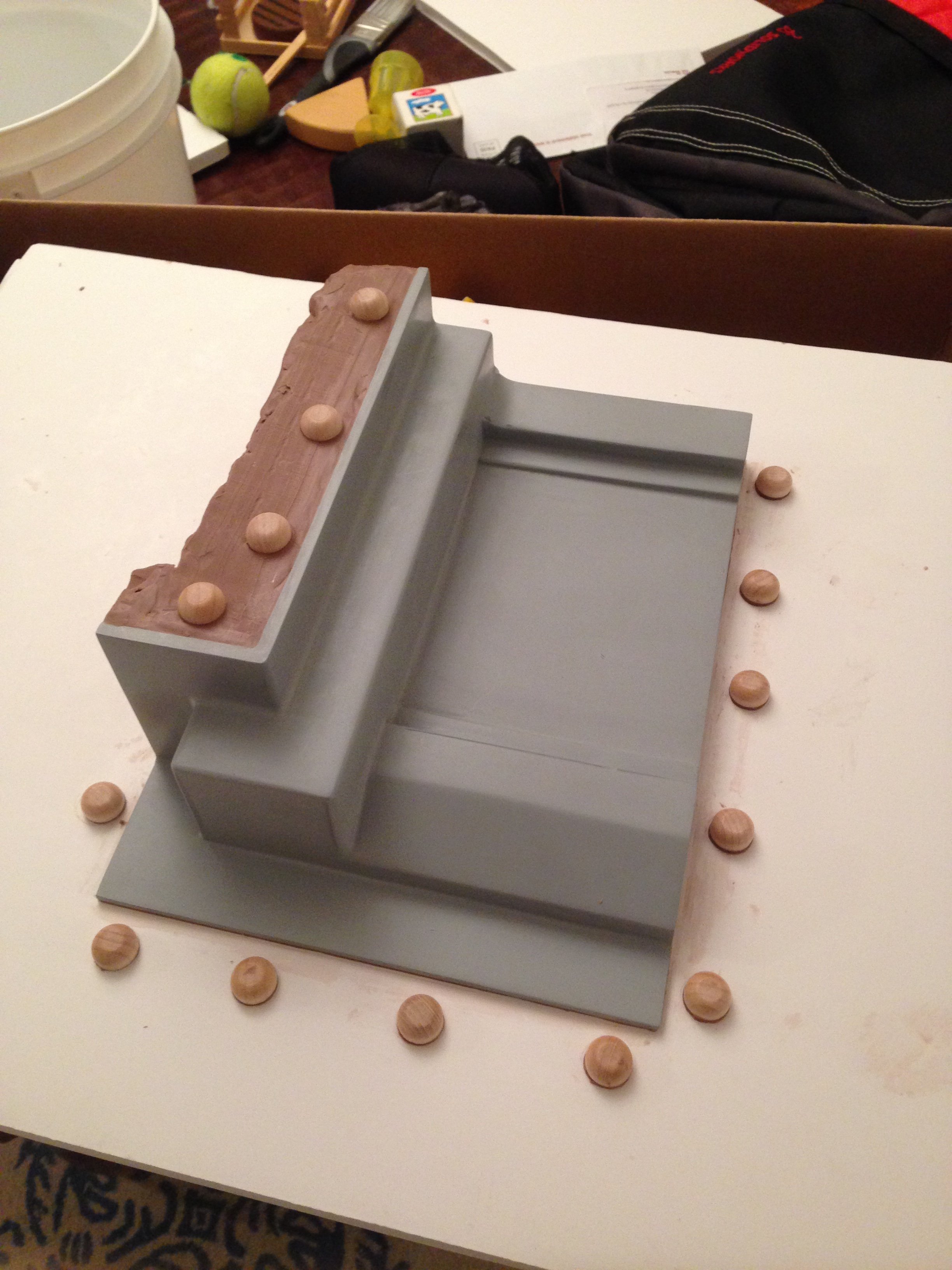

    I'm seeking out suggestions. Attached are some pictures of my first mold ( be gentle). What is being shown here is the A side of the mold and the 3D printed part I am using as the plug. Although this is for a product sample and not a prop I figured you guys could help. I hope to carry the knowledge over to prop building later.My question is in regard to the gate. I know I need to position it in a place where I can allow the air to escape. I was going to cut these in. I know it may require vents, but I am racking my brain on the best position. My initial thought is to place the gate in the split line and orientate the part vertically... Thoughts? IMG_0597.JPG IMG_0596.JPG IMG_0590.JPG IMG_0588.JPG

  2. Darksyde13

    Darksyde13 Active Member

    Trophy Points:
    341
    It is a little hard to make out what the end result is going to be. If we had an example or a little more description that may help.

    As son as a plug is mentioned I think of this type of mold and it dose not require any venting. ------->

    https://www.youtube.com/watch?v=dBEK_Jyfvek
