Mark 17 - Heartbreaker Helmet - Blender file

Discussion in 'Marvel Costumes and Props' started by Modular, Mar 24, 2015.

  1. Modular

    Modular New Member

    Trophy Points:
    17

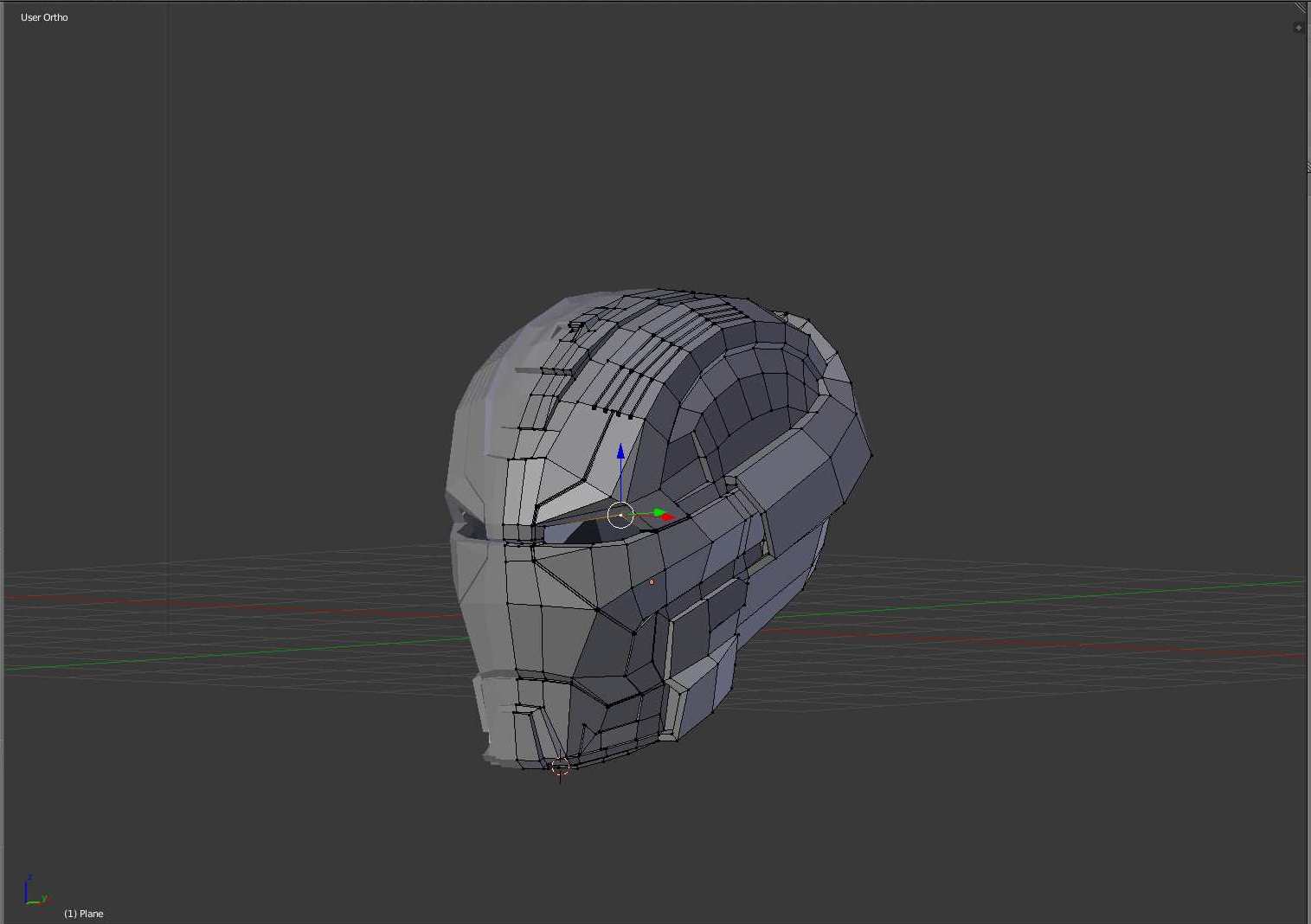

    I made the Mark 17 helmet in Blender because I didn' found one which I'm happy with.

    Can anyone please optimize and convert it for pepakura? Thanks!!!




    I offer the file for free for this nice community. So please don't sell it.

    EDIT:

    Download the file here: http://www.pasteall.org/blend/35204

    Last edited: Mar 24, 2015
    GhostMinion and Murdoch like this.
  2. DaveYoung

    DaveYoung New Member

    Trophy Points:
    17
    im help you with the unfold, i send you when i finished the unfold

    Modular likes this.
  3. RiotJavelinDX

    RiotJavelinDX Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    937
    Can't wait to see the unfold

    DaveYoung likes this.
  4. Modular

    Modular New Member

    Trophy Points:
    17
    Thank you so much. Will post an update of the 3d modell tonight too. I updated the look a little bit and when I'm finished it should be 3d printable (Will test compatibility of files with an online printservice). Nice thing about blender is that you can export directly to .stl. If there is someone with a 3d printer near/in germany who can print me a 1:3 modell of it(~57mm ×100 mm x 100 mm) please send me a PM.

    best regards

    DaveYoung likes this.
  5. Modular

    Modular New Member

    Trophy Points:
    17

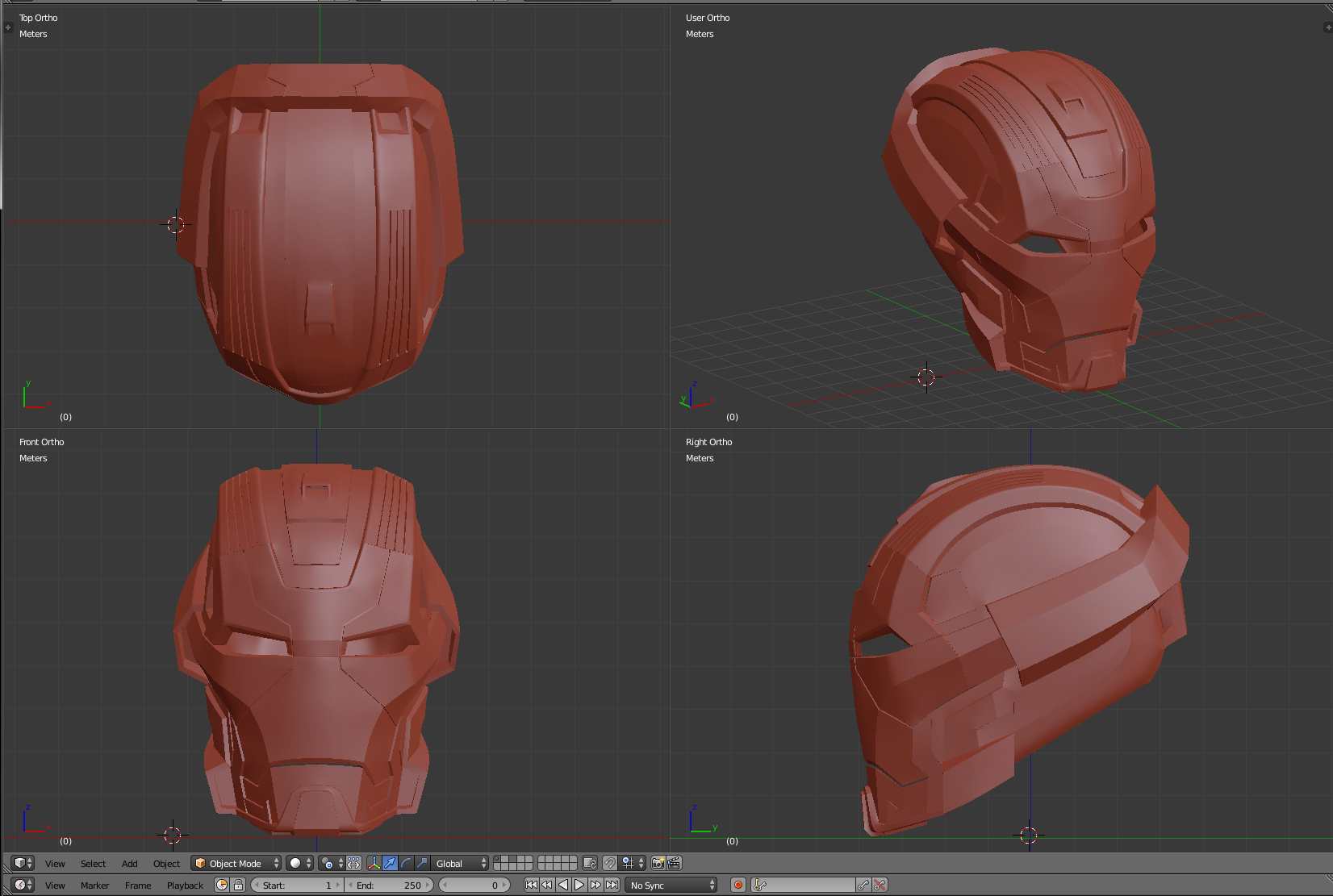

    Well, here is a an image of the updated model. There are parts I'm not happy with so I will try to fix them but this is my first 3d-model and it will take some time :D


    Here you can download the blend-file: http://www.pasteall.org/blend/35274

    Attention!!!!!!!!!!!!! You have to scale the helmet to fit your purpose and adjust the thickness of the parts. For these I have not applied the Mirror and SubD-modifier so you can do with the file whatever you want. :D

    Last edited: Mar 28, 2015
    GhostMinion likes this.
  6. GhostMinion

    GhostMinion Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,306
    Wow man! That's mighty kind of you to share such a brilliant model. :thumbsup

  7. DaveYoung

    DaveYoung New Member

    Trophy Points:
    17
    I got the unfold, tomorrow i upload it


    Enviado desde mi iPhone utilizando Tapatalk

    ironbat, RiotJavelinDX and Modular like this.
  8. SOUTHPAW

    SOUTHPAW Well-Known Member

    Trophy Points:
    566

    lol

  9. stigmorgan

    stigmorgan Sr Member

    Trophy Points:
    1,256
    Check first post

  10. Talisen

    Talisen Sr Member

    Trophy Points:
    1,682
    Hey Modular, Could you post an STL version of this? I don't have (nor know how to use Blender)?

    Thanks! It looks great.

  11. Modular

    Modular New Member

    Trophy Points:
    17
    Send me a PM, will do my best. But I have no experience with 3d-printing so you have to modify the files anyway,

  12. SOUTHPAW

    SOUTHPAW Well-Known Member

    Trophy Points:
    566
    if that was to me, I posted that because Dave said he was posting an unfold, the first post is the blender file..

  13. stigmorgan

    stigmorgan Sr Member

    Trophy Points:
    1,256
    my bad, appologies.

  14. DaveYoung

    DaveYoung New Member

    Trophy Points:
    17
    I have a lot of work , I need to arrange the pieces , tomorrow upload file

    SOUTHPAW likes this.
