INTRODUCTION:

There are many variations possible with this prop idea, I encourage you to think of how you can improve on what I’ve done, find alternatives and experiment. My aim with these designs was to keep it simple and elegant, whilst working out what I could achieve without adhesives - this was an interesting challenge but I recommend you consider adhesives and other ways of connecting pieces too.

Regarding the 2 different designs: Made an alternative to try another idea. I accidentally threw out the original design last year and lost the patterns. Re-made the paper patterns for it based on what I could remember. The reason why I've only re-made part of the original design (the part that really needs clarification) is because I chose to make do with what I had left over after making the alternative idea - I thought I had bought that plastic from a local art store but the owners don’t recall having it for sale. :unsure So I checked out a local plastic supplier, bought an offcut sheet of "2mm" (they didn’t have 1mm or 1.5mm, thought 2mm was worth a try) with the intention of re-making all of the original design but it was definitely too thick, measured closer to 2.5mm, struggled to cut it and heat-shape it. :facepalm Hopefully the design is clear with the photos I've taken for this tutorial.

Those LED berry lights are just one option, perhaps you would prefer wiring and programming your own custom LED configuration.
Inside there is a plastic tab between 2 lithium cell batteries (CR 1220, 3V). Pulling it out turns the LED on, this tab can be pushed back in to turn it off. The light only has one setting, it is programmed to fade on and off continuously.
When turning on multiple lights I timed it so there would be at least 2 fully on at any time. I’ve noticed that the lights sometimes don’t maintain this timing, the fading changing slightly for a currently unknown reason.
I don’t know how long the batteries last, haven’t left one on for long enough to find out. The batteries can be pushed out and back in.

Diffusion is a key factor with lights. The further away an LED is from a translucent surface the more diffused it will be. Keep this in mind when working out your design.

The reason I’ve used those snips is because it is quick and simple/basic.The cut edges are a bit rough but do smooth out somewhat when heated. Thought it would be too time consuming (and straining on my hand) cutting that thickness with a utility knife but maybe that tool is worth mentioning. A scroll saw (with the right blade) might result in a smoother cut too. The best option is having the PETG laser cut for a very clean, precise edge.

PETG cools down quickly so you won’t have much time to shape before needing to re-heat, be careful to avoid over-bending and snapping. Extreme angles/bends are more fragile / likely to snap so keep this in mind.


MATERIALS:

  • PETG thermoplastic; the sheets I used were about 1.5mm thick
  • Durable paper / card
  • LED Berry lights, blue colour
  • Sticky tape / Sellotape
  • Tracing paper

EQUIPMENT:

  • Curved ‘Aviation’ Offset Snips
  • Heat gun
  • Sandpaper, grit depends on whether you want a smooth or rough surface
  • Utility knife and/or scissors (for paper / card)
  • Ruler
  • Pen
  • Heat-resistant gloves

SAFETY:

  • Read the MSDS relating to PETG. What I concluded from it: At the very least heat thermoplastic in a well-ventilated area. I currently don’t think a respirator is necessary for this particular project due to its size but if you are concerned at all then it would be a good idea to contact the plastic manufacturer and/or a company which makes respiratory protection gear, such as 3m.
  • Do not over-heat PETG. The technical data sheet for the brand of PETG I used mentions the ‘Degradation Temperature’. Heating the plastic at / beyond this temperature will degrade the plastic and release even more toxic fumes. The temp listed is 250 ºC (482 ºF). I set my heat gun to 200 ºC (392 ºF), this was more than sufficient for shaping.
  • Avoid heating the electronics and batteries, this can cause damage and is a fire hazard.
  • Wear heat-resistant gloves to protect your hands whilst handling the heated plastic to avoid burns.
  • When cutting keep your fingers a safe distance away from the blades, make sure everything is secure and in control, don’t rush it (I know this is obvious / common sense but I need to include it anyway).

INSTRUCTIONS:

Original Design - VERSION 1

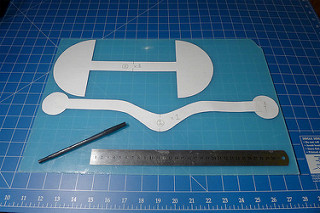

1. Adjust pattern size, length, shape, etc, to your fit and preference. Test fit / mock up with paper.
2. Transfer patterns to PETG plastic by tracing around it with a pen onto the protective film/cover that is later peeled off. To save having to trace along straight edges, simply mark the corners then join the lines with a ruler.
3. Cut out shapes with snips or your preferred equipment then peel off the covers.
4. Place the pieces on a flat table/bench, heat the edges with a heat gun to smooth them out a bit. Do both sides. Do not have a cutting mat underneath or nearby when heating as the heat will warp the mat.

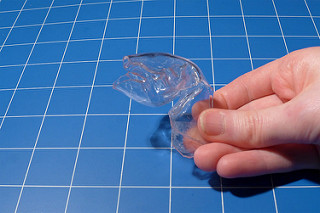

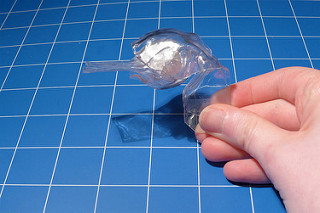

5. Heat shape the piece that wraps around your hand. (I’ve numbered it ‘1’ on the pattern). Focus on making the ends merge and meet up before refining the middle area to fit closely. Bend the circles together around each other on the sides to form a cup shape holder that is open at the top. This part will be refined later when fitting the 2nd piece into it.
6. Sand the outside of a berry light ball to diffuse the light.

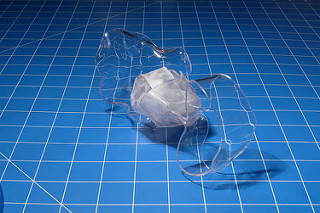

7. Cut out some tracing paper and tape it around the berry ball, this will further diffuse the light and disguise the ball.

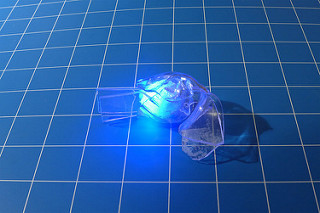

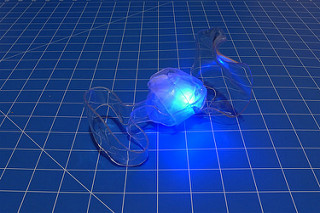

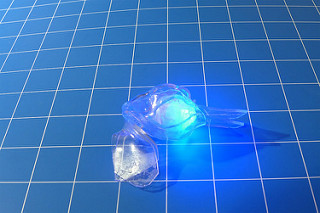

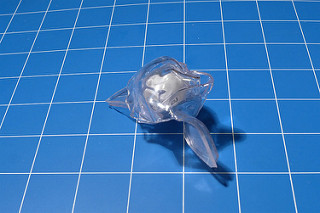

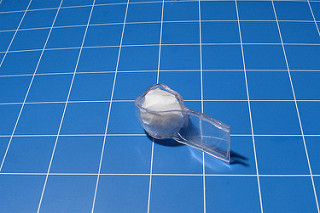

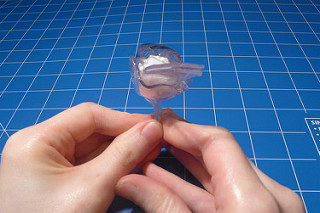

8. For the 2nd piece heat the middle then wrap it around the berry light ball, make sure the fit is very snug. The plastic does flex a bit which helps with this. Next merge the rest of the straight sections together.

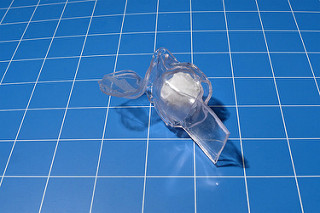

9. Refine the cup shape holder until the ball section of the 2nd piece can plug / snap into it securely.

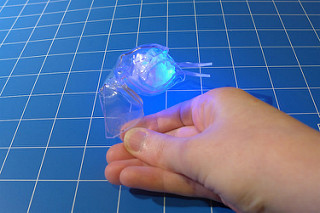

10. The holder needs to be facing towards the tips of your fingers; bend the strips just below it down 90° to one side then twist them around.
11. For the half circle areas, gently bend them back / out then warp it into a wavy shape.





Editing this post years later after realising how confusing these photos are, hopefully this additional info helps clarify:

Below I quickly recreated only a section of the design (central LED section) with a small amount of left over plastic so I could show more photos of it. So imagine the patterns without the half circles (top pattern) and middle hand-wrap section (bottom pattern). Those two small circle ends merge together to create a 'pouch' for the LED and it's 'wrap'. The LED is wrapped up in the middle strip section of the top pattern.





________________________________________________________________________

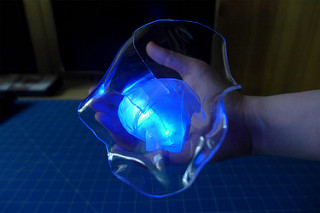

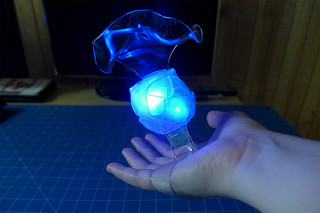

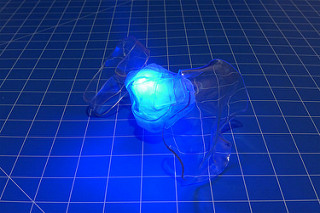

Design alternative - VERSION 2

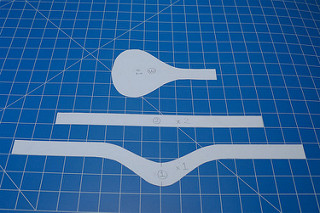

1. Adjust pattern size, length, shape, etc, to your fit and preference. Test fit / mock up with paper.
2. Transfer patterns to PETG plastic by tracing around it with a pen onto the protective film/cover that is later peeled off. To save having to trace along straight edges, simply mark the corners then join the lines with a ruler.
3. Cut out shapes with snips or your preferred equipment then peel off the covers.
4. Place the pieces on a flat table/bench, heat the edges with a heat gun to smooth them out a bit. Do both sides. Do not have a cutting mat underneath or nearby when heating as the heat will warp the mat.
5. Heat shape the piece that wraps around your hand (‘1’). Focus on making the ends merge and meet up before refining the middle area to fit closely.

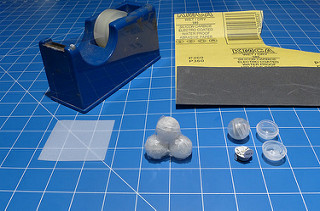

6. Sand the outside of 4 berry light balls to diffuse the light.
7. Remove the electronics from the balls.

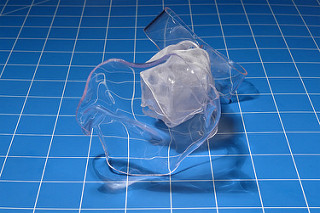

8. Tape the balls together firmly with 3 on the bottom, one sitting on top in the centre (pyramid shape). It is important that the balls don’t shift apart.
9. Sand the 2 strip pieces (‘2’) on one side to diffuse the plastic. I forgot to do this until after step 10 which made it more difficult, I ended up leaving it looking patchy.

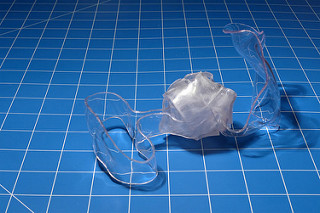

10. Heat shape wrap the 2 strip pieces (‘2’) around the balls. Allow an opening that is large enough (when flexed) to pull out the balls later (the tape comes off easily).
11. The ends of the piece ‘1’ merge into this wrapped up mass, weaving through / underlapping + overlapping strips, make sure it is wrapped tightly / securely.
12. The straight part / end of piece ‘3’ also merges in the same way as the previous step.
13. Warp the rest of piece ‘3’ into a wavy shape.

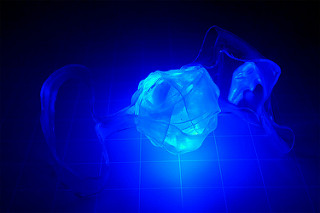

14. (Optional) Cut up some strips of tracing paper and try either taping it onto the balls, into the wrapped mass or shoving them in before or after the balls are in place.








Attachments

  • 16210178237_166fdb20ca_n.jpg
    31.8 KB · Views: 8,173
  • 16396080365_2c33021938_n.jpg
    31.2 KB · Views: 8,190
  • 15773616904_7e36ca7806_n.jpg
    30.4 KB · Views: 8,090
  • 16208680210_f3509b045a_n.jpg
    30.2 KB · Views: 8,040
  • 16209847269_e8b4c501e3_n.jpg
    30.6 KB · Views: 8,010
  • 16209855139_993ced6f9e_n.jpg
    35.8 KB · Views: 8,072
  • 16394336751_9abb29335b_n.jpg
    29.5 KB · Views: 7,999
  • 16396070775_912ed30779_n.jpg
    32.3 KB · Views: 7,925
  • 15773602854_473dfb437a_n.jpg
    33 KB · Views: 7,904
  • 16370105446_6a2b545c16_n.jpg
    31.7 KB · Views: 7,857
  • 16209845139_179d0b14db_n.jpg
    39.1 KB · Views: 7,766
  • 16396075385_35cd771aaf_n.jpg
    37.4 KB · Views: 7,730
  • 15773622314_535cd255e5_n.jpg
    39.5 KB · Views: 7,687
  • 16394340011_2eb4dfc021_n.jpg
    37.8 KB · Views: 7,649
  • 16370109176_63ecf16652_n.jpg
    36.1 KB · Views: 7,629
  • 16395165922_e2897b3073_n.jpg
    33.1 KB · Views: 7,586
  • 16396090295_b1be9d8ebf_n.jpg
    38.1 KB · Views: 7,555
  • 15773630744_1faf58d69d_n.jpg
    24.1 KB · Views: 7,469
  • 16394348051_58a9175d3e_n.jpg
    25.6 KB · Views: 7,470
  • 16208459508_66716d02a4_n.jpg
    25.2 KB · Views: 7,507
  • 16394348911_dbb0f84cd2_n.jpg
    22.4 KB · Views: 7,401
  • 16209863529_9f85c7166e_n.jpg
    18.9 KB · Views: 7,382
  • 15773635214_51e726f898_n.jpg
    31.8 KB · Views: 7,389
  • 16208466578_97991f6b07_n.jpg
    33.9 KB · Views: 7,395
Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

ultraman

Sr Member
RPF PREMIUM MEMBER
Re: Magic power prop - tutorial

wow that's awesome lol
nice job...i could think of a million cosplayer who could use this.


CinderStoat

New Member
Re: Magic power prop - tutorial

Thank you so much for sharing this! What a spectacular effect. I'm aiming to try this myself, I just haven't found a local store to acquire the thermoplastic from yet. I'd rather see it in person so I make sure I have the right type of material.


Rivyn

New Member
Re: Magic power prop - tutorial

That is so cool

And, -although I could be wrong about this- if you wanted to try a get a bit more light up through the warped areas you could maybe get some fibre optics to attach to the underside or along the edges. But again I might be wrong in my understanding of fiberoptics >>;;


dashy

New Member
Re: Magic power prop - tutorial

That is so cool

And, -although I could be wrong about this- if you wanted to try a get a bit more light up through the warped areas you could maybe get some fibre optics to attach to the underside or along the edges. But again I might be wrong in my understanding of fiberoptics >>;;

That sounds like an idea worth trying for sure!

The LED light reflection works really well in low light but is lost in daylight. Check out this tutorial by Elemental Photography and Design: http://www.worbla.com/?p=5239
The colour dye looks great in daylight then combined with LEDs looks great in low light as well, I think that is the better approach. I'm keen to experiment with TranspArt and dye.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

EgoCos

New Member
Re: Magic power prop - tutorial

This post gives me a Light in my way! (No pun intended)
Too Cool! I need some of this for some Fire/Ice characters. Thanks!!


dashy

New Member
Re: Magic power prop - tutorial

Has anyone tried this with clear worbla? I'm worried it won't get the same watery effect as the PETG thermoplastic.

I recently experimented with Worbla’s TranspArt / clear worbla. You can create a similar effect with it but the PETG I've been using has better clarity / clearer transparency.


UPDATE: Version 3

Felt inspired to revisit this prop idea recently to try improving on the previous versions, here are the results!

- I am regarding this as another rough prototype; made do with basic tools I had at home and only briefly wet sanded the edges by hand - heating the plastic helped in smoothing / refining the edges a bit. Haven’t tried cutting PETG with a scroll saw, band saw, router or laser cutter but some/all of these might create more precise, clean cuts.

- This new LED pendant is easily pushed in and pulled out of the spiral form which holds it securely by tension. The pendant can be turned on and off without removing it by pressing the bottom of the pendant through the hole in the spiral. It features 3 programmed modes: always on and two flashing speeds. Various colours available. Bought it on ebay: http://www.ebay.com.au/itm/HOT-Pet-Dog-Puppy-LED-Flashing-Collar-PET-Safety-Night-Light-LED-Pendant-BO-/252069711507?var&hash=item3ab0868e93:m:mBthJ6aqRL2toQOE1Y8ctJw

Also experimented with a few other LEDs which you may find useful:
http://www.ebay.com.au/itm/Great-Invincible-LED-Blue-Magnetic-Light-Pendant-Necklace-Birthday-Dancing-Party-/321682026337?var&hash=item4ae5be2f61:m:moxtLf0BNWpS9Grr_2oaTDA

http://www.ebay.com.au/itm/Men-Women-LED-Earrings-Light-Light-Up-Bling-Ear-Studs-For-Xmas-Party-Accessories-/191357946493?var&hash=item2c8dd28a7d:m:mfKnAJfonIdC6oRmKyssMTA

http://www.ebay.com.au/itm/Popular-LED-Flashing-Light-Up-Earring-Bling-Dance-Party-Disco-Ear-Studs-Vogue-KZ-/311427987302?var&hash=item48828df766:m:mQAmBqmea89EBgMyLoWBtDw

http://www.ebay.com.au/itm/Tea-Light-Wedding-Party-Flameless-Candle-Tealight-Tea-Flickering-Flicker-LED-/181798535049?var&hash=item2a54097f89:m:mii-Jb9Zfww5JRWKLD5Xo6w

Haven't tried the flickering 'candle light' LED yet but I imagine that could be quite effective when reflected off the PETG!

- I initially tested Worbla’s TranspArt; it is more flexible but this design needed a sturdier plastic; also, this PETG has better clarity / clearer transparency. Also tried dyeing it with Jacquard iDye Poly but later abandoned that approach because I thought the light reflections were more effective on clear plastic - this approach is really dependent on darkness / low light settings, however.

- I was planning (and hoping) to use 1mm PETG for all of it but this thickness didn't seem sturdy enough for the band and spiral; I tried merging two layers but that seemed too messy. (Perhaps I should have altered the design to make it work). I already had some 2mm scraps at home so used those instead. Tried cutting the 2mm with a utility knife but gave up after struggling with it, was taking way too long (fresh blade) and was really hurting my hand so I cut it with tin snips instead - very slowly and only partially squeezing the handle with each snip to avoid cracking the plastic.

- Practising on scraps is absolutely essential to get a feel for shaping PETG and how much heat to apply; my first attempt was a mess; over-heated which caused bubbles to form and unintentionally merged some areas together. Also, keep in mind that the more the plastic is heated and pressure applied with hands the more likely it is that any texture on gloves will be pressed into the plastic.

- Nose cone attached to heat gun to concentrate/focus heat on smaller areas.

- Removed a few minor scratches with Novus plastic polish #2 then applied #1 to help protect the PETG.

- SAFETY NOTICE: Wear heat-resistant gloves when heat-forming and work in a well ventilated area.


Photo annotations:

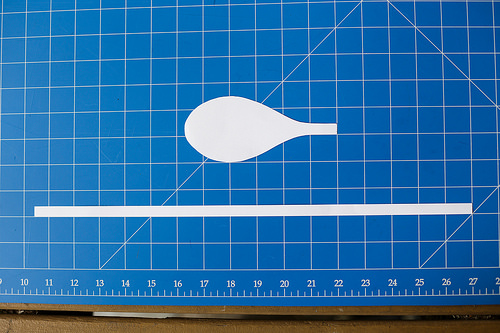

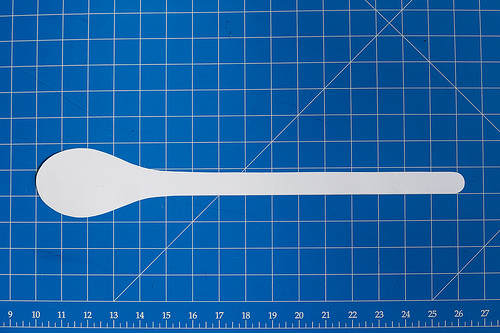

#1: Pattern pieces. Lower piece forms both the hand bracelet + spiral holder. Upper piece forms the warped shape that is connected to the top of the spiral. The warped area can be various shapes. The strip length will vary depending on hand size; a mock up will help in both working out this measurement and also later as a guide when heat-forming. I added a bit extra just in case then trimmed the excess after forming the spiral.

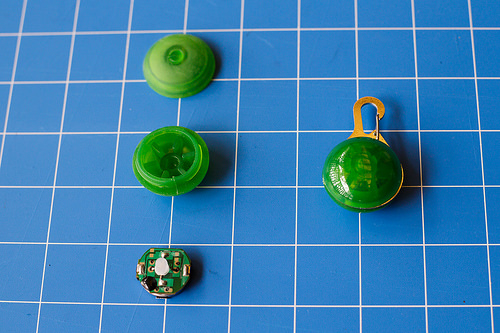

#2: Right: Original condition of the LED pendant. Left: Pendant disassembled and altered - the metal clip is easily removed when opening the plastic shell. To help diffuse the light I sanded both the LED itself and the plastic shell.

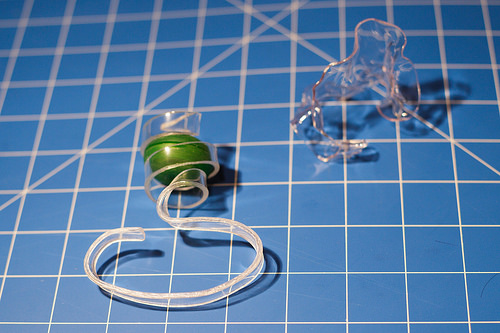

#3: Heat-forming process begins with the bracelet section. I bent the strip whilst holding it above my mock up from this angle / view. Test fitted it on my hand once it had cooled down enough to see how it was actually fitting my bare hand then made some further adjustments / refinements. The spiral is formed around the pendant shell then tightened for tension.

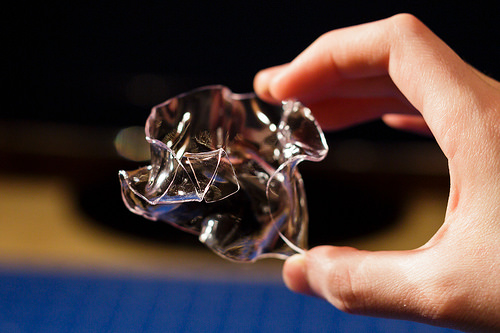

#4: Started the warped shape by forming a mini flattened spiral at the narrow end which connects onto the end of the main spiral, tension helping to keep it secure. Waited until this section had cooled down completely before forming the rest.

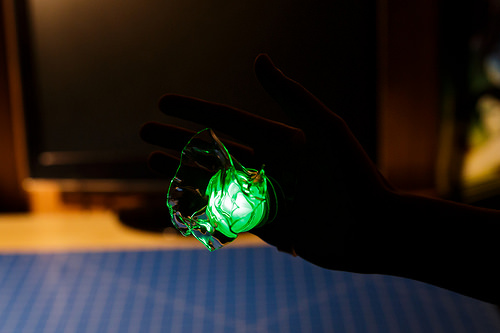

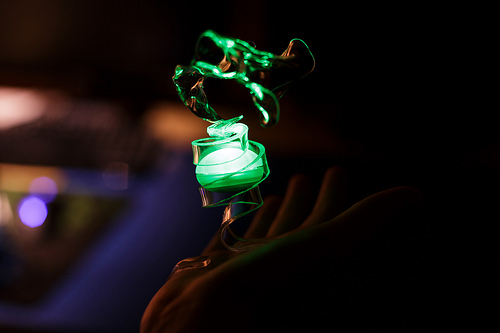

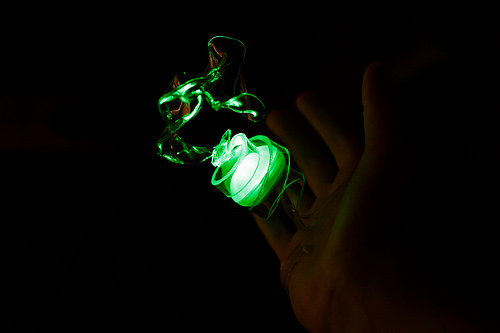

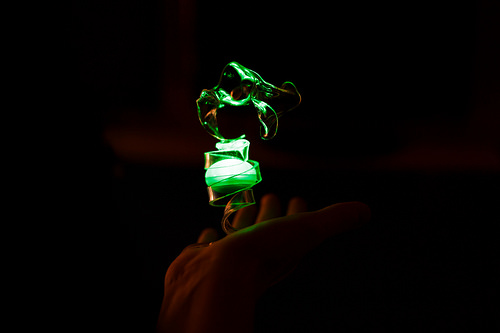

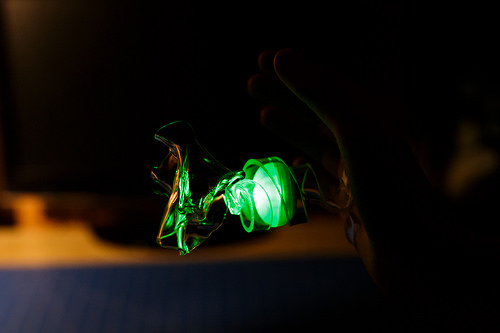

#5-9: Whilst forming the warped shape I tested it with the pendant underneath to see how the light was reflecting.










There's a few extra photos in the Flickr album: Magic power prop - Version 3
Filmed a brief video showing my hand rotating it around, changing the LED mode and taking the pendant out. Photographing this was an interesting challenge, filming it was even more difficult and awkward. xD


I hope the photos and explanations are clear and this is helpful in some way.


Attachments

  • 25347705344_1258fa0472.jpg
    105.5 KB · Views: 255
  • 25347705344_1258fa0472.jpg
    105.5 KB · Views: 254
  • 25886024061_eb430af0f6.jpg
    106.2 KB · Views: 248
  • 25886024061_eb430af0f6.jpg
    106.2 KB · Views: 273
  • 25886024061_eb430af0f6.jpg
    106.2 KB · Views: 293
  • 25886024061_eb430af0f6.jpg
    106.2 KB · Views: 249
  • 25954437296_ce4c49a076.jpg
    76.8 KB · Views: 257
  • 25954437296_ce4c49a076.jpg
    76.8 KB · Views: 235
  • 25954437296_ce4c49a076.jpg
    76.8 KB · Views: 265
  • 25954437296_ce4c49a076.jpg
    76.8 KB · Views: 276
  • 25347678814_61decde0d0.jpg
    81.7 KB · Views: 270
  • 25347678814_61decde0d0.jpg
    81.7 KB · Views: 230
  • 25347678814_61decde0d0.jpg
    81.7 KB · Views: 239
  • 25347678814_61decde0d0.jpg
    81.7 KB · Views: 274
  • 25347705344_1258fa0472.jpg
    105.5 KB · Views: 270
  • 25347705344_1258fa0472.jpg
    105.5 KB · Views: 229
  • 25980316535_79f25e13aa.jpg
    31.5 KB · Views: 243
  • 25980288495_c44c1a9500.jpg
    38.4 KB · Views: 241
  • 25980288495_c44c1a9500.jpg
    38.4 KB · Views: 220
  • 25980288495_c44c1a9500.jpg
    38.4 KB · Views: 237
  • 25980288495_c44c1a9500.jpg
    38.4 KB · Views: 213
  • 25980316535_79f25e13aa.jpg
    31.5 KB · Views: 253
  • 25980316535_79f25e13aa.jpg
    31.5 KB · Views: 256
  • 25679777660_4f4e9bfb34.jpg
    45 KB · Views: 259
  • 25679777660_4f4e9bfb34.jpg
    45 KB · Views: 219
  • 25679777660_4f4e9bfb34.jpg
    45 KB · Views: 244
  • 25679777660_4f4e9bfb34.jpg
    45 KB · Views: 264
  • 25980316535_79f25e13aa.jpg
    31.5 KB · Views: 250
  • 25859482432_01a38242d3.jpg
    50.3 KB · Views: 235
  • 25859482432_01a38242d3.jpg
    50.3 KB · Views: 230
  • 25859482432_01a38242d3.jpg
    50.3 KB · Views: 213
  • 25859482432_01a38242d3.jpg
    50.3 KB · Views: 223
  • 25347620344_db3502b20e.jpg
    42.3 KB · Views: 208
  • 25347620344_db3502b20e.jpg
    42.3 KB · Views: 201
  • 25347620344_db3502b20e.jpg
    42.3 KB · Views: 218
  • 25347620344_db3502b20e.jpg
    42.3 KB · Views: 216
Last edited:

GoblinCityCosplay

Active Member
Re: Magic power prop - tutorial [Updated with Version 3]

Oh wow, thanks for the heads up on that LED pendant, that will be super helpful. The new shape looks awesome.


dashy

New Member

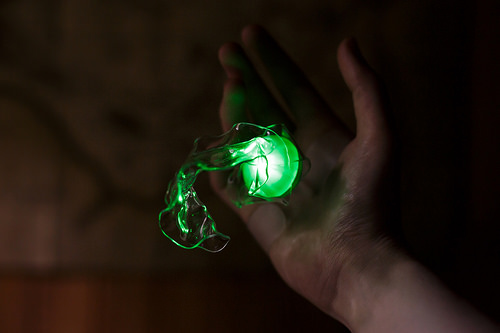

UPDATE: VERSION 4

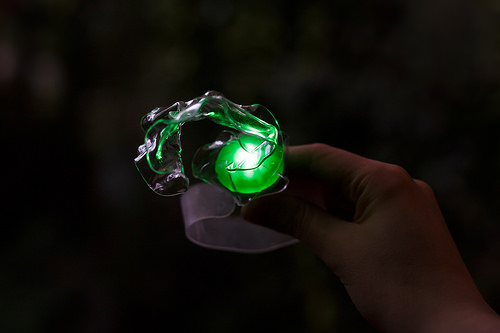

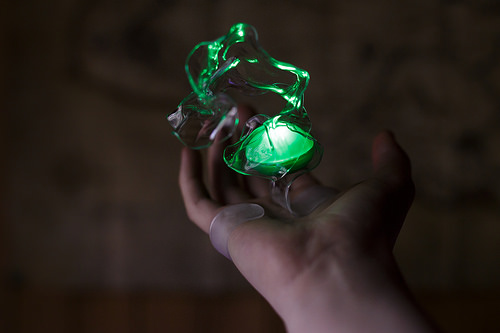

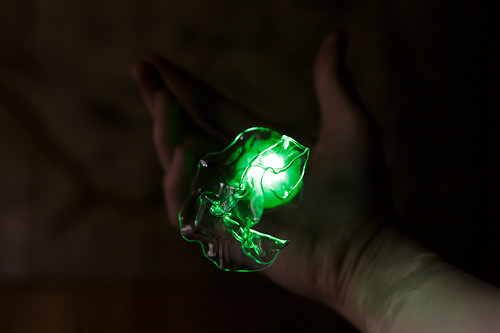

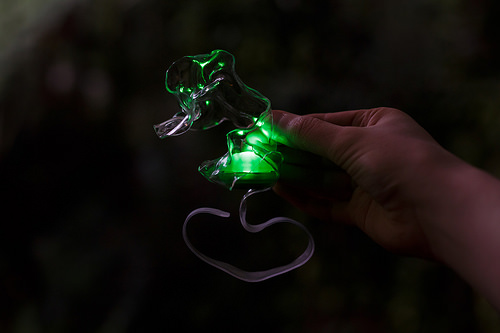

Shortly after posting V3 I realised the spiral section around the pendant needed to look more warped. The new spiral wraps around differently. Managed to make 1mm PETG work for the entire piece this time, looks consistent now. Merged the previous pattern pieces into one for a cleaner design. This time I didn't sand the LED itself so less diffusion (light is spread less) but more intense/vibrant reflections. PETG shape was cut with scissors, edges wet-sanded. Also sanded the outer surface of the bracelet section to make it matte/translucent and less reflective (800 grit).















--------------------------------

Brief video of the prop on youtube:


Attachments

  • 26319262745_9abb972a32.jpg
    35.8 KB · Views: 274
  • 26319262745_9abb972a32.jpg
    35.8 KB · Views: 224
  • 26253055531_8af1c9b0cd.jpg
    36.6 KB · Views: 231
  • 26253055531_8af1c9b0cd.jpg
    36.6 KB · Views: 219
  • 26252993851_872ce7602b.jpg
    34.2 KB · Views: 246
  • 26252993851_872ce7602b.jpg
    34.2 KB · Views: 247
  • 26283316386_f5f55b0eb9.jpg
    95.7 KB · Views: 213
  • 26283316386_f5f55b0eb9.jpg
    95.7 KB · Views: 222
  • 25704357634_c3c63b63e3.jpg
    34.6 KB · Views: 222
  • 25704357634_c3c63b63e3.jpg
    34.6 KB · Views: 240
  • 25704377824_81bfdaa472.jpg
    39.7 KB · Views: 217
  • 25704377824_81bfdaa472.jpg
    39.7 KB · Views: 253
  • 25704333734_4bc52328d2.jpg
    105.5 KB · Views: 224
  • 25704333734_4bc52328d2.jpg
    105.5 KB · Views: 210
