Kit Parts ID help - Alien Nostromo Flamethrower

[Birdie]

Hi all, I'm trying to accurise my Alien flame thrower and tring to identify as many of the detail parts as possible. A good job was done by 8th_Passenger Passenger and many others over on Propsummit Propsummit.com a Blade Runner Prop Community Forum BladeRunnerProps.comView topic - âGive me about twenty minutesâ â ALIEN â Incinerator Unit, but I'd like to throw it open to all of the experts on the RPF.
I've shaded and named the identified kits in the following images, any help finding any of the rest would be much appreciated!



[swgeek]

Hasegawa 1/72 Morser Karl

Hasegawa 1/72 Leopold

Revell 1/32 Mirage III...maybe?



[Birdie]

Just picked up the Hasegawa on Ebay, thanks



[Pro Mod]

I think the rectangular strip with holes on the bottle is from the Airfix motor torpedo boat.



[Birdie]

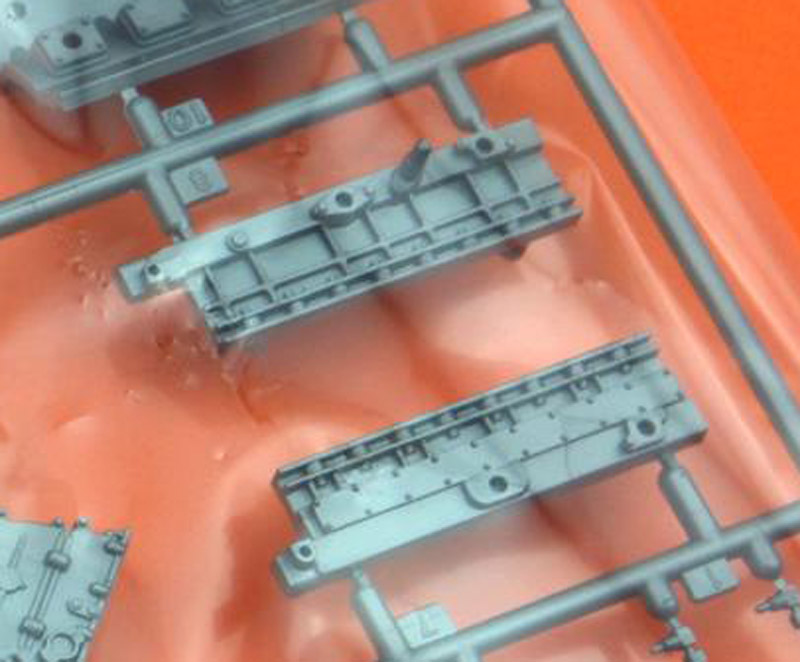

part here is from Tamiya Tyrell 1/12. Too rich for my blood, but at least a decent pic to emulate,



[joberg]

Isn't the Tamiya Tyrell part on the Millenium Falcon? Lots of builders (Studio Scale section) are mapping it right now; they would know if someone made a mold and reproduced the part.



[Birdie]

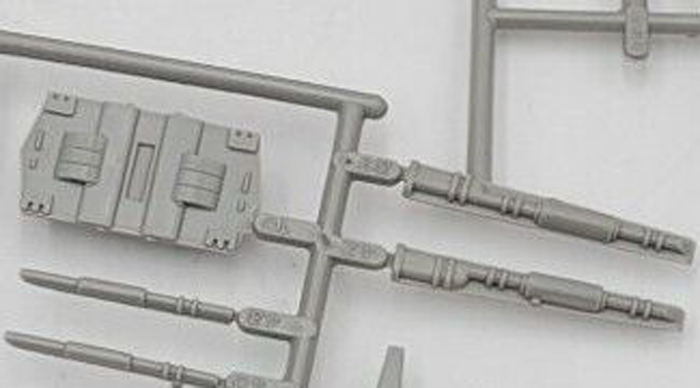

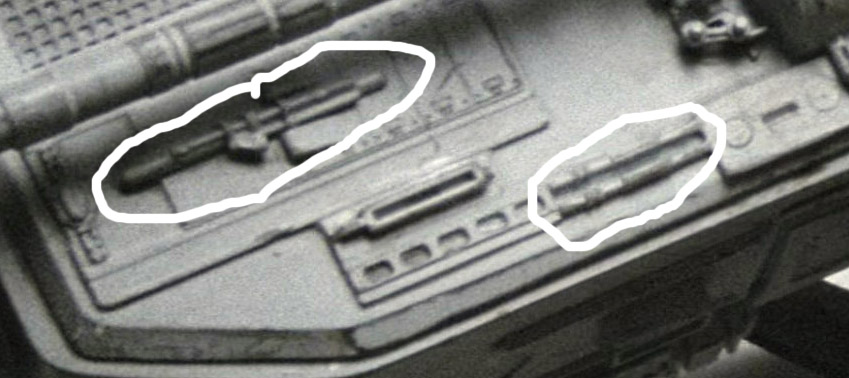

Two parts from MPC Darth Vader Tie Fighter



[Birdie]

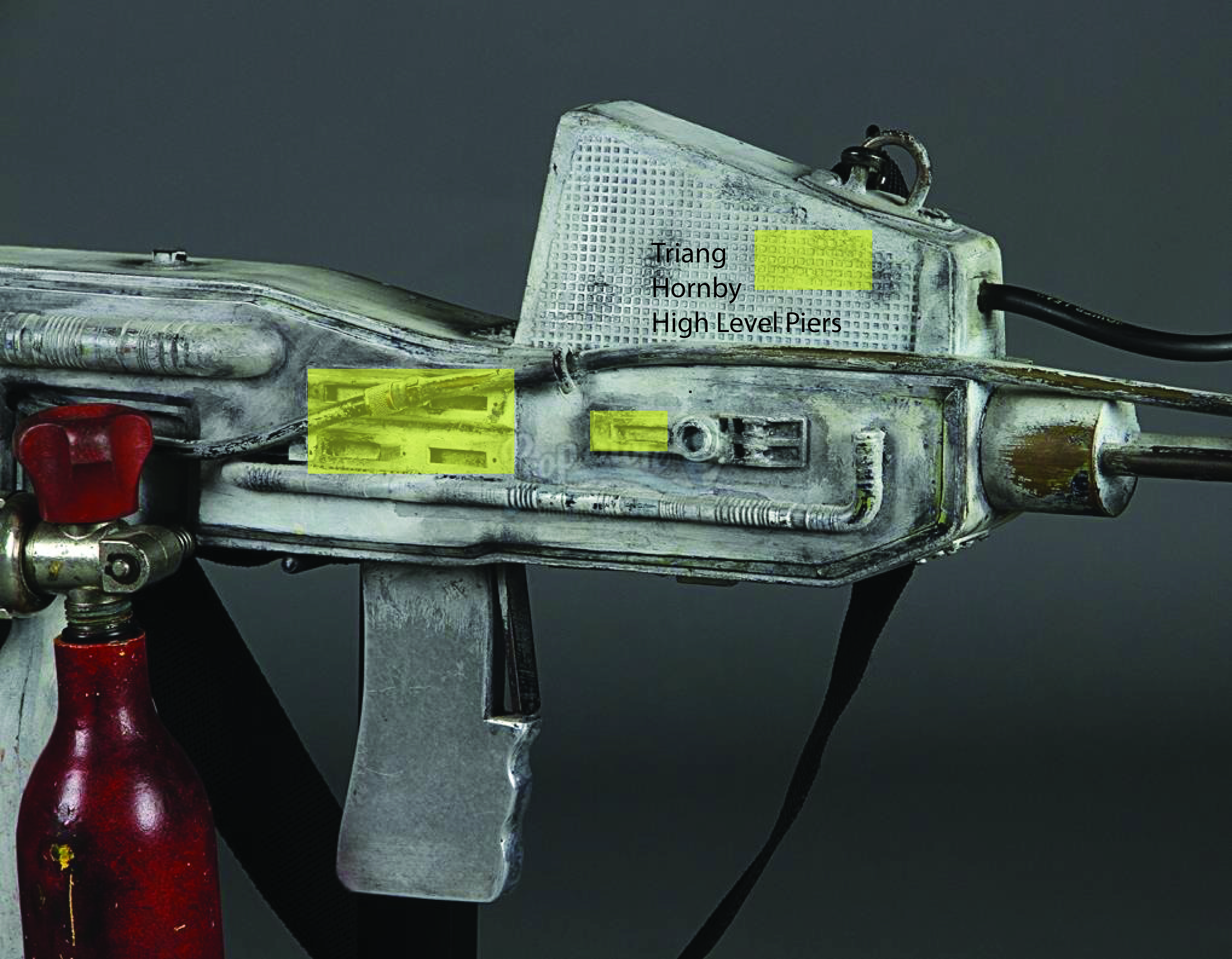

Hornby incline pier.



[Birdie]

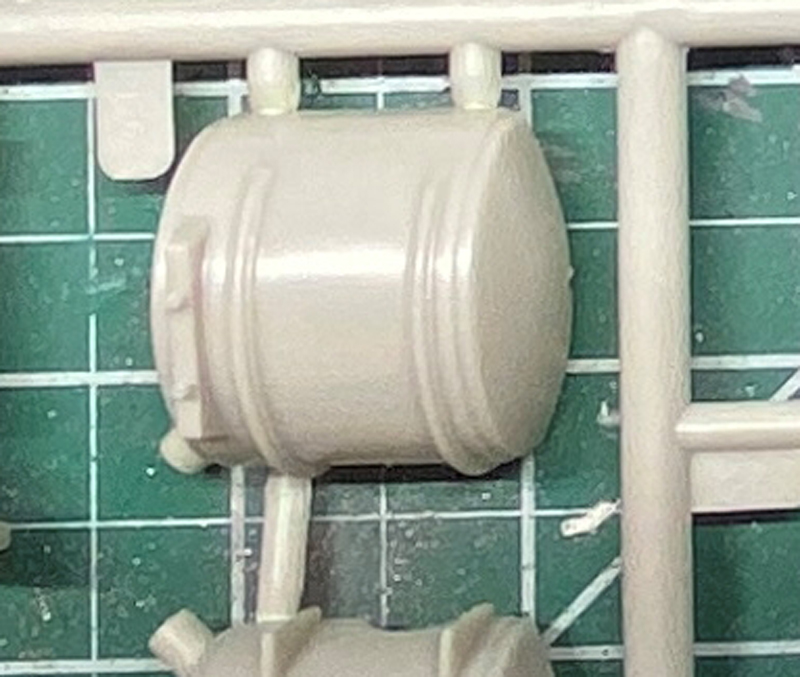

ERTL 1/25 International Pay-hauler 350



[septic]

Daaaamn! I'd know idea that this thing had so much detail!
Picking the [gas] bottles are a found item, anyone know what they'er from?



[Birdie]

Daaaamn! I'd know idea that this thing had so much detail!
Picking the [gas] bottles are a found item, anyone know what they'er from?

They are vintage scuba pony bottles, pretty heavy. The correct ones do turn up on ebay, they are probably rarer than when I got mine around ten years ago.



[Birdie]

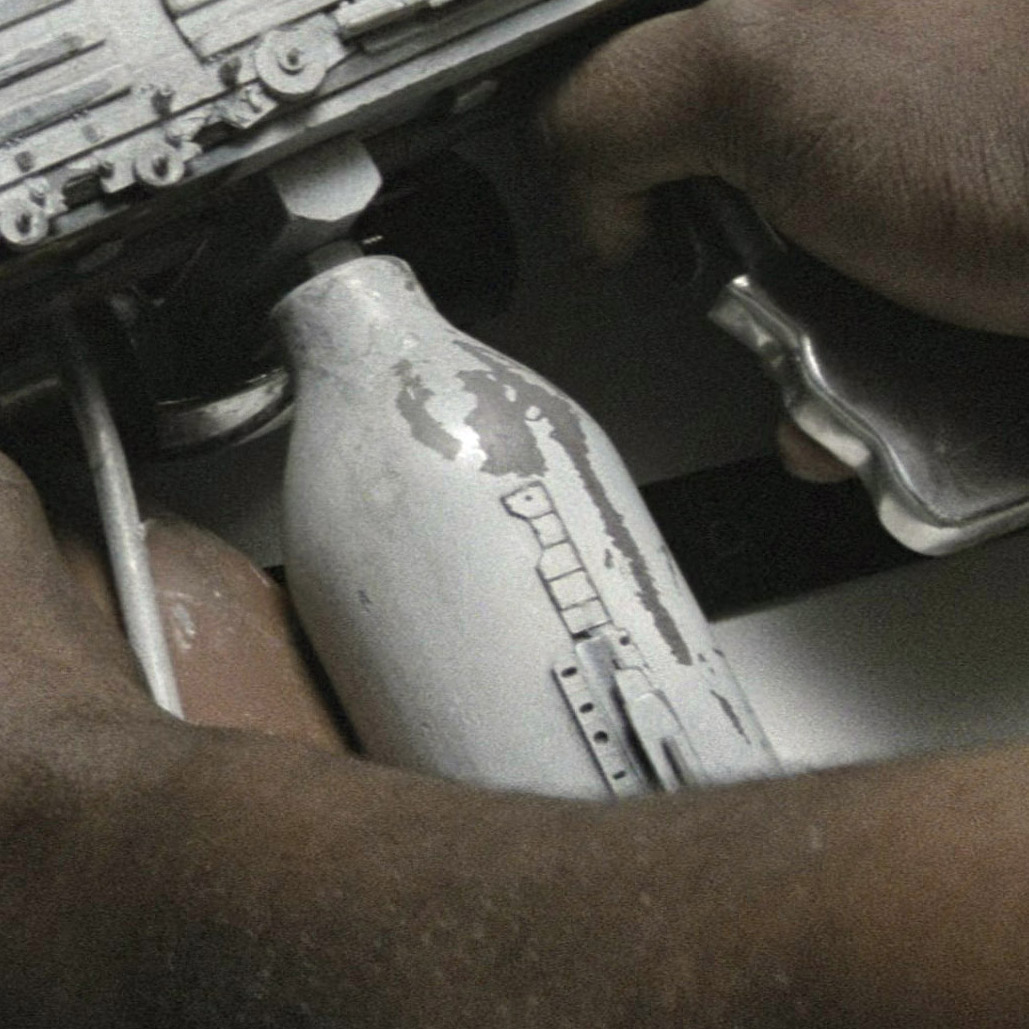

Screencap of Ripley with the propane gas tank visible.



[septic]

They are vintage scuba pony bottles, pretty heavy. The correct ones do turn up on ebay, they are probably rarer than when I got mine around ten years ago.

Damn, I was hoping they were sodastream bottles or something similar
Would you mind posting the dia & total length [rounded base to the threaded fittings] of your bottles, please?



[Birdie]

Damn, I was hoping they were sodastream bottles or something similar
Would you mind posting the dia & total length [rounded base to the threaded fittings] of your bottles, please?

Sure thing...diameter is 60.5cm, bottle length 22cm



[septic]

dia in mm though, yeah
P.s. Thank you!



[Birdie]

I've now ID'ed nearly every thing i'm looking for. I'm exc.luding the probe section. Some of them I spotted from kits already identified. If anyone wants an updated part map, let me know.. They are virtually all from Martin Bower's near mythical Narcissus kit collection.

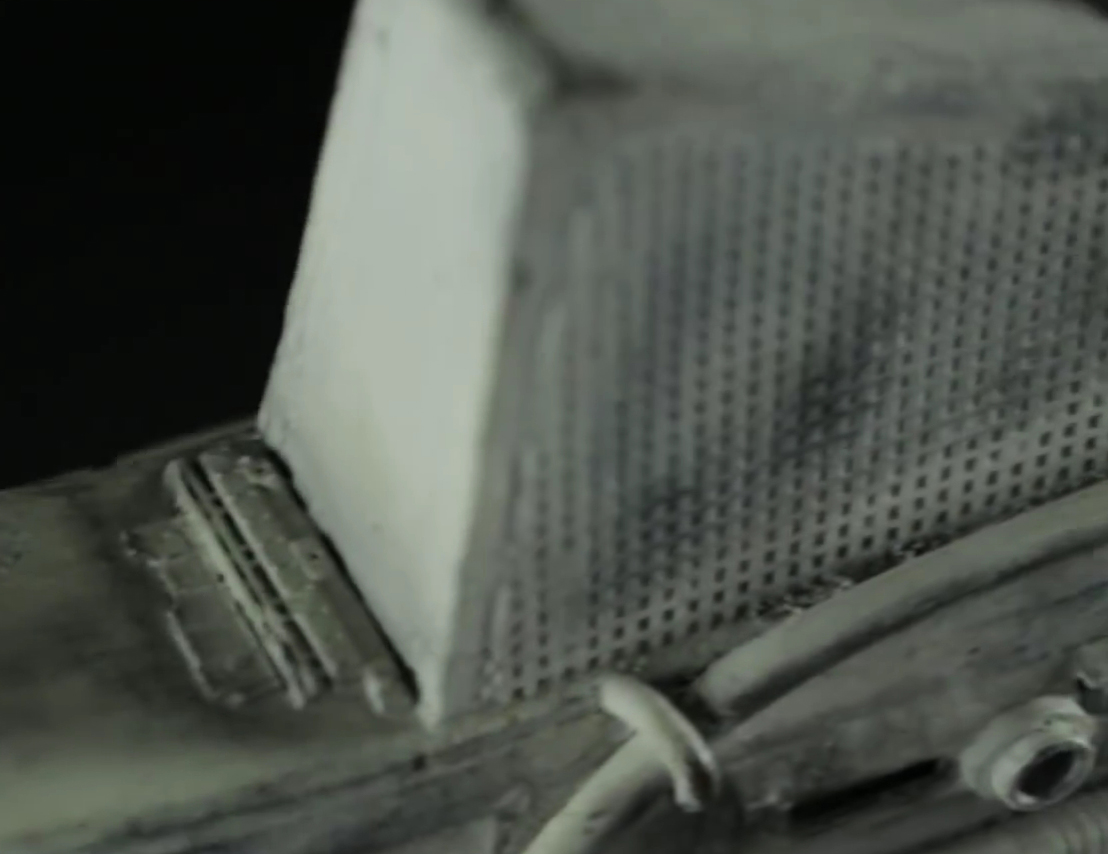

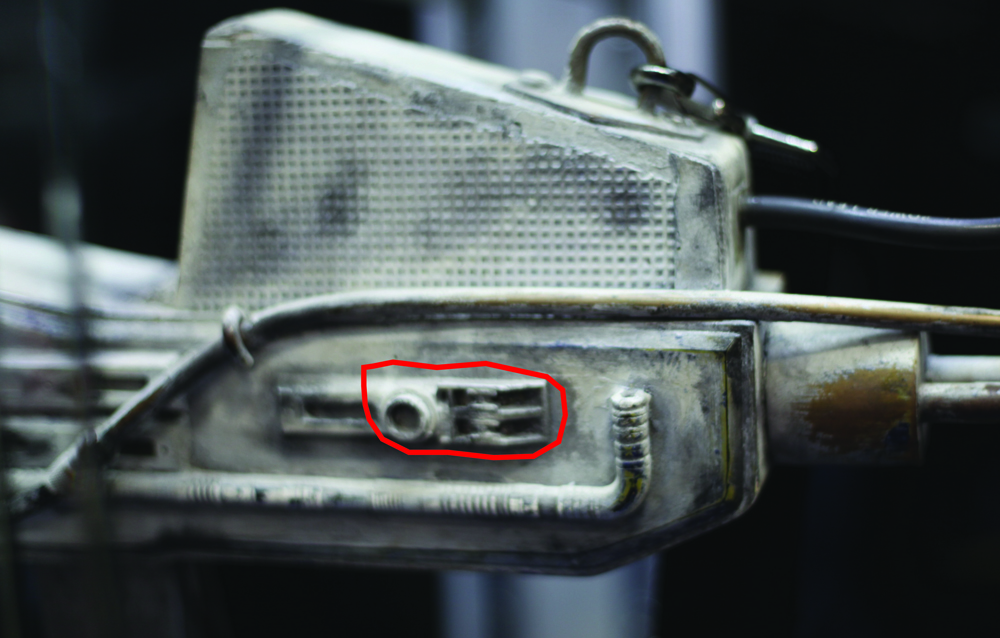

Here are the parts I'm still haven't found:

From the other side:

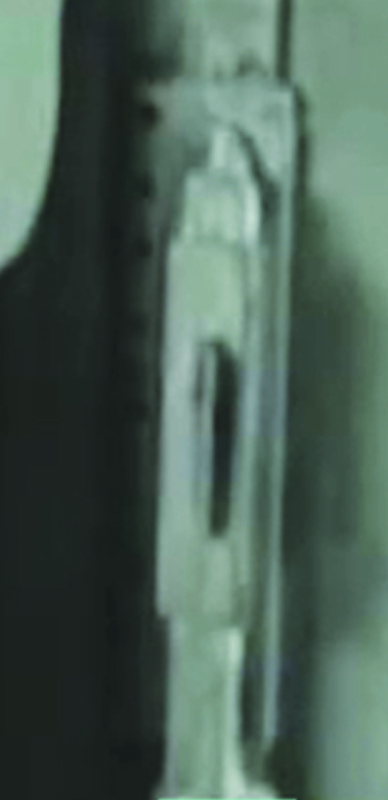

This part (or two parts) are mounted on half a Triang Pier riser, two complete ones are mounted further back. Looks kinda like some kind of snap-lock part.



[Birdie]

dia in mm though, yeah
P.s. Thank you!

Inches are a stupid imprecise measure



[division 6]

I believe he was saying that it should be 60.5 mm not 60.5 cm.



[Birdie]

I believe he was saying that it should be 60.5 mm not 60.5 cm.

My bad. it's late



[NyCstle]

Daaaamn! I'd know idea that this thing had so much detail!
Picking the [gas] bottles are a found item, anyone know what they'er from?

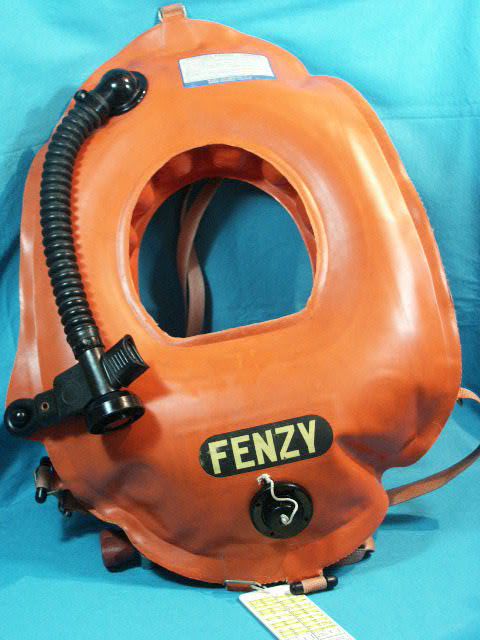

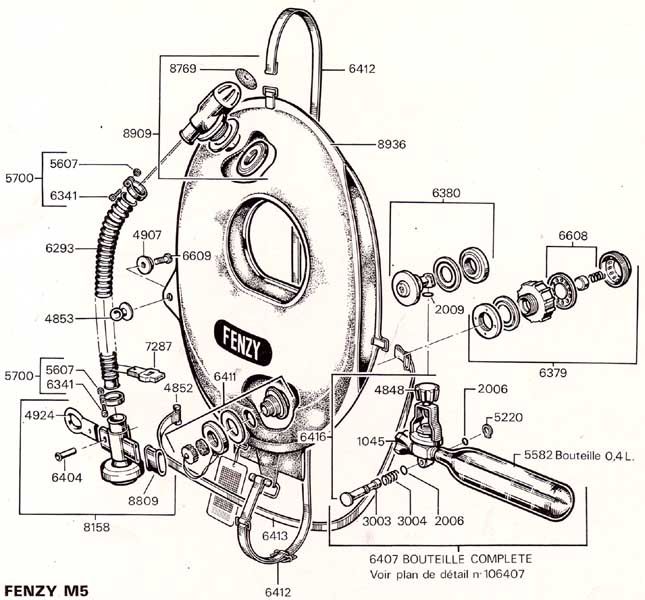

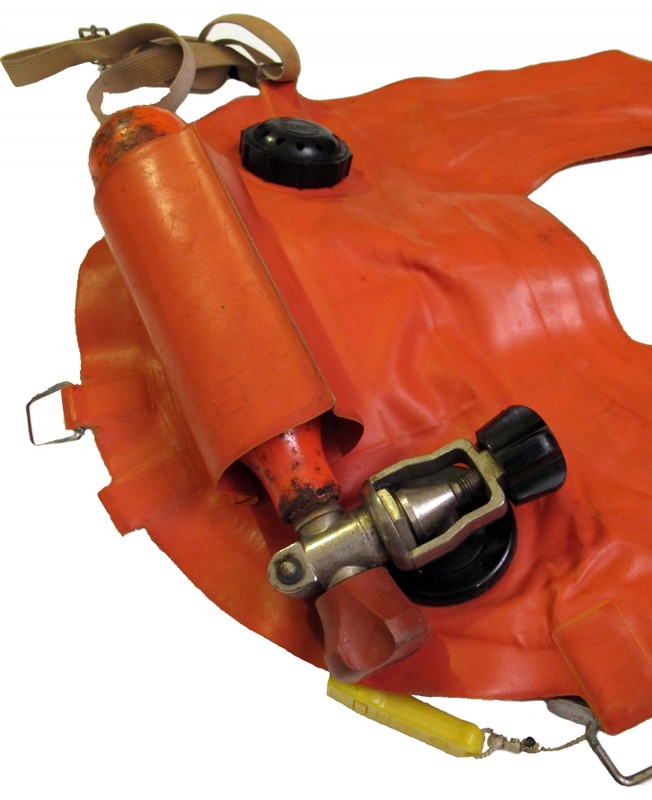

The red one is very likely a 0.38 liter 200 bar steel cylinder from a Fenzy bouyancy compensator vest, the white one looks similar. In the seventies and eighties these were used a lot, they were filled with air from regular scuba tanks.
