JIN ROH 2015 FUZE PROJECT. Accurate Model from the 1/6 Figure. Modelers WANTED

[simonkage]

I can heartily recomend Rhino. Its gui is intuitive and it has a help tab on the left which (when activated) will display the instructions for the tool selected. Most useful.



[simonkage]

PM me and I will link you to some educational versions.



[simonkage]

- - - Updated - - -

Finaly got the transition at the temple right. Can work on the rest of the mask structure now.



[simonkage]

Also its put round a balaklava, so its much easier to fit.

- - - Updated - - -

Thanks for all the nice comments and messages chaps.



[simonkage]



[Daeouse]

Superb!



[GUARD1AN]

not sure if your if you have seen this https://www.facebook.com/groups/PepakuraLibrary/677600455684562/ you might be intrested for the 3D aspect of it,

-Mike



[simonkage]

Its far from accurate yet though. The Brow/forehead extrusions a far to pronounced compared with the model. And I'm having a hell of a time getting ti to taper off smoothly. I think I may take a break from the mask and do some chest detailing and sort out the knee wings before my head explodes.

Im sure I can do this with my T-splines plugin, I just need to refresh myself with its tools.



[simonkage]

- - - Updated - - -

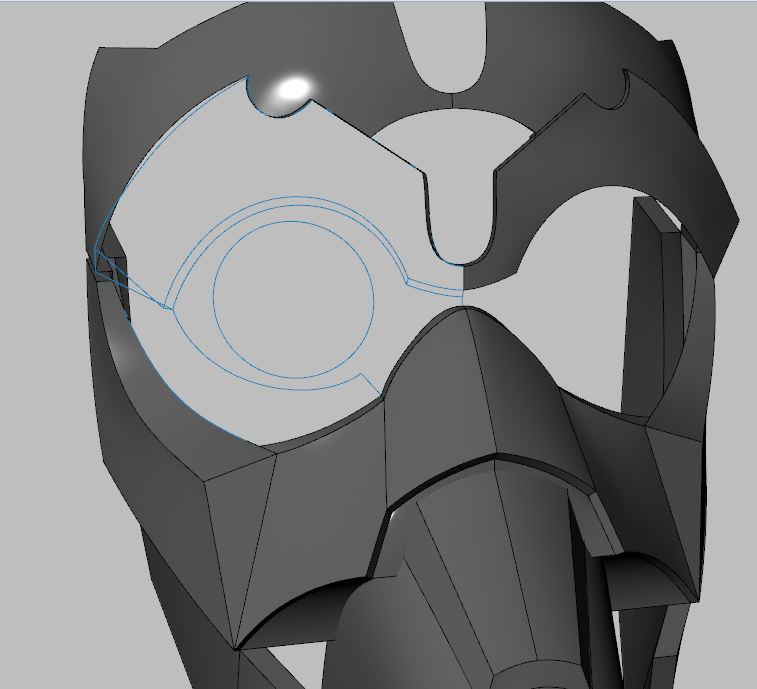

Rebuilding the brow and getting into the eye transitions, which is a little tricky when the model head is about an inch tall.



[simonkage]



[GUARD1AN]

awesome bro



[simonkage]

Thank you Guardian.

- - - Updated - - -

- - - Updated - - -

He is looking pretty boss now Lots of tweaking still to do.



[jaztermareal]

holy moly! cant believe i missed this (not logged in in a loooong time)

amazing work!!!

if you need any reference material or my opinion etc lmk, i'm the biggest kerberos nut on the web and have a huge collection of kerberos stuff and of course my kerberos blog kerberos-saga.blogspot .com and the kerberos saga group on facebook. i am lacking in cad skills but i can sculpt any tricky bits by hand as i'm an amateur sculptor.

j



[simonkage]

Official insignia and rank badges is what im after.



[simonkage]

Found some great data here http://sosezi-kerberostokyowars.blogspot.co.uk



[simonkage]



[Daeouse]

Yesssssssss



[simonkage]

This is taking me a hell of a long time to complete.

There are still transitions on the mask im not 100% happy with, and now everytime I change somthing this alters the connections to the ajoining surfaces, so im a little worried about mucking up my work. Im also quite stumped atm at how the (nearly invisible) mask front connects with the gas mask piece. aaaaagh.

And this is before I do all the subtle filleting and champhering of edges and make sure they all line up perfectly (because the slightest % of a mm gap will make holes in the 3d print)

I am also out of milk for my coffee, Time for a stroll in the sun (thank you weather).



[jaztermareal]

it looks almost perfect to me!



[Barking Dragon]

Looking fantastic so far simonkage! This is one suit of armour I have ALWAYS wanted, and seeing you draw it up like this is amazing.
