Jedi Holiprojector 3D Print

[The14thDr]

I have decided that my next 3D print project will be the Jedi holoprojector from The Phantom Menace.

So far I have collected a few reference images, including these screenshots from the movie:



I also have a couple of birds-eye view images of the holiprojector, courtesy of YourProps.com.

However, before I can start working on the 3D model for this thing, I need to figure out the measurements.

Does anyone have any ideas on the outer diameter of the gold ring that makes up the body of the projector?

Thanks in advance for your help.

Kind regards, The14thDr



[Mara Jade's Father]

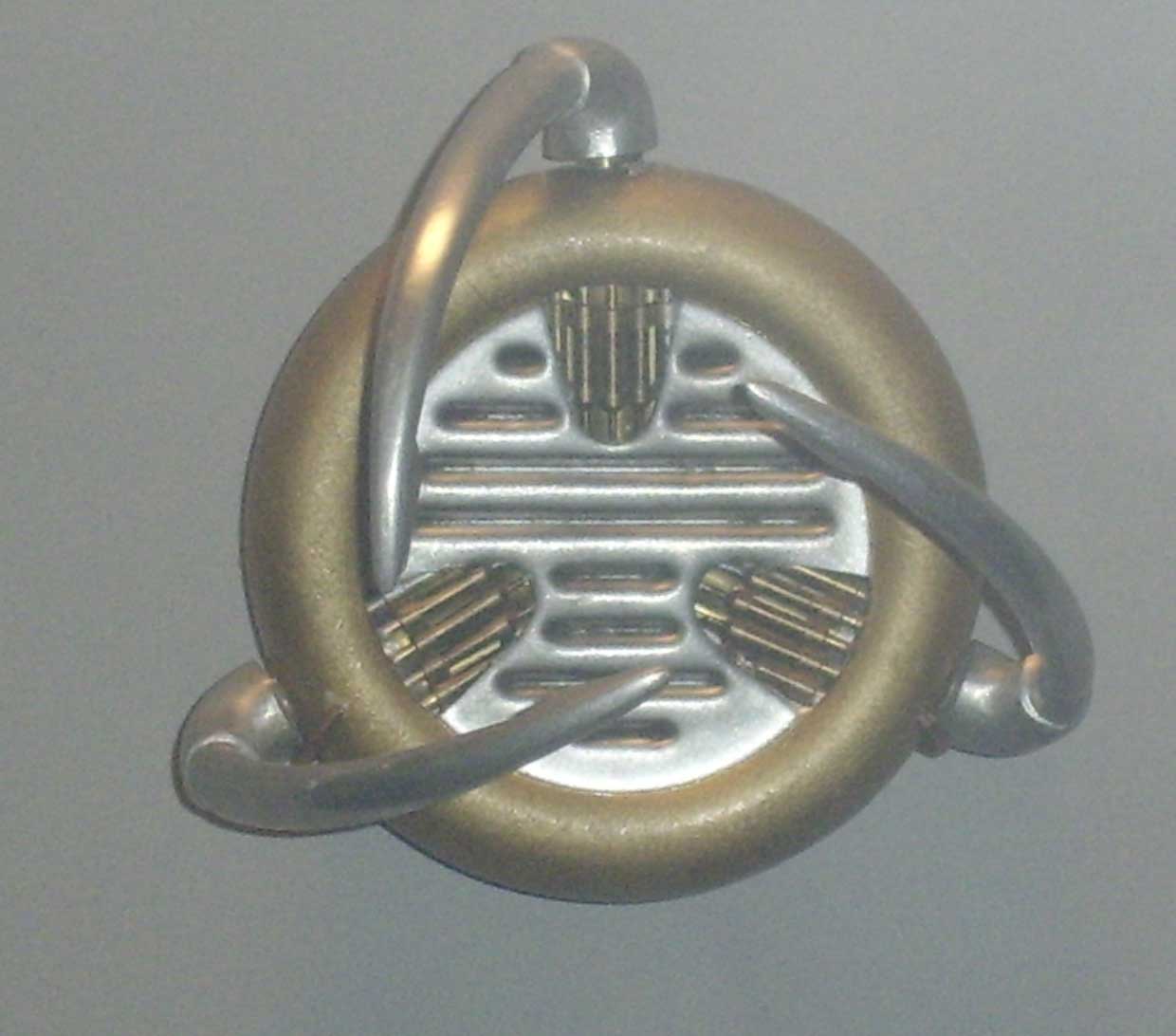

Here some pictures I have collected. I believe these are actual prop from public display. It gives you a nice look at the underside:



I have no real info on the size, i can tell you what others have done:

Here is the gold ring on Shapeways.com:
https://www.shapeways.com/product/ZAZ5E36TP/jedi-holoprojector-ring?optionId=59540794



W: 2.28 in H: 0.38 inD: 2.269 in



[The14thDr]

Thanks Mara Jade's Father!

Those images are fantastic for the underside of the projector (this was something I'd never seen before, so thank you )

Thanks also for the Shapeways link and those measurements. I can extrapolate everything else I need from this. :thumbsup

Kind regards, The14thDr



[Halliwax]

the silver legs on it looks like head phone clips, the clips that go behind your ear
