homemade T2 endo arm

[iandegia]

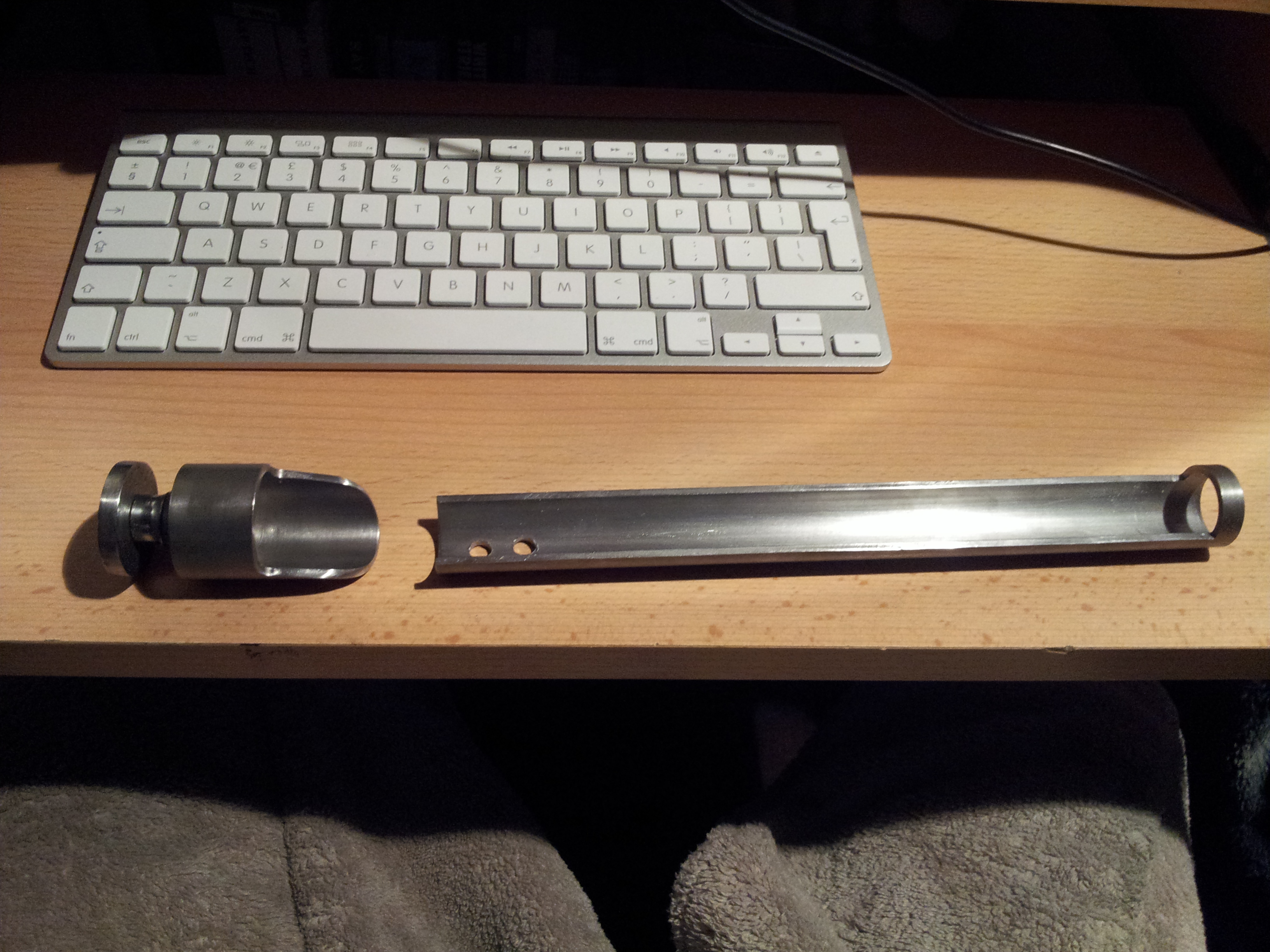

more progress. just need to cut the groves and then weld them using puddle welds
.



[iandegia]

i got this yesterday



[takufuji]

That's some great metal work.



[iandegia]

a little update. added a 8mm bar...



[Wreckhur]

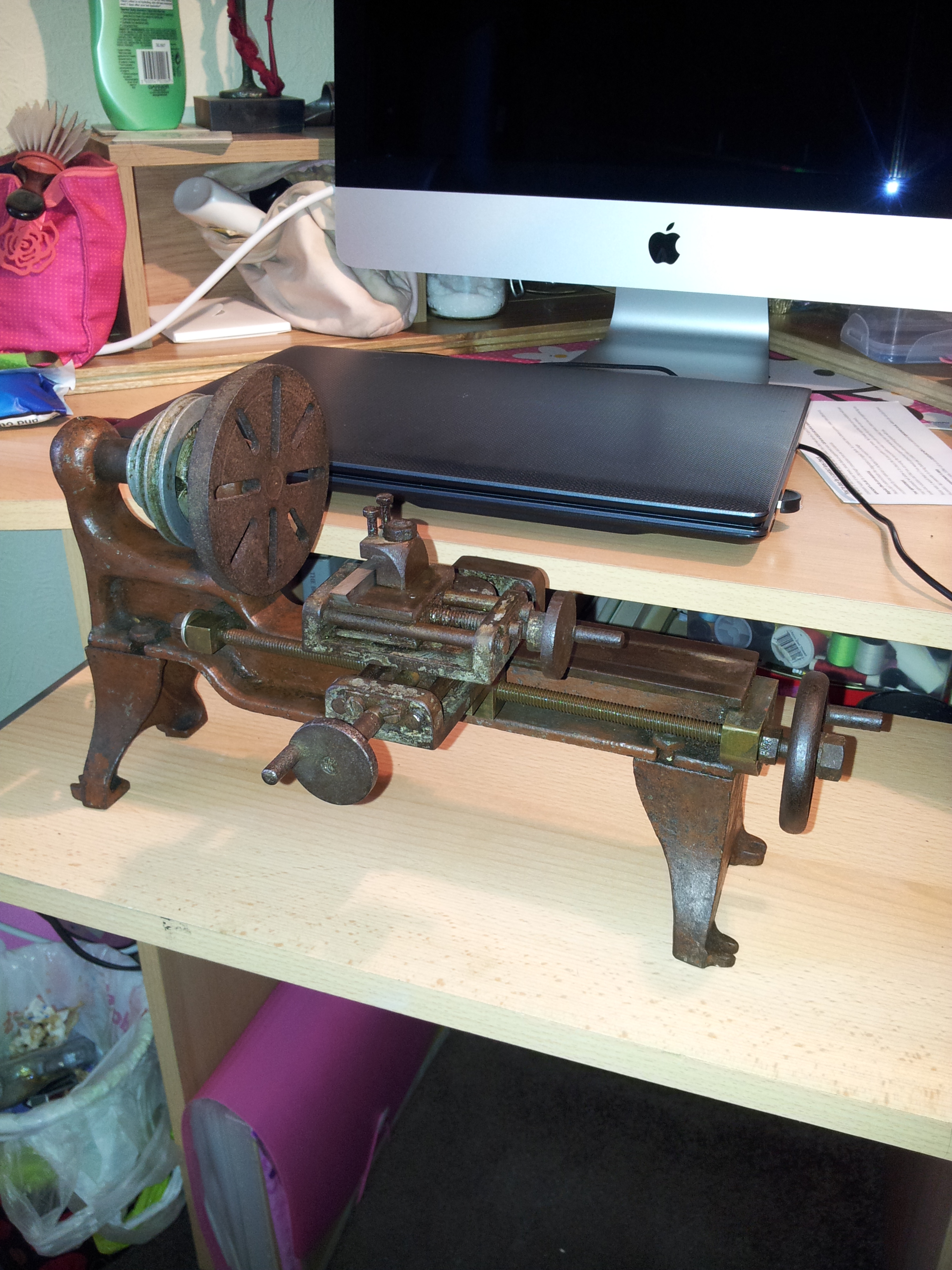

View attachment 320503 i got this yesterday

WOW! I'm not surprised if you could still get pretty good accuracy with something like that after proper cleaning and maybe a light resurface. I don't know if you know about resurfacing these things, or if you're even going too. But old machines are some of the best in my book. I have a 50 year old mill that I converted to CNC and it holds tolerances of .0005". Either way you have definitely taken the right step in getting much more detail into your work.



[iandegia]

this things from the 20s lol



[iandegia]

boring update. ordered more steel and i am still waiting...



[dasAdam]

such a beautiful old lady you got there =)



[iandegia]

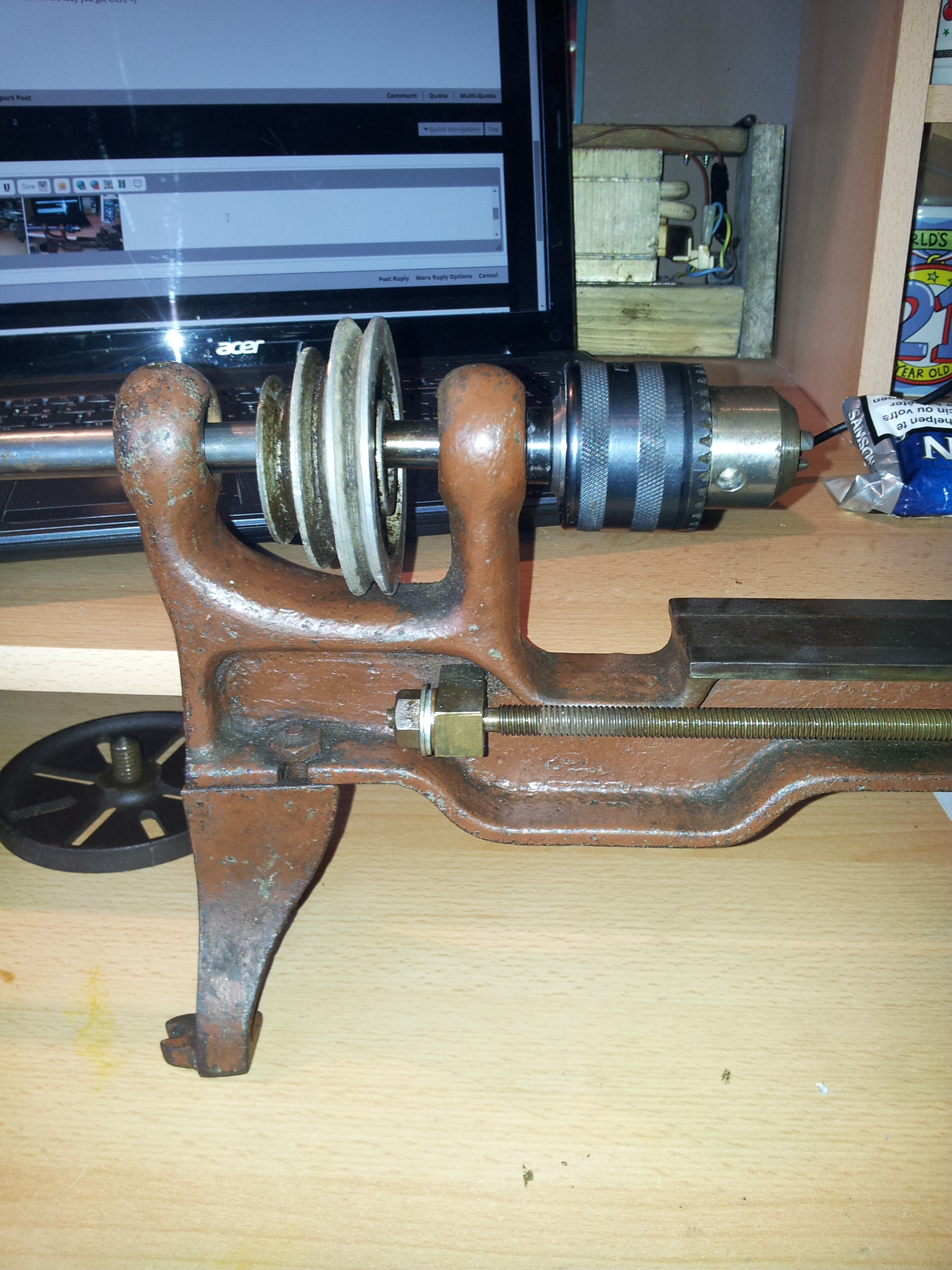

so i decided, even though the lathe is almost 100 years old im going to bring it into the age of the ease...
i have ordered a 4 jaw 2" lathe chuck for it and ill rig it to also take a drill chuck (interchangeable)
these pics are just a mock up but here goes..



[Sean]

I need that...seriously.



[iandegia]

hopefully its worth it.
the worst that could happen is it will be good for my watch hobby lol



[Sean]

Doe's It have bearing's In It? looks like that rod Is just laying in the two hole's. that would be a problem...



[iandegia]

Doe's It have bearing's In It? looks like that rod Is just laying in the two hole's. that would be a problem...

once the 50mm chuck comes ill order the appropriate pipe and bearings..
this is just the mock up but i think i will put the drive pulley at the end of the drive shaft



[Sean]

Sound's logical. may I ask were you got that? been so many time's I could use something like that. you've got me looking into chuck's and some are pretty affordable. what arm part's will be worked on that? sorry for so many question's.



[iandegia]

Sound's logical. may I ask were you got that? been so many time's I could use something like that. you've got me looking into chuck's and some are pretty affordable. what arm part's will be worked on that? sorry for so many question's.

thanks for the interest good questions. im really into old school things, so i go to as many model engineering shows, vintage rallys, auto/aircraft/boat jumbles, and all that stuff... i found this at a vintage rally. there was a load of stalls selling allsorts of old junk (in our case treasure)
i would have been happy just polishing it up and putting it next to my other collectibles (much to my partners dismay)
i want to use it for cutting the groves on the ball joint, putting holes in the ends of the pistons, turning square fingers round and all that stuff..



[Sean]

Hope you get her up and running again. the old stuff is the best stuff. look foreword on the progress of this and the endo arm...



[iandegia]

thanks. at first i was going to just throw it together and save a few pound, but i figured if im going to spent all this money i should do it right so now this is turning out to be a big project.



[iandegia]

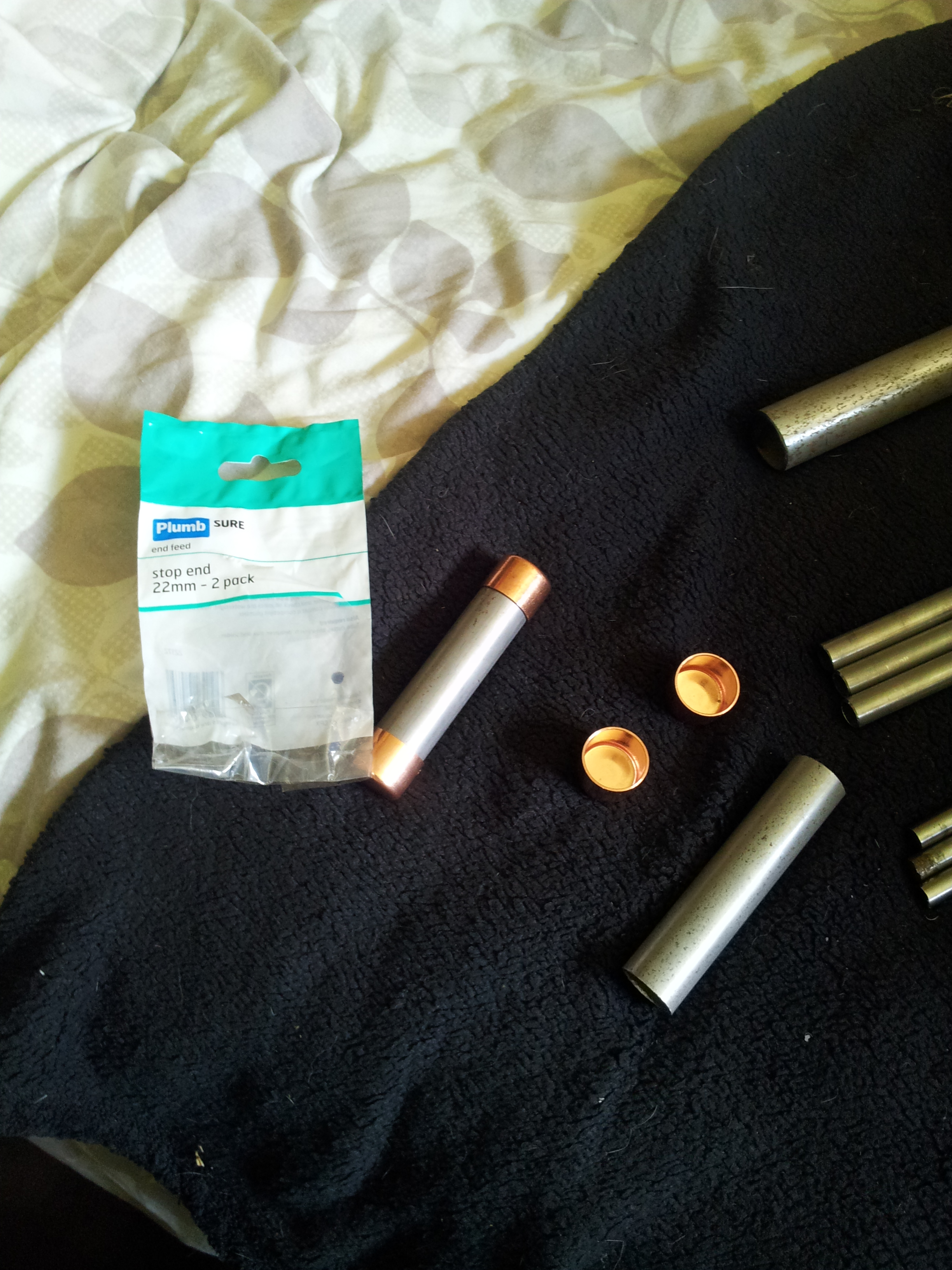

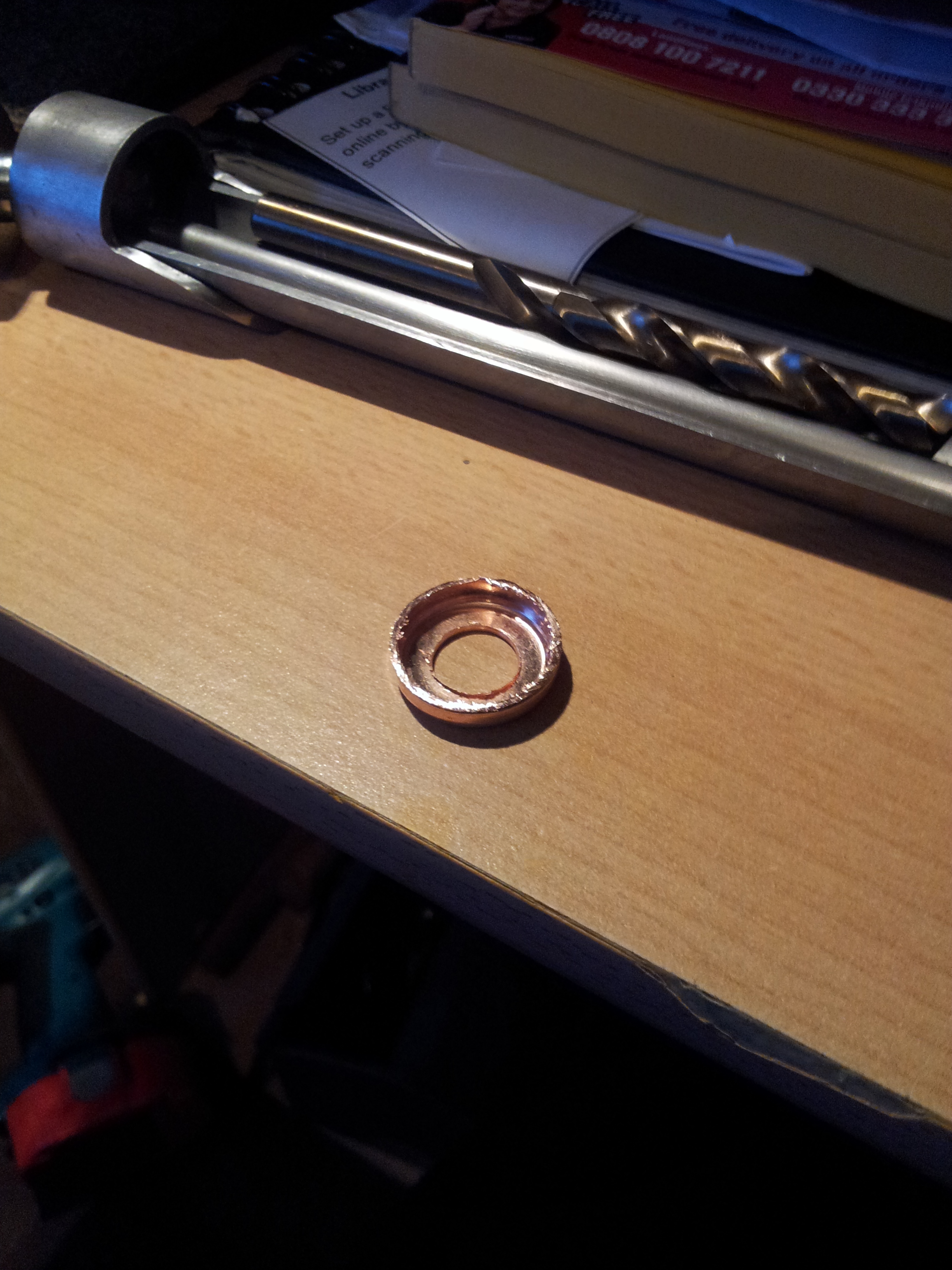

more steel for the pistons



[iandegia]



[iandegia]

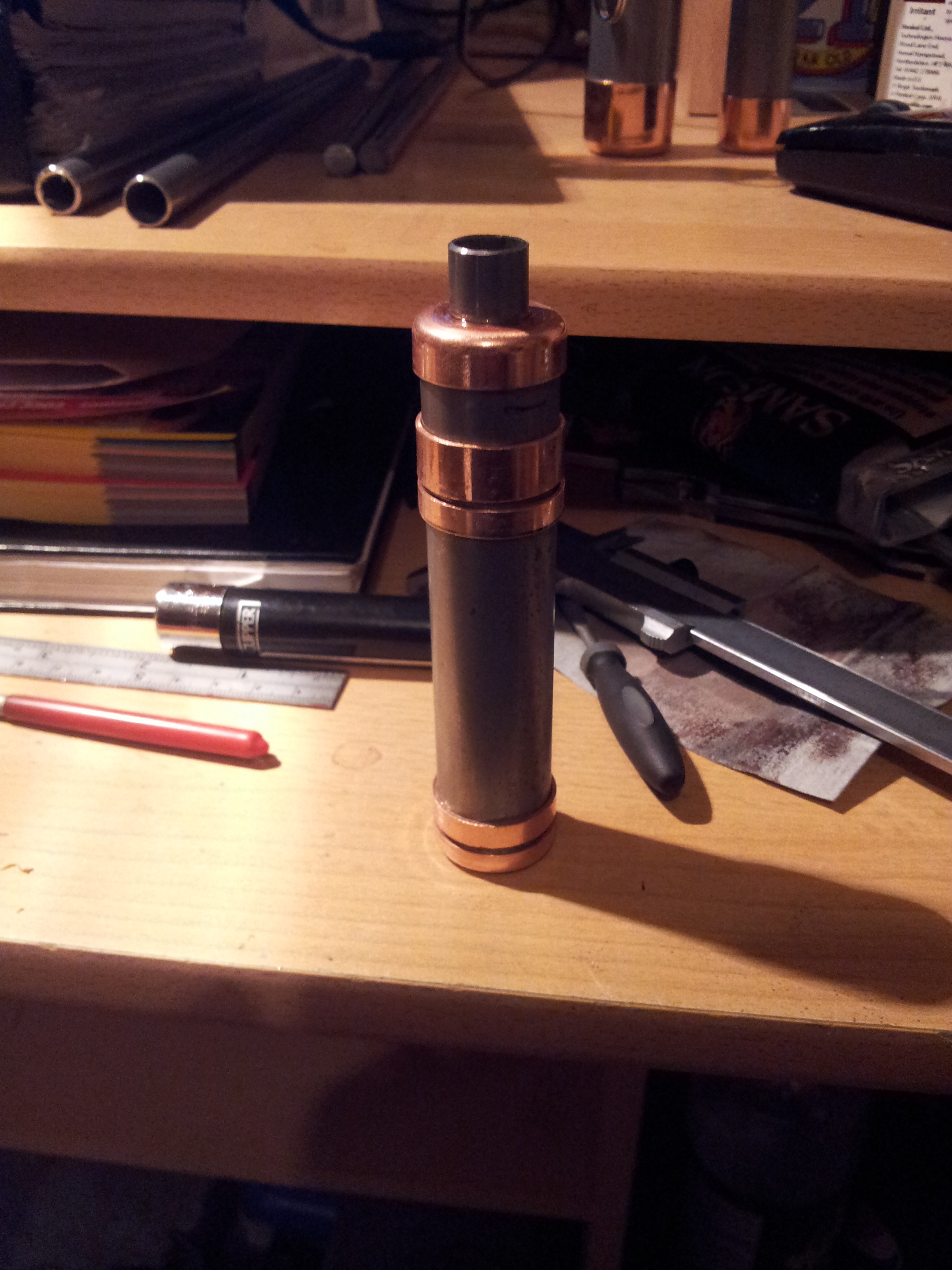

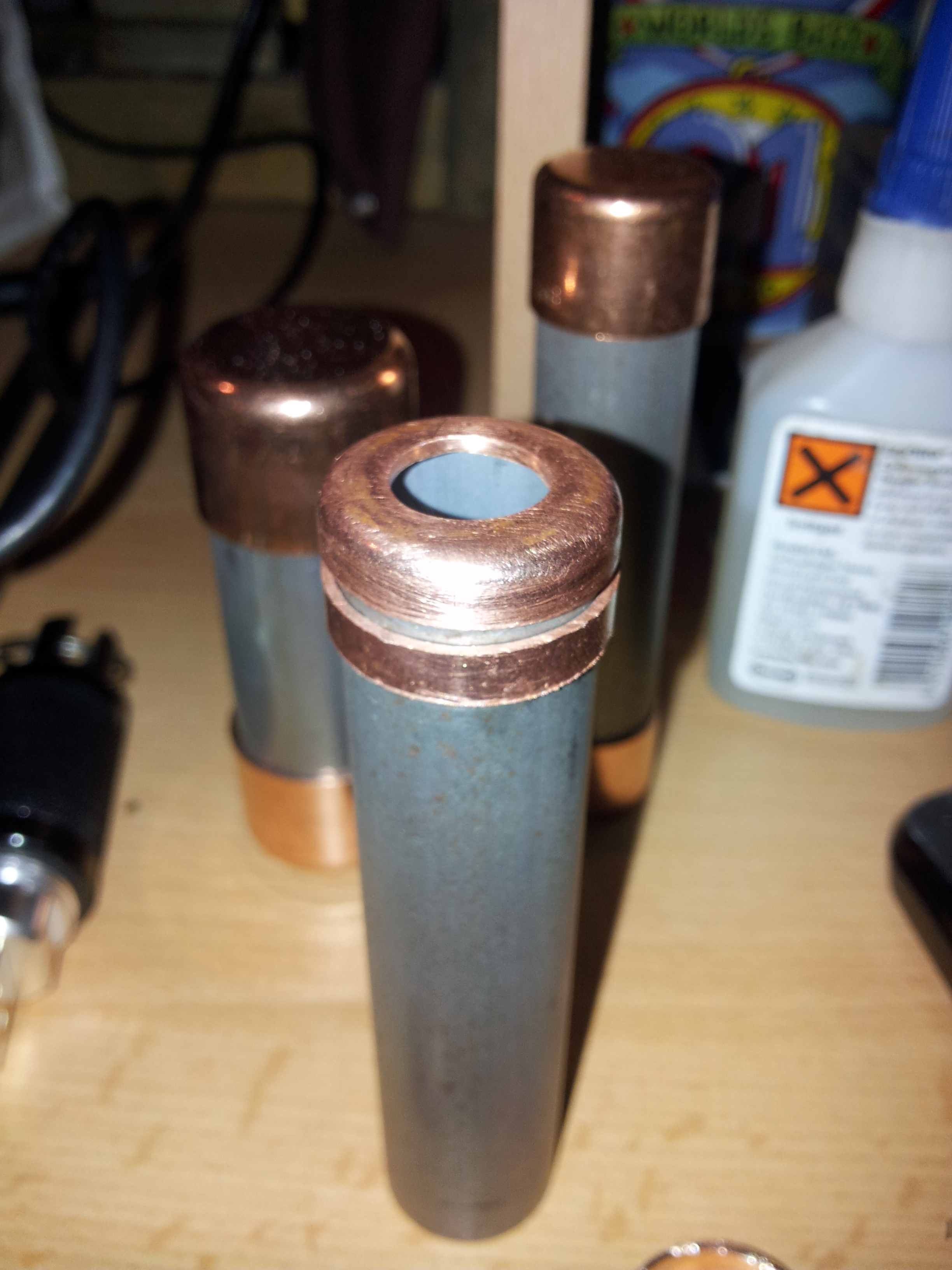

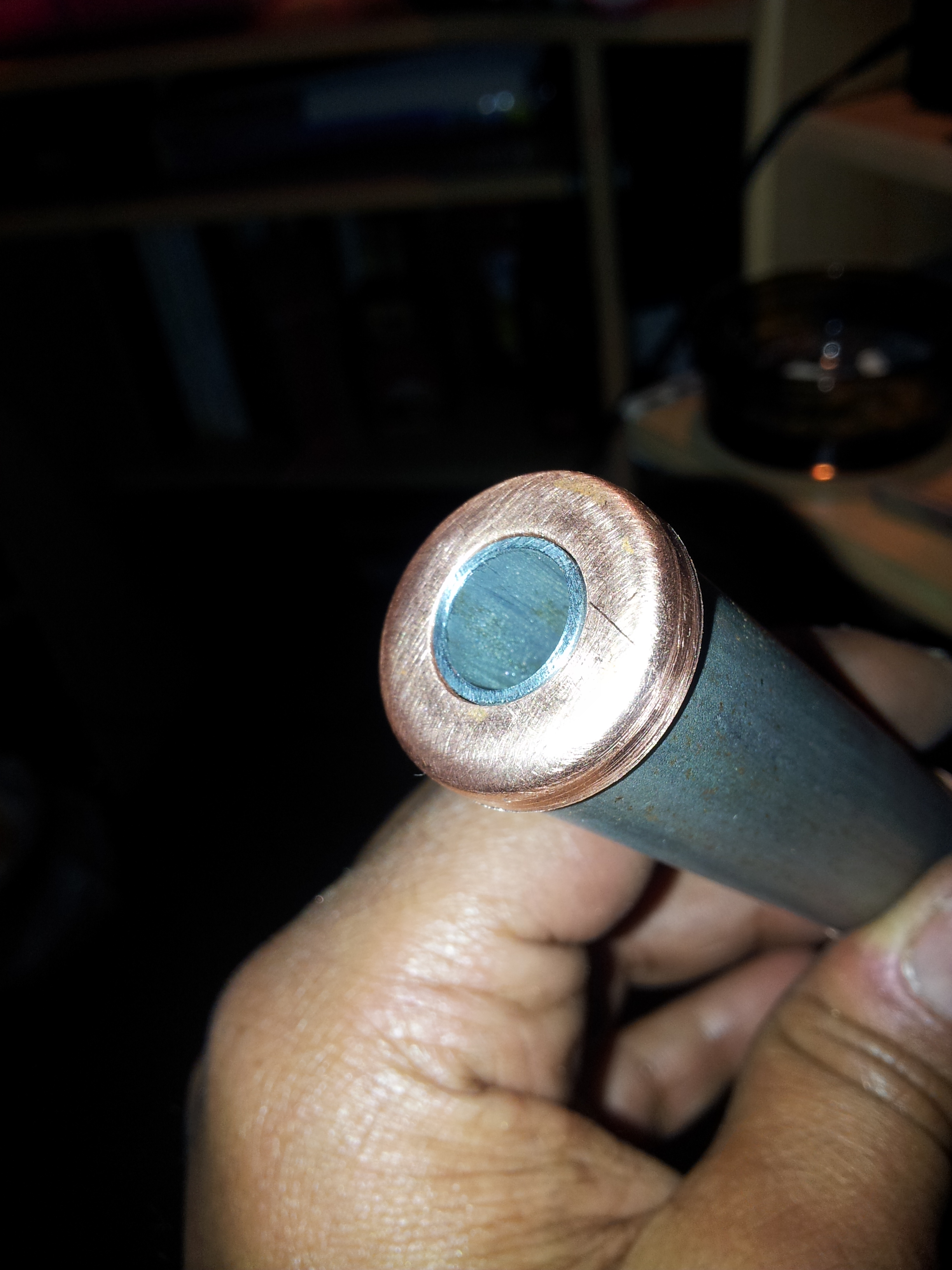

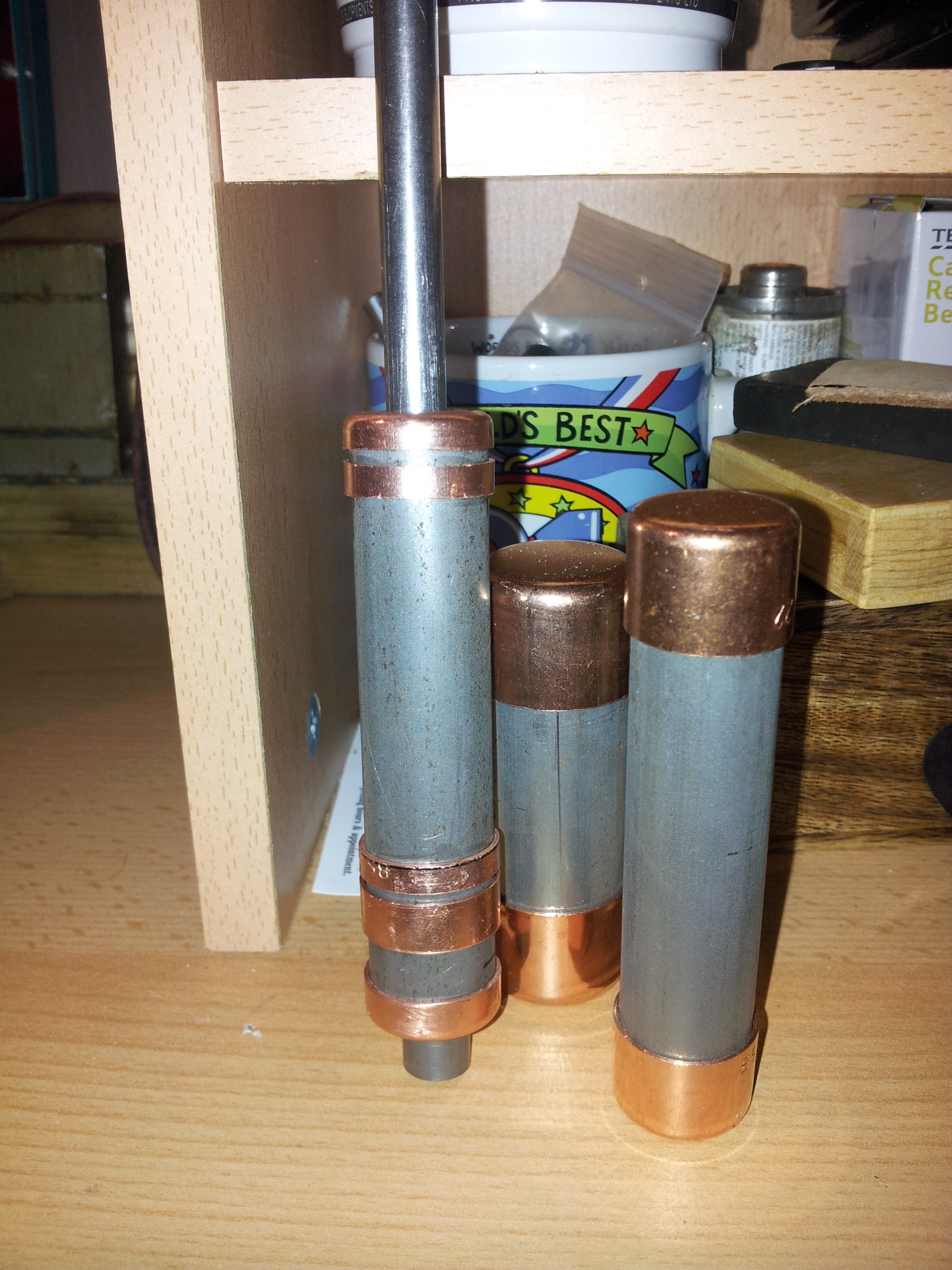

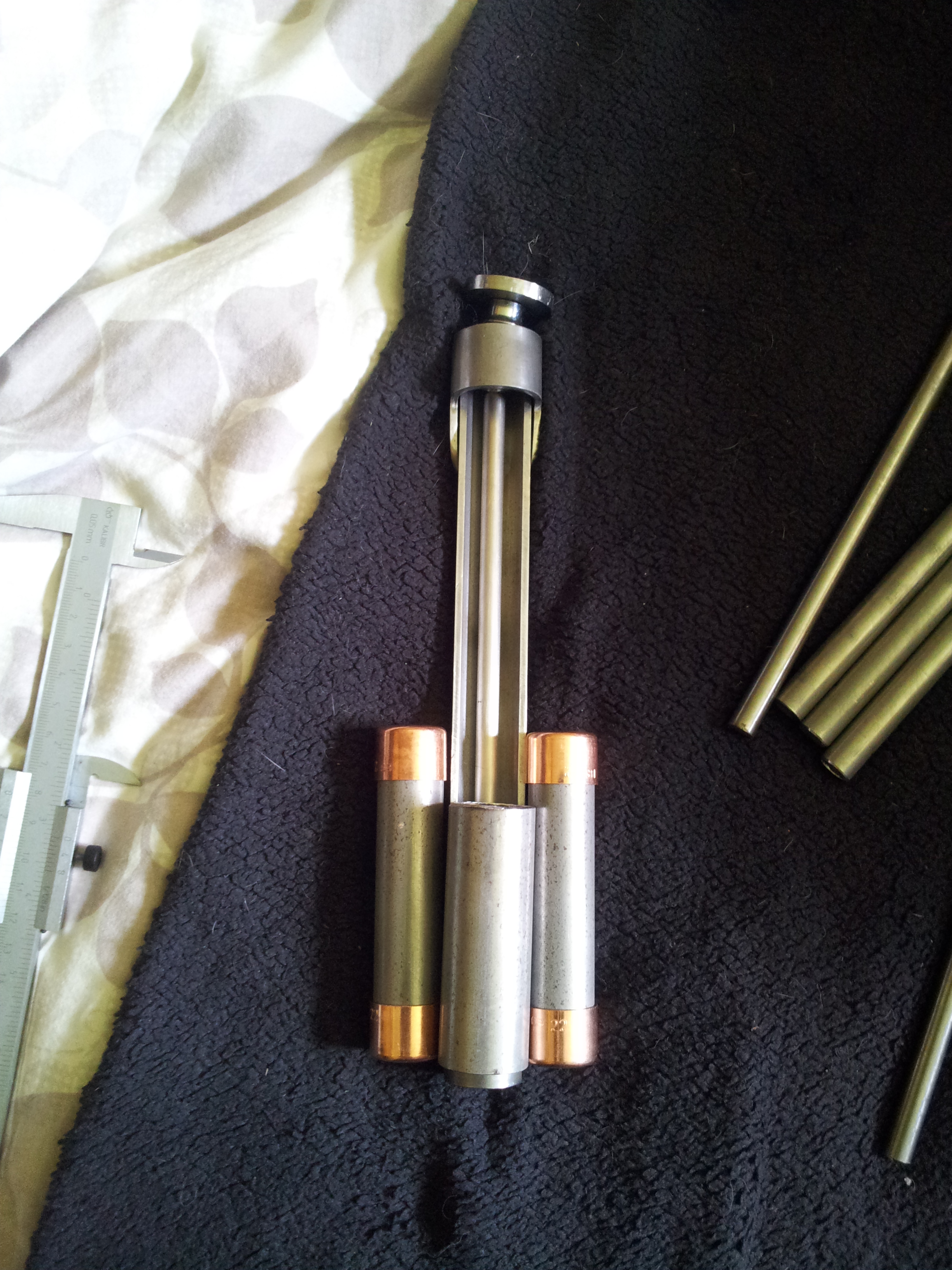

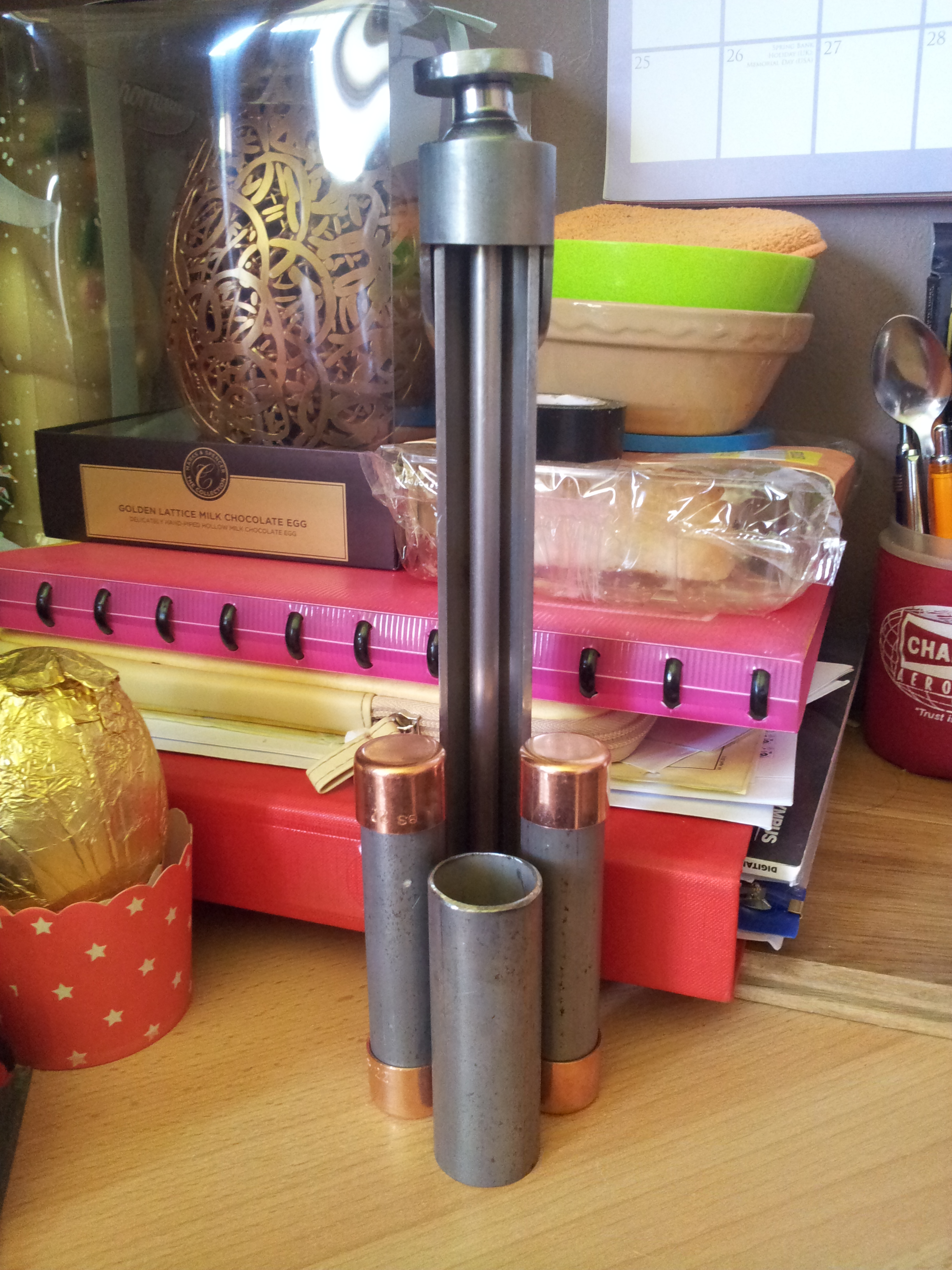

i was playing around with different ways of putting the piston together and i am now happy to make them like the one in the end picture
