homemade T2 endo arm

[iandegia]

hey guys this is my first post so i am not sure if it is in the correct forum but here goes.
ever since i was a little boy iv always wanted a terminator arm so iv just started to build it. its mainly going to be built from steel.

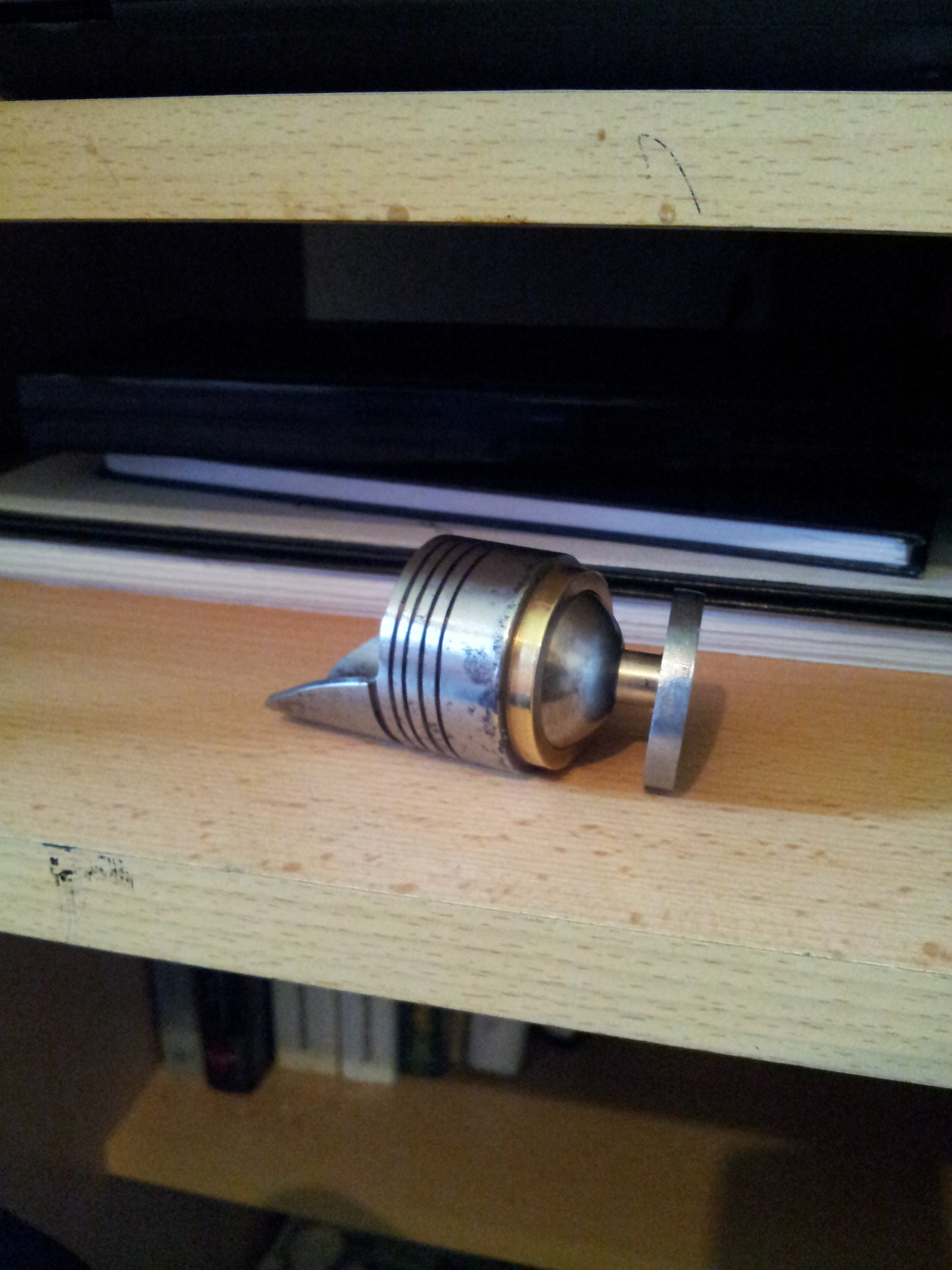

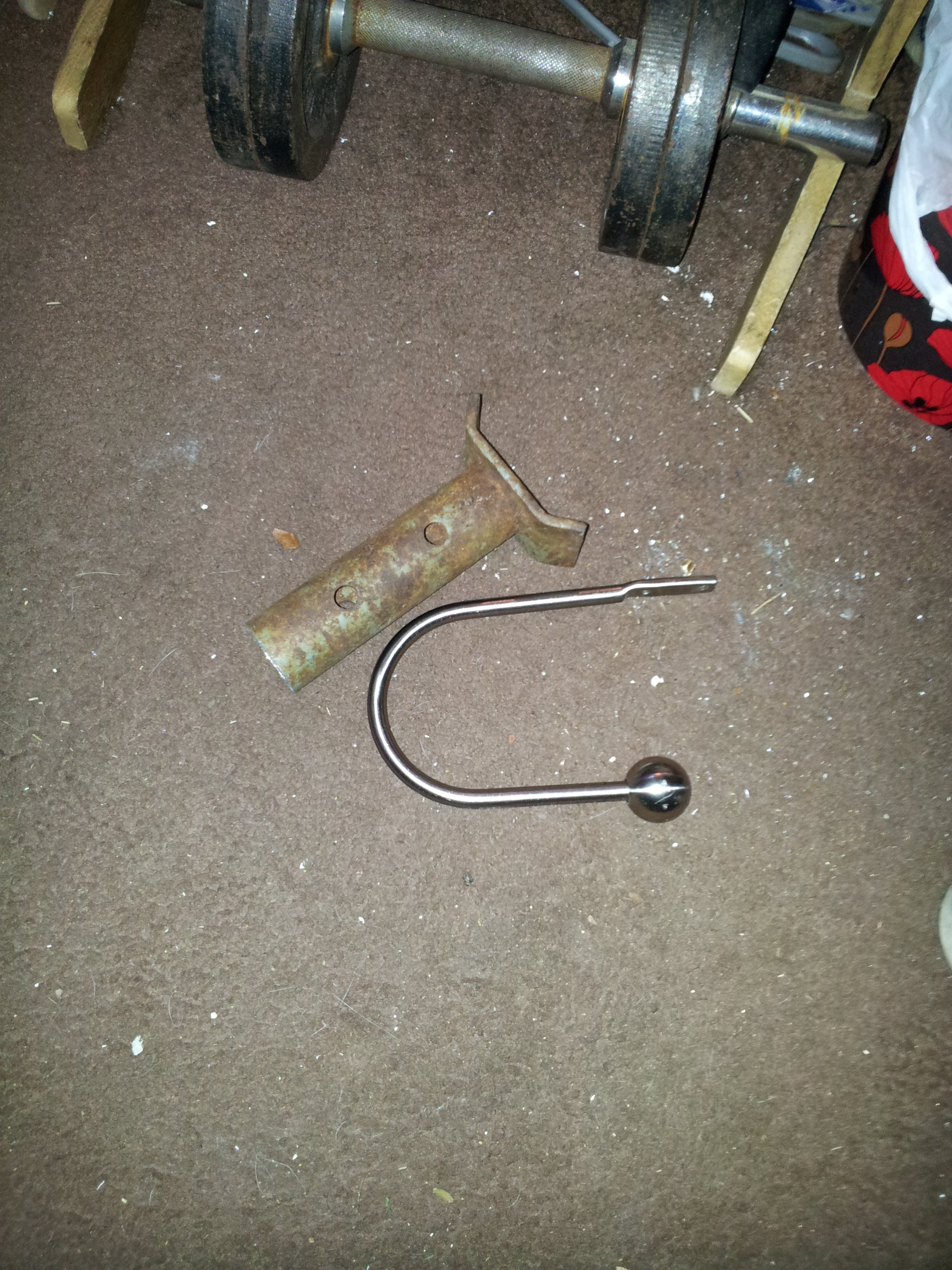

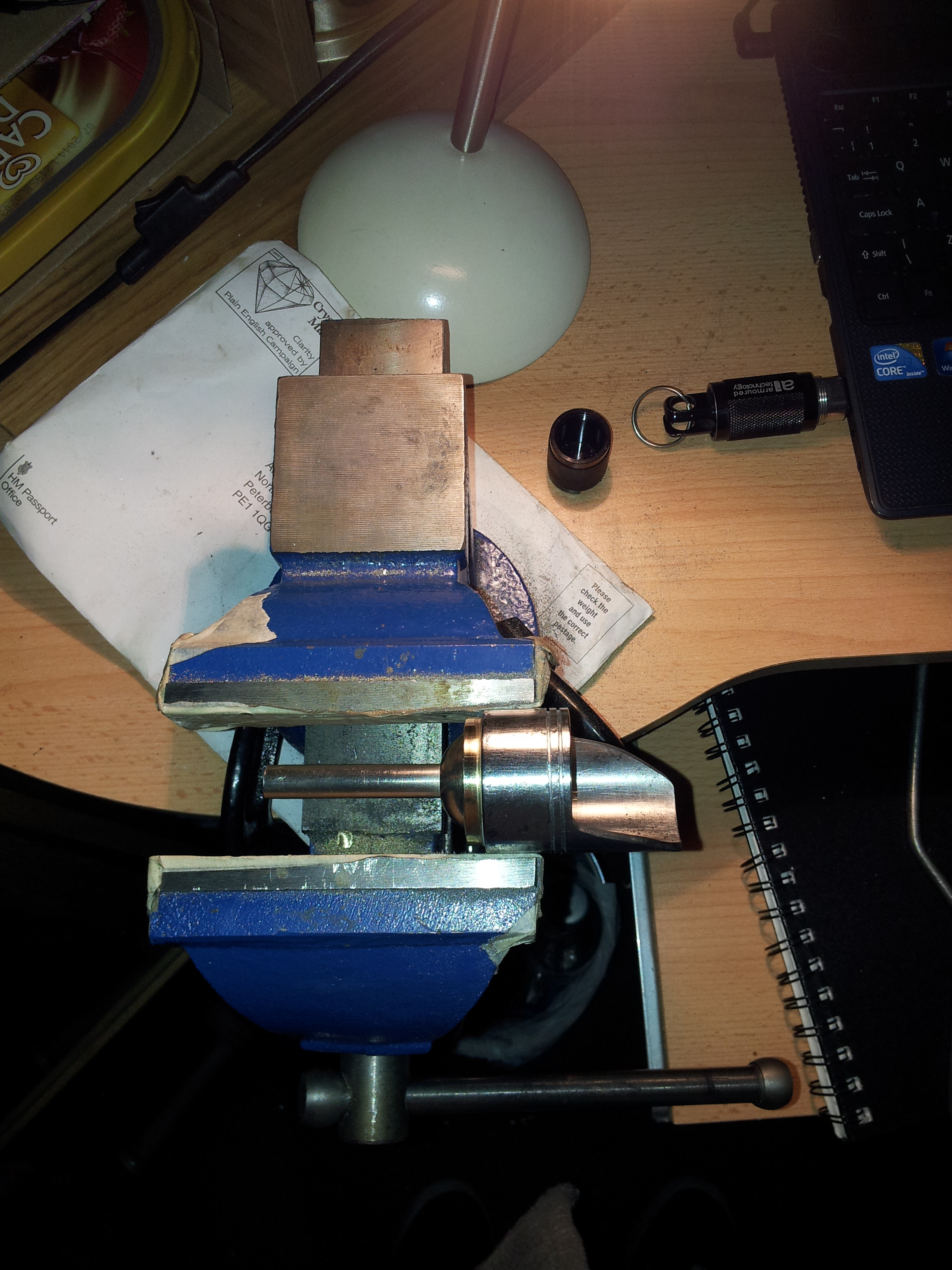

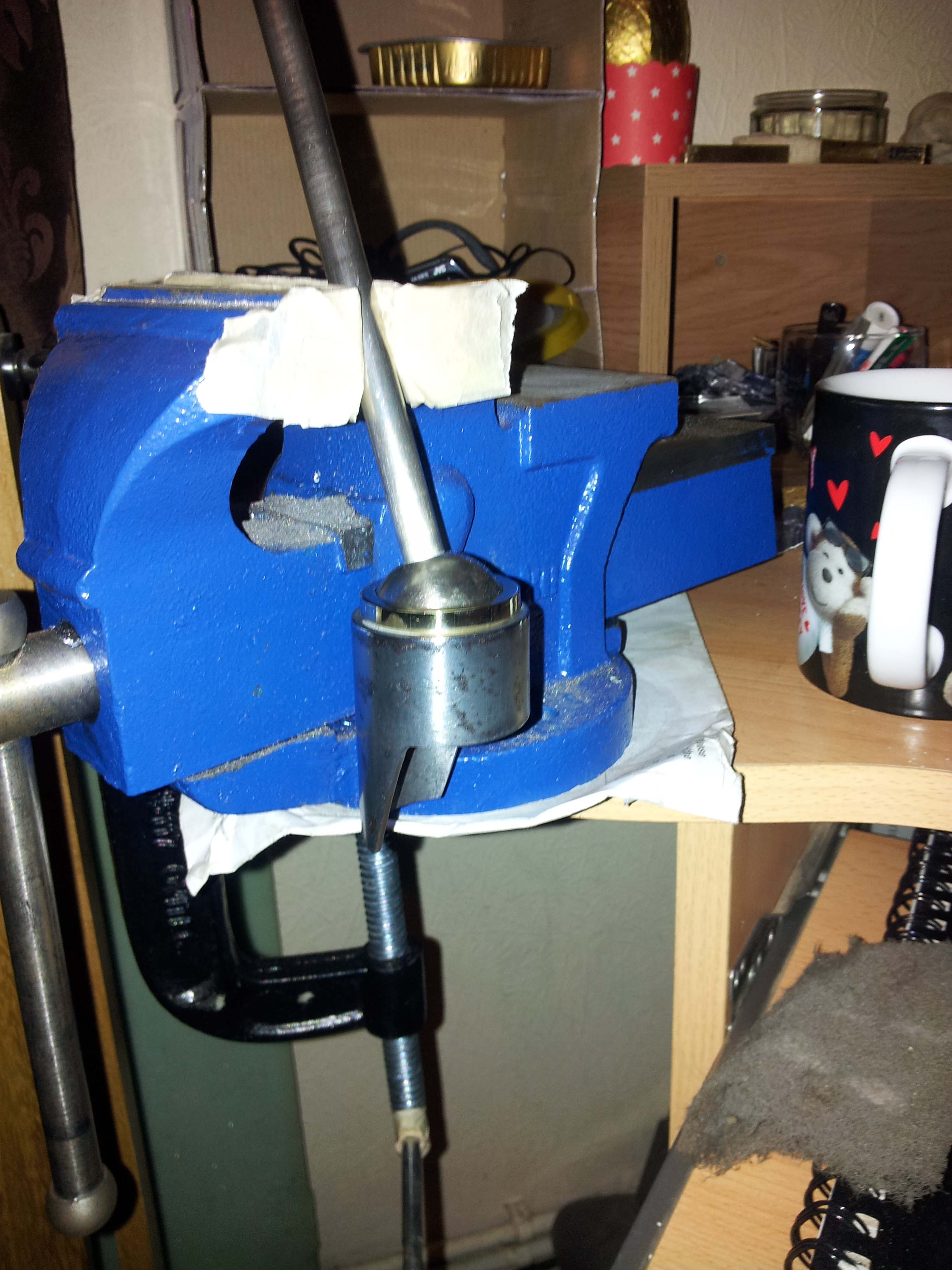

this part is the wrist ball joint, the pipe came from an axial stand, the ball was a curtain rail hook and the brass was some plumbing fittings.



[nick daring]

I've always wanted to scratch build a terminator arm too. Can't wait to see your approach.



[iandegia]

adding detail



[iandegia]

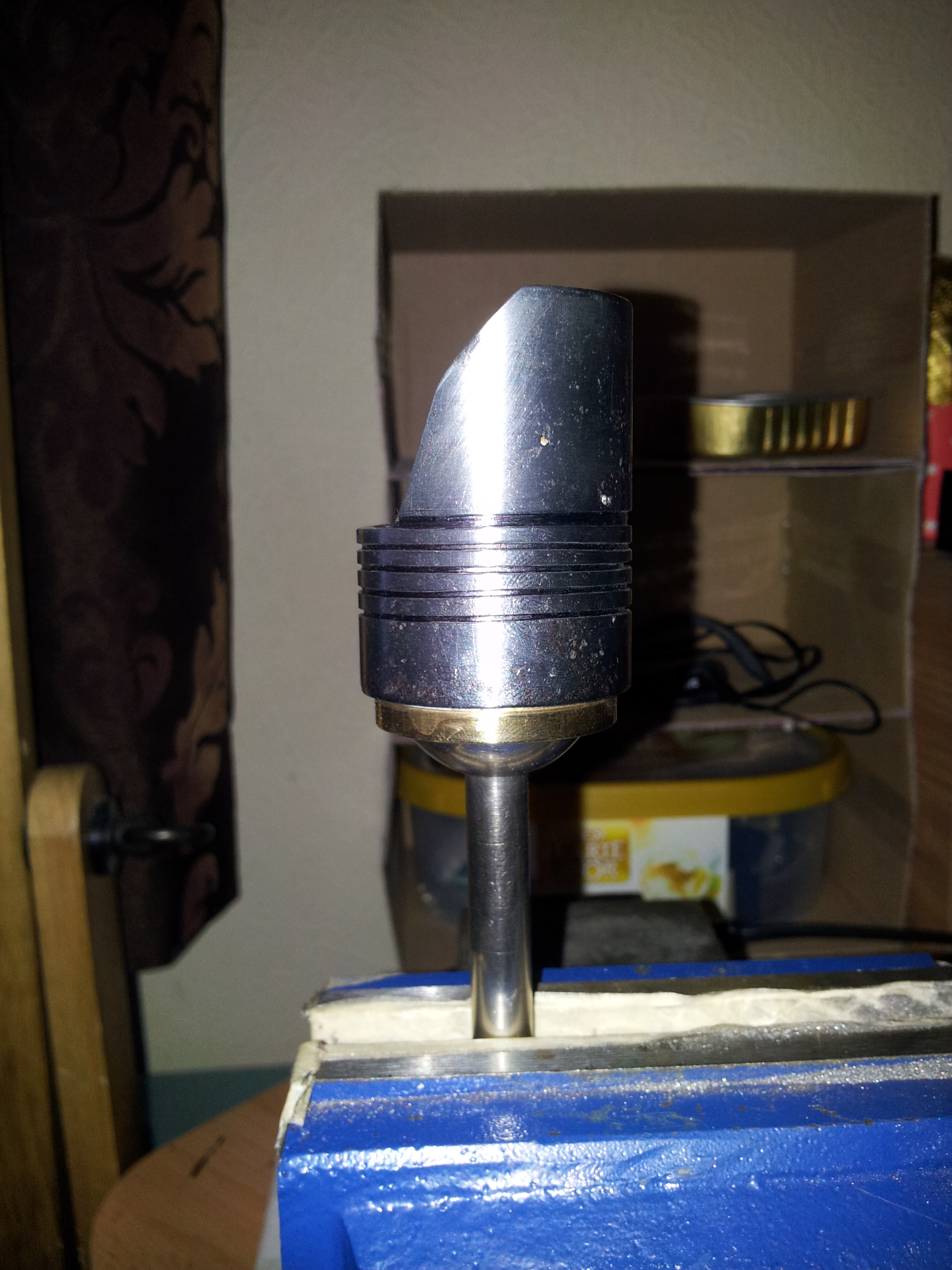

detail added



[iandegia]

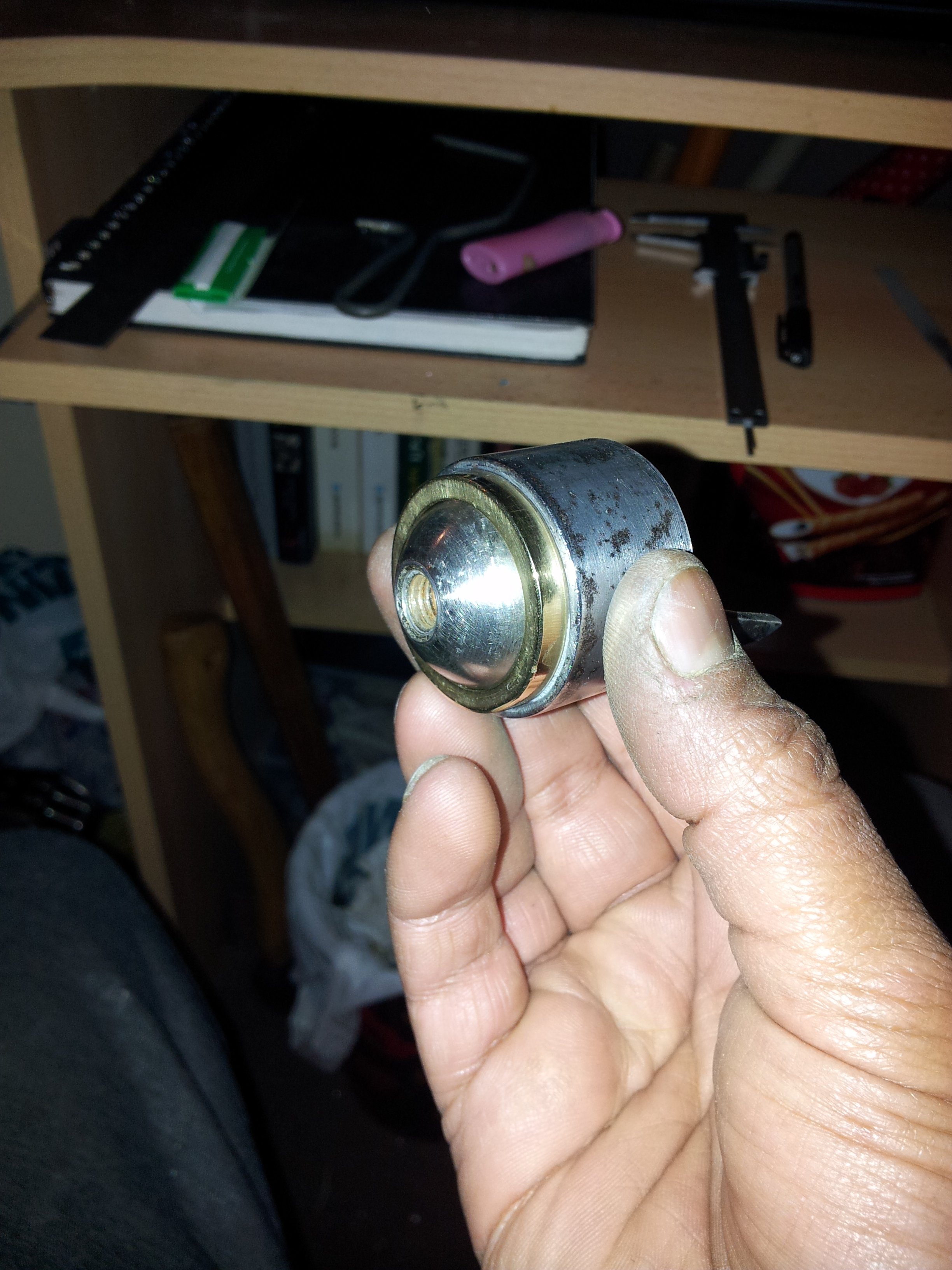

wrist is now finished. im just waiting on more steel to arrive...



[patrick]

that is amazing!! great job.that thing is going to be heavy.



[iandegia]

thank you.
yes maybe about 5kg, just like the real thing.



[Wreckhur]

This is very cool. I'm hooked. That you are making it out of everyday parts makes it even more amazing. Keep up the good work.



[CLOTHAR]

Cool project. Will you make it movable, or keep it static?



[dasAdam]

great start!

what tools are you using? imjust asking that obvious question cause i wanted to know if i would be able to work metalls too.
how exactly did you carve in the rings. so nice and clean! =)



[Conqueror_Worm]

Very cool, subscribed!
Are the brass rings soldered in place?



[iandegia]

thank you all for the interest

@ clothar; yes the arm will be movable (cable operated)

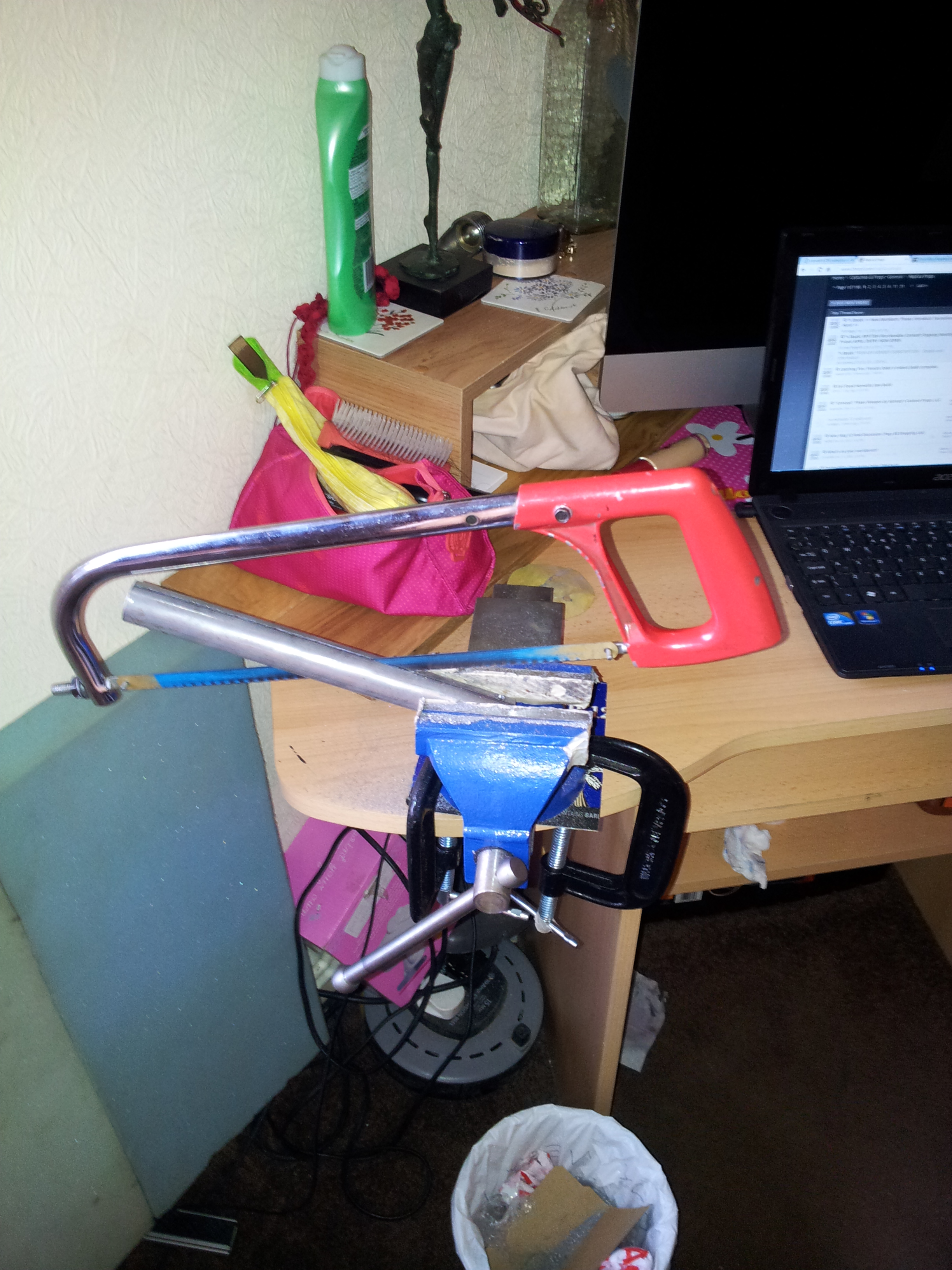

@ dasadam; to name a few tool of the top of my head, im using so far are; vice, needle files, regular files and the sizes in between, hacksaw and junior hacksaw, sand papers of all grades down to 1200 grit, digital and normal vernier calipers, steel rules 6-12", a good drill bit set and 18v makita , small set square, engineers dividers, fine tip maker pen and scribe, mig welder. what im doing to keep the cost is use steel i find, so to derust it i ill use electrolysis. i very carefully used a junior hacksaw to cut the groves. in the future i will need to use a lathe which a friend has but i was thinking of buying one...

@ Conqueror_Worm; the brass is just super glued in place for now until all the parts are completed, then all parts will be cleaned and permanently fixed ie soldered or welded, them all parts electro nickel plated, then weathered.



[PHArchivist]

EXXX- cell-ent!!!



[dasAdam]

thanks for the detailed reply iandegia!

any updates on your side? =)



[egonbutnotforgo]

this looks like an great idea interested in seeing the end product



[iandegia]

latest update

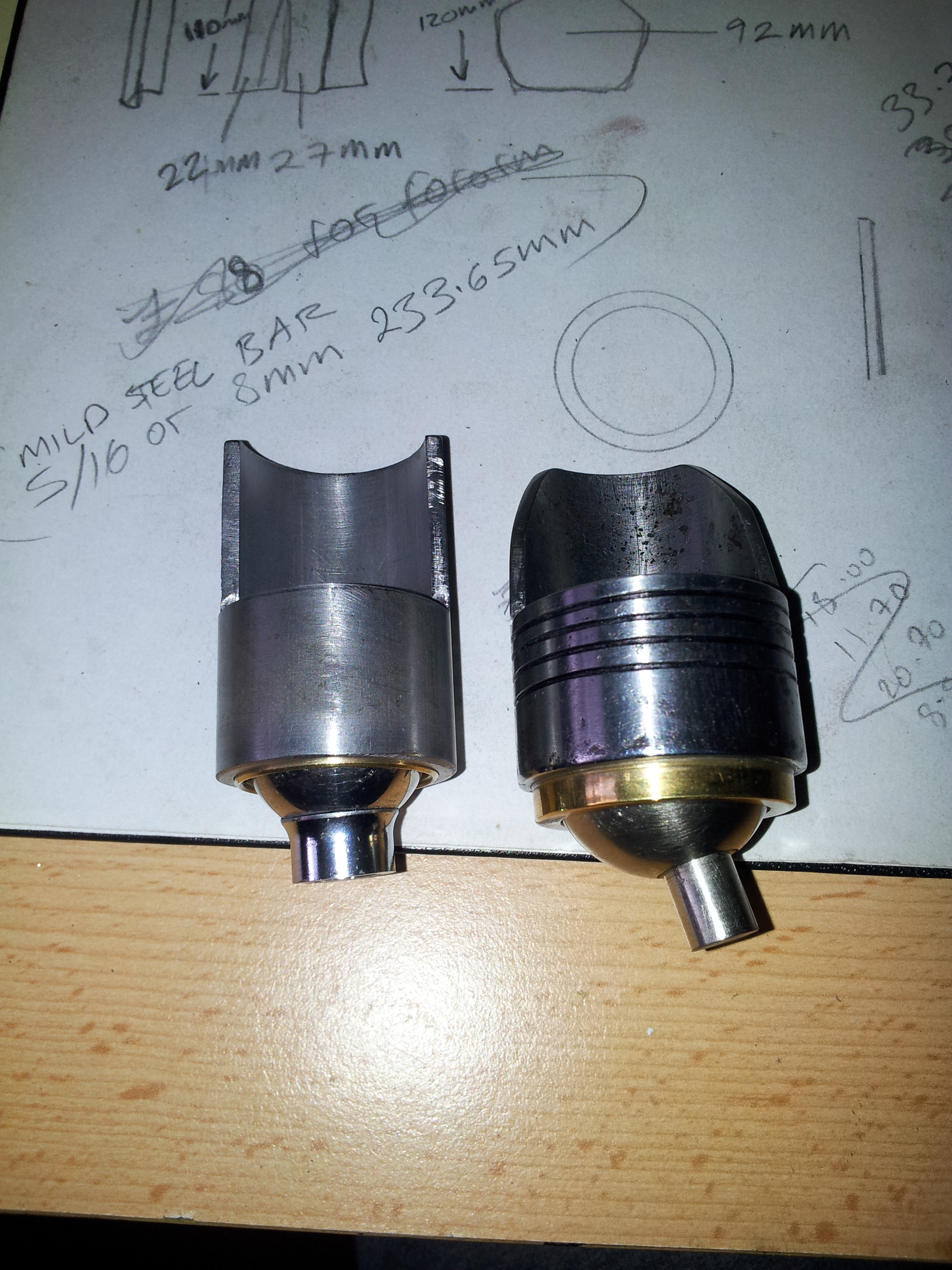

i decided to go back to the drawing board. the wrist turned out to big. i have ordered some more materials and when they come i can start again...
thats what i get for rushing into it



[Wreckhur]

Who isn't or hasn't been guilty of rushing...



[iandegia]

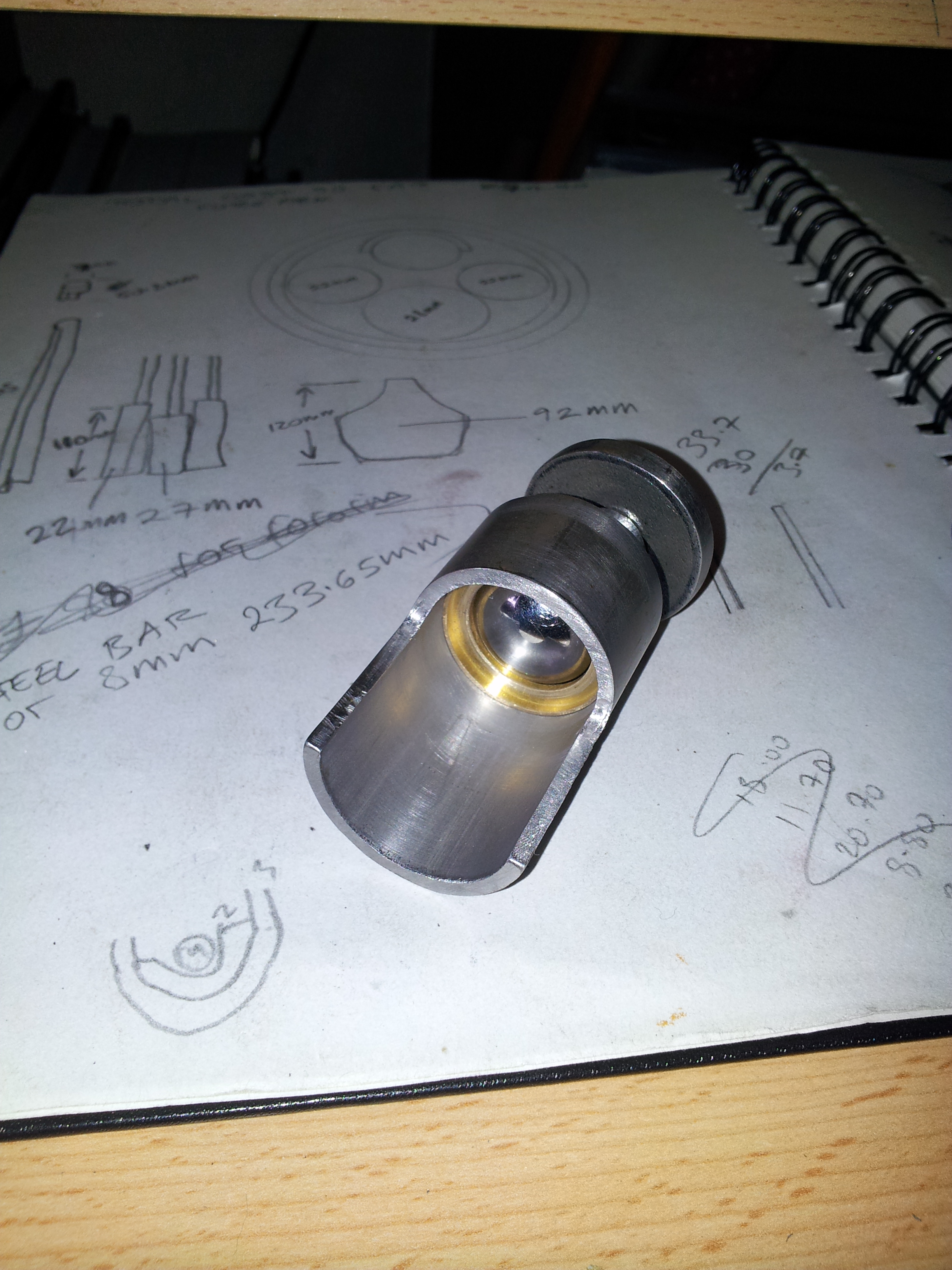

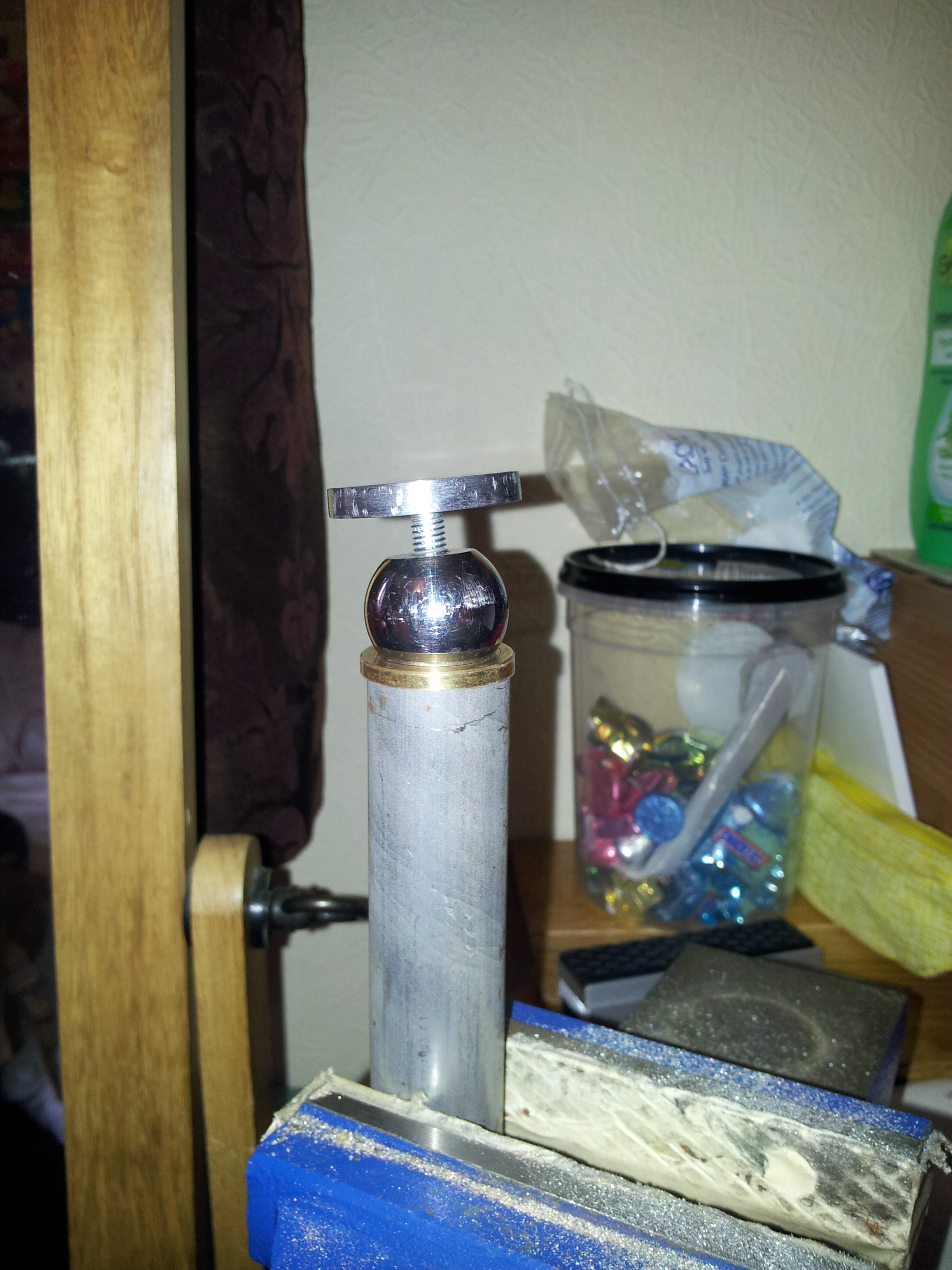

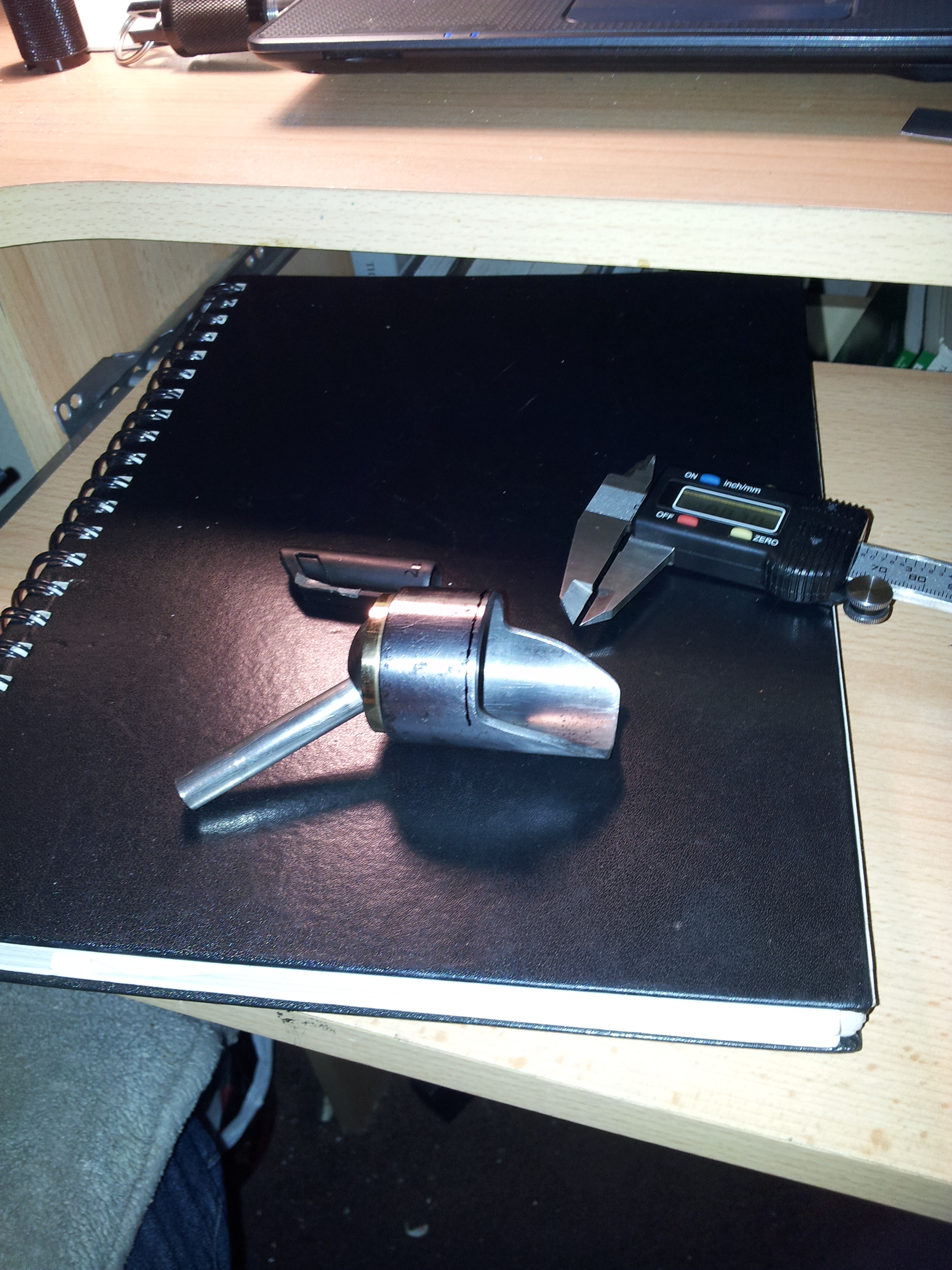

this is the second attempt at the joint..

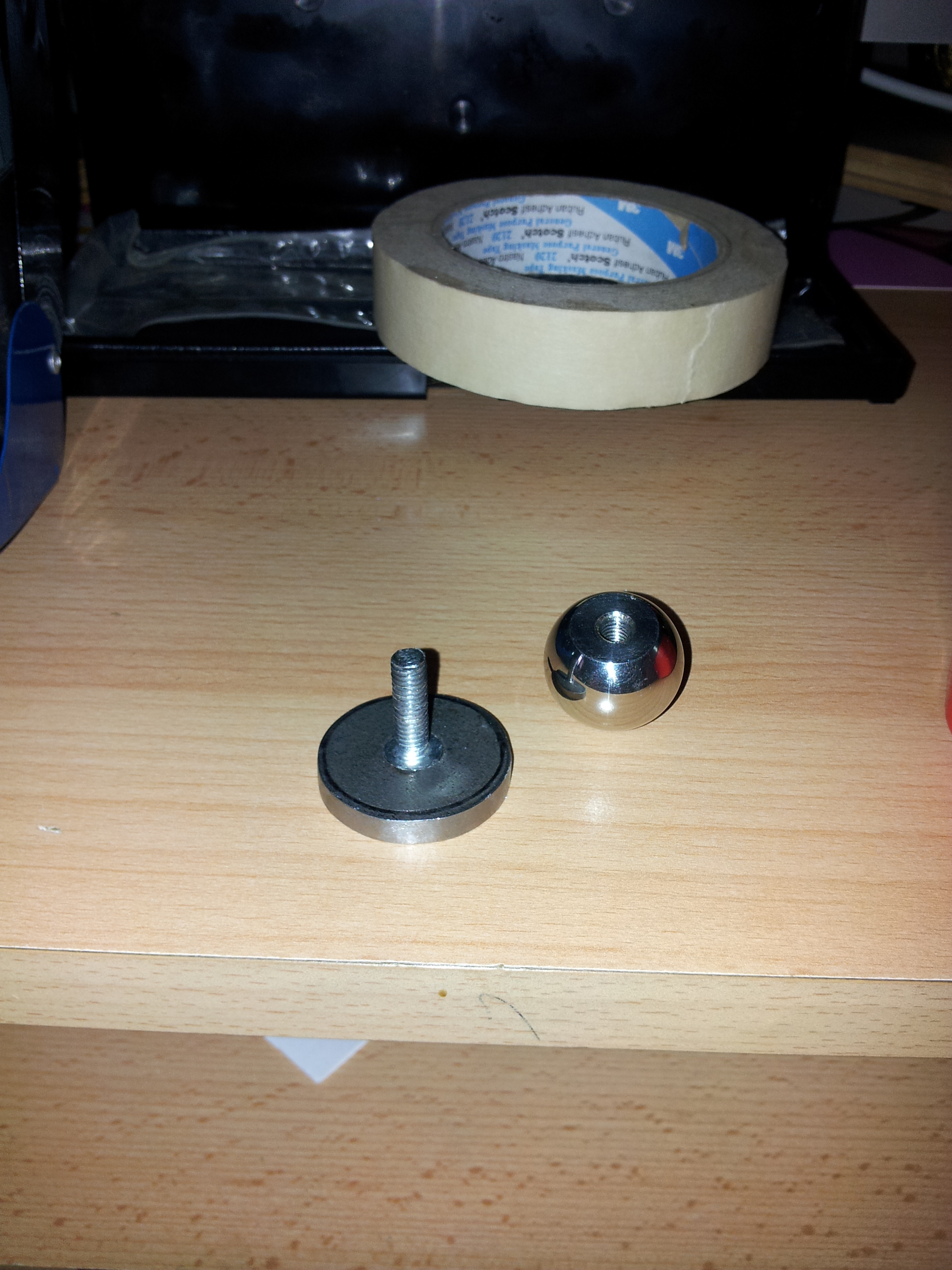

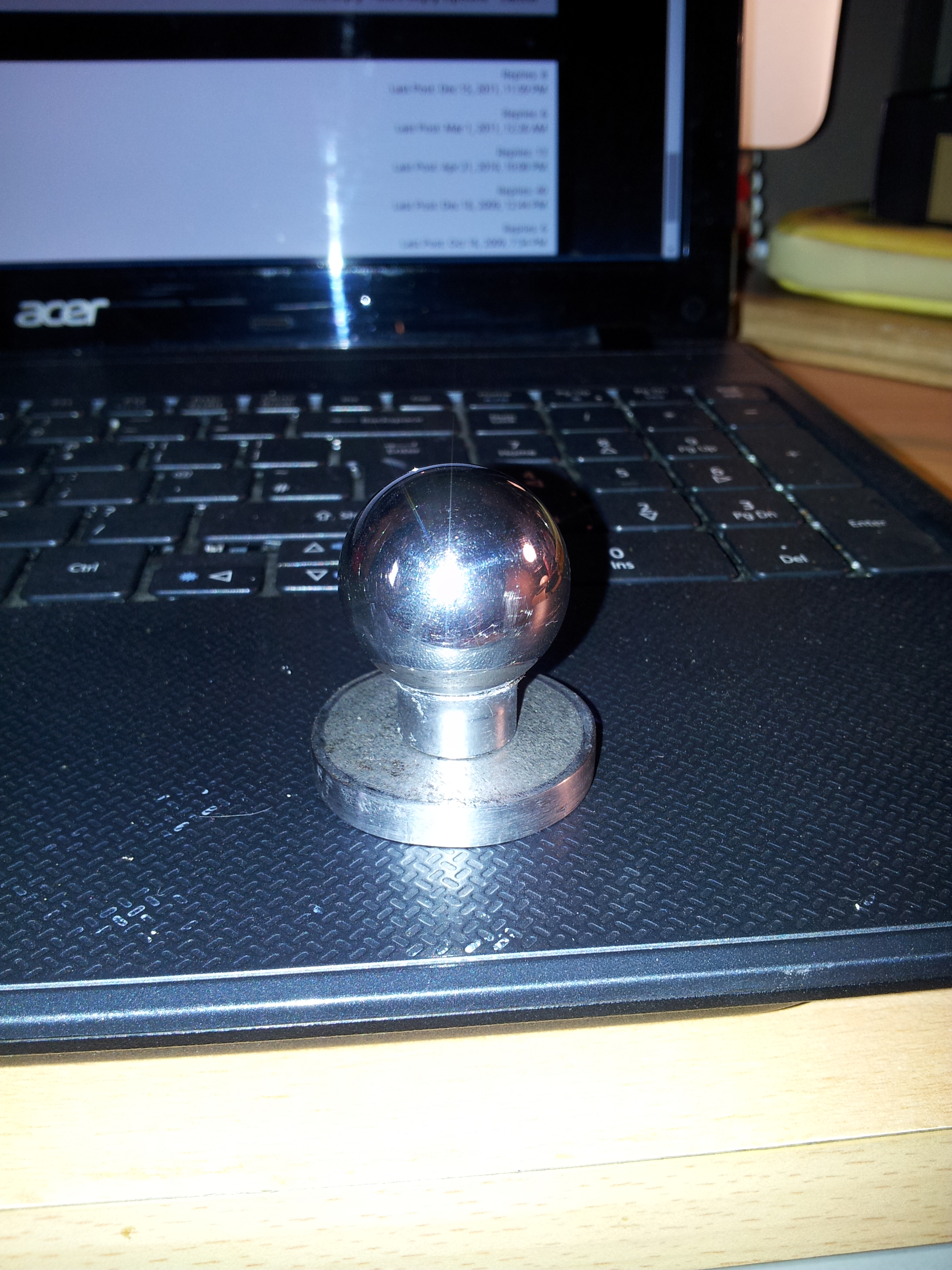

it is a 25mm stainless steel knob with a m6 thread.



[iandegia]



[iandegia]

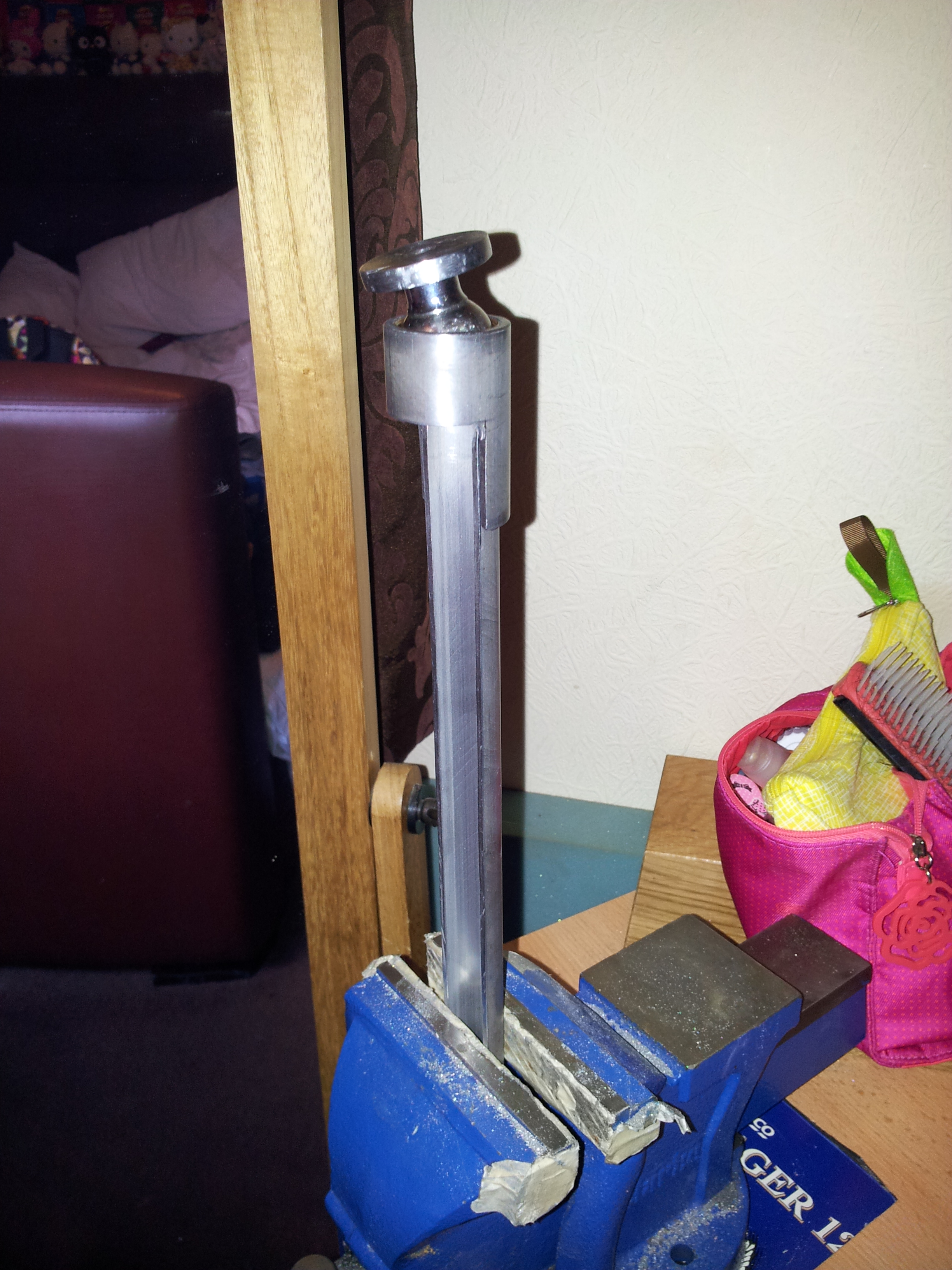

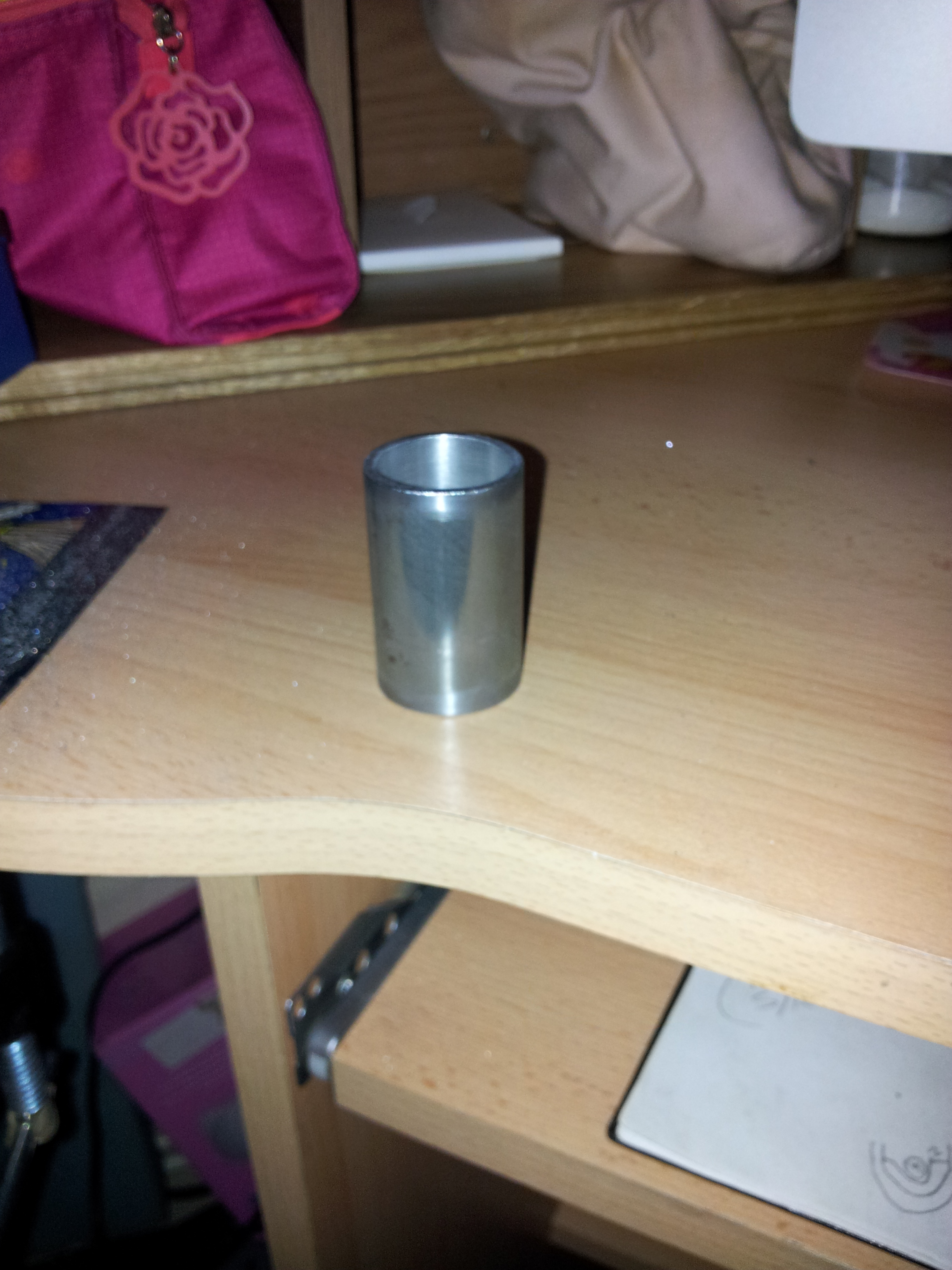

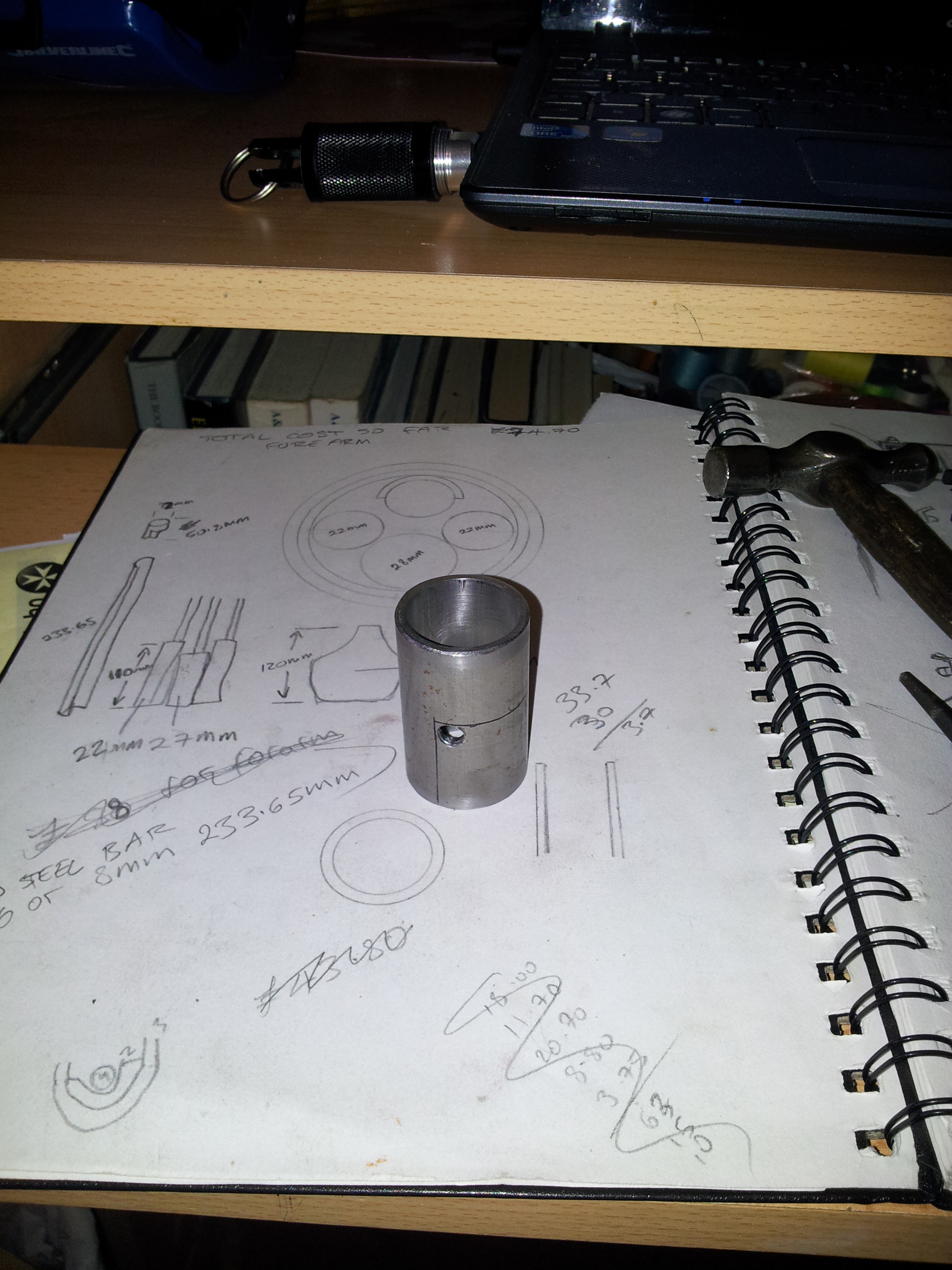

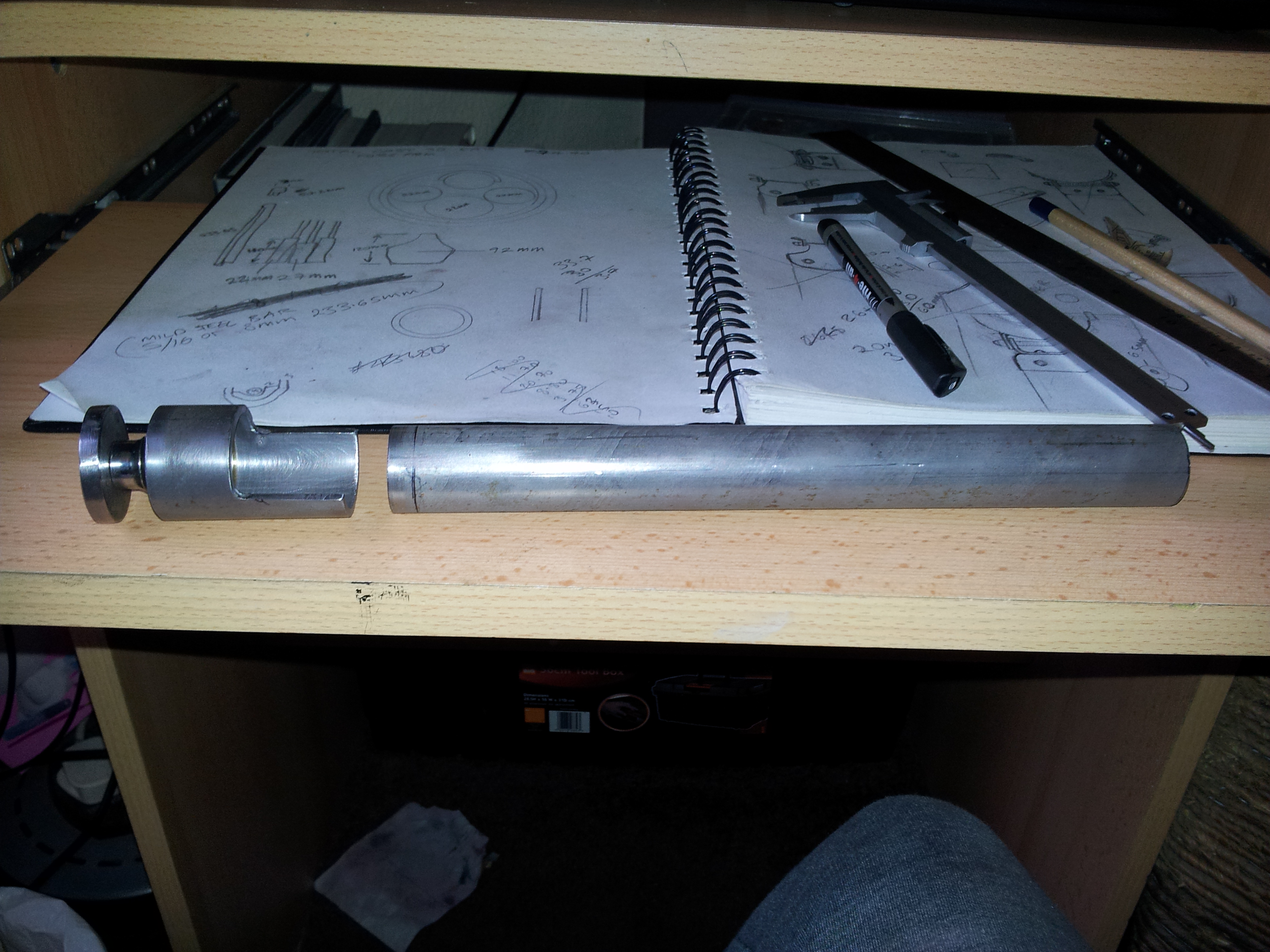

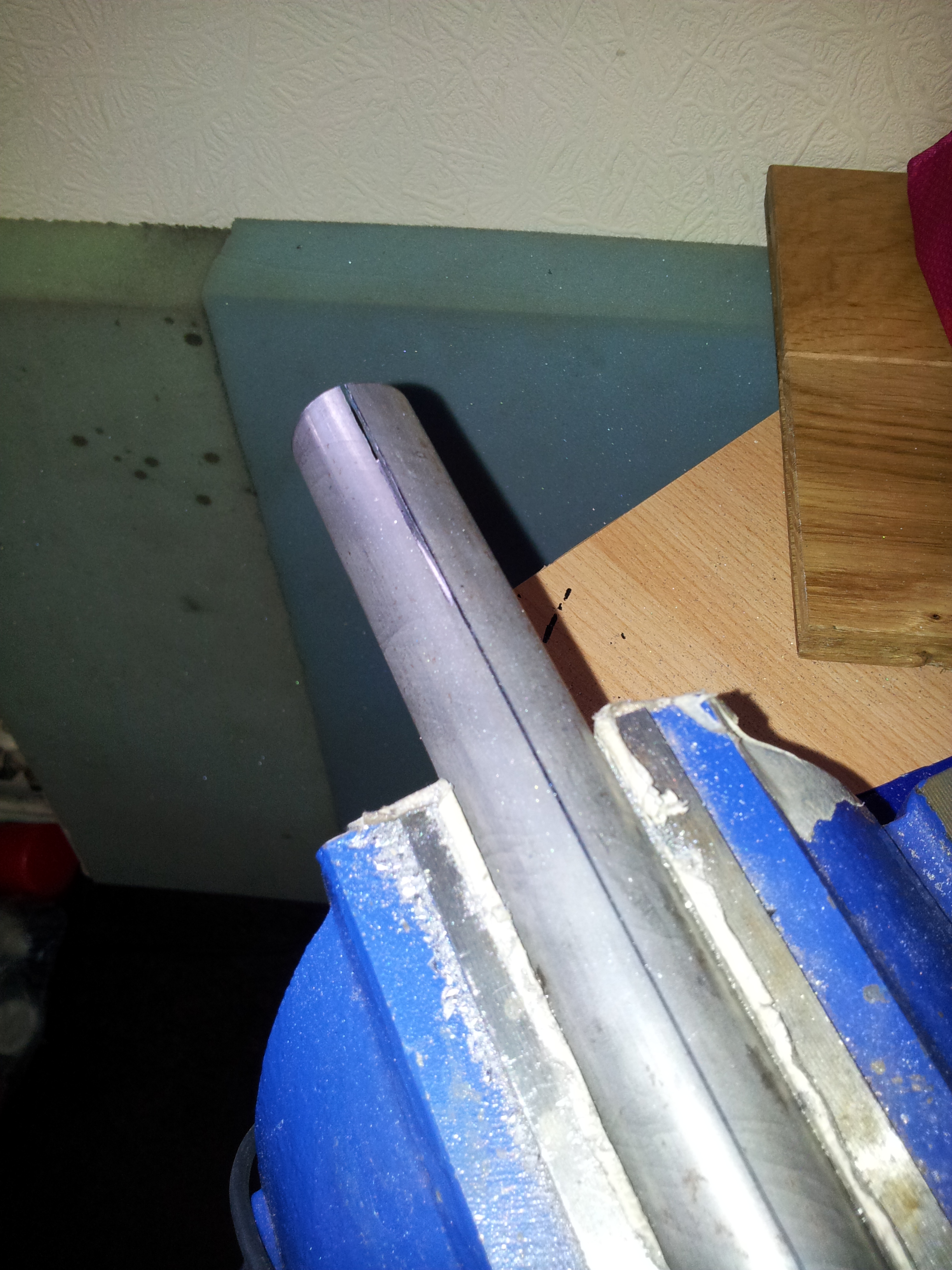

more cutting and more pics.
