Guardians of the Galaxy Orb and Display - 3D FIles in First Post

[AGFRX7]

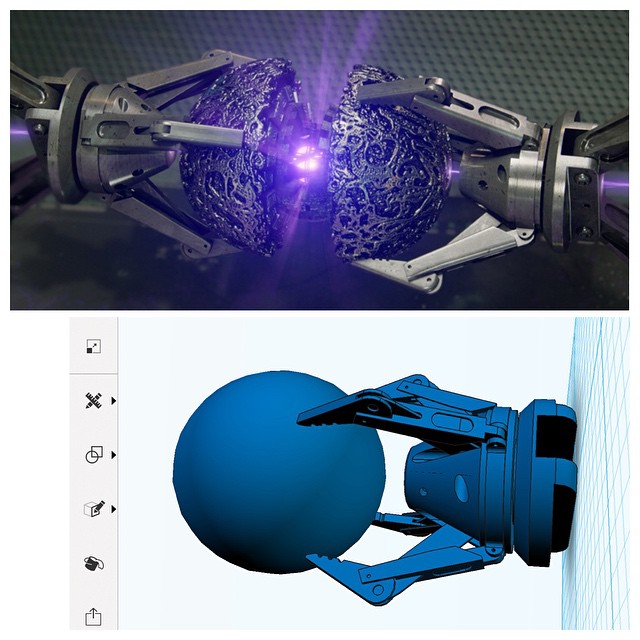

Hi everyone! RPF member EIN was kind enough to share his 3d printable Guardians of the Galaxy Orb as well as other items (http://www.therpf.com/f78/star-lord-w-lights-sound-3d-print-files-infinity-orb-base-progress-221724/). As cool as his stuff is, I wanted to expand on what he already has made. I rendered the parts in Autodesk 123D using my iPad and exported them as an STL. I have included links to each part that you can freely download. The only thing I ask is that if you choose to make these objects, that you credit EIN and myself for creating the parts. Thank you and enjoy!



- - - Updated - - -



- - - Updated - - -

Here's some more

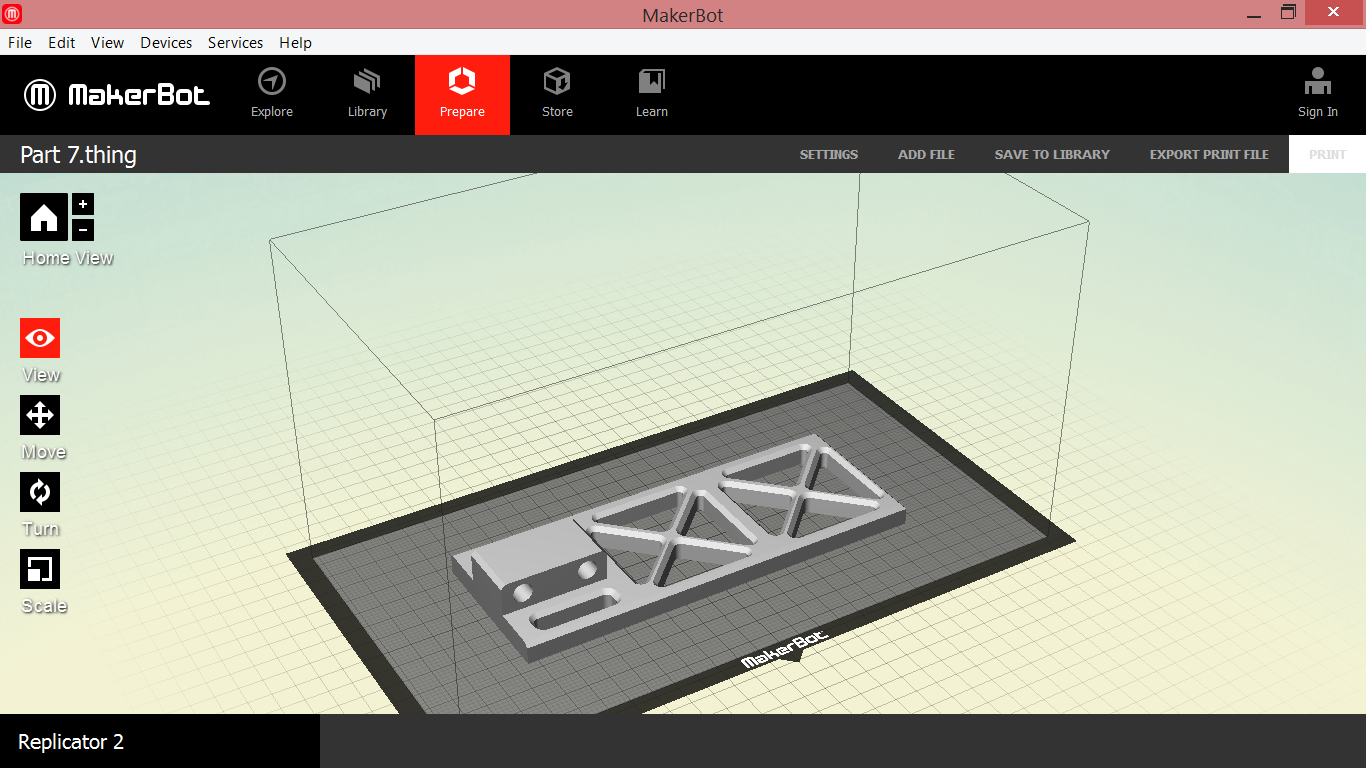

Now that I know the STL files work, I wanna share them with every one. You can download them by following their respective links. They do not need to be scaled if you used EIN's orb.

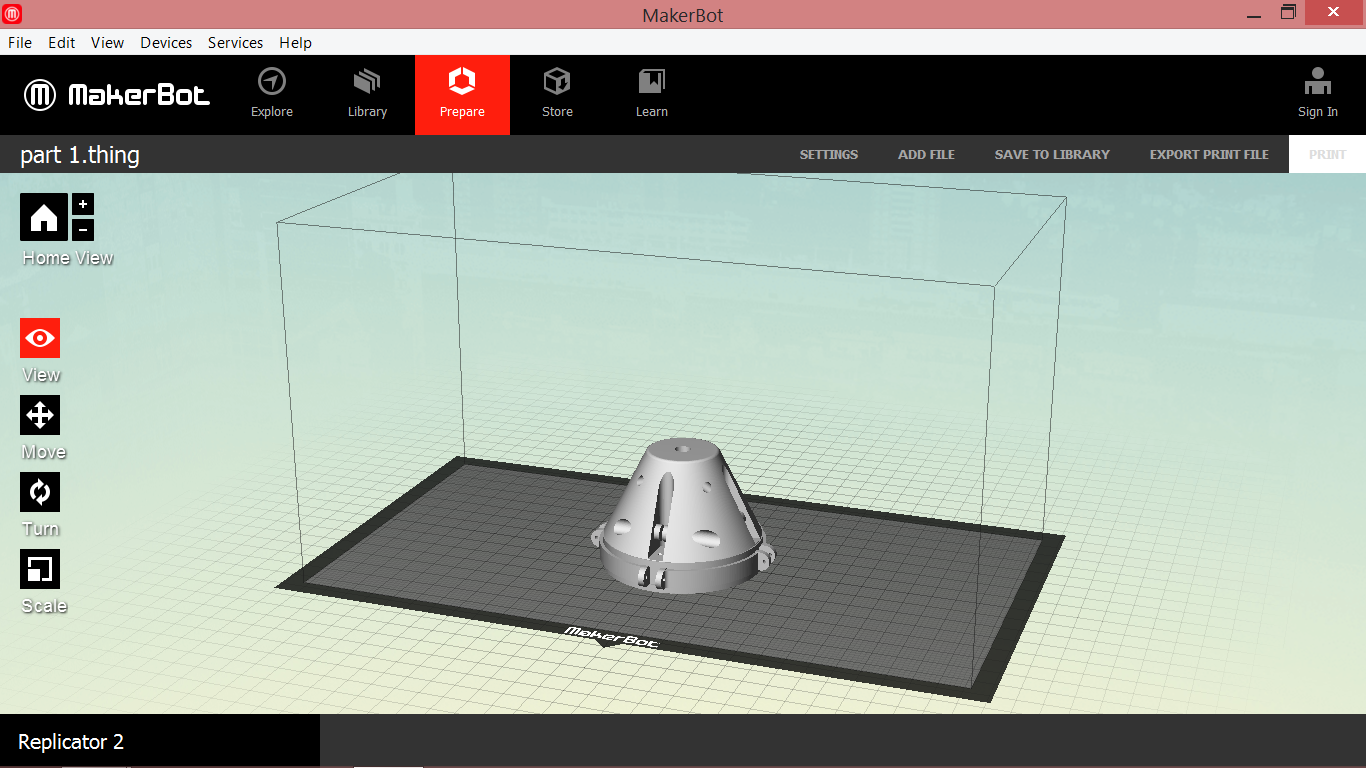

Part 1 - http://www.4shared.com/file/iW4dE30Qba/part_1.html


Part 2 - http://www.4shared.com/file/rhBN-V9Yba/part_2.html

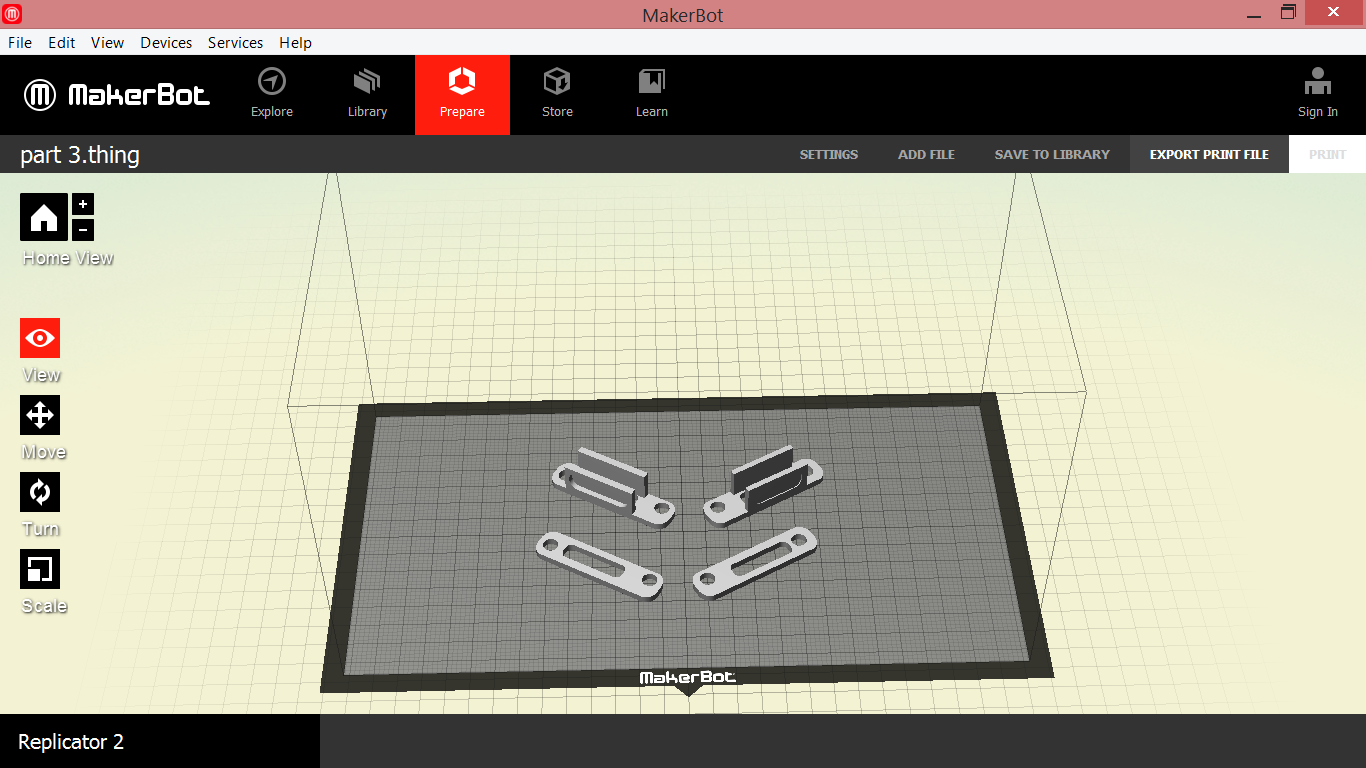

Part 3 - http://www.4shared.com/file/tcchQP1nba/part_3.html

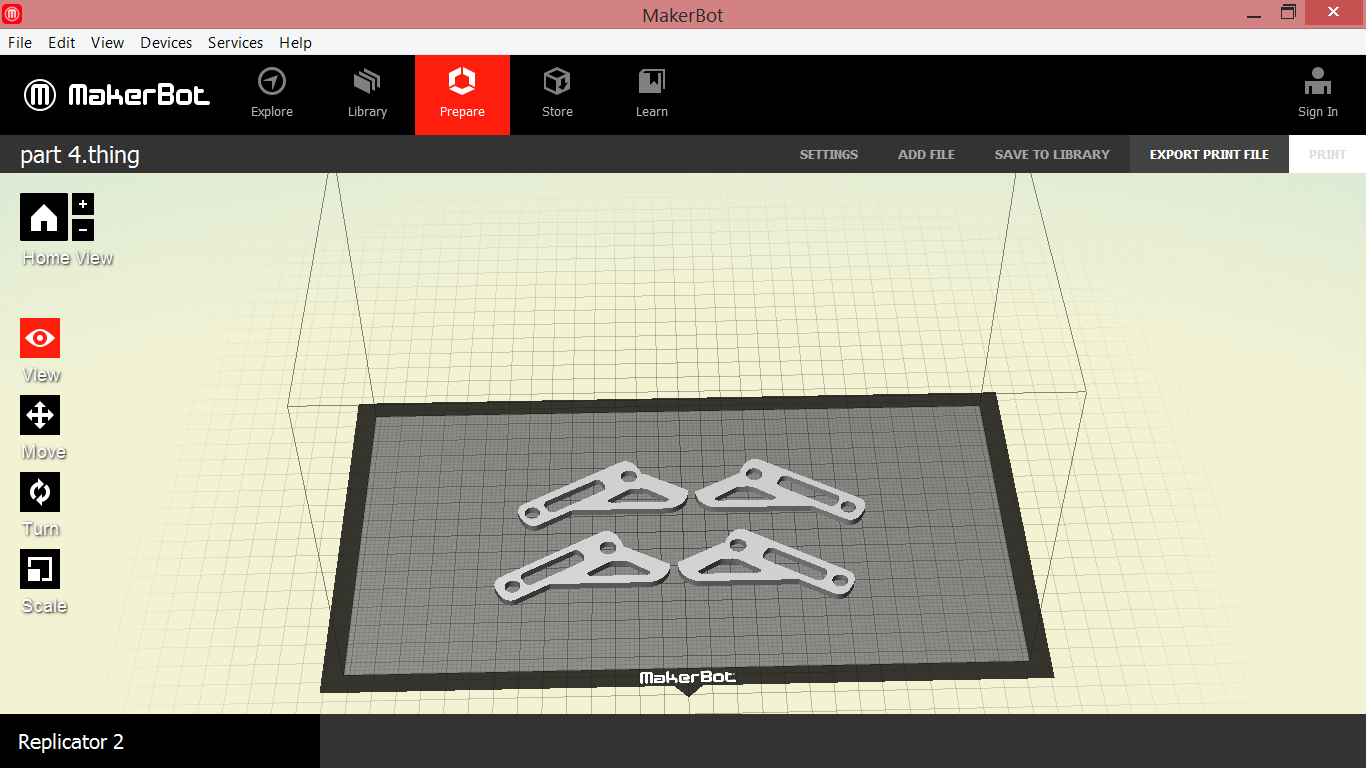

Part 4 - http://www.4shared.com/file/N0dkgA2uba/part_4.html

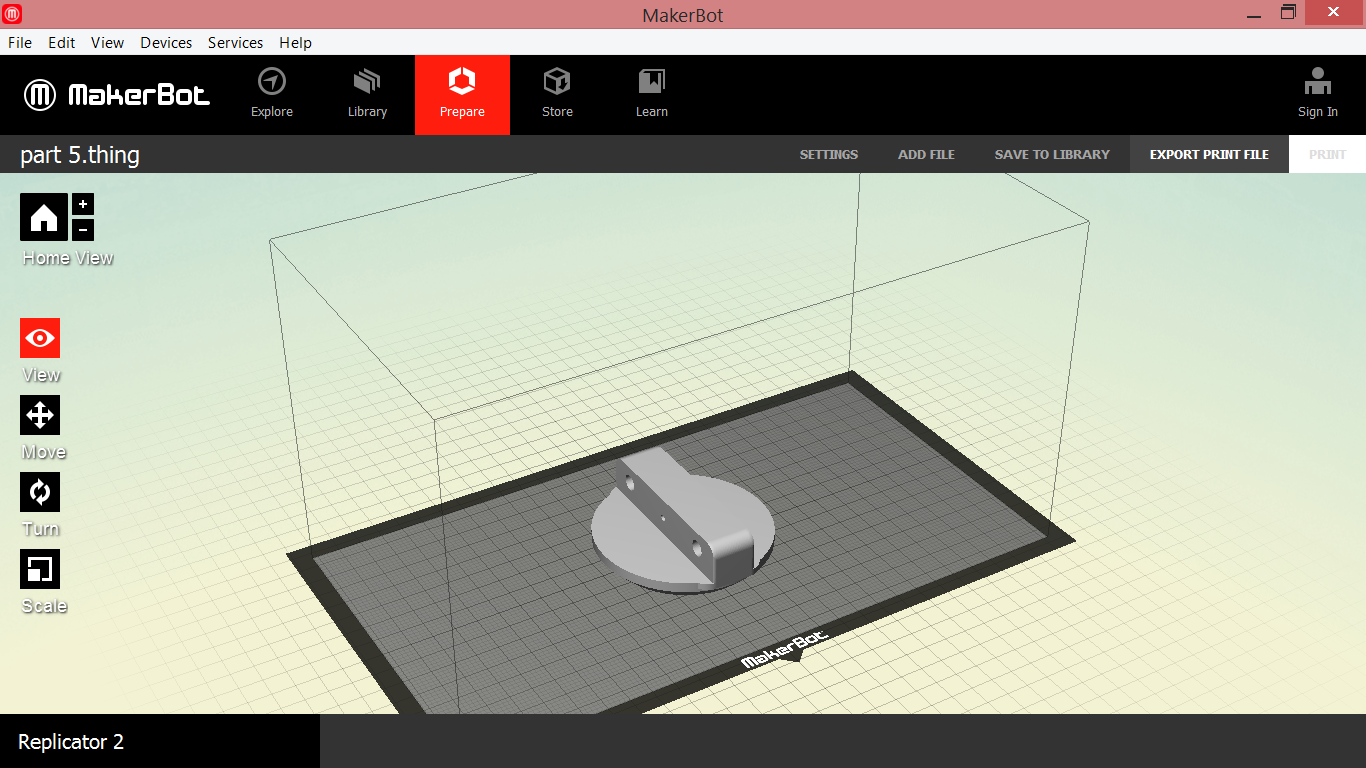

Part 5 - http://www.4shared.com/file/W_Nmgd3Kba/part_5.html


Part 6 - http://www.4shared.com/file/8XIAYH6pba/Part_6.html


Part 7 - http://www.4shared.com/file/NroOP4T9ba/Part_7.html

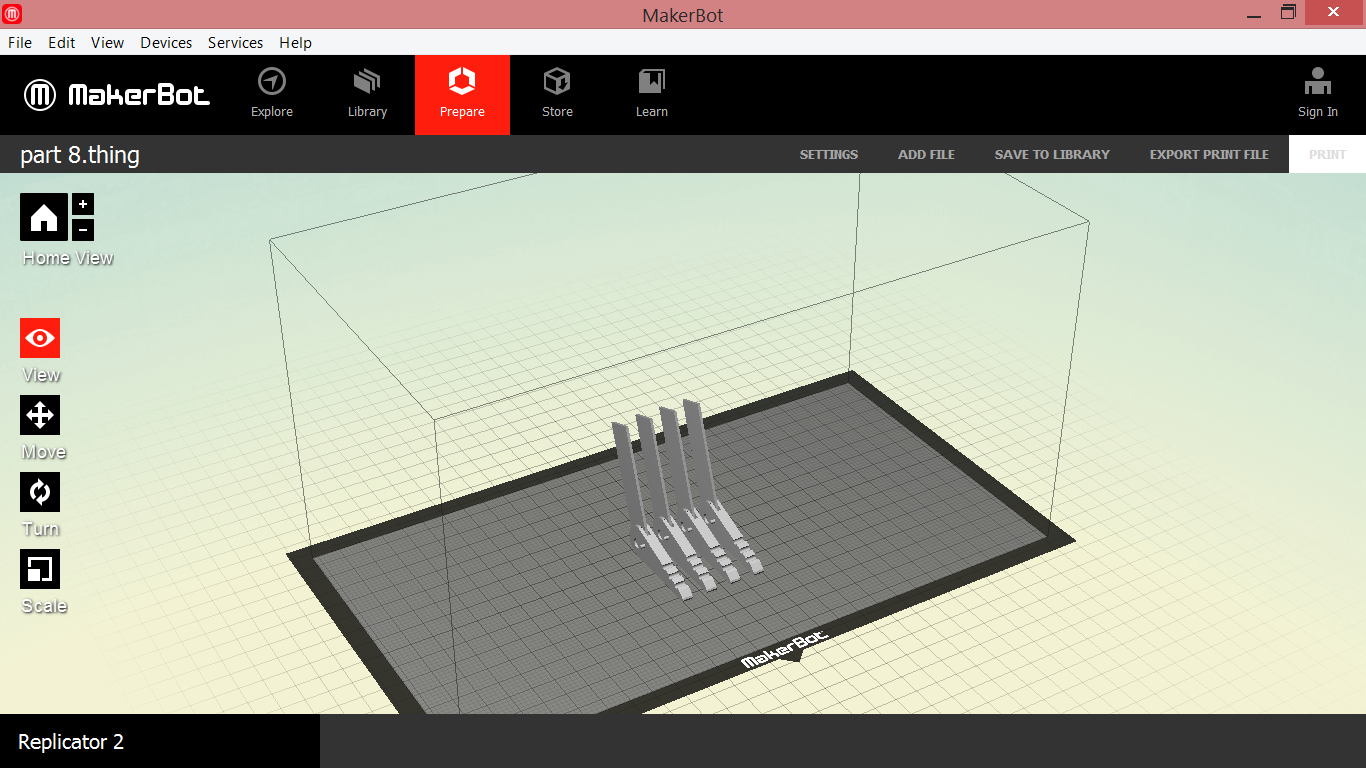

Part 8 - http://www.4shared.com/file/J-OItJmOba/part_8.html


Part 9 - http://www.4shared.com/file/uBstPTOnba/part_9.html



[Jamundsen]

Re: Guardians of the Galaxy Orb and Display

Aw man, this looks incredible. I've made a bunch of these orbs and was wanting to do something like this for display. Now how to suspend the stone in midair....



[WhillB]

Re: Guardians of the Galaxy Orb and Display

Aw man, this looks incredible. I've made a bunch of these orbs and was wanting to do something like this for display. Now how to suspend the stone in midair....

Magnets?



[Risu]

Re: Guardians of the Galaxy Orb and Display

A piece of fishing line.



[AGFRX7]

Re: Guardians of the Galaxy Orb and Display

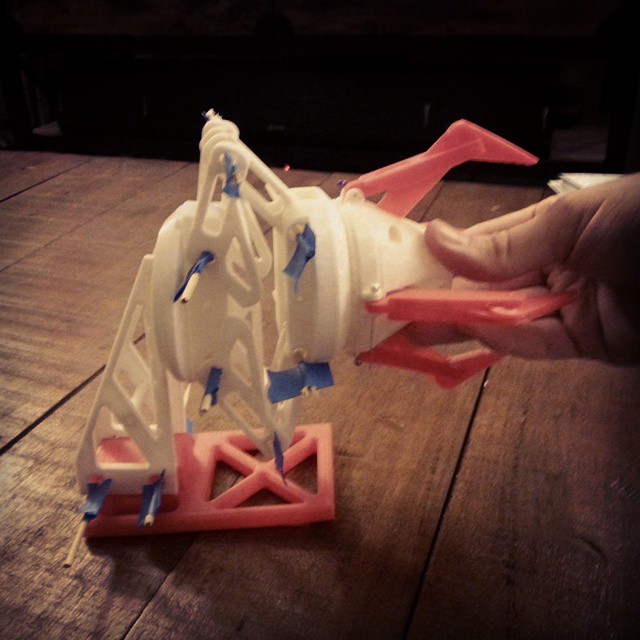

Got the hardware. But found out the base is too small
Printing up a larger one right now



[Ein]

Re: Guardians of the Galaxy Orb and Display

Hah, I still have that reference image as my wallpaper. The claws are cool as hell!

Fishing line is one way to suspend the stone mid-air. I couldn't figure out how to also get it lighting up without visible wires, so if you solve that one, I'd be interested to know. Best way I could figure was to make a very small LED assembly with coin cell batteries and a magnetic reed switch, and then cast that into the middle of the Infinity Stone... and just stick a tiny magnet on the back of the stone when you wanted to turn it on and off. Only problem with that whole idea is what to do when the batteries die.



[.:MirrorminD:.]

Re: Guardians of the Galaxy Orb and Display

Very cool, and ya I was thinking fishing line as well



[montified88]

Re: Guardians of the Galaxy Orb and Display

awsome sauce!!!......



[Soulinertia]

Re: Guardians of the Galaxy Orb and Display

So cool! Love it! Want it, NEED it!



[AGFRX7]

Re: Guardians of the Galaxy Orb and Display

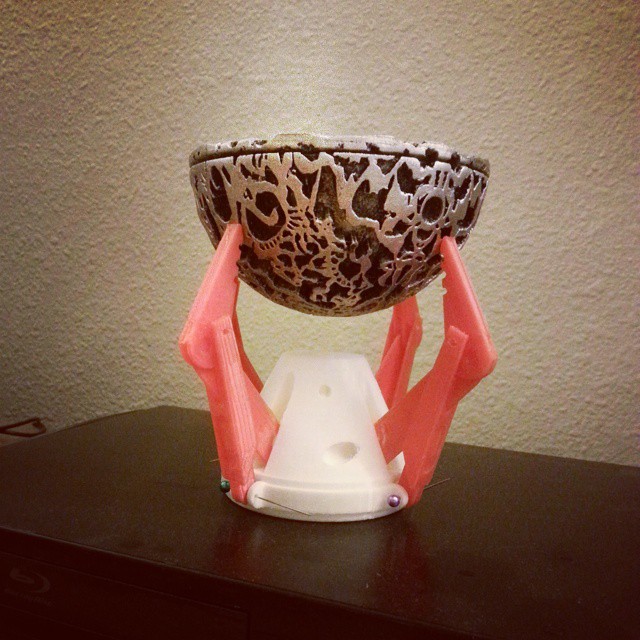

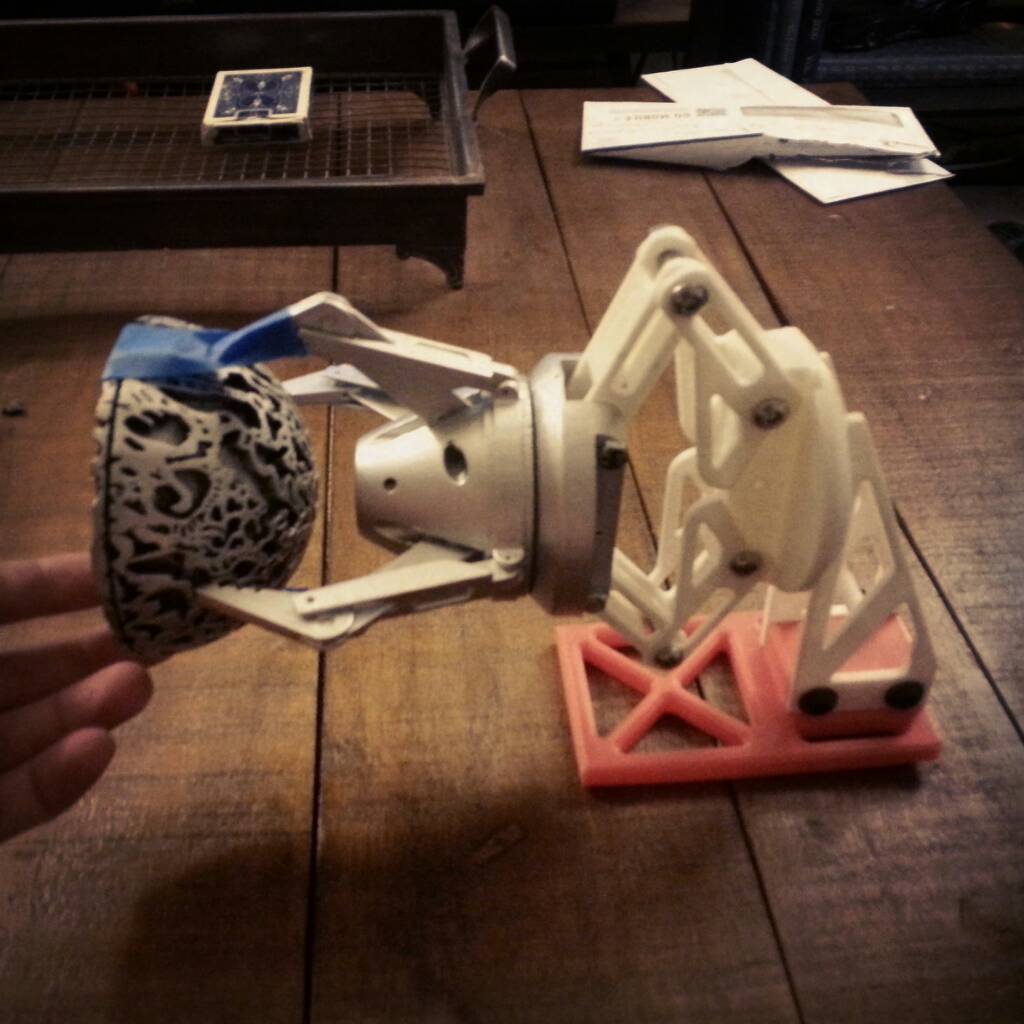

One half finished



[montified88]

Re: Guardians of the Galaxy Orb and Display

wow!......and if you've seen soulinertia's power stone in the project runs section(hint hint)...........that might complete the puzzle........



[AGFRX7]

Re: Guardians of the Galaxy Orb and Display

Added file links in first post! =) Enjoy!

- - - Updated - - -

So cool! Love it! Want it, NEED it!

Now you can! I added the links in my first post to download all the parts. You don't need to scale it so long as you use EIN's orb from thingiverse



[RacerMachX]

Thanks alot for the files.
It looks fantastic!:thumbsup



[Eh Plus Cosplay]

You did a great job of this. AMAZING.

-West



[AGFRX7]

Finally finished [emoji4]



Sent from my iPad using Tapatalk



[Kevin Gossett]

Most impressive!



[Soulinertia]

Such a cool display piece. Can't wait to finish mine with the stone suspended in the middle!



[Lord Magneto]



[80sKIDAutoman]

WOW! Unbelievable talents here on the forums!! WANT!! Cannot wait to show this thread to my son!



[Eh Plus Cosplay]

Anyone able to 3d print the outside and inside of the orb for me? Ein hasn't been around and I was hoping to be in on his run but that's not looking so good before my local con happens... sad face.

-West
