3d printed Zabana Modeled Iron Man Gloves

Discussion in 'Marvel Costumes and Props' started by devildog12, Aug 5, 2015.

  1. devildog12

    devildog12 Active Member

    Trophy Points:
    361
    So I've seen a lot of people looking for the Iron Man Gloves modeled by Zabana that are 3d printed, there are a few floating around some better than others. If you need them, there are right here in one easy find. I found these very high quality ones on the net awhile back and forget who the creator is but kudos to them!. These gloves are taken from the famous and outstanding Zabana and converted, smoothed and made to be printed.

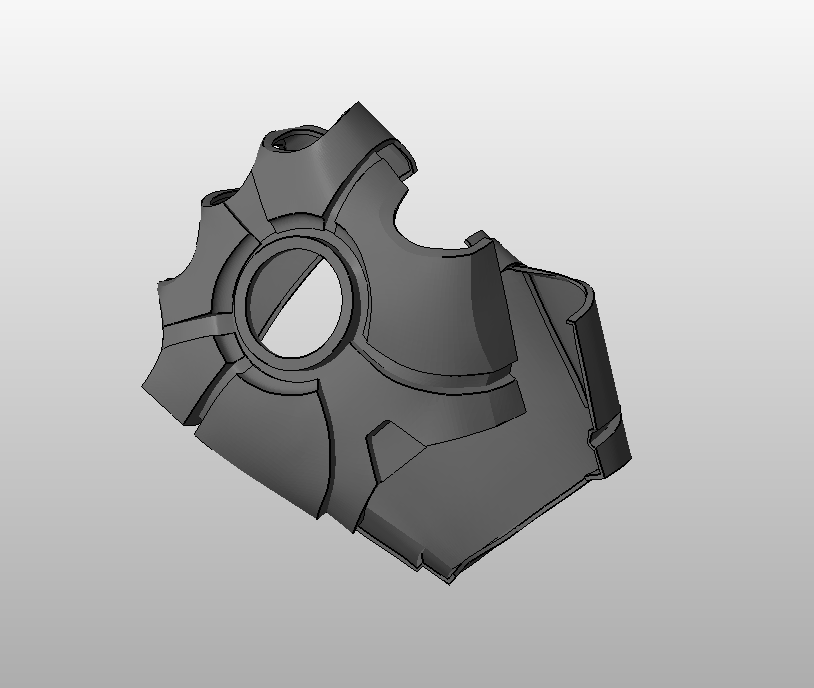

    im pic.PNG

    All I did was scale them correctly and join the knuckles and lower palm together. These gloves have been run through netfabb cloud and have been fixed. They currently fit a medium to large size hand. If you need a lefty or a bigger size, I would recommend scaling or mirroring through netfabb or your own personal modeling software.


    http://www.4shared.com/file/OHjbM_OJba/Iron_Man_Upper_Palm.html
    http://www.4shared.com/file/c68sZHWgba/Iron_Man_Lower_Palm.html

    Note: The scale is now correct on both files and the links have been updated to show that.

    Additional Note: Here are the files as a zip
    View attachment Iron Man Gloves.zip

    Last edited: Oct 22, 2015
    Rebo and Transhuman325 like this.
  2. creative stress

    creative stress Well-Known Member

    Trophy Points:
    635
    Thanks for sharing will make a lot of us guys happy are they scaled to any peticular size

    workshop

    devildog12 likes this.
  3. creative stress

    creative stress Well-Known Member

    Trophy Points:
    635
    Oops sorry just reread ur post lol

    workshop

  4. devildog12

    devildog12 Active Member

    Trophy Points:
    361
    No problem, I just thought I'd give back to the community. If you've already downloaded the lower palm, you'll wanna re-download it. I put the wrong un-fixed file up by mistake, but it's now been corrected.

    creative stress likes this.
  5. BlueSteel

    BlueSteel Guest

    Augh id love to print these put but currently im broke and waiting on an application response. Hopefully i can use these for my next build well see.

  6. creative stress

    creative stress Well-Known Member

    Trophy Points:
    635

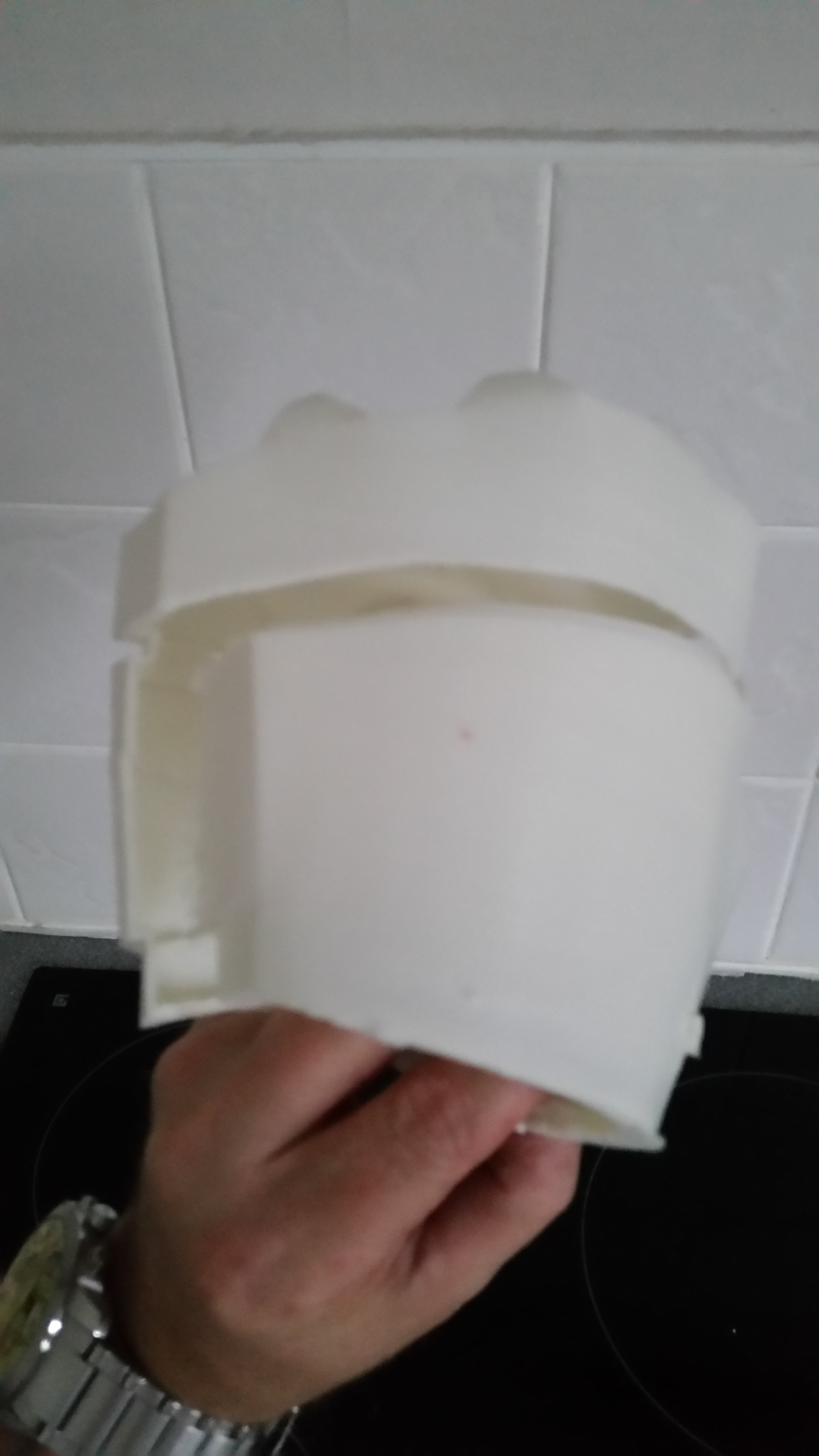

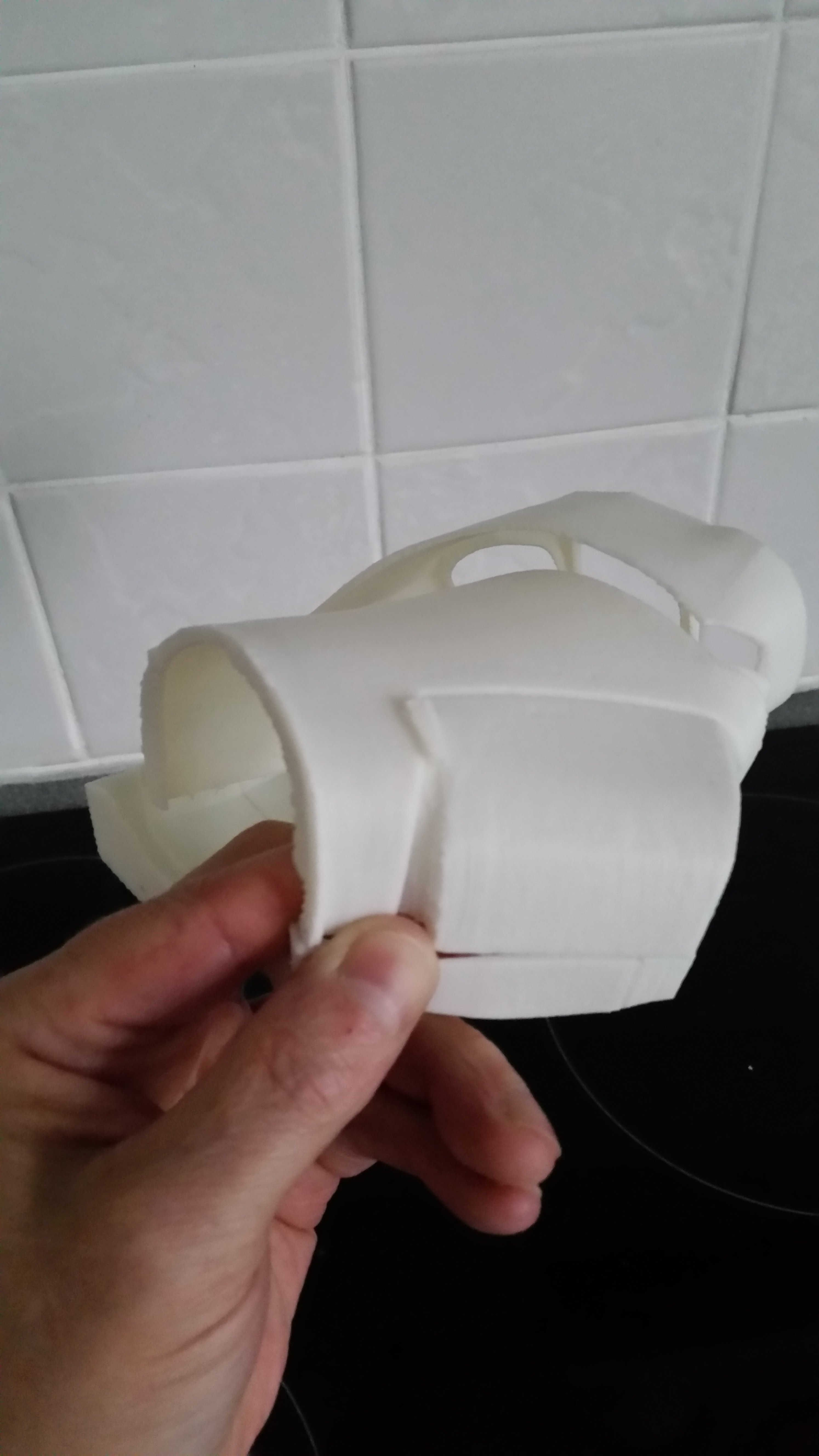

    I printed the glove at the scale of files but the back section is too small uploadfromtaptalk1438974811534.jpg uploadfromtaptalk1438974874557.jpg

    workshop

  7. devildog12

    devildog12 Active Member

    Trophy Points:
    361
    Yeah thats my bad, my files got mixed up when i was uploading them. The scale on the upper palm should be 10% bigger. Im not at my computer at the moment but I will fix that tonite.

  8. creative stress

    creative stress Well-Known Member

    Trophy Points:
    635
    Thanks devildog12

    workshop

  9. devildog12

    devildog12 Active Member

    Trophy Points:
    361
    No problem. I do have the Mark 42 helmet stl's that I'm going to upload for the community in the few days maybe.

  10. creative stress

    creative stress Well-Known Member

    Trophy Points:
    635
    Sweet look forward to it im just messing around with mark 4 3d model see if i can convert the undersuit

    workshop

  11. devildog12

    devildog12 Active Member

    Trophy Points:
    361
    The scale is now correct on both of the those files. I have quite a few STL's and OBJ's that need printing on my desktop so I probably uploaded the wrong ones but it's fixed now.:D

  12. creative stress

    creative stress Well-Known Member

    Trophy Points:
    635
    Lol nice thanks ☺

    workshop

  13. ubcs86

    ubcs86 Active Member

    Trophy Points:
    242
    What are the dimensions of the model? Having a hard time in meshmixer measuring the distances to check for the fit up
    (sidebar: is anyone else getting a 1,000 second delay to download from 4share? What happened to 60 seconds!?)

  14. devildog12

    devildog12 Active Member

    Trophy Points:
    361
    I scaled them to fit a ~large hand (although my actual hand size is a medium) this is due to the fact of wearing gloves underneath them. If your having issues with 4shared, I'm attaching them as a zip file in the first post :)

  15. NOLAIronMan

    NOLAIronMan New Member

    Trophy Points:
    3
    Do you know where I can find a set of finger files?

  16. Bogleo

    Bogleo Well-Known Member

    Trophy Points:
    816
  17. NOLAIronMan

    NOLAIronMan New Member

    Trophy Points:
    3
    I did see those earlier, but passed on them since they were Mk. 42. Are all the hands and fingers constant across all the suits? I've only ever researched the Mk. II - VII suits.

    I have a full Mk. III arm (like the one in my profile pic) and am looking to add a Mk. III hand to it.

  18. Bogleo

    Bogleo Well-Known Member

    Trophy Points:
    816
    Yes, the hands are all the same.

  19. yojay

    yojay Active Member

    Trophy Points:
    342
    I just printed these. Pretty happy although I have big hands and they seem a little big for me. Still need to model over a proper glove, not just the rubber glove in my garage. The lower palm took just over 10 hours to print using line style supports at Hi-def (.18) on my TAZ 5. (I flipped it knuckle down, it seemed the easiest way). I'd like to scale it down and print again. Will it print without supports?

    Edit: Unnoticed autocorrect fixes.

    Last edited: Dec 27, 2015
  20. devildog12

    devildog12 Active Member

    Trophy Points:
    361
    I'm not sure if they'd print without supports, haven't tried it yet. If you need to scale them down, i'd suggest using netfabb (the free version works just fine). Glad you like them though and that I could help out!

  21. misoga27

    misoga27 New Member

    Trophy Points:
    3
    12544666_1265369203478390_317890085_o.jpg is the back too big?

  22. devildog12

    devildog12 Active Member

    Trophy Points:
    361
    I've scaled them so that way you can wear a glove underneath them. If you think it's too big, you could always scaled it down some.

  23. rykobe0411

    rykobe0411 New Member

    Trophy Points:
    17
    Sorry if this is a dumb question, Is there another file for the left hand?
    Sorry, re-read the top post regarding Netfabb

    Last edited: Jan 17, 2016
  24. misoga27

    misoga27 New Member

    Trophy Points:
    3
    by any chance do you know who or where have a mk42 helmet?

  25. devildog12

    devildog12 Active Member

    Trophy Points:
    361
  26. HeroesRush

    HeroesRush New Member

    Trophy Points:
    3
    I realize this is an older post but THANKS for posting the gloves. I just got my 3D printer yesterday and have been putting it through the pace.

  27. devildog12

    devildog12 Active Member

    Trophy Points:
    361
    no problem, enjoy!

  28. Gobelz

    Gobelz New Member

    Trophy Points:
    2
    I've been trying to figure out the best orientation to print for the best results. Any suggestions from those who have successfully printed these?
