Lightning

Sr Member
RPF PREMIUM MEMBER
Ooh, neat! It does look like those. They must have cut off the bottom prongs and tube if so.

I think the threaded tube part is just turned inward away from us. a couple of the prongs might be cut off but I'll bet the top left one is going throught the hole in the disk to prevent spinning.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

ALLEY

Master Member
RPF PREMIUM MEMBER
Sweet find! So it looks like it’s from an Ampex Quad Video Head and the part is called a quad rotary head. And they’re really expensive. It definitely seems like this will need to be 3D printed. :p


Though that isn’t the compete greeblie, there is a base to it as well. So there’s still another half.

Edit: the bottom half appears to just be what it sits on in the machine. Here’s a video showing more information about the machine (or a similar one)...

Shoot….too bad this didn’t end up being part of the tread of some fairly common rubber boots, or something like that ;)


Blue Leader

Sr Member
Shoot….too bad this didn’t end up being part of the tread of some fairly common rubber boots, or something like that ;)
At least the part isn’t too hard to replicate. I already made a 3D model a while ago that’s almost spot on, if I make a few minor tweaks it should be just about perfect.

Now, as for that wedge greeblie... XD


Blue Leader

Sr Member

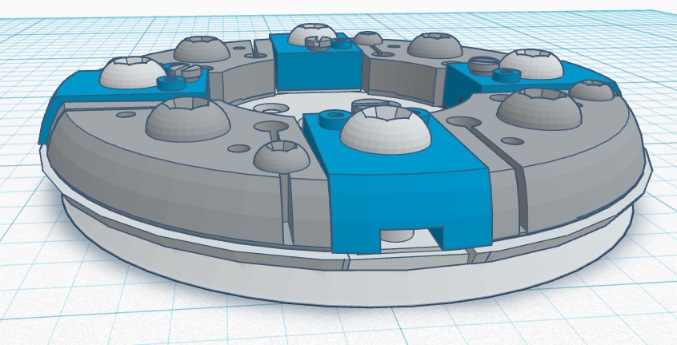

I went ahead and tried to tweak my original greeblie model to match the accurate part. It still needs to be cleaned up a little bit what do y'all think so far?



Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

thd9791

Master Member
RPF PREMIUM MEMBER
Oh I love it! You even got the blue sections raised over the silver ones.

It seems to me the edge is a little lower of an angle, and straighter, leading to the backplate of the part, which also seems to be one layer and only slightly beveled inwards
Screen Shot 2021-06-08 at 10.22.24 AM.png


ywingfighter

Sr Member
I wrote to Propstore a few days ago and received this answer yesterday: "Hello Frank, Thank you for your interest in Lot 327, Production-Made B-Wing Pilot Helmet from our Entertainment Memorabilia Live Auction. The disk you're highlighting is made from a hand-painted and hand-labeled composite of metalized plastic and metal alloy. The scratches you see in the picture here are to the metalized finish on the paneling. Hope that helps, and happy bidding," So maybe the disc has already been recreated by the Lucas Model Builders? I have no idea if the Ampex parts were rare in the eighties but it is possible. As far as I know, the disk has already been used for 2 Y-Wing helmets, at least 5 movie B-Wing helmets and then all of the production made helmets, I think 5 more pieces. So we are already at at least 12 pieces.


Blue Leader

Sr Member
I wrote to Propstore a few days ago and received this answer yesterday: "Hello Frank, Thank you for your interest in Lot 327, Production-Made B-Wing Pilot Helmet from our Entertainment Memorabilia Live Auction. The disk you're highlighting is made from a hand-painted and hand-labeled composite of metalized plastic and metal alloy. The scratches you see in the picture here are to the metalized finish on the paneling. Hope that helps, and happy bidding," So maybe the disc has already been recreated by the Lucas Model Builders? I have no idea if the Ampex parts were rare in the eighties but it is possible. As far as I know, the disk has already been used for 2 Y-Wing helmets, at least 5 movie B-Wing helmets and then all of the production made helmets, I think 5 more pieces. So we are already at at least 12 pieces.
That's an interesting but if information. They might just be telling you what the disc is made out of, not that the prop builders made the discs. I don't think that the prop makers would bother to cast anything like that with metal alloy, it would be too expensive and too time-consuming for something that would never be known about when it could have all just been cast in resin which would have been cheaper, faster, easier and would have worked just as well for the use. I also don't think that the prop makers would scratch those numbers into the disc.

But y'know, if these were from video projectors/cameras then chances are these pieces were fairly common in a studio setting. Perhaps they were just trash items that were thrown away when worn out, and were phased out of use in later years, which is why they're pretty much impossible to find now.

But anything's possible. Replicas are probably going to be the ideal way to go for now... I saw a couple Ampex machines on eBay but the asking price is in the thousands, and who knows if they're even the right model to have used those disc heads. At least we know what they really look like now.

...And don't forget, they were on the A-wing pilot flak vests, too. :)


thd9791

Master Member
RPF PREMIUM MEMBER
Which edge are you referring to? What should be lower and straighter?

Sorry about that, the actual rim of the piece, I'm not sure it's so curved, more of a flat bevel

I wrote to Propstore a few days ago and received this answer yesterday: "Hello Frank, Thank you for your interest in Lot 327, Production-Made B-Wing Pilot Helmet from our Entertainment Memorabilia Live Auction. The disk you're highlighting is made from a hand-painted and hand-labeled composite of metalized plastic and metal alloy. The scratches you see in the picture here are to the metalized finish on the paneling. Hope that helps, and happy bidding," So maybe the disc has already been recreated by the Lucas Model Builders? I have no idea if the Ampex parts were rare in the eighties but it is possible. As far as I know, the disk has already been used for 2 Y-Wing helmets, at least 5 movie B-Wing helmets and then all of the production made helmets, I think 5 more pieces. So we are already at at least 12 pieces.
Very interesting - yea I'd interpret this as the piece itself is made of multiple materials. Neat!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

wtyler3

Active Member
RPF PREMIUM MEMBER
It has the appearance of a Quadruplex video head held on with a T-nut. 2 major US companies made them RCA and Ampex they used a 2" tape, transverse scan.

A
Skysurfer, do you know if the RCA and Ampex heads were the same? There is another very similar one on another Y wing helemt, but has some differences. Zoom in on the base of the ear hole and you can see that it has 8 holes instead of 4, and some differences in the structure.
5D3_1548_small (1).jpg


Skysurfer

Member
RPF PREMIUM MEMBER
Neat find! So now we can add video equipement collectors to the lamp collectors we p*ssed off last week! :lol:

Skysurfer, do you know if the RCA and Ampex heads were the same? There is another very similar one on another Y wing helemt, but has some differences. Zoom in on the base of the ear hole and you can see that it has 8 holes instead of 4, and some differences in the structure.

I have seen several different head types over the years and it's getting close to 20 years since I last worked on one of these machines, that's why I couldn't say for sure if it was an RCA or Ampex initially. It does look like one but couldn't say for certain what make/model it came from.

A


wtyler3

Active Member
RPF PREMIUM MEMBER
Thanks so much for all of your help! You cracked a huge egg for us tryin to find these old greeblies.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Blue Leader

Sr Member
Sorry about that, the actual rim of the piece, I'm not sure it's so curved, more of a flat bevel
Ooh, I think I see what you mean. The edge around the top half you think appears more conical than beveled. It could be, it's hard to tell from the pictures. If it is straighter it would certainly make modeling it easier.

But I think you might be right. I'll go play around with that on my model. I also think that I made the middle hole a little bit too deep.
