Hey everyone, this my first RPF thread and I'm really excited to share it with you.

A few months back I was commissioned by my friend (who's a total Fallout 3 addict btw) to build this prop for her, and having previously built guns from Halo exclusively, I was pretty excited to try something new I had never done before. Needles to say, this was the perfect project to do so. I had so many ideas and ambitions to bring to the table from the very start, and I immediately loved how most of the weapon could be made with common day-to-day objects. (more or less)

So without any further ramblings I give to you my Fallout 3 Plasma Rifle project!



I started off with a length of ABS pipe and drilled holes in carefully measured places for the portholes that would come next.


To make the portholes (that's what I'm calling them anyway) I used 6 PVC bushings and cut the inside ends of them off to fit flush with the inside of the ABS.




All while carefully measuring the dimensions, I made the larger diameter sections from bigger PVC pipes, and secured them in place with thick foam double-sided adhesive tape.

Once that was done I spayed a layer of white primer on the whole thing just to get a clearer look of it as a complete piece.


After that, I started to add fine details to the portholes.


Meanwhile, I had constructed a microfusion cell out two PVC end caps, and the basket that would later hold it out of thin-guage steel wire and ABS pipe.

To make the end cap, I cut the very end off of an ABS cap and carefully drew out and then cut where the bolt holes would go.


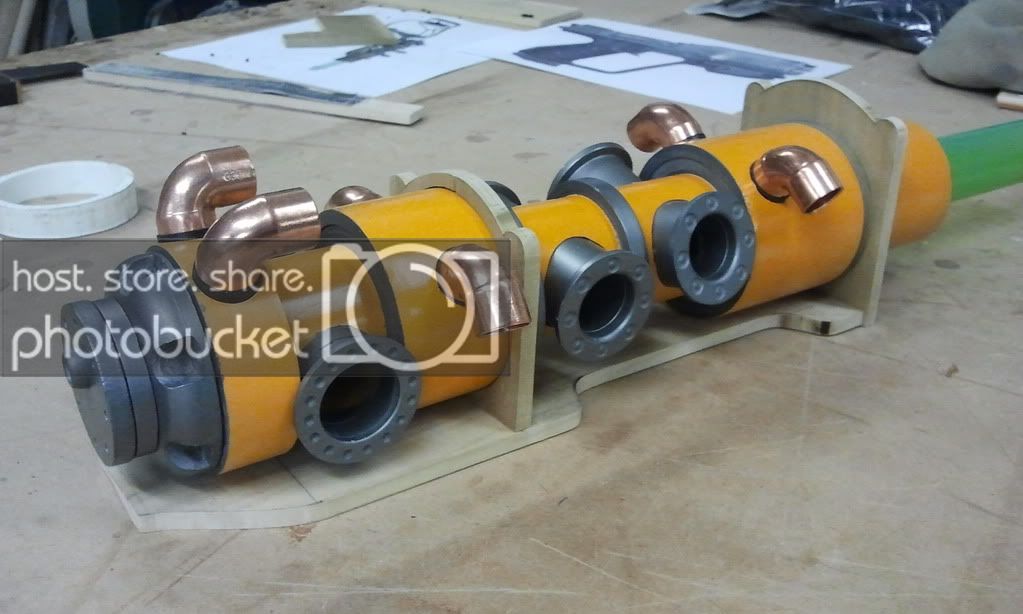

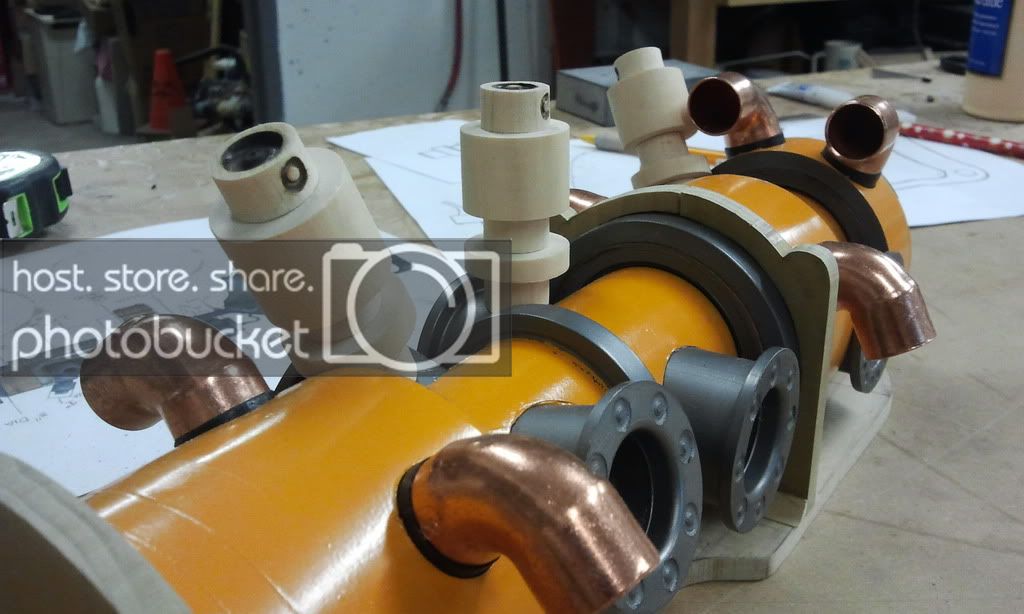

During the same time, I began to drill holes and add copper 90° fittings for where the hoses on the sides of the gun would later attach.


After all that was complete, this entire section of the gun was finally finished and ready for some paint.





Stick around for the next segment of my project!

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

nick daring

Master Member
RPF PREMIUM MEMBER
Re: FALLOUT 3 A3-21's PLASMA RIFLE REPLICA

I love PVC/ABS pipe based projects. Easy to find materials that are easy to cut and manipulate.

Awesome work!

Nick


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

L05T V1K1N6

New Member
Thanks for all the compliments already guys! I really appreciate them. :)

And now on to the frame and stock.

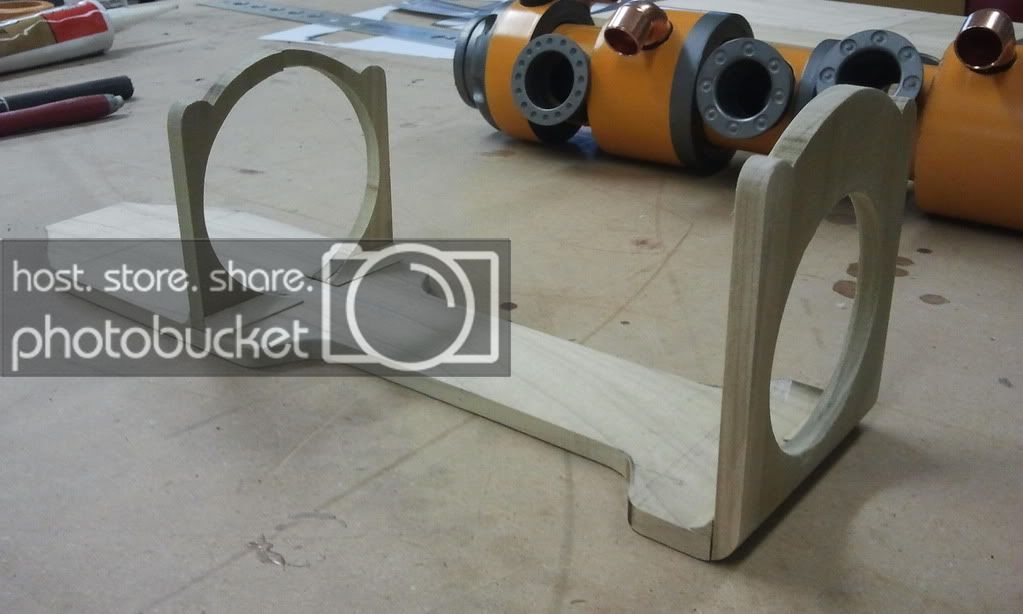

For this section, I returned to my field of expertise: wood working! I made almost all of this section out of 1/4" poplar stock.







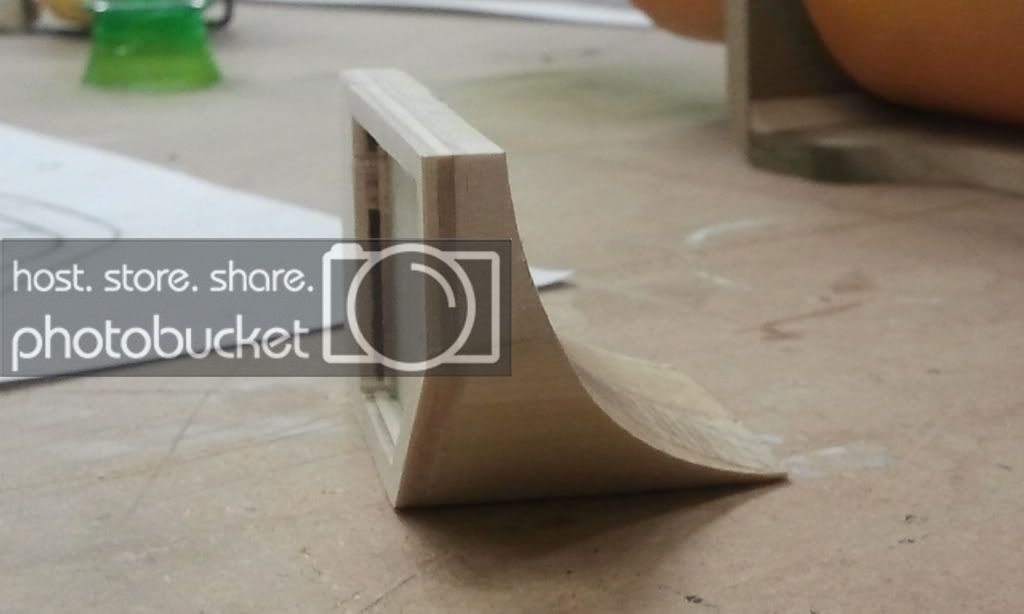

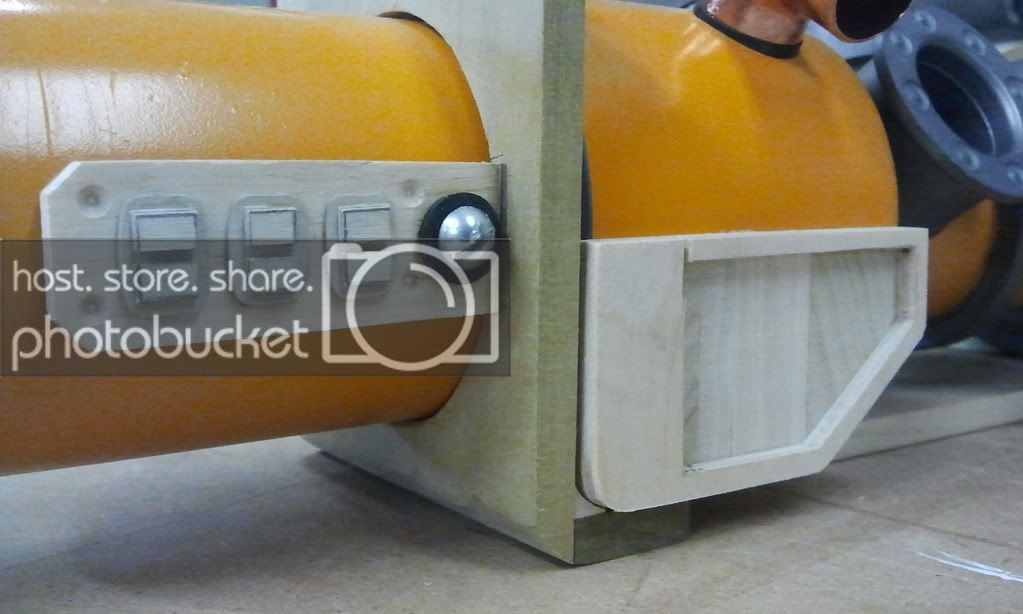

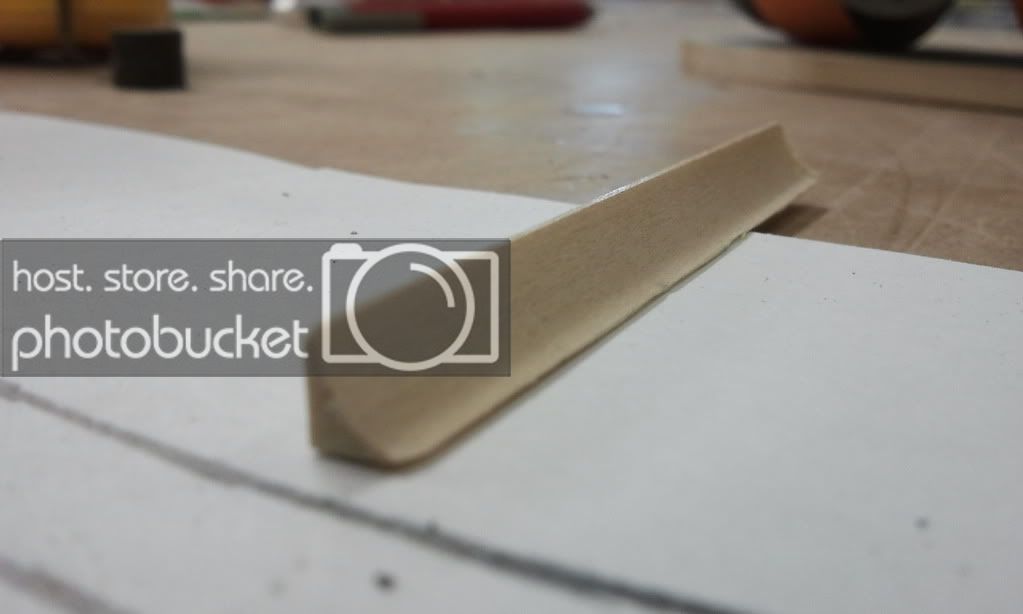

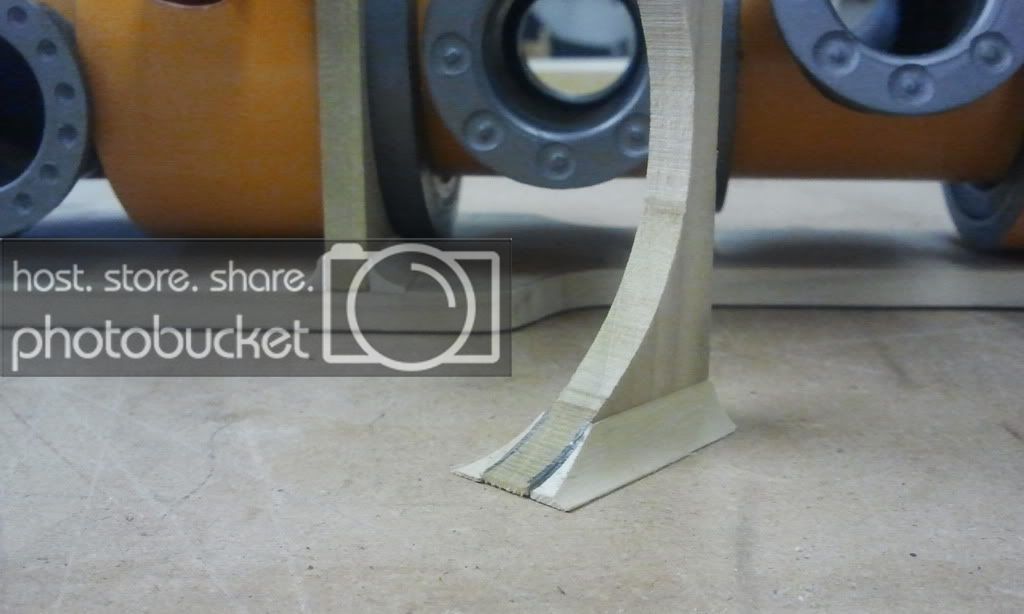

For this piece I used 1/8" plywood for the main shape, and cut and layered the details using 1/32" veneer and of course a few screws.



This piece was made from four layers of 3/4" stock glued end-to-end, with the face cut from a single piece 1/8".




I made the three rods on the right side of the gun out of dowel on my wood lathe.



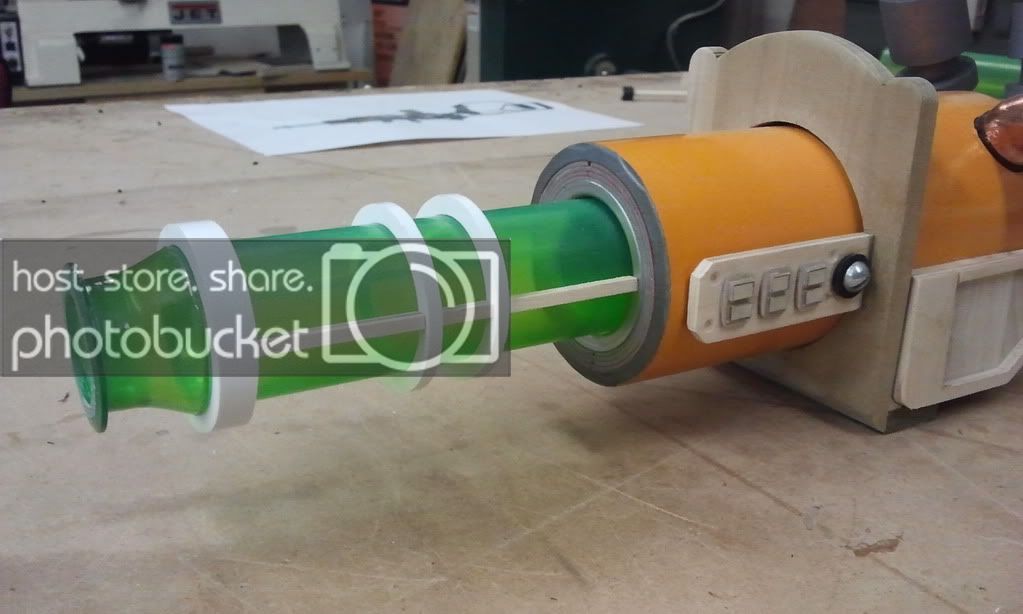

The barrel was constructed from a section of this water gun.


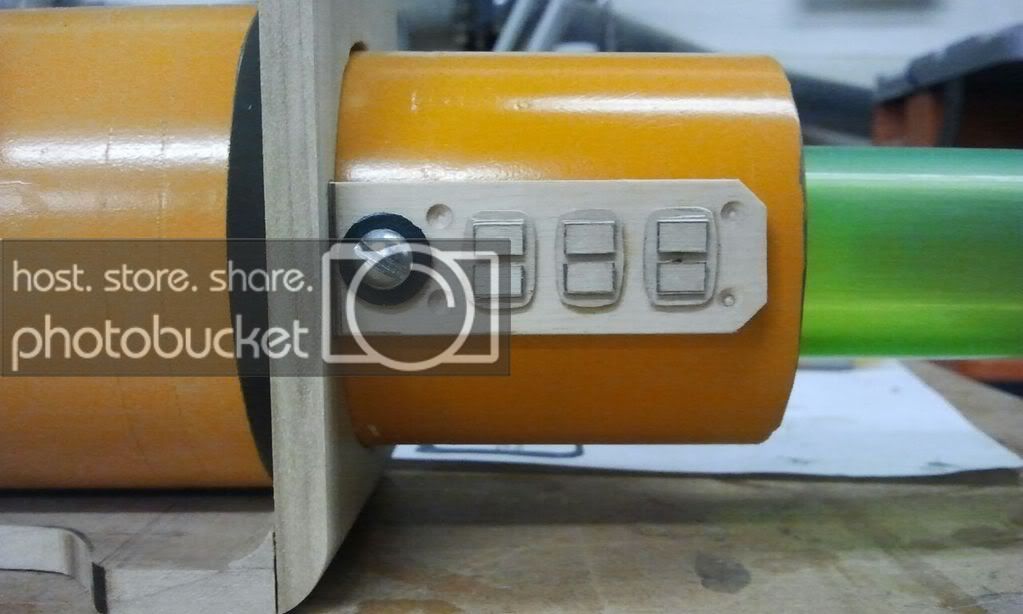

The rings around the barrel were made from thin slices of a PVC coupling that fit perfectly around the green tube. the rods on either side were cut from thin strips of 1/8" plywood, and the end of the barrel was made from the very end of a Sprite bottle.




Once the barrel was constructed, I inserted a flashlight inside the chamber to test how it would look illuminated.


Quite well I must say :)


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

unorthodoxdesig

Active Member
question- are you going for the corroded 200 year old look or brand new?
also- your holes on the circular pieces look really accurate.. did you lay them out by hand or do you have some sort of a mill with a circular table?


rosskow

Well-Known Member
you make it sound and look so simple to do, im sure its not, it looks great

is that microfusion cell full operational... :behave


L05T V1K1N6

New Member
question- are you going for the corroded 200 year old look or brand new?
also- your holes on the circular pieces look really accurate.. did you lay them out by hand or do you have some sort of a mill with a circular table?

Definitely corroded! :D

I made the "false bolt" holes using a special dremel attachment and I drilled each one by hand. It was actually pretty tricky due to the heat and friction of the drill bit melting the PVC. I found that out the hard way on the first few holes, but once I got the hang of it the rest of them went great!

Thank you for your questions, I really enjoy answering them. :)


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

whiteraven

Active Member
Thanks for all the compliments already guys! I really appreciate them. :)

And now on to the frame and stock.

Once the barrel was constructed, I inserted a flashlight inside the chamber to test how it would look illuminated.


Quite well I must say :)

very nice sir! good to see another plasma nut out there.. here's my wip take on the plasma rifle...
The Plasma Rifle by Mike Cameron at Coroflot.com
Wow, who wants to send me one?


unorthodoxdesig

Active Member
I'm not re what other projects you've worked on, but for weathering inks work really well to wash the recesses.. then wipe the main flat surfaces and repeat till you get that worn patina.. sponges with a little brown paint work wonders\for rust effects.

also.. if you want to age the copper fitting, mix equal parts lemon juice, ammonia.. and i think table salt.. put that and the copper pieces in a bag and leave for a few hours. they'll go all verdigris in a matter o an hour or two.


L05T V1K1N6

New Member
Thanks for all the tips!

And now on to stock and pistol grip.

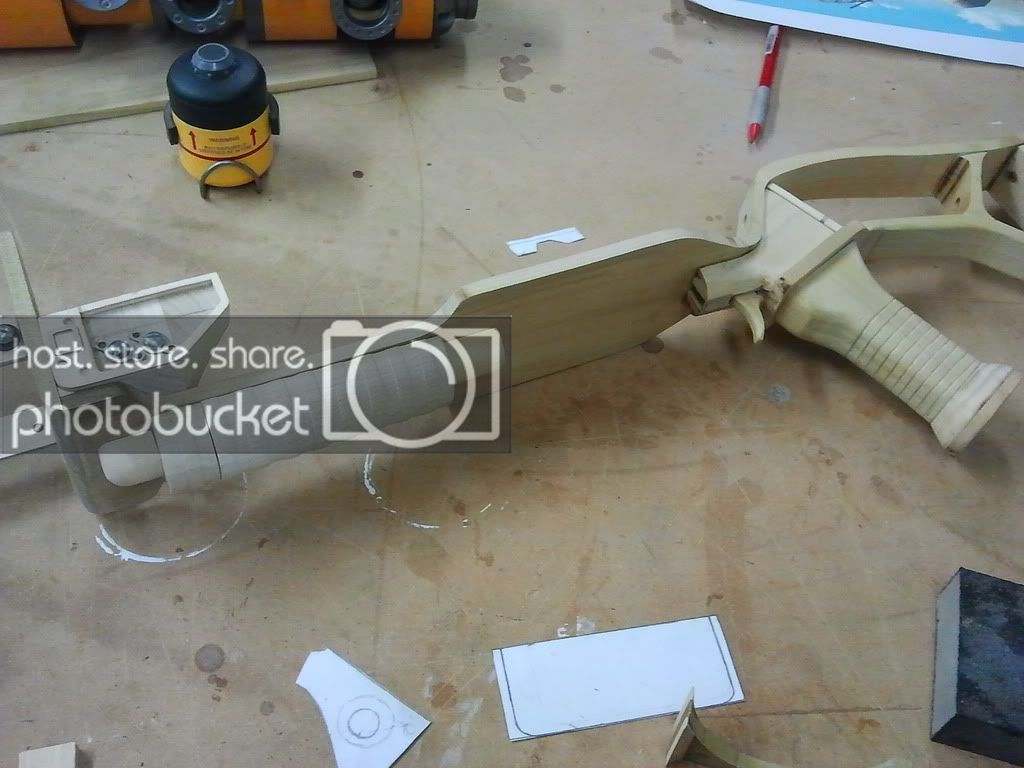

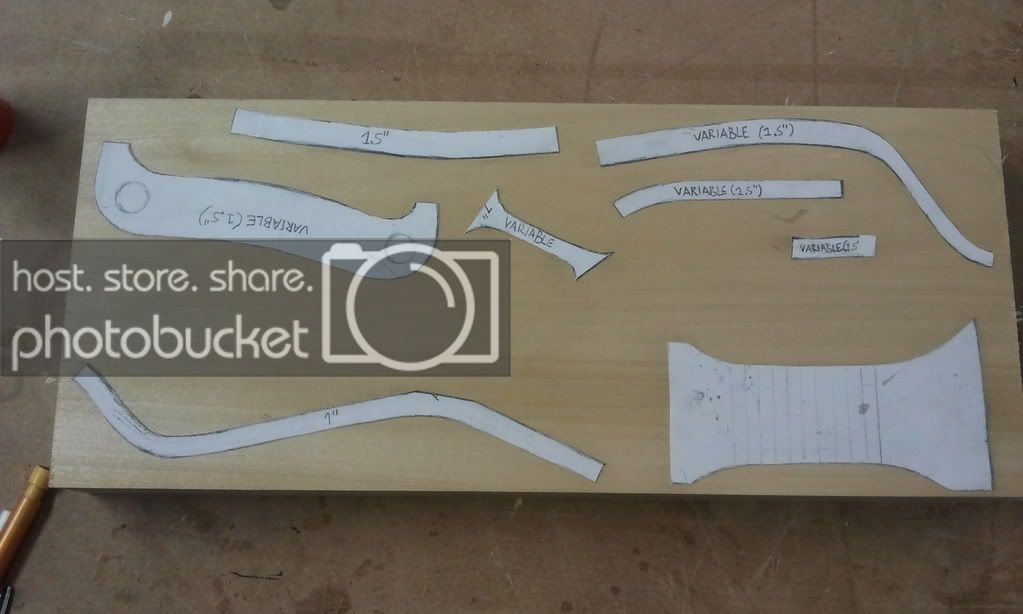

I started by cutting the pieces that would become the stock from a side-on profile and in multiple pieces that would later be fit together like a puzzle. The reason for this is because the top-down profile of the stock has many different and overlapping widths on both the top and bottom layers, and it would not be possible to accurately recreate if I were to cut it all from one solid piece.


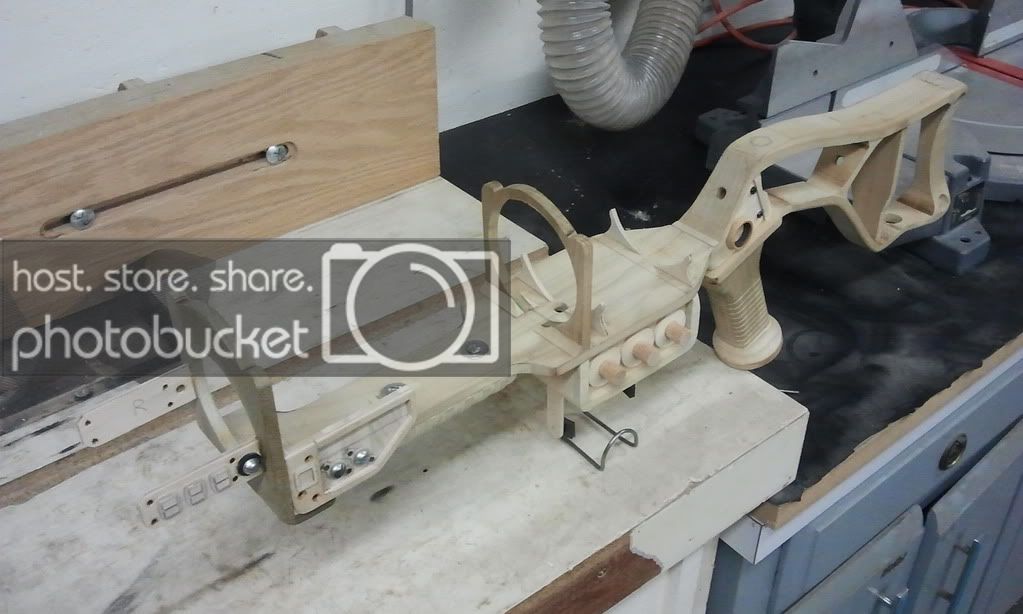

All pieces cut and test-fit together. Nothing is glued at this stage.


All pieces shaped and glued together.


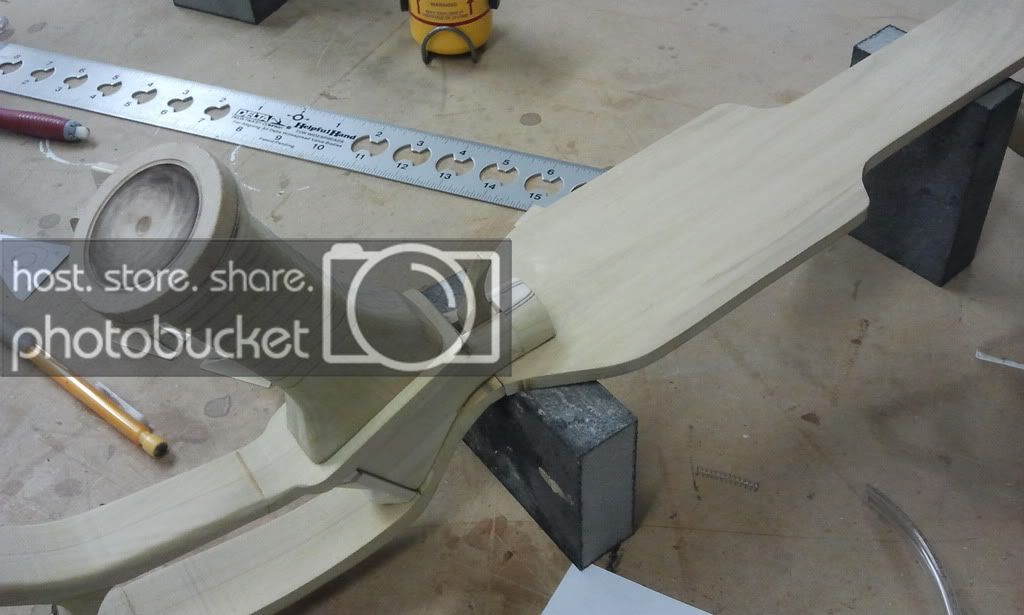

Pistol grip shaped.


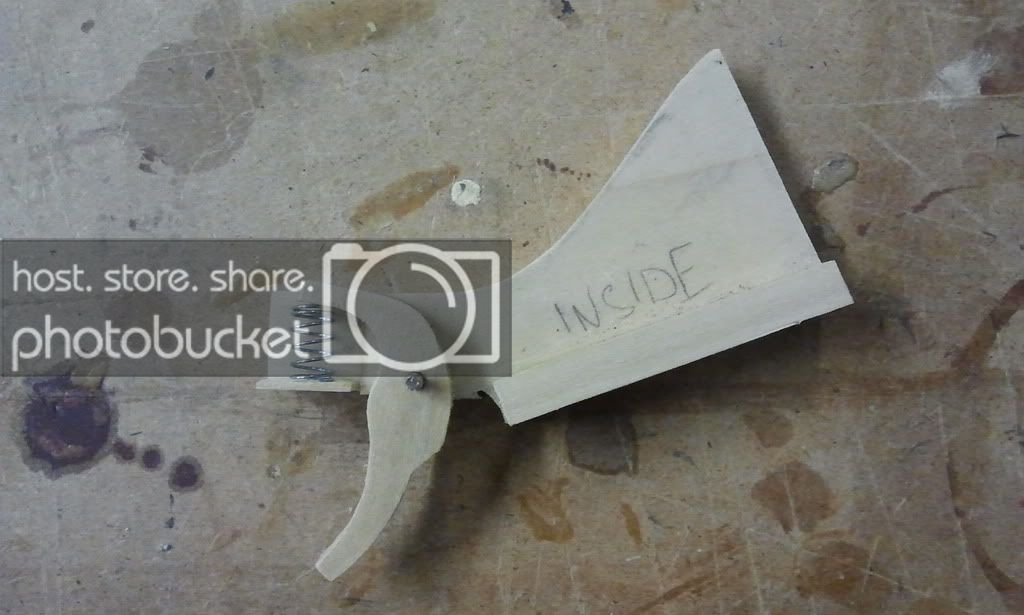

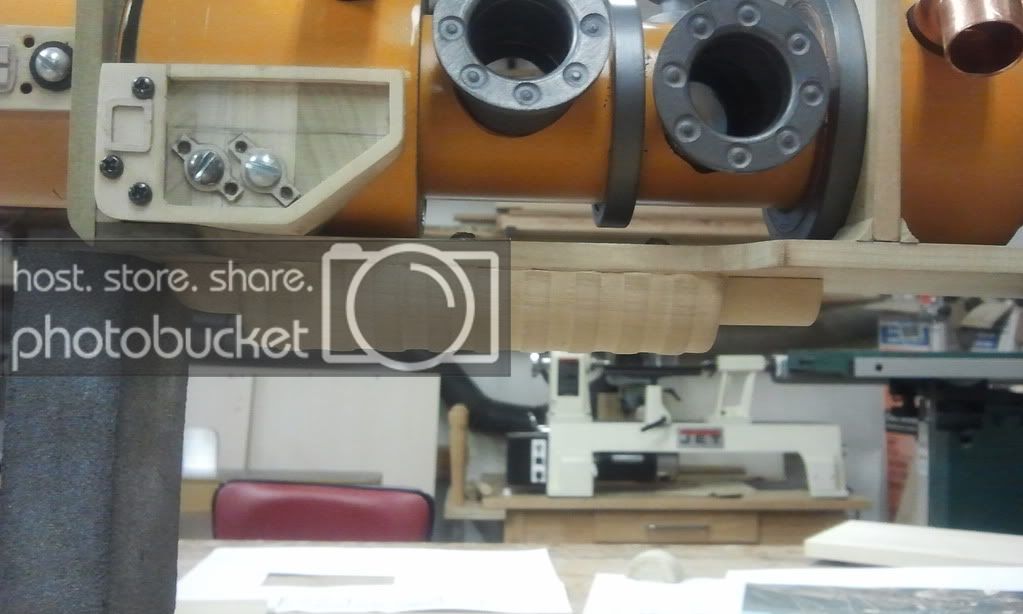

Here is a cross-section of the trigger assembly. Pretty simple and straight-forward.


Trigger system enclosed and married to the main body of the gun.




The foregrip was made on the lathe and cut in half.


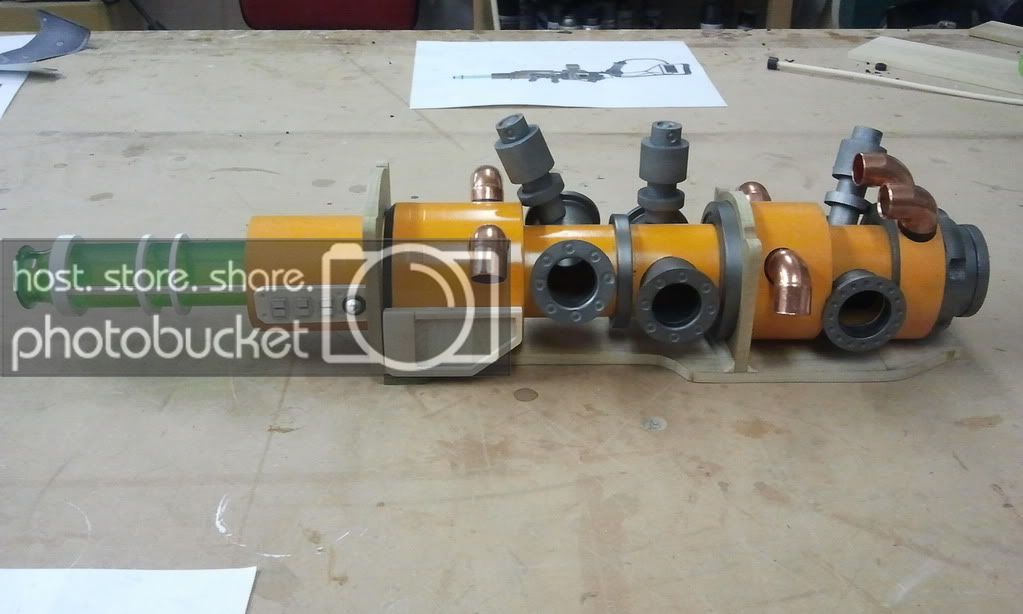

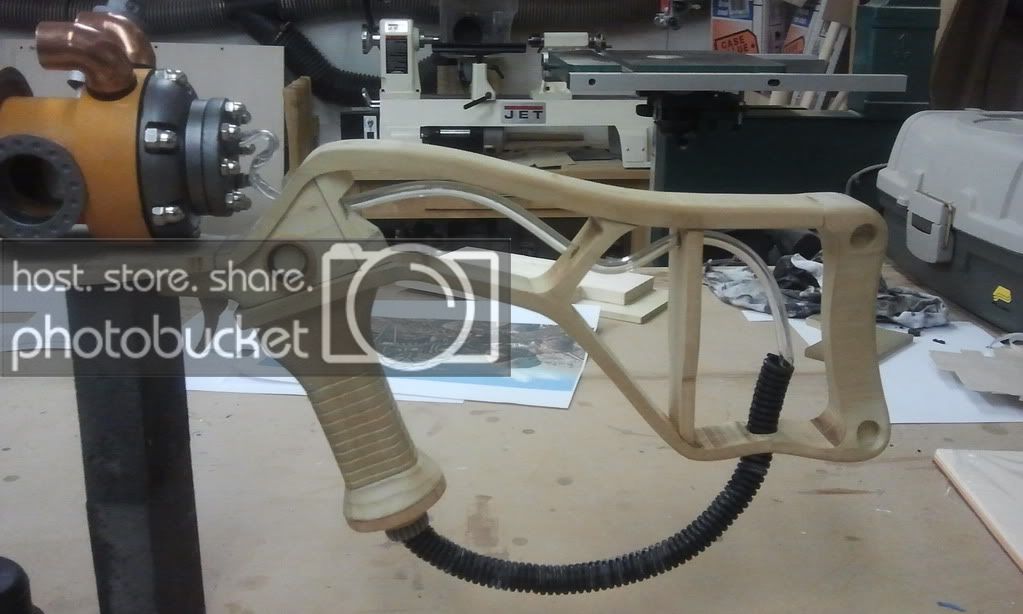

Here, the clear (later green) tube and corrugated hose are test-fitted.

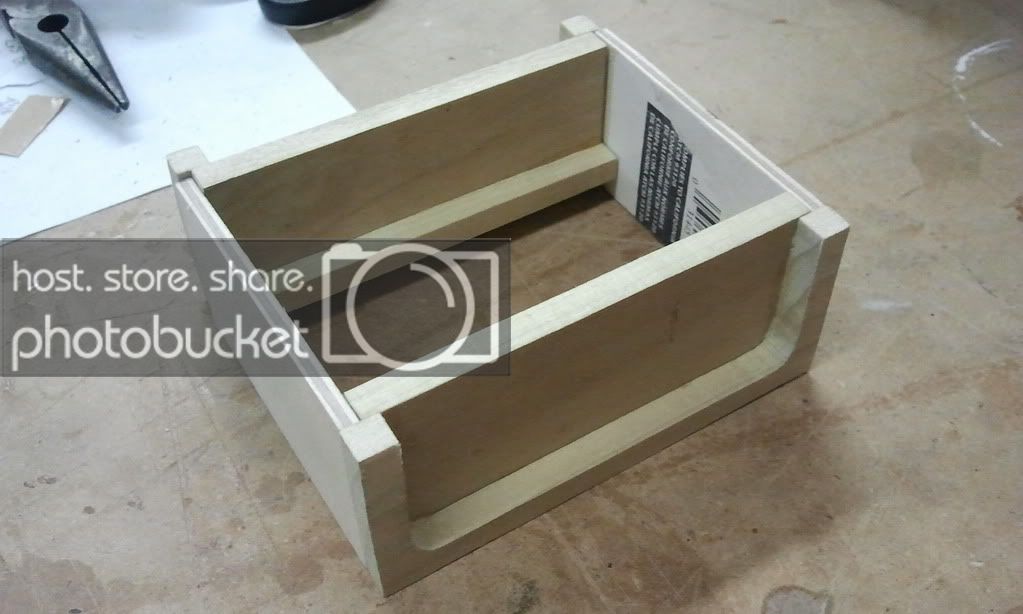

This is the beginning of the microfusion cell receiver which also cleverly hides the battery pack for the LEDs that will go inside the main chamber.

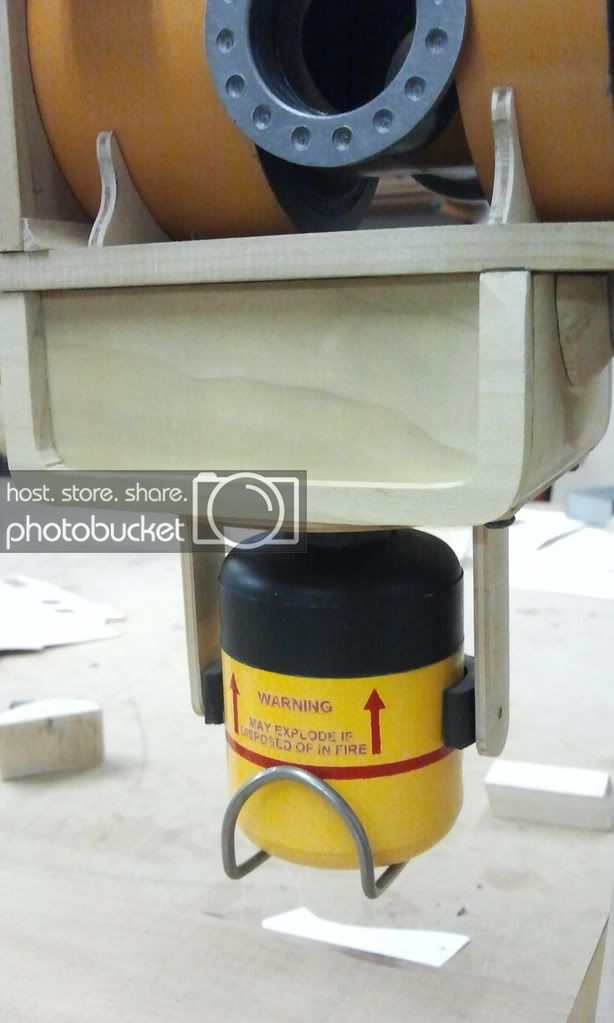

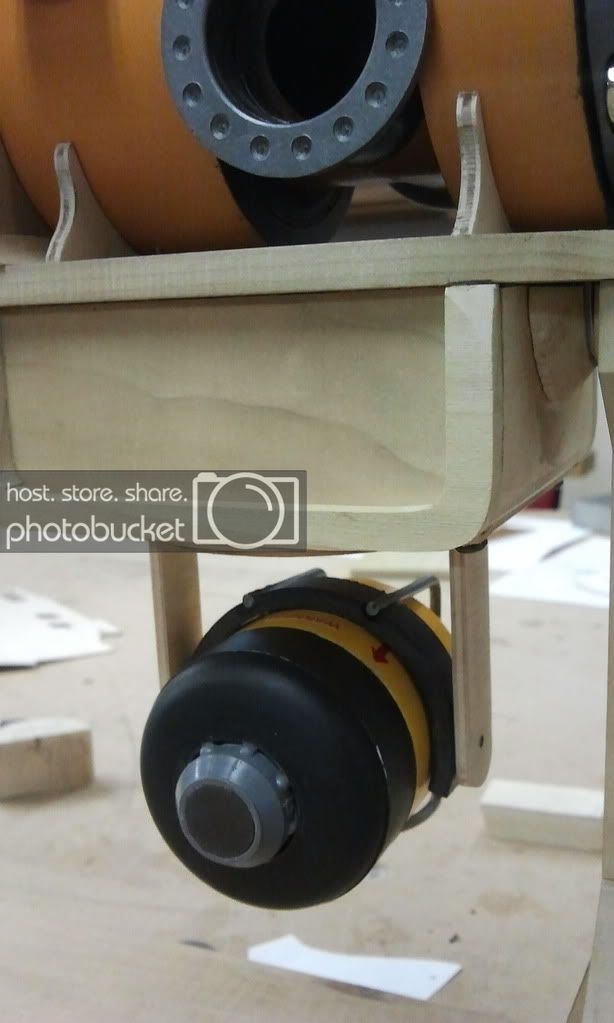

Microfusion cell holder mechanism. (of course it works!)

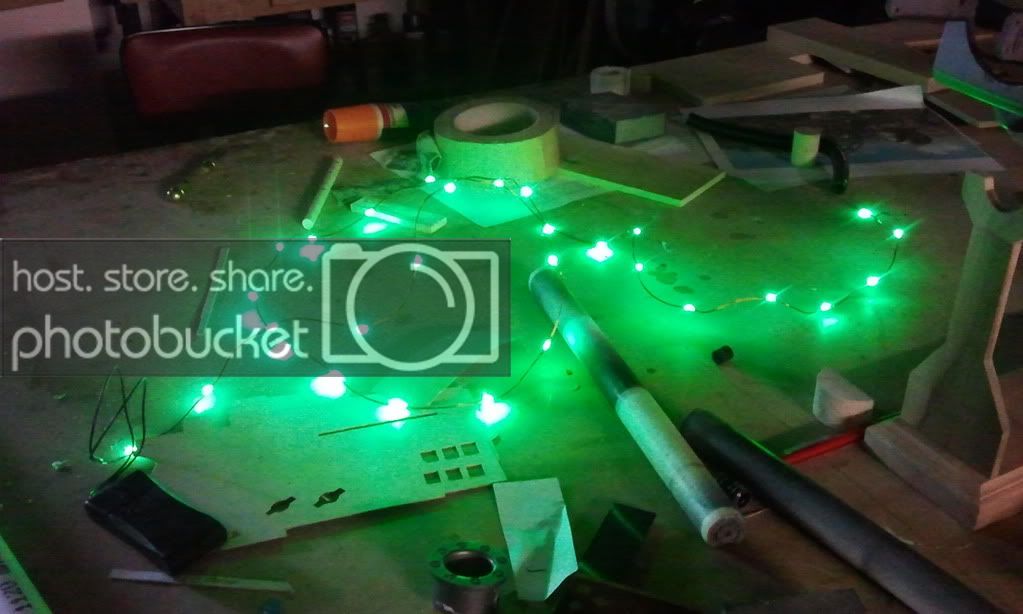

The LEDs.


Hoses installed.




The frame, now ready for paint.

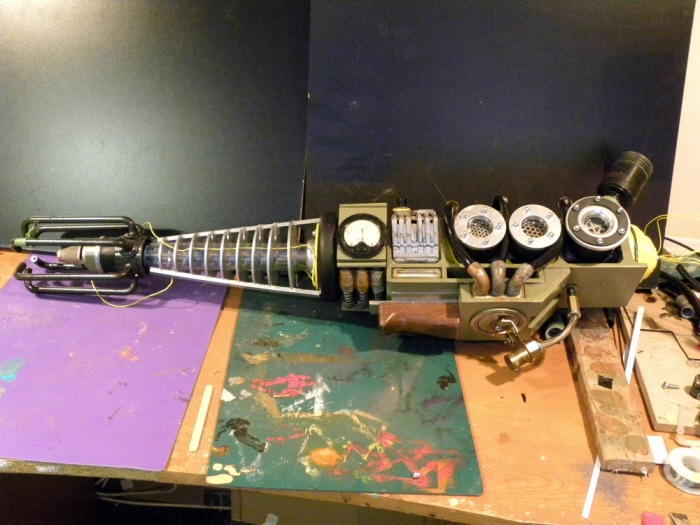

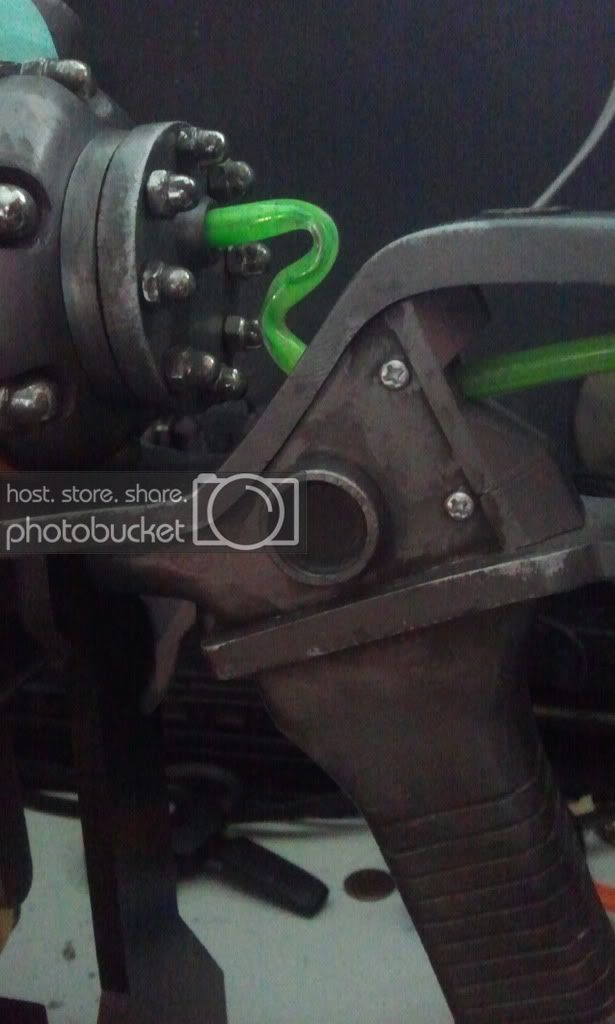

And here's a small teaser of the finished product ;)




Hope everyone likes it!
