ESB "Hoth scanner" prop - active project!

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Elysia

New Member
Just wanted to show an update of what I've created so far.

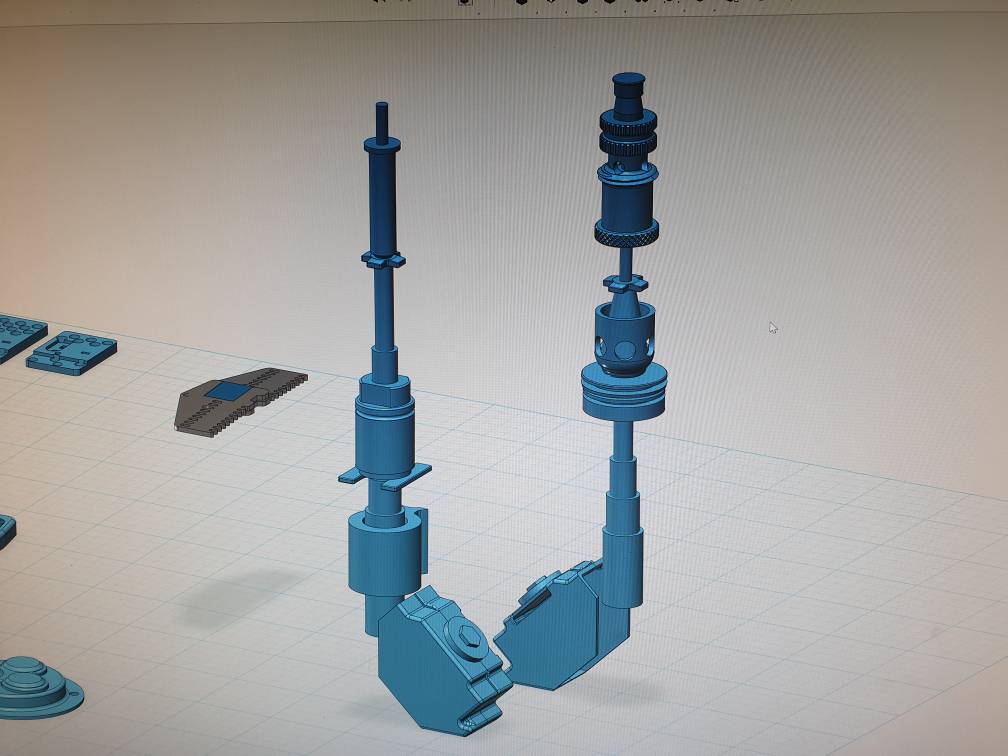

This time I've done the antenna pieces. I used the photos posted here and elsewhere on the net.

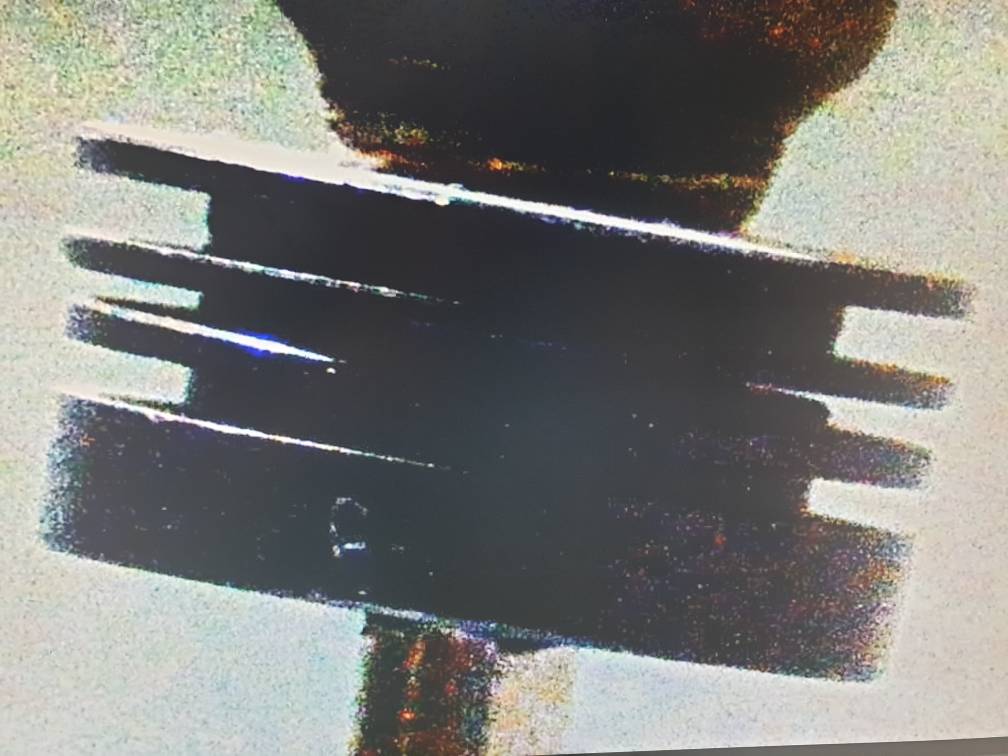

I also think, and this is only a guess, that the round multi layered black disk thing is probably a heavily hacked up "Hawker Tomtit radial engine cylinder". It's like it was cut up and flipped around and the badly glued together.

What do you think?


Max Replica

Well-Known Member

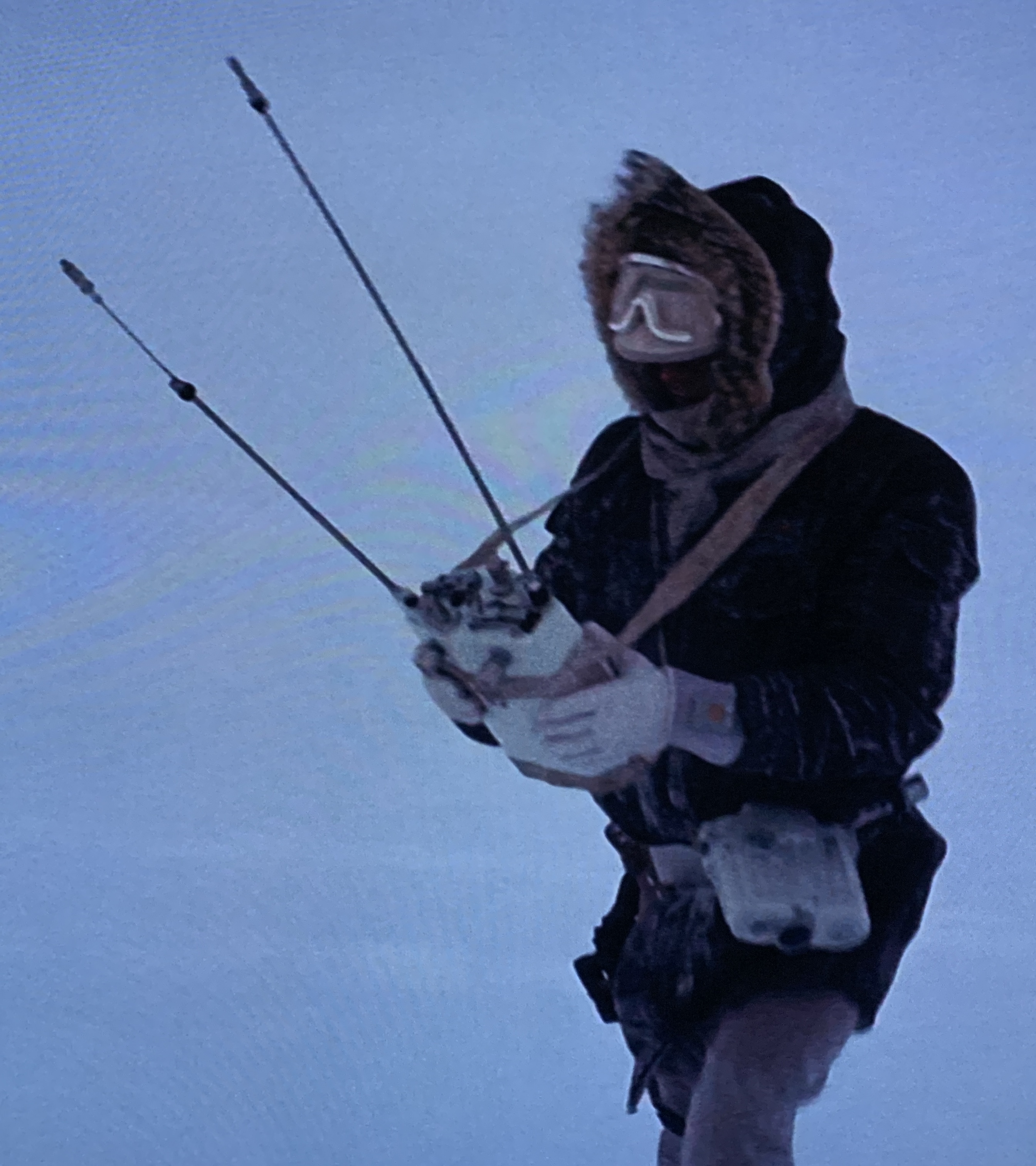

Some great input here so far, but I don't think I've seen anyone talking about the carrying strap that Han has around the scanner in the film. I, for one, will want that added to mine in order to have it look like it did in the film.

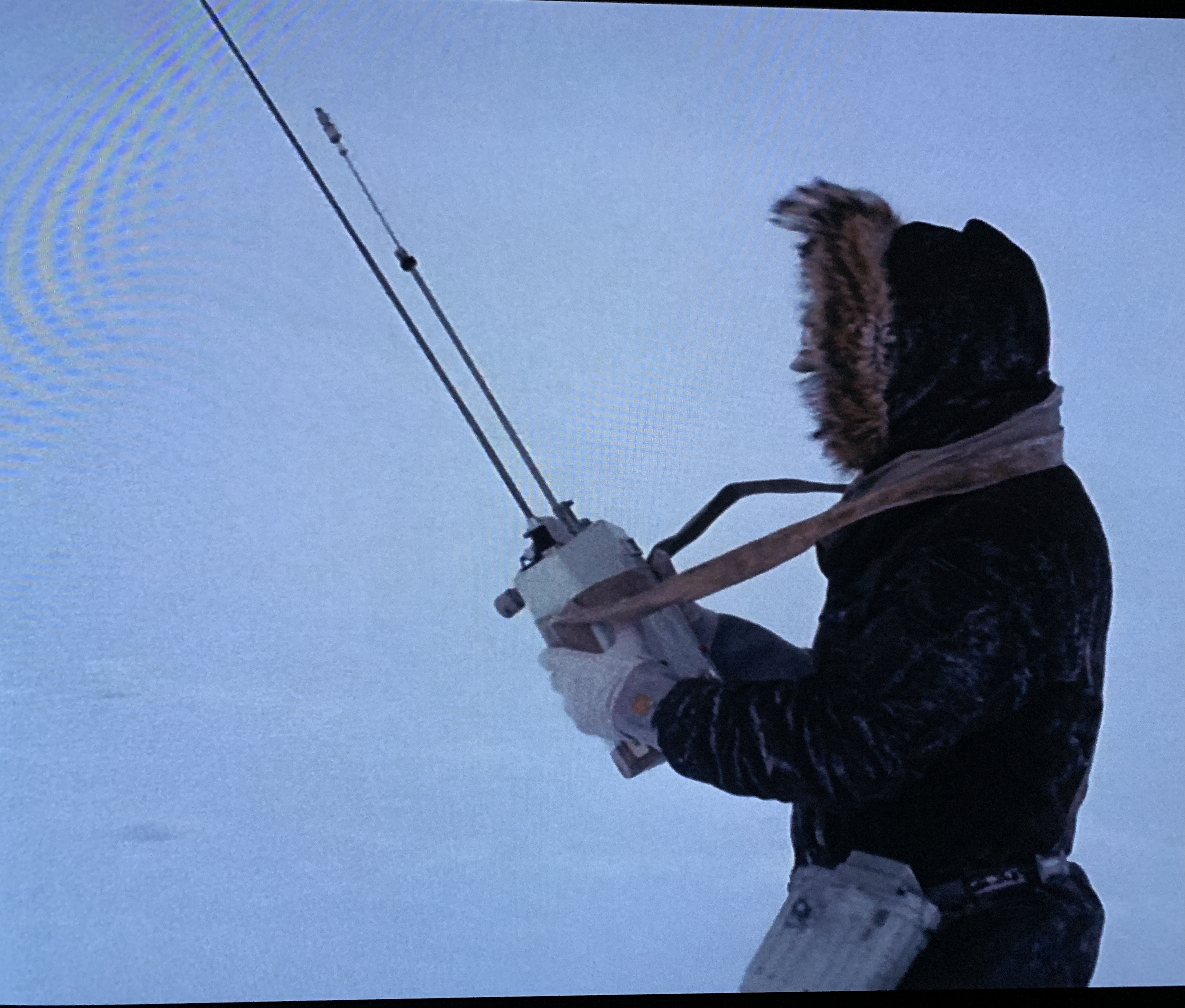

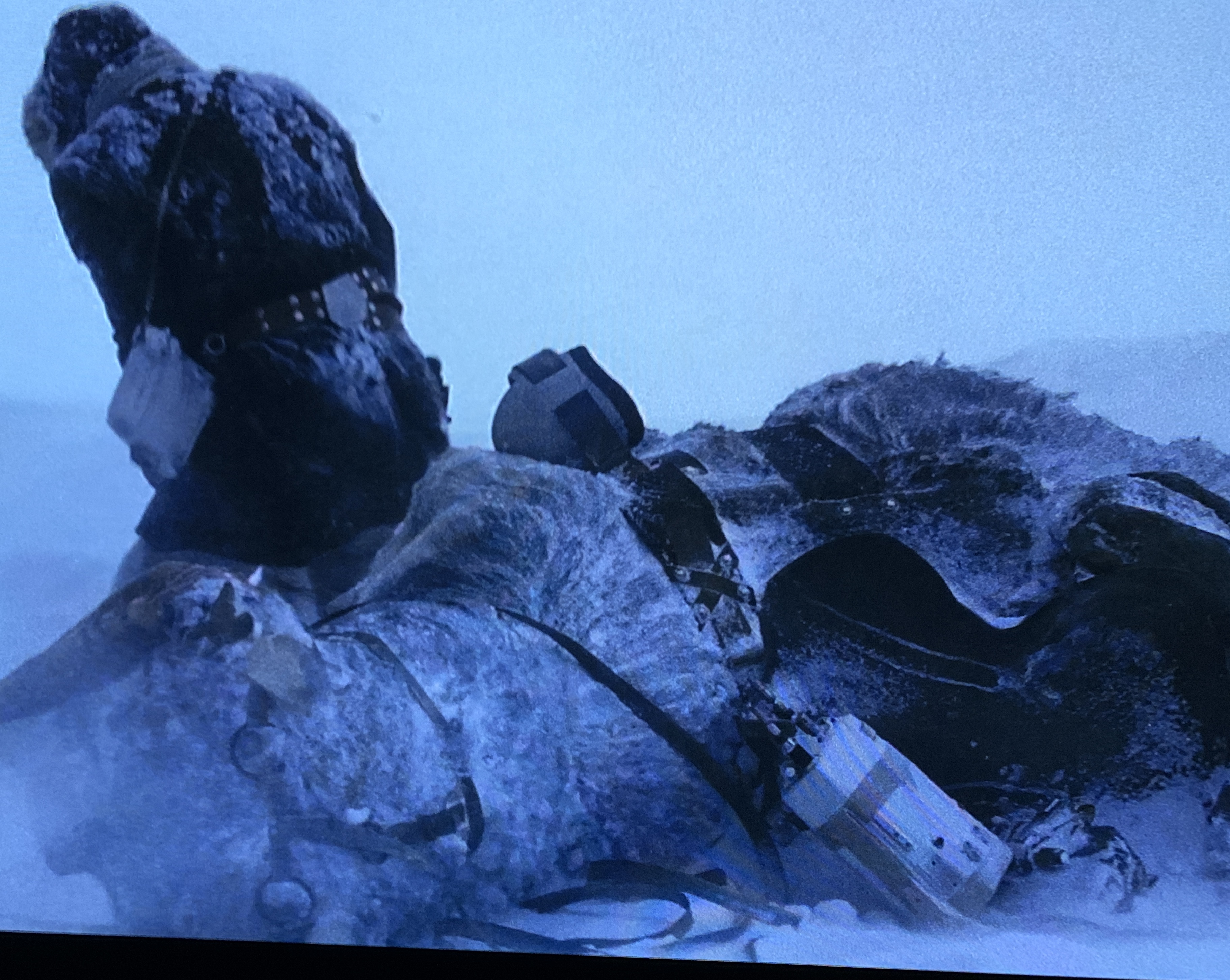

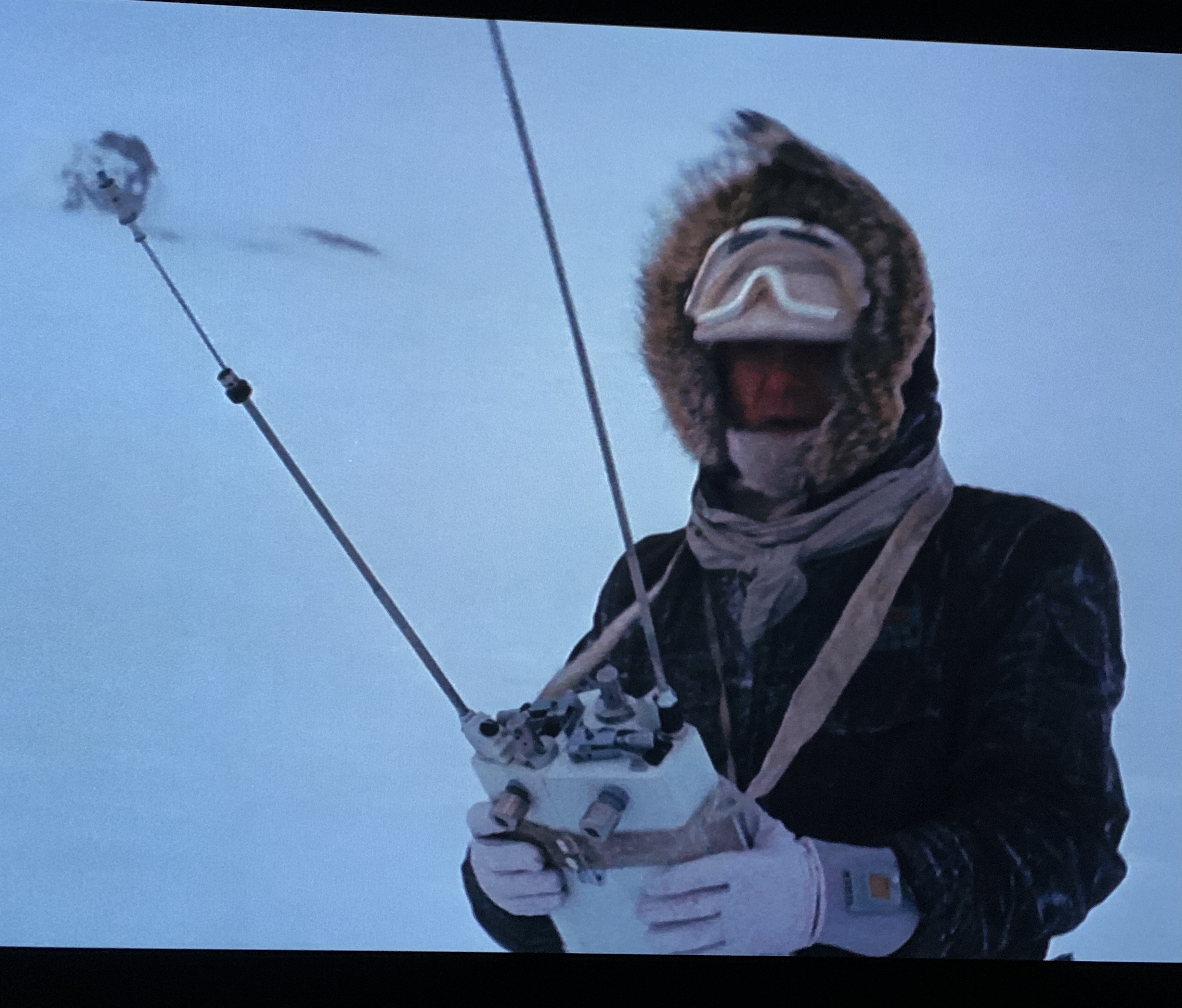

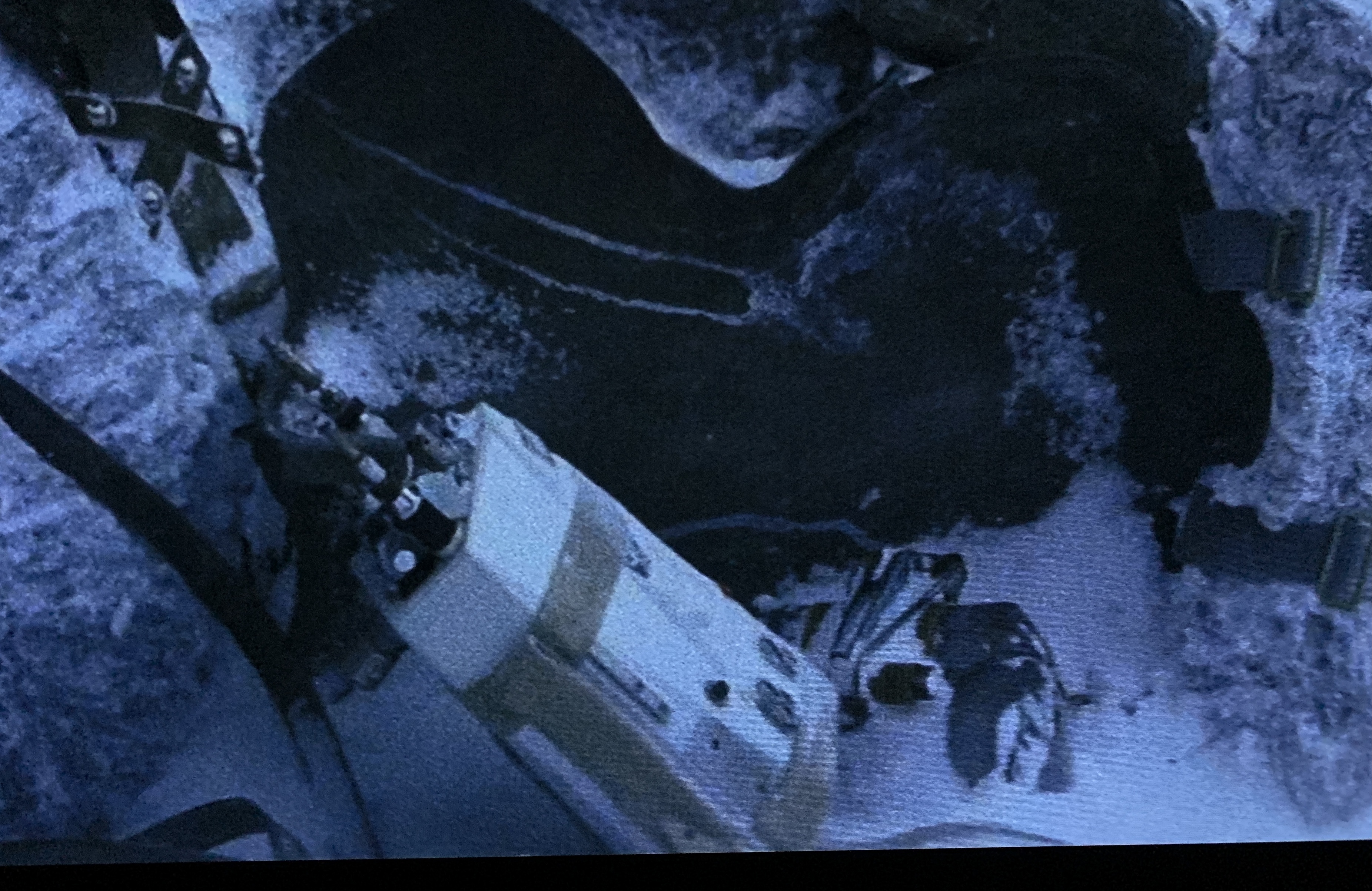

I have the 4K but I don't have a way to capture good screenshots, so these are simply taken with my phone pointed at the TV, until we have something better. Notice that when he is putting Luke inside the Tauntaun, we get one of our only views of the antenna's pushed back down.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

bobasfett

Well-Known Member
Just wanted to show an update of what I've created so far.

This time I've done the antenna pieces. I used the photos posted here and elsewhere on the net.

I also think, and this is only a guess, that the round multi layered black disk thing is probably a heavily hacked up "Hawker Tomtit radial engine cylinder". It's like it was cut up and flipped around and the badly glued together.

What do you think? View attachment 1441207 View attachment 1441208
Looks good. Are you scaling everything on the PL259 fitting?

I figured the black fins were just stacked washers. I think your idea has some merit for sure, but seems like the OD of it is smaller than the Tomtit part. I don't have any available to check. What is your OD of the fin part?


Elysia

New Member
Looks good. Are you scaling everything on the PL259 fitting?

I figured the black fins were just stacked washers. I think your idea has some merit for sure, but seems like the OD of it is smaller than the Tomtit part. I don't have any available to check. What is your OD of the fin part?
I have no idea what OD means. ;)

I actually scaled everything from the diameter of the Antenna rod. I know those measurements, so it made sense to do it from that.


Elysia

New Member
Ah nevermind lol

OD=Outer Diameter

Gees... lol

Anyhow. I do have an accurate 3d model of it, but not a physical part just yet, I will be getting one in a month or so. So I'll know for sure then.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

bobasfett

Well-Known Member
Ah nevermind lol

OD=Outer Diameter

Gees... lol

Anyhow. I do have an accurate 3d model of it, but not a physical part just yet, I will be getting one in a month or so. So I'll know for sure then.

Yes OD is outer diameter. What did you come up with?

Also I think you should scale from the connector as well and just compare the result with the antenna scaling. Will give you two points of reference....just to be 100% sure


Elysia

New Member
BTW.

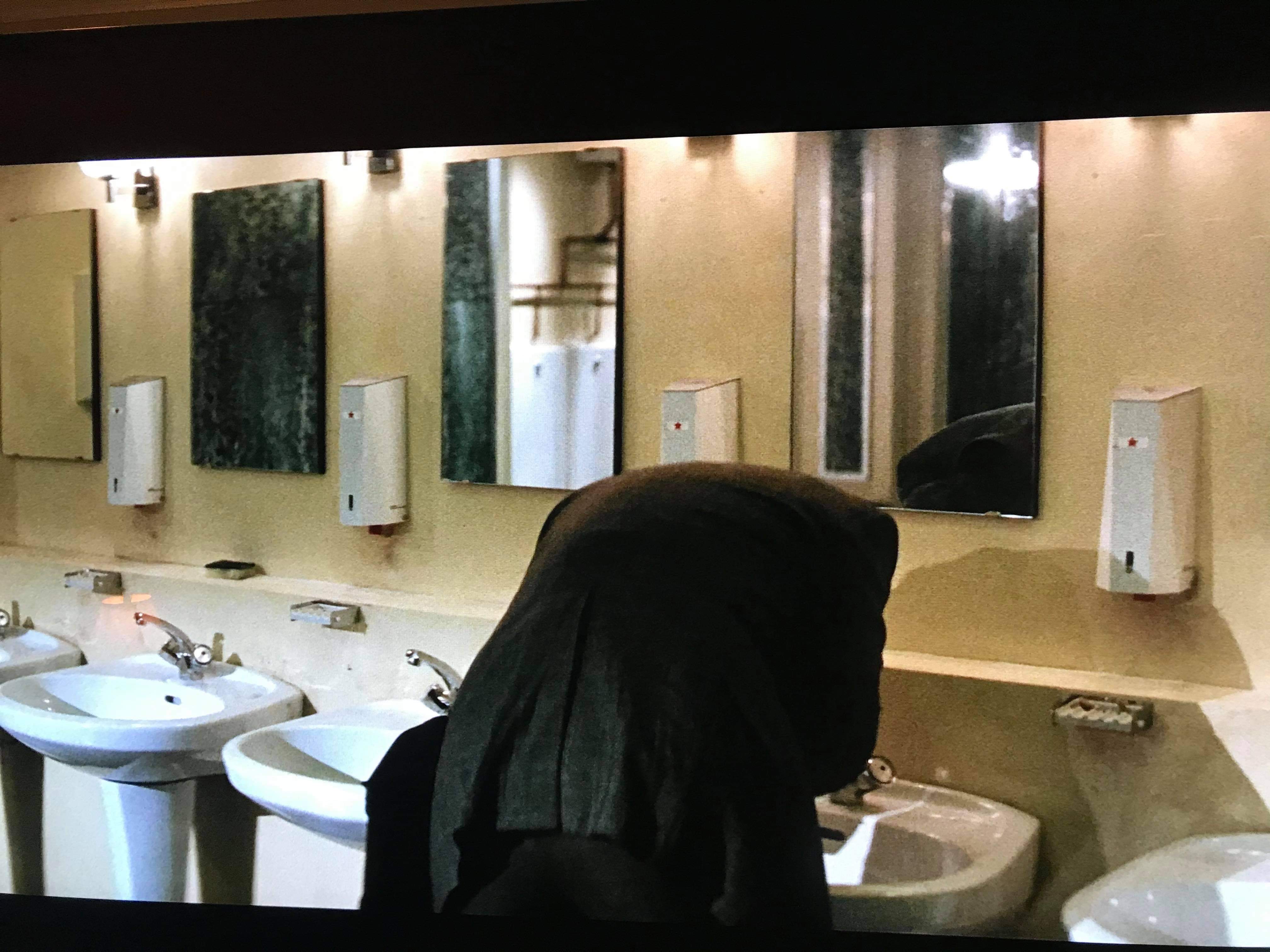

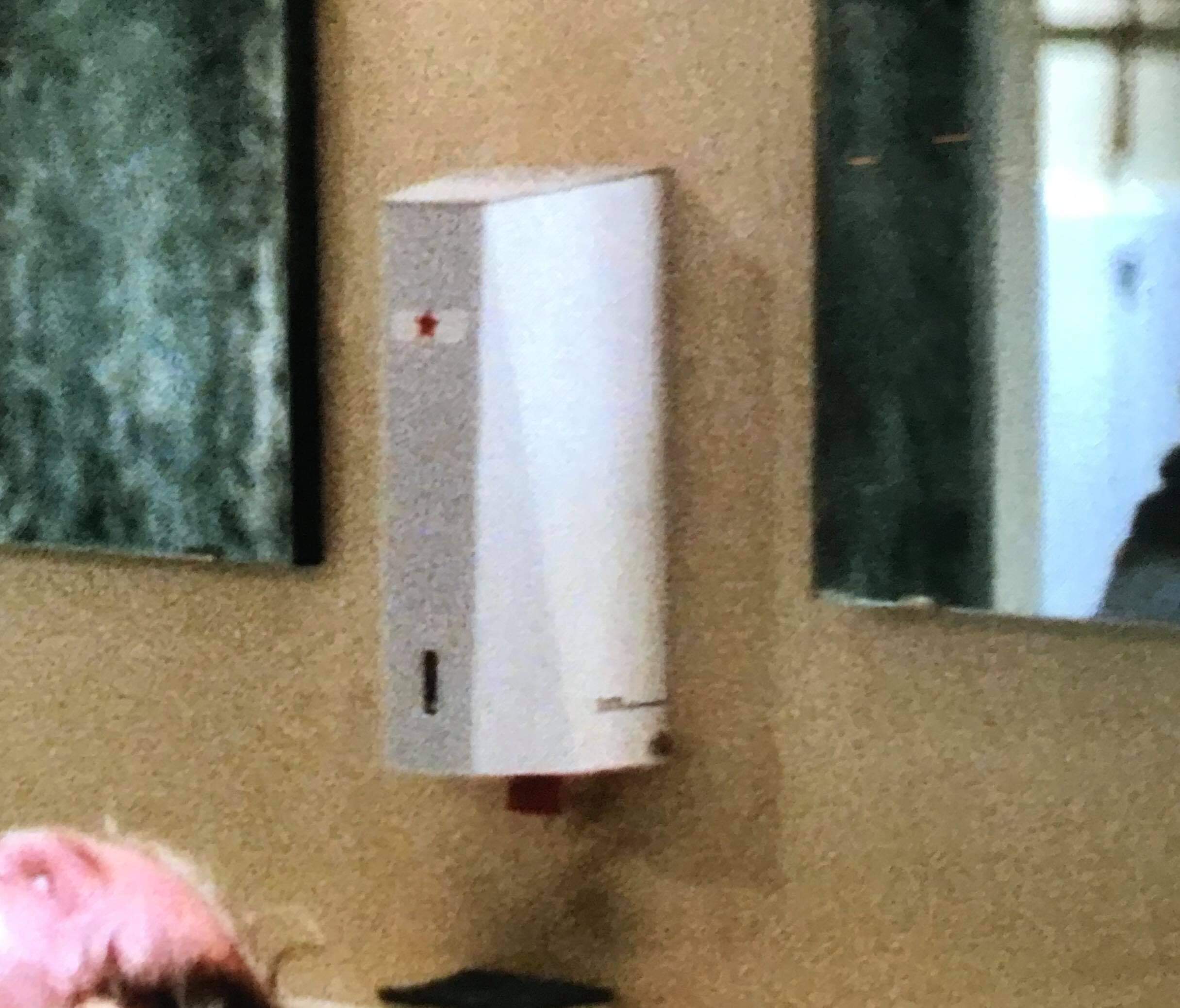

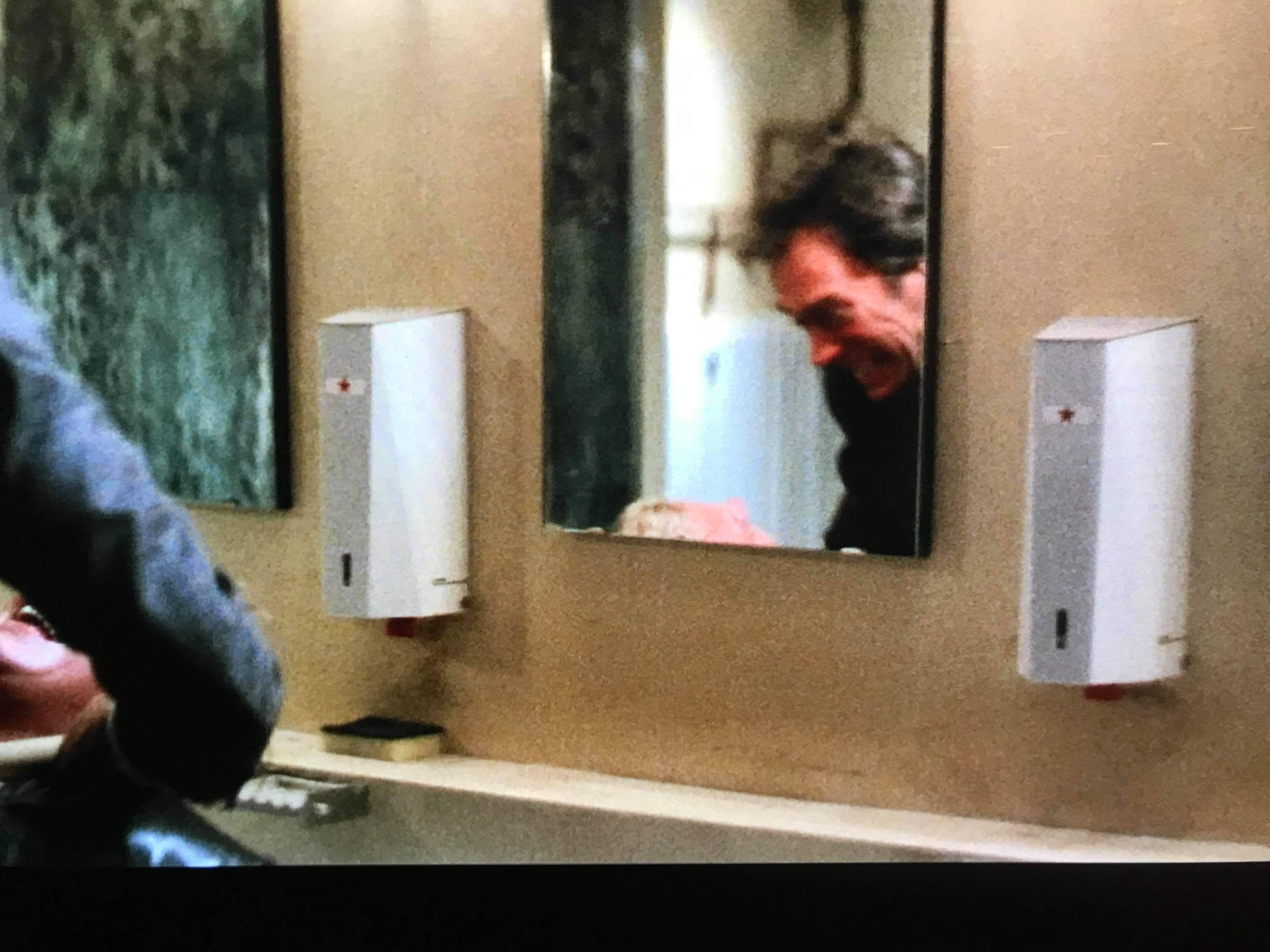

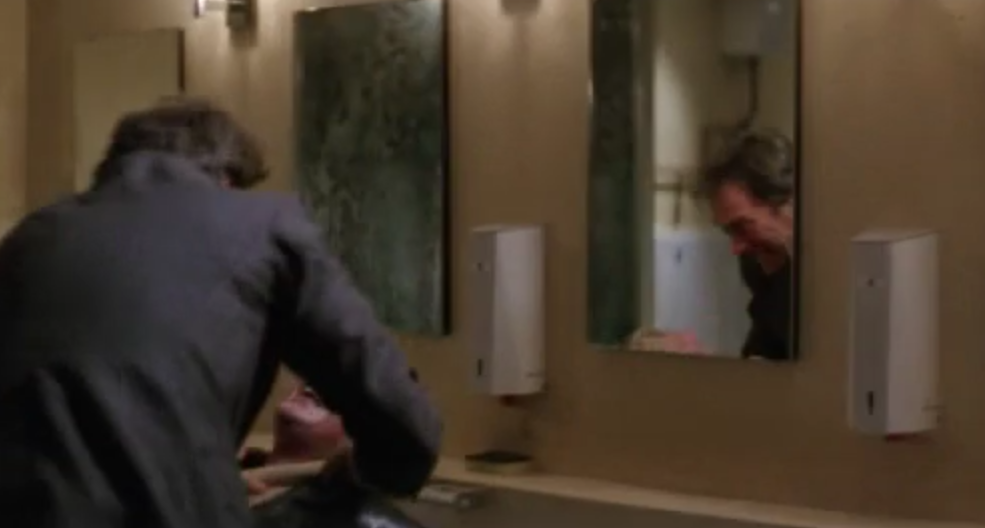

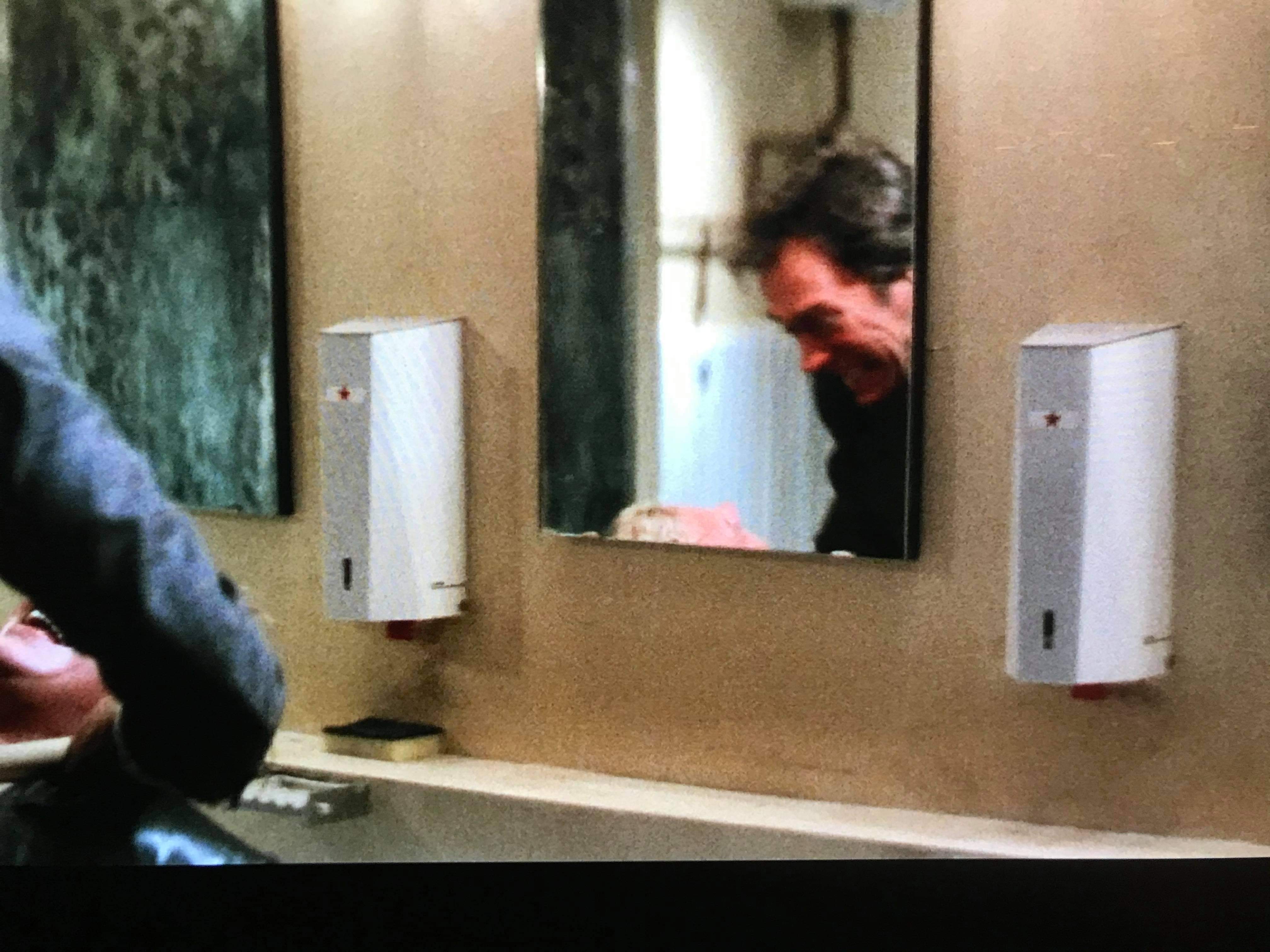

I was very fortunate to be contacted from someone in this group saying that they had this dispenser and was willing to send me the measurements. And I have to tell you, I was literally 0.5mm to 2mm off on a few areas.
