Hello everyone,
Started two years ago the Ecto goggles project with sound effects and internal display.
For electronics, here is my RPI who running my python program.

and here is the construction of the ecto goggles.

So, I started with the nickatron frame
http://www.nickatronprops.co.uk/products-page/ecto-goggle-parts/ecto-goggle-frames

and I worked on it.




Two holes were perforated.



This is the system to setup the video glasses and adjust to have the best view.



And I put the green paint.

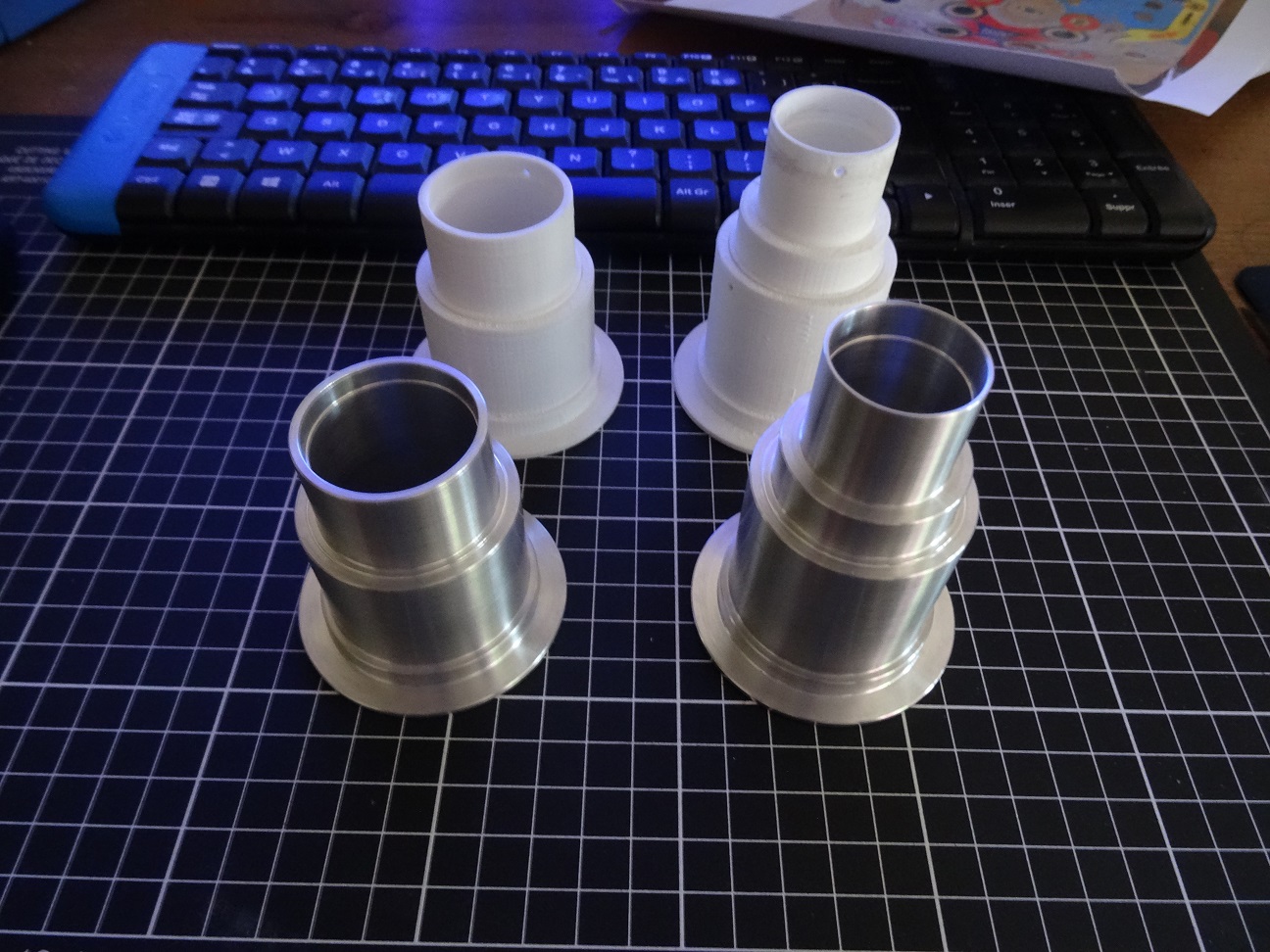

After that I called a driller to make lenses


The white lenses were printed in ABS(with the 3d printer) to make a preview
I put the 9v Battery in the smallest lense and the camera in the other.
The downside of the lense were painted in black.

I printed some piece of the Ecto goggles, to hold the goggles with my head, I bought a head strap from amazon.

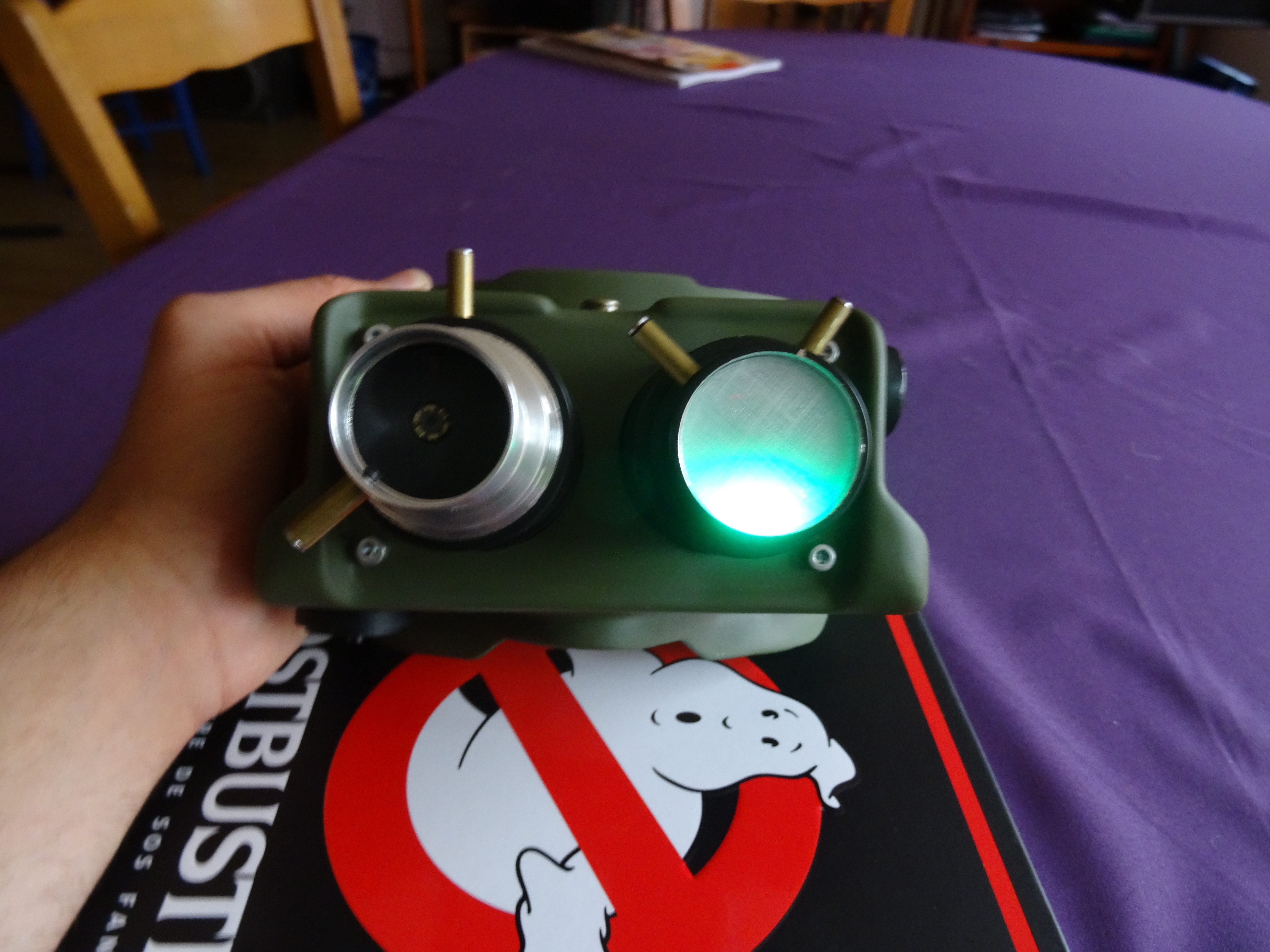

And I finally Mounted the All.

View attachment DSC02764.JPG View attachment DSC02765.JPG View attachment DSC02767.JPG View attachment DSC02768.JPG View attachment DSC02769.JPG View attachment DSC02770.JPG

Here is the video :



[Halliwax]

unbelievable!!!! wicked job!!



[protongamer]

Thanks !
