Duomaxwell1017's Adventure into 3D printing starting with Iron Man Mark XXXIX Starboost

duomaxwell1017

New Member
After years of saving Christmas and birthday money, I was finally able to save up enough money to buy my first 3d printer. I found a great deal on Amazon for a CR-10s V2. CR-10S V2. I've always wanted to get a 3D printer since my best friend Barrett Pote told me about them. I wish he was still here (died unexpectedly April 12, 2017). I know he would be excited that I was able to get a 3D printer. So far for the printer I've upgraded the build plate with a new build plate from th3d.com, and I also updated to a metal feeder because the plastic one broke. I am still learning how to position the pieces before I print them. I've had multiple times where the print just failed. I also had 3-4 times where I ran out of filament, and I has to reprint the pieces. I am using Hatchbox 1.75mm PLA filament.

So the first Iron Man suit I am going to 3D print is going to be the Iron Man Mark XXXIX Starboost. I was able to get the files for Starboost for free from Starboost files.
so after messing around with the files in Cura and Meshmixer. So far I was able to print out

Right Palm
Both Hand toppers
Both forearms
Both Biceps
Both shoulders
Left elbow(need to resize and reprint)
I have about 50% of the chest and backpack done.

I have many other pieces scaled and ready to print.

This thread will be pretty pic heavy, with a few vids here and there.


duomaxwell1017

New Member

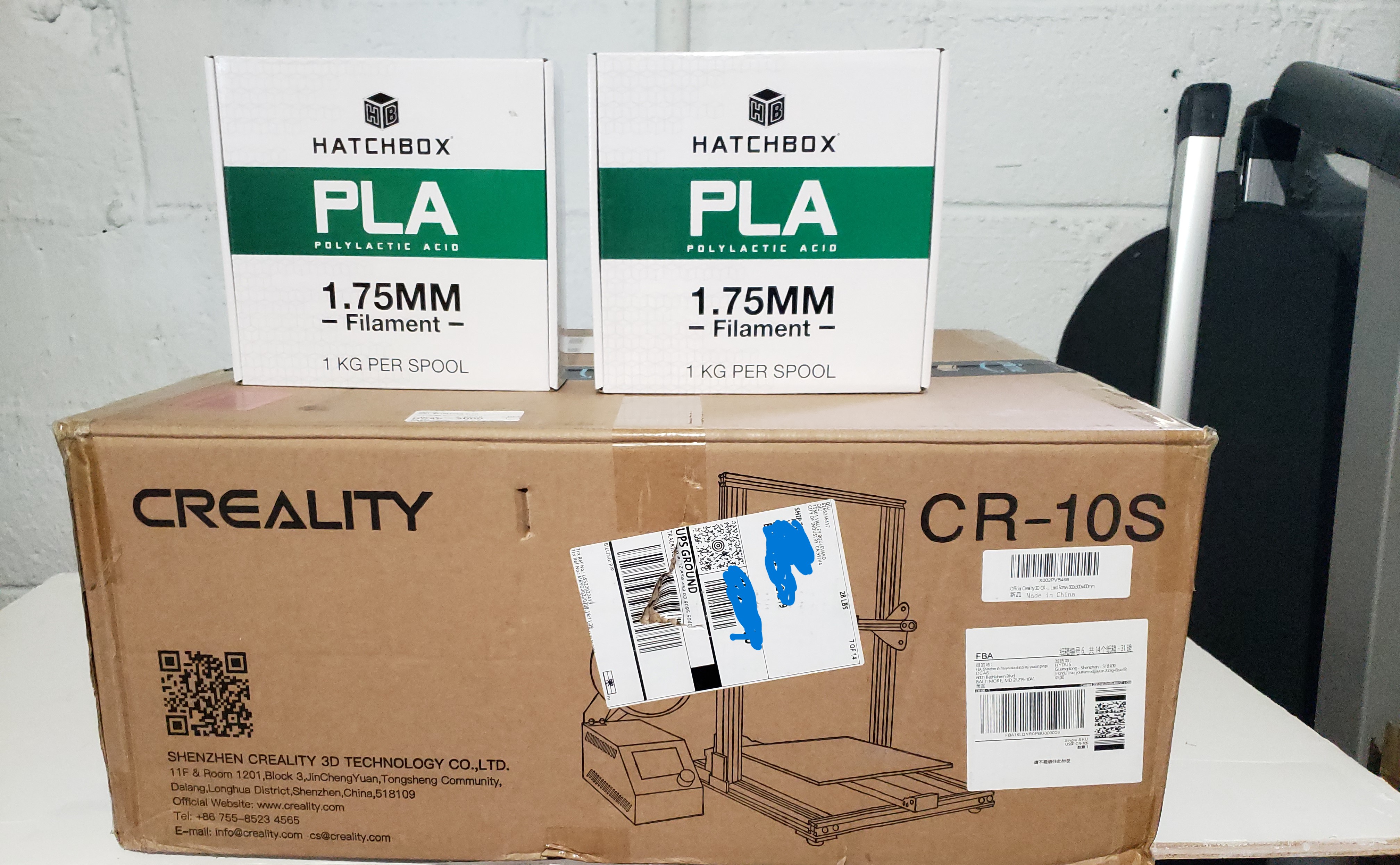

The 3D printer CR-10S V2. with 1.75mm Hatchbox filament. The filament prints nice and smooth.


Attachments

  • 20220519_183050 A.jpg
    20220519_183050 A.jpg
    1.7 MB · Views: 29

duomaxwell1017

New Member

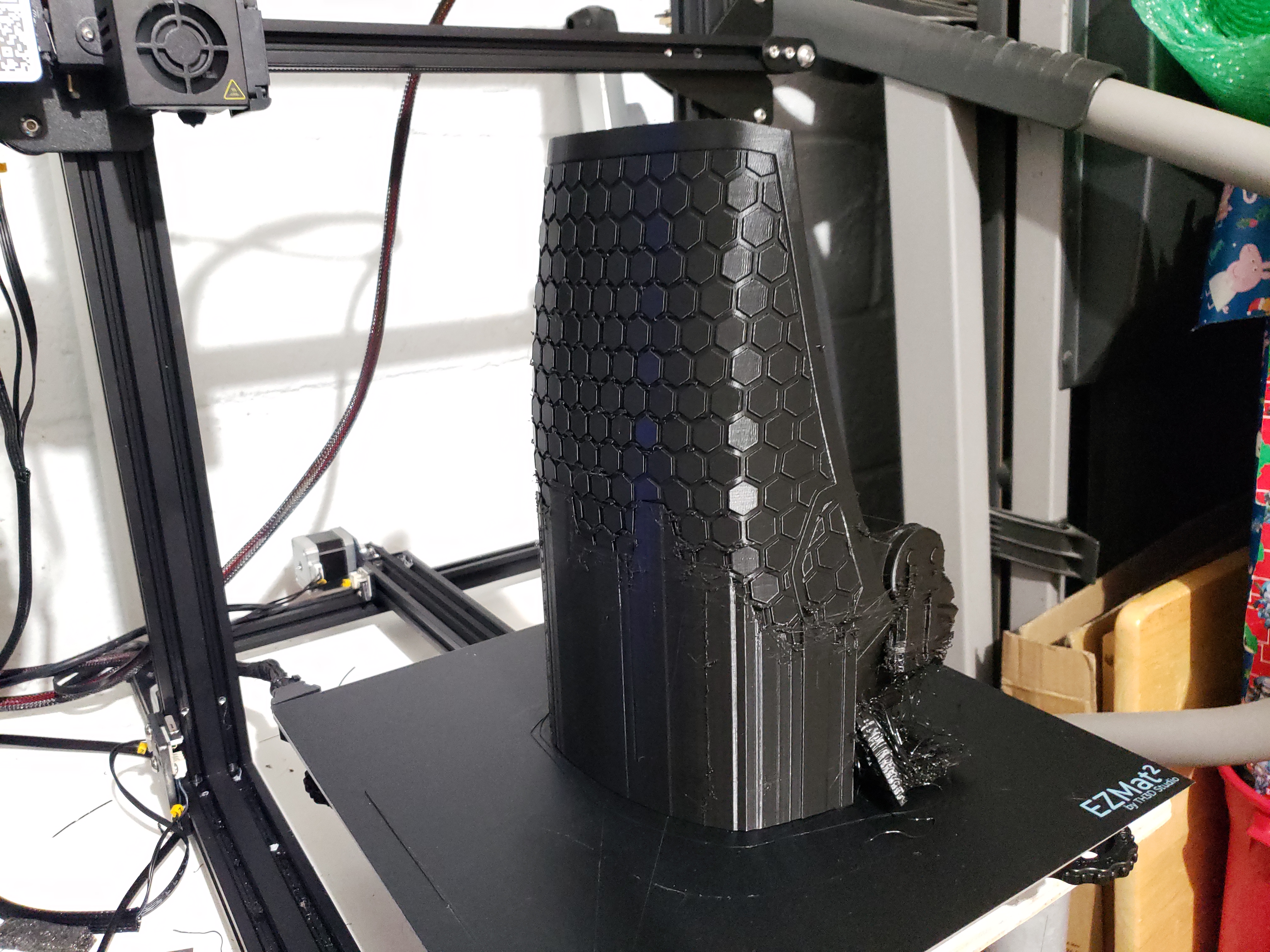

Iron Man Mark XXXIX Starboost Shoulder. Turned out amazing. The supports were a pain to remove.


Attachments

  • 20220704_222147.jpg
    3.7 MB · Views: 35
  • 20220704_222223.jpg
    1.6 MB · Views: 31

duomaxwell1017

New Member

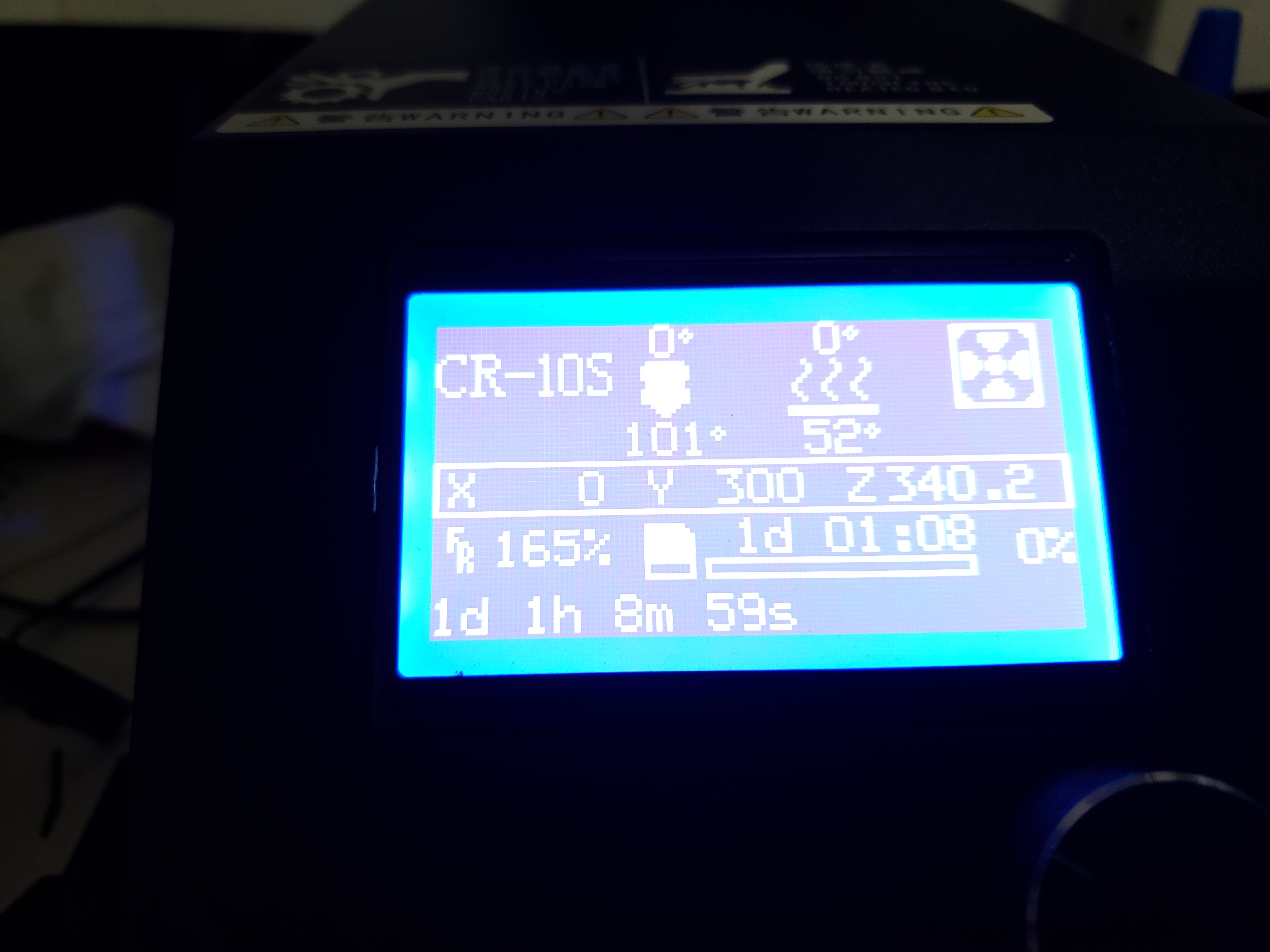

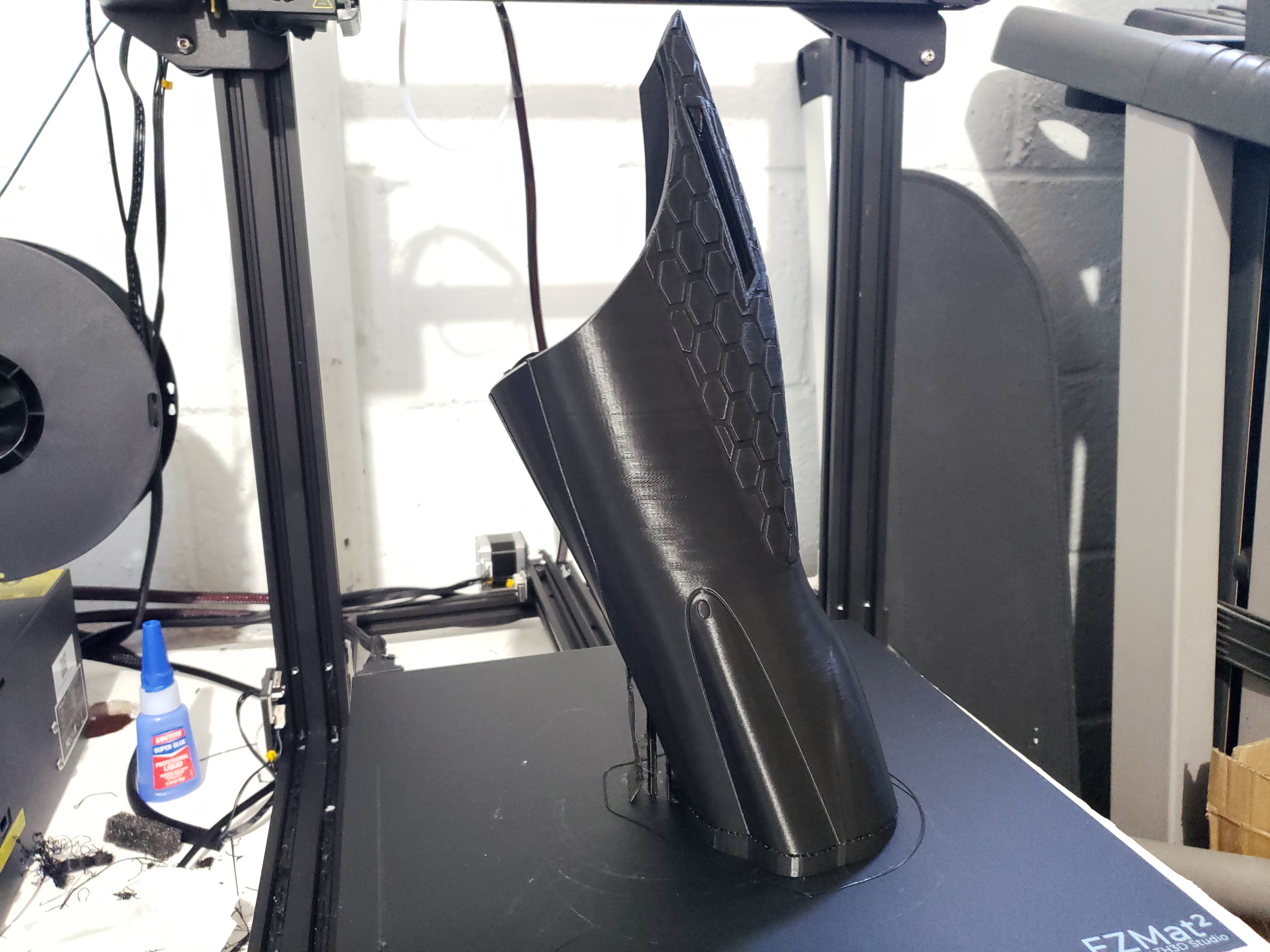

Iron Man Mark XXXIX Starboost forearm. First print has horrible layer lines, second print failed got knocked off the print bed. Third time was the charm!


Attachments

  • 20220714_074753.jpg
    1.5 MB · Views: 29
  • 20220714_074731.jpg
    3.2 MB · Views: 29

duomaxwell1017

New Member

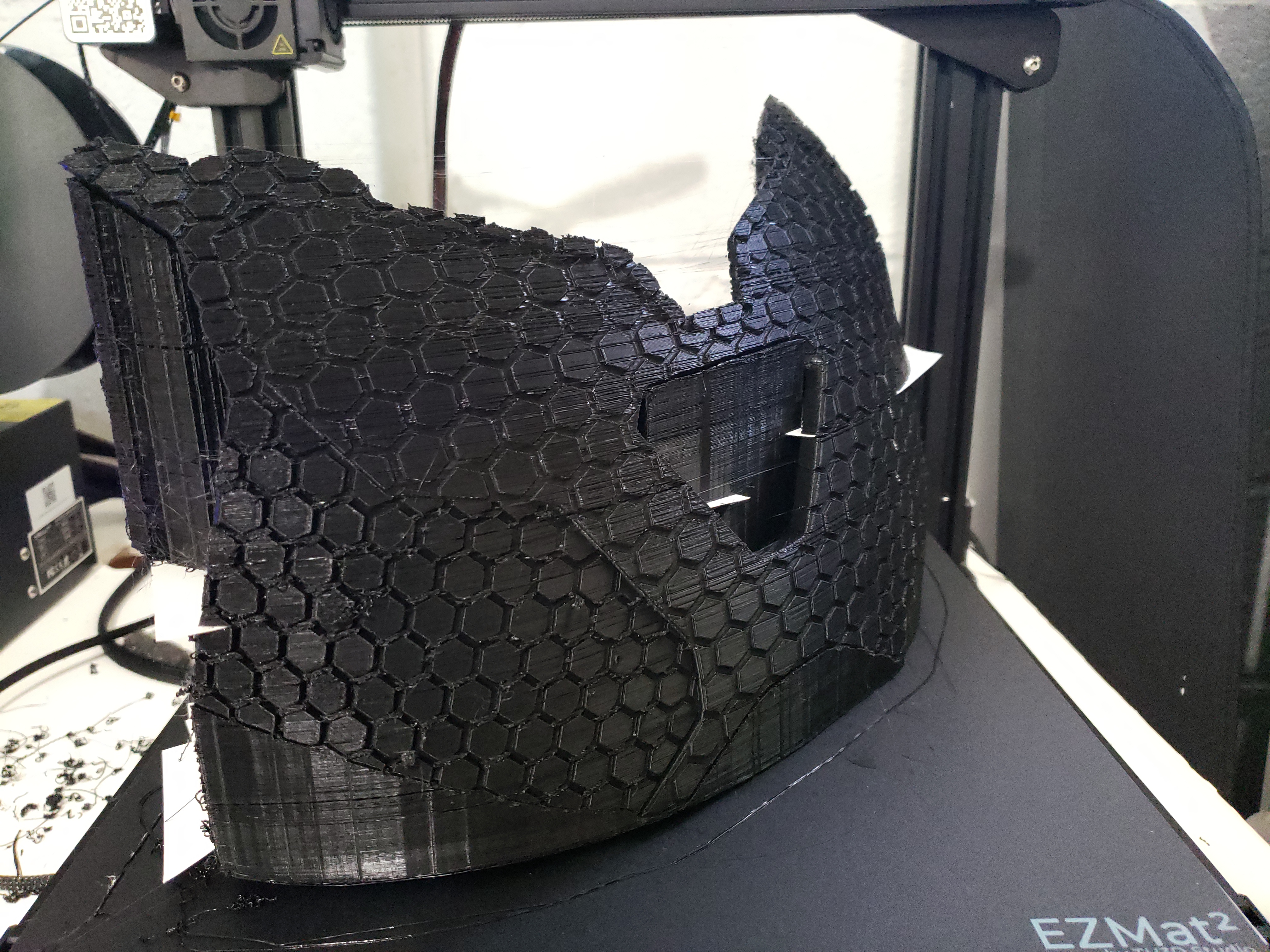

Iron Man Mark XXXIX Starboost Chest plate, failed print. I had multiple support failures. I tried using cardstock to reinforce the supports, but it ended up cause layer lines. Need to figure out a way to reprint this and have the hexagons sharp and clean.


Attachments

  • 20220730_183812.jpg
    2.6 MB · Views: 34
  • 20220730_183801.jpg
    4.2 MB · Views: 34

duomaxwell1017

New Member

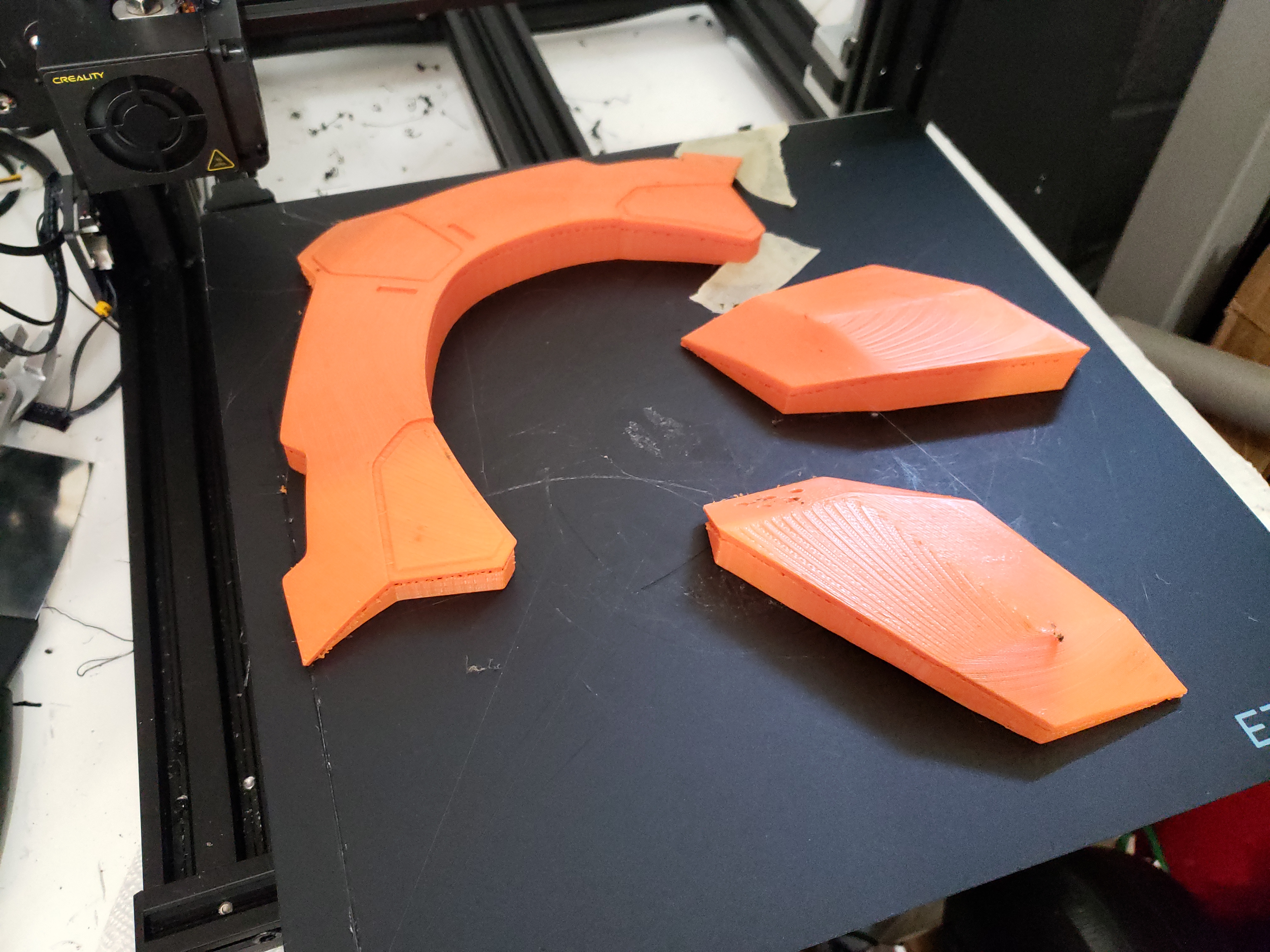

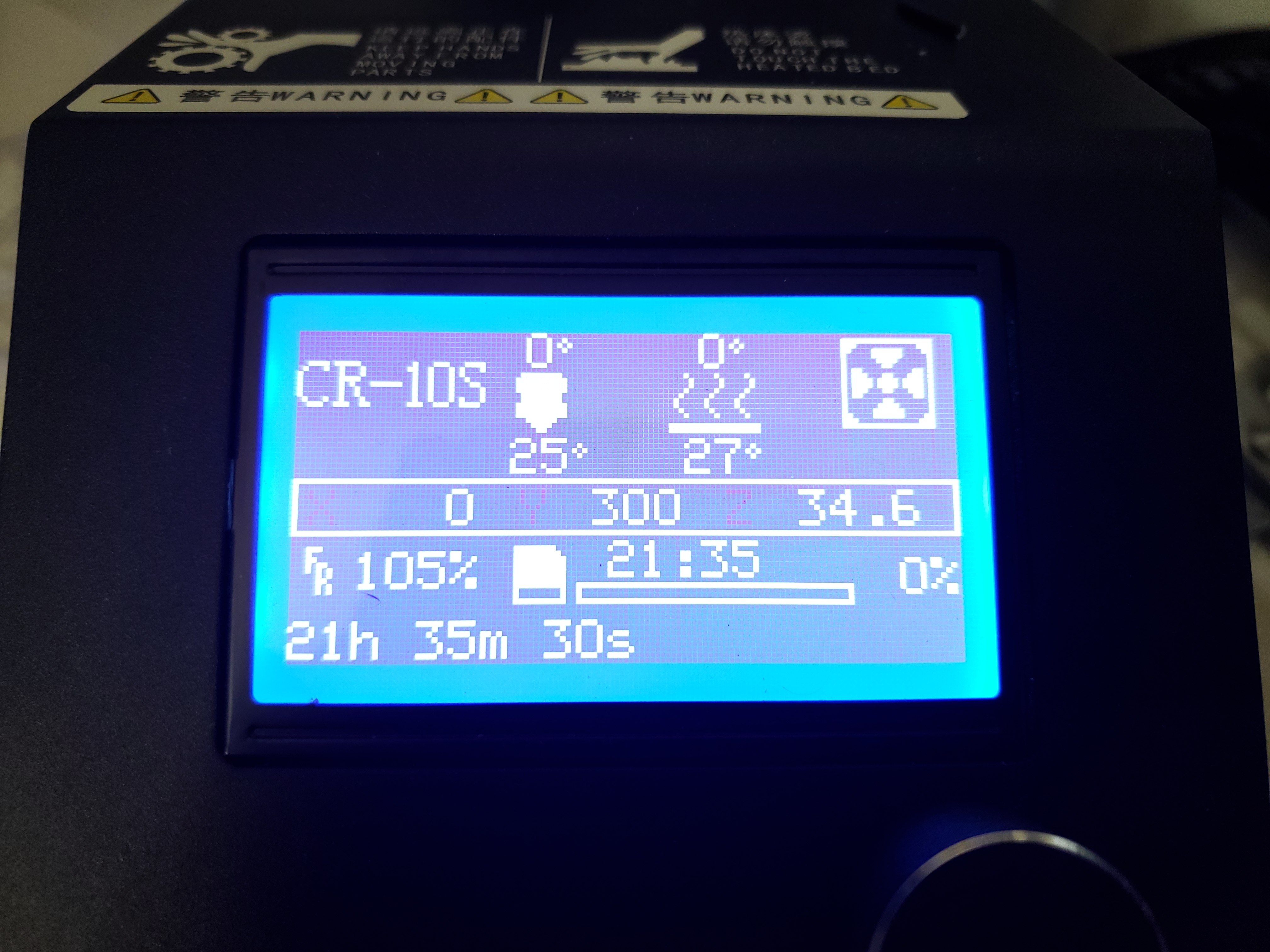

Iron Man Mark XXXIX Starboost upper chest, and chest vents. Love printing this in orange.


Attachments

  • 20220804_100158.jpg
    3.7 MB · Views: 30
  • 20220804_100234.jpg
    2.7 MB · Views: 29

duomaxwell1017

New Member

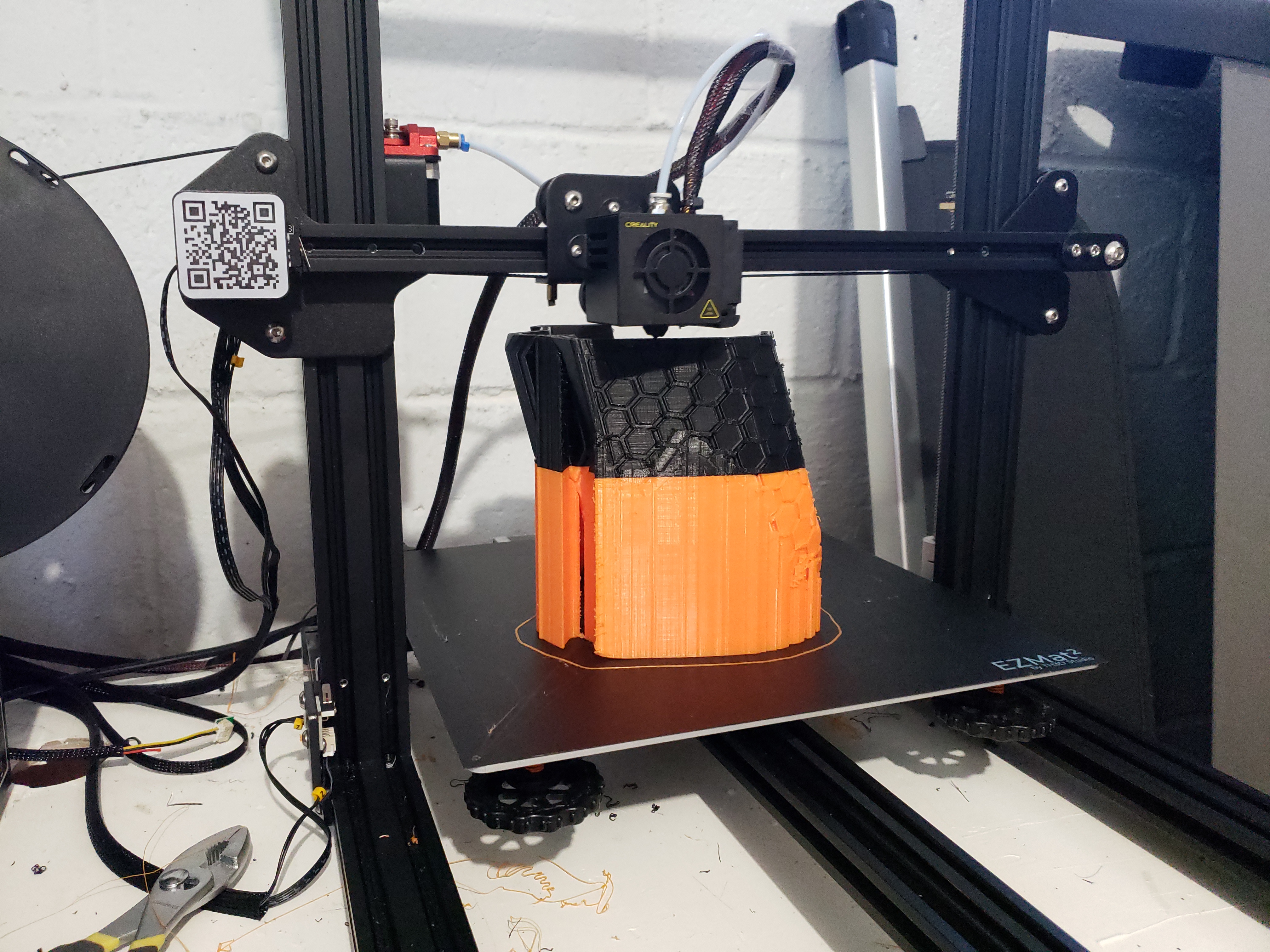

Iron Man Mark XXXIX Startboost right thruster.


Attachments

  • 20220812_170327.jpg
    2.3 MB · Views: 22
  • 20220812_170316.jpg
    3.8 MB · Views: 22
  • 20220810_084045.jpg
    3.8 MB · Views: 22

duomaxwell1017

New Member

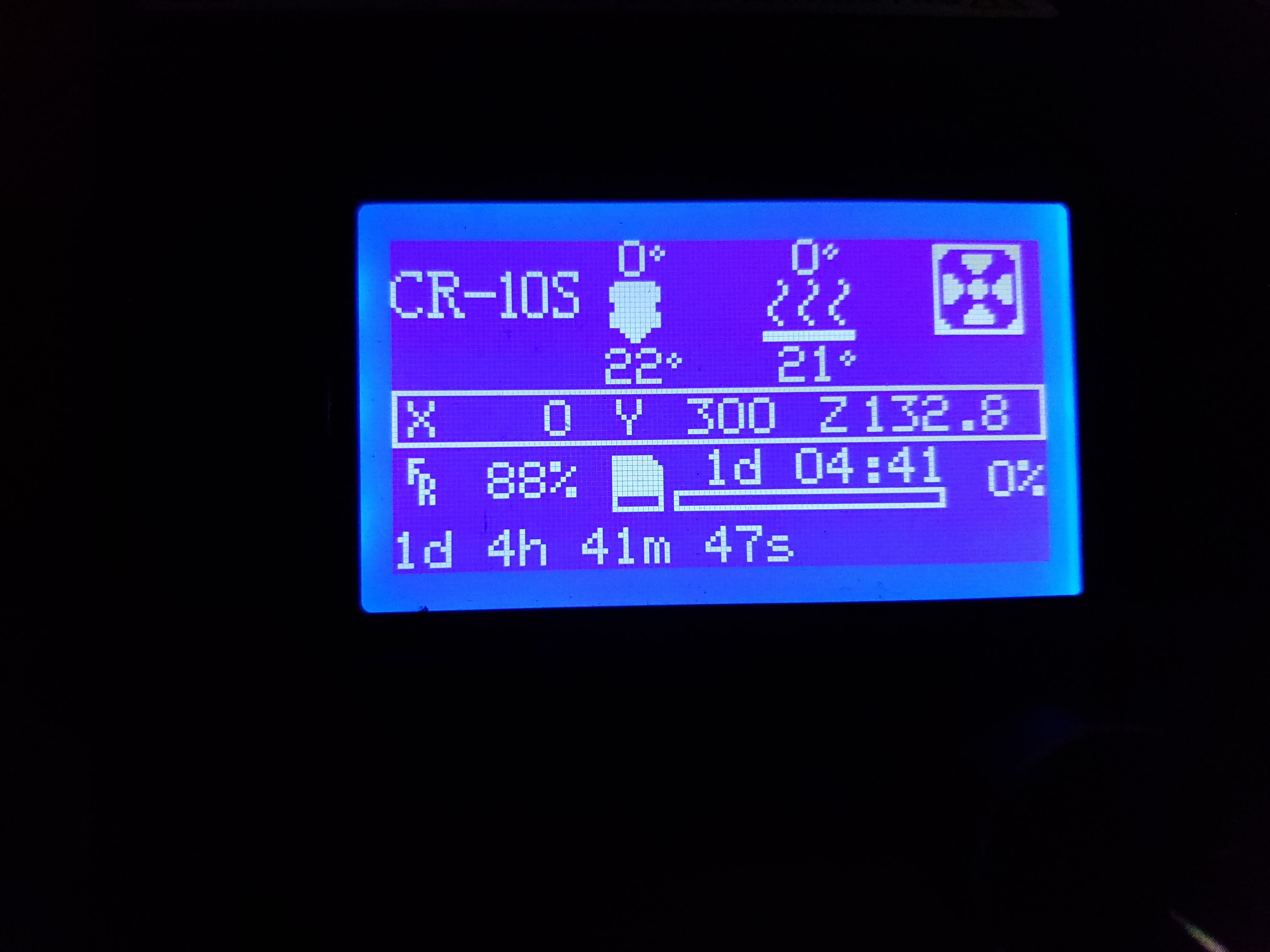

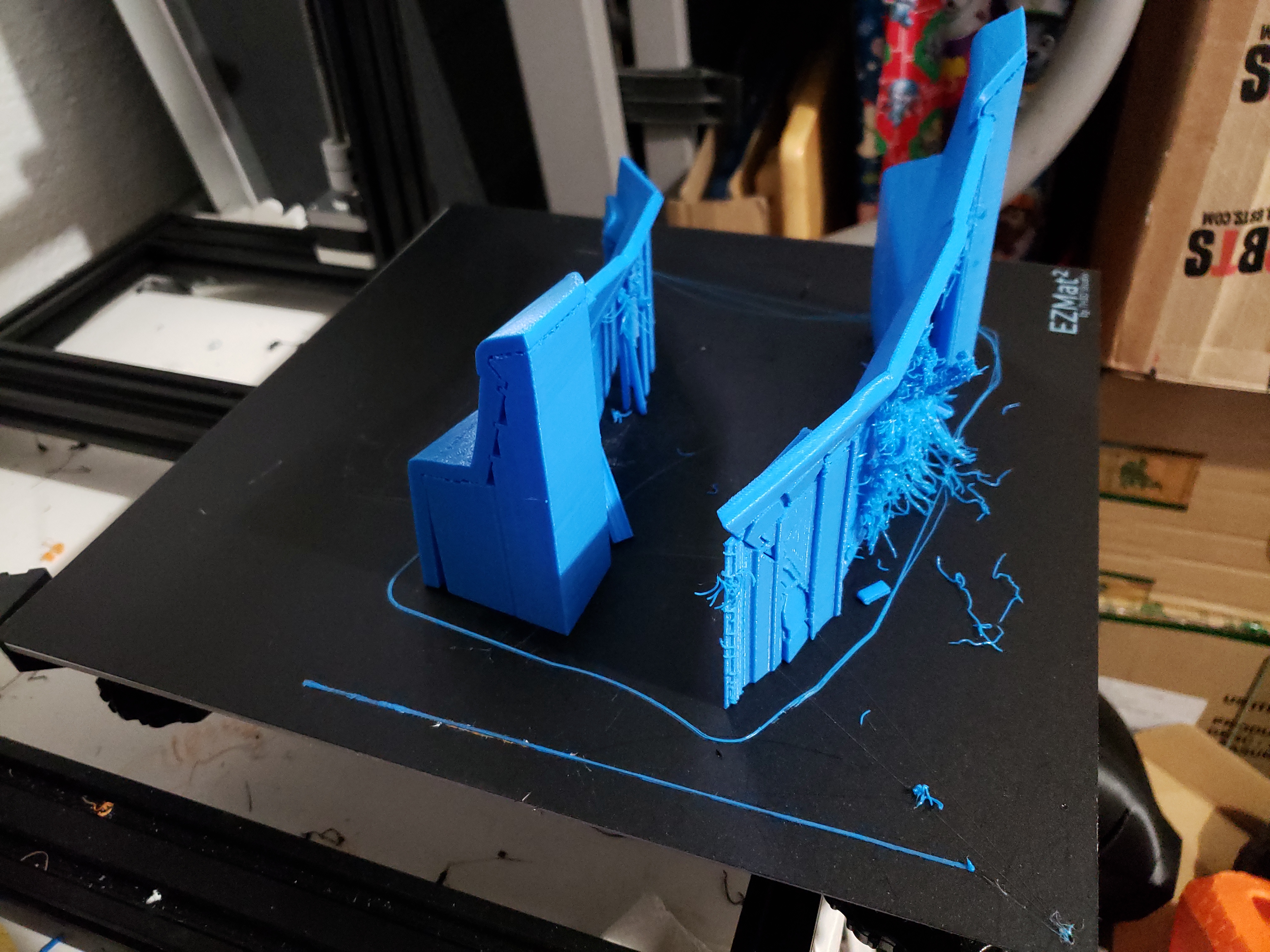

Iron Man Mark XXXIX Starboost center backpack lower part. I had to break up the center backpack into six pieces so I was able to print.


Attachments

  • 20220814_065856.jpg
    3.7 MB · Views: 23
  • 20220814_065908.jpg
    1.9 MB · Views: 23

duomaxwell1017

New Member

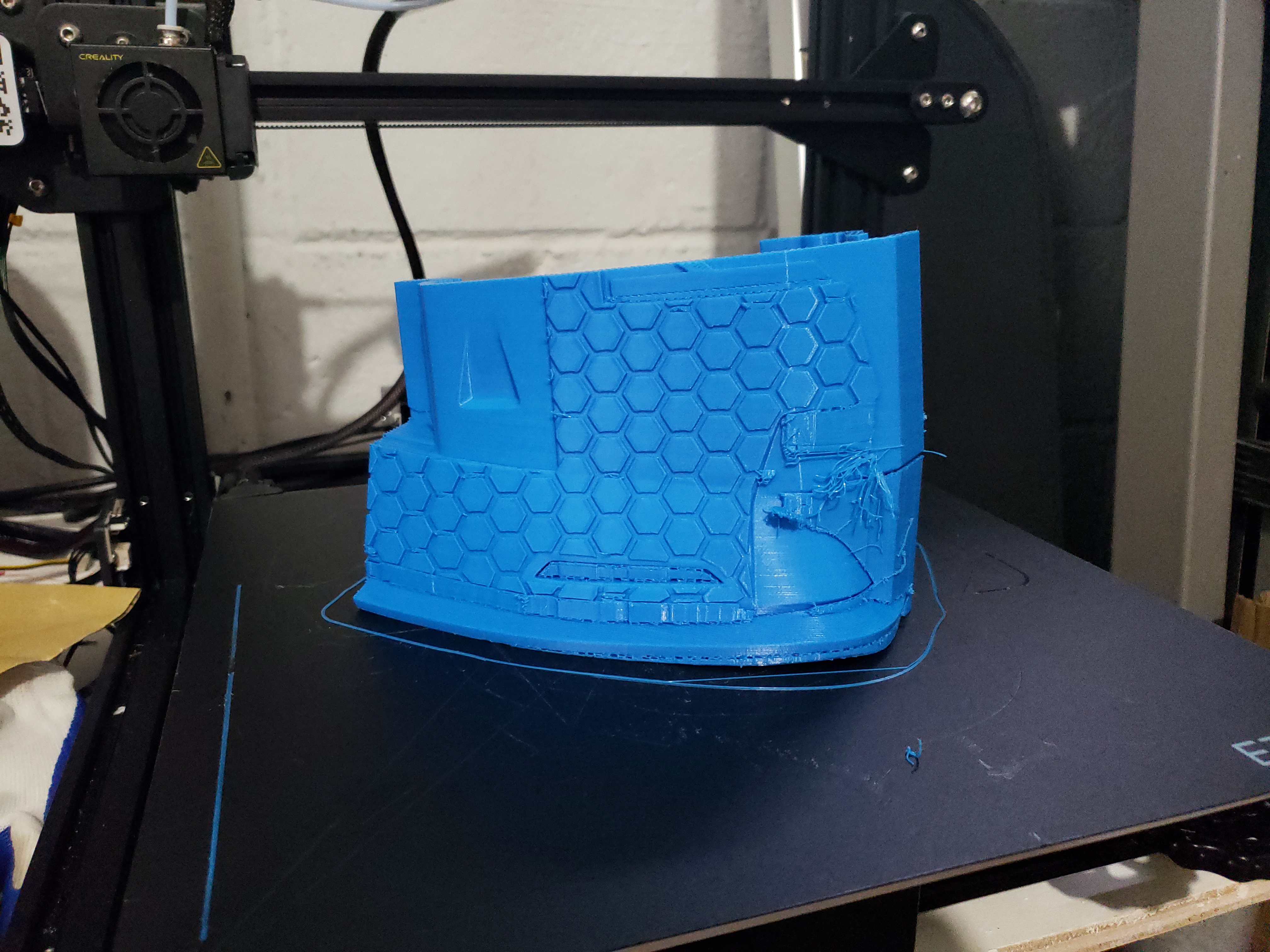

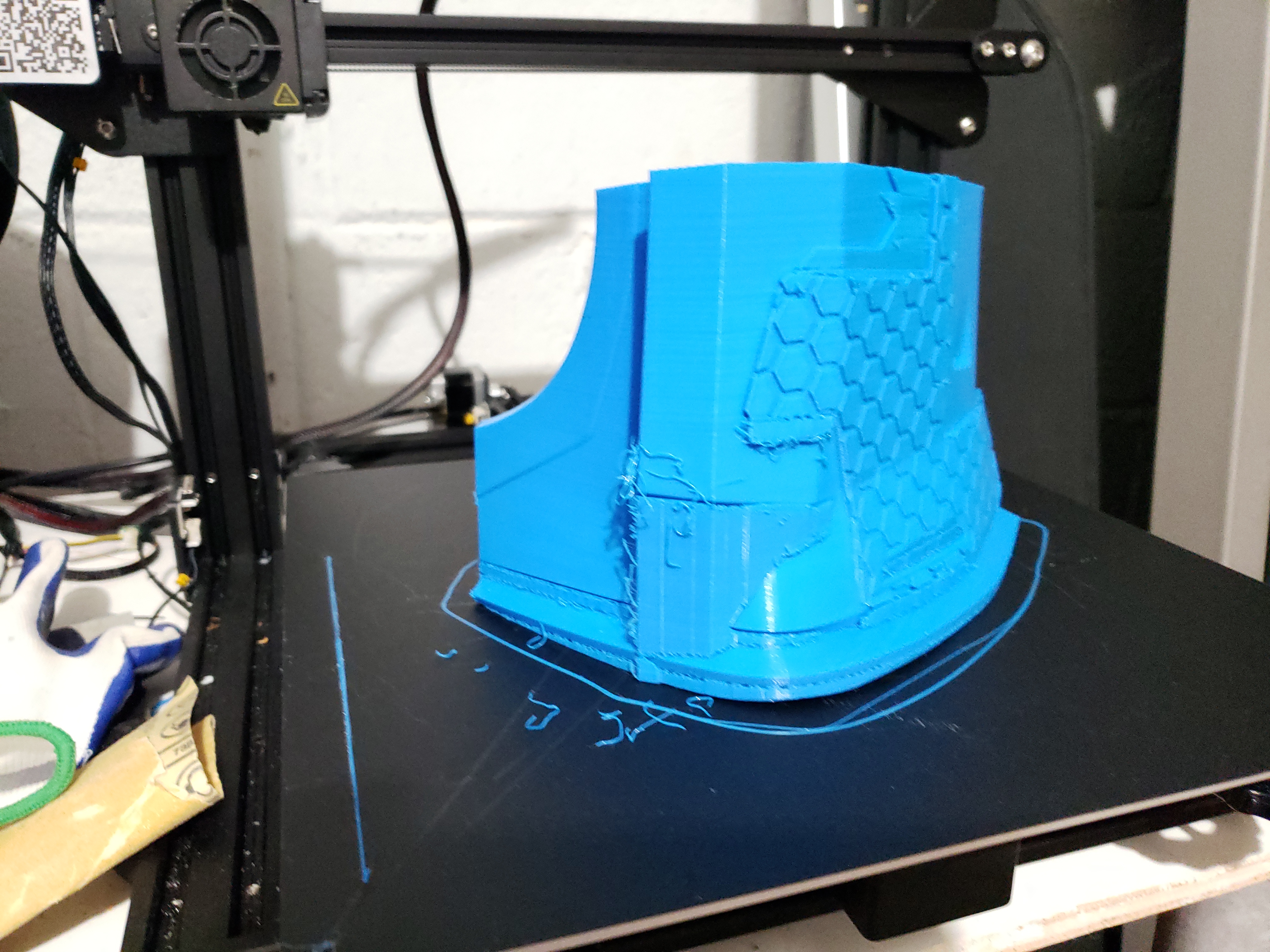

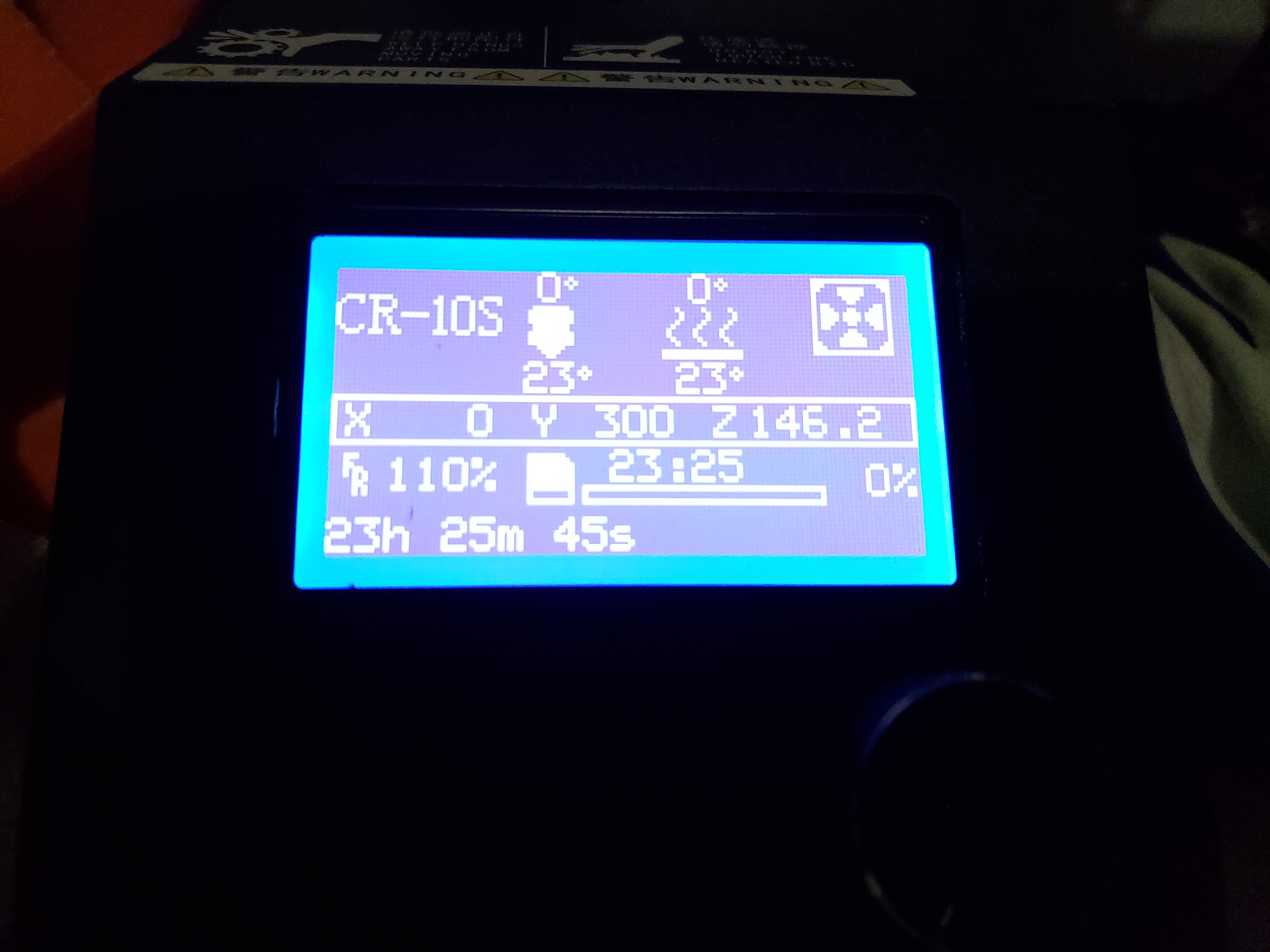

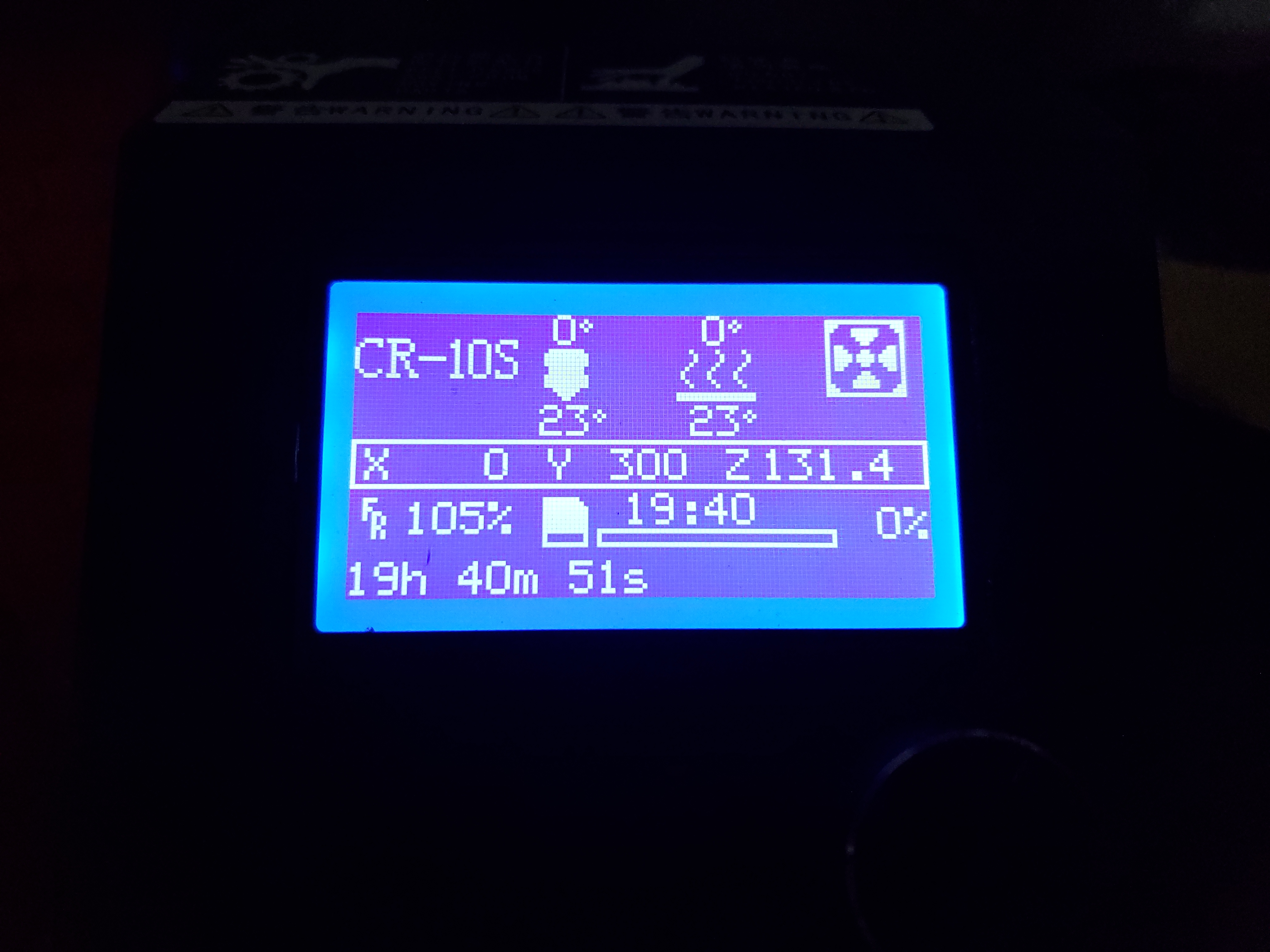

Iron Man Mark XXXIX Starboost backpack upper center parts


Attachments

  • 20220816_200208.jpg
    2 MB · Views: 26
  • 20220816_200200.jpg
    3.8 MB · Views: 24
  • 20220815_085944.jpg
    2 MB · Views: 21
  • 20220815_085935.jpg
    3.9 MB · Views: 23

duomaxwell1017

New Member

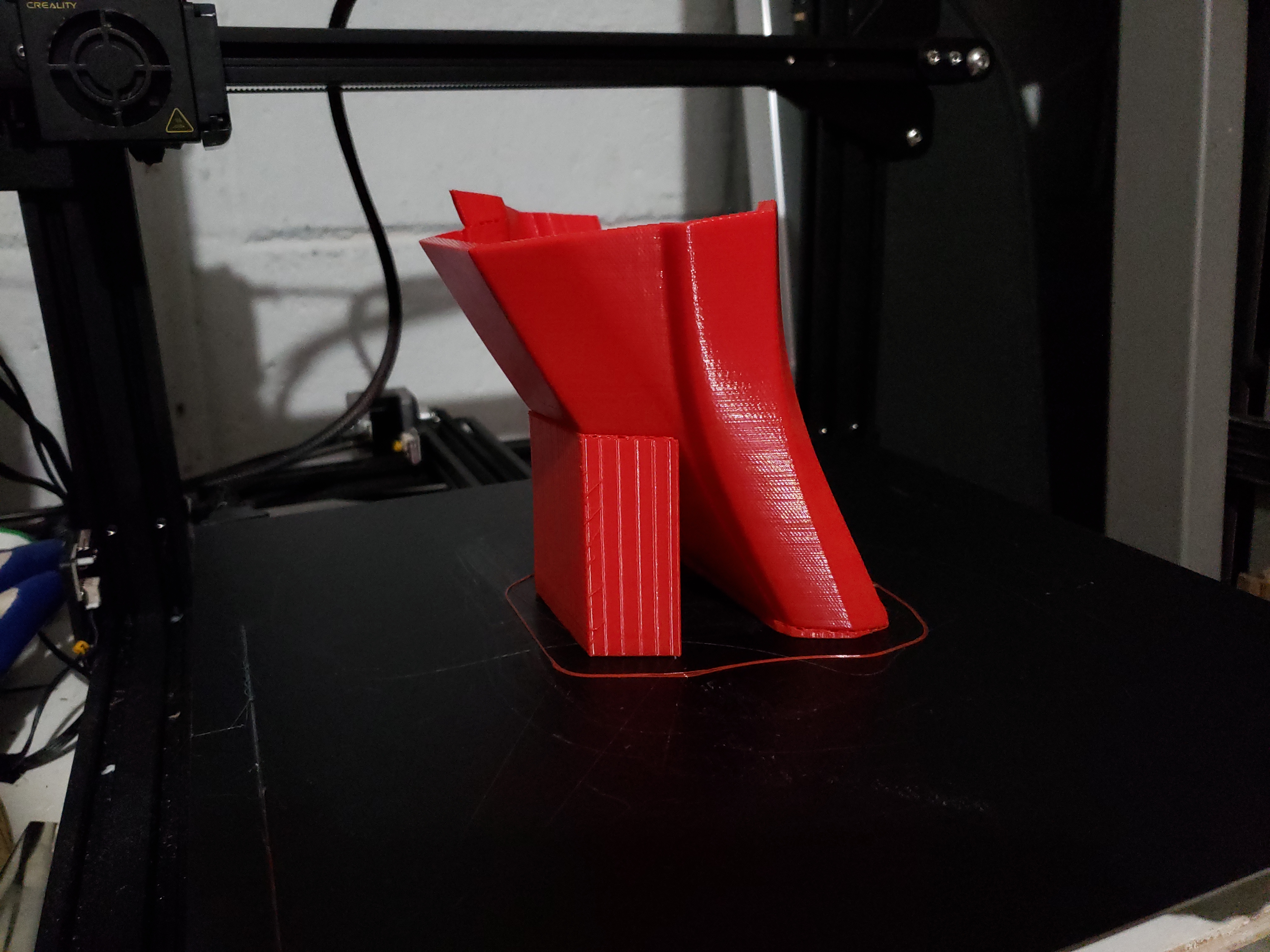

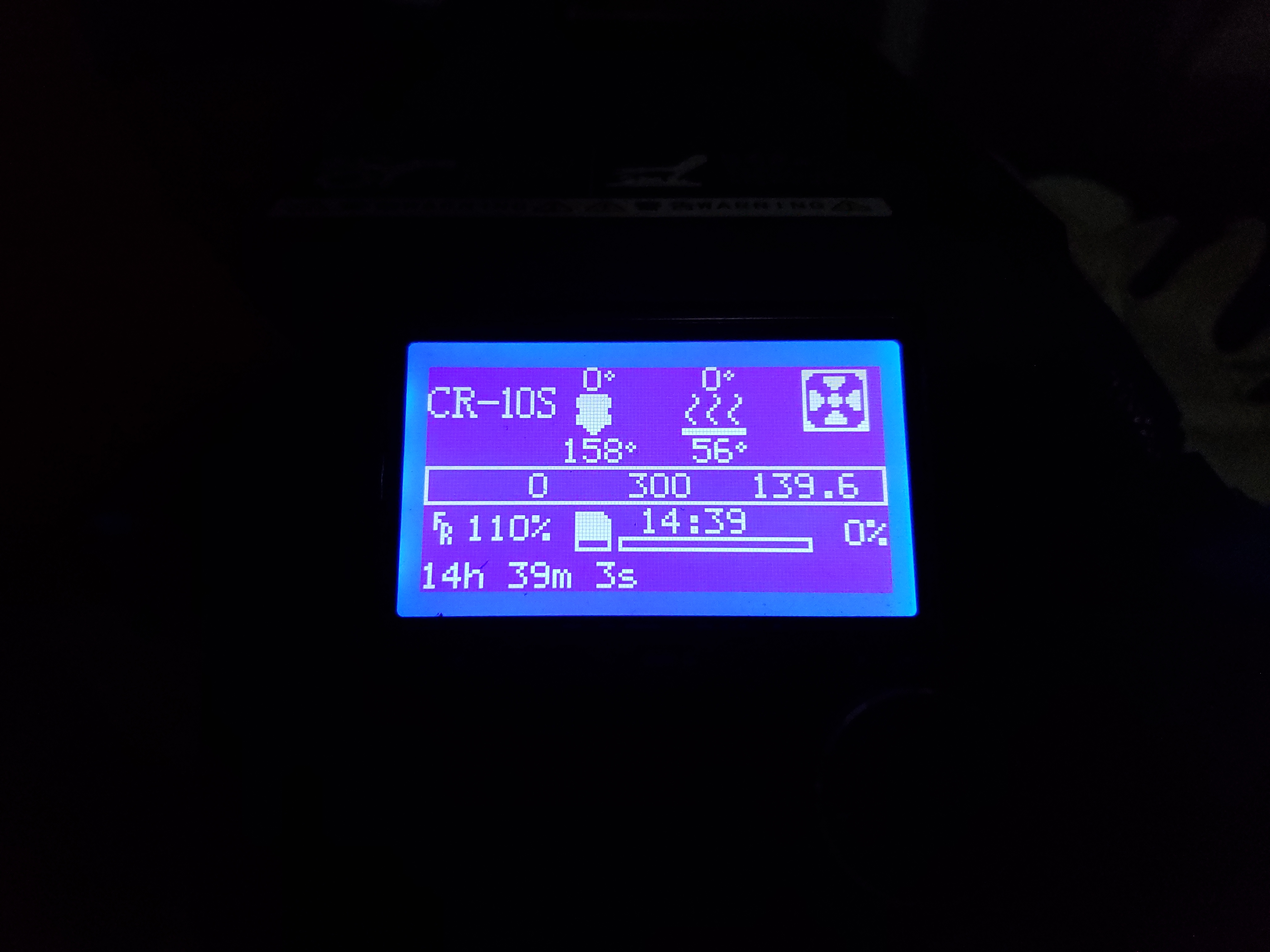

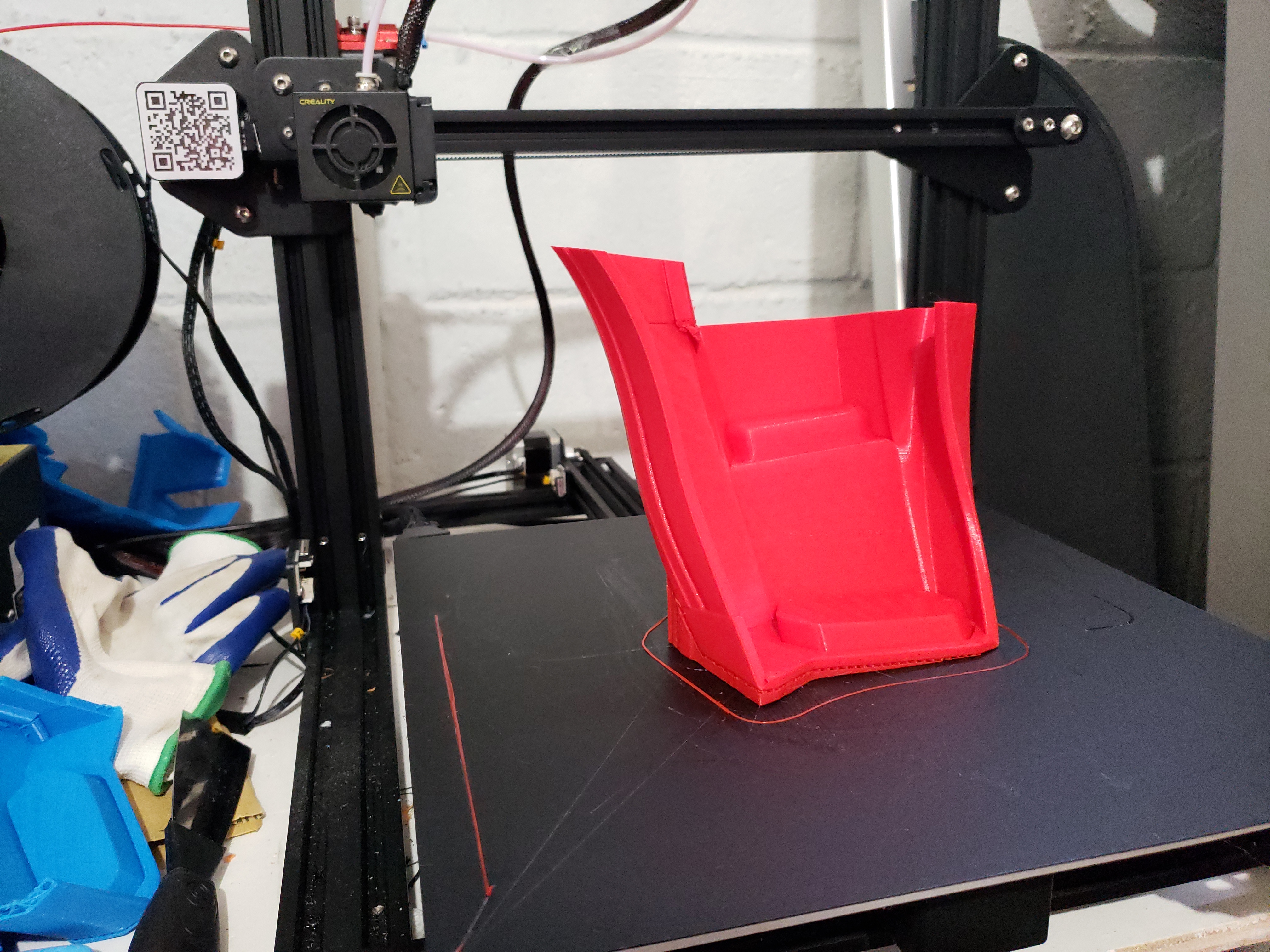

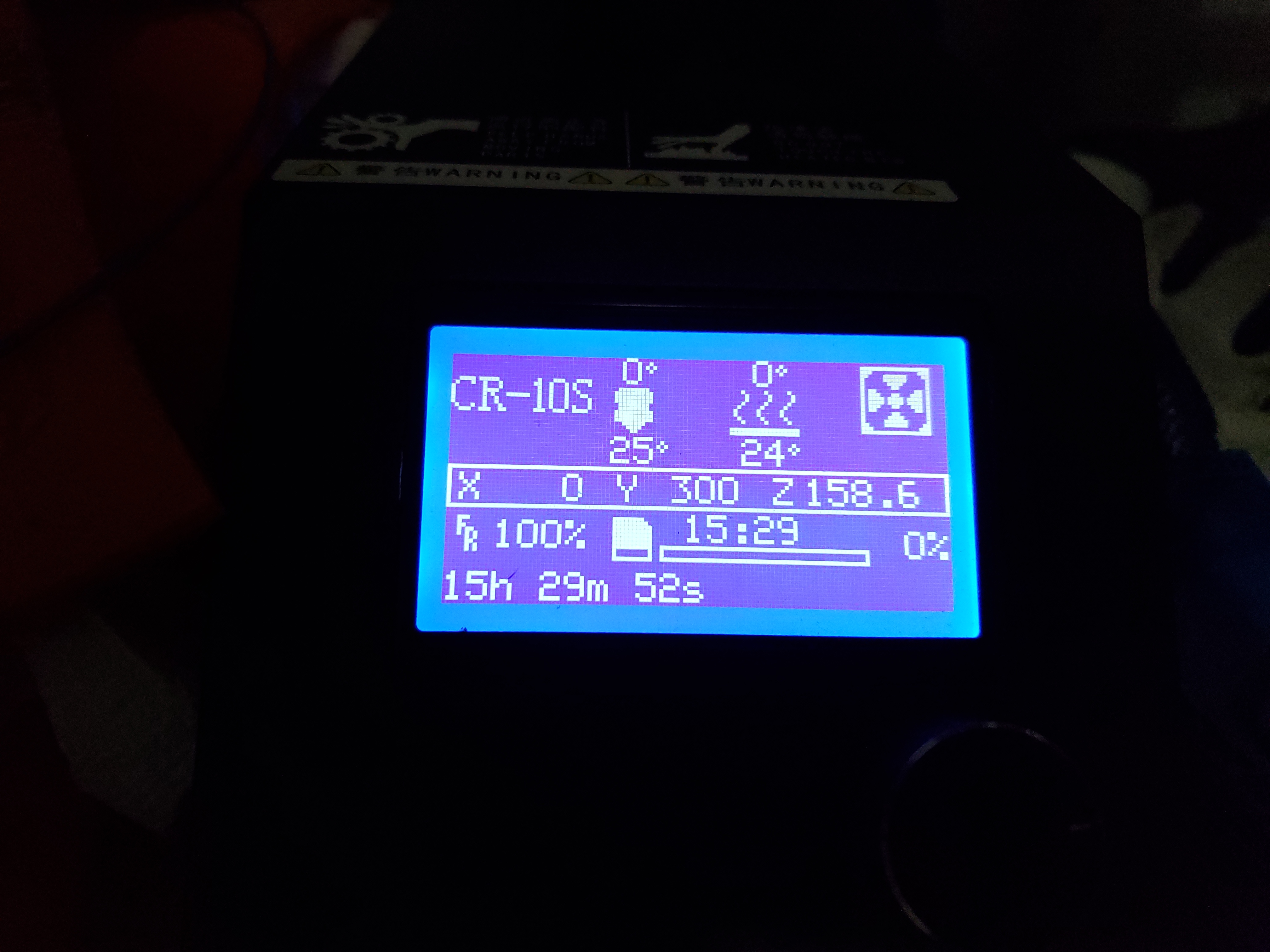

Iron Man Mark XXXIX Starboost upper chest vents.


Attachments

  • 20220818_210359.jpg
    3.1 MB · Views: 20
  • 20220818_210410.jpg
    1.5 MB · Views: 23
  • 20220819_183211.jpg
    3.8 MB · Views: 24
  • 20220819_183219.jpg
    2 MB · Views: 21

duomaxwell1017

New Member

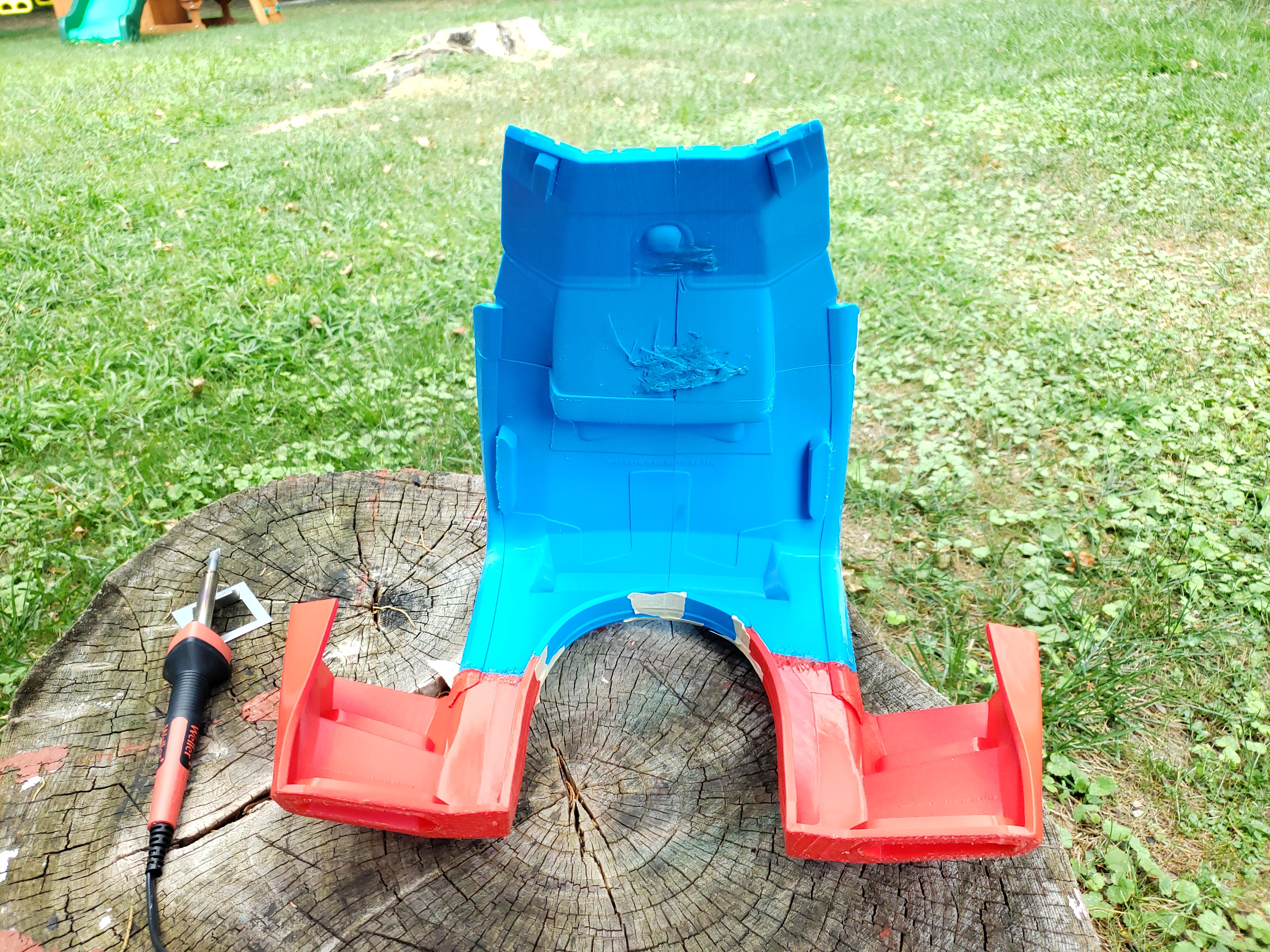

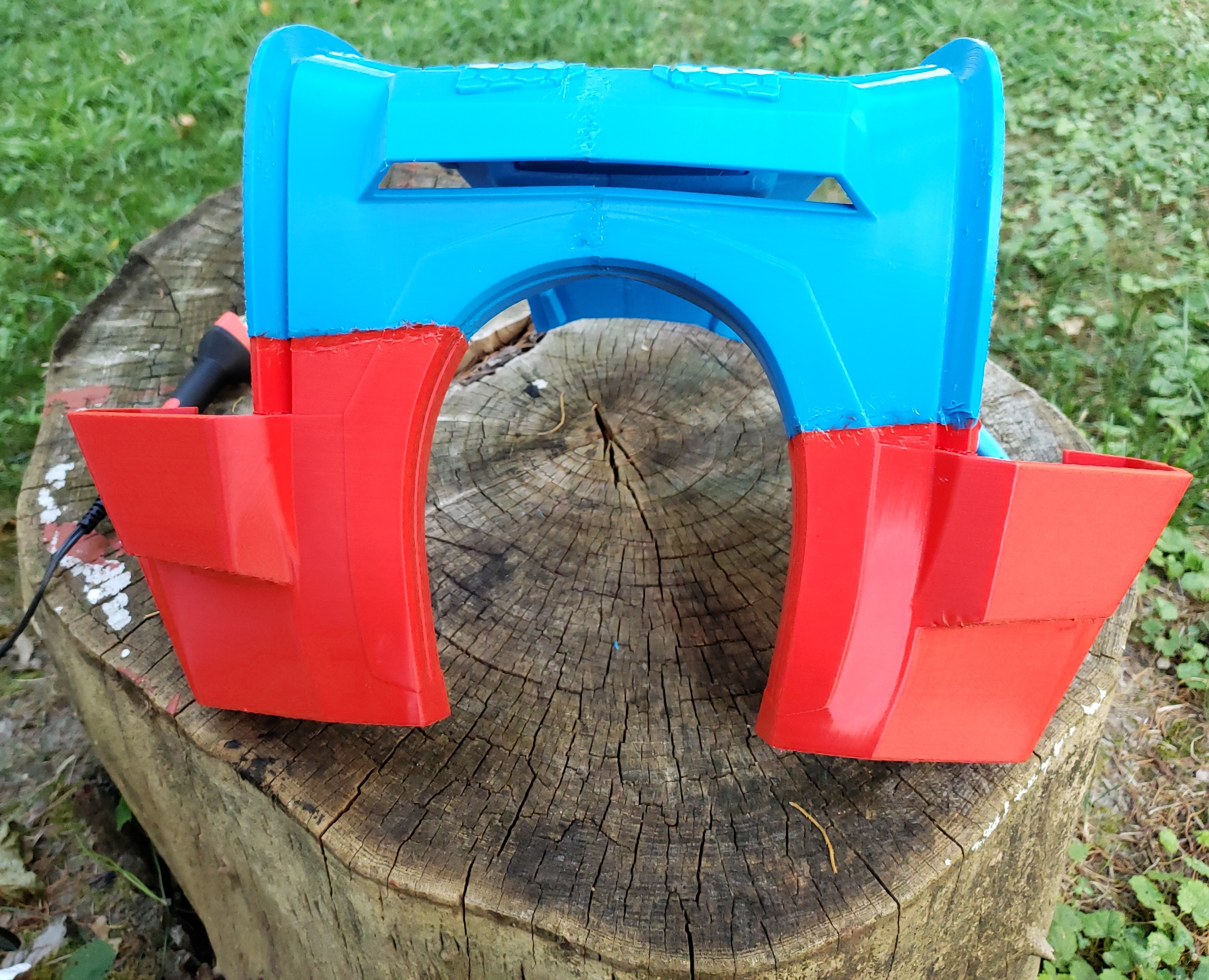

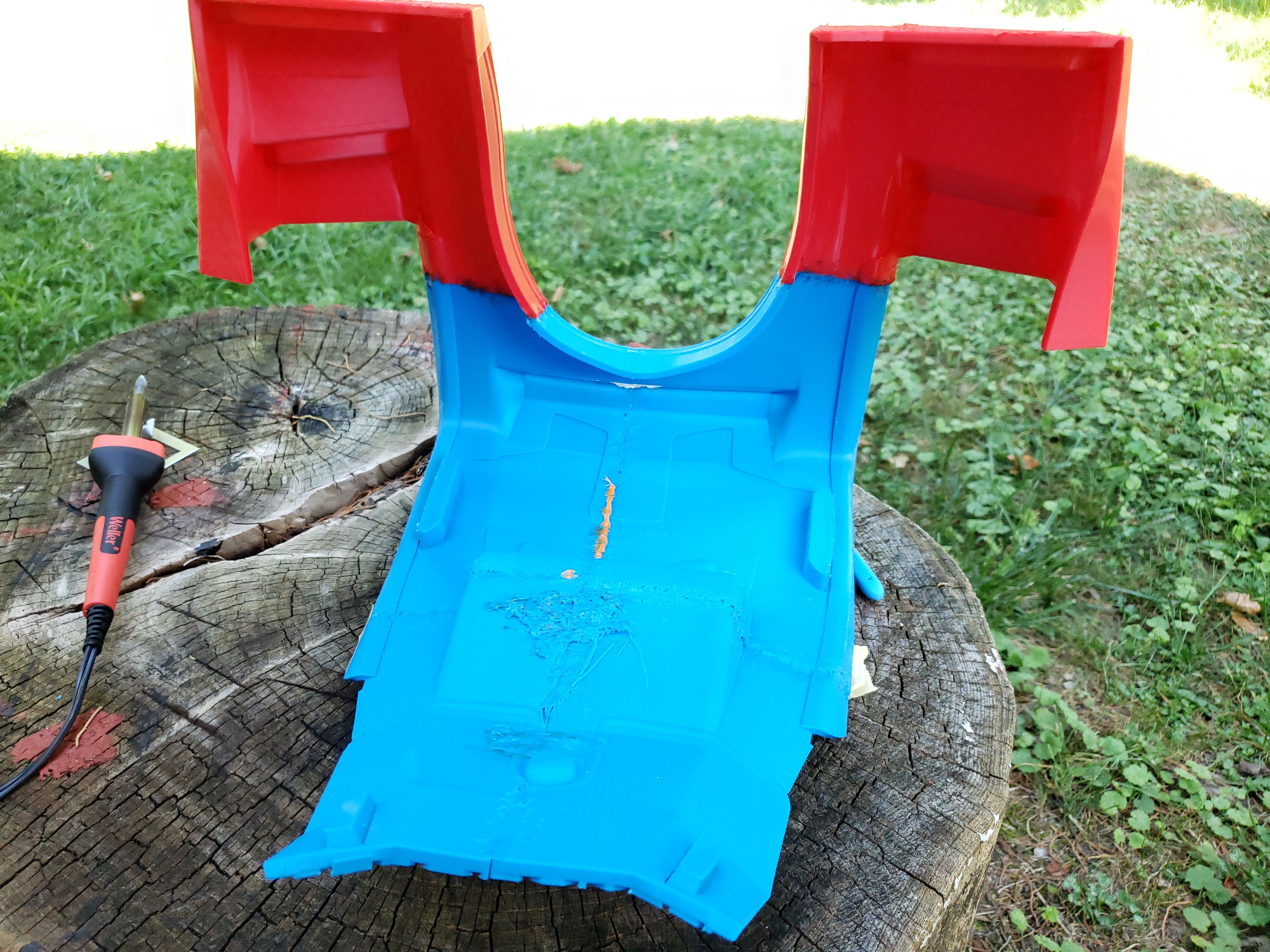

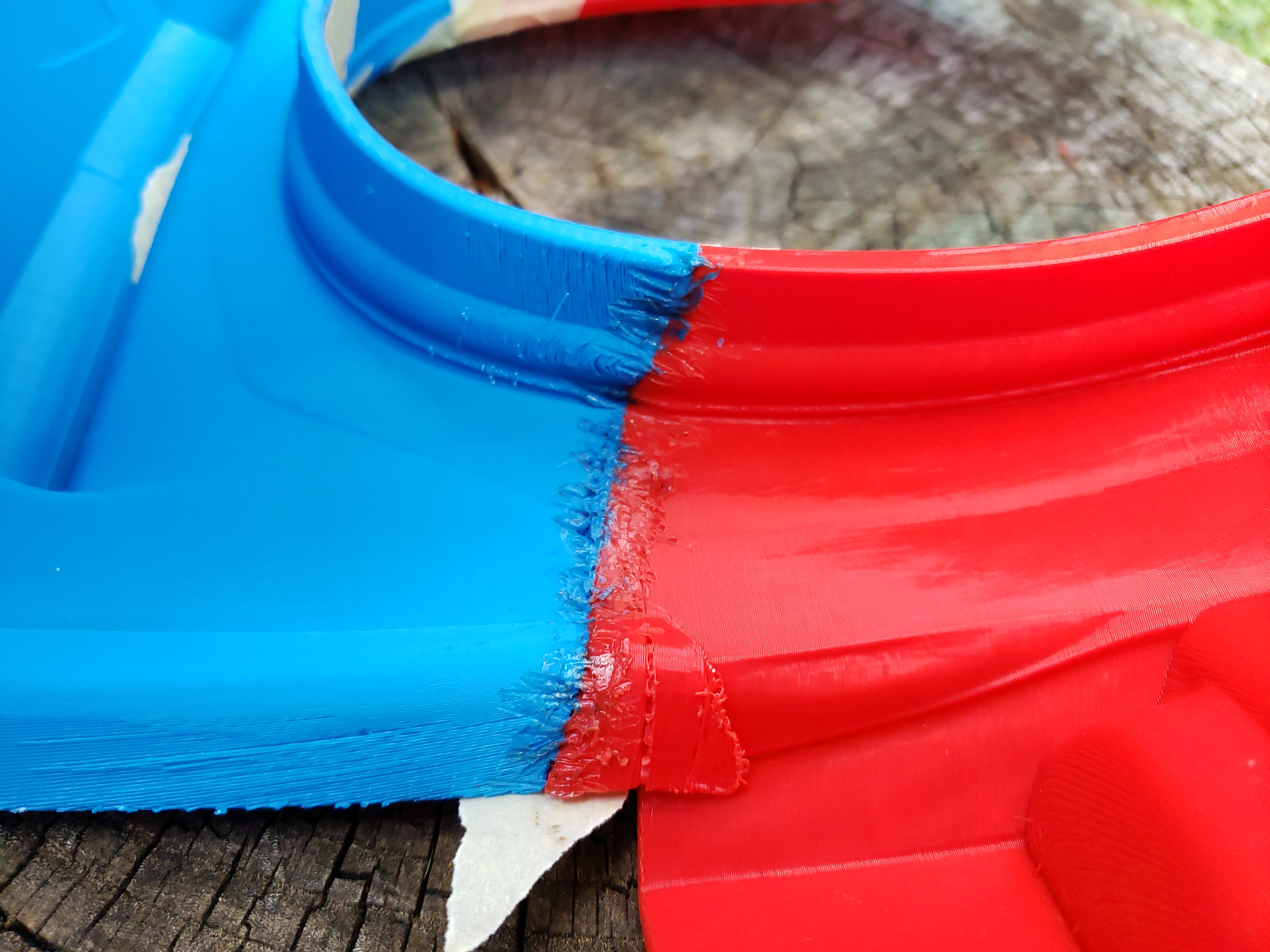

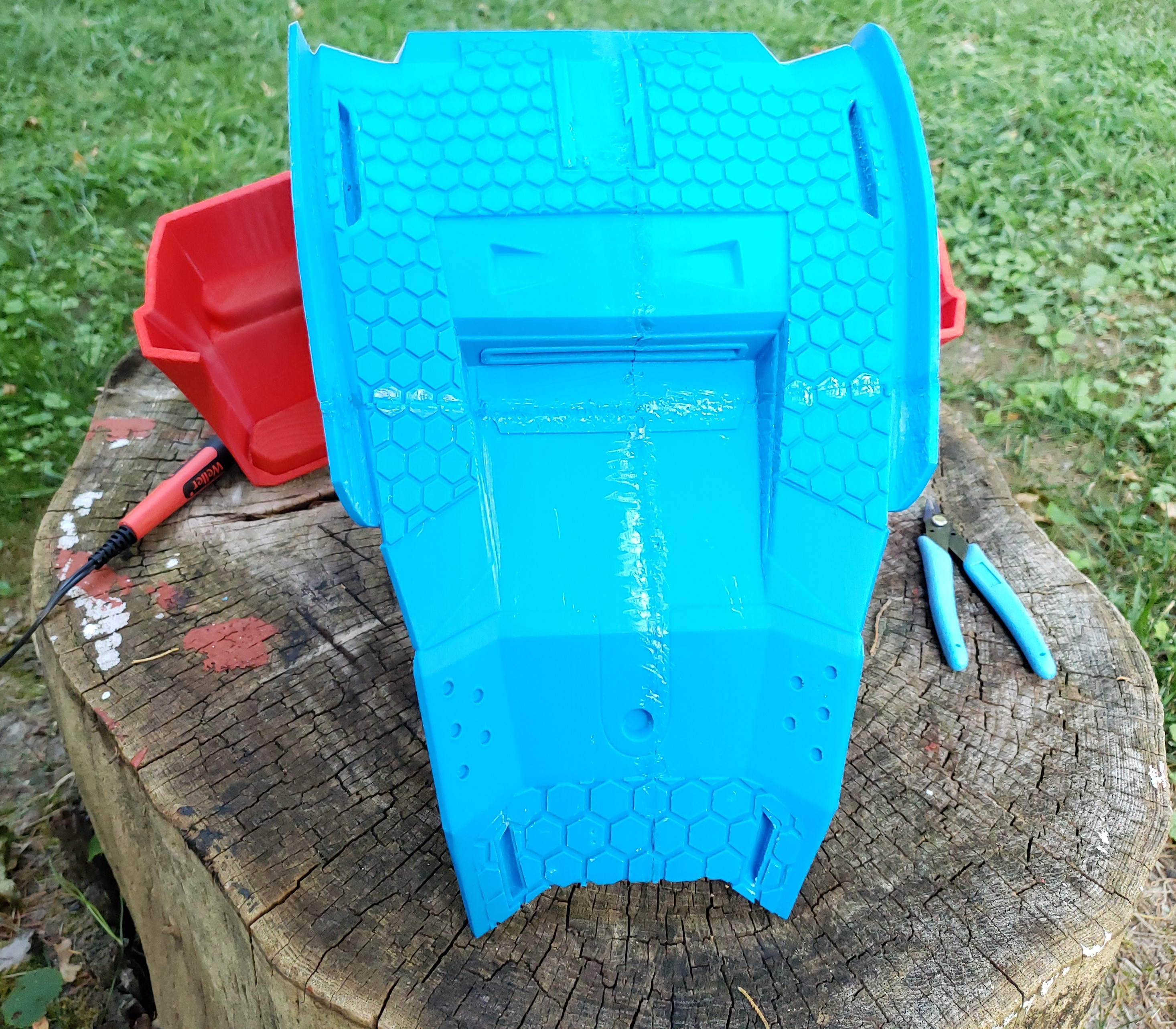

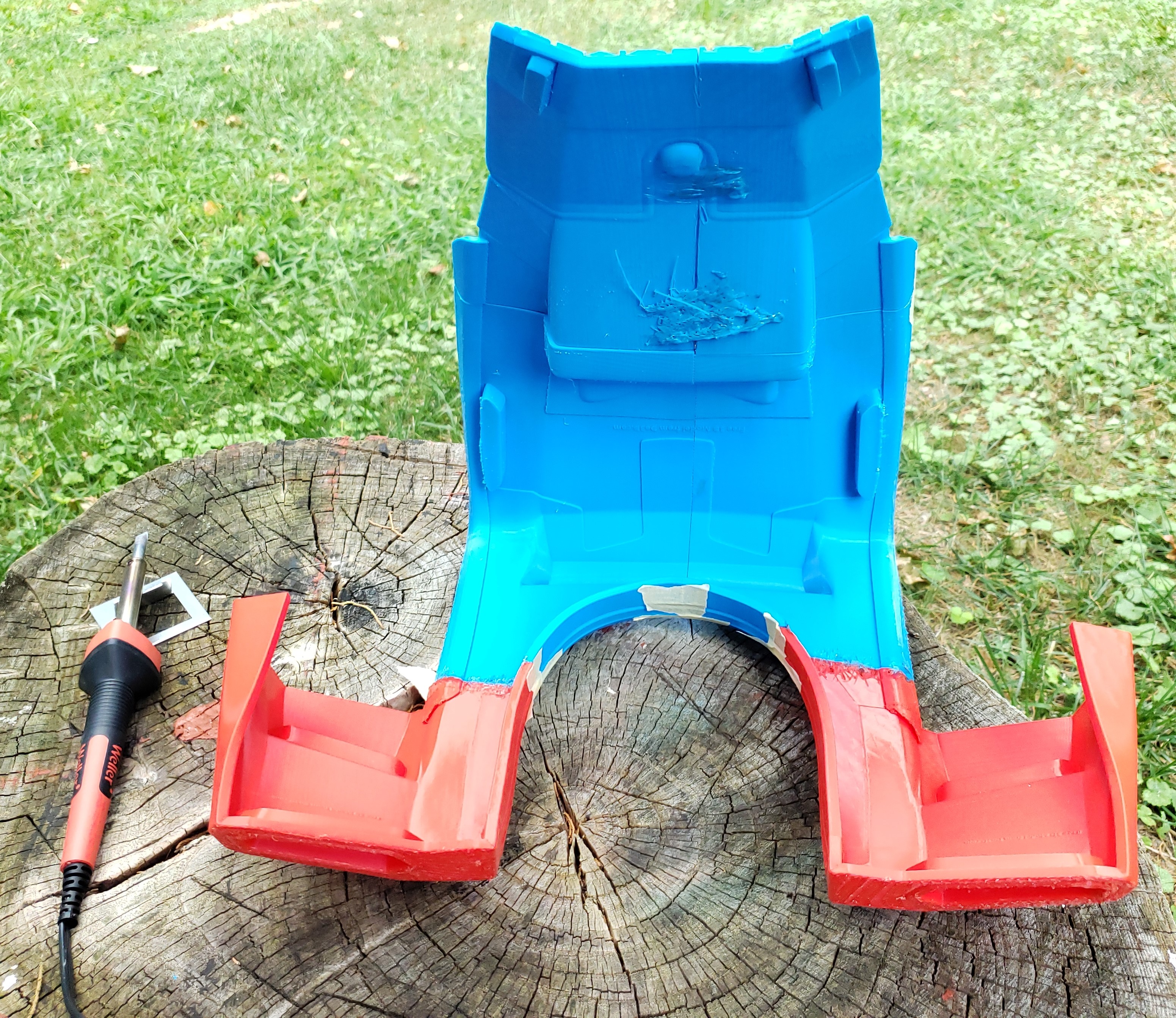

Iron Man Mark XXXIX Starboost welding the center backpack pieces


Attachments

  • 20220820_161827.jpg
    4.2 MB · Views: 27
  • 20220820_161814 B.jpg
    20220820_161814 B.jpg
    1.6 MB · Views: 28
  • 20220820_161801 B.jpg
    20220820_161801 B.jpg
    1.7 MB · Views: 25
  • 20220820_154543.jpg
    4.3 MB · Views: 24
  • 20220820_151107.jpg
    5.6 MB · Views: 24
  • 20220820_151107 B.jpg
    20220820_151107 B.jpg
    2.2 MB · Views: 26
  • 20220820_151052.jpg
    3.4 MB · Views: 27

duomaxwell1017

New Member

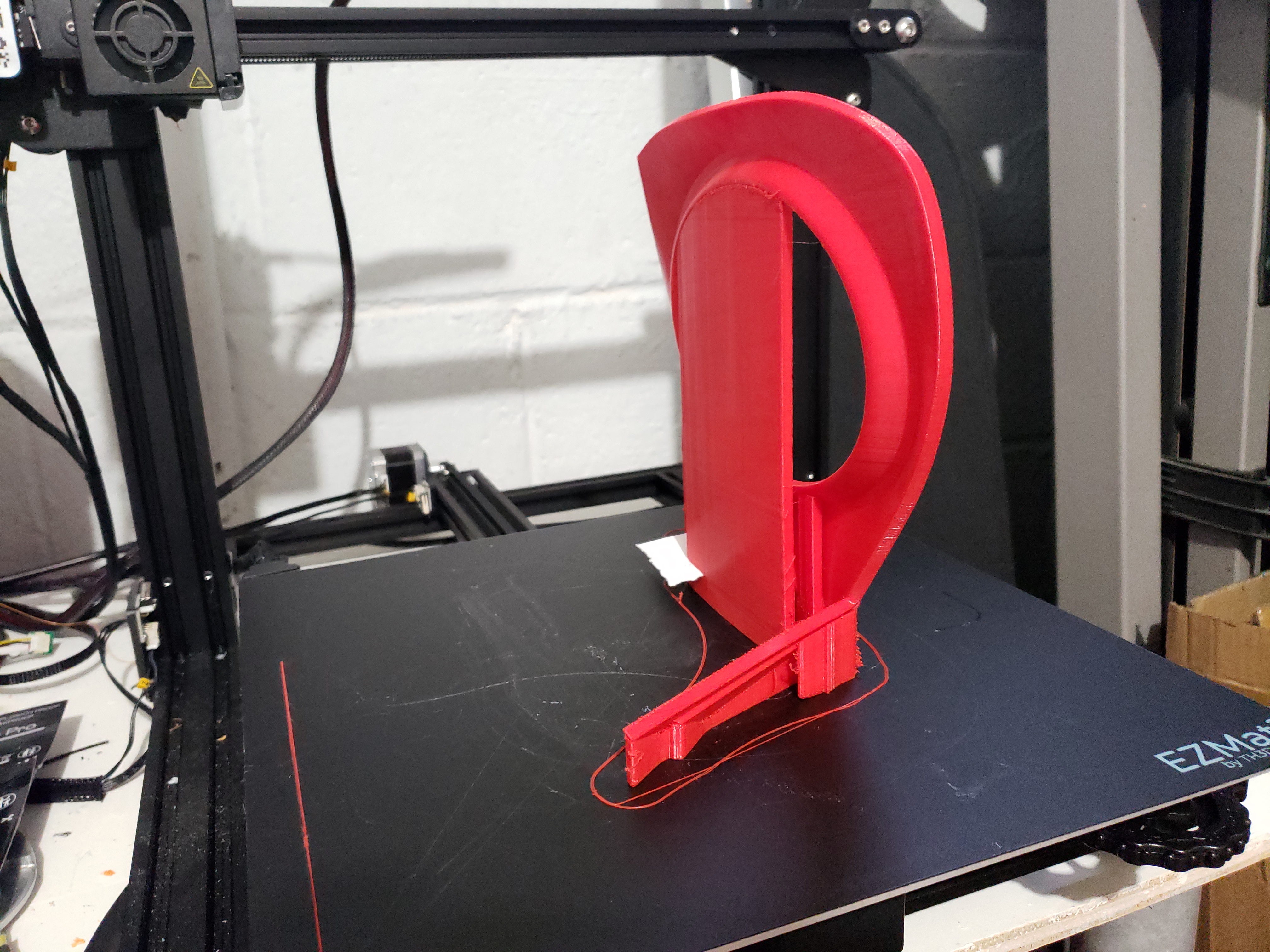

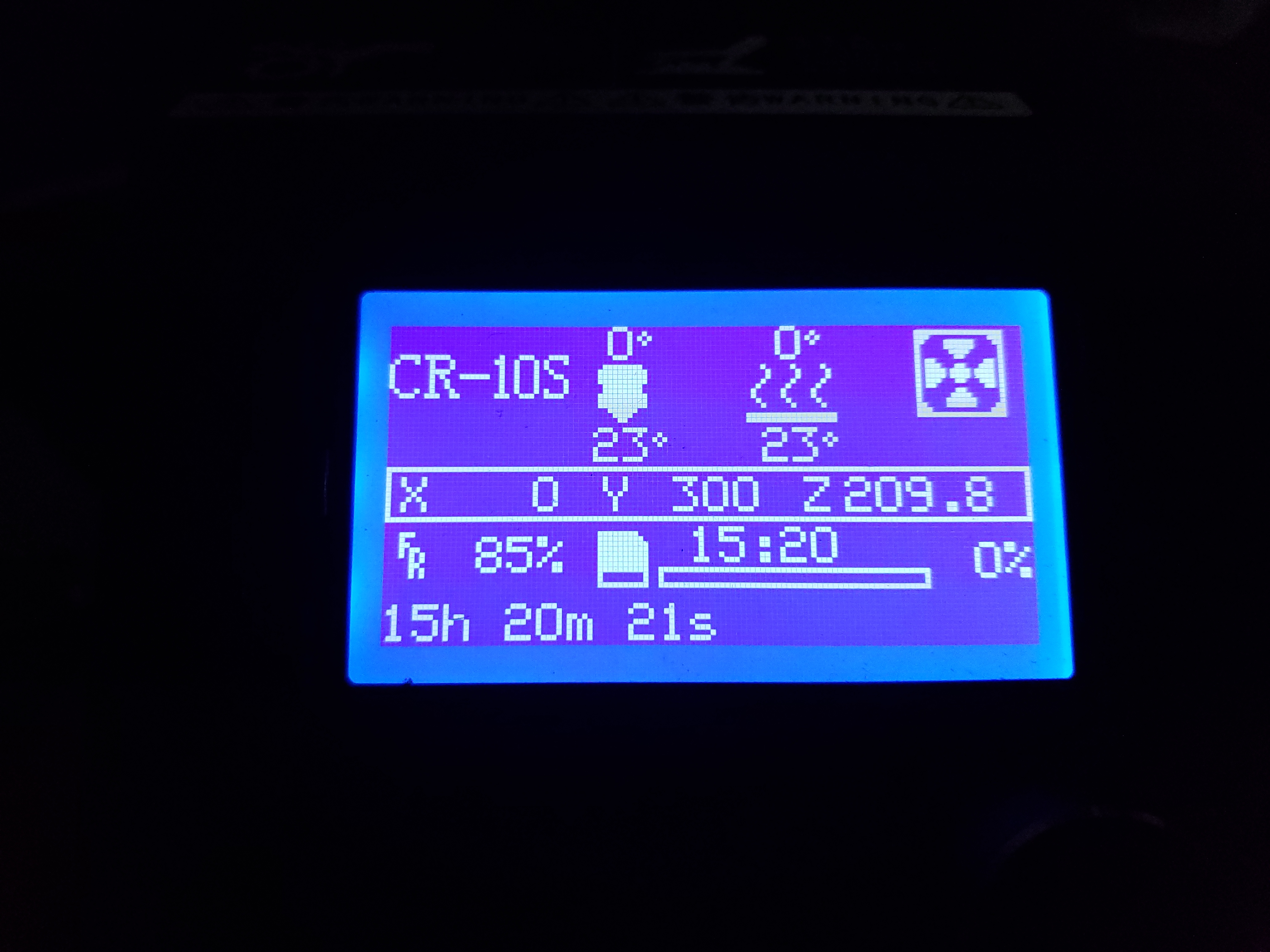

Iron Man Mark XXXIX Starboost chest arm hole. Probably will have to cut this piece so my arm can fit through.


Attachments

  • 20220821_064536.jpg
    3.8 MB · Views: 25
  • 20220821_064549.jpg
    2 MB · Views: 21

duomaxwell1017

New Member

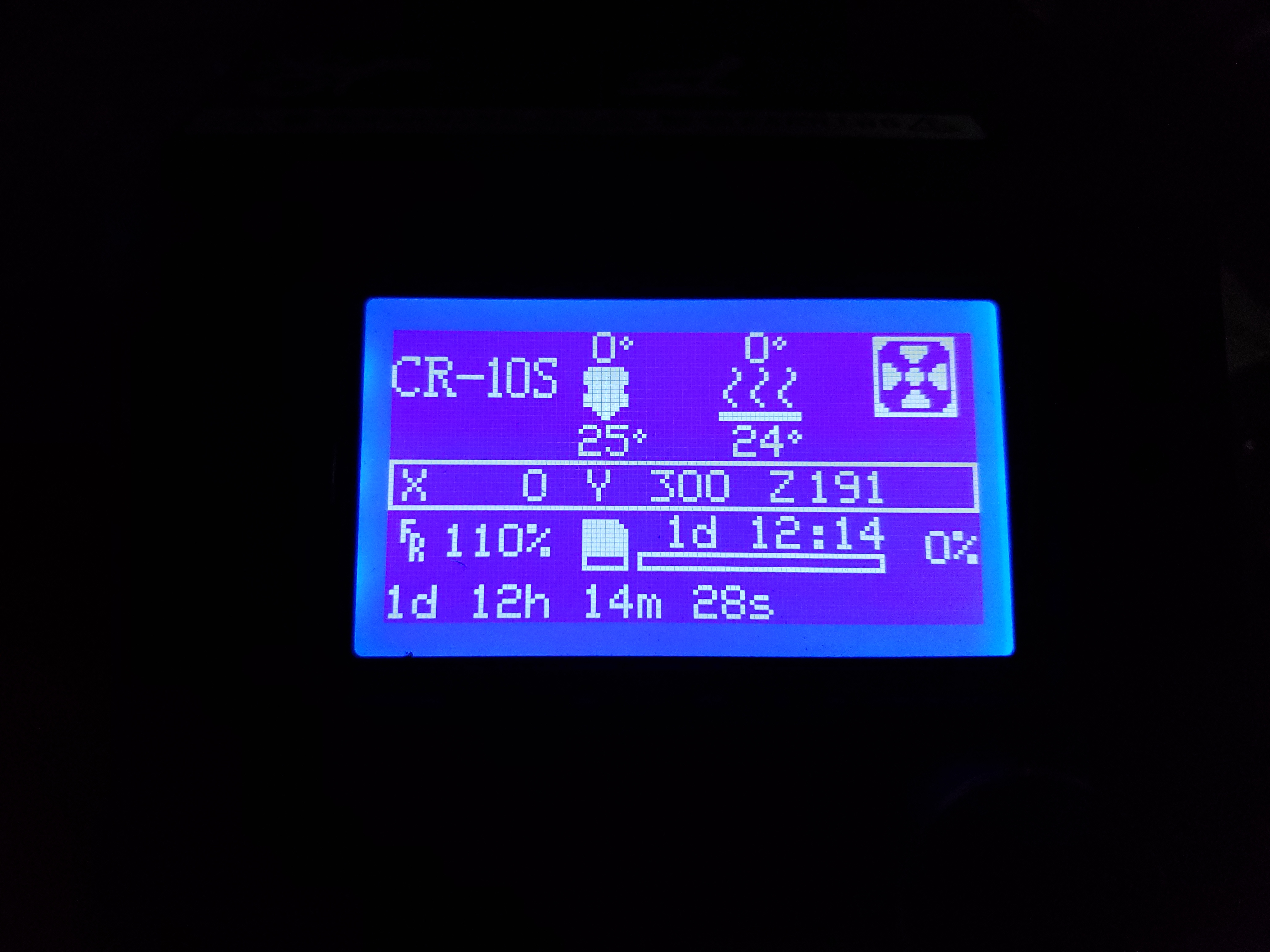

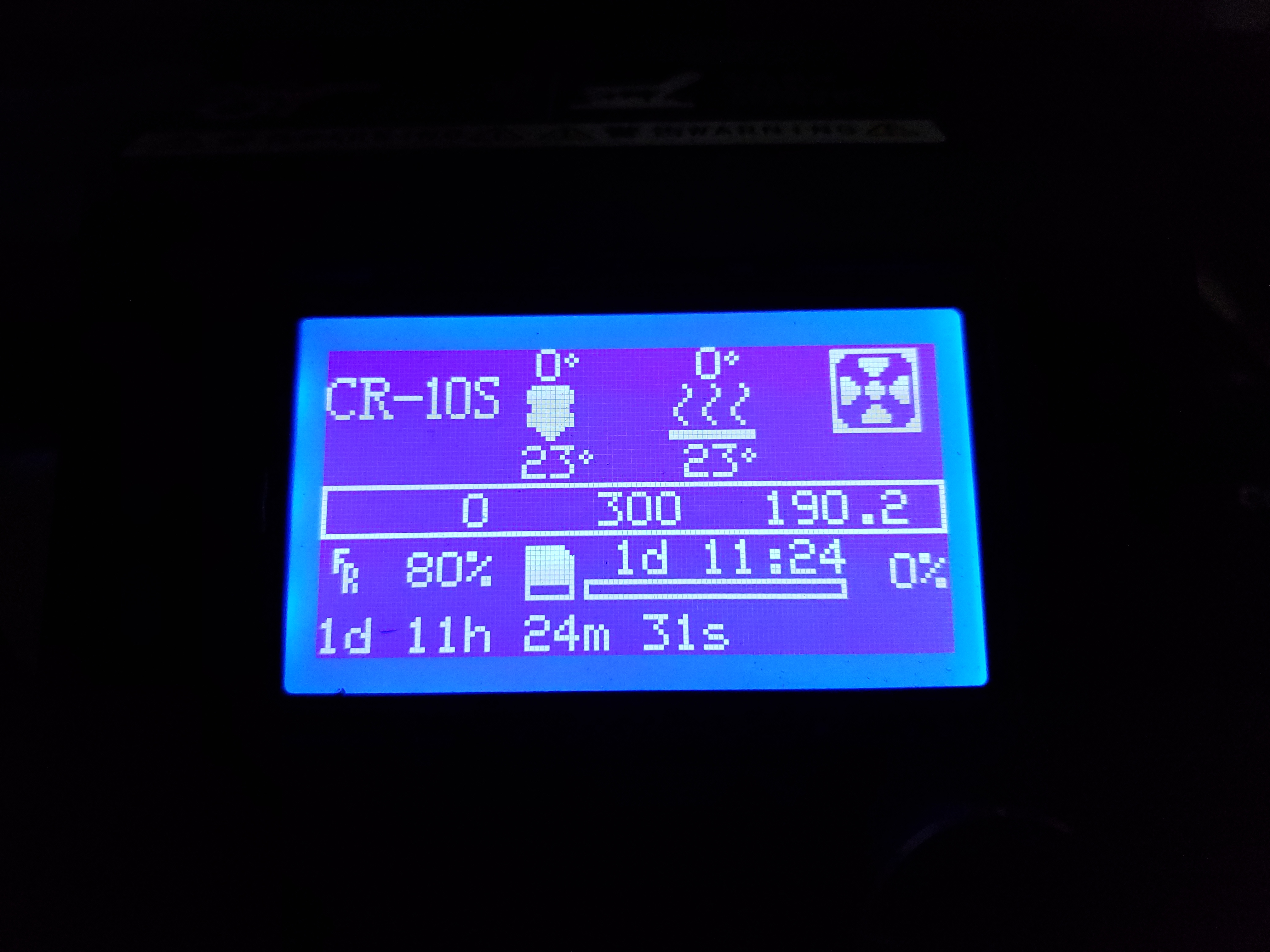

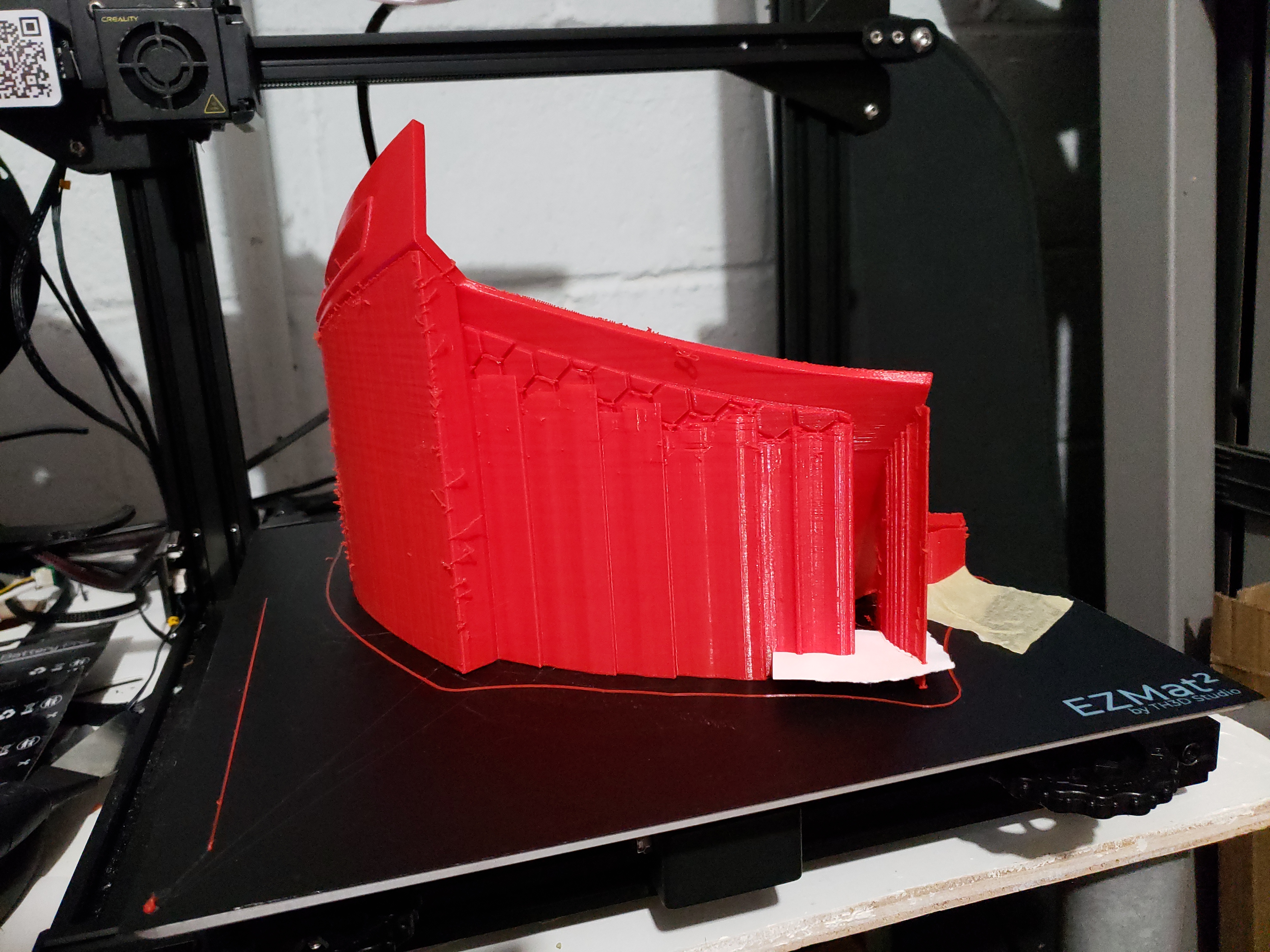

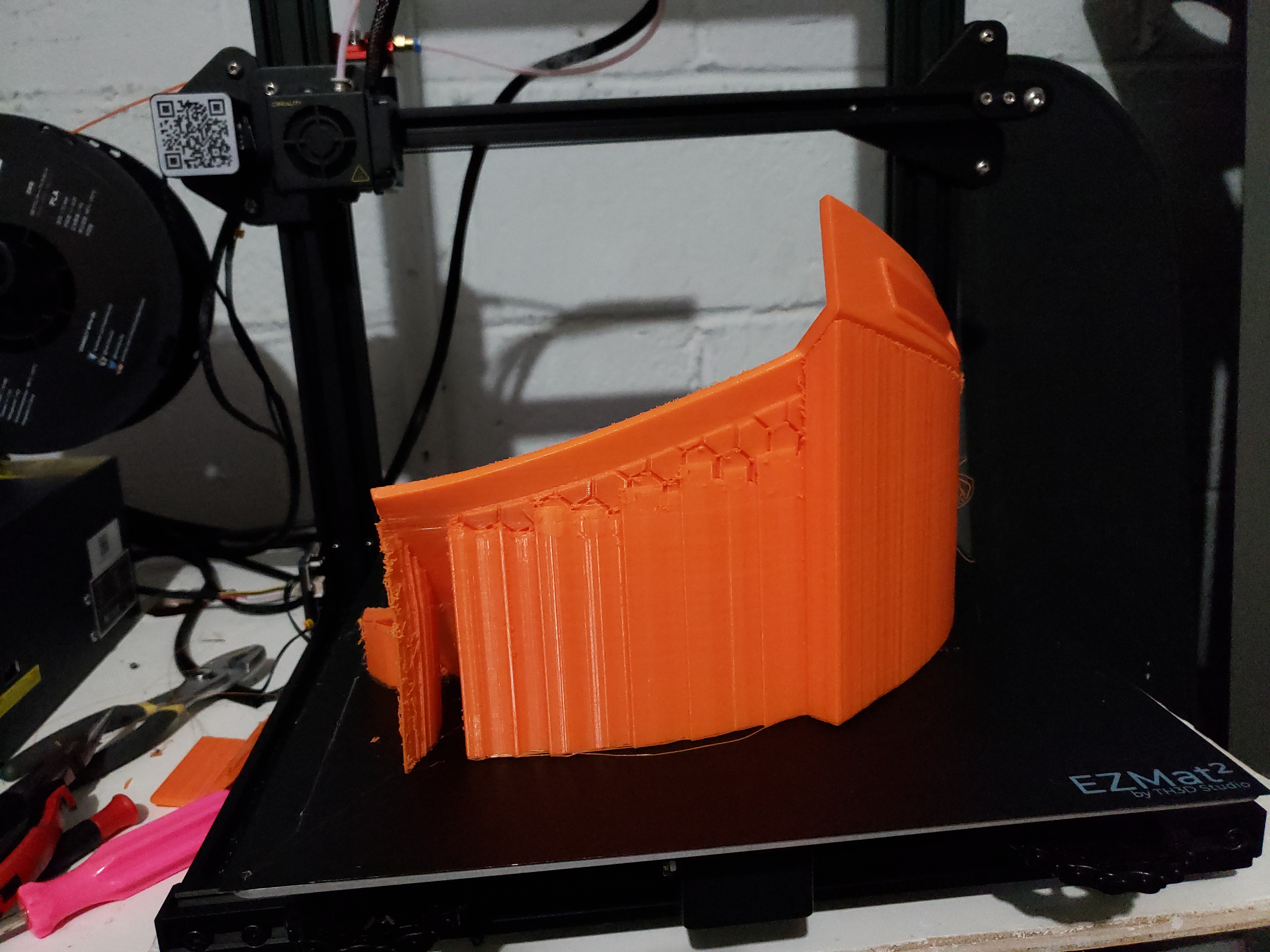

Iron Man Mark XXXIX Starboost lower right and left side abs


Attachments

  • 20220808_061710.jpg
    3.4 MB · Views: 20
  • 20220808_061734.jpg
    1.6 MB · Views: 20
  • 20220823_062827.jpg
    3.7 MB · Views: 23
  • 20220823_062841.jpg
    1.8 MB · Views: 19
