Dune Ornithopter 3D print

[Muzza]

Saw the movie before Christmas and Just need to have one of these ships for the shelf.
The file was purchased from Gambody and was sized up by 350%.



It only took 10 days to get to this stage.



[masterjedi322]

Amazing!

Curious what printer you printed it on…?

Sean



[Muzza]

Amazing!

Curious what printer you printed it on…?

Sean

Phrozen Transform



[Muzza]

Here are a few build photos.


Due to the size of the model the wings would be too heavy in resin for the joints so I am making the wing from foam board and plastic sheet for the detail.


Socket for the wing and front light and gun



[Muzza]

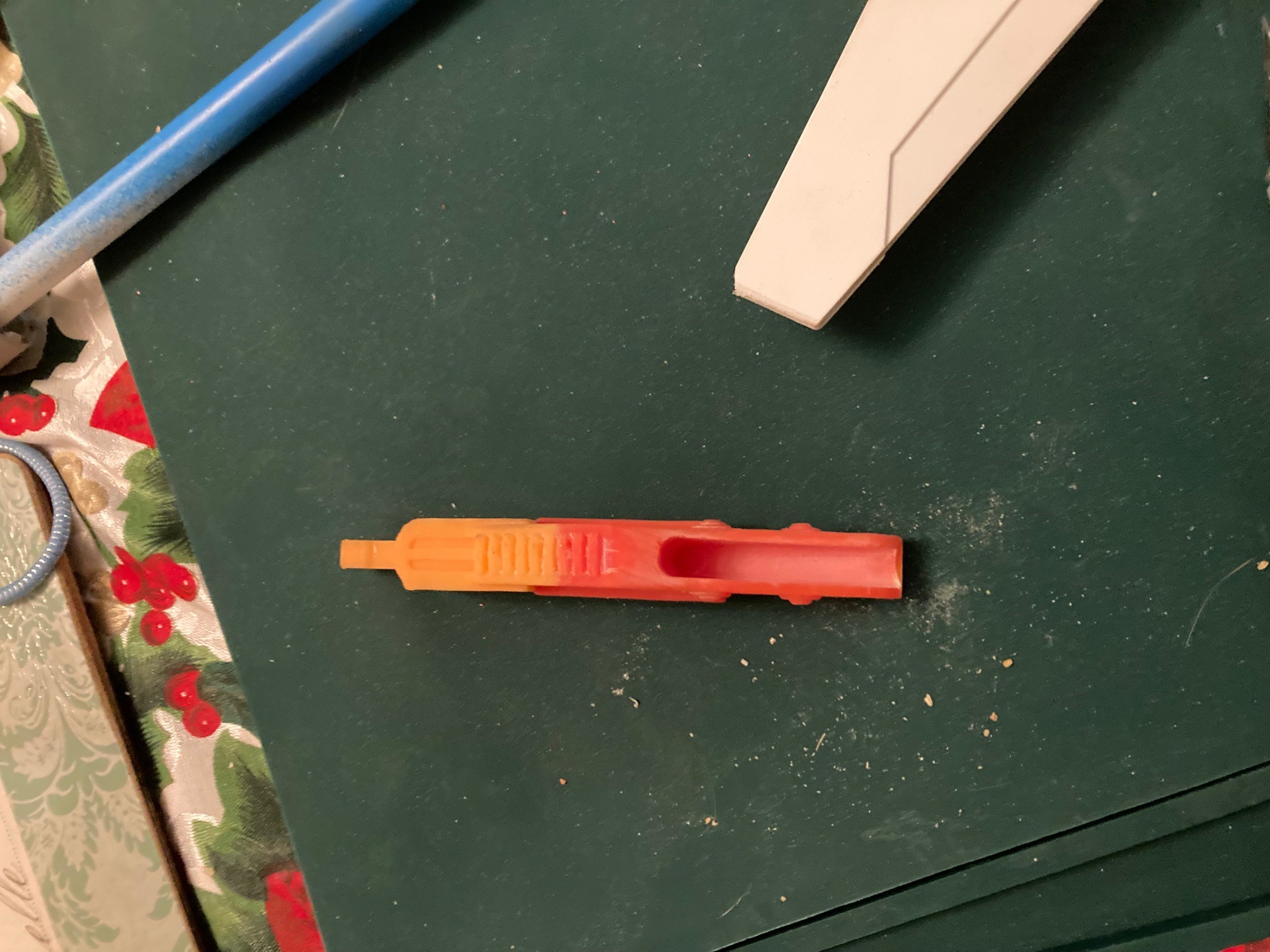

Machining out the original 3D printed wing connecter to fit the light weight wings.



[Muzza]

Here is the wings one 3D printed and the other fabricated from foam board with styrene detail.


Here is the wing with the lazer cut styrene detail parts


There still a piece missing to the wing a out side rail, I will have cut later and add it to the wing.



[Bauble]

Fantastic wings! So sharp.



[Muzza]

Fitting the laser cut wing rail.


Added a space to keep the gap even.



[Muzza]

Start the weathering of the wings.
Paint olive Drab 2
Apply a wash of desert sand.
Wipe off with a rag.
Wait to dry
Then give it a light sand with some fine sandpaper.



[Muzza]

First setup of the wings



[Muzza]

All finished with the wings attached it is over 1 meter long.




To have the wings extended will require the the wing to be fitted with steel rods as the resin connectors are not strong enough to hold their weight.



[joberg]

Really great results/model And I can still see your huge Destroyer outside
