District 9 Gun (3D Print)

Discussion in 'Replica Props' started by Roboto, Mar 28, 2015.

Tags:
  1. Roboto

    Roboto Member RPF PREMIUM MEMBER

    Trophy Points:
    118
    I made a 1/4 scale version some time ago based on Scott Bruin's Solidworks - awesome model on GrabCAD.

    https://grabcad.com/library/district-9-assault-rifle

    It needed a lot of work to cut it up for 3D printing. 1/4 scale was printed on Objet Alaris 30. Full Scale is being printed on MakerBot Replicator 2. Superglue and bondo stage at the moment.

    1/4 Scale:

    Dist 9 Gun 1.jpg Dist 9 Gun 3 .jpg Dist 9 Gun 2 .jpg

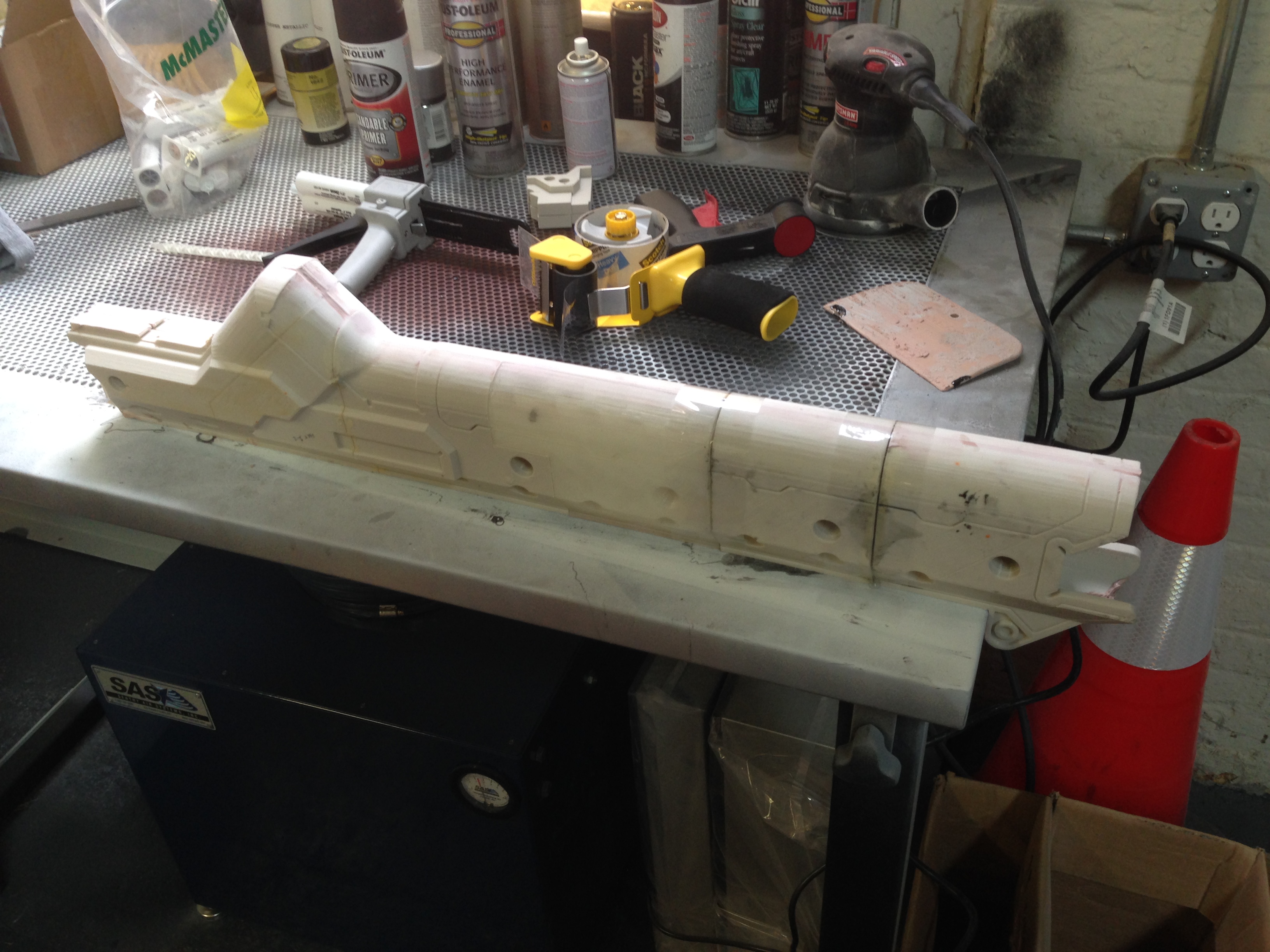

    Full Size:

    IMG_3560.JPG IMG_3559.JPG IMG_3563.JPG IMG_3564.JPG

    MattgomeryBurns and mugatu like this.
  2. LorduDesign

    LorduDesign Sr Member

    Trophy Points:
    1,085
    Really good one! :D

  3. lynx0099

    lynx0099 Well-Known Member

    Trophy Points:
    835
    indeed so good! :)

  4. Roboto

    Roboto Member RPF PREMIUM MEMBER

    Trophy Points:
    118
    Progress.

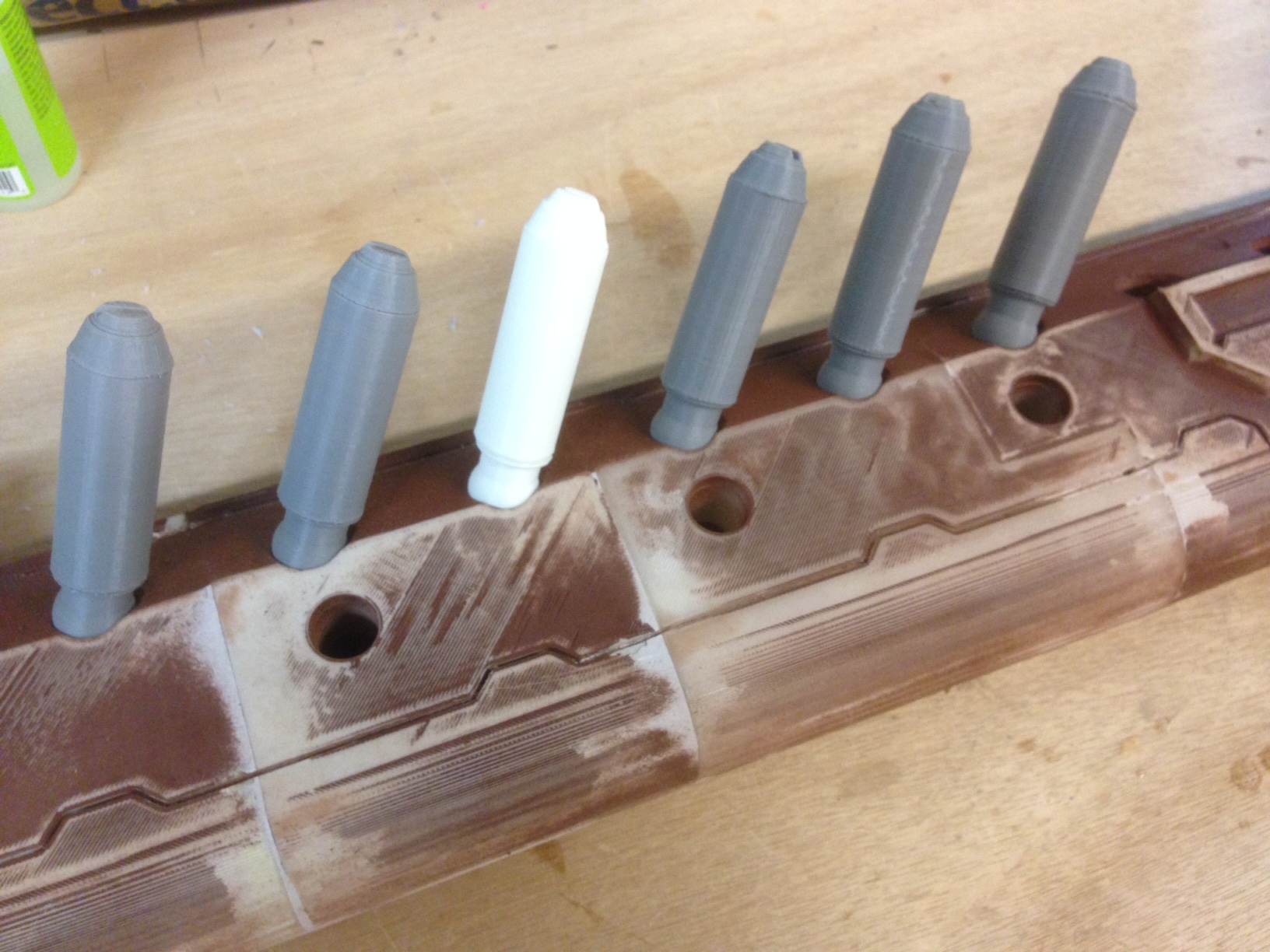

    Tray of sectioned side cannisters that finished printing. Bondo and primer main body- then sand, repeat, sand, repeat. General test fit of parts.

    Still a ways to go - but getting closer.

    IMG_3583.JPG IMG_3582.JPG IMG_3584.JPG IMG_3579.JPG

    Sean and LukaFilm like this.
  5. The5thElement

    The5thElement Active Member

    Trophy Points:
    341
    Good stuff :)

  6. oysteinhole

    oysteinhole Well-Known Member

    Trophy Points:
    566
    Please sell me a kit :) Looking amazing

    mugatu likes this.
  7. Getoninja

    Getoninja Sr Member

    Trophy Points:
    1,115
    anymore updates and are you using the same dimensions from the original by Weta? and whats the cost to make a full size one?

  8. Roboto

    Roboto Member RPF PREMIUM MEMBER

    Trophy Points:
    118
    Got the file from Scott Bruins via GrabCAD - but it needed a lot of work to split up to print. Not selling any at the moment - just prototyping for work portfolio.

    Today's update:

    Gun Nozzles and spot putty of the cartridges. Getting closer.

    IMG_3956.JPG IMG_3955.JPG

  9. tmax

    tmax Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,091
    Me too please! Sorry, had to say it. ;-)


    Sent from my iPhone using Tapatalk

  10. zorg

    zorg Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,661
    nice work,

    here are what the gun nozzles are supposed to be like.
    [​IMG]
    [​IMG]
